8-90 — RADIO AND TV (#45915) — 45 parça

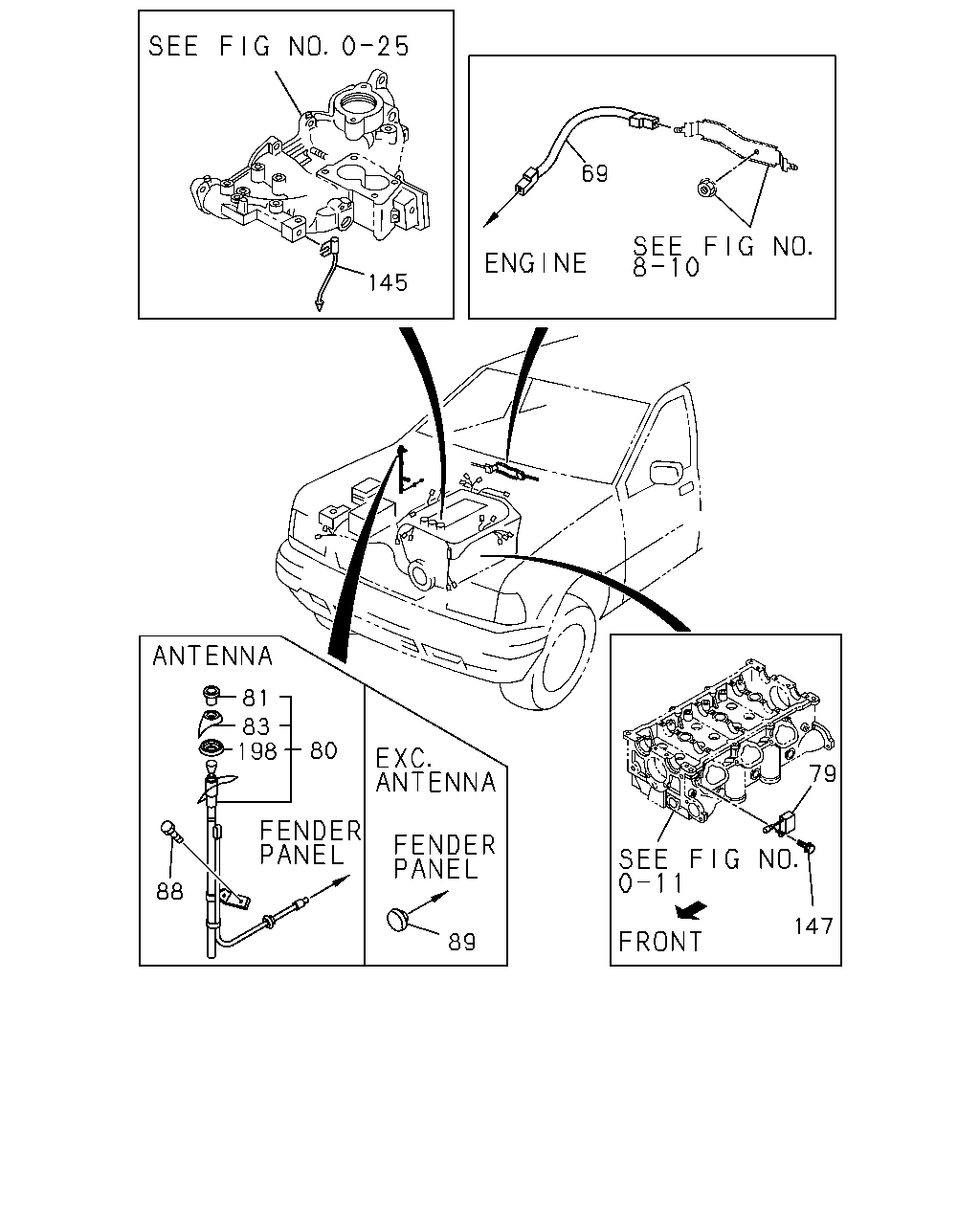

çizim 17028
69 145 79 81 83 198 80 88 147 89
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
69 09.663 CABLE; BONDING,ENG TO BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 09.647 		8-94318-918-1 01 1 9611- ● ● ● ● ● ● ● ●
79 02.319 CONDENSER; RADIO
6VD1 ENG(RLV) 		8-97174-553-1 01 1 9712- ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97131-638-1 01 1 9611- ● ● ● ● ● ● ● ●
81 09.647 NUT; ANTENNA POLE
ANTENNA<U73> 		8-97072-734-0 01 1 9611- ● ● ● ● ● ● ● ●
83 09.647 GROMMET; BASE,ANTENNA POLE INNER
ANTENNA<U73> 		8-97146-501-0 01 1 9611- ● ● ● ● ● ● ● ●
88 09.647 BOLT; ANTENNA EARTH
ANTENNA<U73> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9611- ● ● ● ● ● ● ● ●
89 09.775 GROMMET; FEEDER CABLE
EXC. ANTENNA<U73> 		8-94111-420-0 01 1 9611- ● ● ● ● ● ● ● ●
145 09.663 CONDENSER; IGN COIL
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 02.319 		1-84132-004-0 01 1 9611- ● ● ● ● ● ● ●
147 09.663 BOLT; CONDENSER
6VD1 ENG(RLV) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ● ●
198 09.647 SHEET; ANTENNA
ANTENNA<U73> 		8-97146-502-0 01 1 9611- ● ● ● ● ● ● ● ●

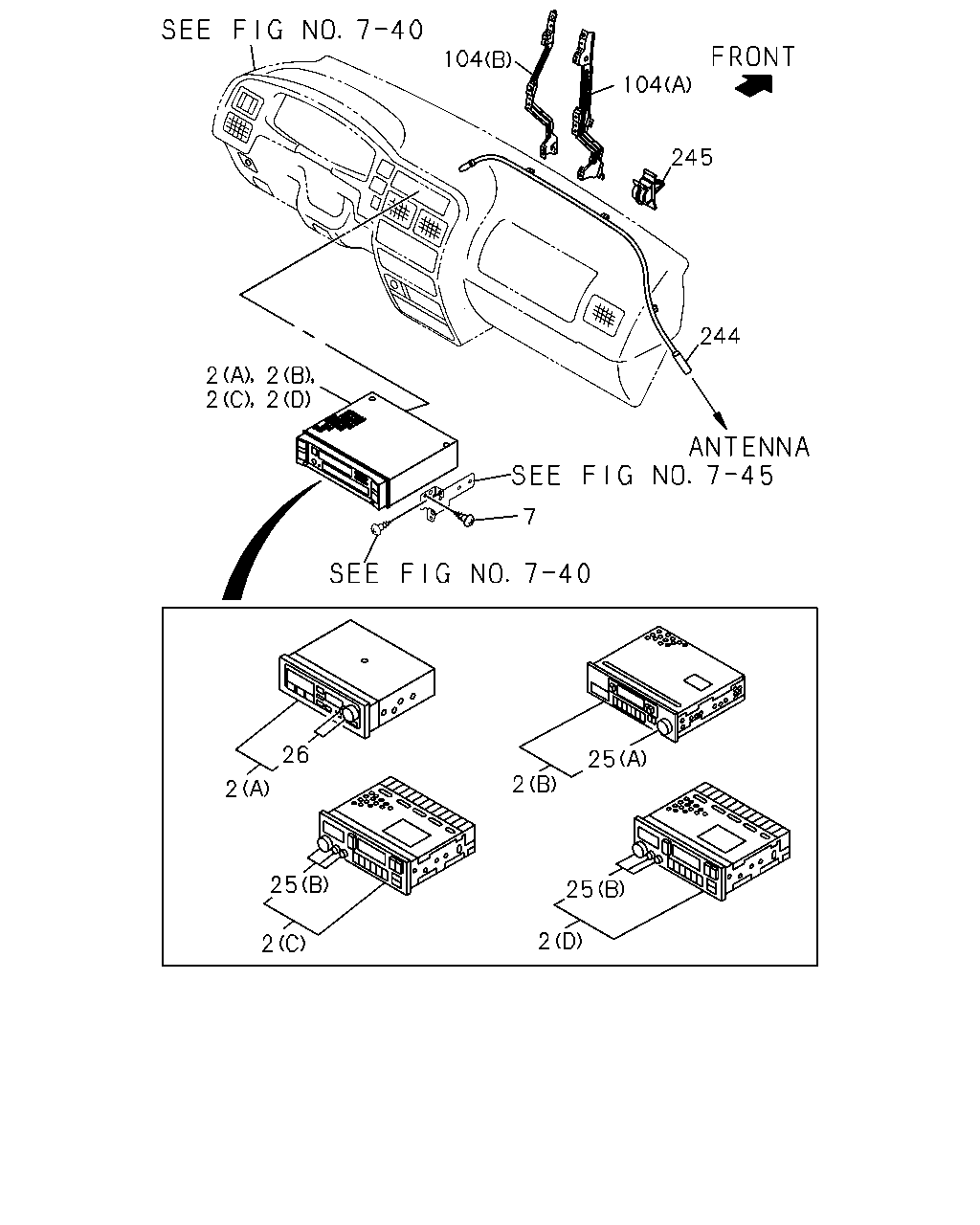

çizim 70151
245 244 2 2 2 2 26 2 25 25 25 2 2 104 104 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 09.645 RADIO & CASSETTE DECK ASM
RADIO-AM ASIA/OCEANIA BAND(7AQ) (A) 		8-97131-640-0 01 1 9611- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO-AM/FM ALL AREA BAND W/CASSETT E 2SPEAKER(7ND) (B) 		8-97137-801-0 01 1 9611- ● ● ● ● ● ● ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO-AM/FM ASIA/OCEANIA BAND W/CAS SETTE(UM6) (C) 		8-97131-639-0 01 1 9611- ● ●
2 09.645 RADIO & CASSETTE DECK ASM
RADIO-AM/FM LATIN AMERICA BAND W/CA SSETTE(UX4) (D) 		8-97131-757-1 01 1 9611- ● ●
7 09.650 SCREW; RADIO
RADIO-AM/FM ASIA/OCEANIA BAND W/CAS SETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),RADIO-AM/FM ALL AREA BAND W/CASSETTE 2SPEAKER(7ND) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9611- ● ● ● ● ● ● ● ●
25 09.649 ATTACH KIT; CASSETTE DECK
RADIO-AM/FM ALL AREA BAND W/CASSETT E 2SPEAKER(7ND) (A) 		8-97162-105-0 01 1 9611- ● ● ● ● ● ● ● ●
25 09.649 ATTACH KIT; CASSETTE DECK
RADIO-AM/FM ASIA/OCEANIA BAND W/CAS SETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4) (B) 		8-97162-104-0 01 1 9611- ● ●
26 09.649 ATTACH KIT; RADIO
RADIO-AM ASIA/OCEANIA BAND(7AQ) SANYO 		8-97093-557-0 01 1 9611- ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(A) 		8-97111-964-0 01 1 9611-9708 ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
16.085 (A) 		8-97107-585-1 01 1 9709- ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(B) 		8-97111-965-2 01 1 9611-9708 ● ● ● ● ● ● ● ●
104 09.645 BRACKET; AUDIO
(B) 		8-97107-584-3 01 1 9709- ● ● ● ● ● ● ● ●
244 09.647 CABLE; FEEDER
ANTENNA<U73> 		8-97145-351-1 01 1 9611- ● ● ● ● ● ● ● ●
245 09.647 CLIP; CABLE,FEEDER
ANTENNA<U73> 09.649 ID=7 		8-97085-207-0 01 1 9611-9708 ● ● ● ● ● ● ● ●
245 09.647 CLIP; CABLE,FEEDER
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 01 1 9709- ● ● ● ● ● ● ● ●

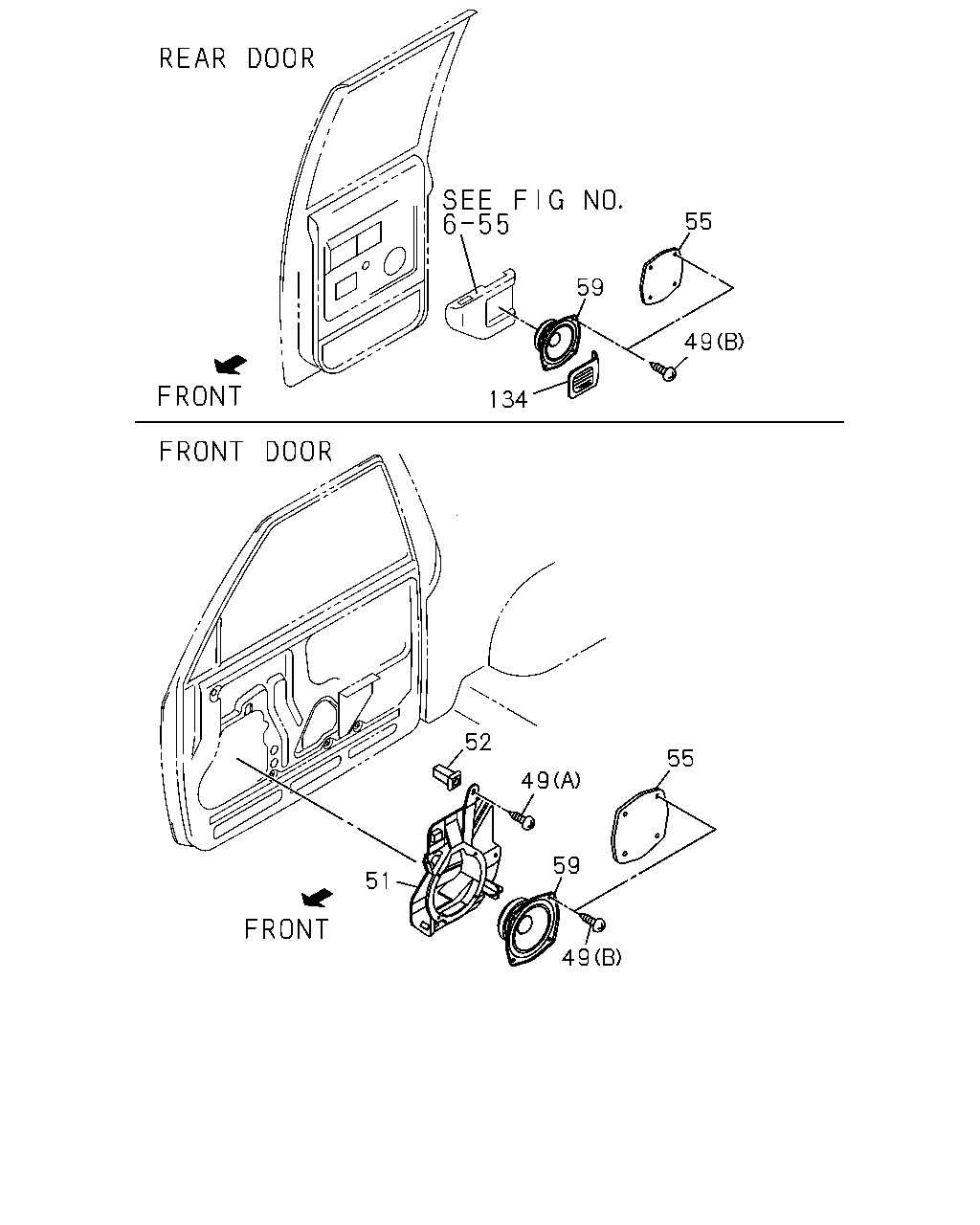

çizim 72028
55 59 49 134 52 55 49 59 51 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 09.655 SCREW; SPEAKER
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 06 1 9611-9711 ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 06 1 9712- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9611- ● ● ● ● ● ● ● ●
49 09.655 SCREW; SPEAKER
POWER WINDOW<A30> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 08 1 9611- ● ●
51 09.655 SPACER; SPEAKER 8-97107-962-5 01 1 9611-9711 ● ● ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-962-5 01 1 9712- ● ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-962-5 01 1 9712- ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-963-5 01 1 9611-9711 ● ● ● ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97107-963-5 01 1 9712- ● ●
51 09.655 SPACER; SPEAKER
GRADE LS(RBD) 		8-97107-963-5 01 1 9712- ● ● ● ● ●
51 09.655 SPACER; SPEAKER
GRADE STD(RBA) 		8-97174-046-0 01 1 9712- ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-046-0 01 1 9712- ●
51 09.655 SPACER; SPEAKER
GRADE STD(RBA) 		8-97174-047-0 01 1 9712- ● ● ● ● ●
51 09.655 SPACER; SPEAKER 8-97174-047-0 01 1 9712- ●
52 09.655 GROMMET; SCREW,SPEAKER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9611-9711 ● ● ● ● ● ● ● ●
52 09.655 GROMMET; SCREW,SPEAKER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9712- ● ● ● ● ● ● ● ●
55 09.650 COVER; SPEAKER HOLE
EXC. RADIO-AM/FM ASIA/OCEANIA BAND W/CASSETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),SPEAKER OPTION 4 SPEAKER<7HK>,PRE WIRING & 2 SPEAKER<7MV>,RADIO-AM/FM ALL ARE A BAND W/CASSETTE 2SPEAKER(7ND) 		8-94372-840-0 02 1 9611- ● ● ● ● ● ● ● ●
59 09.665 SPEAKER; AUDIO
RADIO-AM/FM ASIA/OCEANIA BAND W/CAS SETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),SPEAKER OPTI ON 4 SPEAKER<7HK>,PRE WIRING & 2 SPEAKER<7MV>,RADIO-AM/FM ALL AREA BAN D W/CASSETTE 2SPEAKER(7ND) 		8-97147-525-0 02 1 9611- ● ● ● ● ● ● ● ●
134 09.665 GRILLE; SPEAKER,RR
GRADE LS(RBD) POWER WINDOW<A30> GRAY 		8-97154-679-2 01 1 9611- ● ●
134 09.665 GRILLE; SPEAKER,RR
GRADE LS(RBD) POWER WINDOW<A30> GRAY 		8-97154-678-2 01 1 9611- ● ●
