8-75 — CONDENSER (#45913) — 51 parça

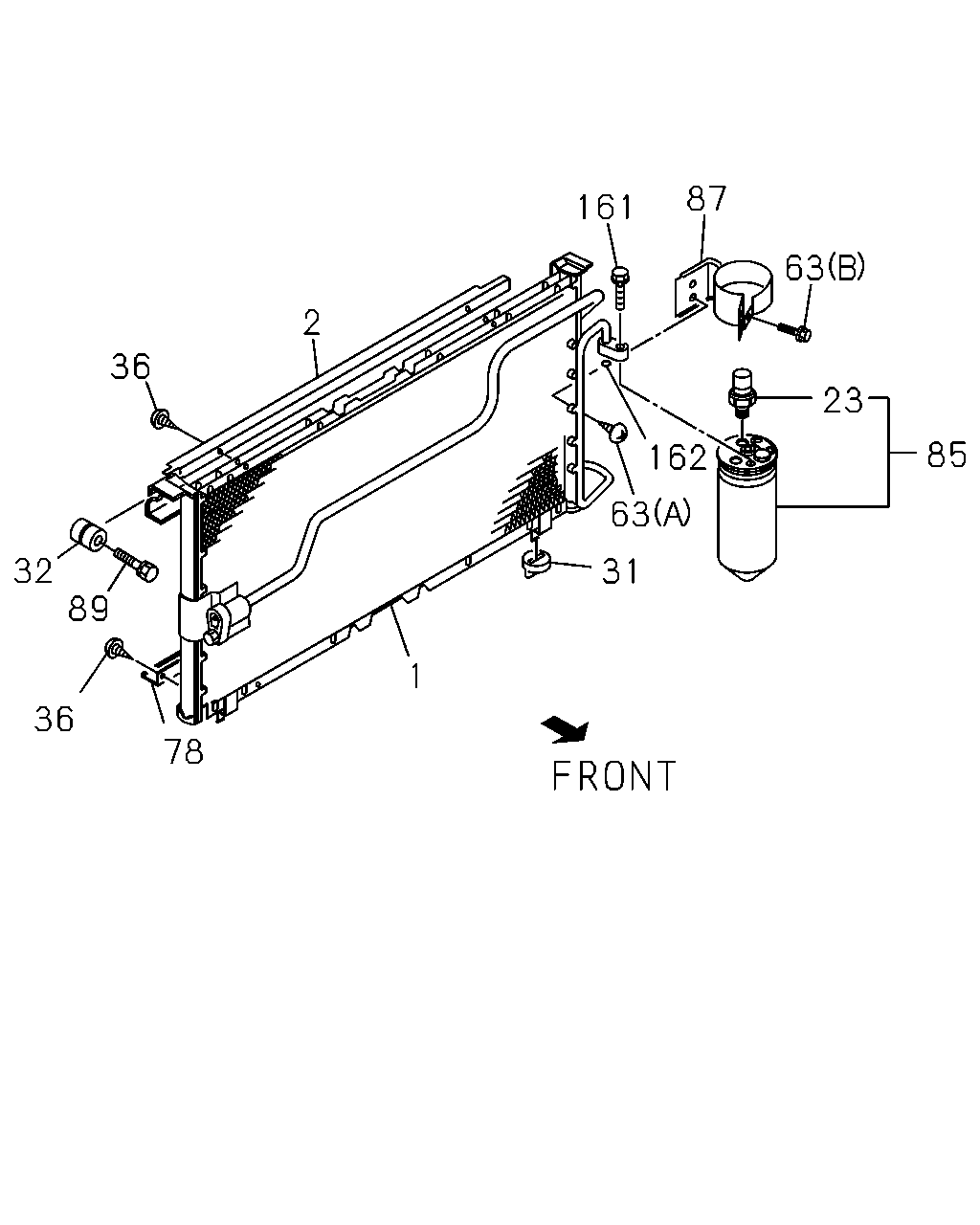

87 161 63 2 36 23 162 85 63 32 89 31 1 36 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-212-1	01	1	9611-9711	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-212-1	01	1	9712-	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-002-0	01	1	9712-				●				●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9611-	●	●	●	●	●	●	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9611-	●	●	●	●	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9611-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9611-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9611-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.190 (A) M5X14 TAPPING	8-97049-258-0	02	1	9611-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) M6X20	8-97049-253-0	01	1	9611-9711	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) M6X20	8-97049-253-0	01	1	9712-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (B) M6X25	8-97095-660-0	01	1	9712-				●				●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9611-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-452-0	01	1	9611-9711	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-452-0	01	1	9712-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-845-0	01	1	9712-				●				●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97091-159-0	01	1	9611-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9611-	●	●	●	●	●	●	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9611-	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9611-9711	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9712-	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9712-				●				●

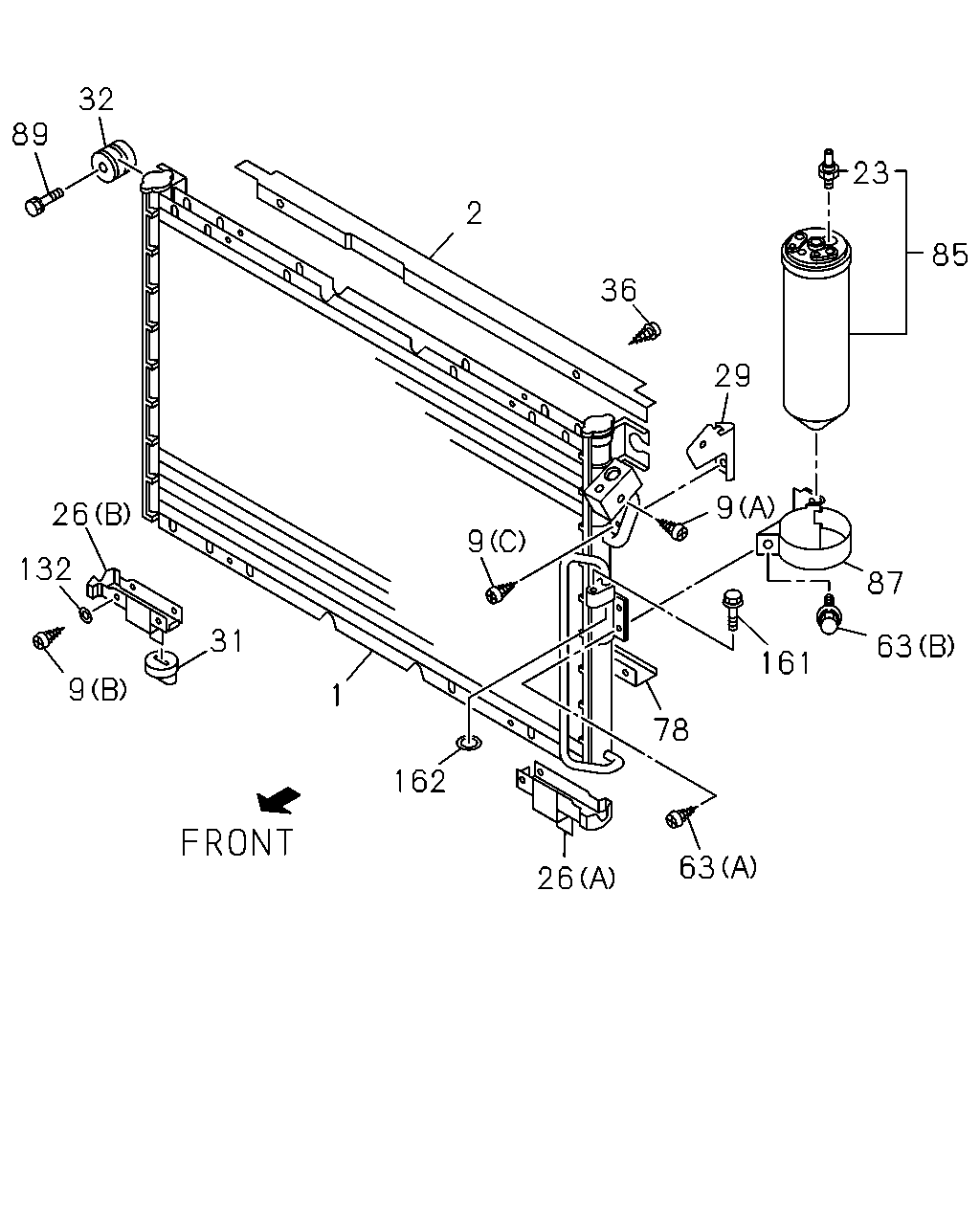

32 89 23 2 85 36 29 9 26 9 132 87 31 63 161 1 78 162 63 26 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-212-1	01	1	9611-9711	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-212-1	01	1	9712-	●	●	●	●	●	●	●	●
1	09.190 CONDENSER; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-002-0	01	1	9712-				●				●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9611-	●	●	●	●	●	●	●	●
9	09.190 BOLT; BRKT 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) M5X14 TAPPING	8-97049-258-0	02	1	9712-				●				●
9	09.190 BOLT; BRKT 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97096-061-0	04	1	9712-				●				●
9	09.190 BOLT; BRKT 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.216 (C)	8-97049-268-0	01	1	9712-				●				●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9611-	●	●	●	●	●	●	●	●
26	09.190 BRACKET; LOW 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97096-056-0	01	1	9712-				●				●
26	09.190 BRACKET; LOW 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97096-058-0	01	1	9712-				●				●
29	09.190 BRACKET; SIDE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97178-003-0	01	1	9712-				●				●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9611-	●	●	●	●	●	●	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9611-	●	●	●	●	●	●	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9611-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.190 (A) M5X14 TAPPING	8-97049-258-0	02	1	9611-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) M6X20	8-97049-253-0	01	1	9611-9711	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) M6X20	8-97049-253-0	01	1	9712-	●	●	●	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (B) M6X25	8-97095-660-0	01	1	9712-				●				●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9611-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-452-0	01	1	9611-9711	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97115-452-0	01	1	9712-	●	●	●	●	●	●	●	●
85	09.172 DRYER; RECEIVER 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-845-0	01	1	9712-				●				●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97091-159-0	01	1	9611-	●	●	●	●	●	●	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9611-	●	●	●	●	●	●	●	●
132	09.190 WASHER; BRKT 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.220	8-97049-269-0	04	1	9712-				●				●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9611-	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9611-9711	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9712-	●	●	●	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9712-				●				●
