Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#45912) — 112 parça

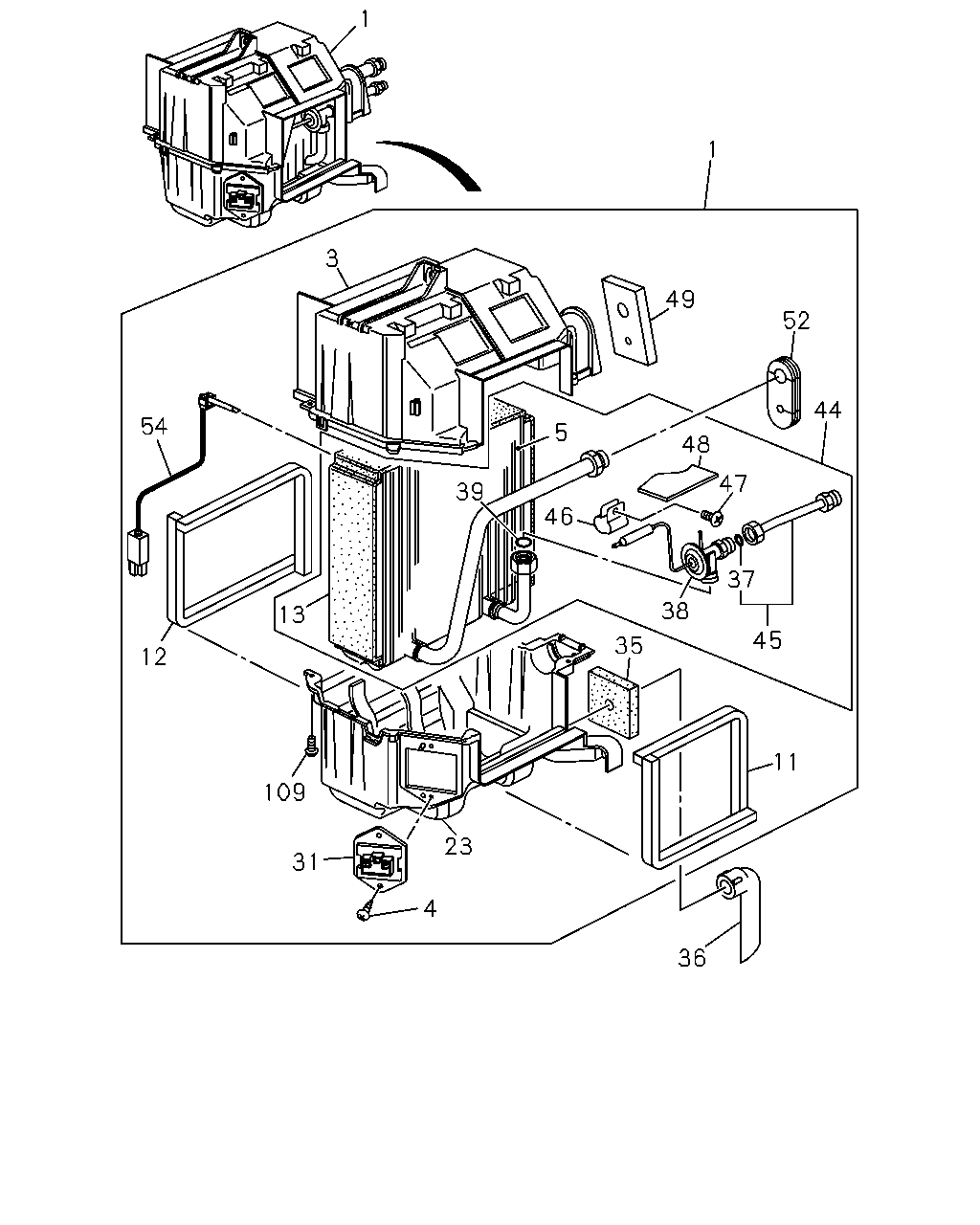

1 1 49 3 44 52 81 45 12 37 47 54 39 46 48 38 5 13 35 10 109 23 31 4 36 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-1	01	1	9611-9711	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-1	01	1	9712-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97164-585-0	01	1	9712-				●				●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9611-9711	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9712-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97221-319-0	01	1	9712-				●				●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9611-9711	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9712-	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	02	1	9712-				●				●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-352-0	01	1	9611-9711	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-352-0	01	1	9712-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-291-0	01	1	9712-				●				●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.854	1-83574-148-0	03	1	9611-9711	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.854	1-83574-148-0	03	1	9712-	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9611-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9611-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9611-9711	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=4.0	8-97165-293-0	01	1	9712-				●				●
13	09.211 SEAL; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9712-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9611-9711	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9712-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97221-320-0	01	1	9712-				●				●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-97078-452-1	01	1	9611-9711	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-97078-452-1	01	1	9712-	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-136-1	01	1	9712-				●				●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-405-2	01	1	9611-	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94446-972-1	01	1	9611-9711	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94446-972-1	01	1	9712-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6	8-94481-700-0	01	1	9611-9711	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6	8-94481-700-0	01	1	9712-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.195 ID=6.07	8-94461-902-0	01	1	9712-				●				●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-242-0	01	1	9611-9711	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-242-0	01	1	9712-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-788-0	01	1	9712-				●				●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9611-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-361-0	01	1	9611-9711	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-361-0	01	1	9712-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-793-0	01	1	9712-				●				●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9611-9711	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9712-	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-292-0	01	1	9712-				●				●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83574-124-1	01	1	9611-9711	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83574-124-1	01	1	9712-	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 ID=8X2	8-94344-881-1	01	1	9712-				●				●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97130-601-0	01	1	9611-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9611-9711	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9712-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83579-784-0	01	1	9712-				●				●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9611-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9611-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9611-9711	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9712-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-415-0	01	1	9712-				●				●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9611-9711	●	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9712-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9611-9711	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9712-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	06	1	9712-				●				●

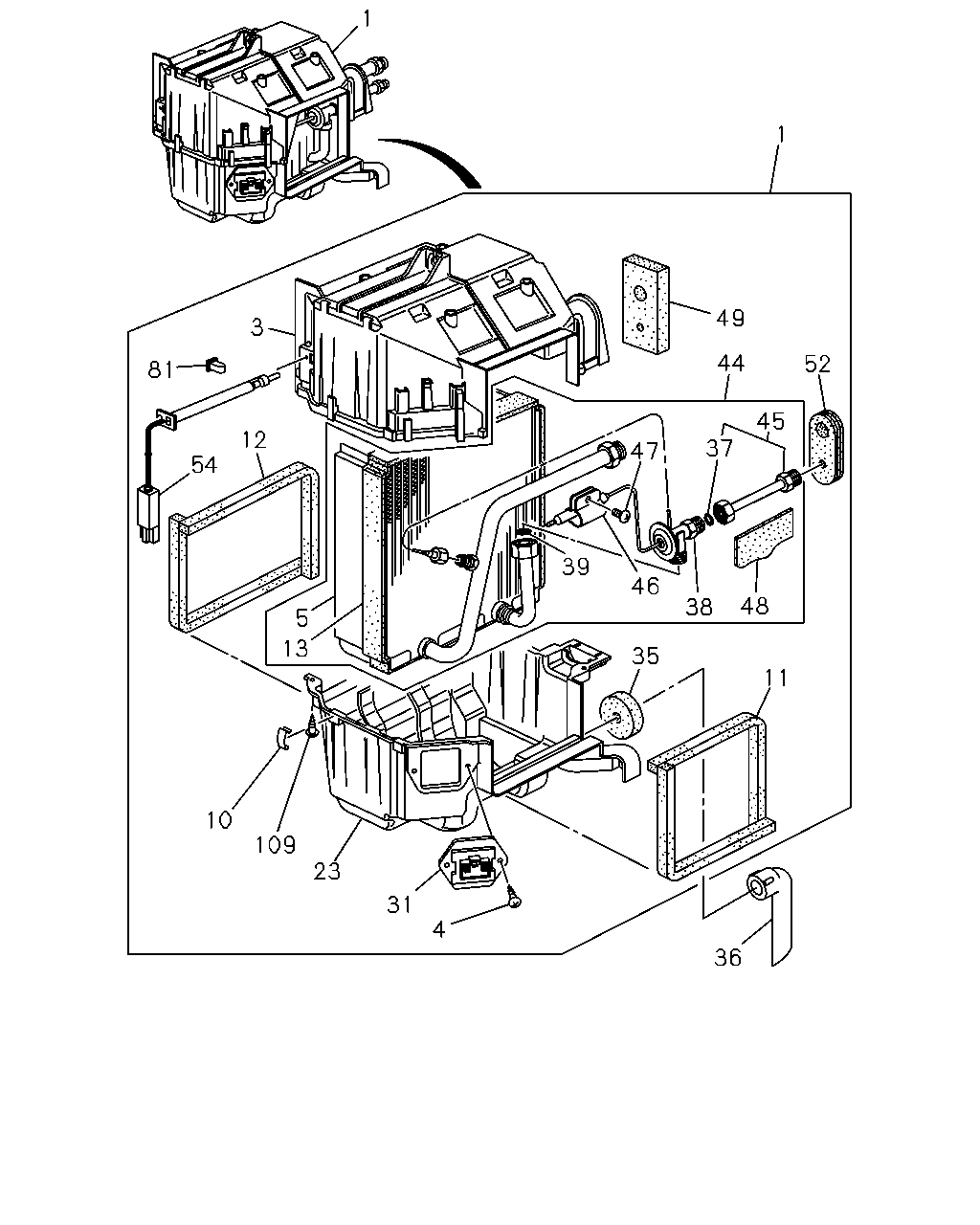

1 1 3 49 52 44 54 5 48 47 39 46 37 38 13 45 35 12 11 109 23 31 4 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-1	01	1	9611-9711	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97122-764-1	01	1	9712-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97164-585-0	01	1	9712-				●				●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9611-9711	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97107-603-1	01	1	9712-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97221-319-0	01	1	9712-				●				●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9611-9711	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9712-	●	●	●	●	●	●	●	●
4	09.211 SCREW; RESISTOR TO CASE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	02	1	9712-				●				●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-352-0	01	1	9611-9711	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-352-0	01	1	9712-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-291-0	01	1	9712-				●				●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9611-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9611-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9611-9711	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=4.0	8-97165-293-0	01	1	9712-				●				●
13	09.211 SEAL; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=5.0	8-97069-402-0	01	1	9712-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9611-9711	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-486-1	01	1	9712-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97221-320-0	01	1	9712-				●				●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-97078-452-1	01	1	9611-9711	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.855	8-97078-452-1	01	1	9712-	●	●	●	●	●	●	●	●
31	09.277 RESISTOR; POWER EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-136-1	01	1	9712-				●				●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-405-2	01	1	9611-	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94446-972-1	01	1	9611-9711	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94446-972-1	01	1	9712-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6	8-94481-700-0	01	1	9611-9711	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6	8-94481-700-0	01	1	9712-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.195 ID=6.07	8-94461-902-0	01	1	9712-				●				●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-242-0	01	1	9611-9711	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-242-0	01	1	9712-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-788-0	01	1	9712-				●				●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9611-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-361-0	01	1	9611-9711	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97143-361-0	01	1	9712-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97170-793-0	01	1	9712-				●				●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9611-9711	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9712-	●	●	●	●	●	●	●	●
45	09.220 PIPE; EXPANSION VLV 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97165-292-0	01	1	9712-				●				●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83574-124-1	01	1	9611-9711	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83574-124-1	01	1	9712-	●	●	●	●	●	●	●	●
46	09.214 CLIP; EXPANSION VLV 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 ID=8X2	8-94344-881-1	01	1	9712-				●				●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97130-601-0	01	1	9611-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9611-9711	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9712-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	1-83579-784-0	01	1	9712-				●				●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9611-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9611-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9611-9711	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9712-	●	●	●	●	●	●	●	●
54	09.172 THERMOSTAT; A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97223-415-0	01	1	9712-				●				●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9611-9711	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9712-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	06	1	9712-				●				●
