◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#45911) — 16 parça

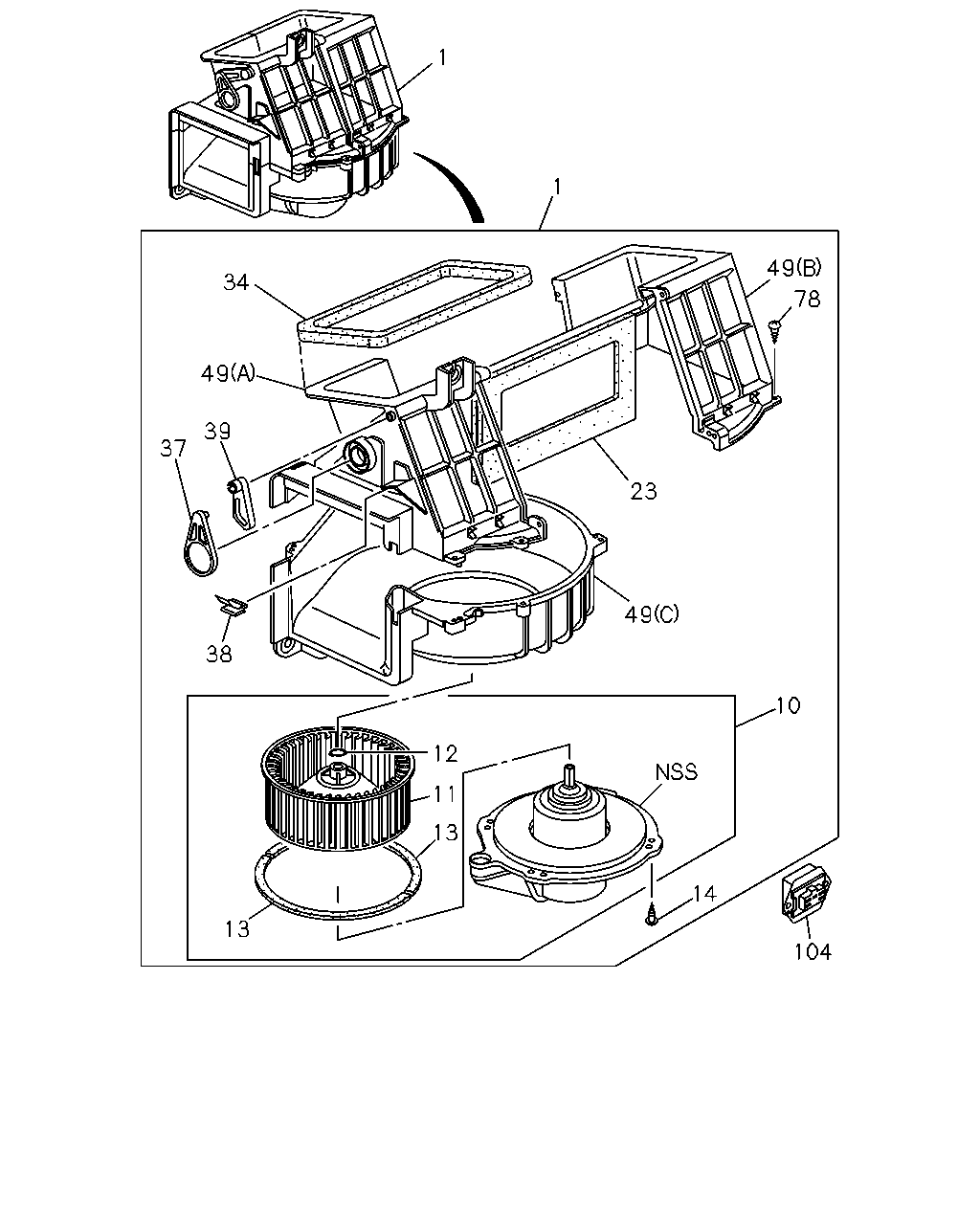

çizim 67951
1 1 49 78 34 49 39 37 23 49 38 10 12 13 14 13 104 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-97139-525-0 01 1 9611- ● ● ● ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-97103-727-0 01 1 9611- ● ● ● ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-97096-067-0 01 1 9611- ● ● ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94243-962-0 01 1 9611- ● ● ● ● ● ● ● ●
13 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94324-816-0 02 1 9611- ● ● ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 10.240 M5X20 		9-09829-324-1 04 1 9611- ● ● ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94324-818-2 01 1 9611- ● ● ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94327-437-0 01 1 9611- ● ● ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94324-819-1 01 1 9611- ● ● ● ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-94337-654-0 01 1 9611- ● ● ● ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 		8-94324-820-0 01 1 9611- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (A) 		8-94324-808-4 01 1 9611- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (B) 		8-94324-809-1 01 1 9611- ● ● ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (C) 		8-94324-810-4 01 1 9611- ● ● ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 M4X16 		8-94324-850-0 08 1 9611- ● ● ● ● ● ● ● ●
104 08.855 RESISTOR; BLOWER UNIT
AIR CON PREPARATORY PACK(S6D) 		8-97078-452-1 01 1 9611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
