8-71 — COMPRESSOR; AIR CONDITIONING (#45910) — 100 parça

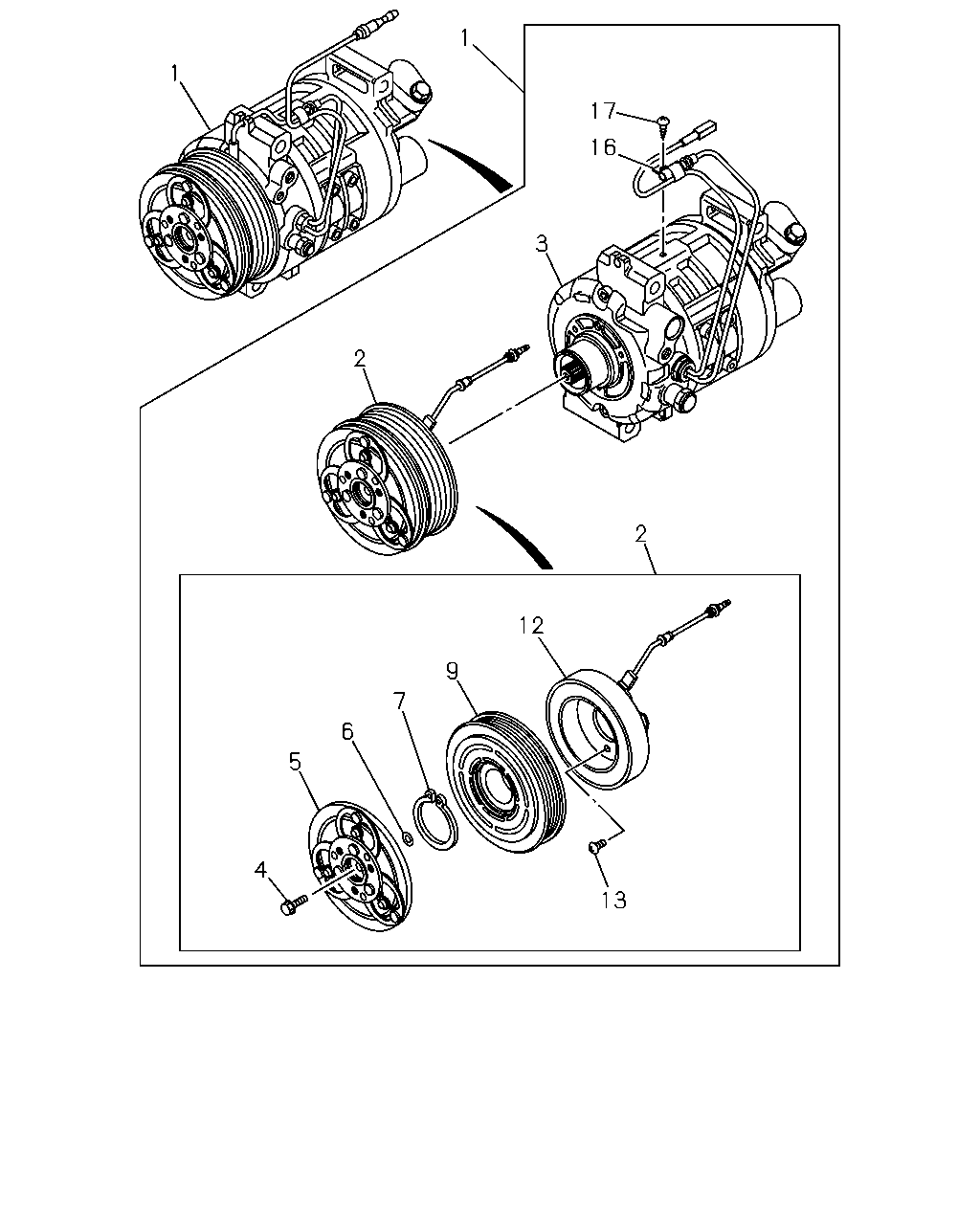

çizim 67256
1 1 17 16 3 2 2 12 9 7 6 5 4 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.170 COMPRESSOR ASM; A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) VALEO R-134A 		8-97132-827-0 01 1 9712- ● ● ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97127-836-0 01 1 9611- ● ● ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97170-820-0 01 1 9712- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-213-0 01 1 9712- ● ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-212-0 01 1 9611- ● ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-511-0 01 1 9712- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-226-0 01 1 9712- ● ● ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97145-135-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97178-004-0 01 1 9712- ● ●
4 09.181 BOLT; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186 		8-94164-439-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186 		8-94164-439-0 01 1 9712- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-789-0 01 1 9712- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-788-0 01 1 9611- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-513-0 01 1 9712- ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1 		8-94120-721-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1 		8-94120-721-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3 		8-94120-722-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3 		8-94120-722-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5 		8-94120-723-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5 		8-94120-723-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 T=0.8 		8-94380-751-0 AR 1 9712- ● ●
7 09.181 RING; SNAP,PULLEY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94120-724-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94120-724-0 01 1 9712- ● ● ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94380-752-0 01 1 9712- ● ●
9 09.181 PULLEY; MAGNET CLU
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97044-906-0 01 1 9712- ● ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-790-0 01 1 9611- ● ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-514-0 01 1 9712- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97044-907-0 01 1 9712- ● ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97045-883-0 01 1 9611- ● ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-512-0 01 1 9712- ● ●
13 09.186 SCREW; COIL FIELD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 		8-94120-727-0 03 1 9611-9711 ● ● ● ● ● ● ● ●
13 09.186 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 		8-94120-727-0 03 1 9712- ● ● ● ● ● ● ● ●
16 09.181 CLIP; WIRE,MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97024-418-0 01 1 9712- ● ●
17 09.181 SCREW; WIRE CLIP MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97024-419-0 01 1 9712- ● ●

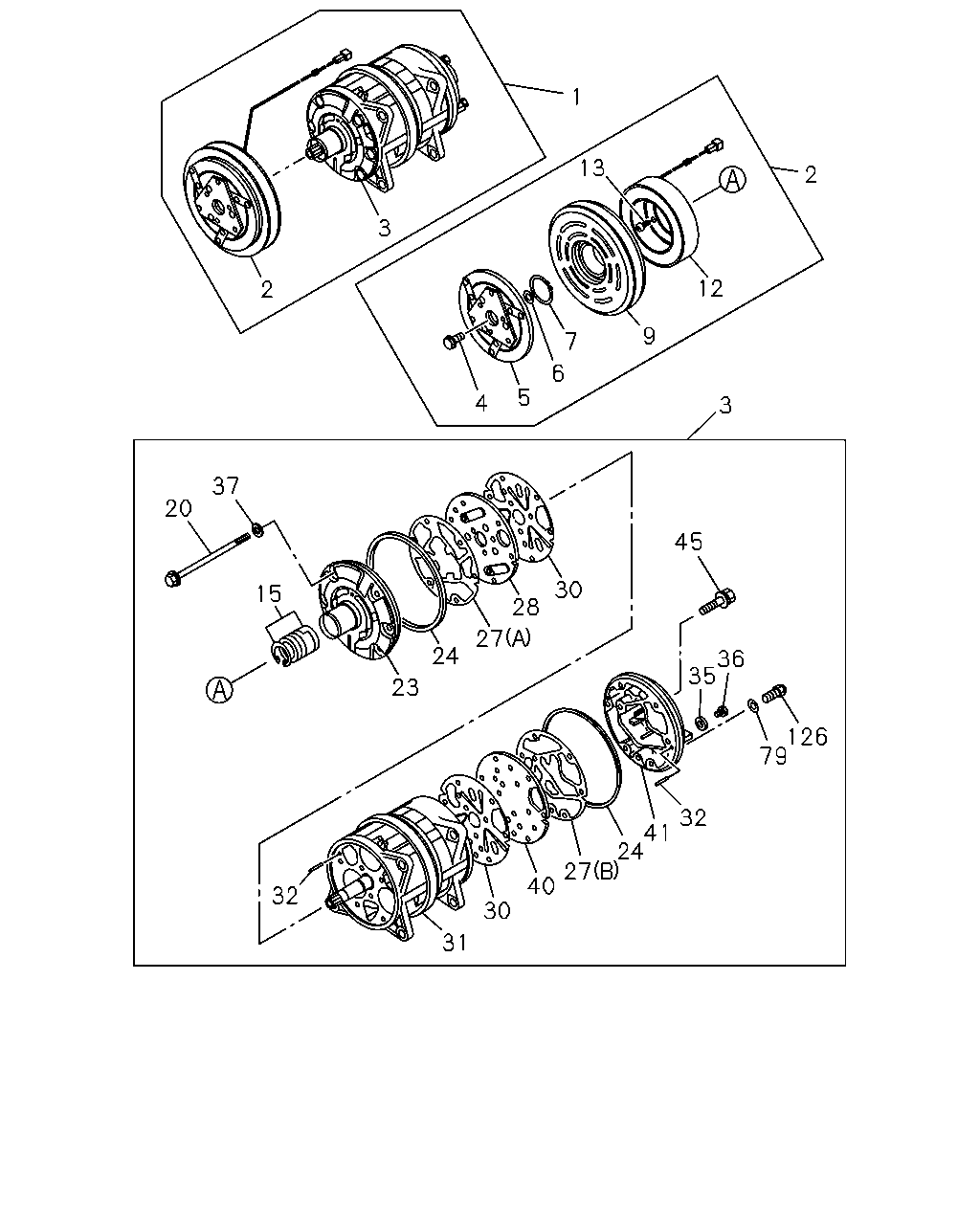

çizim 67987
1 13 2 3 12 2 9 7 6 5 4 3 37 20 45 30 28 27 15 24 23 36 35 126 79 32 41 24 27 40 32 30 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.170 COMPRESSOR ASM; A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) VALEO R-134A 		8-97132-827-0 01 1 9712- ● ● ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97127-836-0 01 1 9611- ● ● ● ● ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97170-820-0 01 1 9712- ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-213-0 01 1 9712- ● ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-212-0 01 1 9611- ● ● ● ● ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-511-0 01 1 9712- ● ●
3 09.170 COMPRESSOR ASM; A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97114-226-0 01 1 9712- ● ● ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97145-135-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.170 COMPRESSOR ASM; A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97178-004-0 01 1 9712- ● ●
4 09.181 BOLT; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186 		8-94164-439-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
4 09.181 BOLT; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.186 		8-94164-439-0 01 1 9712- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-789-0 01 1 9712- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-788-0 01 1 9611- ● ● ● ● ● ● ● ●
5 09.181 ARMATURE ASM; MAGNET CLU,A/C
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-513-0 01 1 9712- ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1 		8-94120-721-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.1 		8-94120-721-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3 		8-94120-722-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.3 		8-94120-722-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5 		8-94120-723-0 AR 1 9611-9711 ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) T=0.5 		8-94120-723-0 AR 1 9712- ● ● ● ● ● ● ● ●
6 09.181 SHIM; MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 T=0.8 		8-94380-751-0 AR 1 9712- ● ●
7 09.181 RING; SNAP,PULLEY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94120-724-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94120-724-0 01 1 9712- ● ● ● ● ● ● ● ●
7 09.181 RING; SNAP,PULLEY
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94380-752-0 01 1 9712- ● ●
9 09.181 PULLEY; MAGNET CLU
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97044-906-0 01 1 9712- ● ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-790-0 01 1 9611- ● ● ● ● ● ● ● ●
9 09.181 PULLEY; MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-514-0 01 1 9712- ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97044-907-0 01 1 9712- ● ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97045-883-0 01 1 9611- ● ● ● ● ● ● ● ●
12 09.186 COIL; FIELD,MAGNET CLU
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97161-512-0 01 1 9712- ● ●
13 09.186 SCREW; COIL FIELD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 		8-94120-727-0 03 1 9611-9711 ● ● ● ● ● ● ● ●
13 09.186 SCREW; COIL FIELD
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.188 		8-94120-727-0 03 1 9712- ● ● ● ● ● ● ● ●
15 09.175 SEAL; SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97114-217-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
15 09.175 SEAL; SHAFT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97114-217-1 01 1 9712- ● ● ● ● ● ● ● ●
20 09.174 BOLT; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97081-394-0 06 1 9611-9711 ● ● ● ● ● ● ● ●
20 09.174 BOLT; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97081-394-0 06 1 9712- ● ● ● ● ● ● ● ●
23 09.174 HEAD; CYL,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97114-215-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
23 09.174 HEAD; CYL,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97114-215-0 01 1 9712- ● ● ● ● ● ● ● ●
24 09.172 GASKET; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97081-396-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
24 09.172 GASKET; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97081-396-0 02 1 9712- ● ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) "R-134A" 		8-97085-777-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) "R-134A" 		8-97085-777-0 01 1 9712- ● ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) "R-134A" 		8-97085-779-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
27 09.174 GASKET; CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) "R-134A" 		8-97085-779-0 01 1 9712- ● ● ● ● ● ● ● ●
28 09.172 PLATE; VLV,CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97135-796-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
28 09.172 PLATE; VLV,CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97135-796-0 01 1 9712- ● ● ● ● ● ● ● ●
30 09.172 VALVE; SUCTION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97134-755-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
30 09.172 VALVE; SUCTION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97134-755-0 02 1 9712- ● ● ● ● ● ● ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97081-389-0 01 1 9712- ● ● ● ● ● ● ● ●
31 09.170 CYLINDER & SHAFT ASM; AIR CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		1-83579-783-0 01 1 9611- ● ● ● ● ● ● ● ●
32 09.174 PIN; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94154-711-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
32 09.174 PIN; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94154-711-0 04 1 9712- ● ● ● ● ● ● ● ●
35 09.175 GASKET; PLUG,CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97081-395-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
35 09.175 GASKET; PLUG,CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97081-395-0 01 1 9712- ● ● ● ● ● ● ● ●
36 09.173 PLUG; CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94164-473-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
36 09.173 PLUG; CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94164-473-0 01 1 9712- ● ● ● ● ● ● ● ●
37 09.172 GASKET; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.174 		8-94466-678-0 06 1 9611-9711 ● ● ● ● ● ● ● ●
37 09.172 GASKET; CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.174 		8-94466-678-0 06 1 9712- ● ● ● ● ● ● ● ●
40 09.172 PLATE; VLV,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97135-797-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
40 09.172 PLATE; VLV,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97135-797-0 01 1 9712- ● ● ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97034-784-0 01 1 9712- ● ● ● ● ● ● ● ●
41 09.174 HEAD; CYL,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97085-778-0 01 1 9611- ● ● ● ● ● ● ● ●
45 09.173 BOLT; PLATE TO CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
45 09.173 BOLT; PLATE TO CYL HD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.277 M10X35 W/LK&PL WASHER 		9-01971-035-0 01 1 9712- ● ● ● ● ● ● ● ●
79 09.172 GASKET; VLV,CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A" 		8-97085-781-0 01 1 9611- ● ● ● ● ● ● ● ●
126 09.172 VALVE; RELIEF,CMPR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97138-178-0 01 1 9611- ● ● ● ● ● ● ● ●
