Sayfa 4-36 - Isuzu EPC

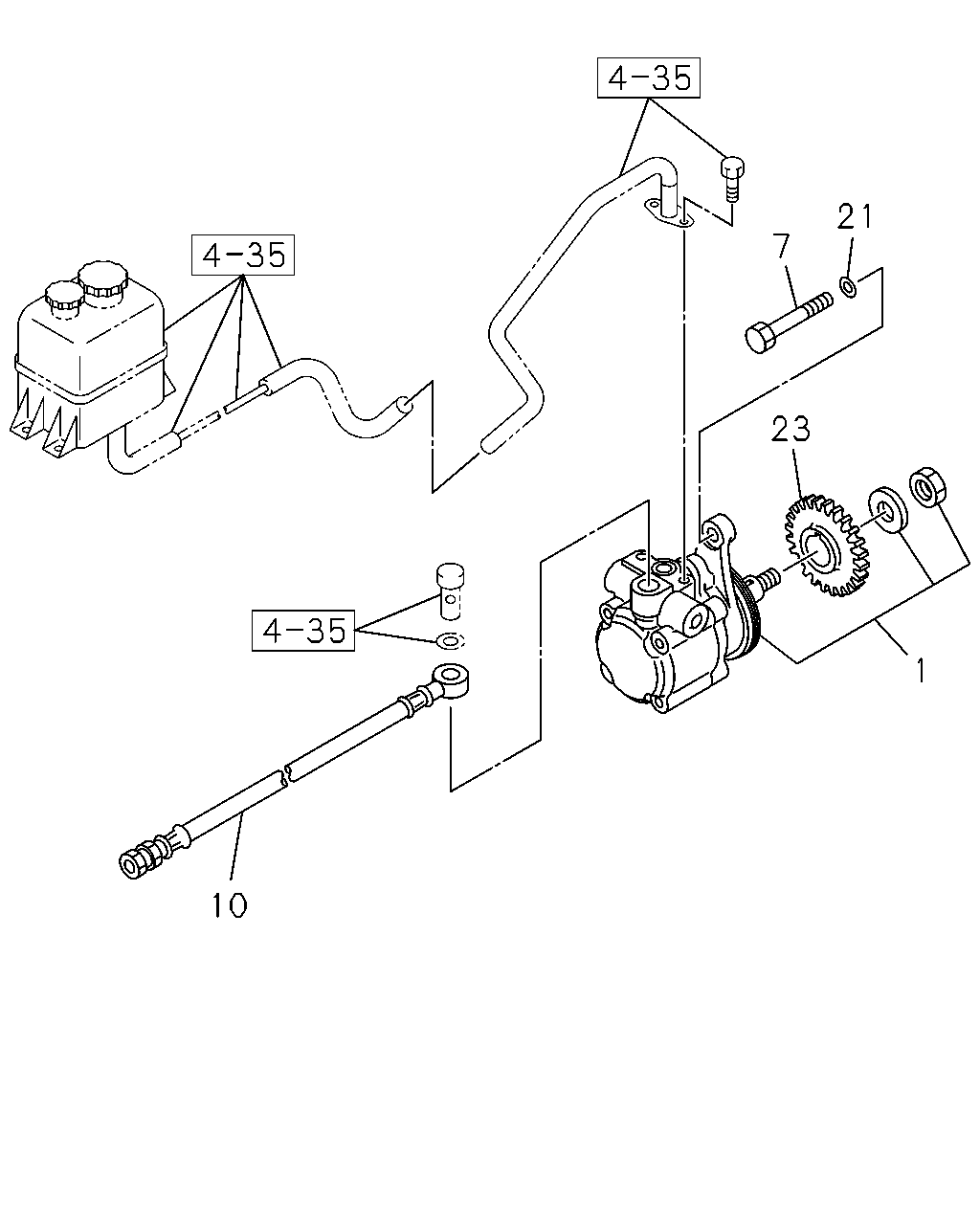

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#4591) — 5 parça

21 7 23 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. INJ PUMP Q SET EXP SPECIAL +5%Q<T1A>	1-19500-413-0	01	1	9712-
7	BOLT; OIL PUMP,P/S INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> M12X75	9-01666-275-0	02	1	9712-
10	HOSE; FLEX,P/S OIL PUMP,INL L=540	1-09364-892-0	01	1	9712-
21	WASHER; PL,P/S OIL PUMP INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> ID=12.5	9-09160-512-0	02	1	9712-
23	GEAR; OIL PUMP INJ PUMP Q SET EXP SPECIAL +5%Q<T1A> Z=14	1-19581-033-0	01	1	9712-
