◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#45908) — 35 parça

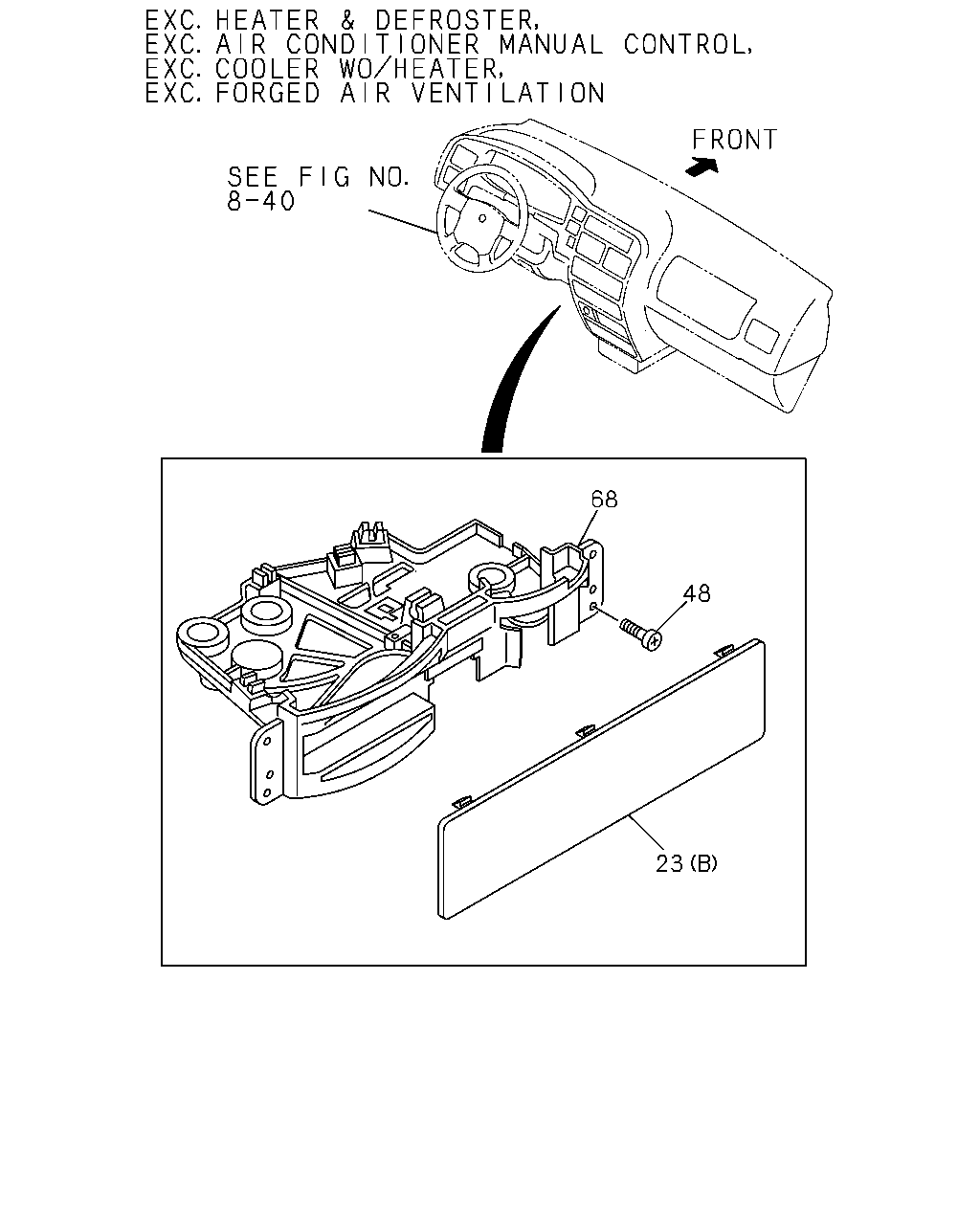

çizim 17385
68 48 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97112-442-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (B) 		8-97112-443-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (C) 		8-97107-570-2 01 1 9611- ● ● ● ● ● ● ● ●
48 08.552 SCREW; BRKT
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ● ● ● ● ●
68 08.849 BRACKET; BEZEL
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-97165-592-0 01 1 9611- ● ● ● ● ● ● ● ●

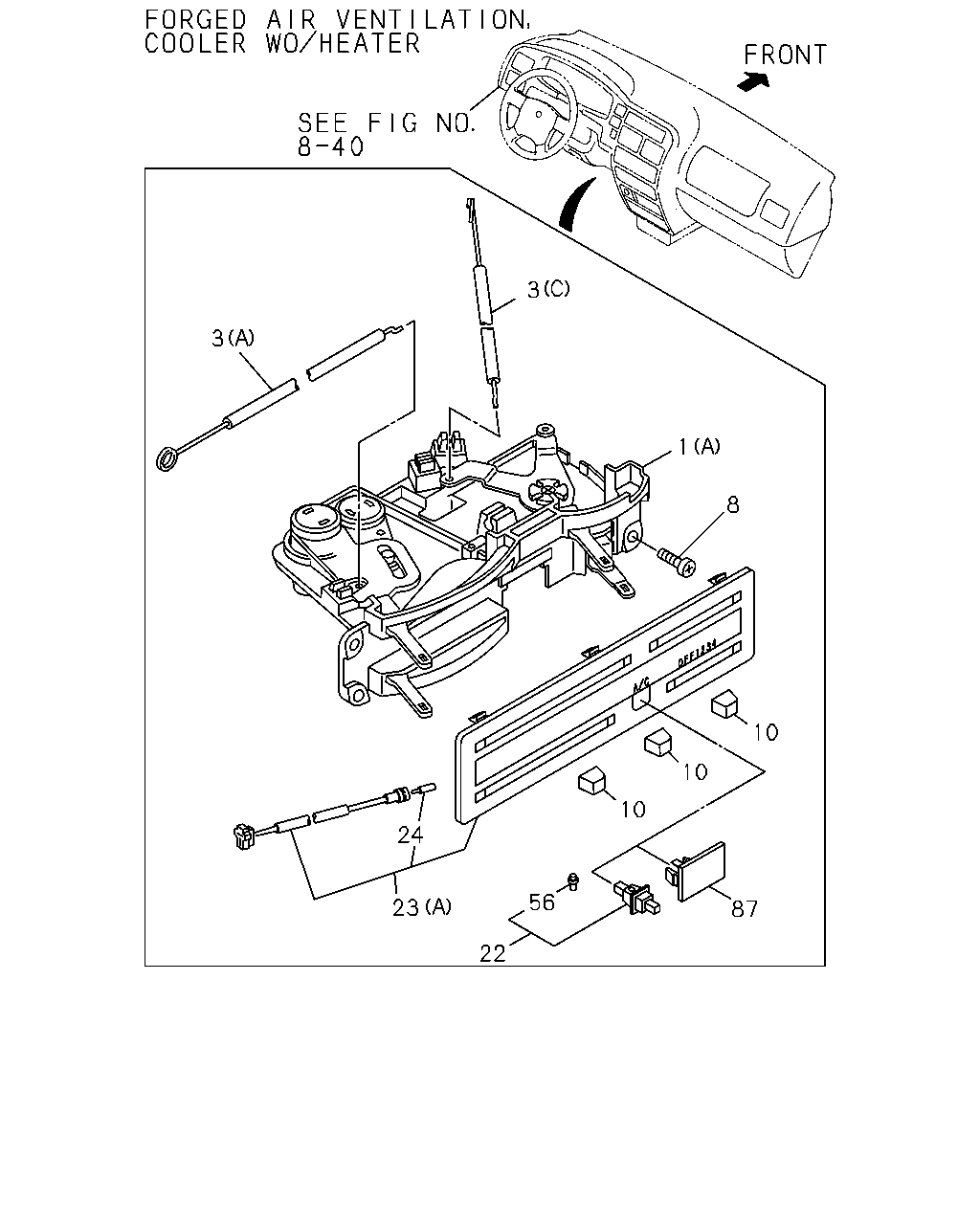

çizim 71028
3 1 8 10 10 10 24 56 87 22 3 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.849 LEVER SUB ASM; HTR CONT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97164-338-0 01 1 9611- ● ● ● ● ● ● ● ●
1 08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (B) 		8-97118-217-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (A) MODE LEVER 		8-97118-219-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (B) TEMP LEVER 		8-97118-221-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (C) F/C LEVER 		8-97118-222-0 01 1 9611- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94435-195-0 03 1 9611- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) 		8-94435-195-0 04 1 9611- ● ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97117-963-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97112-442-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (B) 		8-97112-443-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (C) 		8-97107-570-2 01 1 9611- ● ● ● ● ● ● ● ●
24 08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 12V 1.4W 		5-82194-021-0 01 1 9611- ● ● ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 14V 60MA 		8-94337-134-0 01 1 9611- ● ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK(S6D) 08.852 		8-94435-500-0 01 1 9611- ● ● ● ● ● ● ● ●
çizim 71129
3 1 8 10 10 10 24 10 87 56 23 22 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.849 LEVER SUB ASM; HTR CONT
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97164-338-0 01 1 9611- ● ● ● ● ● ● ● ●
1 08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (B) 		8-97118-217-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (A) MODE LEVER 		8-97118-219-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (B) TEMP LEVER 		8-97118-221-0 01 1 9611- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (C) F/C LEVER 		8-97118-222-0 01 1 9611- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) 		8-94435-195-0 03 1 9611- ● ● ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) 		8-94435-195-0 04 1 9611- ● ● ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-97117-963-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C57),COOLER WO/HEATER(YL1) (A) 		8-97112-442-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) (B) 		8-97112-443-0 01 1 9611- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D) (C) 		8-97107-570-2 01 1 9611- ● ● ● ● ● ● ● ●
24 08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 12V 1.4W 		5-82194-021-0 01 1 9611- ● ● ● ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 14V 60MA 		8-94337-134-0 01 1 9611- ● ● ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CON PREPARATORY PACK(S6D) 08.852 		8-94435-500-0 01 1 9611- ● ● ● ● ● ● ● ●
