Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#45906) — 179 parça

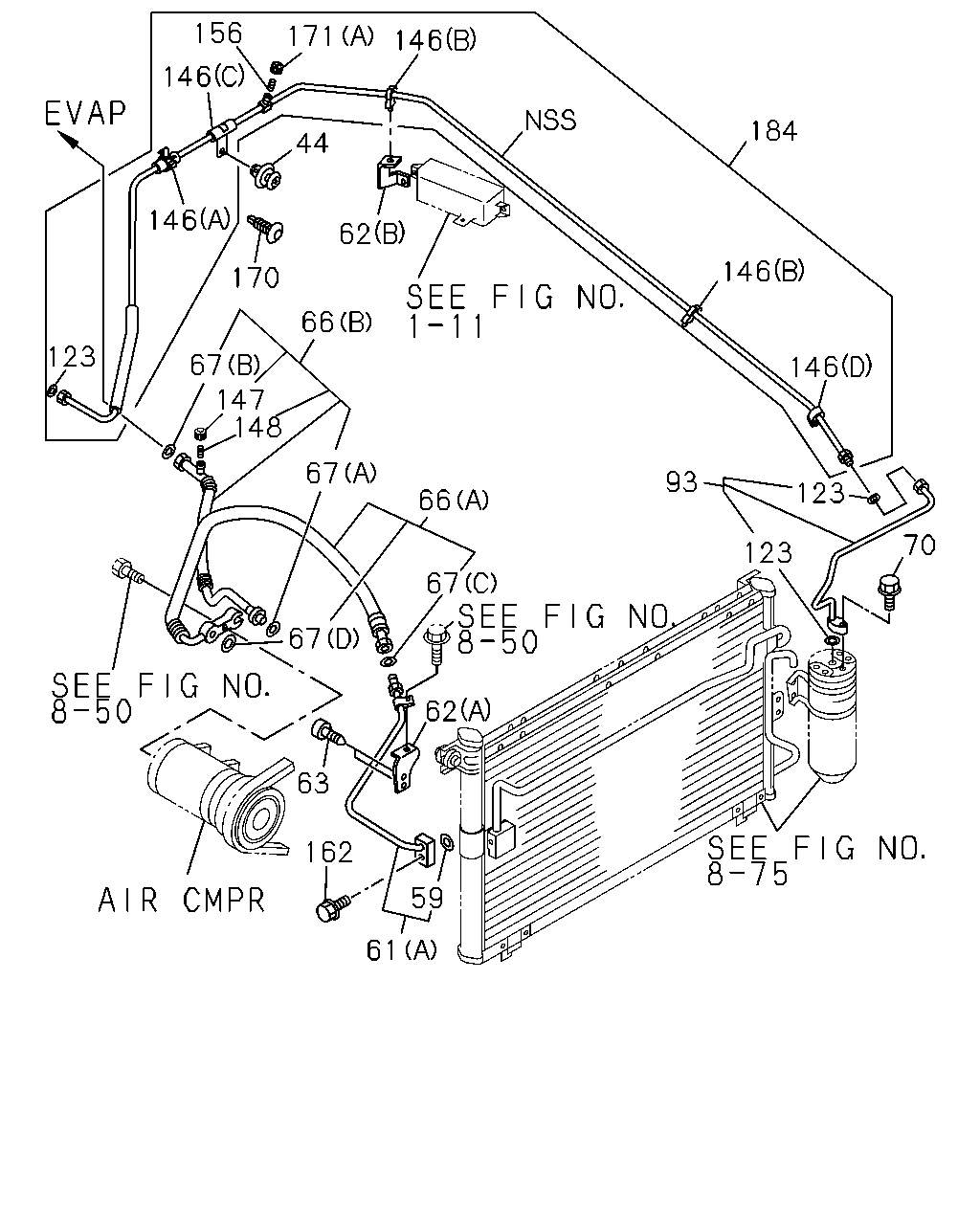

171 156 146 146 184 44 62 146 146 170 123 144 147 148 123 43 93 70 123 50 50 50 50 35 59 62 61 63 162 59 61 162 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
35	09.242 NUT; FLEX HOSE,A/C 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> 01.062 M6 FLANGE	0-91150-206-0	01	1	9611-	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97086-226-2	01	1	9611-	●	●	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	01	1	9611-9711	●	●	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	01	1	9712-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (A) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.260 (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9611-9711	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9712-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97165-081-0	01	1	9611-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97165-081-0	01	1	9611-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97044-164-2	01	1	9611-	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9611-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9611-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9611-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-9711	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9712-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (A) M6X12 FLANGE	0-28480-612-0	01	1	9712-			●			●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9712-			●			●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9611-9711	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9712-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9802-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9712-9801			●			●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	9611-	●	●	●		●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9712-			●			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9611-9711	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9712-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9611-9711	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9712-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9611-9711	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9712-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9712-			●			●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-9711	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9712-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9712-			●			●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9712-			●			●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9611-9711	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9712-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-855-2	01	1	9611-	●	●	●		●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9712-			●			●

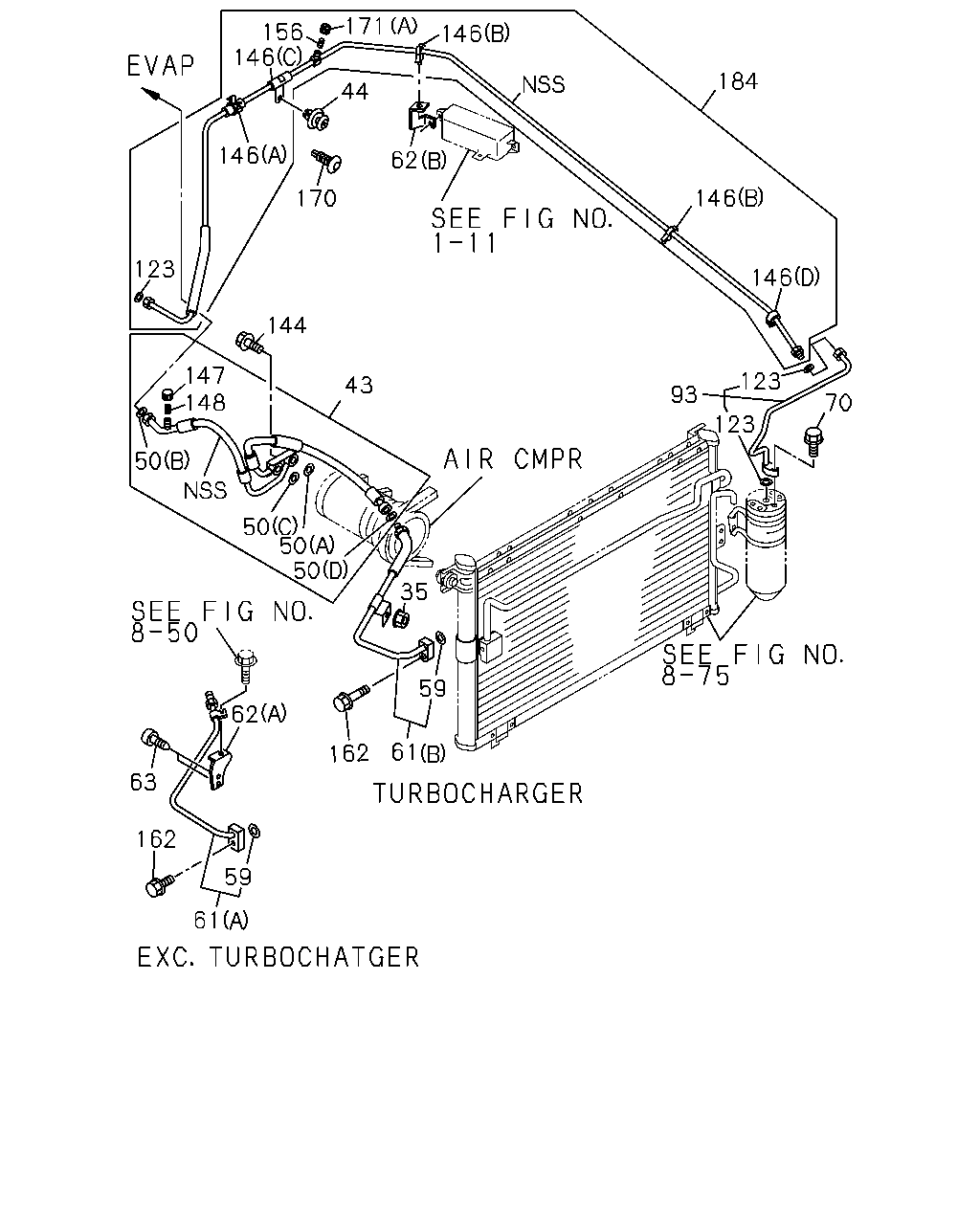

171 156 185 67 66 70 70 67 184 146 146 156 123 144 171 67 144 146 67 146 66 123 62 123 93 170 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-223-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-228-0	01	1	9712-			●			●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-229-1	01	1	9712-			●			●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (D) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9712-			●			●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-			●			●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-9711	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9712-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (A) M6X12 FLANGE	0-28480-612-0	01	1	9712-			●			●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9712-			●			●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9611-9711	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9712-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9712-			●			●
116	09.225 GASKET; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=18.3	8-97161-778-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9802-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9712-9801			●			●
144	09.242 BOLT; CONN TO CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	9611-	●	●	●		●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9712-			●			●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9611-9711	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9712-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9712-			●			●
170	09.220 PLUG; HOLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9712-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9712-			●			●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9712-			●			●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9611-9711	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9712-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-855-2	01	1	9611-	●	●	●		●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9712-			●			●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-169-0	01	1	9712-			●			●

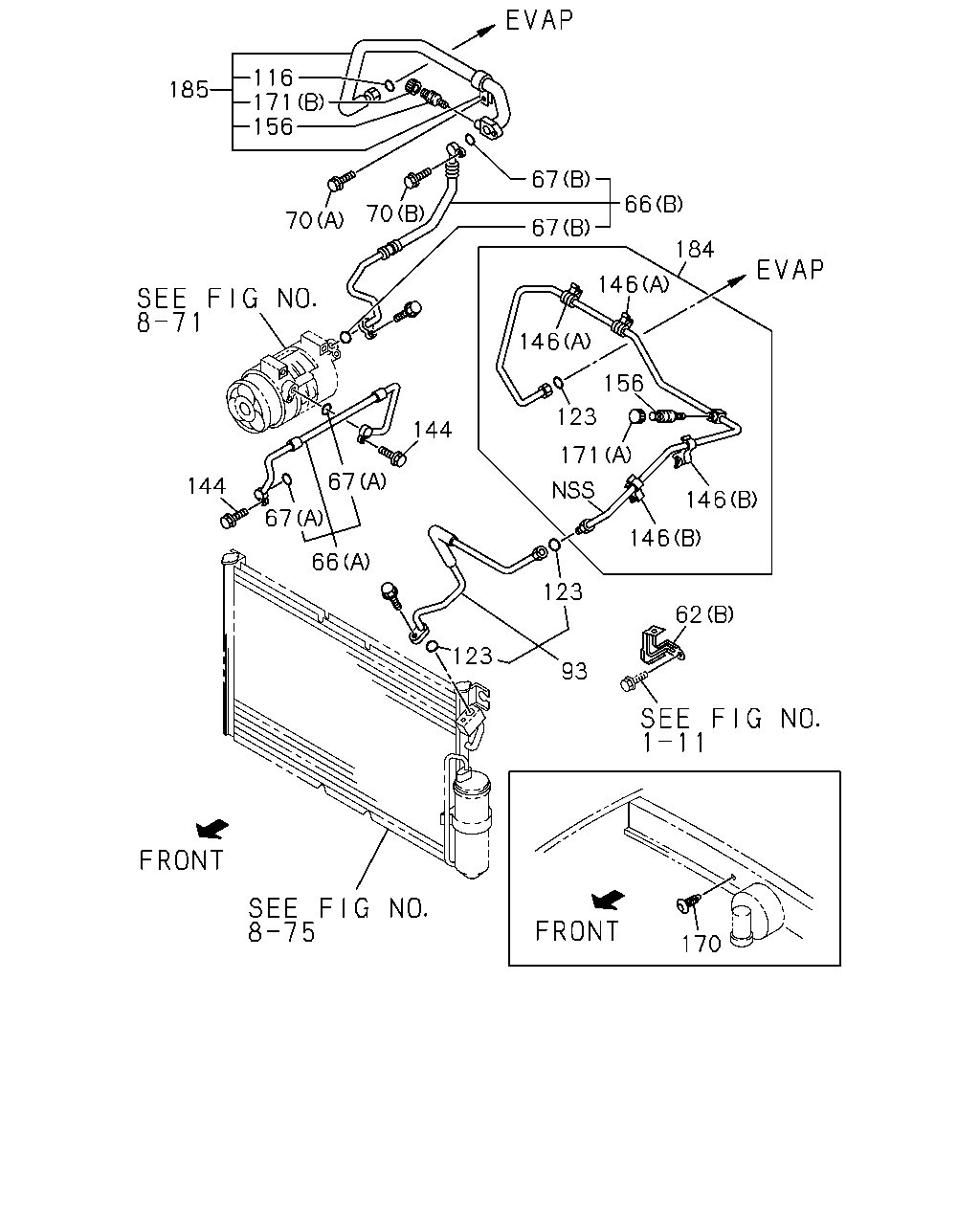

156 171 146 146 184 44 146 62 146 170 66 123 67 147 148 67 93 123 66 70 123 67 67 62 63 162 59 61 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	01	1	9611-9711	●	●	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 12.801 D6.8X12	8-94198-687-0	01	1	9712-	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9611-9711	●	●	●	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=10.8	8-94113-331-0	01	1	9712-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-97165-081-0	01	1	9611-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97165-081-0	01	1	9611-	●	●	●	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) TURBOCHARGER<K51> (B)	8-97044-164-2	01	1	9611-	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-94459-508-1	01	1	9611-	●	●	●	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-94462-279-1	01	1	9611-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. TURBOCHARGER<K51> M6X12	9-09829-330-1	02	1	9611-	●	●	●	●	●	●	●	●
63	09.242 SCREW; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M6X12	9-09829-330-1	02	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97069-327-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) "R-134A"	8-97086-223-1	01	1	9611-	●	●	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97177-228-0	01	1	9712-			●			●
66	09.225 HOSE; FLEX,A/C 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B)	8-97177-229-1	01	1	9712-			●			●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=14.8	8-94461-901-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (B) ID=13.9	8-94113-330-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=11.0	8-94461-900-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.222 (D) ID=10.8	8-94113-331-0	01	1	9611-	●	●	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=15.5	8-97161-777-0	02	1	9712-			●			●
67	09.260 GASKET; FLEX HOSE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.225 (B) ID=18.3	8-97161-778-0	02	1	9712-			●			●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9611-9711	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9712-	●	●	●	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 16.505 (A) M6X12 FLANGE	0-28480-612-0	01	1	9712-			●			●
70	00.206 BOLT; PIPE TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9712-			●			●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9611-9711	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) "R-134A"	8-97079-704-0	01	1	9712-	●	●	●	●	●	●	●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97181-358-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9611-9711	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	02	1	9712-	●	●	●	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	01	1	9712-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9802-			●			●
123	09.195 GASKET; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97161-776-0	02	1	9712-9801			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	9712-			●			●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (C) ID=17 T=1.6 L=26.5 H=18.5	8-97064-672-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9611-9711	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (D)	8-97087-079-0	01	1	9712-	●	●	●	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> (B) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	01	1	9611-	●	●	●		●	●	●	●
146	09.196 CLIP; RECEIVER PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) ID=17 H=13.9 BLACK	8-97064-671-0	02	1	9712-			●			●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9611-9711	●	●	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 CAP MARK L	8-97083-102-0	01	1	9712-	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9611-9711	●	●	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97083-100-0	01	1	9712-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9611-9711	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	01	1	9712-	●	●	●	●	●	●	●	●
156	09.198 VALVE; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.262	8-97083-100-0	02	1	9712-			●			●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-9711	●	●	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 16.067	8-94279-922-0	01	1	9712-	●	●	●	●	●	●	●	●
170	09.220 PLUG; HOLE 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.067	8-94279-922-0	01	1	9712-			●			●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A) CAP MARK H	8-97083-101-0	01	1	9611-	●	●	●	●	●	●	●	●
171	09.242 CAP; PIPE 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	9712-			●			●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9611-9711	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-860-2	01	1	9712-	●	●	●	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG> "R-134A"	8-97085-855-2	01	1	9611-	●	●	●		●	●	●	●
184	09.220 PIPE; PIPE TO EVAP 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-97177-166-0	01	1	9712-			●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
