Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#45905) — 92 parça

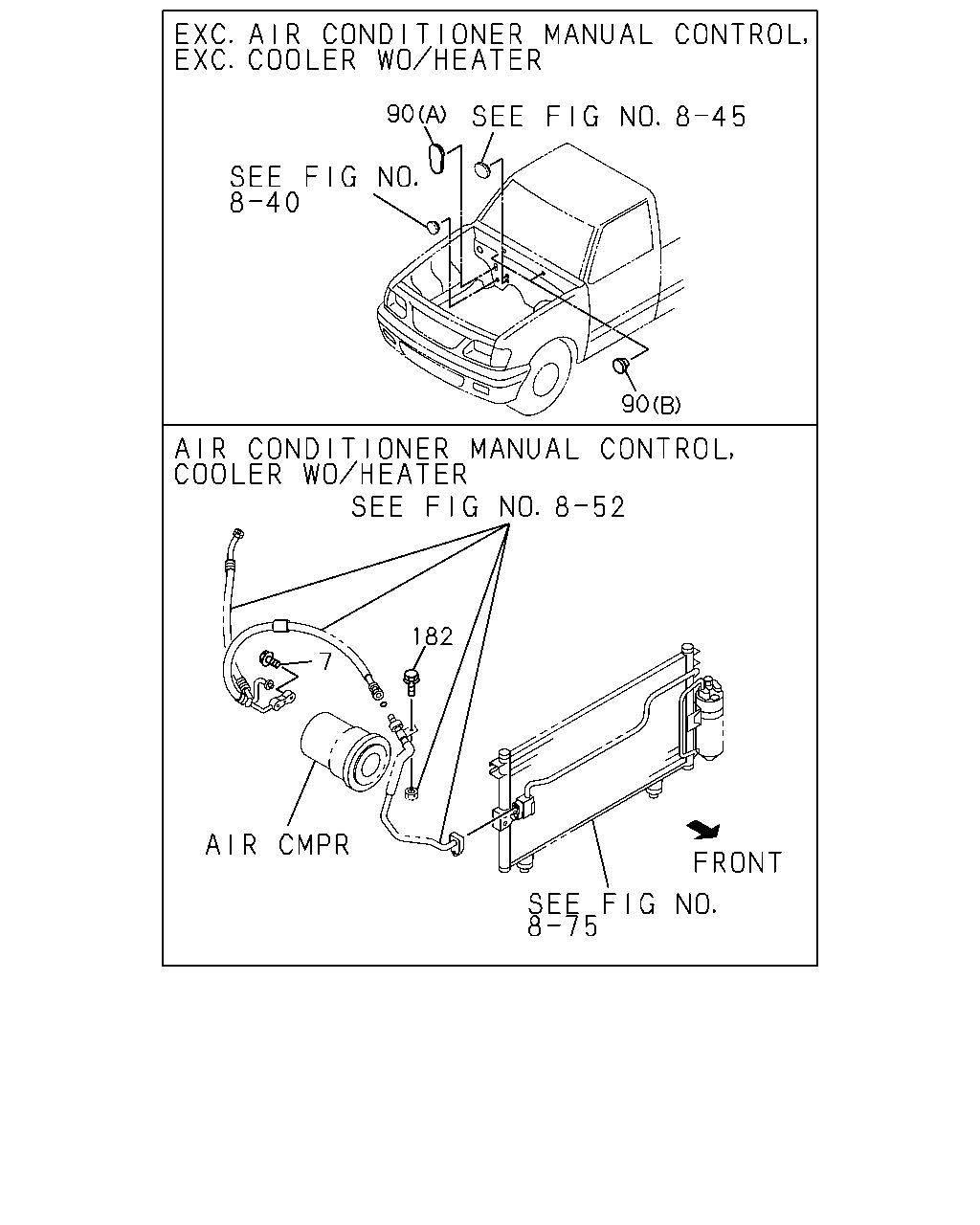

182 7 90 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	09.242 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9611-	●	●	●	●	●	●	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-94222-310-1	01	1	9611-	●	●	●	●	●	●	●	●
90	08.850 PLUG; PIPE HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.550 (B) OD=12	9-09956-122-0	02	1	9611-	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	9611-9711	●	●	●	●	●	●	●	●
182	09.242 BOLT; PIPE TO BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	01	1	9712-	●	●	●	●	●	●	●	●

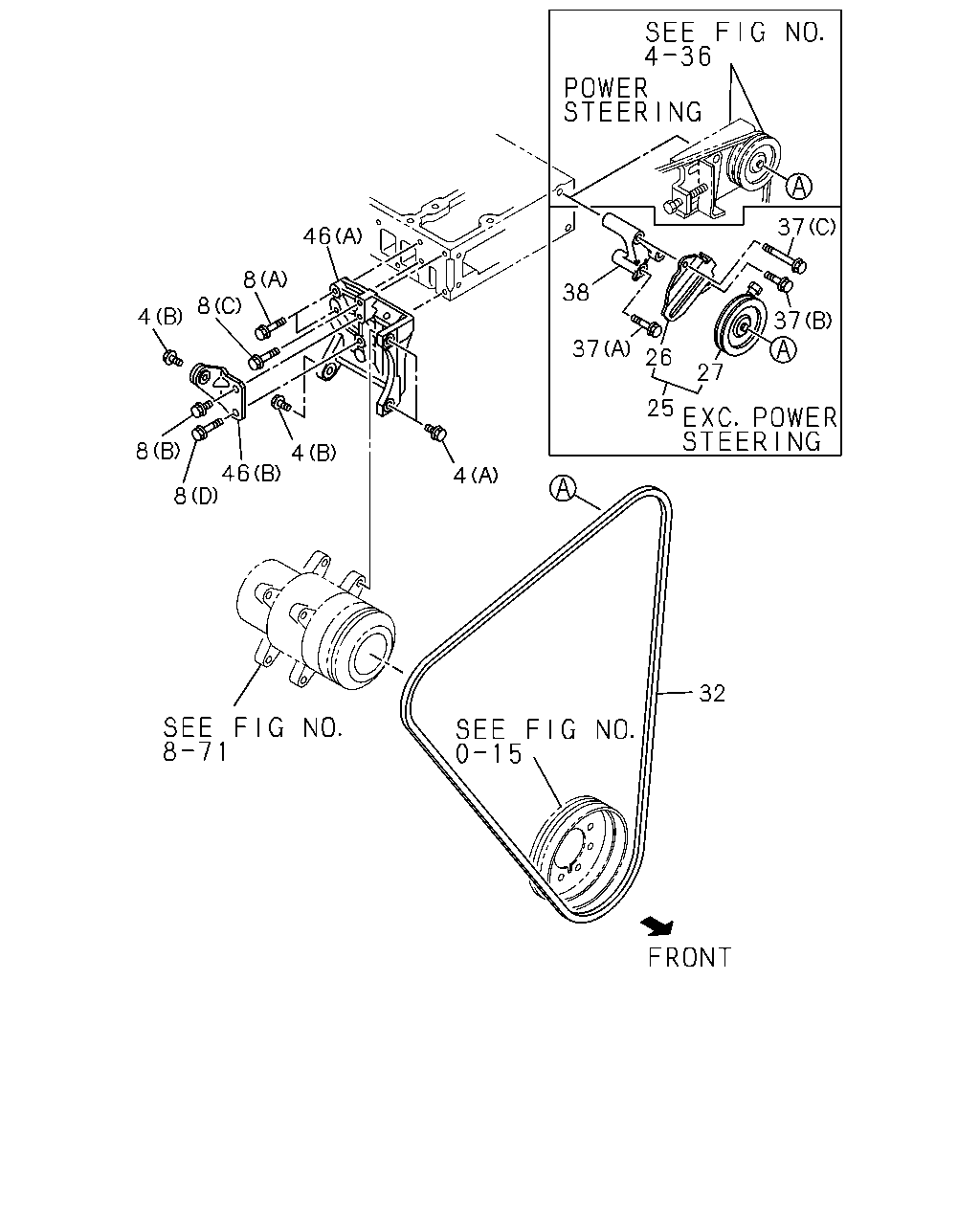

37 46 8 8 4 38 37 37 26 27 25 8 4 46 8 4 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9611-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9611-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	04	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9611-9702	●		●	●	●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9703-	●		●	●	●		●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9712-				●				●
25	09.180 PULLEY ASM; IDLER,CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97080-948-0	01	1	9611-	●	●	●	●	●	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 09.171	8-94120-998-2	01	1	9611-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9611-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VD1 ENG(RLV)	8-97178-354-0	01	1	9712-				●				●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-94440-010-0	01	1	9611-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94442-970-0	01	1	9611-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> L=1339 B=13.3	8-94108-204-0	01	1	9611-	●		●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) POWER STEERING<N40>	8-94434-926-0	01	1	9611-	●		●	●	●		●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 01.252 (A) M8X60 W/LK WASHER	0-50040-860-0	01	1	9611-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 00.029 (B) M10X28 W/LK WASHER	0-50041-028-0	01	1	9611-9803	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.417 (B) M10X25 FLANGE	0-28081-025-0	01	1	9804-	●	●	●	●	●	●	●	●
37	09.173 BOLT; PULLEY BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40> 03.275 (C) M10X80 W/LK WASHER	0-50041-080-0	01	1	9611-	●	●	●	●	●	●	●	●
38	09.171 BRACKET; PULLEY TO CYL HD 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97107-868-0	01	1	9611-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9611-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9611-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9611-	●		●	●	●		●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-97130-360-1	01	1	9712-				●				●

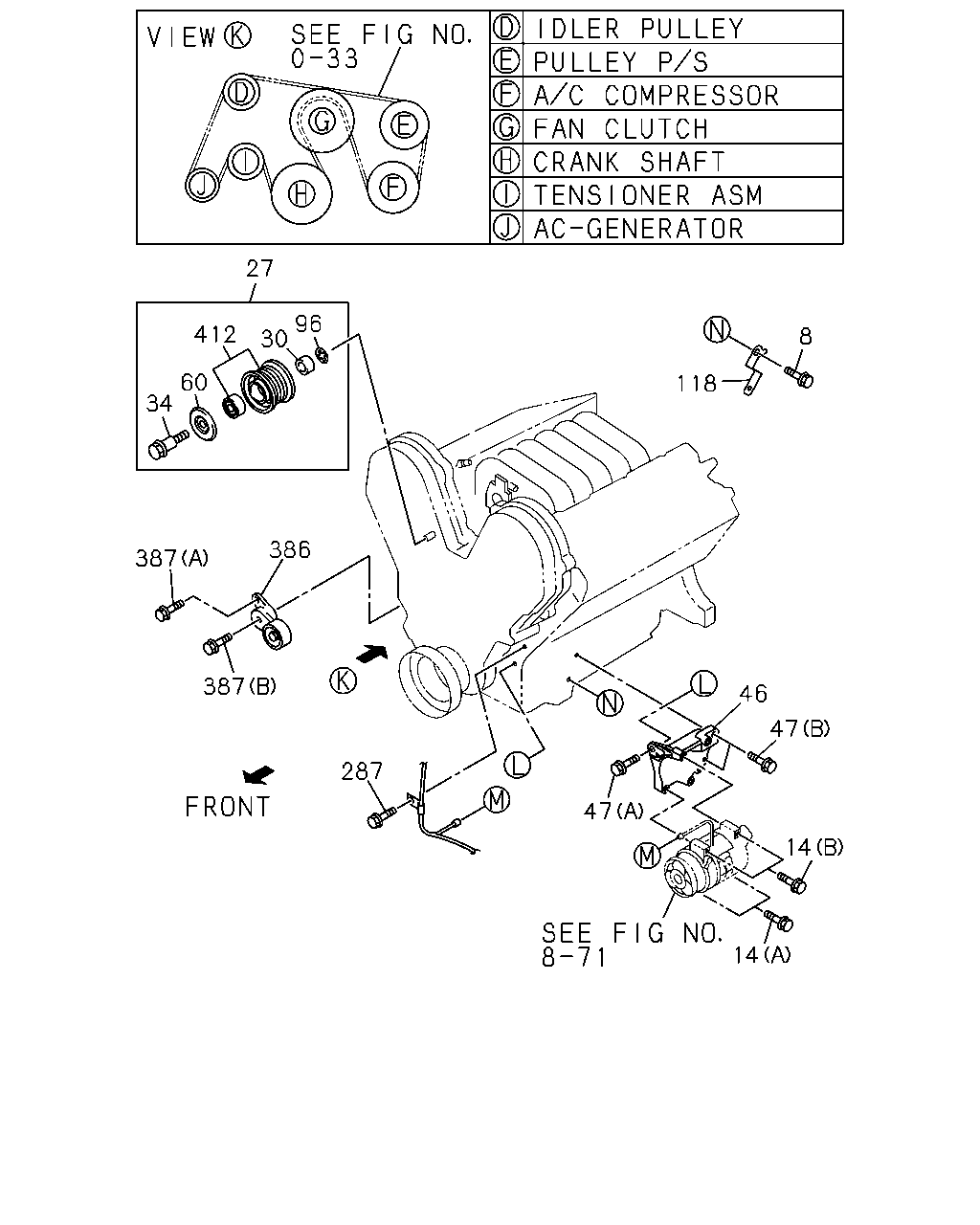

27 96 30 412 8 60 34 386 387 387 46 47 287 47 14 14 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9611-9702	●		●	●	●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9703-	●		●	●	●		●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9712-				●				●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) (A) M8X80 FLANGE	0-28080-880-0	02	1	9712-				●				●
14	09.171 BOLT; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	9712-				●				●
27	09.180 PULLEY; IDLE,A/C 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) EXC. POWER STEERING<N40>	8-97126-290-0	01	1	9611-	●	●	●	●	●	●	●	●
27	09.180 PULLEY; IDLE,A/C 6VD1 ENG(RLV)	8-97178-354-0	01	1	9712-				●				●
30	09.181 COLLAR; IDLE PULLEY 6VD1 ENG(RLV)	8-97185-854-0	01	1	9712-				●				●
34	09.181 SHAFT; IDLE PULLEY 6VD1 ENG(RLV)	8-97185-858-0	01	1	9712-				●				●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (A)	8-97114-781-0	01	1	9611-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.242 (B)	8-97114-782-0	01	1	9611-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A)	8-97114-780-0	01	1	9611-	●		●	●	●		●	●
46	09.171 BRACKET; CMPR 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60)	8-97130-360-1	01	1	9712-				●				●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 04.085 (A) M10X80 FLANGE	0-28181-080-0	01	1	9712-				●				●
47	09.173 BOLT; BRKT TO BODY 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M10X30 FLANGE	0-28781-030-0	02	1	9712-				●				●
60	09.181 COVER; IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) REAR	8-94161-804-0	01	1	9611-	●	●	●	●	●	●	●	●
60	09.181 COVER; IDLER PULLEY 6VD1 ENG(RLV)	8-97185-857-0	01	1	9712-				●				●
96	08.929 WASHER; LK 6VD1 ENG(RLV)	8-97185-853-0	01	1	9712-				●				●
118	09.173 BRACKET; HARNESS CLIP,A/C 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97039-000-0	01	1	9712-				●				●
287	09.171 BOLT; BRKT,HARNESS 6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9803				●				●
386	09.180 TENSIONER ASM 6VD1 ENG(RLV)	8-97125-860-1	01	1	9712-				●				●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	9712-				●				●
387	09.190 BOLT; TENSIONER FIX 6VD1 ENG(RLV) (B) M10X65	9-05821-065-0	01	1	9712-				●				●
412	09.180 PULLEY; IDLER WITH BRG 6VD1 ENG(RLV)	8-97185-859-0	01	1	9712-				●				●

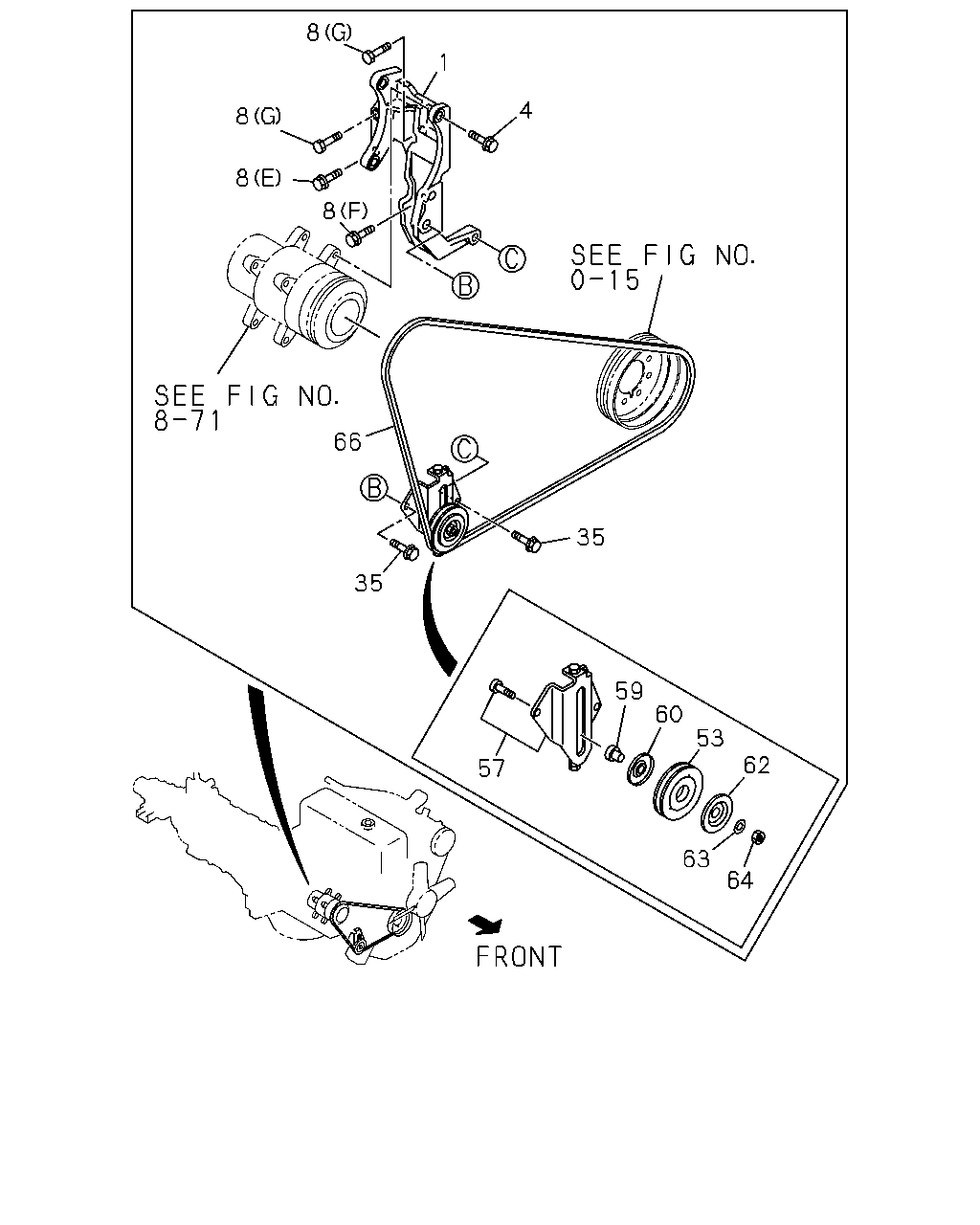

8 1 4 8 8 8 66 35 35 59 60 53 62 57 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.242 BRACKET; A/C 4ZC1 ENG(LR9),4ZD1 ENG(LW3) 09.171	8-94438-540-2	01	1	9611-	●	●	●	●	●	●	●	●
1	09.242 BRACKET; A/C 4ZE1 ENG(RLJ) 09.171	8-94441-552-4	01	1	9611-	●		●	●	●		●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.525 (A) M10X32 W/LK WASHER	0-50041-032-0	02	1	9611-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (B) M10X40 W/LK WASHER	0-50041-040-0	02	1	9611-	●	●	●	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) M10X35 W/LK WASHER	0-50041-035-0	04	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (C) M10X50 W/LK WASHER	0-50041-050-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 03.706 (A) M8X40 W/LK WASHER	0-50040-840-0	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 06.525 (B) M10X32 W/LK WASHER	0-50041-032-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (D) M10X55	5-09030-038-1	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.652 (E) M10X25 W/LK WASHER	0-50041-025-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER	0-50041-035-0	01	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.724 (G) M10X55	5-09030-038-1	02	1	9611-	●	●	●	●	●	●	●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9611-9702	●		●	●	●		●	●
8	09.171 BOLT; BRKT 4JB1 ENG(RLF) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.004 (C) M10X40 W/LK WASHER	0-50041-040-0	01	1	9703-	●		●	●	●		●	●
8	09.171 BOLT; BRKT 6VD1 ENG(RLV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.604 M10X16 FLANGE	0-28181-016-0	01	1	9712-				●				●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9611-9711	●	●	●	●	●	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9712-	●	●	●	●	●	●	●	●
53	09.180 PULLEY; IDLER WITH COVER 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94160-544-0	01	1	9611-	●	●	●	●	●	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94160-543-0	01	1	9611-	●	●	●	●	●	●	●	●
59	09.181 COLLAR; IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94161-805-0	01	1	9611-	●	●	●	●	●	●	●	●
60	09.181 COVER; IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) REAR	8-94161-804-0	01	1	9611-	●	●	●	●	●	●	●	●
60	09.181 COVER; IDLER PULLEY 6VD1 ENG(RLV)	8-97185-857-0	01	1	9712-				●				●
62	09.181 COVER; IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) FRONT	8-94160-545-0	01	1	9611-	●	●	●	●	●	●	●	●
63	09.181 WASHER; SHAFT,IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94172-502-0	01	1	9611-	●	●	●	●	●	●	●	●
64	09.181 NUT; SHAFT,IDLER PULLEY 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1)	8-94160-678-0	01	1	9611-	●	●	●	●	●	●	●	●
66	01.066 BELT; A/C CMPR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) L=999	8-94478-173-1	01	1	9611-	●	●	●	●	●	●	●	●
