Sayfa 8-45 - Isuzu EPC

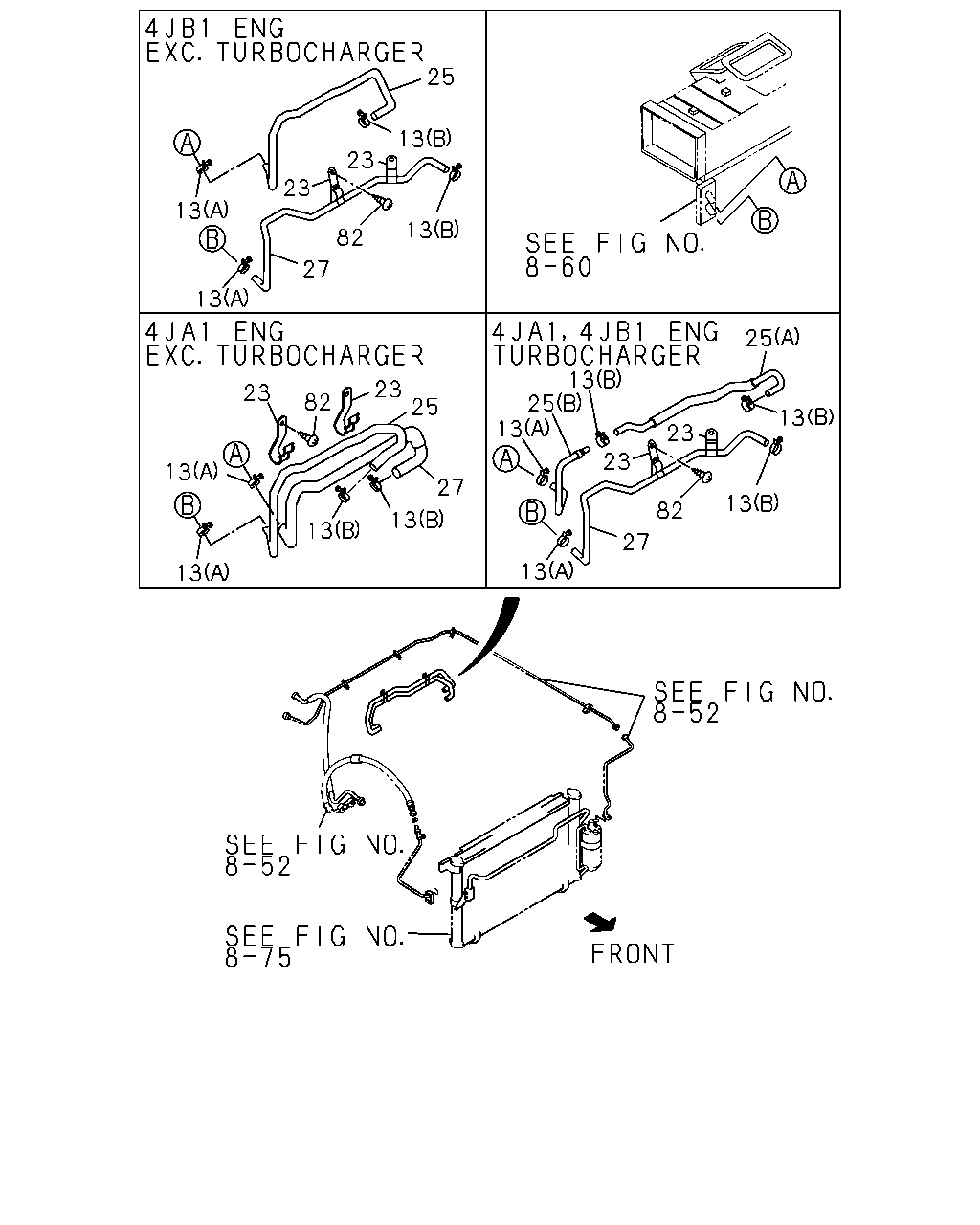

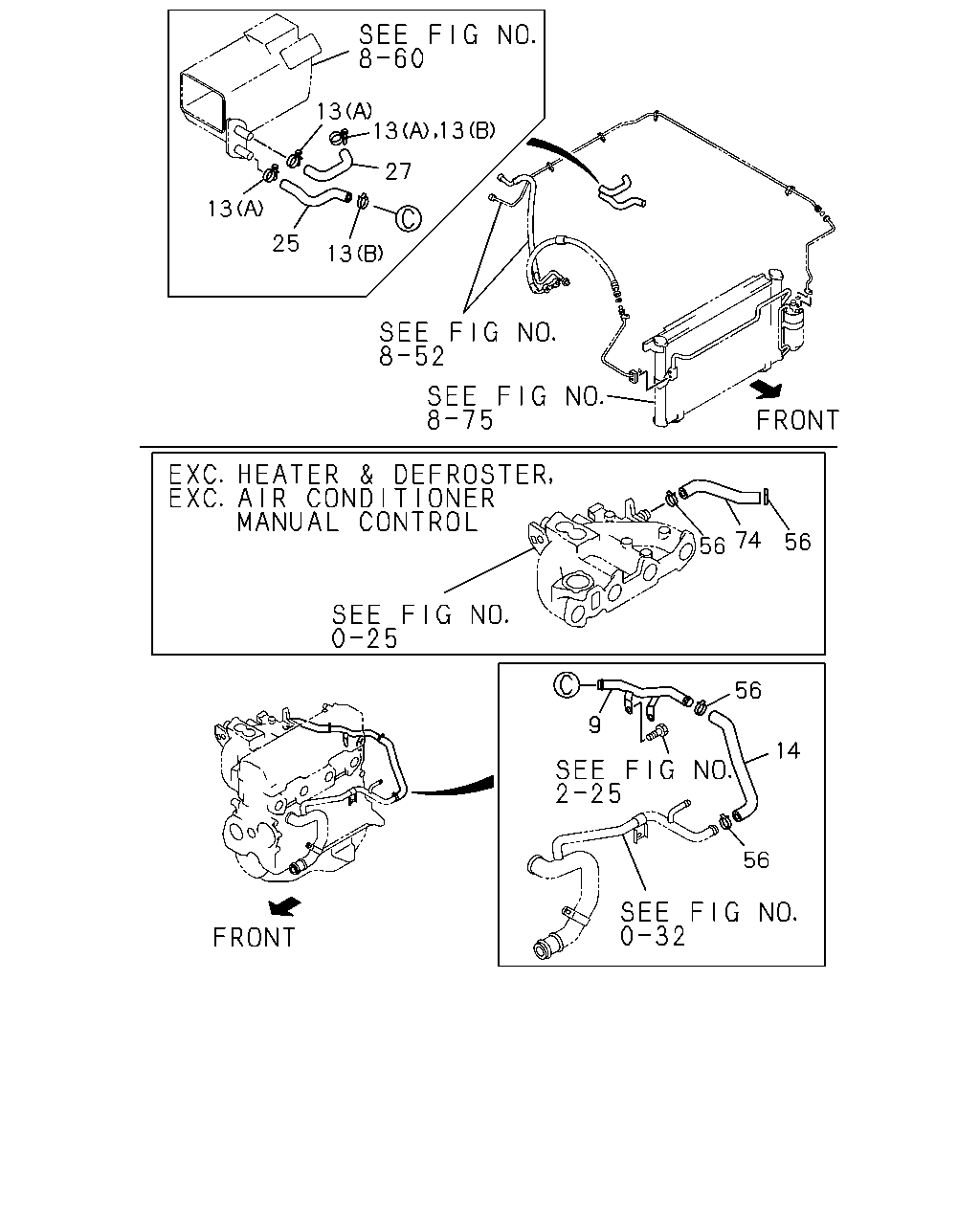

8-45 — HEATER PIPING (#45904) — 100 parça

104

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H

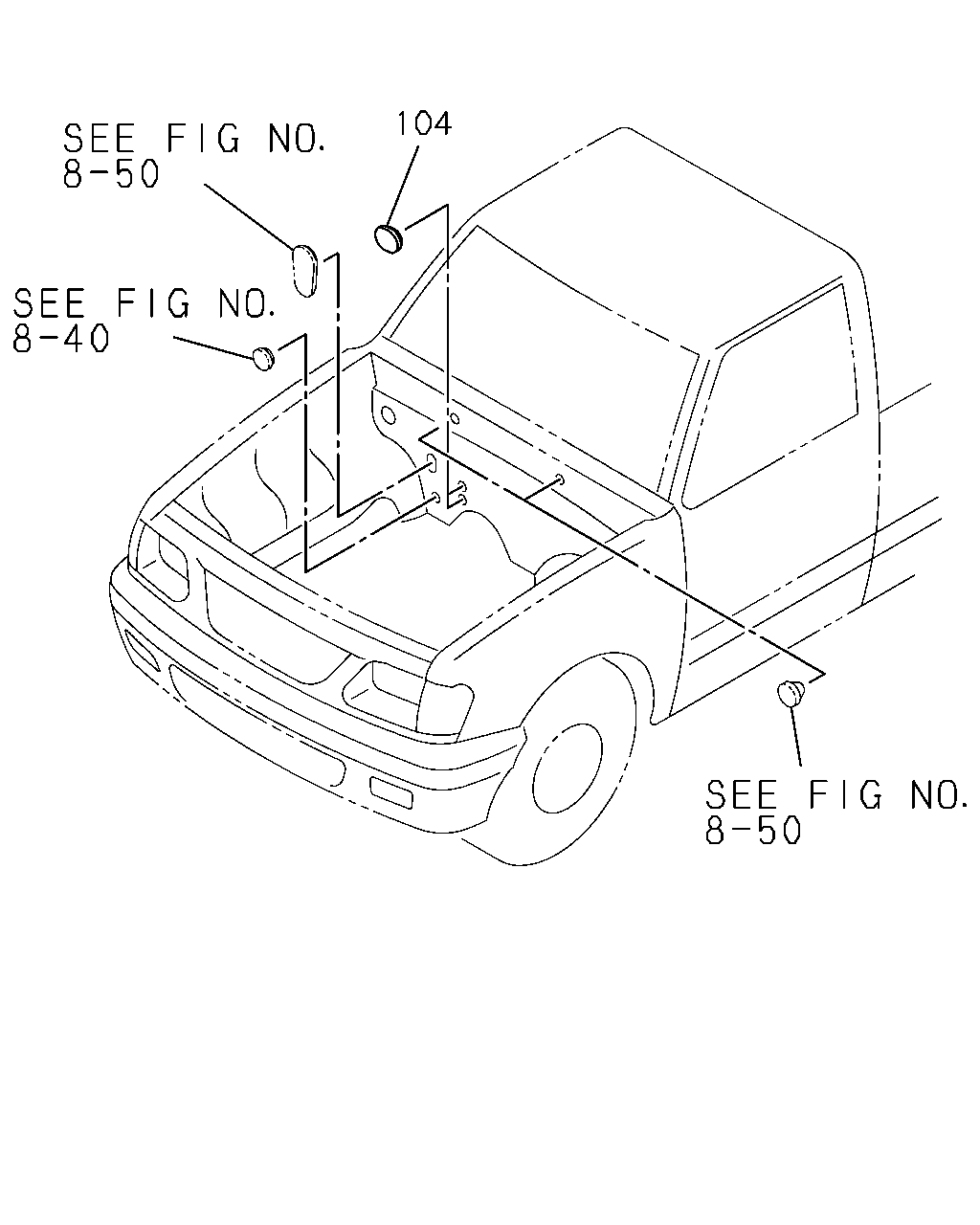

	104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	9611-	●	●	●	●	●	●	●	●

13 27 13 13 25 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9708-9711	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9708-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9712-				●				●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-214-5	01	1	9611-9711	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9712-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9611-9712	●	●	●	●		●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9801-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9712-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9712-				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-211-6	01	1	9611-9711	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9712-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9712-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9712-				●				●

13 13 13 27 13 25 13 74 56 56 56 9 14 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	08.846 PIPE; HTR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ)	8-94474-073-2	01	1	9611-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9708-9711	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9708-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9712-				●				●
14	08.846 HOSE; WATER,CONN TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ)	8-94381-104-1	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-214-5	01	1	9611-9711	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9712-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9611-9712	●	●	●	●		●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9801-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9712-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9712-				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-211-6	01	1	9611-9711	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9712-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9712-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9712-				●				●
56	08.846 CLAMP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9611-	●	●	●	●	●	●	●	●
56	08.846 CLAMP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	04	1	9611-	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ELECTRIC FUEL INJECTION<6GG>	8-94474-076-2	01	1	9611-	●	●	●	●	●	●	●	●
74	08.866 HOSE; WATER,ENG TO PIPE 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94474-077-2	01	1	9711-	●	●	●	●		●	●	●

25 13 23 23 13 13 82 27 13 25 13 25 13 23 25 23 82 23 13 27 13 13 82 27 13 13 13 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9708-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A) ID=25	8-94369-726-0	01	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9611-9707	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9708-9711	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	01	1	9712-	●	●	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	02	1	9611-9707	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	03	1	9708-	●		●	●	●		●	●
13	08.846 CLIP; HTR HOSE 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=23	8-94382-402-0	02	1	9712-				●				●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94338-298-0	02	1	9611-9711	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94338-298-0	02	1	9712-	●	●	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-94338-298-0	01	1	9712-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-214-5	01	1	9611-9711	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-214-5	01	1	9712-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ELECTRIC FUEL INJECTION<6GG>	8-97078-644-0	01	1	9611-	●	●	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9611-9712	●	●	●	●		●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ELECTRIC FUEL INJECTION<6GG>	8-97078-645-0	01	1	9801-	●	●	●	●		●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9712-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-293-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9611-	●		●	●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-696-0	01	1	9712-				●				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-211-6	01	1	9611-9711	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	9712-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94435-209-3	01	1	9611-	●	●	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9712-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-97039-290-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9611-	●		●	●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 6VD1 ENG(RLV) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97167-697-0	01	1	9712-				●				●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343	8-94470-854-1	02	1	9611-9711	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE),4JB1 ENG(RLF) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 02.343	8-94470-854-1	02	1	9712-	●	●	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 02.343	8-94470-854-1	01	1	9712-	●		●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
