8-40 — HEATER SYSTEM (#45902) — 52 parça

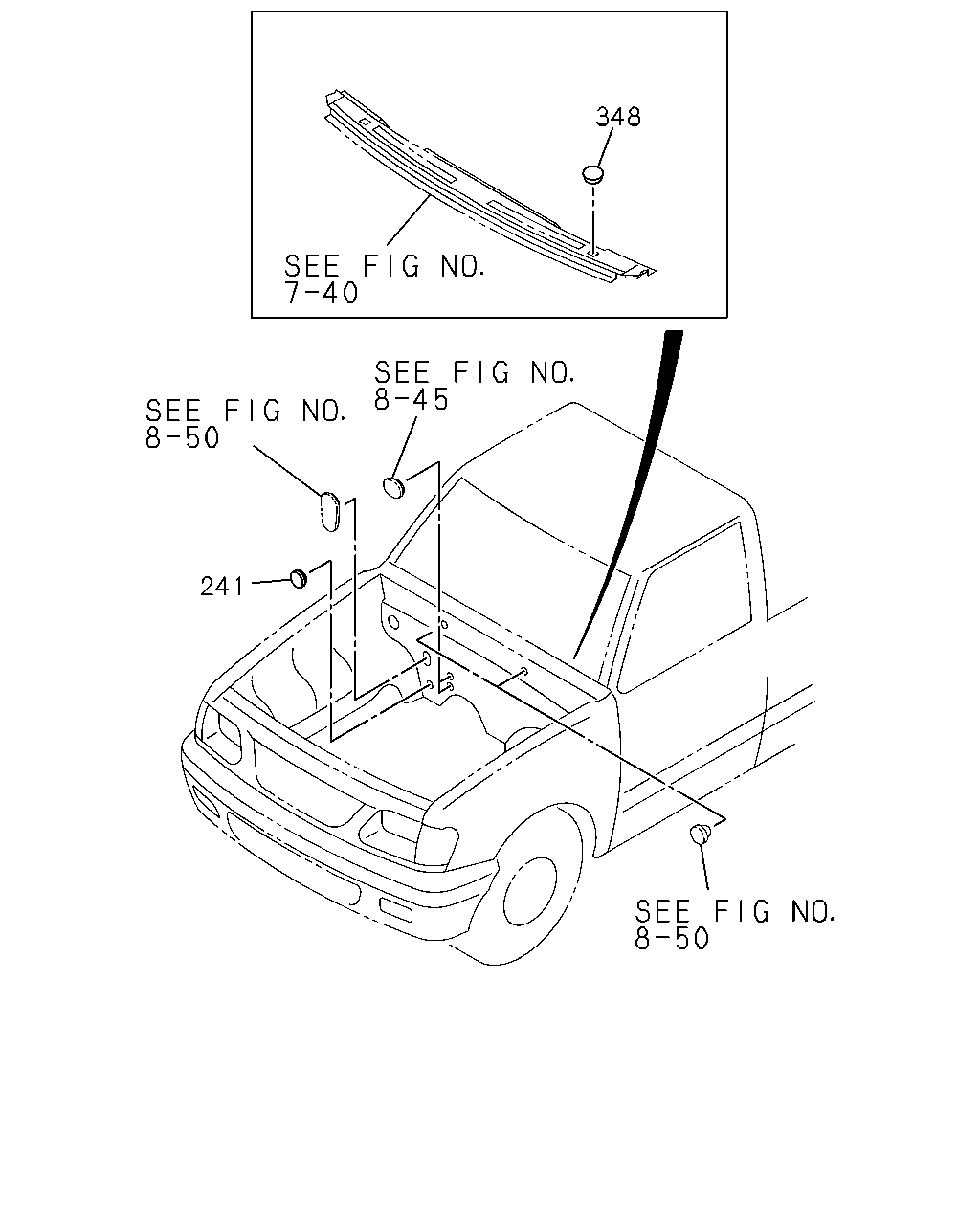

348 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.206	8-94222-309-1	01	1	9611-	●	●	●	●	●	●	●	●
348	08.850 COVER; SUN SENSOR	8-97121-843-1	01	1	9611-9702	●	●	●	●	●	●	●	●
348	08.850 COVER; SUN SENSOR EXC. VENTILATION RAM AIR(6TN)	8-97121-843-1	01	1	9703-	●	●	●	●	●	●	●	●

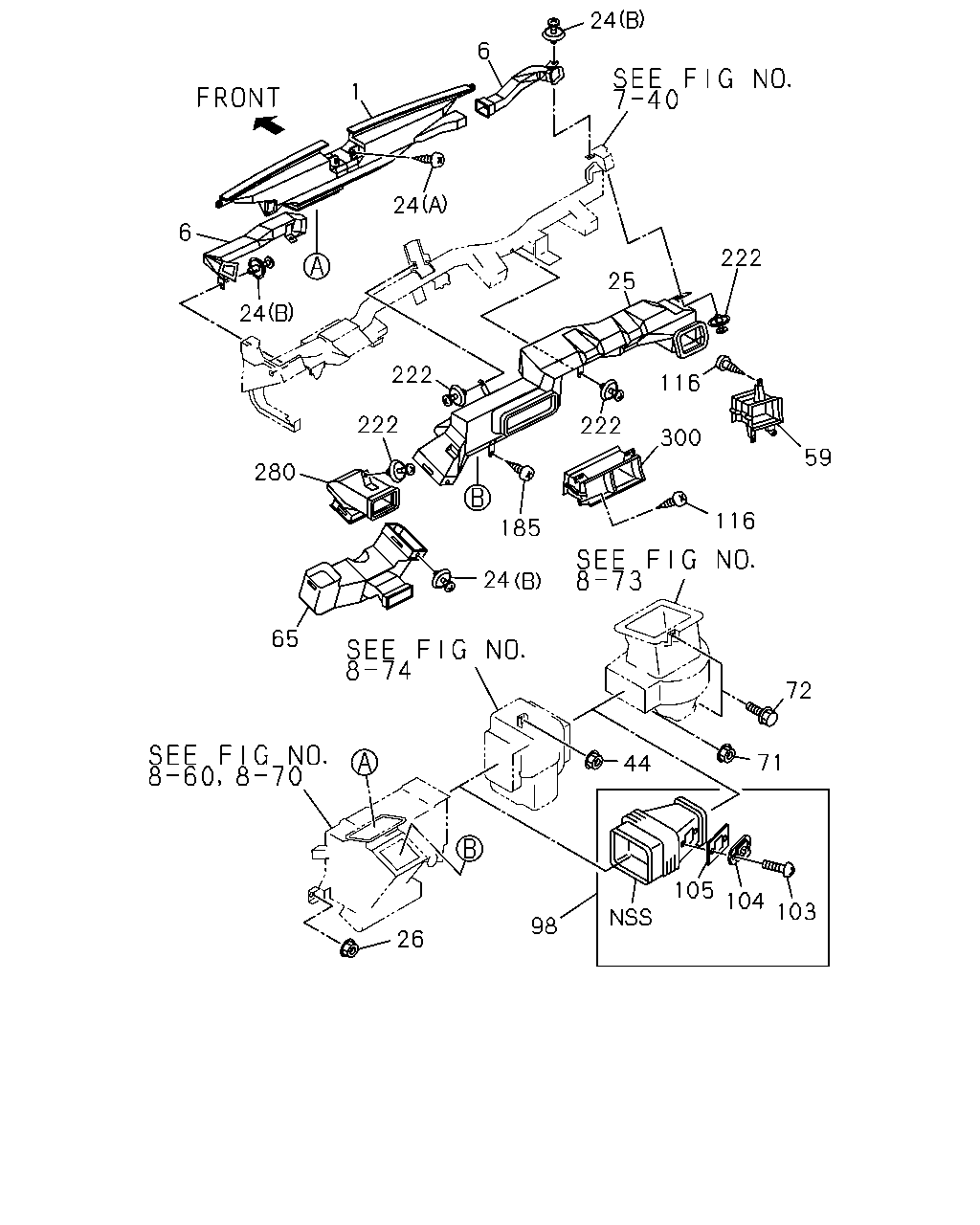

24 6 24 6 222 25 24 222 116 222 222 300 59 280 116 185 65 72 105 104 103 98 26 1 71 44 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97107-800-0	01	1	9611-9611	●	●	●	●	●	●	●	●
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97107-800-0	01	1	9612-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97119-906-1	01	1	9611-9611	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97119-906-1	01	1	9612-	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-190-0	01	1	9611-9611	●	●	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-190-0	01	1	9612-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	9611-9611	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	9612-	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760 (B)	8-94243-190-0	05	1	9611-9611	●	●	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760 (B)	8-94243-190-0	05	1	9612-	●	●	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-192-0	01	1	9611-9611	●	●	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-192-0	01	1	9612-	●	●	●	●	●	●	●	●
26	08.845 NUT; HTR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	04	1	9611-9611	●	●	●	●	●	●	●	●
26	08.845 NUT; HTR HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	04	1	9612-	●	●	●	●	●	●	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	02	1	9611-	●	●	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97101-305-0	01	1	9611-9611	●	●	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97101-305-0	01	1	9612-	●	●	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-193-0	01	1	9611-9611	●	●	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-193-0	01	1	9612-	●	●	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	01	1	9611-9611	●	●	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE	8-97063-399-0	01	1	9612-	●	●	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	02	1	9611-9611	●	●	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 10.701 M6X16	8-94206-784-0	02	1	9612-	●	●	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-94376-106-0	01	1	9611-	●	●	●	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9611-	●	●	●	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57)	8-97045-850-0	01	1	9611-	●	●	●	●	●	●	●	●
105	08.856 PLATE; HTR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57) 00.030	8-97045-851-0	01	1	9611-	●	●	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	9611-9611	●	●	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	9612-	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9611-9611	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 16.085 M5X16 TAPPING	9-09829-323-1	01	1	9612-9705	●	●	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	01	1	9706-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9611-9611	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9612-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9611-	●	●	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97100-194-0	01	1	9611-9611	●	●	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97100-194-0	01	1	9612-	●	●	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	9611-9611	●	●	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1)	8-97118-559-1	01	1	9612-	●	●	●	●	●	●	●	●

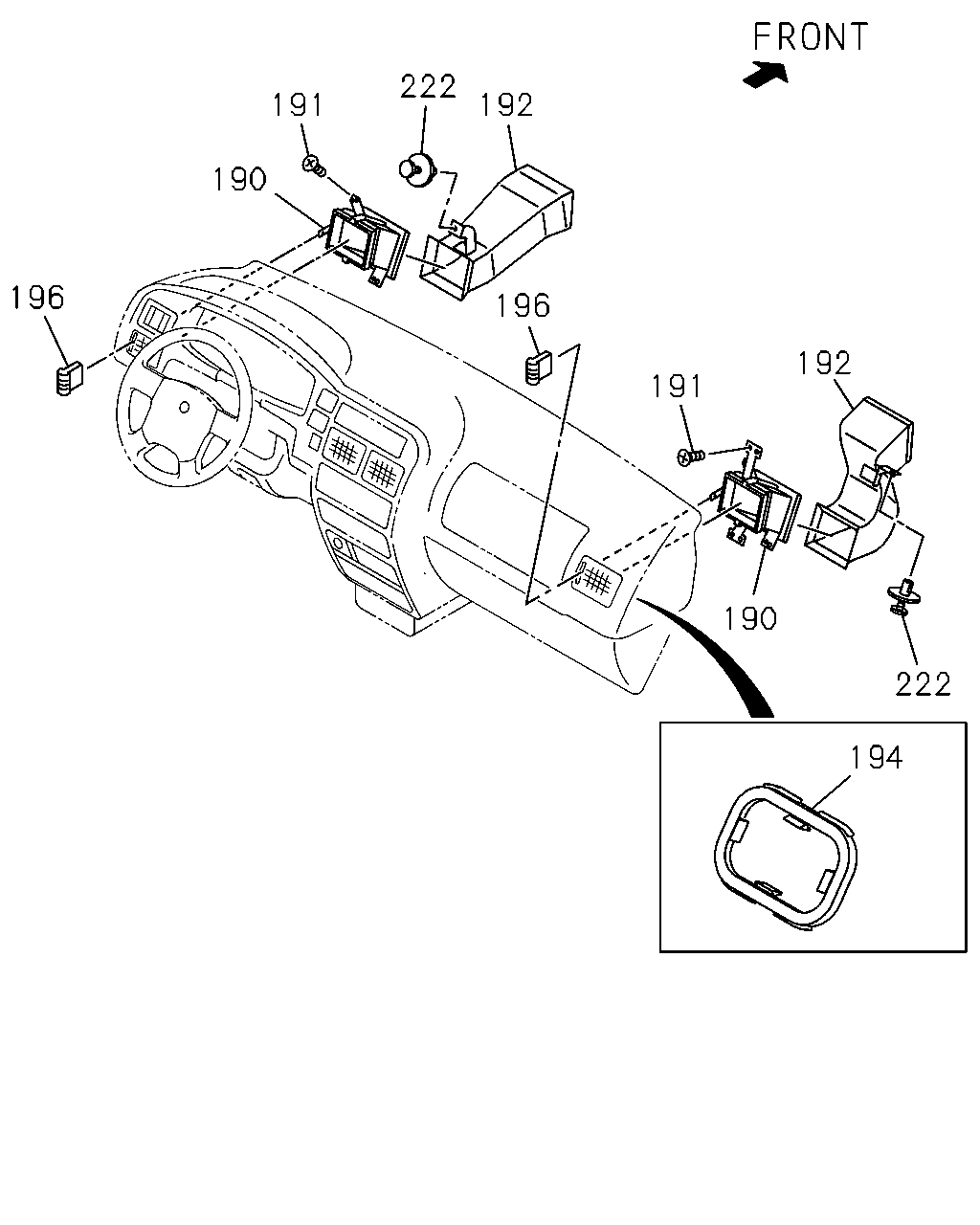

222 191 192 190 196 196 192 191 190 222 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97112-932-2	01	1	9611-	●	●	●	●	●	●	●	●
190	09.262 BOX; VENT,RAM AIR VENTILATION RAM AIR(6TN)	8-97112-931-2	01	1	9611-	●	●	●	●	●	●	●	●
191	09.262 SCREW; VENT BOX VENTILATION RAM AIR(6TN) 16.085 M5X16 TAPPING	9-09829-323-1	04	1	9611-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97112-935-1	01	1	9611-	●	●	●	●	●	●	●	●
192	09.262 DUCT; RAM AIR VENTILATION RAM AIR(6TN)	8-97112-933-1	01	1	9611-	●	●	●	●	●	●	●	●
194	09.262 COVER; HOLE,RAM AIR EXC. VENTILATION RAM AIR(6TN)	8-94435-191-0	02	1	9611-	●	●	●	●	●	●	●	●
196	09.262 KNOB; VENT BOX VENTILATION RAM AIR(6TN) BLACK	8-97000-038-0	02	1	9611-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9611-9611	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 06.760	8-94243-190-0	05	1	9612-	●	●	●	●	●	●	●	●
222	09.787 FASTENER; DUCT VENTILATION RAM AIR(6TN) 06.760	8-94243-190-0	02	1	9611-	●	●	●	●	●	●	●	●
