8-28 — CHASSIS ELECTRICAL (#45901) — 15 parça

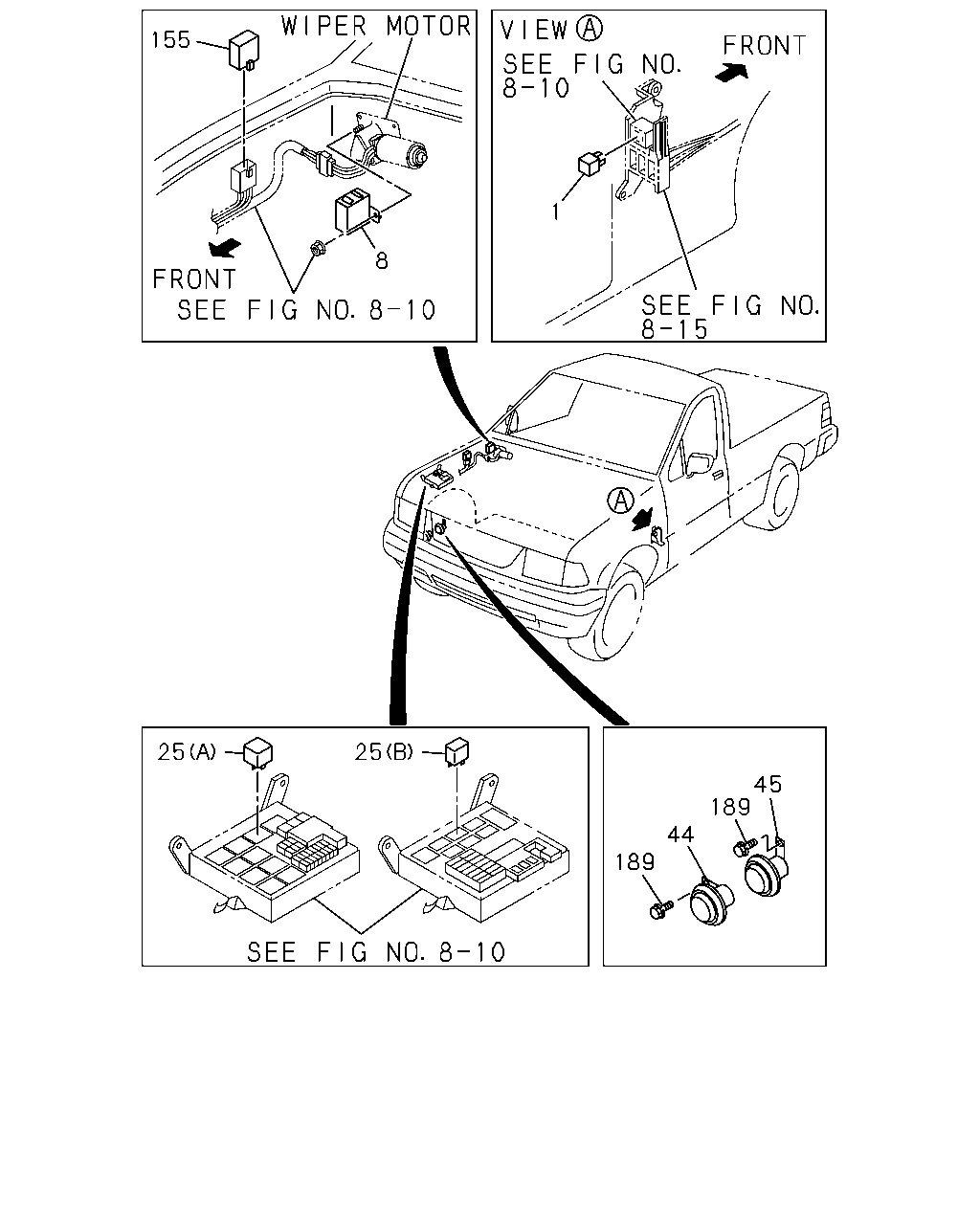

çizim 71095
155 1 8 25 25 45 189 44 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9611- ● ● ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97105-453-0 01 1 9611- ● ● ● ● ● ● ● ●
8 16.067 RELAY; WIPER 8-97096-762-1 01 1 9611- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97096-762-1 01 1 9611- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
08.852 (A) 12V 20A 		8-97060-926-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
6VD1 ENG(RLV) (B) 12V 20A 		8-97173-039-1 01 1 9712- ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97109-359-0 01 1 9611- ● ● ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
SAUDI ARABIA EQUIPMENT(EU2) DUAL TONE HORN<U05> 		8-97138-273-0 01 1 9611- ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97109-360-0 01 1 9611- ● ● ● ●
45 02.810 HORN; LOW NOTE
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97109-360-0 01 1 9611- ● ● ● ●
45 02.810 HORN; LOW NOTE
SAUDI ARABIA EQUIPMENT(EU2) 		8-97138-270-0 01 1 9611- ● ● ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559 		8-97114-443-0 01 1 9611- ● ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9611- ● ● ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9611- ● ● ● ● ● ● ● ●
