8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#45899) — 51 parça

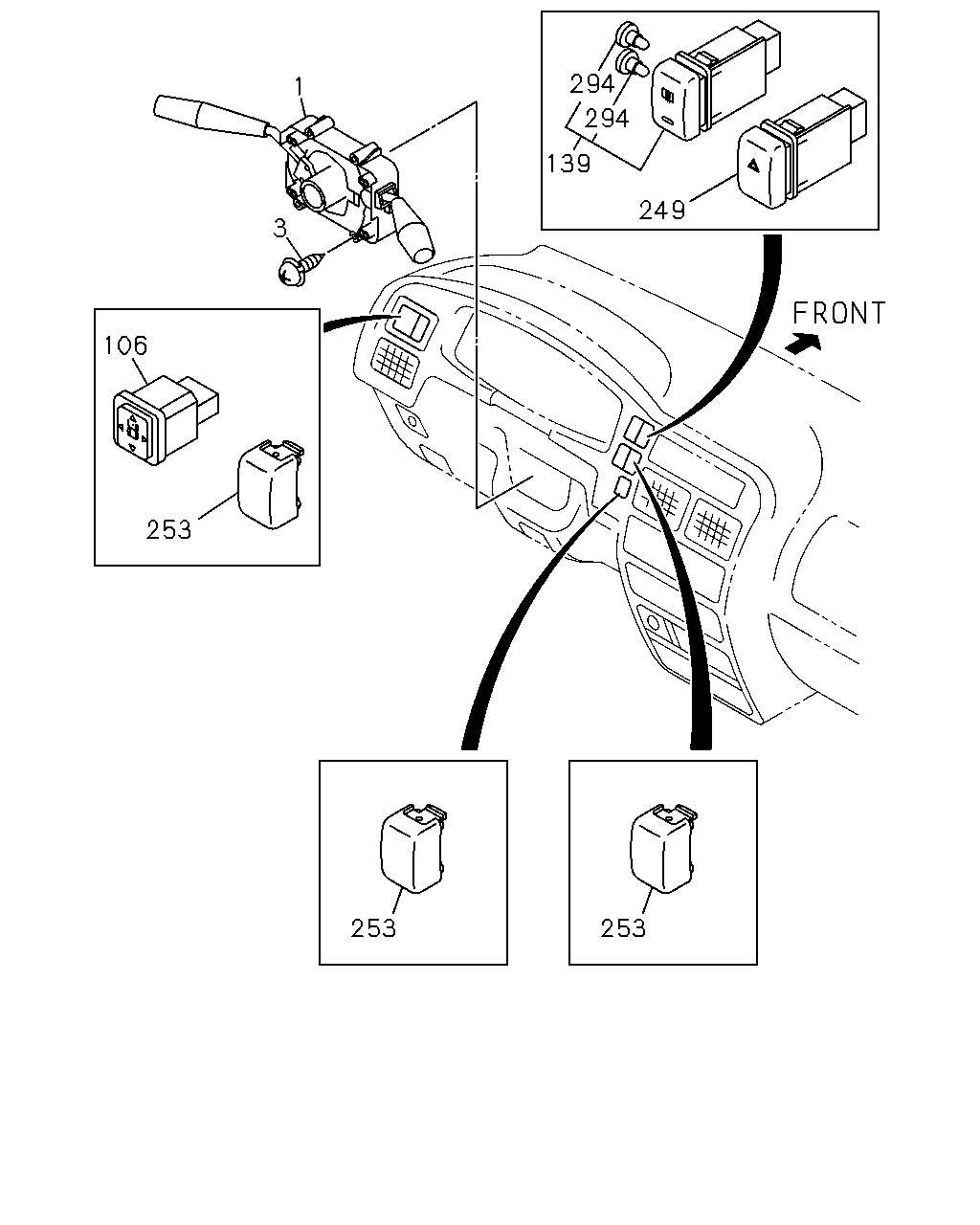

çizim 69698
294 294 1 139 249 3 106 253 253 253
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB 8-97111-495-1 01 1 9611- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97111-495-1 01 1 9611- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97111-494-1 01 1 9611- ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9712- ● ● ● ● ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97131-293-0 01 1 9611- ● ● ● ● ● ●
139 09.778 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-97094-074-2 01 1 9611- ● ●
249 02.485 SWITCH; HAZARD 8-97093-961-1 01 1 9611- ● ● ● ● ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 AR 1 9611- ● ● ● ● ● ● ● ●
294 08.991 BULB; DEFOGGER SW
REAR DEFOGGER<C49> 10.186 14V 0.84W 		8-97102-440-0 01 1 9611- ● ●
294 08.991 BULB; DEFOGGER SW
REAR DEFOGGER<C49> 14V 0.84W 		8-97117-108-0 01 1 9611- ● ●

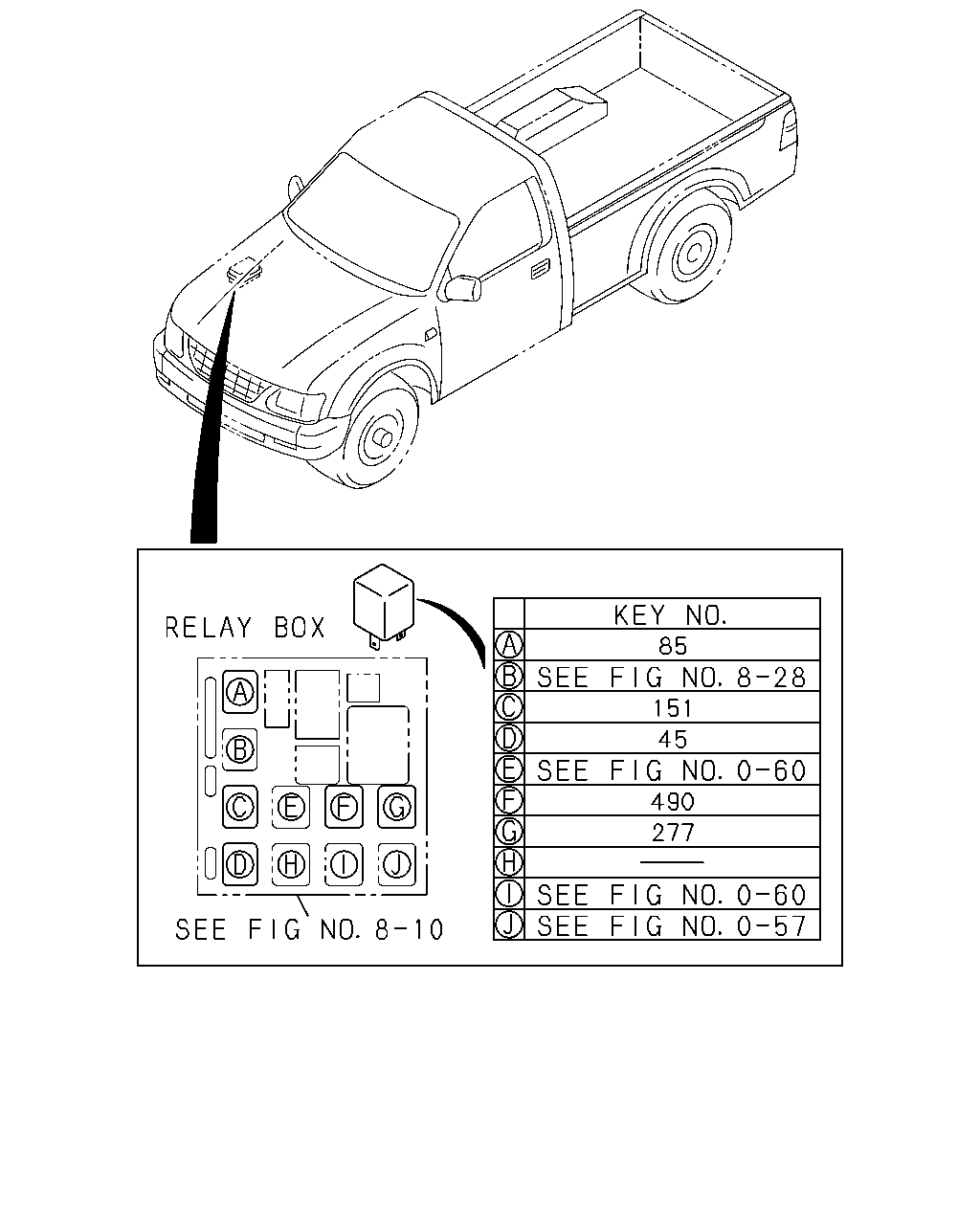

çizim 70576
85 151 45 490 277
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
45 02.252 RELAY; HORN
08.852 12V 20A 		8-97060-926-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
45 02.252 RELAY; HORN
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ● ● ●
45 02.252 RELAY; HORN
6VD1 ENG(RLV) 02.100 12V 20A 		8-97173-039-1 01 1 9712- ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
6VD1 ENG(RLV) 02.100 12V 20A 		8-97173-039-1 01 1 9712- ● ●
151 09.277 RELAY; HTR & A/C
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 12V 20A 		8-97060-926-0 01 1 9611-9706 ● ● ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
HEATER & DEFROSTER(C41),FORGED AIR VENTILATION(C57),AIR CONDITIONER MANUAL CONT(C60),AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 12V 20A 		8-97060-926-1 01 1 9707- ● ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A 		8-97060-926-0 01 1 9611-9612 ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A 		8-97060-926-0 01 1 9701-9711 ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
6VD1 ENG(RLV) 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ●
490 09.277 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 08.852 12V 20A 		8-97060-926-0 01 1 9611-9706 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60), AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 12V 20A 		8-97060-926-0 01 1 9707-9711 ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60), AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
6VD1 ENG(RLV) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 02.100 12V 20A 		8-97173-039-1 01 1 9712- ● ●

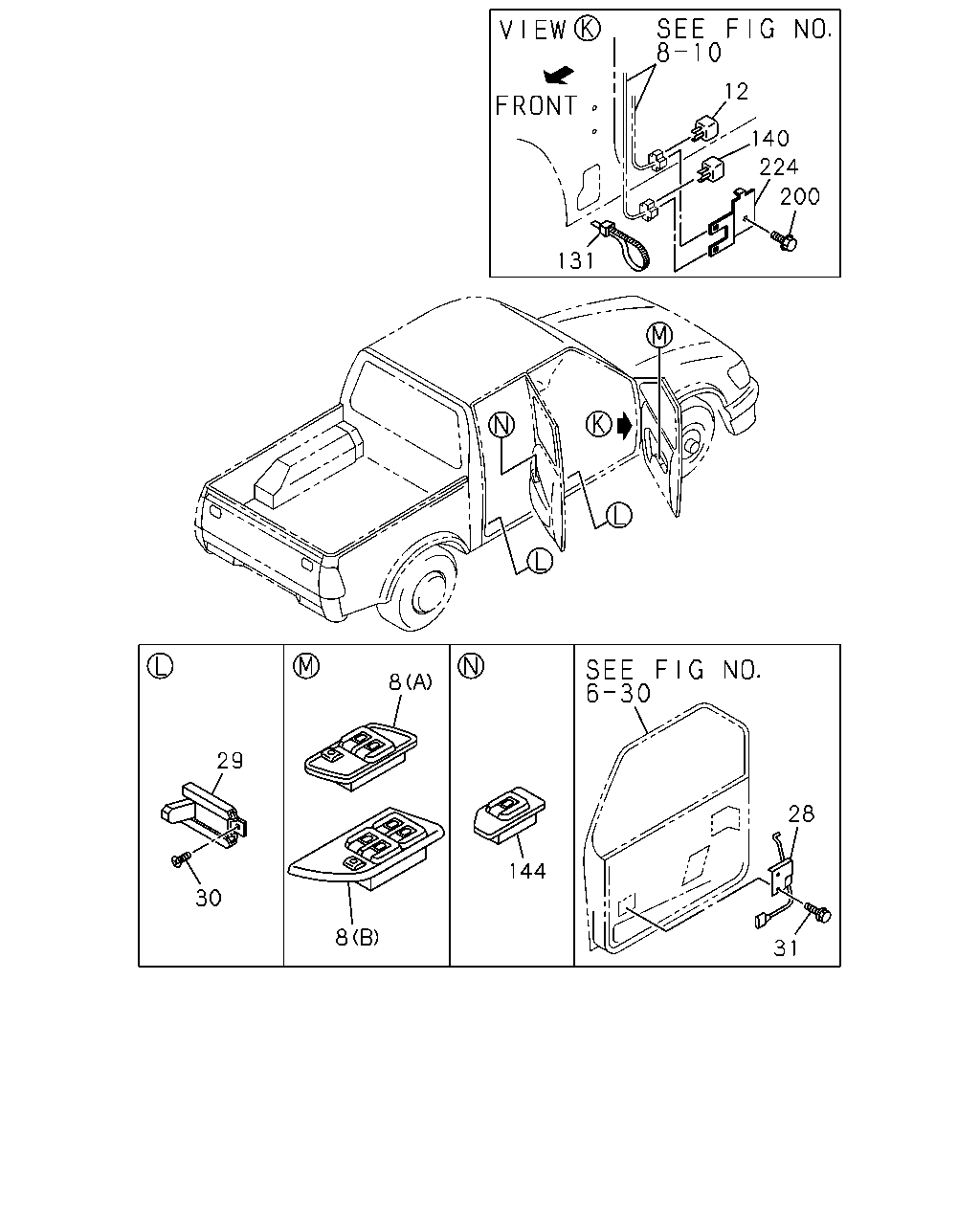

çizim 70577
12 140 224 200 8 29 28 30 8 131 144 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) BLACK 		8-97155-249-1 01 1 9611- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) BLACK 		8-97155-248-1 01 1 9611- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) BLACK 		8-97155-246-0 01 1 9611- ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A 		8-97060-926-1 01 1 9611- ● ● ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.611 		8-94450-809-1 01 1 9611- ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 02 1 9611- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 04 1 9611- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9611- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9611- ● ●
31 16.342 BOLT; DOOR LK SW
AUTO DOOR LOCK<AU4> 10.260 M6X14 		8-97046-332-0 02 1 9611- ● ●
131 02.575 CLIP; BAND
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER WINDOW<A30> ARGENTINA EQUIPMENT(7SZ) 03.162 L=140 		5-09707-031-1 01 1 9712- ● ● ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> 08.852 12V 20A 		8-97060-926-1 01 1 9611- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-2 01 1 9611- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-2 01 1 9611- ● ●
200 09.277 BOLT; RELAY BRKT
POWER WINDOW<A30> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ●
200 09.277 BOLT; RELAY BRKT
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ●
224 02.510 BRACKET; RELAY
POWER WINDOW<A30> 		8-97161-132-0 01 1 9611-9711 ● ● ● ● ● ●
224 02.510 BRACKET; RELAY
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 		8-97161-132-0 01 1 9611-9711 ● ●
224 02.510 BRACKET; RELAY
6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97161-133-0 01 1 9712- ● ●
224 02.510 BRACKET; RELAY
6VD1 ENG(RLV) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 		8-97161-133-0 01 1 9712- ● ●
224 02.510 BRACKET; RELAY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97161-132-0 01 1 9712- ● ● ● ● ● ●
224 02.510 BRACKET; RELAY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) POWER WINDOW<A30> ARGENTINA EQUIPMENT(7SZ) 		8-97161-132-0 01 1 9712- ● ● ● ● ●
224 02.510 BRACKET; RELAY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,ARGENTINA EQUIPMENT(7SZ) 		8-97161-132-0 01 1 9712- ● ●
224 02.510 BRACKET; RELAY
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97133-595-0 01 1 9712- ● ● ● ● ●
