8-21 — METER ASM (#45898) — 234 parça

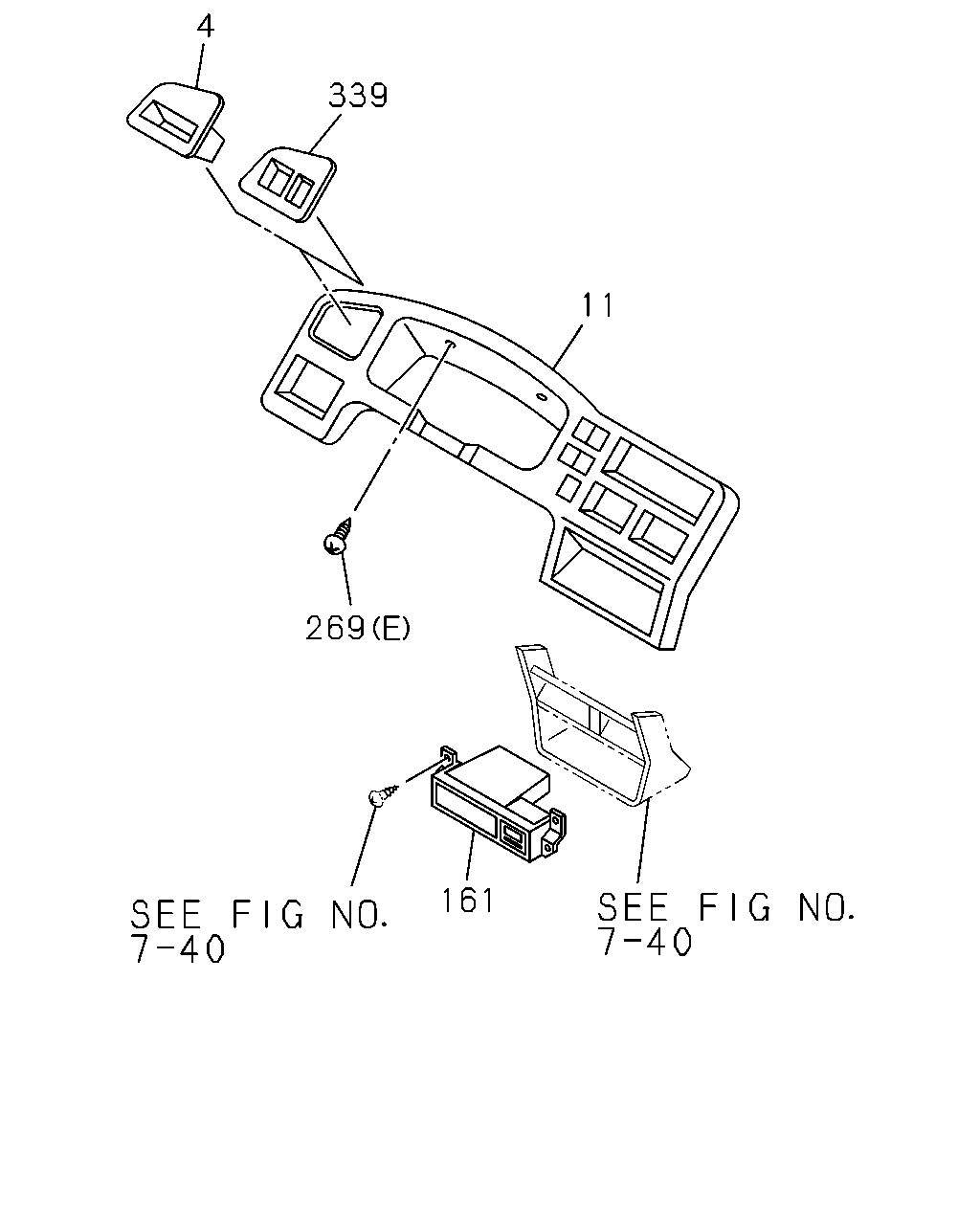

çizim 18556
4 339 11 161 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 09.743 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97137-288-0 01 1 9611- ● ● ● ● ● ●
4 09.743 CLUSTER 8-97137-288-0 01 1 9611- ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97154-709-1 01 1 9611-9611 ● ● ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97154-709-1 01 1 9612- ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) BLACK 		8-97154-709-1 01 1 9612- ● ●
11 09.743 CLUSTER ASM; METER
INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97154-763-2 01 1 9612- ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97122-058-1 01 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611-9711 ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9712- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 03 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.744 (C) 		8-97069-348-0 09 1 9611- ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97115-521-0 01 1 9611- ● ● ● ● ● ●

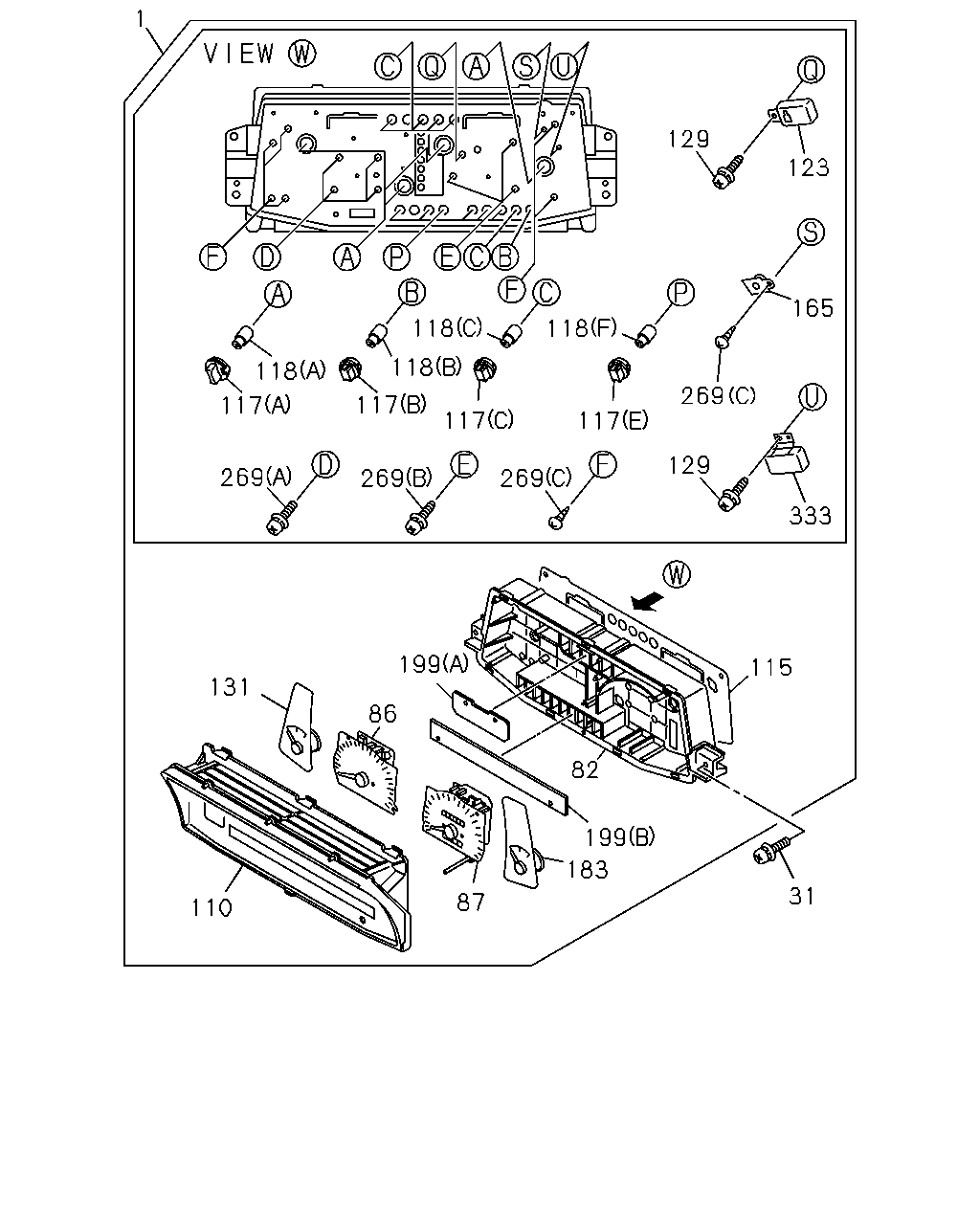

çizim 70278
1 129 123 165 118 118 118 118 117 269 117 117 117 129 269 269 269 333 199 115 131 86 82 199 183 31 87 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97112-480-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2) 		8-97112-480-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-480-2 01 1 9803- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97112-481-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-483-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2) 		8-97137-245-0 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9803- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZE1 ENG(RLJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2),ELECTRIC FUELINJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16>,ELECTRIC FUEL INJECTI ON<6GG> 		8-97112-477-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97112-479-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,ELECTRIC FUEL I NJECTION<6GG> 		8-97112-478-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, ELECTRICFUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2),ELECTRIC FUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-473-2 01 1 9611-9612 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-473-2 01 1 9701- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1> 		8-97112-474-2 01 1 9611-9612 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1> 		8-97112-474-2 01 1 9701- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-454-2 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-455-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-452-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-453-4 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97200-232-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97200-231-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97200-230-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97200-229-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97175-626-0 01 1 9712- ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> 		8-97135-890-1 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> 		8-97135-892-1 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97179-664-0 01 1 9712- ● ●
87 09.761 SPEEDOMETER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97132-252-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97132-252-1 01 1 9712-9802 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2) 		8-97132-252-1 01 1 9803- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97132-261-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-261-2 01 1 9712- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-256-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-256-1 01 1 9712- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9712-9802 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97135-887-1 01 1 9712-9802 ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2) 		8-97135-887-1 01 1 9803- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97135-887-1 01 1 9803- ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-251-1 01 1 9611-9802 ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHINA EQUIPMENT(YT2) 		8-97132-251-1 01 1 9803- ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9611-9802 ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9803- ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9803- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9611- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9712- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-267-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97139-579-0 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-266-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-276-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-263-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-269-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-262-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-268-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97179-665-0 01 1 9712- ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 3W 		8-94449-732-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> 09.765 (D) 14V 3W 		8-97104-703-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> (F) 24V 3W GREEN 		8-97045-599-0 AR 1 9803- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V 3W 		8-94449-731-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 09.765 (E) 14V 3W 		8-97104-702-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (D) 12V 3.4W 		9-82691-397-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9803- ● ● ● ● ● ● ● ●
123 09.744 CHIME; SPD WARNING,CLUSTER METER
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 09.765 12V 		5-83460-006-0 01 1 9611- ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 08.977 M4 TAPPING 		8-94325-271-0 02 1 9611- ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-0 01 1 9611- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-1 01 1 9611- ● ● ● ● ● ● ● ●
165 09.762 TIMER; SEAT BELT
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 		8-94323-610-0 01 1 9611- ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-0 01 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-3 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-289-2 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-280-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-288-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-285-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97142-849-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97142-850-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97214-726-0 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
6VD1 ENG(RLV) TACHOMETER<U16> (B) 		8-97179-666-0 01 1 9712- ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611-9711 ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9712- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 03 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.744 (C) 		8-97069-348-0 09 1 9611- ● ● ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-290-0 01 1 9611- ● ● ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97118-687-0 01 1 9611- ● ● ● ●

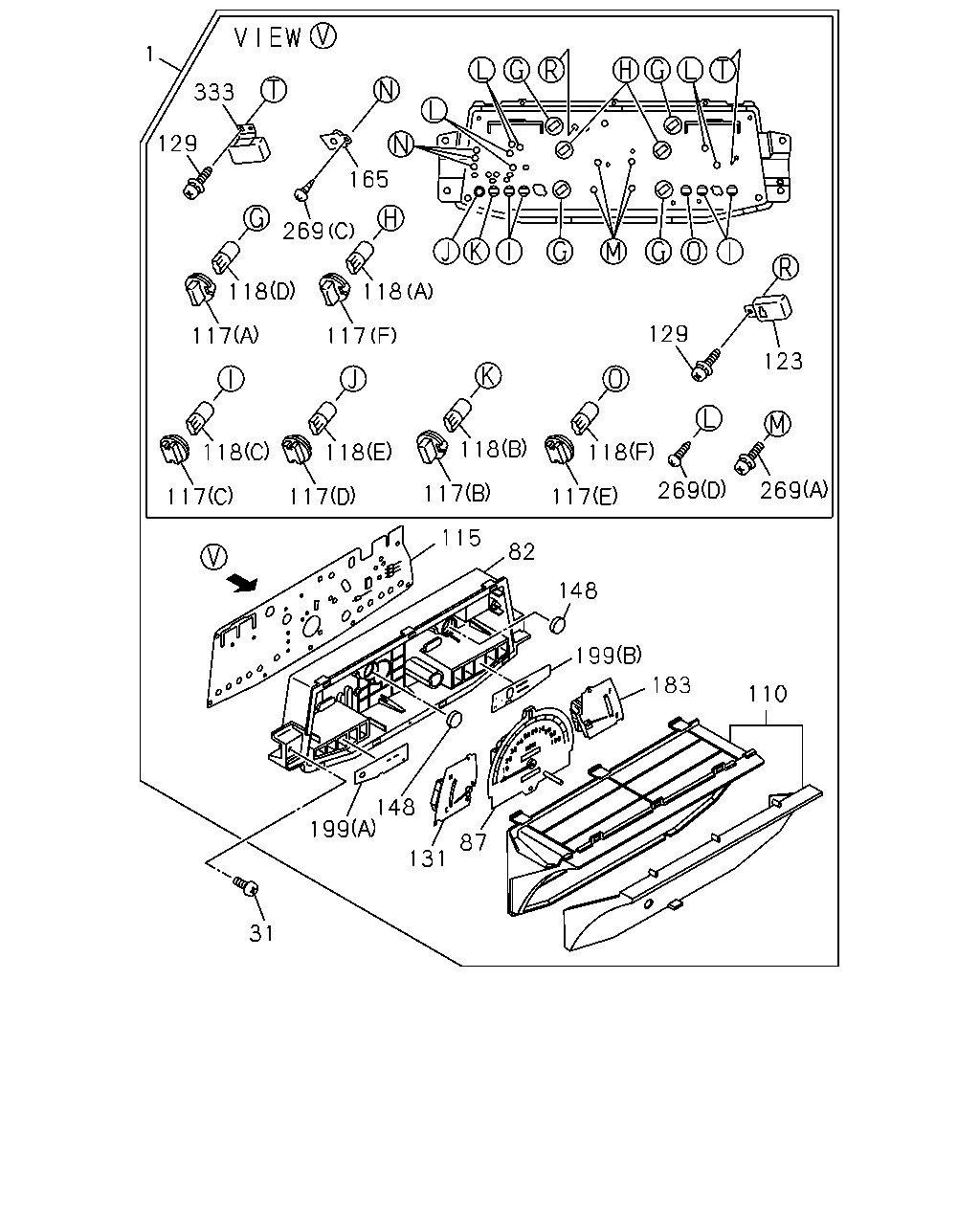

çizim 70618
333 129 165 269 118 118 129 117 123 118 118 118 118 269 117 117 115 82 148 183 110 148 87 131 31 1 117 117 117 269 199 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97112-480-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2) 		8-97112-480-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-480-2 01 1 9803- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97112-481-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97112-483-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2) 		8-97137-245-0 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9803- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZE1 ENG(RLJ) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2),ELECTRIC FUELINJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16>,ELECTRIC FUEL INJECTI ON<6GG> 		8-97112-477-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97112-479-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,ELECTRIC FUEL I NJECTION<6GG> 		8-97112-478-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, ELECTRICFUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2),ELECTRIC FUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-473-2 01 1 9611-9612 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-473-2 01 1 9701- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1> 		8-97112-474-2 01 1 9611-9612 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> ELECTRIC FUEL INJECTION<6GG> EXC. SPEEDOMETER MILE<UC1> 		8-97112-474-2 01 1 9701- ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-454-2 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-455-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-452-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-453-4 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97200-232-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97200-231-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97200-230-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZD1 ENG(LW3) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97200-229-0 01 1 9803- ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97175-626-0 01 1 9712- ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97132-252-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97132-252-1 01 1 9712-9802 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> ,CHINA EQUIPMENT(YT2) 		8-97132-252-1 01 1 9803- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), ELECTRIC FUEL INJECTION<6GG> 		8-97132-261-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-261-2 01 1 9712- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-256-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-256-1 01 1 9712- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9712-9802 ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97135-887-1 01 1 9712-9802 ● ●
87 09.761 SPEEDOMETER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2), SPEEDOMETER MILE<UC1>,CHINA EQUIPMENT (YT2) 		8-97135-887-1 01 1 9803- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97135-887-1 01 1 9803- ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-251-1 01 1 9611-9802 ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,CHINA EQUIPMENT(YT2) 		8-97132-251-1 01 1 9803- ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9611-9802 ● ● ● ●
87 09.761 SPEEDOMETER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9803- ● ● ● ●
87 09.761 SPEEDOMETER
4ZD1 ENG(LW3) TACHOMETER<U16> CHINA EQUIPMENT(YT2) EXC. SPEEDOMETER MILE<UC1> 		8-97132-257-2 01 1 9803- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9611- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9712- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-267-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97139-579-0 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> 		8-97132-266-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-276-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-263-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-269-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-262-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-268-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97179-665-0 01 1 9712- ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 3W 		8-94449-732-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> 09.765 (D) 14V 3W 		8-97104-703-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> (F) 24V 3W GREEN 		8-97045-599-0 AR 1 9803- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V 3W 		8-94449-731-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 09.765 (E) 14V 3W 		8-97104-702-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (D) 12V 3.4W 		9-82691-397-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9803- ● ● ● ● ● ● ● ●
123 09.744 CHIME; SPD WARNING,CLUSTER METER
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 09.765 12V 		5-83460-006-0 01 1 9611- ● ● ● ●
129 09.744 SCREW; PRINTED CIRCUIT,CLUSTER M
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 08.977 M4 TAPPING 		8-94325-271-0 02 1 9611- ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-0 01 1 9611- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-1 01 1 9611- ● ● ● ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. TACHOMETER<U16> 		8-94325-264-0 02 1 9611- ● ● ● ● ● ● ● ●
165 09.762 TIMER; SEAT BELT
4ZD1 ENG(LW3),4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1> 		8-94323-610-0 01 1 9611- ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-0 01 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-3 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-289-2 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-280-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97132-288-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. SAUDI ARABIA EQUIPMENT(EU2), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-285-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97142-849-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97142-850-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97214-726-0 01 1 9803- ● ● ● ●
199 09.772 LENS; WARNING LAMP
6VD1 ENG(RLV) TACHOMETER<U16> (B) 		8-97179-666-0 01 1 9712- ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611-9711 ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9712- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 03 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 09.744 (C) 		8-97069-348-0 09 1 9611- ● ● ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-290-0 01 1 9611- ● ● ● ●
333 09.744 CIRCUIT; SPEED WARNING
SAUDI ARABIA EQUIPMENT(EU2) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97118-687-0 01 1 9611- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
