◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-16 - WIRING HARNESS CONNECTOR ▶
8-16 — WIRING HARNESS CONNECTOR (#45896) — 34 parça
çizim 20078
106 106 107 107 108 109
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
106 02.483 CONNECTOR; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 		8-97200-209-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (A) 		8-97200-210-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> (B) 		8-97200-213-0 01 1 9712- ● ● ● ● ● ● ● ●
106 02.483 CONNECTOR; RR COMB LAMP
EXC. RR COMB LAMP VERTICAL<T98> (B) 		8-97200-215-0 01 1 9712- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 03 1 9712- ● ● ● ● ● ● ● ●
107 02.483 TERMINAL; JOINT,RR COMB LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 07 1 9712- ● ● ● ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ● ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
EXC. CHINA EQUIPMENT(YT2) 2P FEMALE BLACK 		8-97169-948-0 01 1 9712- ● ● ●
108 02.483 CONNECTOR; LICENSE LAMP
CHINA EQUIPMENT(YT2) 2P FEMALE BLACK 		8-97169-948-0 02 1 9712- ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
EXC. CHINA EQUIPMENT(YT2) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ●
109 02.483 TERMINAL; JOINT,LICENSE LAMP
CHINA EQUIPMENT(YT2) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 04 1 9712- ● ● ●

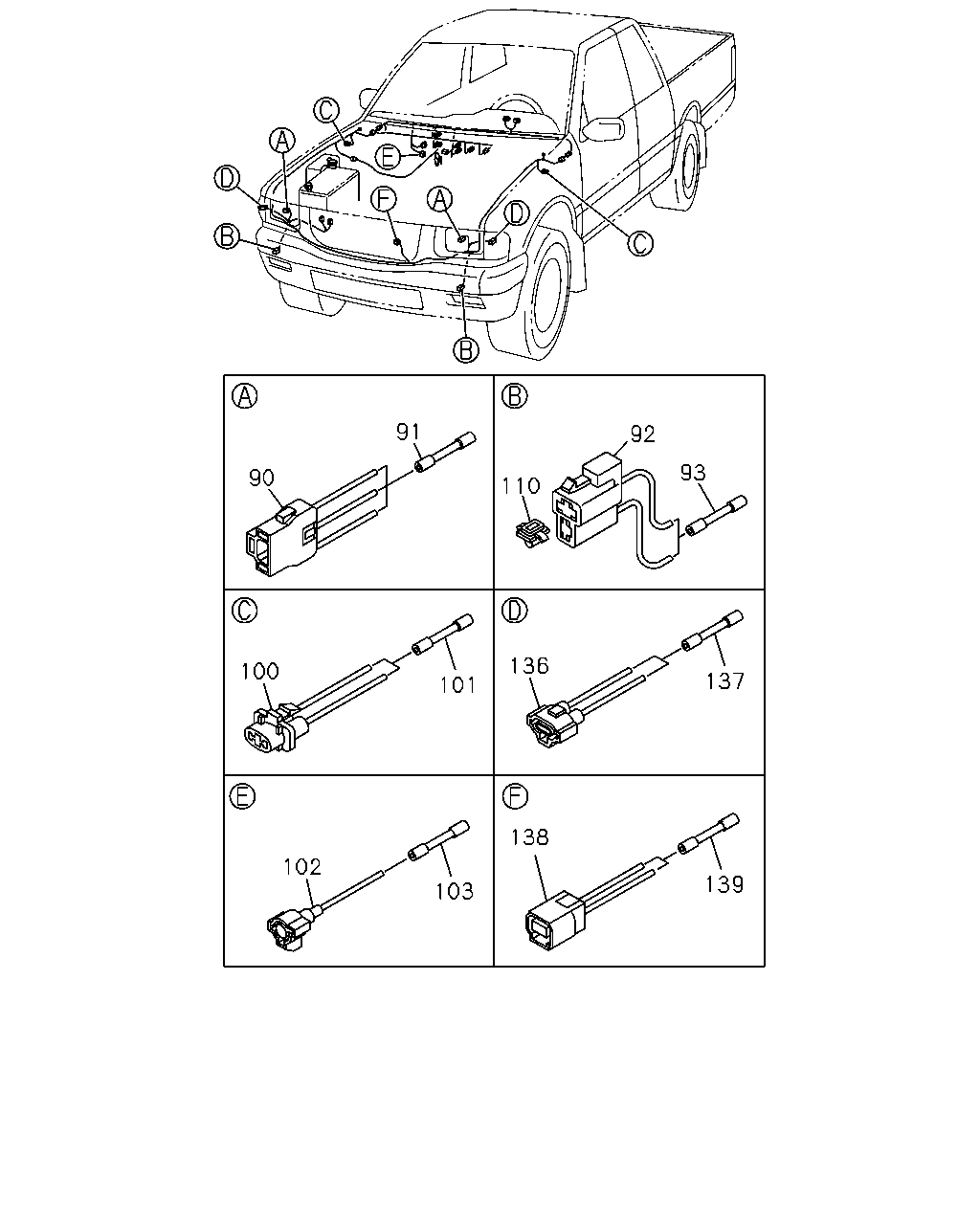

çizim 69274
91 92 93 90 136 100 137 101 138 102 139 103 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
90 02.483 CONNECTOR; HEAD LAMP 8-97200-201-0 01 1 9712- ● ● ● ● ● ● ● ●
90 02.483 CONNECTOR; HEAD LAMP 8-97200-202-0 01 1 9712- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
91 02.483 TERMINAL; JOINT,HEAD LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 07 1 9712- ● ● ● ● ● ● ● ●
92 02.483 CONNECTOR; FRT TURN LAMP 8-97192-985-0 02 1 9712- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
93 02.483 TERMINAL; JOINT,FRT TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
100 02.483 CONNECTOR; SIDE TURN LAMP 8-97174-886-0 02 1 9712- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
101 02.483 TERMINAL; JOINT,SIDE TURN LAMP
WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
102 02.483 CONNECTOR; A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60), AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) 		8-97174-883-0 01 1 9712- ● ● ● ● ● ● ● ●
103 02.483 TERMINAL; JOINT,A/C PRESS SW
AIR CONDITIONER MANUAL CONT(C60), AIR CON PREPARATORY PACK(S6D),COOLER WO/HEATER(YL1) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
110 02.483 CLIP; CONNECTOR
02.559 L=15 		8-94315-436-1 02 1 9712- ● ● ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97200-205-0 02 1 9712- ● ● ● ● ● ● ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-203-0 01 1 9712- ● ●
136 02.483 CONNECTOR; POSITION LAMP
6VD1 ENG(RLV) 		8-97200-204-0 01 1 9712- ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) WIRE SIZE=0.75-1.25 USE TIN PLATE 		8-97169-474-0 02 1 9712- ● ● ● ● ● ● ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 03 1 9712- ● ●
137 02.483 TERMINAL; JOINT,POSITION LAMP
6VD1 ENG(RLV) WIRE SIZE=2.0 USE TIN PLATE 		8-97169-475-0 01 1 9712- ● ●
138 02.483 CONNECTOR; RECEIVER TANK
RADIATOR COOLANT LEVELING WARNING<7DL> 		8-97200-206-0 01 1 9712- ● ● ● ● ● ●
139 02.483 TERMINAL; JOINT,RECEIVER TANK
RADIATOR COOLANT LEVELING WARNING<7DL> WIRE SIZE=0.3-0.5 USE TIN PLATE 		8-97169-473-0 02 1 9712- ● ● ● ● ● ●
