◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#45895) — 340 parça

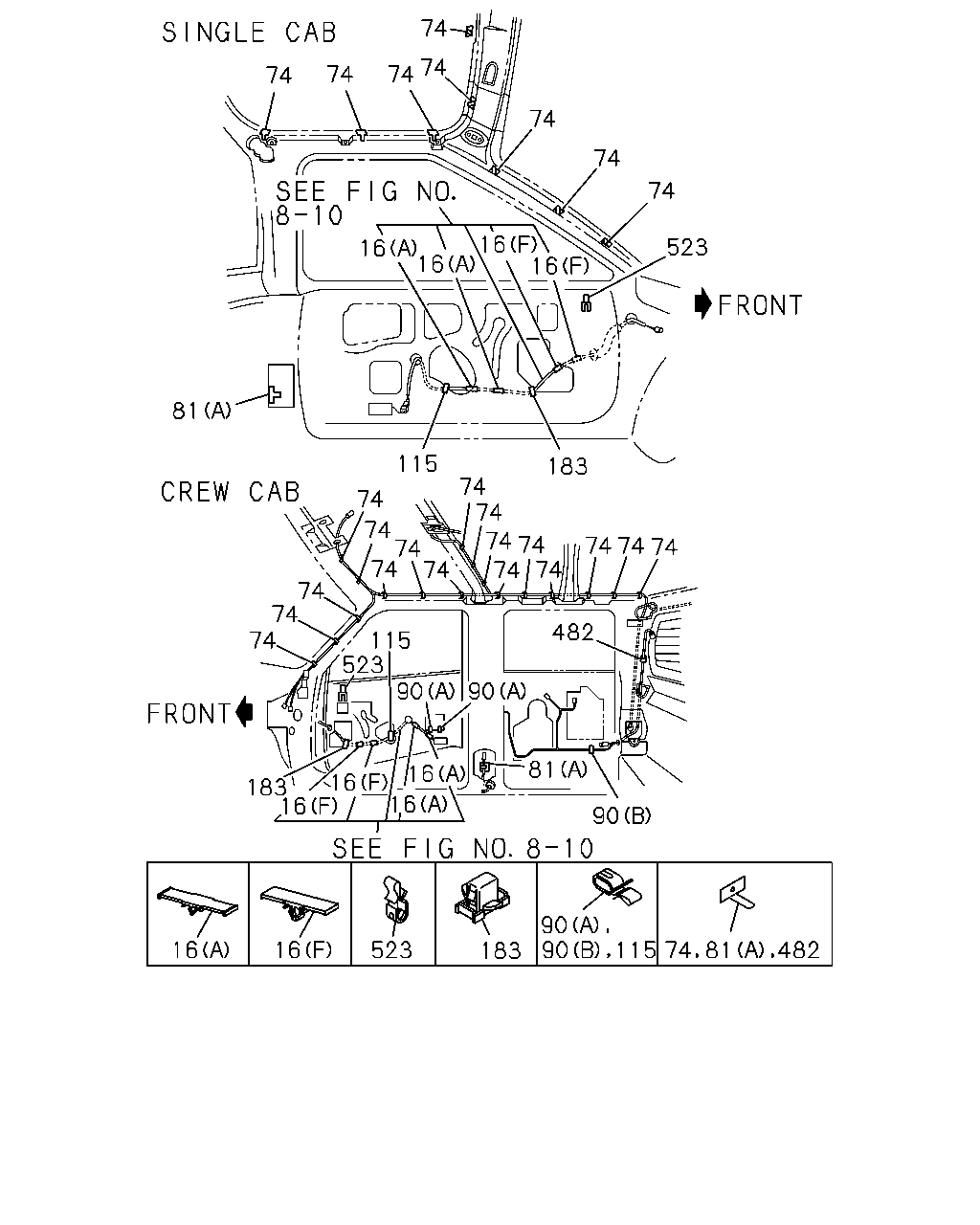

çizim 18555
74 74 74 74 74 74 74 74 16 16 16 16 523 81 183 74 74 74 74 74 74 74 74 74 74 74 74 482 523 90 16 16 183 16 16 81 90 90 16 16 523 115 482 183 115 74 74 74 74 74 90 115 90 81 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9611- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9612- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9612- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 17 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9612- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611-9711 ● ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9712- ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (A) ID=12 		8-94423-045-0 04 1 9611-9612 ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 9701- ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 9611- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9611- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9611- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9611- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●

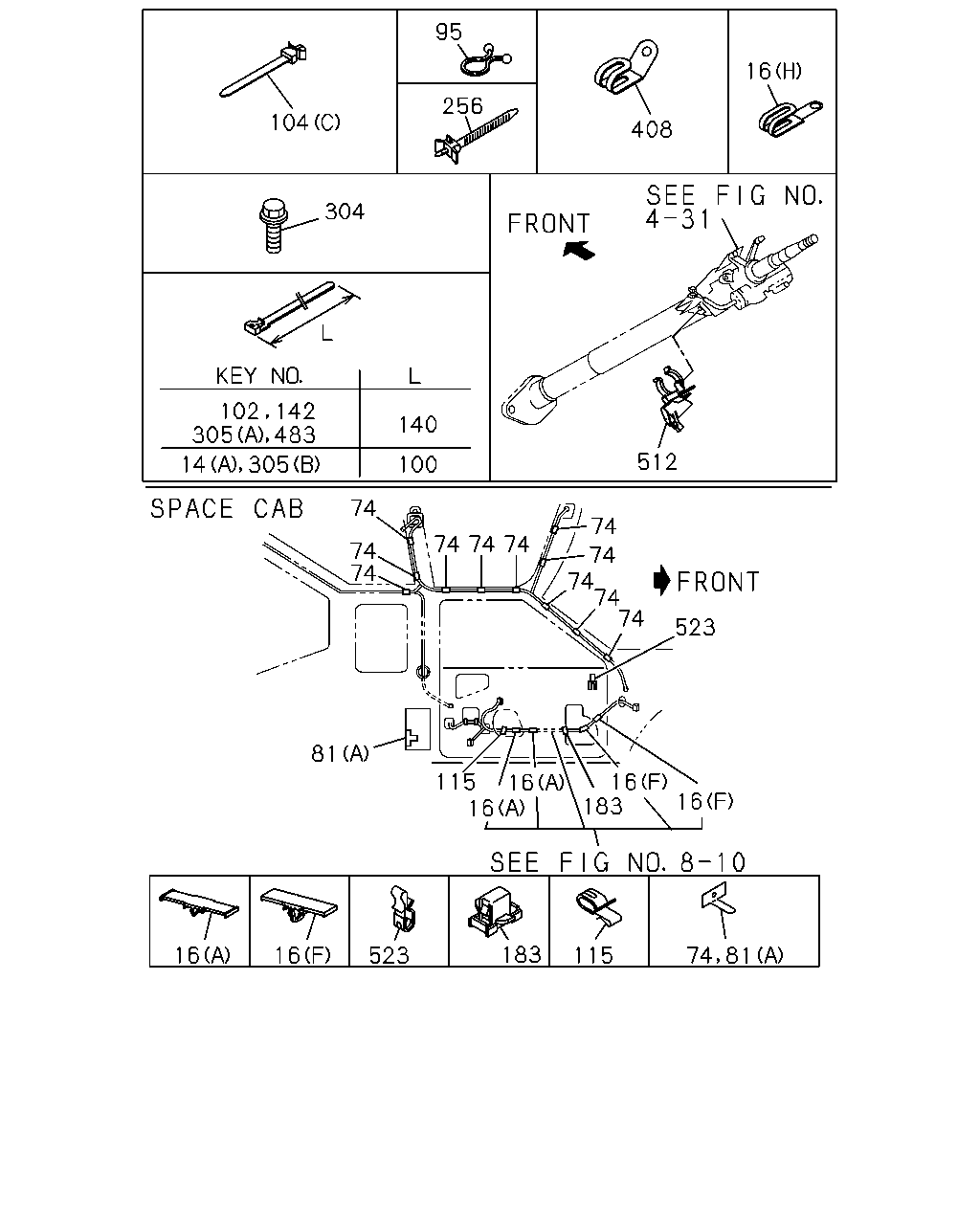

çizim 20282
95 16 256 104 408 304 102 142 305 483 14 512 74 74 74 74 74 74 74 74 523 115 16 16 16 16 183 81 183 16 16 523 115 305 74 74 74 74 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (D) ID=20.2 & 6 		8-94472-577-0 01 1 9712- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 11 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 09 1 9611- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9611- ● ● ●
74 02.480 CLIP; ROOM LAMP HARNESS 8-94138-987-0 06 1 9611- ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 01 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9612- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9612- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 17 1 9611-9611 ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9612- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611-9711 ● ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9712- ● ● ● ●
95 02.559 CLIP; CABLE
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) ARGENTINA EQUIPMENT(7SZ) 02.480 ID=25 		8-94120-831-0 01 1 9712- ● ● ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9704- ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9712- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9611-9705 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9611- ● ● ● ● ● ●
142 02.559 CLIP; HARNESS,ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9611- ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9611-9705 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) L=135 		8-94473-399-0 01 1 9611-9705 ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) L=135 		8-94473-399-0 01 1 9611-9705 ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
L=135 		8-94473-399-0 01 1 9706- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) L=135 		8-94473-399-0 01 1 9706- ● ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) L=135 		8-94473-399-0 01 1 9706- ● ● ● ● ● ● ●
256 02.559 CLIP; FENDER SKIRT HARNESS
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) L=135 		8-94473-399-0 01 1 9706- ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9611-9611 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9612-9711 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9611-9611 ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9611-9611 ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9612-9709 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9710-9711 ● ● ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZE1 ENG(RLJ) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) EXC. ELECTRIC FUEL INJECTION<6GG> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9710-9711 ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9611-9611 ● ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9612- ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-0 01 1 9611-9611 ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.162 (A) L=140 		5-09707-031-0 01 1 9611-9611 ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-1 01 1 9612- ● ● ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 03.162 (A) L=140 		5-09707-031-1 01 1 9612- ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> 03.162 (A) L=140 		5-09707-031-1 01 1 9612- ● ● ● ● ● ●
305 02.559 CLIP; ENG HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 04.594 (B) L=100 		5-09707-036-1 01 1 9611- ● ● ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-0 01 1 9611-9611 ● ● ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 L=140 		5-09707-031-1 01 1 9612- ● ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
06.518 		8-97109-628-2 01 1 9611- ● ● ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELEC CONT<DG2>, DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9611- ● ● ● ● ● ●

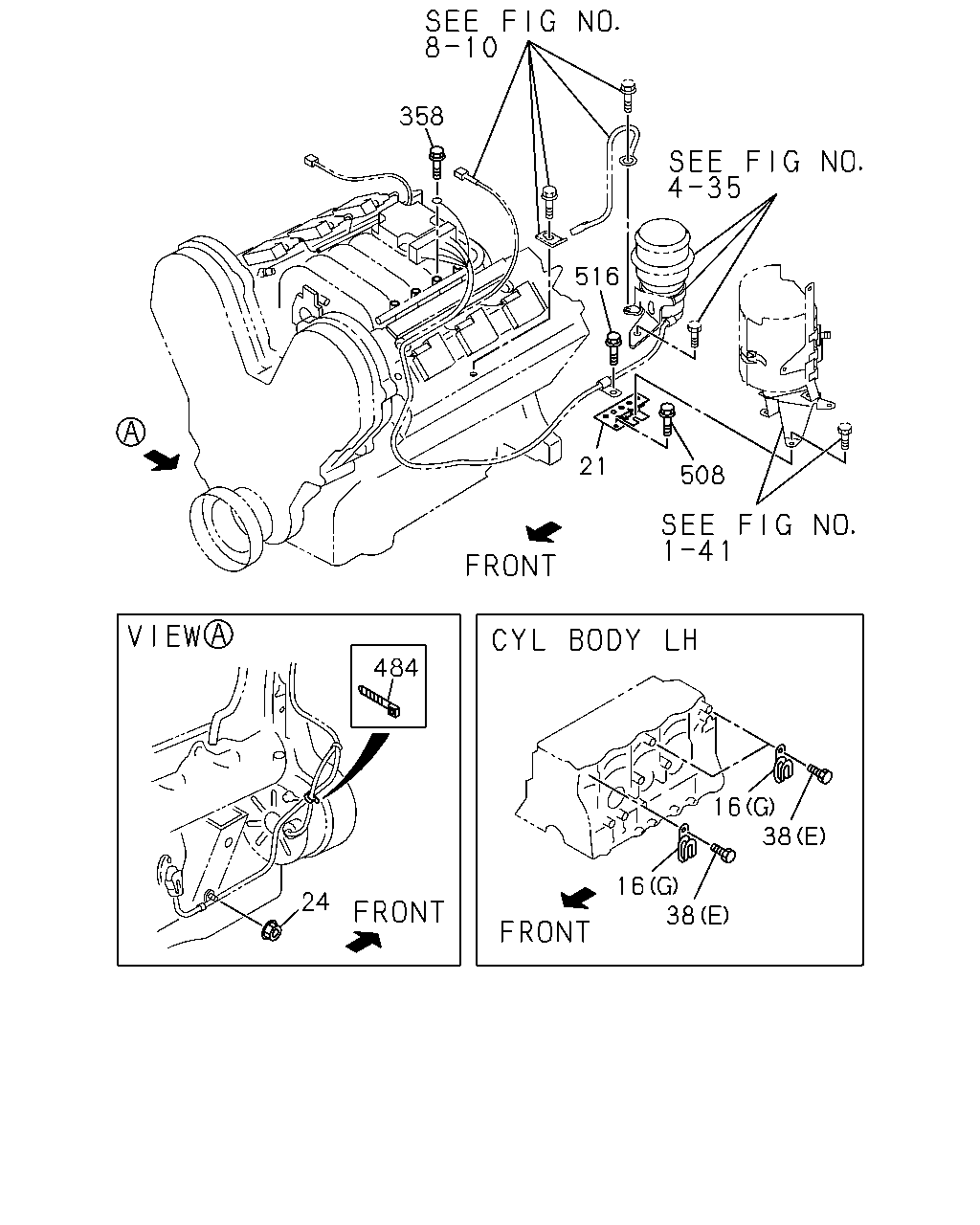

çizim 70185
358 516 21 508 484 16 38 16 38 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
6VD1 ENG(RLV) 		8-97108-281-0 01 1 9712- ● ●
24 02.559 NUT; HARNESS
6VD1 ENG(RLV) 07.833 M8 W/LK WASHER 		8-94327-073-0 01 1 9712- ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9711 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612- ● ● ● ● ● ● ● ●
358 02.480 BOLT; EARTH
6VD1 ENG(RLV) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712- ● ●
484 02.559 CLIP; ECGI HARNESS TO C/MBR
6VD1 ENG(RLV) 04.594 L=100 		5-09707-036-0 03 1 9712- ● ●
508 02.559 BOLT; BRKT,ENG HARNESS
6VD1 ENG(RLV) 03.670 M6X20 FLANGE 		0-28080-620-0 02 1 9712- ● ●
516 02.559 BOLT; HARNESS
6VD1 ENG(RLV) 08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9712- ● ●

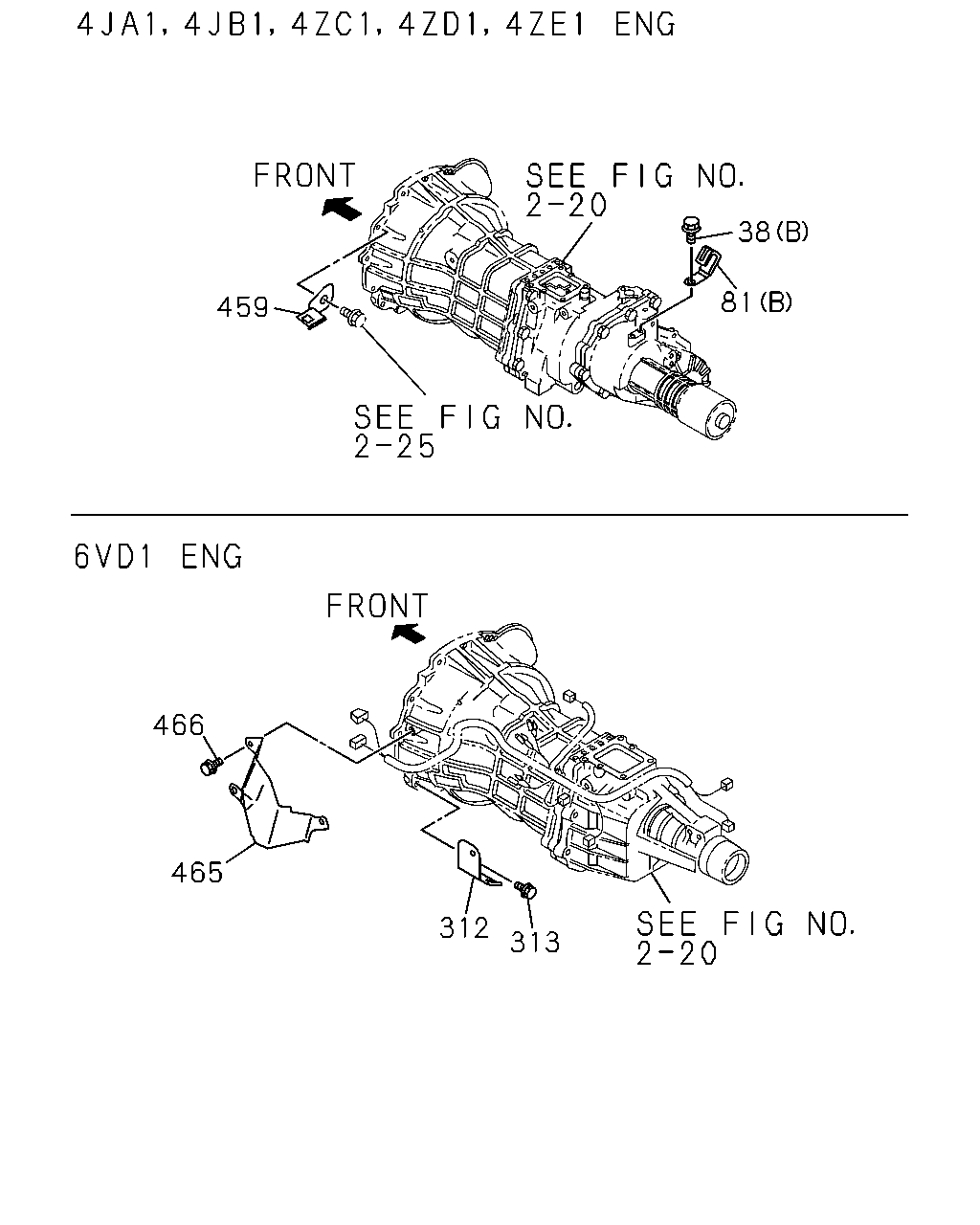

çizim 72150
38 81 459 466 465 312 313
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9711 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611-9711 ● ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9712- ● ● ● ●
312 02.559 BRACKET; CLIP HARNESS
6VD1 ENG(RLV) 		8-94359-008-1 01 1 9712- ● ●
313 02.559 BOLT; BRKT
6VD1 ENG(RLV) 01.271 M8X40 FLANGE 		0-28080-840-0 01 1 9712- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1 ENG(RLE) TURBOCHARGER<K51> 		8-94315-284-0 01 1 9712- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-94315-284-0 01 1 9712- ● ● ● ● ●
465 02.483 PROTECTOR; HEAT,HARNESS
6VD1 ENG(RLV) 		8-97108-280-0 01 1 9712- ● ●
466 02.483 BOLT; HEAT PROTECTOR
6VD1 ENG(RLV) 01.428 M6X12 FLANGE 		0-28080-612-0 03 1 9712- ● ●

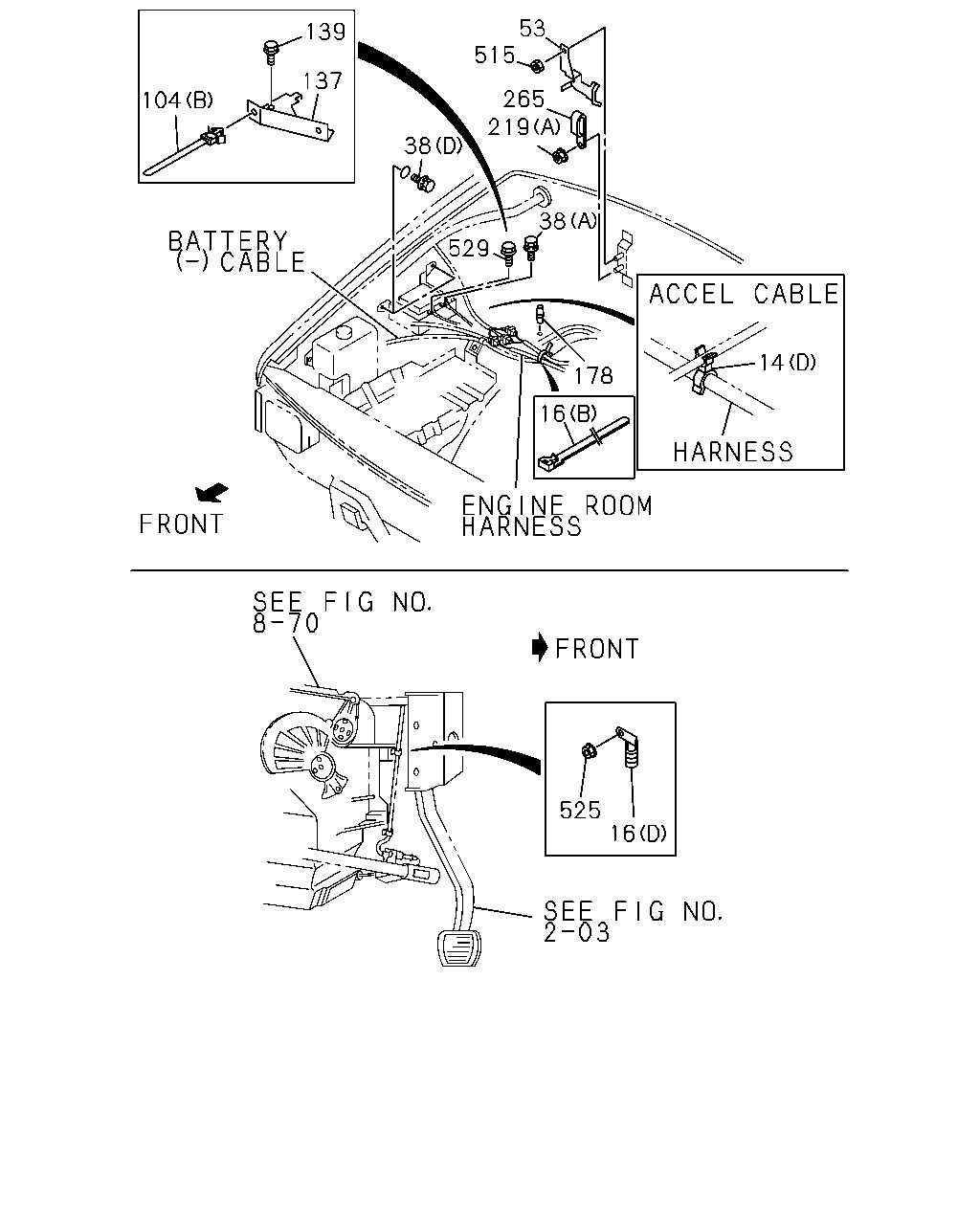

çizim 72184
53 515 139 137 265 219 104 529 38 178 16 525 38 14 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (D) ID=20.2 & 6 		8-94472-577-0 01 1 9712- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9711 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612- ● ● ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) 		8-97183-049-0 01 1 9708-9711 ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97183-049-0 01 1 9712- ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9712- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9611-9705 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 		8-94328-853-0 01 1 9611-9705 ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94328-853-0 01 1 9706- ● ● ● ● ● ● ● ●
137 02.559 BRACKET; HARNESS CLAMP
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 		8-94328-853-0 01 1 9706- ● ● ●
139 02.559 BOLT; BRKT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 03.440 M6X18 		8-94409-712-1 01 1 9611-9705 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.440 M6X18 		8-94409-712-1 01 1 9706-9712 ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 03.440 M6X18 		8-94409-712-1 01 1 9706-9712 ● ● ●
139 02.559 BOLT; BRKT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9801- ● ● ● ● ● ● ● ●
139 02.559 BOLT; BRKT
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9801- ● ● ●
178 02.559 GROMMET; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 16.550 OD=12 		9-09956-122-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 16.550 OD=12 		9-09956-122-0 01 1 9712- ● ● ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AIR CONDITIONER MANUAL CONT(C60) 16.550 OD=12 		9-09956-122-0 01 1 9712- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 02.343 (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9611- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=21 L=47.5 		8-94178-108-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) ID=21 L=47.5 		8-94178-108-0 01 1 9712- ● ● ● ● ● ● ● ●
265 02.559 CLIP; HARNESS TO CONSOLE BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) ID=21 L=47.5 		8-94178-108-0 01 1 9712- ● ● ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9708-9711 ● ● ● ● ● ●
515 02.559 NUT; BRKT
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9712- ● ● ● ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9611- ● ● ● ● ● ● ● ●
529 02.559 BOLT; RELAY BOX
6VD1 ENG(RLV) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ● ●

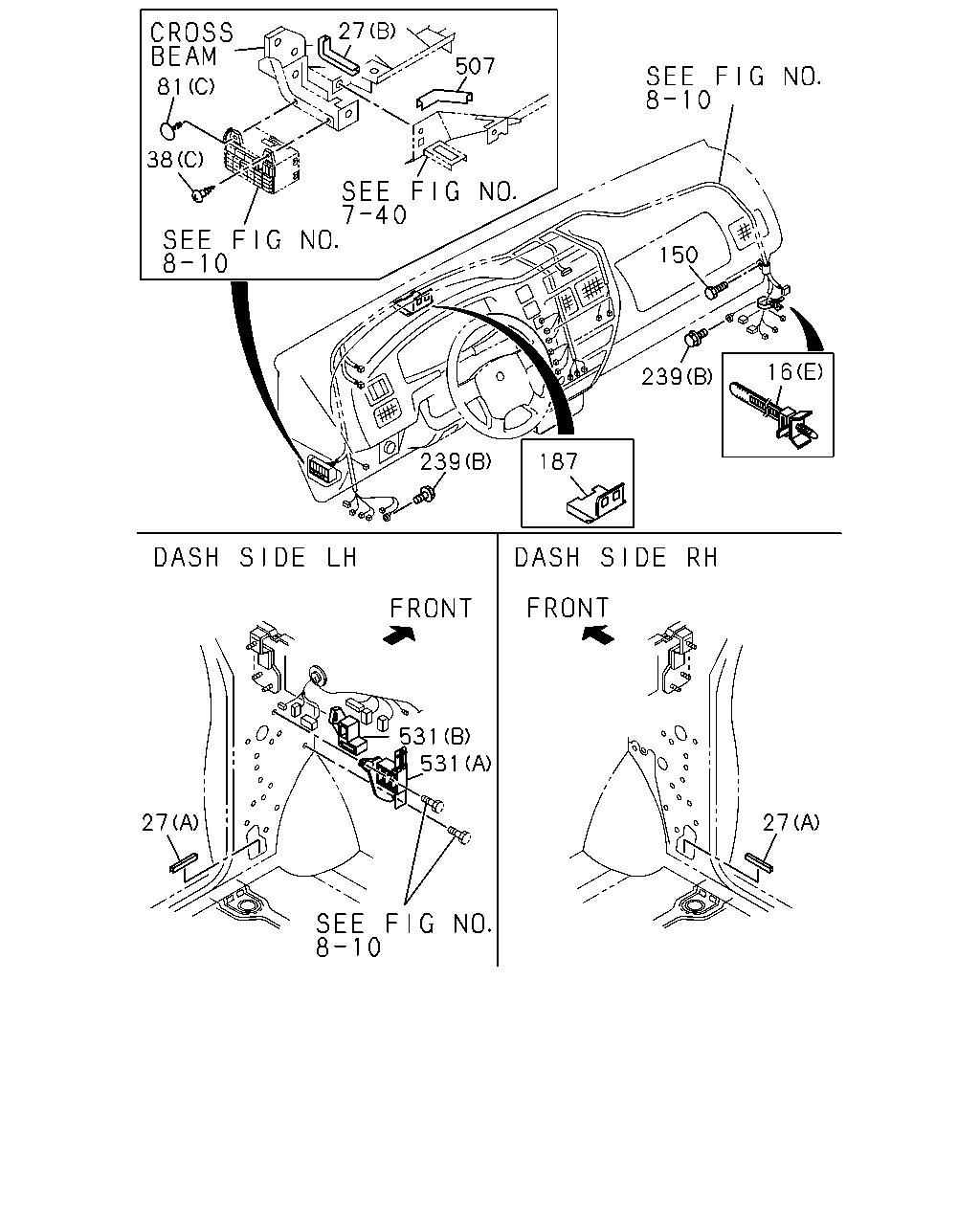

çizim 72185
27 507 38 150 16 239 239 187 531 531 27 81 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
EXC. POWER WINDOW<A30> 16.550 (A) 		1-71997-513-1 01 1 9611-9612 ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
POWER WINDOW<A30> 16.550 (A) 		1-71997-513-1 02 1 9611-9612 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) 		1-71997-513-1 02 1 9701- ● ● ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9711 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9611- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9701- ● ● ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9611-9711 ● ● ● ●
81 02.483 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9712- ● ● ● ●
150 02.343 BOLT; CLIP
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9611- ● ● ● ● ● ● ● ●
187 02.559 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9712- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712- ● ●
507 02.559 FINISHER
08.228 L=80 SERVICED BY L=240 		1-71998-400-0 01 1 9611- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (A) 		8-97102-731-2 01 1 9611- ● ● ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (B) 		8-97110-341-1 01 1 9611- ● ● ● ● ● ● ● ●

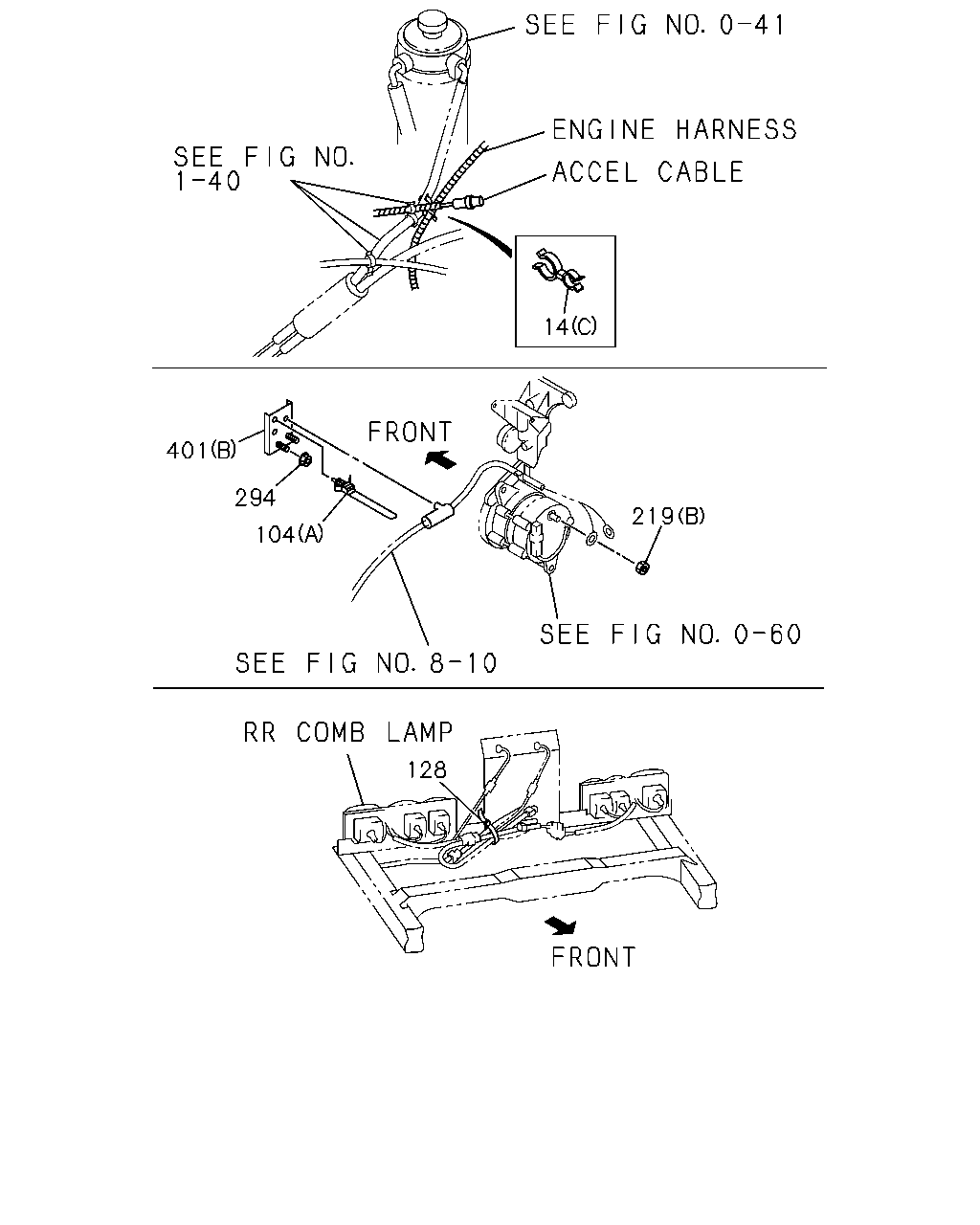

çizim 72230
14 401 294 219 104 128
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (D) ID=20.2 & 6 		8-94472-577-0 01 1 9712- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (A) L=112 		8-94232-618-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.587 (A) L=112 		8-94232-618-0 01 1 9712- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 (C) L=172 		8-94232-620-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9611-9705 ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHINA EQUIPMENT(YT2), ELECTRIC FUEL INJECTION<6GG>,CHILE EQUI PMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) CHINA EQUIPMENT(YT2) (B) L=142 		8-94232-619-0 02 1 9706- ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ● ●
104 02.559 CLIP; HEADLAMP HARNESS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2), ECUADOREQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),GUATEMALA /COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> (B) L=142 		8-94232-619-0 01 1 9611- ● ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) L=250 		5-09707-030-1 01 1 9611- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),ELECTRIC FUEL INJECTION<6GG>,CHILE EQUIPMENT(6KB),GUATEMALA/ COSTA RICA EQUIPMENT(7LD) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712- ● ● ● ● ● ● ● ●
219 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9712- ● ● ● ● ● ● ● ●
219 02.559 NUT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 02.343 (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9611- ● ● ● ● ● ● ● ●
294 02.559 NUT
4JA1 ENG(RLE),4JB1 ENG(RLF) 07.829 M6 FLANGE 		5-09440-004-0 02 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-94330-360-1 01 1 9611- ● ● ● ● ● ● ● ●

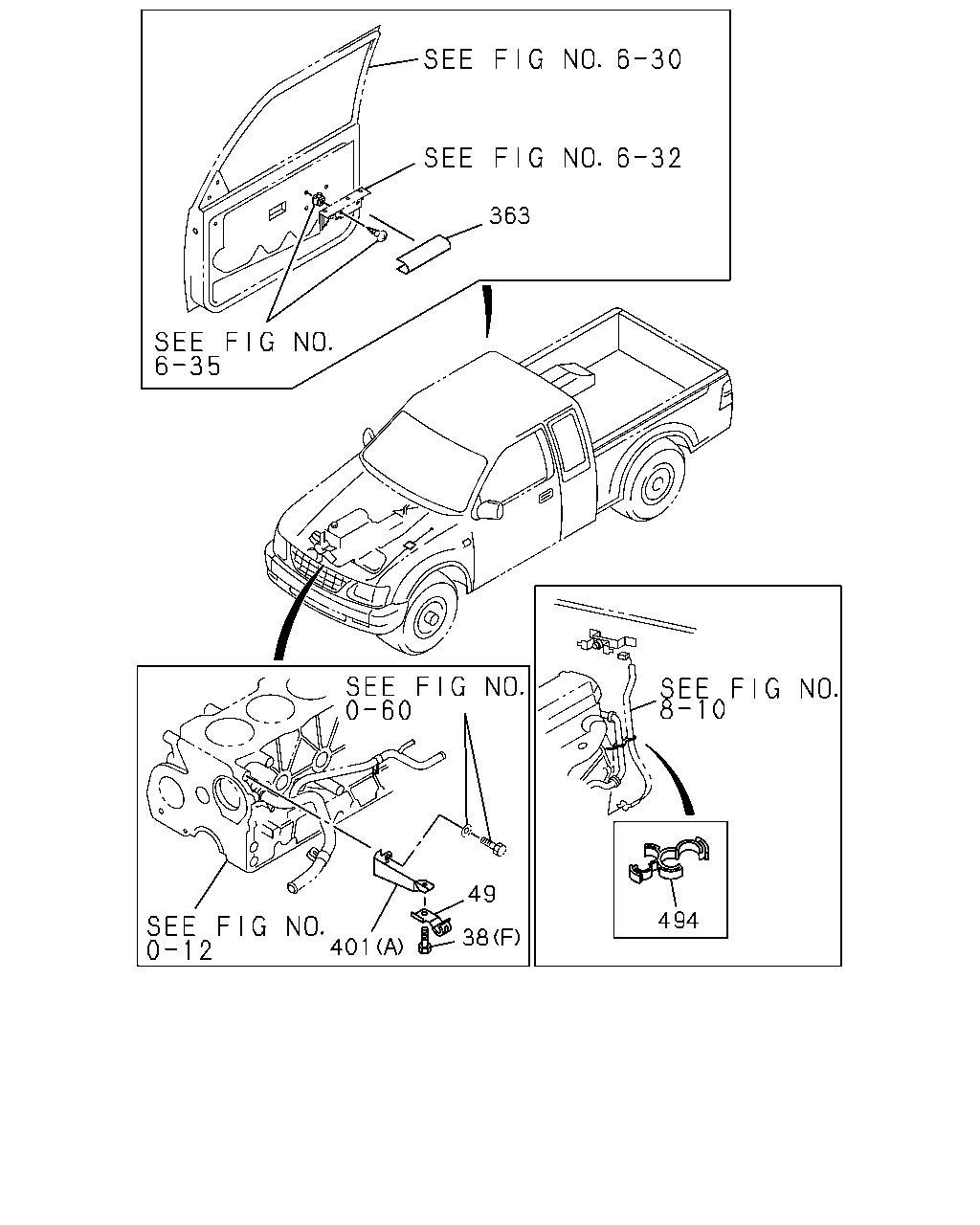

çizim 72265
363 49 494 38 401
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
00.685 (A) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9611-9612 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9701- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9611 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612-9711 ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9712- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 03.704 (F) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9611- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JB1 ENG(RLF) TURBOCHARGER<K51> 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9611-9611 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 08.900 (E) M8X12 FLANGE 		0-28080-812-0 03 1 9612- ● ● ● ● ● ● ● ●
49 02.559 CLIP; GEN HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94319-607-0 01 1 9611- ● ● ● ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 9611- ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. POWER STEERING<N40> (A) 		8-94329-766-0 01 1 9611- ● ● ● ● ● ● ● ●
401 02.559 BRACKET; HARNESS,GEN
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-94330-360-1 01 1 9611- ● ● ● ● ● ● ● ●
494 02.559 CLIP; BONDING CABLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.242 ID=12.5 & 24 		5-09709-034-0 01 1 9611- ● ● ● ● ● ● ● ●

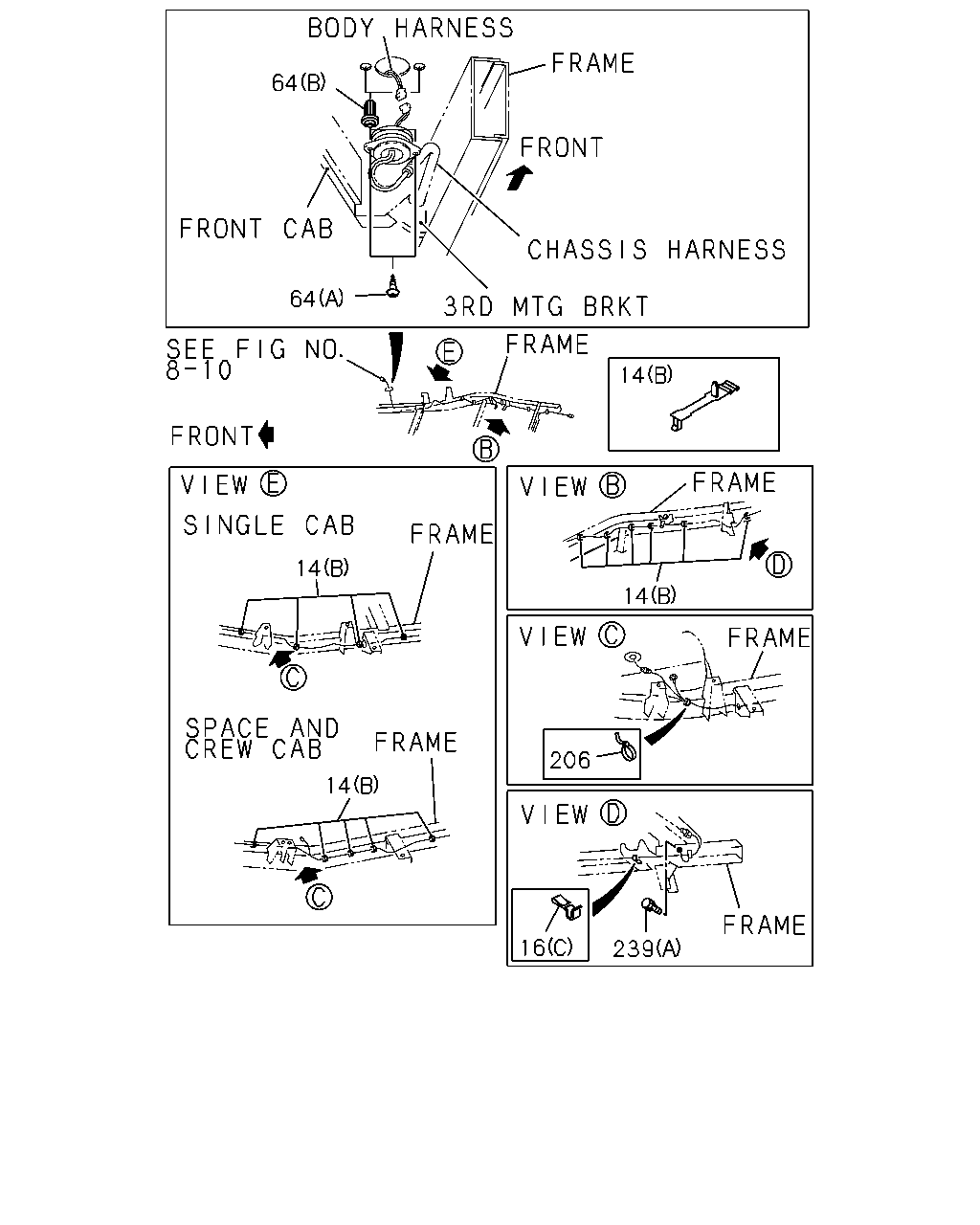

çizim 72266
64 64 14 14 14 206 14 16 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
14 02.559 CLIP; BAND,HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 04.594 (A) L=100 		5-09707-036-1 02 1 9611- ● ● ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 03.162 (C) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9611- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 08 1 9611- ● ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 03.483 (D) ID=20.2 & 6 		8-94472-577-0 01 1 9712- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9611- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41), FORGEDAIR VENTILATION(C57),AIR CONDITION ER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (E) L=135 		8-94473-399-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) 00.446 (G) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9611- ● ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (A) L=60 		8-94449-752-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9611- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9611-9704 ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ● ● ● ●
16 02.559 CLIP; HARNESS
GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9705-9711 ● ●
16 02.559 CLIP; HARNESS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ● ●
16 02.559 CLIP; HARNESS
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE STD(RBA) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9712- ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 01.152 (H) ID=18 L=44 		8-94225-185-0 03 1 9712- ● ● ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9611- ● ● ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9611- ● ● ● ● ● ● ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9712- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9611- ● ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
6VD1 ENG(RLV) (B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
