◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#45894) — 188 parça

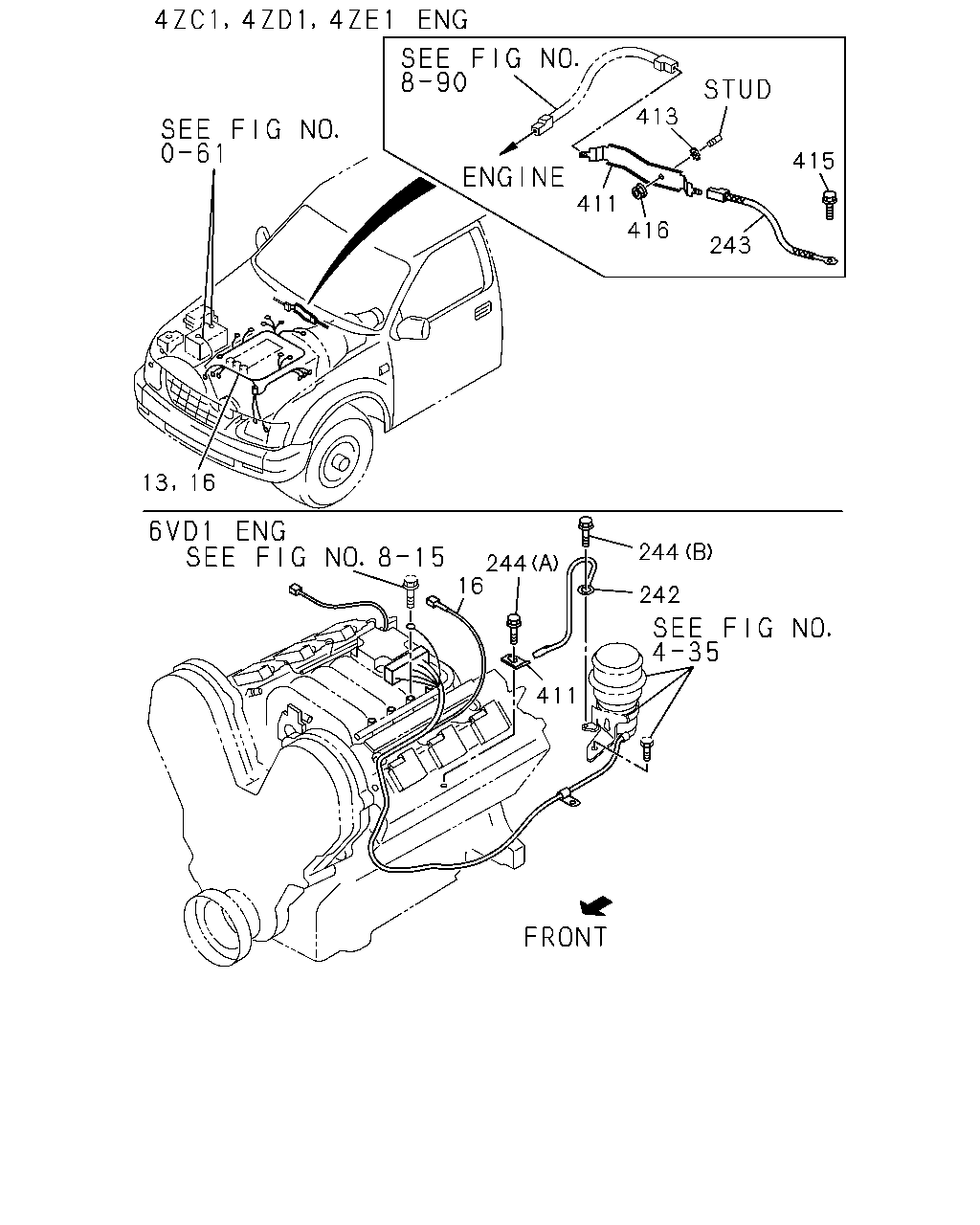

çizim 20369
413 415 416 243 13 16 244 244 16 242 411 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) 		8-97165-597-2 01 1 9611- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97165-646-1 01 1 9611-9702 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-97165-646-1 01 1 9611-9702 ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-97165-646-1 01 1 9703-9711 ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) 		8-97165-646-1 01 1 9703-9711 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) 		8-97165-646-2 01 1 9712- ● ● ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT(R5B) ARGENTINA EQUIPMENT(7SZ) 		8-97165-646-2 01 1 9712- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 		8-97188-103-2 01 1 9712- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97188-104-2 01 1 9712- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) 		8-97166-280-0 01 1 9611-9611 ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT(R5B) 		8-97166-280-1 01 1 9612-9709 ● ●
13 02.525 HARNESS; ENG
4JB1 ENG(RLF) M/T MUA 5 SPEED(RMN) CHINA CHONGQING EQUIPMENT(R5B) 		8-97166-280-2 01 1 9710- ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9611-9611 ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97111-272-0 01 1 9612- ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VD1 ENG(RLV) 		8-97180-043-4 01 1 9712- ● ●
242 02.559 CABLE; BONDING,ENG TO BODY
6VD1 ENG(RLV) 		8-97091-683-0 01 1 9712- ● ●
243 02.480 CABLE; BONDING,TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94389-187-0 01 1 9611- ● ● ● ● ● ● ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9712- ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) 02.343 (B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9712-9712 ● ●
244 02.559 BOLT; GRAND BONDING CABLE
6VD1 ENG(RLV) (B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9801- ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-97116-129-0 01 1 9611- ● ● ● ● ● ● ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
6VD1 ENG(RLV) 02.530 		8-94102-644-0 01 1 9712- ● ●
413 02.559 WASHER; LK,TERMINAL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 00.002 ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9611- ● ● ● ● ● ● ● ●
415 02.559 BOLT; CABLE,BONDING
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9611- ● ● ● ● ● ● ● ●
416 02.559 NUT; TERMINAL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9703- ● ● ● ● ● ● ● ●

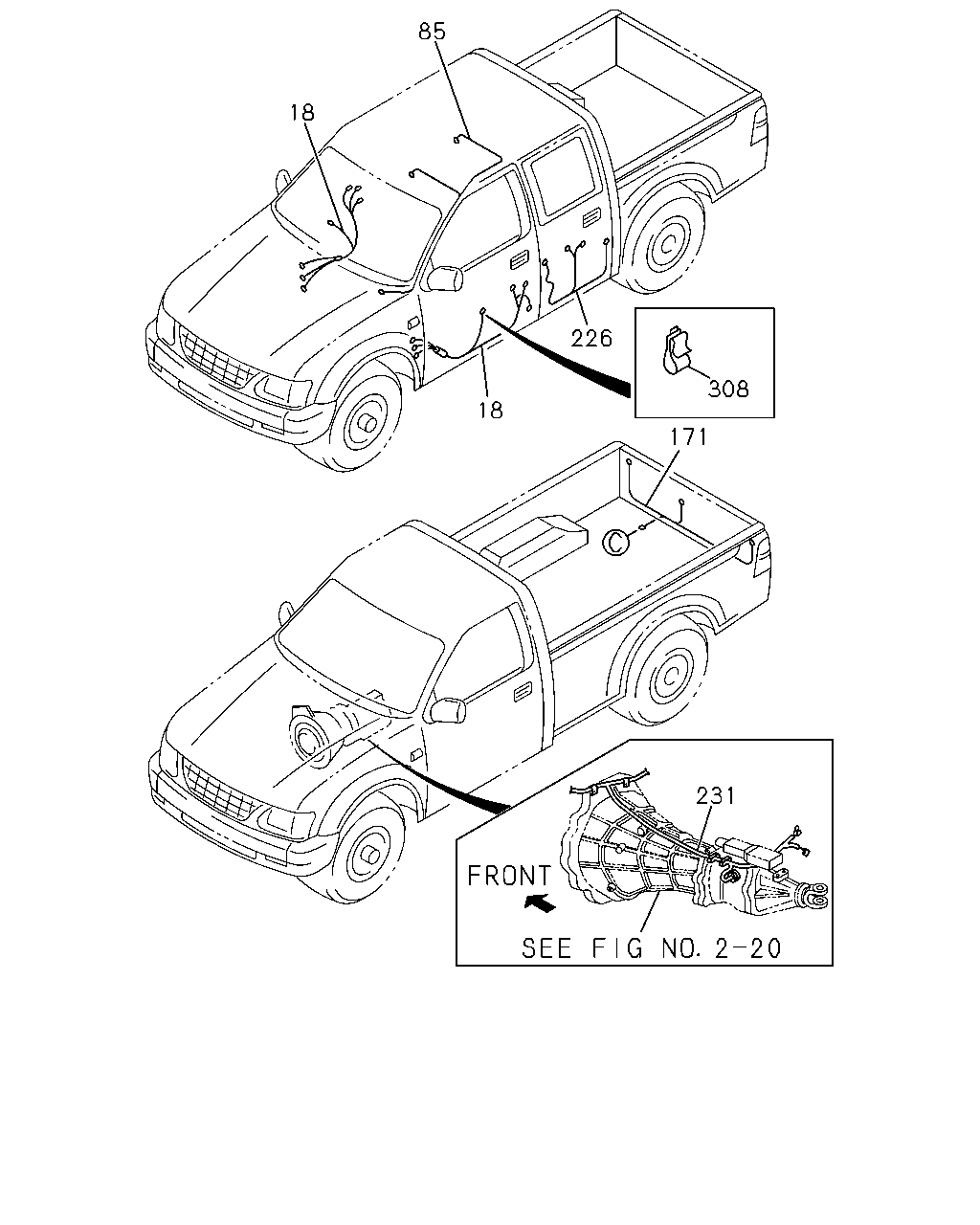

çizim 71001
85 18 226 308 18 171 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97132-568-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97181-137-0 02 1 9712- ● ● ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-916-0 01 1 9611- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> 		8-97149-915-0 01 1 9611- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97166-696-0 01 1 9611- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> 		8-97132-569-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> 		8-97132-558-0 01 1 9611- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97132-666-0 01 1 9611- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97132-666-0 01 1 9611- ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-0 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. GUATEMALA/COSTA RICA EQUIPMENT (7LD) 		8-97160-429-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> HIGH MOUNT STOP LAMP<TS6> 		8-97160-430-1 01 1 9611- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-0 01 1 9611- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> EXC. CHINA EQUIPMENT(YT2) 		8-97147-709-0 01 1 9611- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98>, CHINA EQUIPMENT(YT2) 		8-97147-714-0 01 1 9611- ● ● ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED<RS6> 		8-97147-714-0 01 1 9611- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6>,RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 9611- ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHINA EQUIPMENT(YT2) RR COMB LAMP VERTICAL<T98> 		8-97147-711-0 01 1 9611- ● ● ●
226 02.480 HARNESS; RR DOOR
CONVENIENT PACKAGE<6QZ> 		8-97149-917-2 02 1 9611- ● ●
231 02.480 HARNESS; TRANS
4ZC1 ENG(LR9),4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-600-0 01 1 9611- ● ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-003-0 01 1 9611-9702 ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) M/T MUA 5 SPEED(RMN) 		8-97166-003-0 01 1 9703- ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-598-0 01 1 9611- ● ●
231 02.480 HARNESS; TRANS
6VD1 ENG(RLV) 		8-97186-416-0 01 1 9712- ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-601-0 01 1 9611-9711 ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MSG 5 SPEED(M75) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-601-0 01 1 9712- ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-97166-004-0 01 1 9611-9711 ● ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) M/T MUA 5 SPEED(RMN) M/T LOW GEARED(6WF) 		8-97166-004-0 01 1 9712- ● ● ●
231 02.480 HARNESS; TRANS
4ZE1 ENG(RLJ) 		8-97166-002-0 01 1 9611- ● ● ●
231 02.480 HARNESS; TRANS
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-599-0 01 1 9611- ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 9611- ● ● ● ● ● ●

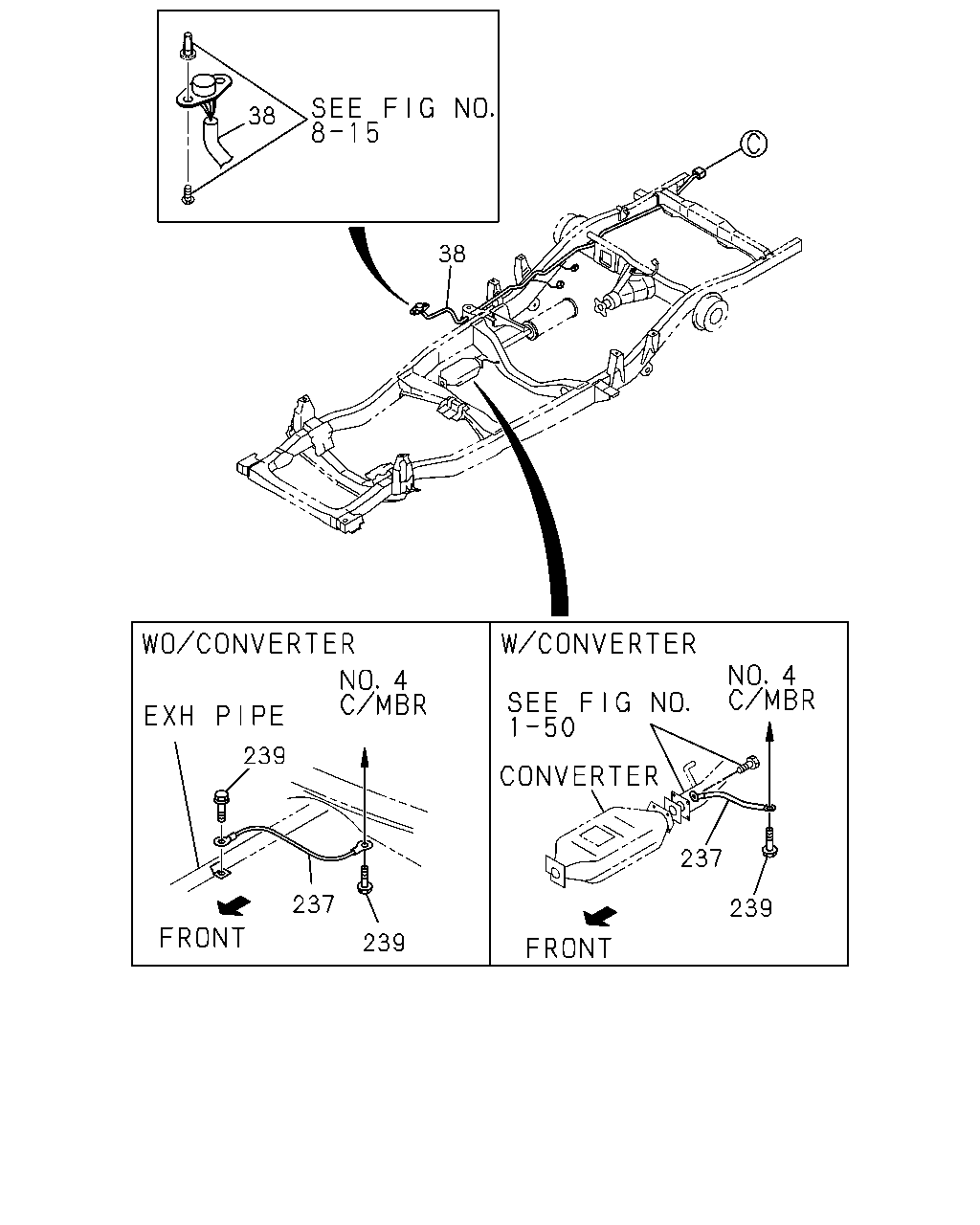

çizim 71035
38 38 239 237 237 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> 		8-97149-572-1 01 1 9611-9612 ● ● ● ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> 		8-97149-572-1 01 1 9701-9711 ● ● ● ● ●
38 02.480 HARNESS; CHAS
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97149-572-2 01 1 9712- ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97139-745-1 01 1 9611-9612 ● ● ● ●
38 02.480 HARNESS; CHAS 8-97139-745-1 01 1 9611-9612 ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97139-745-2 01 1 9701- ● ● ● ● ●
38 02.480 HARNESS; CHAS 8-97139-745-2 01 1 9701- ●
38 02.480 HARNESS; CHAS
ELECTRIC FUEL INJECTION<6GG> 		8-97166-695-0 01 1 9611-9711 ● ●
38 02.480 HARNESS; CHAS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> 		8-97166-695-1 01 1 9712- ● ●
38 02.480 HARNESS; CHAS
EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97139-744-2 01 1 9611- ● ●
38 02.480 HARNESS; CHAS
6VD1 ENG(RLV) 		8-97178-830-0 01 1 9712- ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9611-9712 ● ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZE1 ENG(RLJ) 		8-94318-797-0 01 1 9801- ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3) EXC. ECUADOR EQUIPMENT(S6E), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB),CATALYSIS CONTROL<6MZ>,GUATEMALA /COSTA RICA EQUIPMENT(7LD) 		8-94318-797-0 01 1 9801- ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74) ELECTRIC FUEL INJECTION<6GG> 		8-94318-797-0 01 1 9802- ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94318-797-0 01 1 9802- ● ● ●
237 02.630 CABLE; BONDING,EXH PIPE
4ZD1 ENG(LW3) CATALYSIS CONTROL<6MZ> 		8-94318-797-0 01 1 9802- ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9611-9712 ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9611-9712 ● ● ● ●
239 02.559 BOLT; BONDING CABLE
4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9801- ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9801- ●
239 02.559 BOLT; BONDING CABLE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 9801- ● ●

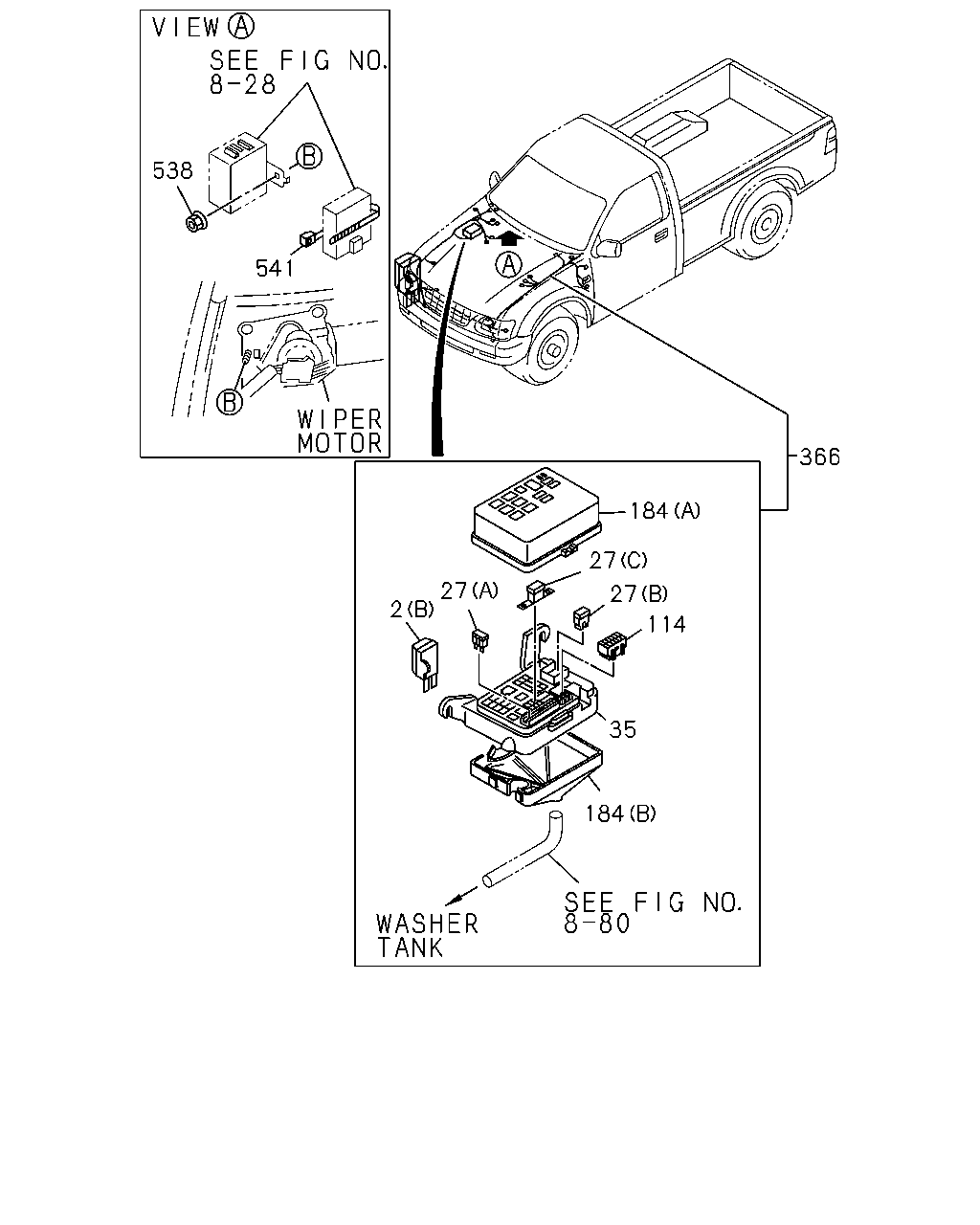

çizim 71037
538 541 366 184 27 27 114 27 2 35 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611-9612 ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611-9612 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9701- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9701- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
SAUDI ARABIA EQUIPMENT(EU2) (A) BLACK 2P-2.0A 		8-97138-524-0 01 1 9611- ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-94388-301-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 100A BLUE 		8-94388-306-0 AR 1 9611- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
6VD1 ENG(RLV) (C) 40A GREEN 		8-97183-644-0 AR 1 9712- ● ●
35 02.530 BOX; RELAY & FUSE 8-97104-108-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-108-2 01 1 9712- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
6VD1 ENG(RLV) 		8-97940-316-0 01 1 9712- ● ●
114 02.483 BOX ASM; FUSE 8-97104-121-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
114 02.483 BOX ASM; FUSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97104-121-0 01 1 9712- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-97142-801-1 01 1 9611- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9611- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) (A) 		8-97142-800-1 01 1 9611-9611 ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-800-1 01 1 9611-9611 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZE1 ENG(RLJ) (A) 		8-97142-800-1 01 1 9611-9611 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-800-1 01 1 9612- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-802-1 01 1 9611-9611 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-802-1 01 1 9612-9612 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-802-1 01 1 9701-9711 ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (A) 		8-97142-798-1 01 1 9712- ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
6VD1 ENG(RLV) (A) 		8-97180-242-1 01 1 9712- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97165-618-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97165-618-2 01 1 9712- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-618-2 01 1 9712- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPME NT(6KB),REEXPORT FROM CHILE EQUIPMENT(7KS),GUATEMALA/COSTA RICA EQUIPM ENT(7LD) 		8-97165-620-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZC1 ENG(LR9),4ZD1 ENG(LW3) EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB), REEXPORT FROM CHILE EQUIPMENT(7KS),GUAT EMALA/COSTA RICA EQUIPMENT(7LD) 		8-97165-620-2 01 1 9612- ● ● ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 		8-97165-620-2 01 1 9612- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) ELECTRIC FUEL INJECTION<6GG> 		8-97149-957-2 01 1 9611- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) 		8-97165-622-0 01 1 9611-9711 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97165-622-2 01 1 9712- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) CHILE EQUIPMENT(6KB) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97165-619-2 01 1 9611- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) CATALYSIS CONTROL<6MZ> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97165-619-2 01 1 9611- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) REEXPORT FROM CHILE EQUIPMENT(7KS) 		8-97165-621-2 01 1 9611- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) COLOMBIA EQUIPMENT(X74) EXC. ELECTRIC FUEL INJECTION<6GG>, CATALYSIS CONTROL<6MZ> 		8-97165-621-2 01 1 9611- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) EXC. CHINA EQUIPMENT(YT2) 		8-97165-617-2 01 1 9611- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E) ELECTRIC FUEL INJECTION<6GG> 		8-97171-434-0 01 1 9612-9612 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E) ELECTRIC FUEL INJECTION<6GG> 		8-97171-434-2 01 1 9701- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) ARGENTINA EQUIPMENT(7SZ) 		8-97188-100-0 01 1 9712- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JB1 ENG(RLF) ARGENTINA EQUIPMENT(7SZ) 		8-97188-101-0 01 1 9712- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97165-616-0 01 1 9611-9611 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E) CATALYSIS CONTROL<6MZ> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97165-616-0 01 1 9612-9612 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97165-616-0 01 1 9612-9612 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) ECUADOR EQUIPMENT(S6E) CATALYSIS CONTROL<6MZ> EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97165-616-2 01 1 9701- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97165-616-2 01 1 9701- ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZD1 ENG(LW3) SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-615-2 01 1 9611- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97164-612-2 01 1 9611-9702 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97164-612-2 01 1 9703-9708 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4ZE1 ENG(RLJ) CHINA EQUIPMENT(YT2) 		8-97164-612-4 01 1 9709- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VD1 ENG(RLV) 		8-97189-635-0 01 1 9712- ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9611- ● ●
538 02.483 NUT
INTERMITTENT WIPER<C13> 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9611- ● ● ● ● ● ●
541 02.483 CLIP
EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5 		1-09987-136-0 01 1 9611- ● ● ● ● ● ●
çizim 71076
2 4 50 11 292 347 548
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611-9612 ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9611-9612 ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9701- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
4ZD1 ENG(LW3) ELECTRIC FUEL INJECTION<6GG> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9701- ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
SAUDI ARABIA EQUIPMENT(EU2) (A) BLACK 2P-2.0A 		8-97138-524-0 01 1 9611- ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97102-735-4 01 1 9611- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-643-0 01 1 9611-9611 ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-643-0 01 1 9612- ● ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30> 		8-97165-641-0 01 1 9611-9611 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30> 		8-97165-641-0 01 1 9612-9612 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30> 		8-97165-641-0 01 1 9701-9706 ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49> 		8-97165-641-0 01 1 9707- ● ● ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),COLOMBIA EQUIPMENT (X74),CHILE EQUIPMENT(6KB) 		8-97165-642-0 01 1 9611-9611 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> EXC. REAR DEFOGGER<C49>,SAUDI ARABIA EQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74), CHILEEQUIPMENT(6KB) 		8-97165-642-0 01 1 9612- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-640-0 01 1 9611-9611 ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-640-0 01 1 9612-9612 ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-640-0 01 1 9701-9706 ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. REAR DEFOGGER<C49> 		8-97165-640-0 01 1 9707-9711 ● ● ● ● ●
11 02.480 HARNESS; BODY
4ZD1 ENG(LW3) POWER WINDOW<A30> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. REAR DEFOGGER<C49> 		8-97165-640-0 01 1 9712- ● ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97165-638-0 01 1 9611- ● ● ● ●
11 02.480 HARNESS; BODY
SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97165-639-0 01 1 9611- ● ● ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> REAR DEFOGGER<C49> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97179-832-0 01 1 9707-9711 ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97179-832-0 01 1 9712- ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2), COLOMBIA EQUIPMENT(X74),CHILE EQUIPME NT(6KB) 		8-97165-644-0 01 1 9611-9611 ● ●
11 02.480 HARNESS; BODY
POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. SAUDI ARABIA EQUIPMENT(EU2), ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIP MENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-644-0 01 1 9612-9711 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) POWER WINDOW<A30> CHILE EQUIPMENT(6KB) 		8-97179-836-2 01 1 9712- ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30> 		8-97179-833-0 01 1 9707-9711 ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97179-833-0 01 1 9712- ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-645-0 01 1 9611-9611 ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2),ECUADOR EQUIPMENT(S6E),COLOMBIA EQUIPMENT(X74),CHILE EQUIPMENT(6KB) 		8-97165-645-0 01 1 9612-9711 ● ●
11 02.480 HARNESS; BODY
6VD1 ENG(RLV) CHILE EQUIPMENT(6KB) EXC. POWER WINDOW<A30> 		8-97179-837-2 01 1 9712- ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 9611- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 9611- ● ● ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
292 02.483 BOLT; BOX
01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9611-9707 ● ● ● ● ● ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9708- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97142-240-1 01 1 9611-9711 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97142-240-1 01 1 9611-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97142-240-1 01 1 9712- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97142-240-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97160-434-0 01 1 9611- ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> SAUDI ARABIA EQUIPMENT(EU2) 		8-97142-238-2 01 1 9611- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-553-1 01 1 9611-9711 ● ●
347 02.480 HARNESS; CABLE,RR BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER WINDOW<A30> EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97132-553-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) POWER WINDOW<A30> 		8-97178-683-1 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) EXC. POWER WINDOW<A30>,SAUDI ARABIAEQUIPMENT(EU2) 		8-97178-682-2 01 1 9712- ● ●
347 02.480 HARNESS; CABLE,RR BODY
6VD1 ENG(RLV) SAUDI ARABIA EQUIPMENT(EU2) EXC. POWER WINDOW<A30> 		8-97178-681-2 01 1 9712- ● ●
548 02.483 GROMMET
EXC. POWER WINDOW<A30> 04.785 		8-94126-868-0 02 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
