Isuzu WW
▶
PICKUP
▶
TFR
▶
50726 - TFR/TFS-LHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶

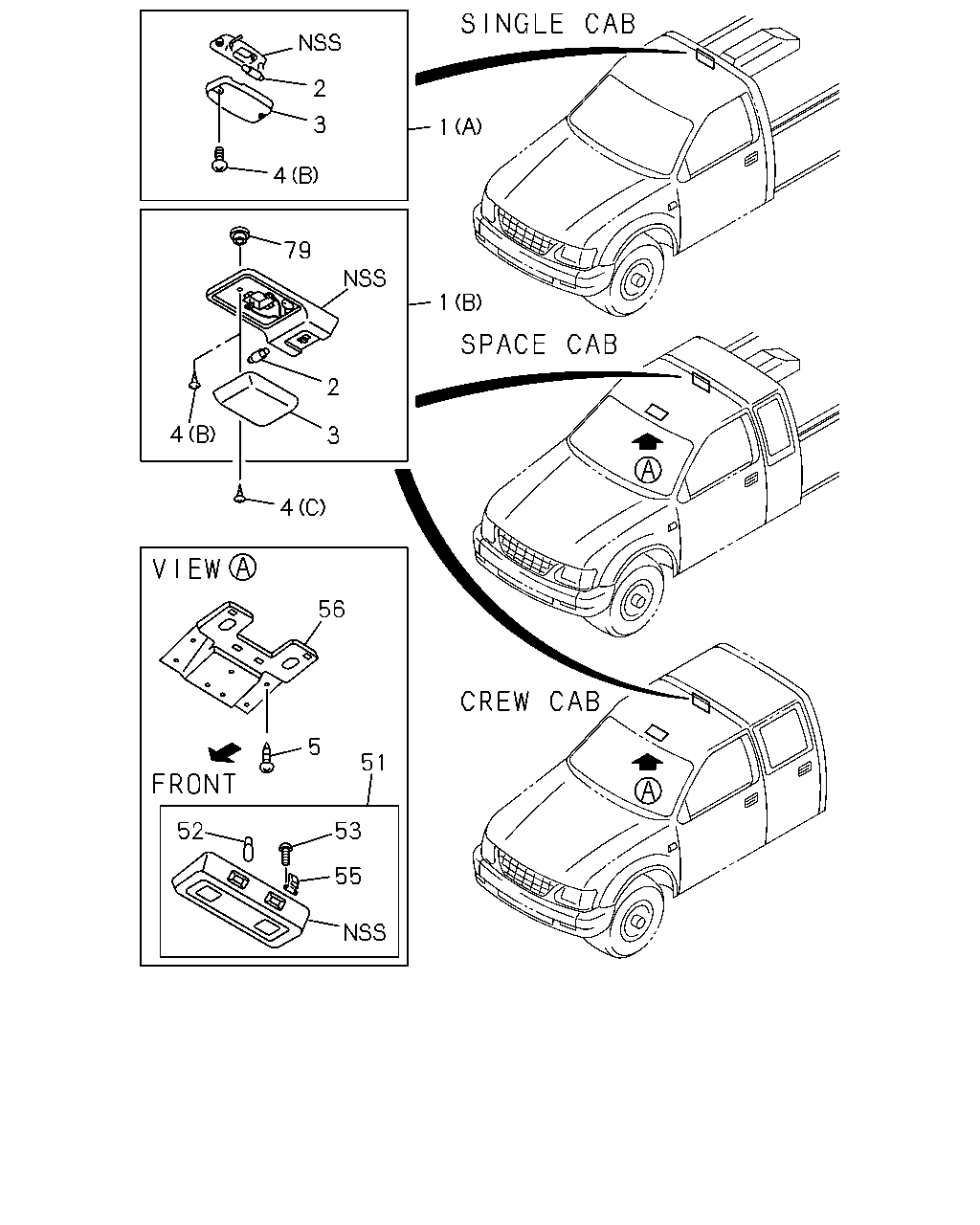

8-05 — INTERIOR LAMP
(#45893) — 28 parça
Tümü
A - TFB6CF
B - TFB6SC
C - TFB6SF
D - TFB6WF
E - TFS6CF
F - TFS6SC
G - TFS6SF
H - TFS6WF
◀
[805A] NO.2 (3 parça)
[805A] NO.1 (25 parça)
▶
15
16
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
15
02.490 LAMP; INSPECTION
INSPECTION LAMP<T95>
8-94473-422-1
01
1
9611-
●
●
●
●
●
●
●
●
16
08.991 BULB; INSPECTION LAMP
INSPECTION LAMP<T95> 12V 5W
8-94124-075-0
01
1
9611-
●
●
●
●
●
●
●
●
87
08.991 LENS; INSPECTION LAMP
INSPECTION LAMP<T95>
8-97092-066-0
01
1
9611-
●
●
●
●
●
●
●
●
2
3
1
4
79
1
2
4
3
4
56
5
51
52
53
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
1
16.494 LAMP ASM; ROOM
HEAD LINING FOR KD<6PJ> (B)
8-94340-754-1
01
1
9611-
●
●
1
16.494 LAMP ASM; ROOM
(B)
8-94340-754-1
01
1
9611-
●
●
1
16.494 LAMP ASM; ROOM
EXC. HEAD LINING FOR KD<6PJ> (B)
8-97128-353-0
01
1
9611-
●
●
1
16.494 LAMP ASM; ROOM
(A)
8-97128-354-0
01
1
9611-
●
●
●
●
2
08.991 BULB; ROOM LAMP
HEAD LINING FOR KD<6PJ> 12V 10W
5-82194-015-0
01
1
9611-
●
●
2
08.991 BULB; ROOM LAMP
12V 10W
5-82194-015-0
01
1
9611-
●
●
2
08.991 BULB; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 12V 10W
8-97128-771-0
01
1
9611-
●
●
2
08.991 BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
9611-
●
●
●
●
3
16.495 LENS; ROOM LAMP
HEAD LINING FOR KD<6PJ>
8-97044-784-0
01
1
9611-
●
●
3
16.495 LENS; ROOM LAMP
8-97044-784-0
01
1
9611-
●
●
3
16.495 LENS; ROOM LAMP
8-94289-167-1
01
1
9611-
●
●
●
●
3
16.495 LENS; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> 11.928
8-94206-208-0
01
1
9611-
●
●
4
16.495 SCREW; ROOM LAMP
HEAD LINING FOR KD<6PJ> 11.928 (C) M5X12 TAPPING
9-07065-512-0
03
1
9611-9711
●
●
4
16.495 SCREW; ROOM LAMP
11.928 (C) M5X12 TAPPING
9-07065-512-0
03
1
9611-9711
●
●
4
16.495 SCREW; ROOM LAMP
HEAD LINING FOR KD<6PJ> 08.010 (C) M5X12 TAPPING
9-07066-512-0
03
1
9712-
●
●
4
16.495 SCREW; ROOM LAMP
08.010 (C) M5X12 TAPPING
9-07066-512-0
03
1
9712-
●
●
4
16.495 SCREW; ROOM LAMP
EXC. HEAD LINING FOR KD<6PJ> (B)
8-97136-057-0
03
1
9611-
●
●
4
16.495 SCREW; ROOM LAMP
11.928 (B)
8-94334-545-0
02
1
9611-
●
●
●
●
5
16.545 SCREW; SPOT LAMP
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ> 08.913 M5X12
8-94120-094-0
02
1
9611-
●
●
●
●
●
●
●
51
16.494 LAMP ASM; SPOT
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ> GRAY
8-97152-775-0
01
1
9611-
●
●
●
●
●
●
●
52
08.991 BULB; SPOT LAMP
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ> 12V 5W
8-94124-595-0
02
1
9611-
●
●
●
●
●
●
●
53
16.495 SCREW; SPRING,SPOT LAMP
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ>
8-94323-992-0
10
1
9611-
●
●
●
●
●
●
●
55
16.495 SPRING; SPOT LAMP
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ>
8-94323-991-0
04
1
9611-
●
●
●
●
●
●
●
56
16.494 BRACKET; LAMP
UP GRADE PACKAGE(7MA) EXC. HEAD LINING FOR KD<6PJ>
8-94481-848-3
01
1
9611-
●
●
●
●
●
●
●
79
16.495 SPACER; ROOM LAMP,SCREW
EXC. HEAD LINING FOR KD<6PJ>
8-97136-058-0
03
1
9611-
●
●
