8-03 — LAMP; REAR AND REAR SIDE (#45892) — 49 parça

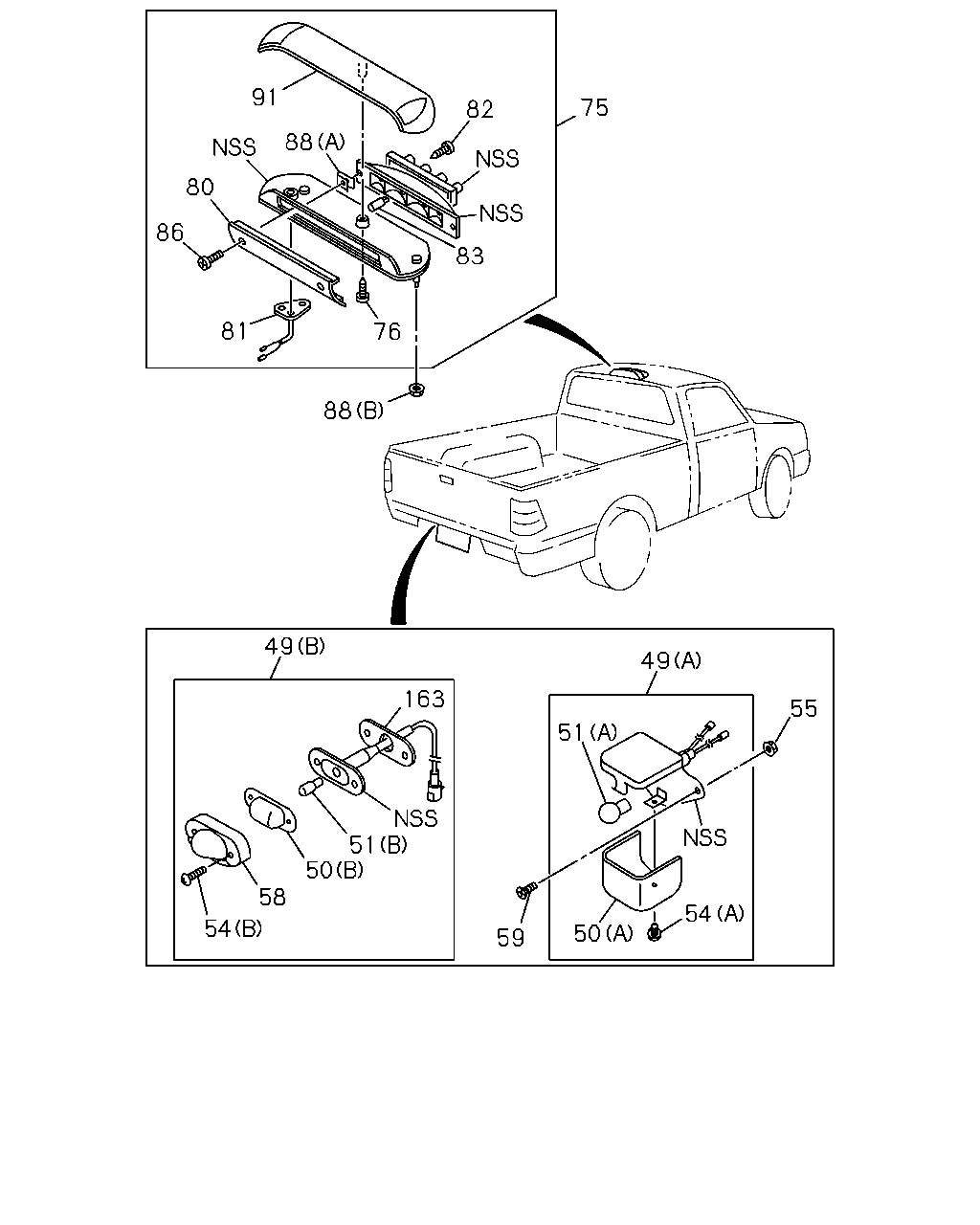

çizim 67264
91 75 82 88 80 86 83 81 76 88 49 49 163 55 51 51 50 58 54 54 50 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 02.700 LAMP; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 		8-94443-186-2 01 1 9611- ● ● ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
RR BODY FLAT BED<RS6> (A) 		8-94479-603-1 01 1 9611- ●
49 02.700 LAMP; LICENSE PLATE
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 		8-94443-186-2 02 1 9611- ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 		8-94135-878-2 01 1 9611- ● ● ● ● ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 		5-82125-004-0 01 1 9611- ●
50 02.709 LENS; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 		8-94135-878-2 02 1 9611- ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) (B) 12V 5W 		8-94124-595-0 01 1 9611- ● ● ● ● ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> (A) 12V 7.5W 		9-82692-128-0 01 1 9611- ●
51 08.991 BULB; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> (B) 12V 5W 		8-94124-595-0 02 1 9611- ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 02 1 9611- ● ● ● ● ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 02.709 (A) M4X8 		8-94419-312-0 01 1 9611- ●
54 02.708 SCREW; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> 08.977 (B) M4X20 TAPPING STAINLESS 		0-71190-420-0 04 1 9611- ● ● ●
55 02.708 NUT; LICENSE PLATE LAMP
RR BODY FLAT BED<RS6> 09.744 M5 FLANGE 		5-09440-003-0 02 1 9611- ●
58 02.705 COVER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) BLACK 		8-94323-724-0 01 1 9611- ● ● ● ● ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> BLACK 		8-94323-724-0 02 1 9611- ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
RR BODY FLAT BED<RS6> 02.726 M5X12 		9-93490-512-0 02 1 9611- ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) HIGH MOUNT STOP LAMP<TS6> WHITE 		8-97097-243-7 01 1 9611- ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED
BODY COLOR MARINE BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BO DY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR RAD IANT RED/IRON GRAY MET(782),BODY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> BLACK 		8-97097-244-7 01 1 9611- ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 		8-97087-147-0 03 1 9611- ● ●
80 02.679 UNIT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-94383-513-0 01 1 9611- ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-146-0 01 1 9611- ● ●
81 02.694 GASKET; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 		8-97087-145-0 01 1 9611- ● ●
82 02.662 SCREW; LAMP UNIT TO SOCKET
HIGH MOUNT STOP LAMP<TS6> 		0-71090-412-0 03 1 9611- ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
HIGH MOUNT STOP LAMP<TS6> 12V 5W 		8-94124-595-0 04 1 9611- ● ●
86 02.688 SCREW; LENS TO HSG
HIGH MOUNT STOP LAMP<TS6> 		8-97087-144-0 02 1 9611- ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> (A) 		8-97087-149-0 02 1 9611- ● ●
88 02.689 NUT; STOP LAMP
HIGH MOUNT STOP LAMP<TS6> 04.594 (B) M6 FLANGE 		0-91150-106-0 04 1 9611- ● ●
91 02.680 COVER; STOP LAMP
BODY COLOR CREAM WHITE(752),BODY COLOR CREAM WHITE/IRON GRAY MET(776) HIGH MOUNT STOP LAMP<TS6> 		8-97094-922-0 01 1 9611- ● ●
91 02.680 COVER; STOP LAMP
BODY COLOR MARINE BLUE(722),BODY COLOR TRITON BLUE MICA(725),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BO DY COLOR LT.SILVER MET(753),BODY COLOR RADIANT RED(756),BODY COLOR RAD IANT RED/IRON GRAY MET(782),BODY COLOR IRON GRAY MET(849) HIGH MOUNT STOP LAMP<TS6> 		8-97087-148-0 01 1 9611- ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
EXC. RR BODY FLAT BED<RS6>,CHINA EQUIPMENT(YT2) 		8-94232-866-0 01 1 9611- ● ● ● ● ● ● ● ●
163 02.705 SPACER; LICENSE PLATE LAMP
CHINA EQUIPMENT(YT2) EXC. RR BODY FLAT BED<RS6> 		8-94232-866-0 02 1 9611- ● ● ●

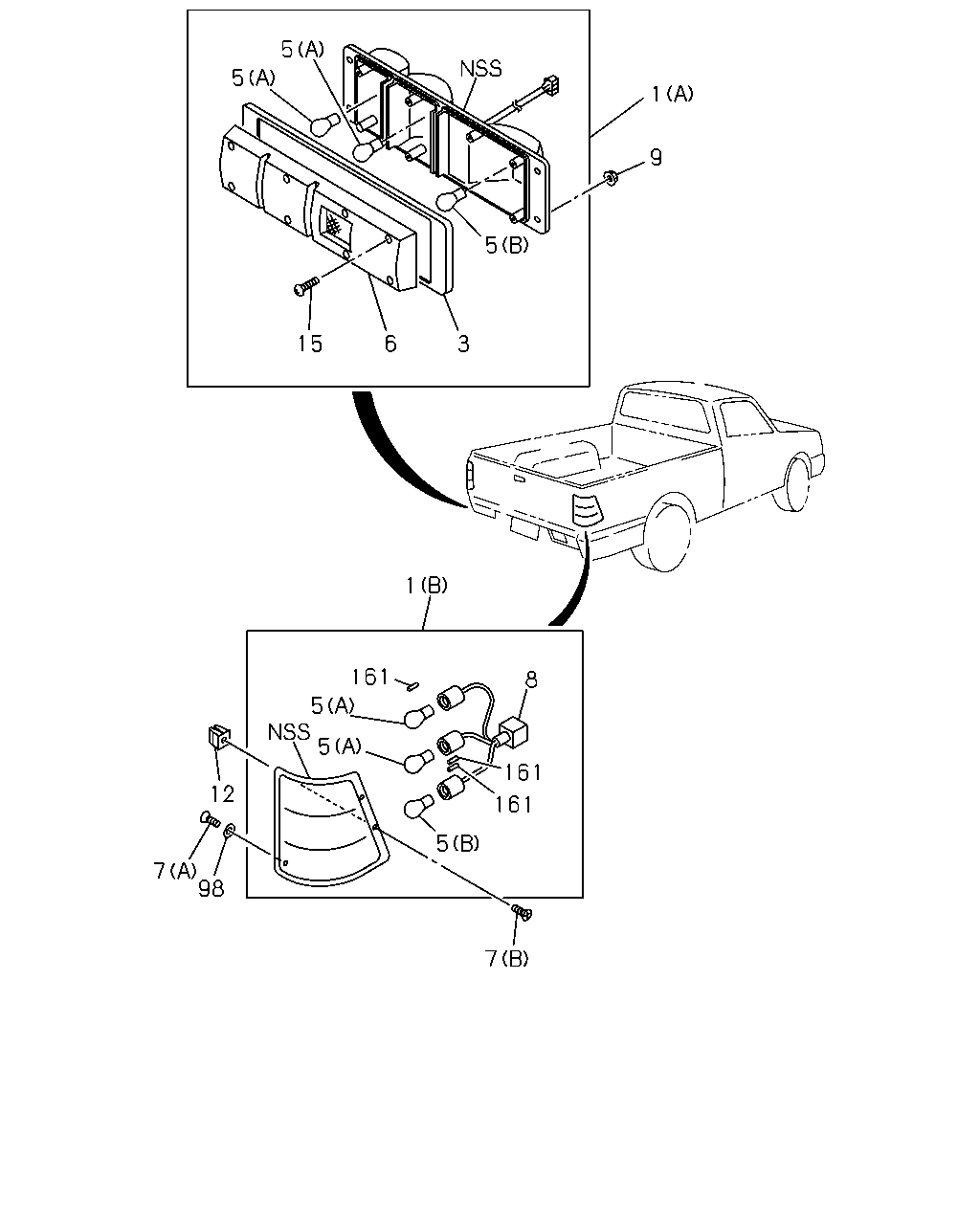

çizim 67297
5 5 9 5 15 6 3 161 5 5 161 161 12 5 98 1 1 8 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-97137-732-0 01 1 9611- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) (A) 		8-97137-731-0 01 1 9611- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-450-0 01 1 9611- ● ● ● ● ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR COMB LAMP VERTICAL<T98> (B) 		8-97114-449-0 01 1 9611- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.689 		5-82236-002-0 01 1 9611- ● ● ● ● ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.689 		5-82236-001-0 01 1 9611- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 9611- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 9611- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		5-82235-002-0 01 1 9611- ● ● ● ● ● ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		5-82235-001-0 01 1 9611- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 09.744 (A) M5X14 TAPPING 		1-72548-072-0 04 1 9611- ● ● ● ● ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> (B) M5X20 		8-97811-082-0 04 1 9611- ● ● ● ● ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-176-0 02 1 9611- ● ● ● ● ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 09.744 M5 FLANGE 		5-09440-003-0 08 1 9611- ● ● ● ● ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 16.588 D=7X7 L=7.5 		5-09983-007-0 04 1 9611- ● ● ● ● ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR COMB LAMP VERTICAL<T98>,RR BO DY DBL WALL SIDE LOCK INNER HOOK(7LZ) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 9611- ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR COMB LAMP VERTICAL<T98> 16.225 ID=6 		8-94126-642-0 04 1 9611- ● ● ● ● ● ● ● ●
161 02.689 TUBE; RR COMB LAMP
RR COMB LAMP VERTICAL<T98> 		8-97166-174-0 06 1 9611- ● ● ● ● ● ● ● ●
