8-01 — LAMP; FRONT AND FRONT SIDE (#45891) — 112 parça

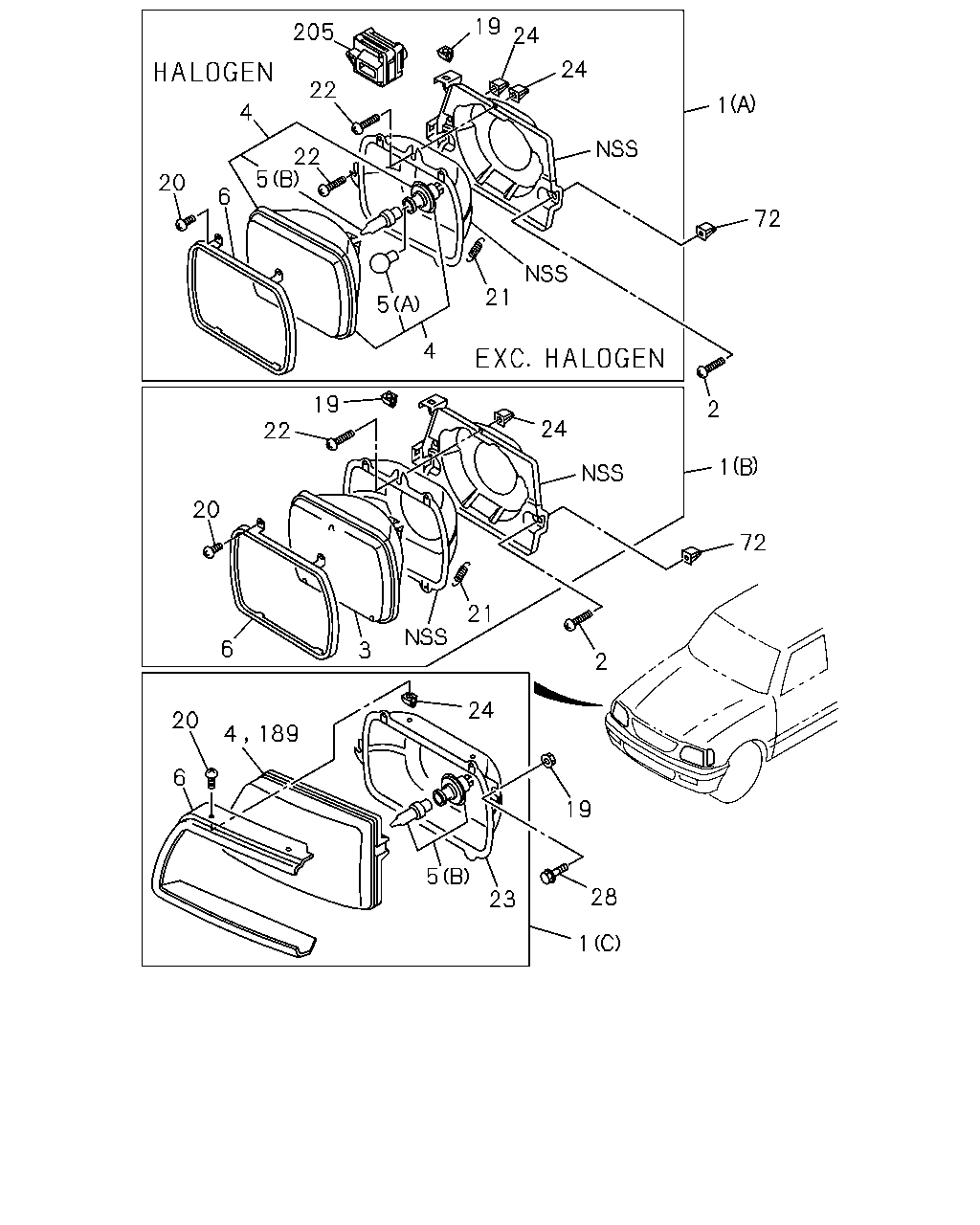

çizim 20281
19 24 205 24 22 1 4 22 5 20 6 72 21 5 4 19 2 24 22 1 20 72 21 6 3 2 24 20 189 4 6 19 5 28 23 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) (B) 12V 65/35W 		8-94434-558-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) (B) 12V 65/35W 		8-94434-558-2 01 1 9712- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) (B) 12V 65/35W 		8-94434-557-2 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) (B) 12V 65/35W 		8-94434-557-2 01 1 9712- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-556-2 01 1 9611-9701 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-556-2 01 1 9702-9711 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) ,ARGENTINA EQUIPMENT(7SZ) (B) 		8-94434-556-2 01 1 9712- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-555-2 01 1 9611-9701 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) (B) 		8-94434-555-2 01 1 9702-9711 ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) ,ARGENTINA EQUIPMENT(7SZ) (B) 		8-94434-555-2 01 1 9712- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 		8-94450-424-3 01 1 9611- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 		8-94450-423-3 01 1 9611- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-178-1 01 1 9702- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 		8-97162-177-1 01 1 9702- ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94450-422-3 01 1 9611-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94450-422-3 01 1 9712- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94450-421-3 01 1 9611-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94450-421-3 01 1 9712- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (A) 		8-94434-566-3 01 1 9611-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-94434-566-3 01 1 9712- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (A) 		8-94434-565-3 01 1 9611-9711 ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-94434-565-3 01 1 9712- ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9611-9701 ● ● ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9702- ● ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 06 1 9702- ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2) 12V 65/35W 		8-94463-397-1 02 1 9611-9711 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
HALOGEN HEAD LAMP<TT5> EXC. CHINA EQUIPMENT(YT2), ARGENTINAEQUIPMENT(7SZ) 12V 65/35W 		8-94463-397-1 02 1 9712- ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) 12V 65/55W 		8-94217-652-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) 12V 65/55W 		8-94217-652-0 02 1 9702-9711 ● ● ● ● ● ● ● ●
3 02.727 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,CHINA EQUIPMENT(YT2) ,ARGENTINA EQUIPMENT(7SZ) 12V 65/55W 		8-94217-652-0 02 1 9712- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> 		8-94334-630-1 02 1 9611- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		8-97178-342-0 01 1 9712- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		8-97178-341-0 01 1 9712- ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-94334-628-1 02 1 9611-9711 ● ● ●
4 02.727 HEADLAMP UNIT
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-94334-628-1 02 1 9712- ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) 		8-94334-632-1 02 1 9611-9711 ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-94334-632-1 02 1 9712- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9611- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9611-9711 ● ● ●
5 02.727 BULB; HEADLAMP
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9712- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (B) 12V 60/55W 		8-94217-817-0 02 1 9611-9701 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9702-9711 ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) (B) 12V 60/55W 		8-94217-817-0 02 1 9702-9711 ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 12V 60/55W 		8-94217-817-0 02 1 9712- ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B) 12V 60/55W 		8-94217-817-0 02 1 9712- ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 9702- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9702- ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 9702- ● ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 9702- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-115-0 02 1 9702- ● ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9702- ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9702- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 08 1 9611-9701 ● ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 08 1 9702- ● ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 08 1 9702- ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 9702- ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-94153-168-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94153-168-0 02 1 9702- ● ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-94153-168-0 02 1 9702- ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97023-135-0 04 1 9611-9701 ● ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97023-135-0 04 1 9702- ● ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97023-135-0 04 1 9702- ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-335-0 02 1 9702- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
02.726 		5-09470-004-0 04 1 9611-9701 ● ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 		5-09470-004-0 04 1 9702- ● ● ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
02.726 		5-09470-004-0 04 1 9702- ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-491-0 02 1 9702- ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 FLANGE 		8-94372-359-0 08 1 9702- ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 06 1 9611-9701 ● ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 06 1 9702- ● ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 06 1 9702- ●
189 02.726 HOUSING; HEAD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-342-0 01 1 9702-9711 ● ● ● ● ● ● ●
189 02.726 HOUSING; HEAD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-341-0 01 1 9702-9711 ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
CHINA EQUIPMENT(YT2) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9611-9711 ● ● ●
205 02.727 ACTUATOR; HEADLAMP
YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9712- ● ● ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 		8-97113-326-0 01 1 9712- ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2) 		8-97113-326-0 02 1 9611-9711 ● ● ●
205 02.727 ACTUATOR; HEADLAMP
HALOGEN HEAD LAMP<TT5> CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97113-326-0 02 1 9712- ● ● ● ● ●

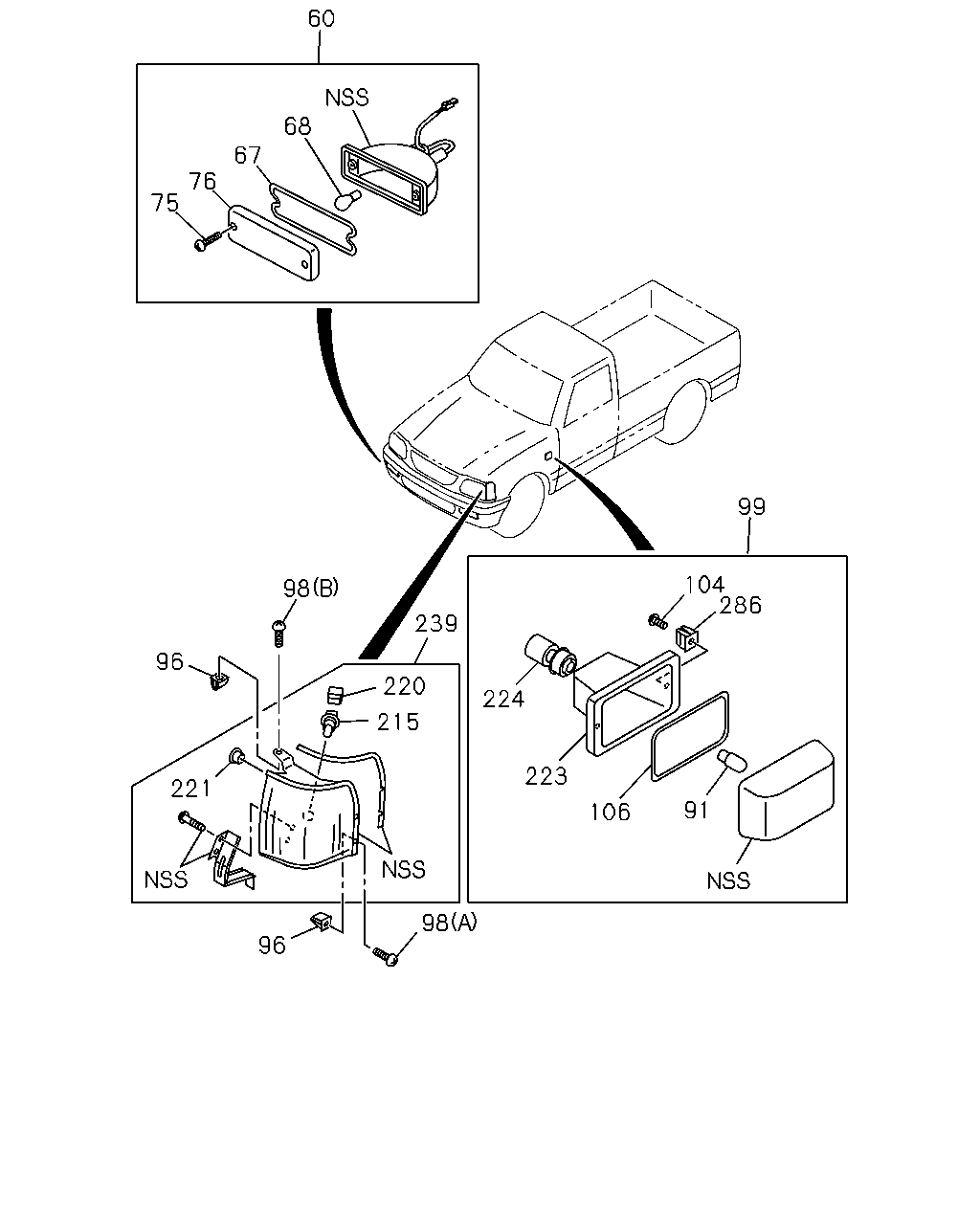

çizim 67328
60 68 67 76 75 99 104 286 98 239 96 220 224 215 223 221 91 106 98 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
60 02.585 LAMP ASM; FRT COMB 8-94322-388-1 01 1 9611-9701 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97173-536-0 01 1 9702-9711 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97173-536-0 01 1 9712- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-94322-387-1 01 1 9611-9701 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97173-535-0 01 1 9702-9711 ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97173-535-0 01 1 9712- ● ● ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
ARGENTINA EQUIPMENT(7SZ) 		8-97173-534-0 01 1 9712- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
ARGENTINA EQUIPMENT(7SZ) 		8-97173-533-0 01 1 9712- ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 9611- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 23W 		9-82692-131-0 02 1 9611-9701 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 23/8W 		9-82692-132-0 02 1 9702-9711 ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
EXC. ARGENTINA EQUIPMENT(7SZ) 12V 23W 		9-82692-131-0 02 1 9712- ● ● ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
ARGENTINA EQUIPMENT(7SZ) 12V 21W 		8-94124-074-0 02 1 9712- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9611- ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94117-030-0 01 1 9611- ● ● ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94112-723-0 01 1 9611- ● ● ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-94124-595-0 02 1 9611- ● ● ● ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9611- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9611- ● ● ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9611- ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 9611- ● ● ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9611- ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9611- ● ● ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9611- ● ● ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9611- ● ● ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9611- ● ● ● ● ● ● ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9611- ● ● ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9611- ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9611- ● ● ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9611- ● ● ● ● ● ● ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9611- ● ● ● ● ● ● ● ●
