◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#45890) — 172 parça

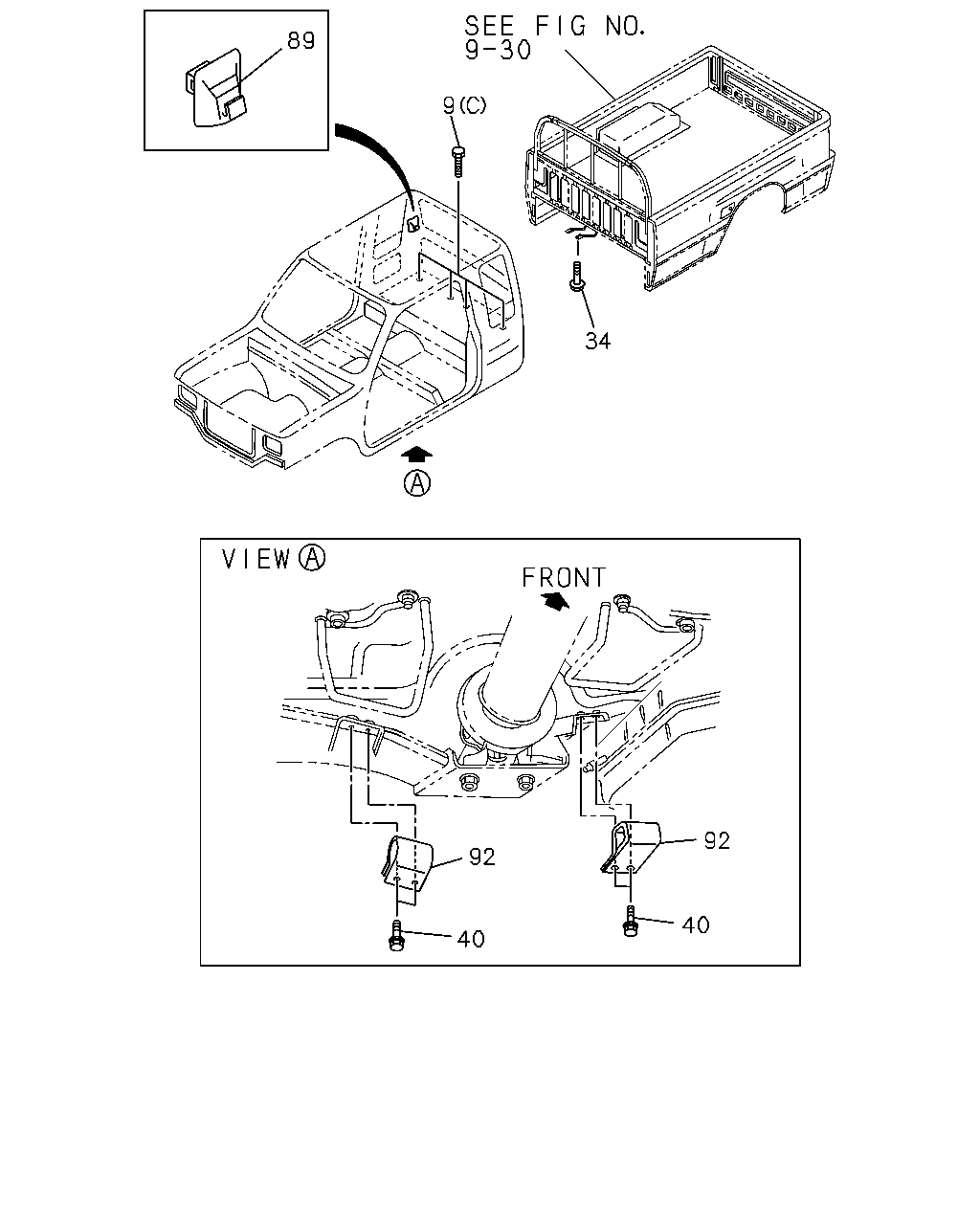

çizim 20279
89 34 92 92 40 40 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9712- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9712- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 9712- ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 07.039 		8-94130-273-0 04 1 9611-9711 ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-94198-549-0 04 1 9712- ● ●
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9611- ● ● ● ● ● ● ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-97154-708-2 02 1 9611- ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 9611- ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 		8-94471-108-2 02 1 9611- ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-97146-231-0 02 1 9611- ● ●

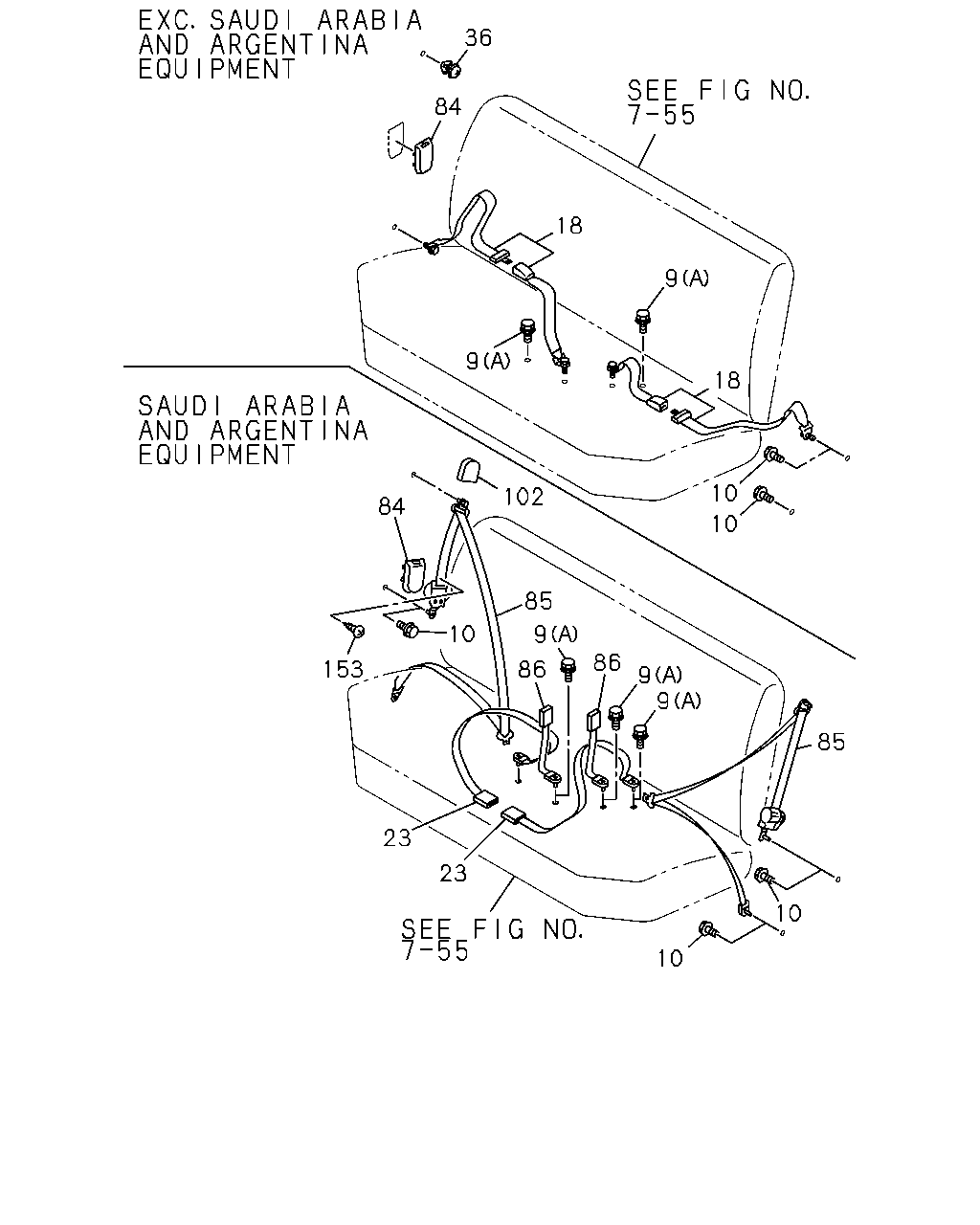

çizim 67329
36 84 18 9 9 18 102 10 10 84 85 9 86 86 10 153 9 9 85 23 23 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9712- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9712- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 9712- ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611-9711 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SAUDI ARABIA EQUIPMENT(EU2) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611-9711 ● ●
10 16.714 BOLT; RETRACTOR
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9712- ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9712- ● ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-092-0 02 1 9611-9703 ● ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B) DARK GRAY 		8-97156-092-0 02 1 9704-9711 ● ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT(R5B),ARGENT INA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-1 02 1 9712- ● ●
23 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-092-0 01 1 9611-9711 ● ●
23 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-092-1 01 1 9712- ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2) 16.714 		8-94433-190-0 02 1 9611-9711 ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) 16.714 		8-94433-190-0 02 1 9712- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97153-655-5 02 1 9611-9711 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97153-655-5 02 1 9712- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9611-9711 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97153-656-5 02 1 9611-9711 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9712- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97153-656-5 02 1 9712- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-089-3 02 1 9712- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) DARK GRAY 		8-97156-088-3 02 1 9611- ● ●
86 16.714 BELT; SEAT,RR INNER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97156-090-0 02 1 9611-9711 ● ●
86 16.714 BELT; SEAT,RR INNER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97156-090-0 02 1 9712- ● ●
102 16.714 COVER; SHOULDER ANCHOR
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9712- ● ●
102 16.714 COVER; SHOULDER ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97152-754-1 02 1 9611- ● ●
153 16.714 SCREW; RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) M8X10 		9-03800-810-0 02 1 9611-9711 ● ●
153 16.714 SCREW; RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2), ARGENTINA EQUIPMENT(7SZ) M8X10 		9-03800-810-0 02 1 9712- ● ●

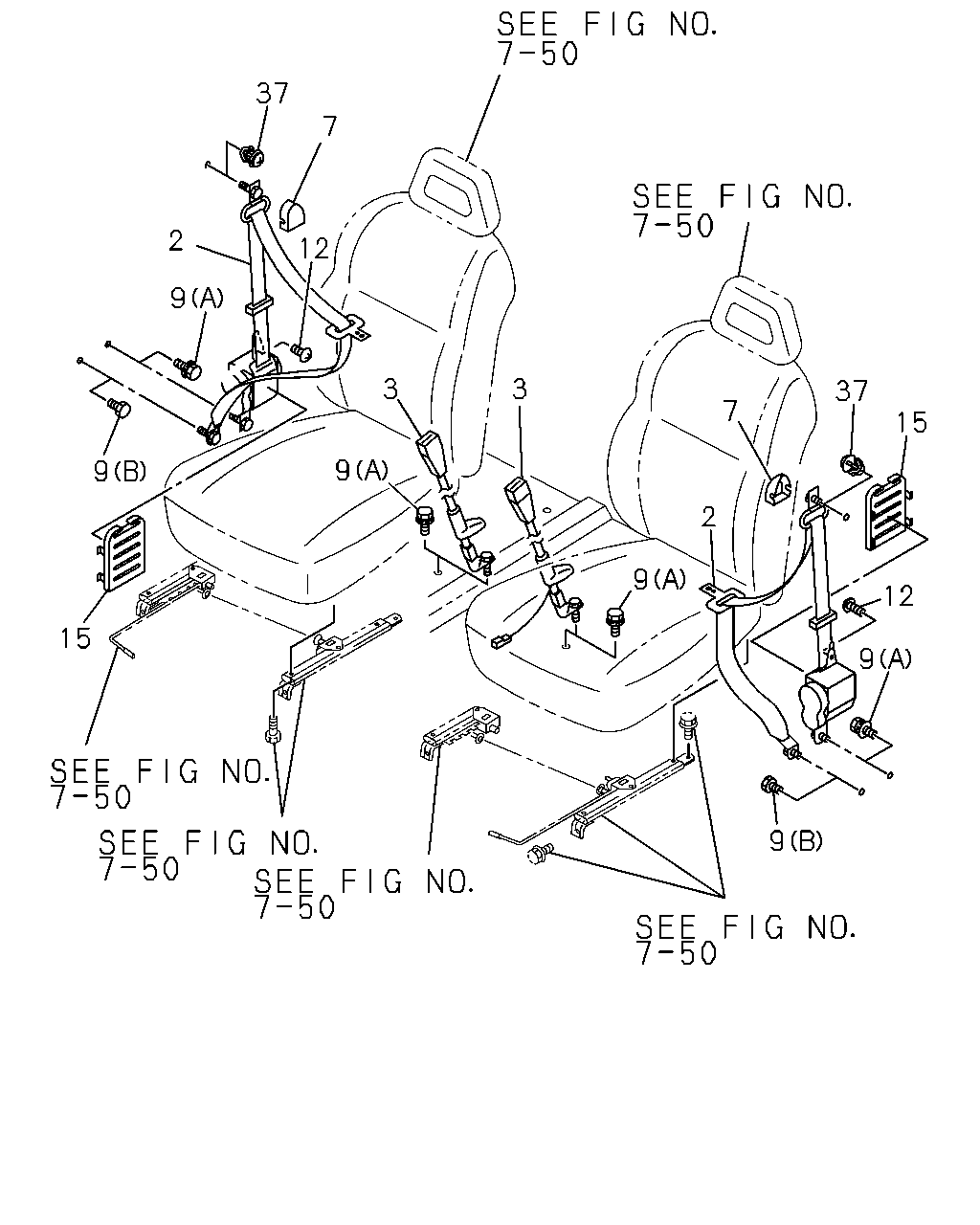

çizim 71077
37 7 12 2 9 3 3 37 7 15 9 9 2 9 12 15 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-2 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 9712- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-4 02 1 9712- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-1 02 1 9611-9711 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-3 02 1 9712- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-1 02 1 9611-9711 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-3 02 1 9712- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-072-1 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-1 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-4 02 1 9712- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-086-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97156-086-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-081-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-081-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9611- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9611- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-082-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-998-0 01 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9611-9711 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97152-754-1 02 1 9611-9711 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9712- ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9712- ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9712- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9712- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9712- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 9712- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9611- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9611- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9611- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9611- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9611- ● ● ● ● ● ●

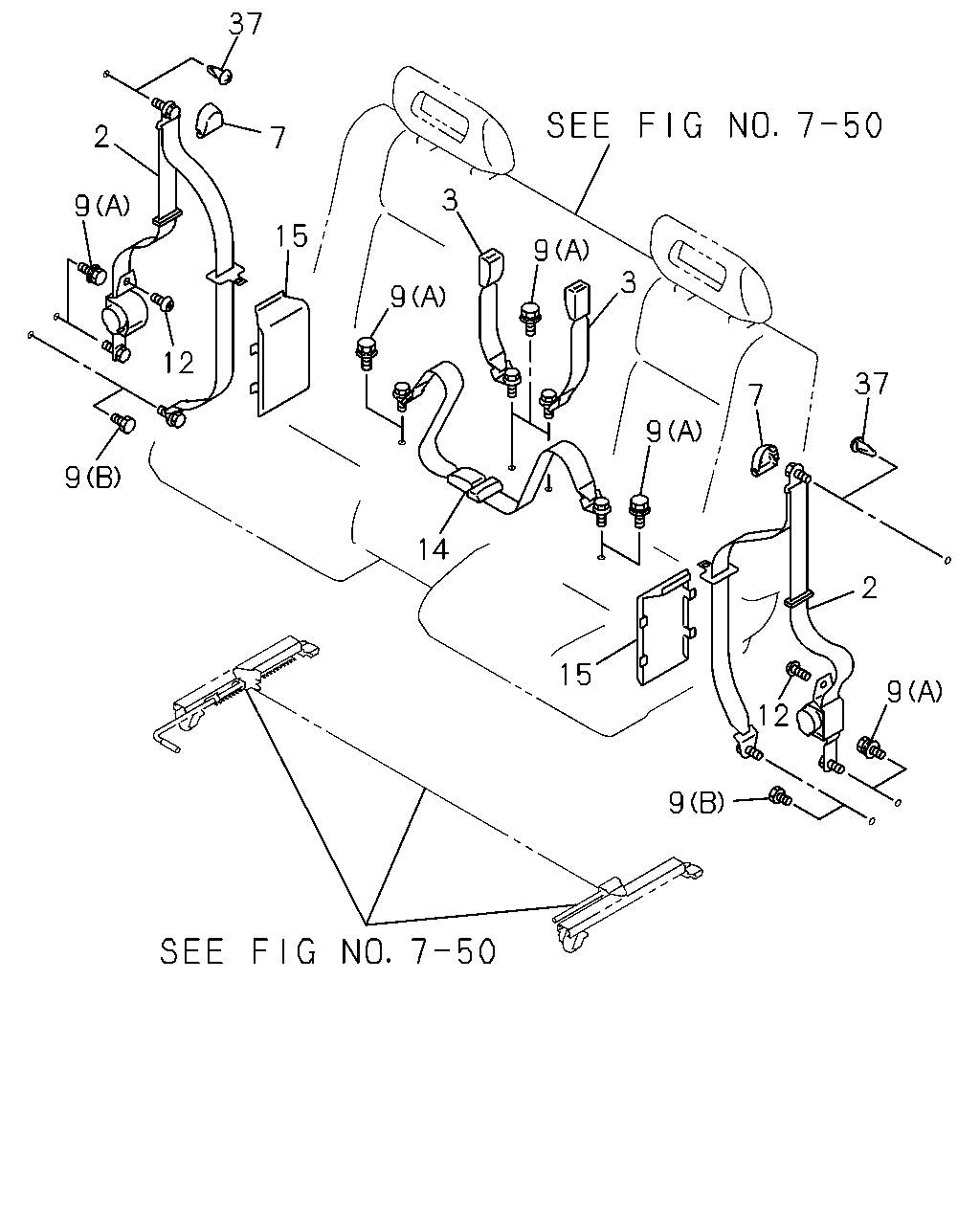

çizim 71146
37 2 7 3 9 15 9 3 9 12 37 7 9 9 14 2 15 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-2 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97156-074-4 02 1 9712- ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-074-4 02 1 9712- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-1 02 1 9611-9711 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-076-3 02 1 9712- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-1 02 1 9611-9711 ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-073-3 02 1 9712- ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> ARGENTINA EQUIPMENT(7SZ) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-072-1 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-072-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-1 02 1 9611-9711 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B), ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-075-3 02 1 9712- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
ARGENTINA EQUIPMENT(7SZ) DARK GRAY 		8-97156-071-4 02 1 9712- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-086-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97156-086-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-081-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-081-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9611- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9611- ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-082-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-080-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-087-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SAUDI ARABIA EQUIPMENT(EU2), BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. SAUDI ARABIA EQUIPMENT(EU2) GRAY 		8-97157-997-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-998-0 01 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9611-9711 ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97152-754-1 02 1 9611-9711 ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9712- ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97152-754-1 02 1 9712- ● ● ● ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
ARGENTINA EQUIPMENT(7SZ) GRAY 		8-97154-700-0 02 1 9712- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT CENTER<S4D>, ARGENTINA EQUIPMENT(7SZ) 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9712- ● ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9611-9711 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
(C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. ARGENTINA EQUIPMENT(7SZ) (C) 7/16"X14 UNF 		8-97039-648-0 04 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611-9711 ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49>,ARGENTINA EQUIPMENT(7SZ) (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9712- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) EXC. SEAT BELT CENTER<S4D> (A) 		8-97039-649-0 02 1 9712- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (A) 		8-97039-649-0 02 1 9712- ●
9 16.714 BOLT; SEAT BELT ANCHOR
ARGENTINA EQUIPMENT(7SZ) (C) 		8-97039-649-0 04 1 9712- ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9611- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9611- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9611-9711 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-068-0 01 1 9611-9711 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9712- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SAUDI ARABIA EQUIPMENT(EU2) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-068-0 01 1 9712- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9611- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9611- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9611- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
