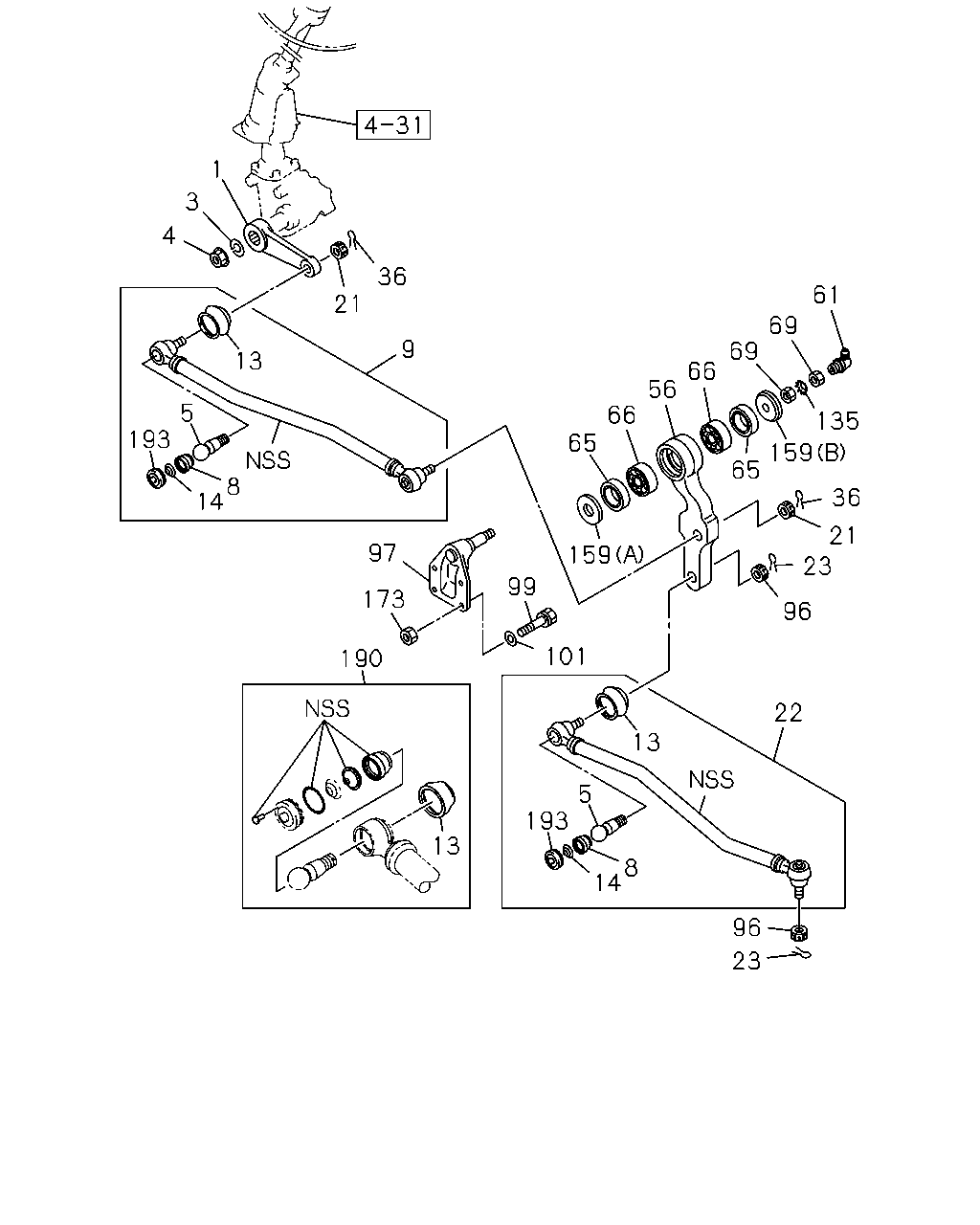

4-33 — STEERING LINKAGE
(#4589) — 27 parça
1
3
4
36
61
21
69
9
69
13
66
56
5
193
66
135
65
159
8
14
65
36
21
97
159
23
99
173
96
101
190
22
13
5
193
13
8
14
96
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-429-0
01
1
9712-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
9712-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
9712-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
04
1
9712-
8
SEAT; SPR,ROD END
1-43159-075-0
04
1
9712-
9
LINK; DRAG
1-44380-077-3
01
1
9712-
13
BOOT; DRAG LINK
1-43159-107-0
04
1
9712-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
04
1
9712-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
9712-
22
LINK; DRAG,2ND
1-44380-079-3
01
1
9712-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
02
1
9712-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
9712-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-174-0
01
1
9712-
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
9-09031-210-0
01
1
9712-
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
9712-
66
BEARING; LINK ARM
9-00030-207-0
02
1
9712-
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
9712-
96
NUT; LINK ARM
M24 SLOTTED
1-09442-020-0
02
1
9712-
97
BRACKET; LINK ARM
1-44348-078-1
01
1
9712-
99
BOLT; BRKT
M14X50
9-92061-450-0
04
1
9712-
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
9712-
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
9712-
159
WASHER; LINK ARM
(B) ID=24 T=8
9-44349-039-0
01
1
9712-
159
WASHER; LINK ARM
(A) ID=35 T=9
9-44349-046-0
01
1
9712-
173
NUT; BRKT,LINK ASM
M14
9-99110-514-0
04
1
9712-
190
REPAIR KIT; DRAG LINK
1-85574-041-0
04
1
9712-
193
PLUG; END,DRAG LINK
1-43159-093-0
04
1
9712-
