◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#45889) — 32 parça

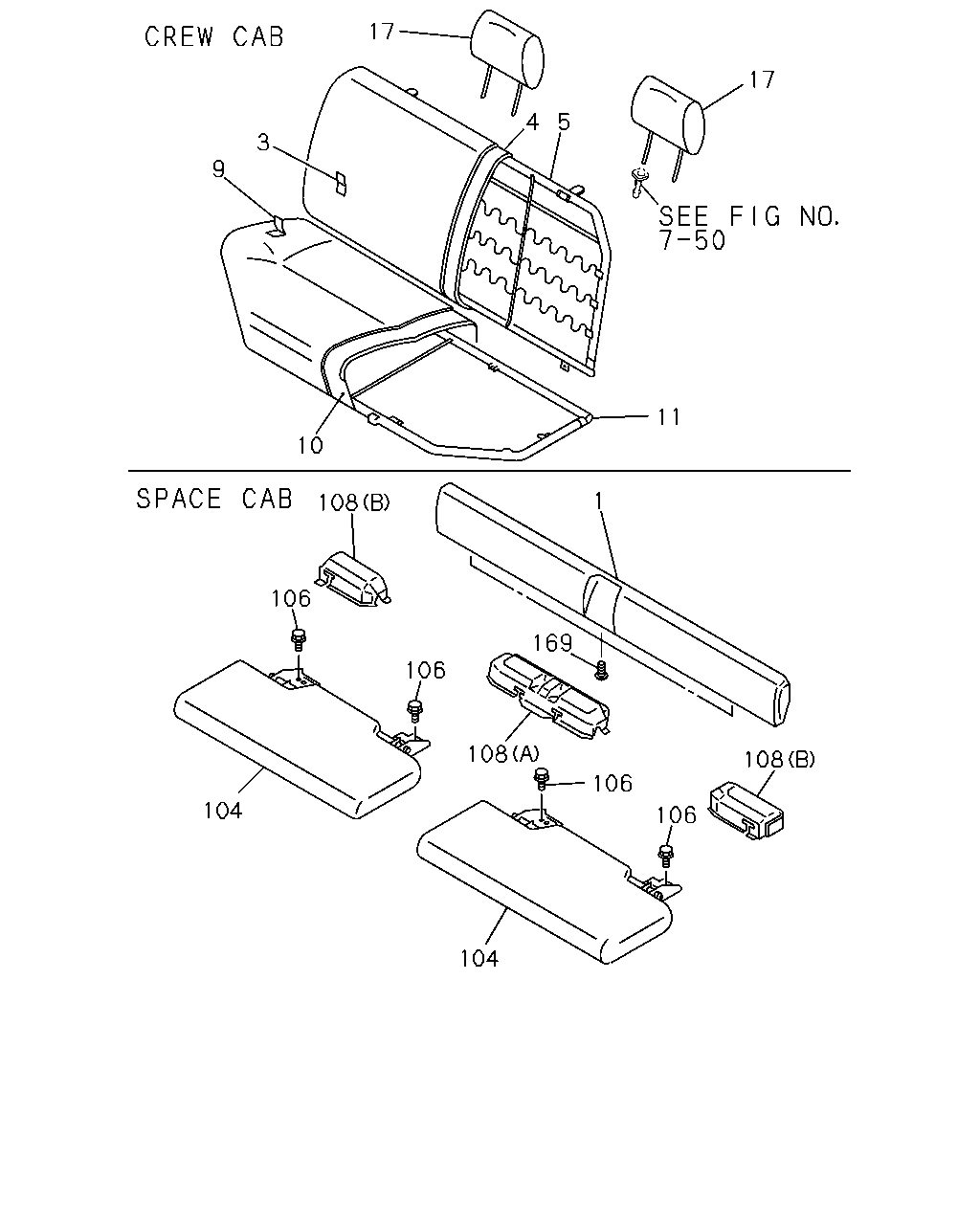

çizim 72152
17 17 4 5 3 9 10 1 108 106 169 106 108 108 106 104 106 104 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.720 BACK ASM; RR SEAT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> GRAY 		8-97154-656-0 01 1 9611- ● ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-532-0 01 1 9611- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY 		8-97156-534-0 01 1 9611- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-534-0 01 1 9611- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-533-0 01 1 9611- ● ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94473-477-3 01 1 9611- ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-477-3 01 1 9611- ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-477-3 01 1 9611- ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) 		8-97137-928-1 01 1 9611- ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97137-928-1 01 1 9611- ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-928-1 01 1 9611- ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) 		8-97137-929-1 01 1 9611- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY 		8-97156-525-0 01 1 9611- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-525-0 01 1 9611- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-524-0 01 1 9611- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-524-0 01 1 9611- ●
10 16.716 PAD; CUSHION,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94473-481-1 01 1 9611- ●
10 16.716 PAD; CUSHION,RR SEAT
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-481-1 01 1 9611- ●
10 16.716 PAD; CUSHION,RR SEAT
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-481-1 01 1 9611- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94473-480-1 01 1 9611- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-480-1 01 1 9611- ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94473-480-1 01 1 9611- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-535-0 02 1 9611- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-535-0 02 1 9611- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY 		8-97156-536-1 02 1 9611- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-536-1 02 1 9611- ●
104 16.714 SEAT ASM; JUMP
SPACE CAB(TF**C*) JUMP SEAT<AJ2> GRAY 		8-97155-055-0 02 1 9611- ● ●
106 16.682 BOLT; JUMP SEAT
SPACE CAB(TF**C*) M8X25 W/PL WASHER 		8-94175-938-1 08 1 9611- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (A) GRAY 		8-97154-713-3 01 1 9611- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (B) GRAY 		8-97154-712-3 01 1 9611- ● ●
108 16.714 COVER; HINGE BRKT
SPACE CAB(TF**C*) JUMP SEAT<AJ2> (B) GRAY 		8-97154-711-3 01 1 9611- ● ●
169 16.720 SCREW; SEAT BACK
SPACE CAB(TF**C*) JUMP SEAT<AJ2> 16.100 M4X12 TAPPING OVAL-HEAD 		9-09829-312-1 03 1 9611- ● ●
