Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#45888) — 259 parça

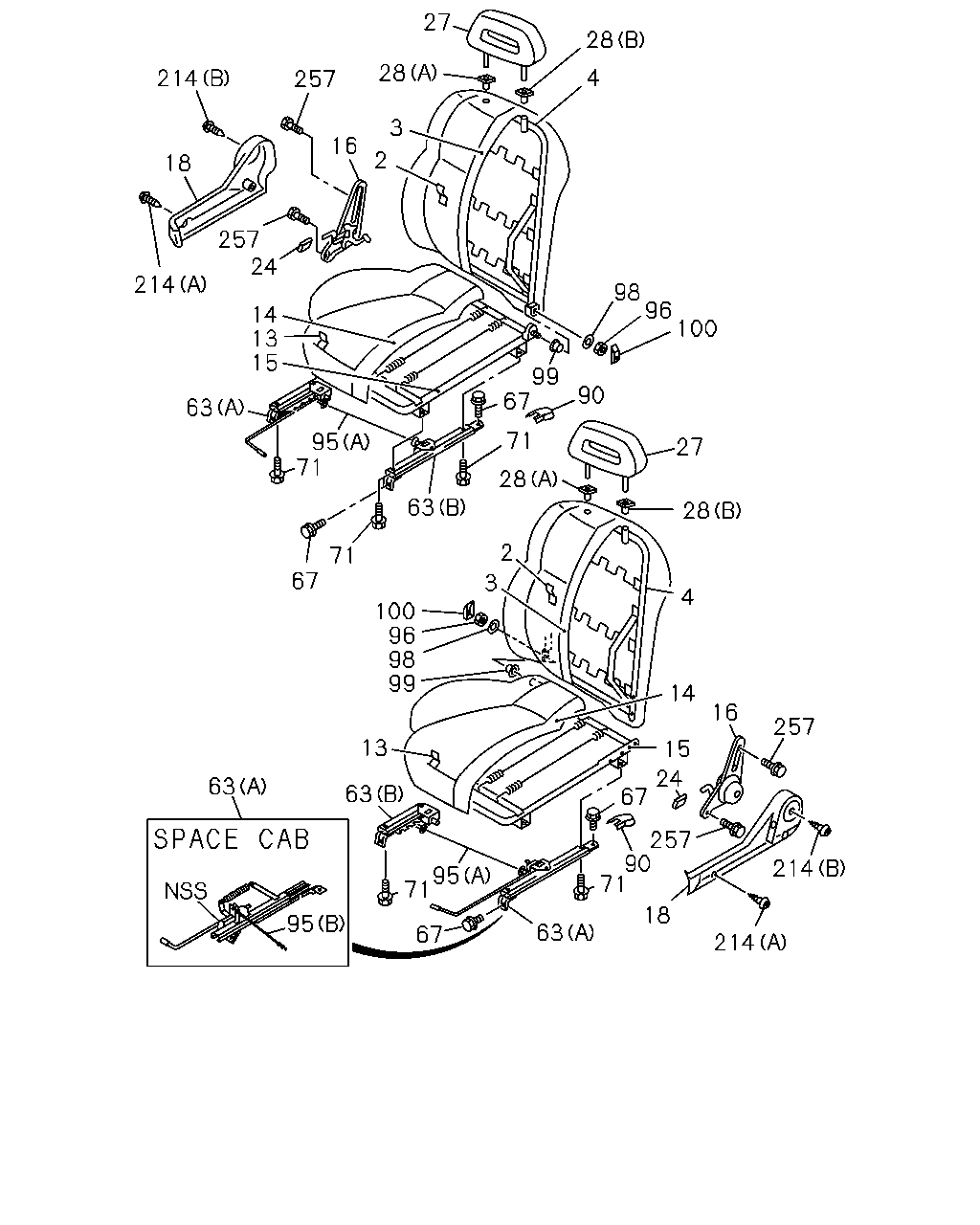

27 28 28 4 214 257 3 2 16 18 257 24 214 98 96 100 14 13 15 99 67 63 71 95 71 27 28 63 28 2 3 71 67 4 100 96 98 99 14 16 257 13 15 24 67 63 63 257 90 71 214 95 71 18 95 63 67 214 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB(TF*S) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-454-1	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-514-1	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97156-519-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97156-519-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97156-518-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97156-518-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPACE CAB(TF*C) GRAY	8-97155-416-0	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB LONG(TF**SF) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-416-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-416-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPACE CAB(TF*C) GRAY	8-97155-414-0	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB LONG(TF**SF) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-414-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-414-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-456-1	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-515-1	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-412-1	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-516-1	01	1	9611-		●
3	16.720 PAD; FRT SEAT BACK BUCKET SEAT W/RECLINING(S3B)	8-94328-161-1	02	1	9611-	●	●
4	16.720 FRAME ASM; FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-726-0	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54)	8-97137-726-0	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB(TFBS) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94441-860-5	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT 4X4 SINGLE CAB(TFSS) EXC. BUCKET SEAT W/RECLINING(S3B)	8-94441-860-5	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BENCH SEAT W/HEAD REST VINYL(A54)	8-94441-860-5	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94317-775-1	01	1	9611-	●	●
4	16.720 FRAME ASM; FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94317-774-1	01	1	9611-	●	●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97014-053-4	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-727-0	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-504-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-504-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB(TFBS) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-405-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X4 SINGLE CAB(TFSS) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-405-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97155-405-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-410-1	01	1	9611-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-408-1	01	1	9611-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-406-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-505-1	01	1	9611-		●
14	16.716 PAD; FRT SEAT CUSHION EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-927-0	01	1	9611-	●
14	16.716 PAD; FRT SEAT CUSHION BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-927-0	01	1	9611-		●
14	16.716 PAD; FRT SEAT CUSHION BUCKET SEAT W/RECLINING(S3B)	8-94473-493-4	02	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-159-0	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-159-0	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-162-0	01	1	9611-	●
15	16.716 FRAME; CUSHION,FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-162-0	01	1	9611-		●
15	16.716 FRAME; CUSHION,FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94441-871-2	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94441-872-2	01	1	9611-	●	●
16	16.682 ADJUSTER ASM; RECLINING 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B)	8-94473-669-2	01	1	9611-	●	●
16	16.682 ADJUSTER ASM; RECLINING 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B)	8-94473-497-2	01	1	9611-	●	●
16	16.682 ADJUSTER ASM; RECLINING SPACE CAB(TF*C)	8-94327-320-2	01	1	9611-	●	●
16	16.682 ADJUSTER ASM; RECLINING SPACE CAB(TF*C)	8-94473-509-3	01	1	9611-	●	●
18	16.682 COVER; RECLINING BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-921-4	01	1	9611-	●	●
18	16.682 COVER; RECLINING BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-913-4	01	1	9611-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-920-0	01	1	9611-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-912-0	01	1	9611-	●	●
27	16.718 REST; HD,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97155-404-0	02	1	9611-	●
27	16.718 REST; HD,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-404-0	02	1	9611-		●
27	16.718 REST; HD,FRT SEAT BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-911-1	02	1	9611-	●	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	04	1	9611-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	04	1	9611-		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A)	8-97130-693-0	01	1	9611-	●
63	16.682 ADJUSTER; SEAT SLIDE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A)	8-97130-693-0	01	1	9611-		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B)	8-97130-690-0	01	1	9611-	●
63	16.682 ADJUSTER; SEAT SLIDE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B)	8-97130-690-0	01	1	9611-		●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (B) PASSENGER SEAT	8-97128-279-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (B) DRIVER SEAT	8-97128-280-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (A) PASSENGER SEAT	8-97128-281-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (A) DRIVER SEAT	8-97128-282-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (B) PASSENGER SEAT	8-97127-470-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (B) DRIVER SEAT	8-97127-471-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (A) DRIVER SEAT	8-97127-472-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (A) PASSENGER SEAT	8-97127-473-1	01	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY SPACE CAB(TF*C) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	10	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	06	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	04	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X4 SHORT(TFS**C) M10X19	8-94427-095-2	04	1	9611-	●	●
71	16.682 BOLT; ADJ TO SEAT EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER	8-94171-739-0	04	1	9611-	●
71	16.682 BOLT; ADJ TO SEAT BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER	8-94171-739-0	04	1	9611-		●
71	16.682 BOLT; ADJ TO SEAT BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER	8-94171-739-0	08	1	9611-	●	●
90	16.682 COVER; SEAT ADJ BRKT SPACE CAB(TF*C) 16.714 GRAY	8-97150-709-2	04	1	9611-	●	●
90	16.682 COVER; SEAT ADJ BRKT CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY	8-97150-709-2	04	1	9611-	●	●
90	16.682 COVER; SEAT ADJ BRKT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY	8-97150-709-2	02	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94473-469-2	01	1	9611-	●
95	16.682 WIRE; EXT,SEAT ADJ BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94473-469-2	01	1	9611-		●
95	16.682 WIRE; EXT,SEAT ADJ BUCKET SEAT W/RECLINING(S3B) (A)	8-94473-502-0	02	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ SPACE CAB(TF*C) (B)	8-97041-949-0	01	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ SPACE CAB(TF*C) (B)	8-97041-948-0	01	1	9611-	●	●
96	16.716 NUT; LK,HINGE BUCKET SEAT W/RECLINING(S3B) 11.377 M8 FLANGE	8-94152-886-0	02	1	9611-	●	●
98	16.716 WASHER; HINGE BUCKET SEAT W/RECLINING(S3B) 11.377 ID=8.4 OD=20	8-94408-413-0	02	1	9611-	●	●
99	16.716 BUSHING; SEAT BACK BUCKET SEAT W/RECLINING(S3B) 11.377	8-94408-414-0	02	1	9611-	●	●
100	16.686 COVER; HINGE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-062-1	01	1	9611-	●
100	16.686 COVER; HINGE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-062-1	01	1	9611-		●
100	16.686 COVER; HINGE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-061-1	01	1	9611-	●
100	16.686 COVER; HINGE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-061-1	01	1	9611-		●
100	16.686 COVER; HINGE BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-914-0	02	1	9611-	●	●
214	16.682 SCREW; SIDE COVER BUCKET SEAT W/RECLINING(S3B) 16.802 (A) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	9611-	●	●
214	16.682 SCREW; SIDE COVER BUCKET SEAT W/RECLINING(S3B) (B)	8-94478-733-0	02	1	9611-	●	●
257	16.682 BOLT; RECLINING DEVICE BUCKET SEAT W/RECLINING(S3B) M10X20 W/LK WASHER	8-94317-654-0	08	1	9611-	●	●

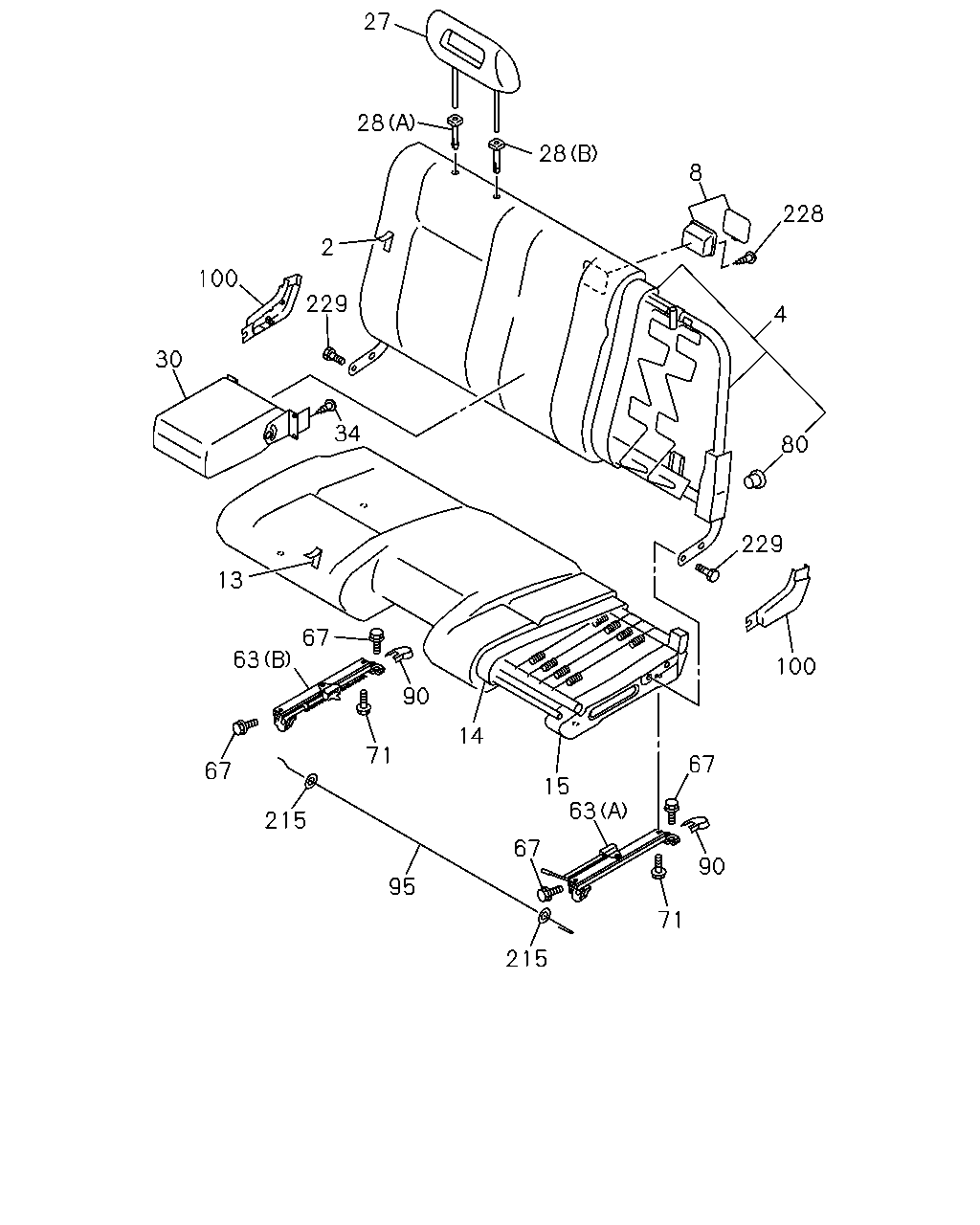

27 28 28 8 228 2 100 229 4 30 34 80 229 13 67 63 100 90 14 71 67 67 15 63 215 67 90 95 71 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB(TF*S) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-454-1	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) EXC. BENCH SEAT W/HEAD REST VINYL(A54), BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/H EAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-514-1	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97156-519-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97156-519-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97156-518-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97156-518-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPACE CAB(TF*C) GRAY	8-97155-416-0	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB LONG(TF**SF) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-416-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-416-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SPACE CAB(TF*C) GRAY	8-97155-414-0	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB LONG(TF**SF) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) GRAY	8-97155-414-0	01	1	9611-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-414-0	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-456-1	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-515-1	01	1	9611-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-412-1	01	1	9611-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-516-1	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-726-0	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54)	8-97137-726-0	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB(TFBS) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94441-860-5	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT 4X4 SINGLE CAB(TFSS) EXC. BUCKET SEAT W/RECLINING(S3B)	8-94441-860-5	01	1	9611-	●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BENCH SEAT W/HEAD REST VINYL(A54)	8-94441-860-5	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94317-775-1	01	1	9611-	●	●
4	16.720 FRAME ASM; FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94317-774-1	01	1	9611-	●	●
4	16.720 FRAME ASM; FRT SEAT 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97014-053-4	01	1	9611-		●
4	16.720 FRAME ASM; FRT SEAT 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-727-0	01	1	9611-		●
8	16.120 TRAY ASM; ASH,FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97150-683-1	01	1	9611-	●
8	16.120 TRAY ASM; ASH,FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97150-683-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-504-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97156-504-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB(TFBS) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-405-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X4 SINGLE CAB(TFSS) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-405-1	01	1	9611-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97155-405-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-410-1	01	1	9611-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION BUCKET SEAT W/RECLINING(S3B) GRAY	8-97155-408-1	01	1	9611-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-406-1	01	1	9611-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-505-1	01	1	9611-		●
14	16.716 PAD; FRT SEAT CUSHION EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-927-0	01	1	9611-	●
14	16.716 PAD; FRT SEAT CUSHION BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97137-927-0	01	1	9611-		●
14	16.716 PAD; FRT SEAT CUSHION BUCKET SEAT W/RECLINING(S3B)	8-94473-493-4	02	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-159-0	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-159-0	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-162-0	01	1	9611-	●
15	16.716 FRAME; CUSHION,FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-97039-162-0	01	1	9611-		●
15	16.716 FRAME; CUSHION,FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94441-871-2	01	1	9611-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT BUCKET SEAT W/RECLINING(S3B)	8-94441-872-2	01	1	9611-	●	●
27	16.718 REST; HD,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54) GRAY	8-97155-404-0	02	1	9611-	●
27	16.718 REST; HD,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97155-404-0	02	1	9611-		●
27	16.718 REST; HD,FRT SEAT BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-911-1	02	1	9611-	●	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	04	1	9611-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	04	1	9611-		●
30	16.720 REST ASM; ARM,FRT SEAT 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-459-0	01	1	9611-		●
30	16.720 REST ASM; ARM,FRT SEAT 4X2 CREW CAB(TFBW) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-537-0	01	1	9611-		●
34	16.724 SCREW; ARMREST,FRT SEAT 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	1-75140-003-0	04	1	9711-9711		●
34	16.724 SCREW; ARMREST,FRT SEAT 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	1-75140-003-0	04	1	9712-		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A)	8-97130-693-0	01	1	9611-	●
63	16.682 ADJUSTER; SEAT SLIDE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A)	8-97130-693-0	01	1	9611-		●
63	16.682 ADJUSTER; SEAT SLIDE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B)	8-97130-690-0	01	1	9611-	●
63	16.682 ADJUSTER; SEAT SLIDE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B)	8-97130-690-0	01	1	9611-		●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (B) PASSENGER SEAT	8-97128-279-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (B) DRIVER SEAT	8-97128-280-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (A) PASSENGER SEAT	8-97128-281-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB(TFB6WF) BUCKET SEAT W/RECLINING(S3B) (A) DRIVER SEAT	8-97128-282-0	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (B) PASSENGER SEAT	8-97127-470-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (B) DRIVER SEAT	8-97127-471-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (A) DRIVER SEAT	8-97127-472-1	01	1	9611-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SPACE CAB(TF*C) (A) PASSENGER SEAT	8-97127-473-1	01	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY SPACE CAB(TF*C) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	10	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	06	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	04	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X4 SHORT(TFS**C) M10X19	8-94427-095-2	04	1	9611-	●	●
71	16.682 BOLT; ADJ TO SEAT EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER	8-94171-739-0	04	1	9611-	●
71	16.682 BOLT; ADJ TO SEAT BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER	8-94171-739-0	04	1	9611-		●
71	16.682 BOLT; ADJ TO SEAT BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER	8-94171-739-0	08	1	9611-	●	●
80	16.686 RUBBER; STOPPER EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715	8-94388-310-0	02	1	9611-	●	●
80	16.686 RUBBER; STOPPER BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715	8-94388-310-0	02	1	9611-	●	●
80	16.686 RUBBER; STOPPER 4X2 SINGLE CAB(TFBS) EXC. BUCKET SEAT W/RECLINING(S3B) 16.715	8-94388-310-0	02	1	9611-	●
80	16.686 RUBBER; STOPPER 4X2 SINGLE CAB(TFBS) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715	8-94388-310-0	02	1	9611-		●
90	16.682 COVER; SEAT ADJ BRKT SPACE CAB(TF*C) 16.714 GRAY	8-97150-709-2	04	1	9611-	●	●
90	16.682 COVER; SEAT ADJ BRKT CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY	8-97150-709-2	04	1	9611-	●	●
90	16.682 COVER; SEAT ADJ BRKT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY	8-97150-709-2	02	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94473-469-2	01	1	9611-	●
95	16.682 WIRE; EXT,SEAT ADJ BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC)	8-94473-469-2	01	1	9611-		●
95	16.682 WIRE; EXT,SEAT ADJ BUCKET SEAT W/RECLINING(S3B) (A)	8-94473-502-0	02	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ SPACE CAB(TF*C) (B)	8-97041-949-0	01	1	9611-	●	●
95	16.682 WIRE; EXT,SEAT ADJ SPACE CAB(TF*C) (B)	8-97041-948-0	01	1	9611-	●	●
100	16.686 COVER; HINGE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-062-1	01	1	9611-	●
100	16.686 COVER; HINGE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-062-1	01	1	9611-		●
100	16.686 COVER; HINGE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-061-1	01	1	9611-	●
100	16.686 COVER; HINGE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY	8-97156-061-1	01	1	9611-		●
100	16.686 COVER; HINGE BUCKET SEAT W/RECLINING(S3B) GRAY	8-97152-914-0	02	1	9611-	●	●
215	16.682 WASHER; PL,CONT CABLE EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 04.930 ID=4.3 OD=10	9-09160-604-0	02	1	9611-	●
215	16.682 WASHER; PL,CONT CABLE BENCH SEAT W/HEAD REST VINYL(A54) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 04.930 ID=4.3 OD=10	9-09160-604-0	02	1	9611-		●
228	16.714 SCREW; KNOB CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 08.977 M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9611-	●
228	16.714 SCREW; KNOB CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 08.977 M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9611-		●
229	16.716 BOLT; HINGE,FRT SEAT EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26	8-94473-683-0	02	1	9611-	●	●
229	16.716 BOLT; HINGE,FRT SEAT BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26	8-94473-683-0	02	1	9611-	●	●
229	16.716 BOLT; HINGE,FRT SEAT CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26	8-94473-683-0	04	1	9611-	●
229	16.716 BOLT; HINGE,FRT SEAT CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26	8-94473-683-0	04	1	9611-		●

28 28 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (A) GRAY	8-97152-906-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9611-9711	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9611-9711		●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST SINGLE CAB(TF*S) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	02	1	9712-	●
28	16.718 HOLDER; GUIDE,HD REST BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST SPACE CAB(TF*C) (B) GRAY	8-97152-907-0	02	1	9712-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) GRAY	8-97152-906-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY	8-97152-906-0	04	1	9611-		●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) GRAY	8-97152-907-0	04	1	9611-	●
28	16.718 HOLDER; GUIDE,HD REST CREW CAB(TF*W) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY	8-97152-907-0	04	1	9611-		●
67	16.682 BOLT; FRT SEAT TO BODY SPACE CAB(TF*C) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	08	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	10	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY CREW CAB(TF*W) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	06	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19	8-94427-095-2	04	1	9611-	●	●
67	16.682 BOLT; FRT SEAT TO BODY 4X4 SHORT(TFS**C) M10X19	8-94427-095-2	04	1	9611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
