7-45 — CONSOLE BOX (#45887) — 345 parça

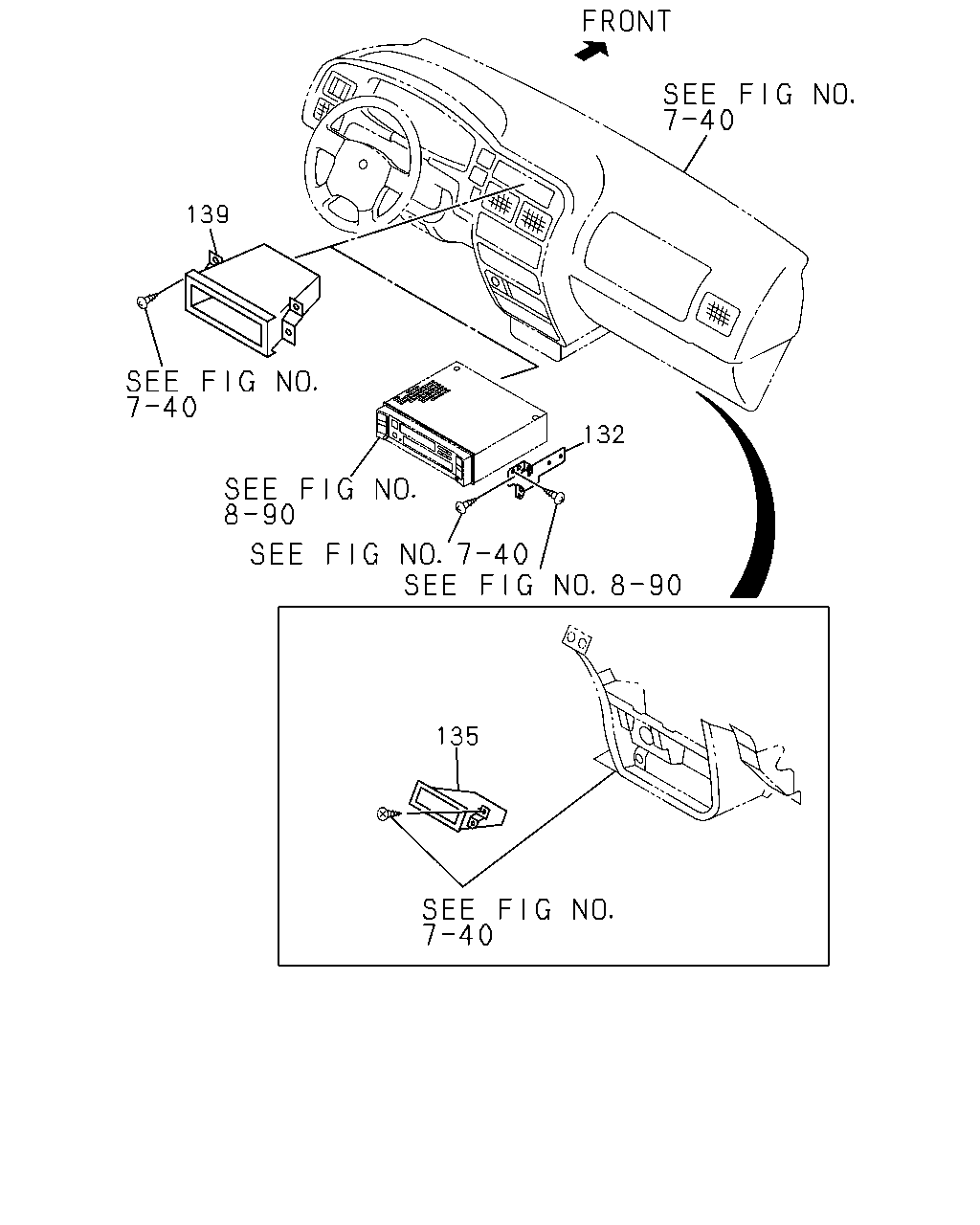

çizim 20578
139 132 135
BalonParca AdiParca NoAdetTipApplied Date A B
132 16.650 BRACKET; AUDIO BOX
RADIO-AM/FM ASIA/OCEANIA BAND W/CASSETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),RADIO-AM ASIA/OCEANIA BAND(7AQ),RADIO-AM/FM ALL AREA BAND W/CASSETTE 2S PEAKER(7ND) 		8-97107-583-2 01 1 9611- ● ●
132 16.650 BRACKET; AUDIO BOX
RADIO-AM/FM ASIA/OCEANIA BAND W/CASSETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),RADIO-AM ASIA/OCEANIA BAND(7AQ),RADIO-AM/FM ALL AREA BAND W/CASSETTE 2S PEAKER(7ND) 		8-97107-582-2 01 1 9611- ● ●
135 16.650 BOX; CONSOLE,LWR
EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9611- ● ●
139 16.650 BOX; CONSOLE,UPR
EXC. RADIO-AM/FM ASIA/OCEANIA BAND W/CASS ETTE(UM6),RADIO-AM/FM LATIN AMERICA BAND W/CASSETTE(UX4),RADIO-AM ASIA/OCEANIA BAND(7AQ),RADIO-AM/FM ALL AREA BAND W/CASSET TE 2SPEAKER(7ND),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 9611- ● ●

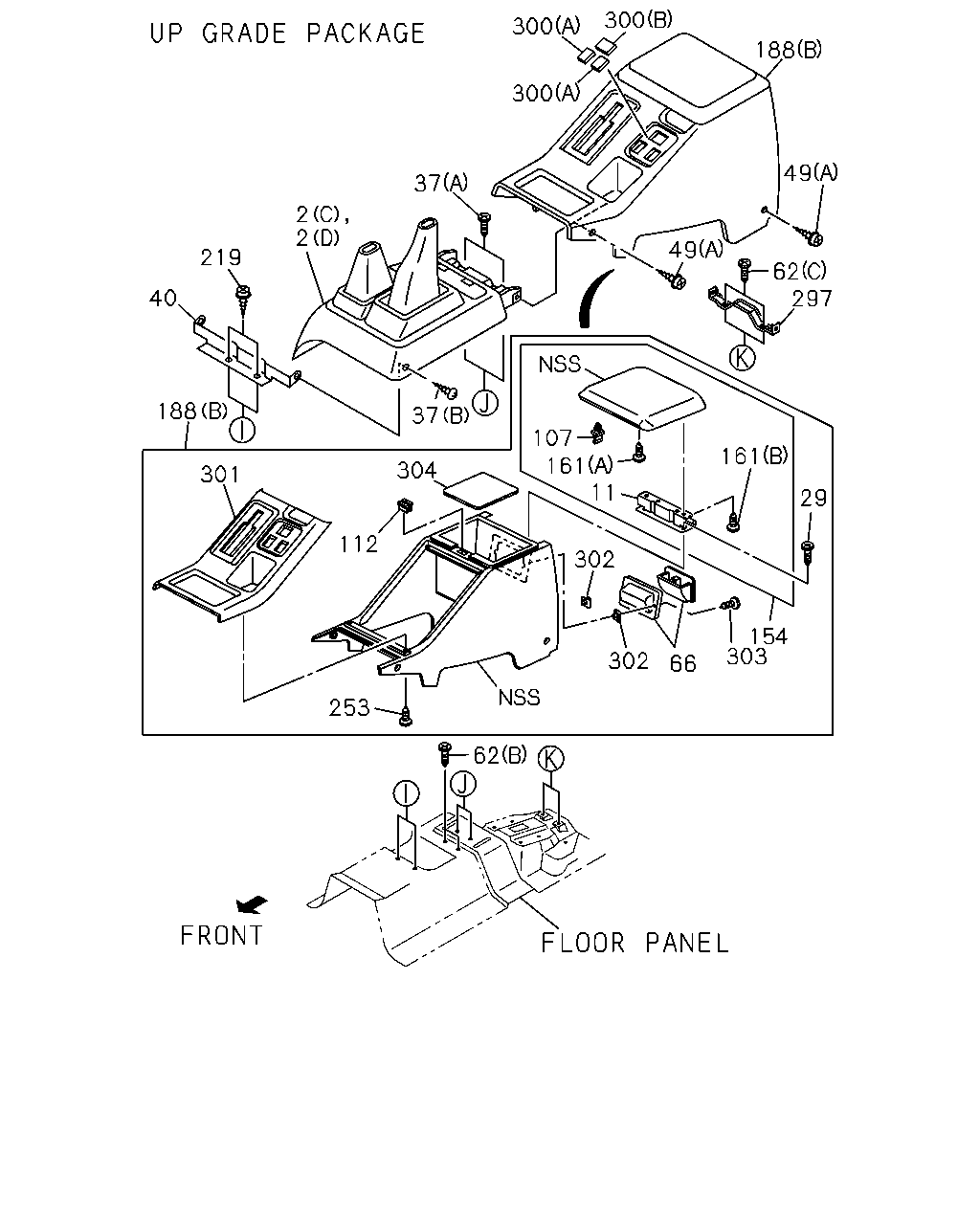

çizim 67257
300 300 188 300 49 37 2 2 49 219 62 297 40 37 188 107 161 161 304 301 29 302 154 303 302 66 253 62 112 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9611-9711 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (D) GRAY 		8-97158-517-0 01 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) RR CONSOLE<D63> 		8-94253-330-0 01 1 9611-9711 ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-94253-330-0 01 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9611-9711 ● ●
11 16.650 HINGE; CONSOLE LID
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9712- ● ●
29 16.650 SCREW; HINGE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
29 16.650 SCREW; HINGE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
29 16.650 SCREW; HINGE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
37 16.650 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
37 16.650 SCREW; CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
37 16.650 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
37 16.650 SCREW; CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4(TFS***) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) RR CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-961-1 01 1 9611-9711 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9611-9711 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-961-1 01 1 9712- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9712- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-962-1 01 1 9611-9711 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9611-9711 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-962-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9611-9711 ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9611-9711 ● ●
154 16.650 LID ASM; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS*C*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-2 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
253 09.744 SCREW; BEZEL
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.650 M4.5X10 		8-94489-930-0 03 1 9611-9711 ● ●
253 09.744 SCREW; BEZEL
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.650 M4.5X10 		8-94489-930-0 03 1 9712- ● ●
253 09.744 SCREW; BEZEL
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.650 M4.5X10 		8-94489-930-0 03 1 9712- ● ●
297 16.650 BRACKET; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> 		8-97069-670-0 01 1 9611-9711 ● ●
297 16.650 BRACKET; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 		8-97069-670-0 01 1 9712- ● ●
297 16.650 BRACKET; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> 		8-97069-670-0 01 1 9712- ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) GRAY 		8-97152-694-2 02 1 9611-9711 ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) GRAY 		8-97152-694-2 02 1 9712- ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) GRAY 		8-97152-694-2 02 1 9712- ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-604-0 01 1 9611-9711 ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-604-0 01 1 9712- ● ●
300 16.650 COVER; HOLE,CONSOLE SW
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-604-0 01 1 9712- ● ●
301 16.650 BEZEL; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97157-826-1 01 1 9611-9711 ● ●
301 16.650 BEZEL; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97157-826-1 01 1 9712- ● ●
301 16.650 BEZEL; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97157-826-1 01 1 9712- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) RR CONSOLE<D63> 		8-94123-300-5 02 1 9611- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
304 16.650 PAD; CONSOLE BOX
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97088-559-0 01 1 9611-9711 ● ●
304 16.650 PAD; CONSOLE BOX
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97088-559-0 01 1 9712- ● ●
304 16.650 PAD; CONSOLE BOX
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97088-559-0 01 1 9712- ● ●

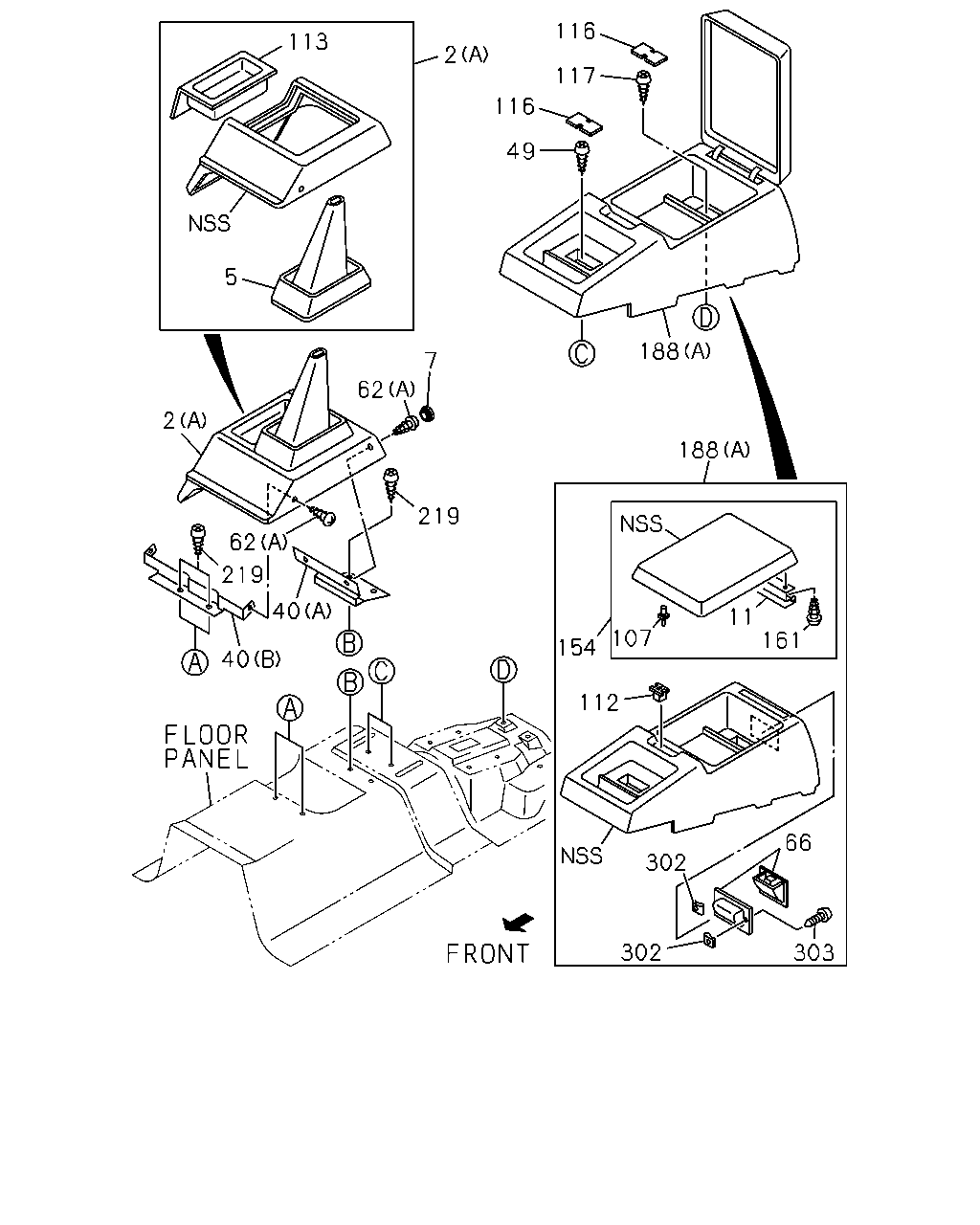

çizim 69884
116 113 2 117 116 49 5 188 62 2 188 219 62 219 40 107 161 154 40 112 66 302 302 303 11 7
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9611-9711 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (D) GRAY 		8-97158-517-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55> 		8-97147-044-0 01 1 9611-9711 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> 		8-97147-044-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) 		8-97147-044-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 		8-97162-353-0 01 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> GRAY 		8-97150-582-1 02 1 9611-9711 ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9611-9711 ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> GRAY 		8-97150-582-1 02 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) RR CONSOLE<D63> 		8-94253-330-0 01 1 9611-9711 ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 		8-94253-330-0 01 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9611-9711 ● ●
11 16.650 HINGE; CONSOLE LID
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9712- ● ●
11 16.650 HINGE; CONSOLE LID
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-97069-668-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4(TFS***) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) RR CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-961-1 01 1 9611-9711 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9611-9711 ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-961-1 01 1 9712- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9712- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-961-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-962-1 01 1 9611-9711 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9611-9711 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 		8-94110-962-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9712- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 		8-94110-962-1 01 1 9712- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> BLACK 		8-94373-417-2 01 1 9611-9711 ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> BLACK 		8-94373-417-2 01 1 9712- ● ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) BLACK 		8-94373-417-2 01 1 9712- ● ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) BLACK 		8-97097-007-1 01 1 9712- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) RR CONSOLE<D63> GRAY 		8-97150-577-2 02 1 9611-9711 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97150-577-2 02 1 9712- ● ●
117 16.650 SCREW; CONSOLE TO BODY PNL
4X2(TFB***) RR CONSOLE<D63> 16.870 M5X19 		1-09981-152-0 02 1 9611-9711 ● ●
117 16.650 SCREW; CONSOLE TO BODY PNL
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.870 M5X19 		1-09981-152-0 02 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9611-9711 ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> GRAY 		8-97155-548-0 01 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9611-9711 ● ●
154 16.650 LID ASM; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9712- ● ●
154 16.650 LID ASM; RR CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) GRAY 		8-97152-895-1 01 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS*C*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-2 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) RR CONSOLE<D63> 		8-94123-300-5 02 1 9611- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●

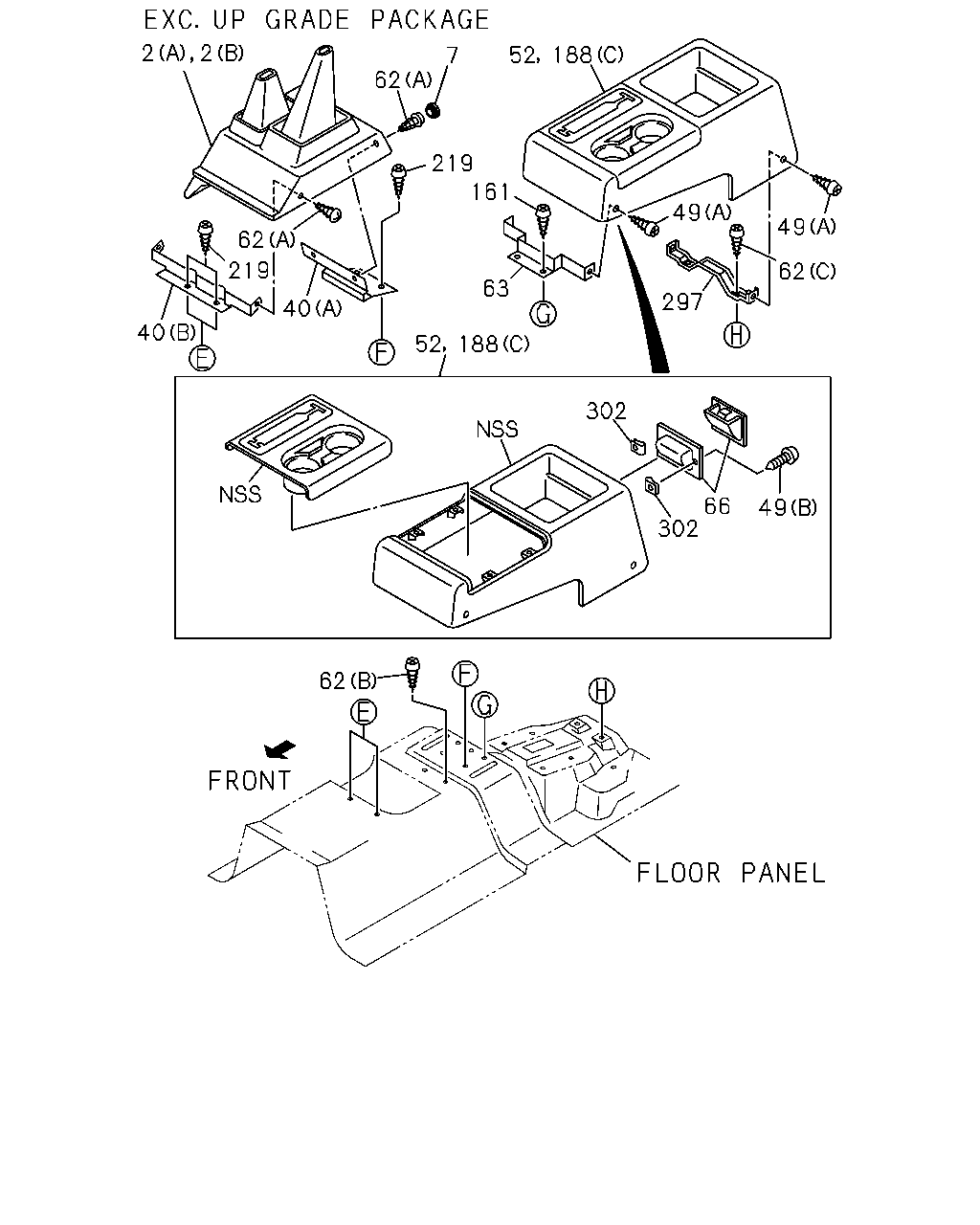

çizim 69887
2 2 52 188 7 62 219 161 49 49 62 219 62 63 297 40 40 52 188 302 66 302 49 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9611-9711 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (D) GRAY 		8-97158-517-0 01 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> GRAY 		8-97150-582-1 02 1 9611-9711 ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9611-9711 ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> GRAY 		8-97150-582-1 02 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9712- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97150-582-1 02 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) 		8-94463-384-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (B) 		8-94479-072-1 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9611-9711 ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) 		8-97072-944-0 01 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4(TFS***) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9611-9711 ● ●
49 04.017 SCREW; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9712- ● ●
52 16.650 CONSOLE; FRT
4X4 SPACE CAB(TFS6CF) 4X4 SINGLE CAB SHORT(TFS6SC) 4X4 SINGLE CAB LONG(TFS6SF) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) GRAY 		8-97154-601-3 01 1 9611- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) (B) M8X14 		9-03900-814-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 SHORT(TFS**C) (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB(TFS6WF) EXC. FRONT CONSOLE<D55> (B) M8X14 		9-03900-814-0 04 1 9611- ● ●
62 16.650 SCREW; BRKT
4X4(TFS***) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
62 16.650 SCREW; BRKT
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
62 16.650 SCREW; BRKT
4X4 LONG(TFS**F) RR CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
63 16.650 BRACKET; FRT CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 		8-97115-115-0 01 1 9611-9711 ● ●
63 16.650 BRACKET; FRT CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 		8-97115-115-0 01 1 9712- ● ●
63 16.650 BRACKET; FRT CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 		8-97115-115-0 01 1 9712- ● ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) RR CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9611- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (A) 		0-70080-031-0 04 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9711 ● ●
161 16.650 SCREW; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
161 16.650 SCREW; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) 15.222 M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-546-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB(TFB6CF) 4X2 SINGLE CAB SHORT(TFB6SC) 4X2 SINGLE CAB LONG(TFB6SF) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR CONSOLE<D63> (A) GRAY 		8-97155-547-0 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB(TFS*C*) UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-598-1 01 1 9611- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-2 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> UP GRADE PACKAGE(7MA) (B) GRAY 		8-97154-596-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9611-9711 ● ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) RR CONSOLE<D63> EXC. UP GRADE PACKAGE(7MA) (C) GRAY 		8-97154-600-3 01 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) FRONT CONSOLE<D55> EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 04 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9611-9711 ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4 LONG(TFS**F) UP GRADE PACKAGE(7MA) M8X14 		9-03900-814-0 02 1 9712- ● ●
297 16.650 BRACKET; RR CONSOLE
4X4(TFS***) RR CONSOLE<D63> 		8-97069-670-0 01 1 9611-9711 ● ●
297 16.650 BRACKET; RR CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) RR CONSOLE<D63> 		8-97069-670-0 01 1 9712- ● ●
297 16.650 BRACKET; RR CONSOLE
4X4 LONG(TFS**F) RR CONSOLE<D63> 		8-97069-670-0 01 1 9712- ● ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) RR CONSOLE<D63> 		8-94123-300-5 02 1 9611- ● ●

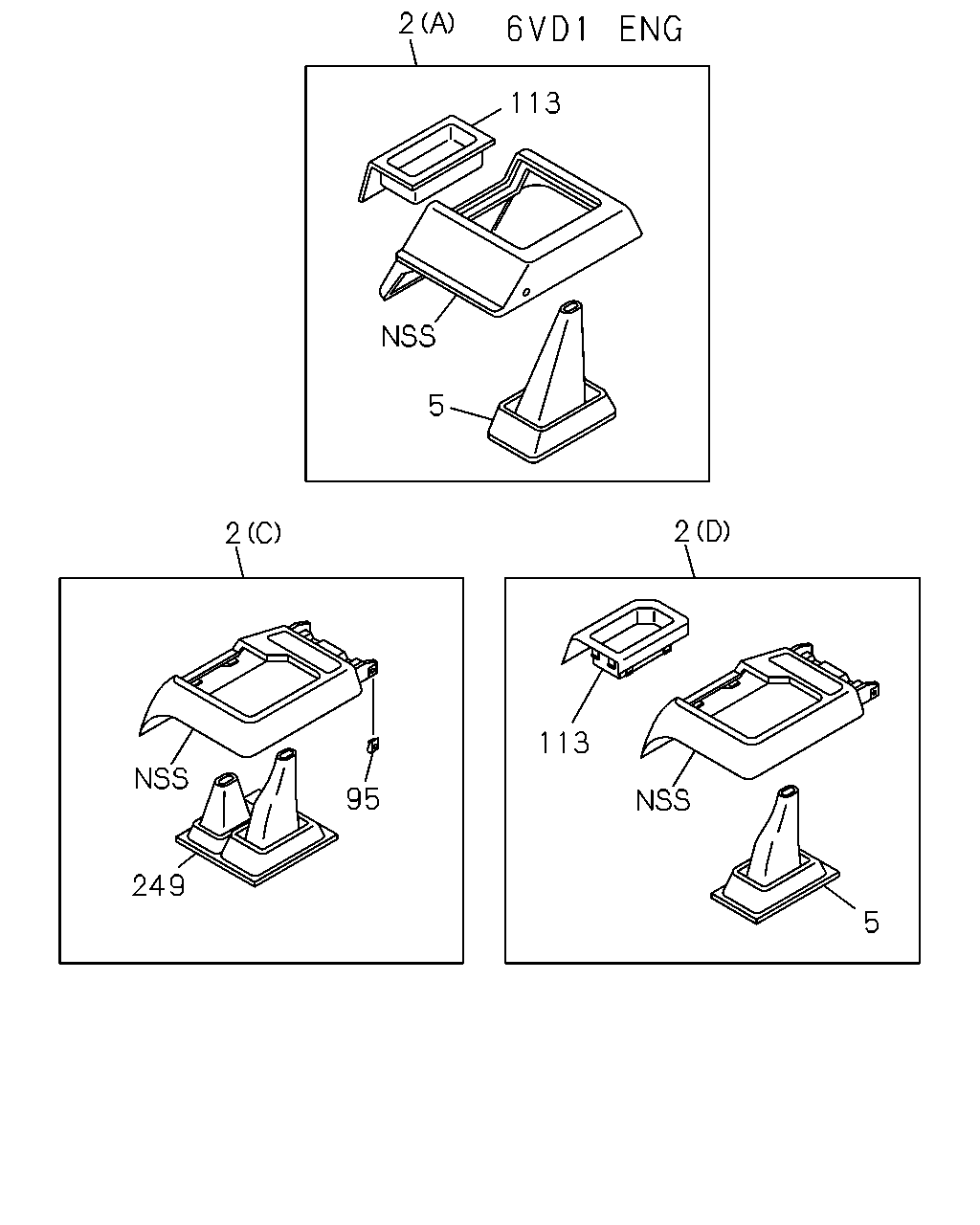

çizim 70232
2 113 5 2 113 95 249 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9611-9711 ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) (A) GRAY 		8-97156-743-0 01 1 9712- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) EXC. UP GRADE PACKAGE(7MA) (B) GRAY 		8-97156-745-0 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) UP GRADE PACKAGE(7MA) (C) GRAY 		8-97155-554-1 01 1 9611- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) (D) GRAY 		8-97158-517-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55> 		8-97147-044-0 01 1 9611-9711 ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> 		8-97147-044-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) 		8-97147-044-0 01 1 9712- ● ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) 		8-97162-353-0 01 1 9712- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) UP GRADE PACKAGE(7MA) 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9611- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55> BLACK 		8-94373-417-2 01 1 9611-9711 ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FRONT CONSOLE<D55> BLACK 		8-94373-417-2 01 1 9712- ● ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) EXC. UP GRADE PACKAGE(7MA) BLACK 		8-94373-417-2 01 1 9712- ● ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) 6VD1 ENG(RLV) UP GRADE PACKAGE(7MA) BLACK 		8-97097-007-1 01 1 9712- ● ●
249 16.674 COVER
4X4(TFS***) UP GRADE PACKAGE(7MA) BLACK 		8-97155-555-1 01 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
