1 |
05.017 SHOE; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97035-085-1 |
04 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97035-085-1 |
04 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97035-085-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
1 |
05.017 SHOE; BRK,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
1 |
05.017 SHOE; BRK,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97035-085-1 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
4HF1 ENG(RLS)
|
8-97066-695-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
4HF1 ENG(RLS)
|
8-97066-695-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-97066-695-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
1 |
05.017 SHOE; BRK,FRT
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97066-695-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
8-97066-695-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
1 |
05.017 SHOE; BRK,FRT
|
8-97066-695-0 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
8-97066-695-0 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
8-97066-695-0 |
04 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
1 |
05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52>
|
8-97066-695-0 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
1 |
05.017 SHOE; BRK,FRT
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-97066-695-0 |
04 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
6 |
05.018 LINING KIT; FRT BRK
4HF1 ENG(RLS)
|
5-88300-002-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
6 |
05.018 LINING KIT; FRT BRK
4HF1 ENG(RLS)
|
5-88300-002-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
6 |
05.018 LINING KIT; FRT BRK
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
5-88300-002-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
6 |
05.018 LINING KIT; FRT BRK
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-88300-002-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
6 |
05.018 LINING KIT; FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
5-88300-002-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
6 |
05.018 LINING KIT; FRT BRK
|
5-88300-002-0 |
01 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
6 |
05.018 LINING KIT; FRT BRK
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
5-88300-002-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
6 |
05.018 LINING KIT; FRT BRK
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
5-88300-002-0 |
01 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
6 |
05.018 LINING KIT; FRT BRK
EXC. DISC BRAKE FRT<J52>
|
5-88300-002-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
6 |
05.018 LINING KIT; FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
5-88300-002-0 |
01 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4HF1 ENG(RLS)
|
1-09732-033-0 |
40 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4HF1 ENG(RLS)
|
1-09732-029-0 |
40 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
7 |
05.019 RIVET; LINING,FRT BRK
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
1-09732-029-0 |
40 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
7 |
05.019 RIVET; LINING,FRT BRK
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
1-09732-029-0 |
40 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
1-09732-029-0 |
40 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
|
1-09732-029-0 |
40 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
1-09732-029-0 |
40 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
1-09732-029-0 |
40 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
EXC. DISC BRAKE FRT<J52>
|
1-09732-029-0 |
40 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
7 |
05.019 RIVET; LINING,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
1-09732-029-0 |
40 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
9 |
05.026 PIN; SHOE HOLDER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.043
|
9-47162-607-0 |
04 |
1 |
9312- |
● |
● |
● |
|
|
|
|
| |
9 |
05.026 PIN; SHOE HOLDER
4HF1 ENG(RLS)
05.043
|
5-47162-001-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
9 |
05.026 PIN; SHOE HOLDER
4HF1 ENG(RLS)
05.043
|
5-47162-001-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
05.043
|
5-47162-001-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
05.043
|
5-47162-001-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
9 |
05.026 PIN; SHOE HOLDER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
05.043
|
5-47162-001-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
9 |
05.026 PIN; SHOE HOLDER
05.043
|
5-47162-001-0 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
9 |
05.026 PIN; SHOE HOLDER
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
05.043
|
5-47162-001-0 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
9 |
05.026 PIN; SHOE HOLDER
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
05.043
|
5-47162-001-0 |
04 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
9 |
05.026 PIN; SHOE HOLDER
EXC. DISC BRAKE FRT<J52>
05.043
|
5-47162-001-0 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
9 |
05.026 PIN; SHOE HOLDER
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
05.043
|
5-47162-001-0 |
04 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
9 |
05.026 PIN; SHOE HOLDER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-207-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97019-207-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-207-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-207-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-97019-207-0 |
04 |
1 |
9712- |
|
|
|
● |
|
● |
● |
| |
9 |
05.026 PIN; SHOE HOLDER
4JG2 ENG(RJC)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97019-207-0 |
04 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47162-033-0 |
08 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47162-033-0 |
08 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
9-47162-033-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
10 |

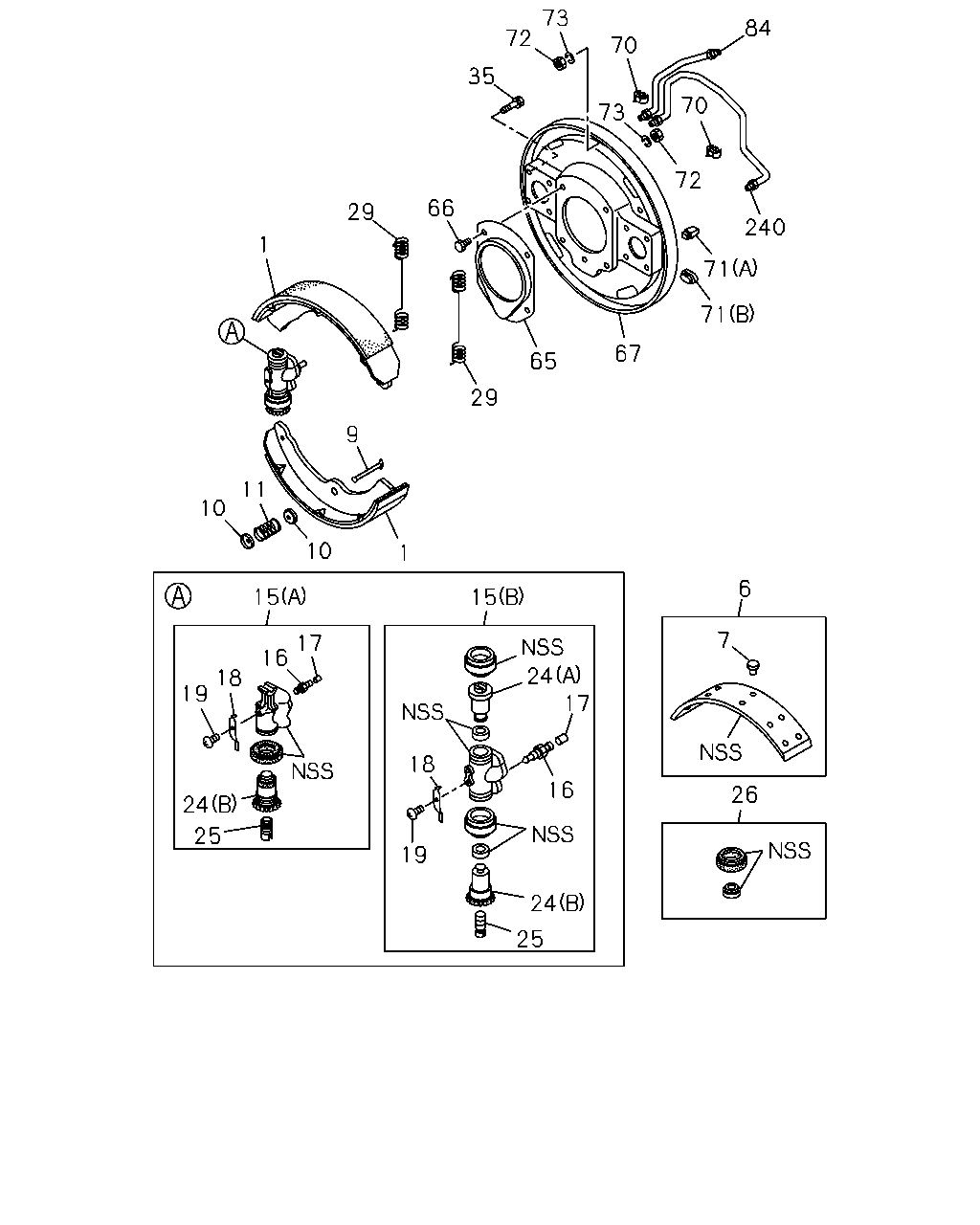

05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
9-47162-033-0 |
08 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
|
9-47165-096-0 |
08 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
|
9-47165-096-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
9-47165-096-0 |
08 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
10 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
9-47165-096-0 |
08 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
9-47165-096-0 |
08 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
|
9-47165-096-0 |
08 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
9-47165-096-0 |
08 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
9-47165-096-0 |
08 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
10 |
05.043 CUP; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
|
9-47165-096-0 |
08 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
10 |
05.043 CUP; SHOE HOLDING
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
9-47165-096-0 |
08 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.043
|
9-09940-989-1 |
04 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.043
|
9-09940-989-1 |
04 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
05.043
|
9-09940-989-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
05.043
|
9-09940-989-1 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4HF1 ENG(RLS)
05.043
|
5-09580-101-1 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4HF1 ENG(RLS)
05.043
|
5-09580-101-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
05.043
|
5-09580-101-1 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
11 |
05.027 SPRING; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
05.043
|
5-09580-101-1 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
05.043
|
5-09580-101-1 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
05.043
|
5-09580-101-1 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
05.043
|
5-09580-101-1 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
05.043
|
5-09580-101-1 |
04 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
11 |
05.027 SPRING; SHOE HOLDING
EXC. DISC BRAKE FRT<J52>
05.043
|
5-09580-101-1 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
11 |
05.027 SPRING; SHOE HOLDING
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
05.043
|
5-09580-101-1 |
04 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-145-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
ID=28.57(1 1/8")
|
8-97081-145-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-145-0 |
01 |
1 |
9511-9703 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97081-145-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97081-145-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
ID=28.57(1 1/8")
|
8-97081-145-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(06H),(07H),(08V),(09V),
(22H),(23H),(25H),(26H),(29H),(31H),
(37H),(43C),(44C),(45C),(46C),(46H),
(47H),(49H),(50C),(50H),(57H),(58H),
(59H),(64H),(89C),(92H),(94H),(95H),
(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(BPK),(BPL),(BPM),(06H),
(07H),(08V),(09V),(22H),(23H),(25H),
(26H),(29H),(31H),(37H),(43C),(44C),
(45C),(46C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(89C),
(92H),(94H),(95H),(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-360-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-147-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
ID=28.57(1 1/8")
|
8-97081-147-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-147-0 |
01 |
1 |
9511-9703 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97081-147-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97081-147-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) REAR
ID=28.57(1 1/8")
|
8-97081-147-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(06H),(07H),(08V),(09V),
(22H),(23H),(25H),(26H),(29H),(31H),
(37H),(43C),(44C),(45C),(46C),(46H),
(47H),(49H),(50C),(50H),(57H),(58H),
(59H),(64H),(89C),(92H),(94H),(95H),
(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(BPK),(BPL),(BPM),(06H),
(07H),(08V),(09V),(22H),(23H),(25H),
(26H),(29H),(31H),(37H),(43C),(44C),
(45C),(46C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(89C),
(92H),(94H),(95H),(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-358-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-146-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
ID=28.57(1 1/8")
|
8-97081-146-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-146-0 |
01 |
1 |
9511-9703 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97081-146-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97081-146-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
ID=28.57(1 1/8")
|
8-97081-146-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(06H),(07H),(08V),(09V),
(22H),(23H),(25H),(26H),(29H),(31H),
(37H),(43C),(44C),(45C),(46C),(46H),
(47H),(49H),(50C),(50H),(57H),(58H),
(59H),(64H),(89C),(92H),(94H),(95H),
(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(BPK),(BPL),(BPM),(06H),
(07H),(08V),(09V),(22H),(23H),(25H),
(26H),(29H),(31H),(37H),(43C),(44C),
(45C),(46C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(89C),
(92H),(94H),(95H),(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) FRONT
|
8-97179-359-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-148-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
ID=28.57(1 1/8")
|
8-97081-148-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97081-148-0 |
01 |
1 |
9511-9703 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97081-148-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97081-148-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) REAR
ID=28.57(1 1/8")
|
8-97081-148-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(06H),(07H),(08V),(09V),
(22H),(23H),(25H),(26H),(29H),(31H),
(37H),(43C),(44C),(45C),(46C),(46H),
(47H),(49H),(50C),(50H),(57H),(58H),
(59H),(64H),(89C),(92H),(94H),(95H),
(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52>
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(ANS),(AQD),(BPK),(BPL),(BPM),(06H),
(07H),(08V),(09V),(22H),(23H),(25H),
(26H),(29H),(31H),(37H),(43C),(44C),
(45C),(46C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(89C),
(92H),(94H),(95H),(96H),(98H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
(A) REAR
|
8-97179-357-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
DUMP CHASSIS(V4D)
EXC. DISC BRAKE FRT<J52>
(B) REAR
ID=28.57(1 1/8")
|
8-97078-687-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) REAR
ID=28.57(1 1/8")
|
8-97078-687-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) REAR
|
8-97139-803-0 |
01 |
1 |
9704-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
(BPK),(BPL),(BPM),(06H),(07H),(08V),
(43C),(44C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(94H),
(95H),(96H),(98H)
DUMP CHASSIS(V4D)
(B) REAR
|
8-97139-803-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
DUMP CHASSIS(V4D)
EXC. DISC BRAKE FRT<J52>
(B) FRONT
ID=28.57(1 1/8")
|
8-97078-686-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) FRONT
ID=28.57(1 1/8")
|
8-97078-686-0 |
02 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) FRONT
|
8-97139-804-0 |
02 |
1 |
9704-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
(BPK),(BPL),(BPM),(06H),(07H),(08V),
(43C),(44C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(94H),
(95H),(96H),(98H)
DUMP CHASSIS(V4D)
(B) FRONT
|
8-97139-804-0 |
02 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
DUMP CHASSIS(V4D)
EXC. DISC BRAKE FRT<J52>
(B) REAR
ID=28.57(1 1/8")
|
8-97078-688-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) REAR
ID=28.57(1 1/8")
|
8-97078-688-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(B) REAR
|
8-97139-802-0 |
01 |
1 |
9704-9809 |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
(BPK),(BPL),(BPM),(06H),(07H),(08V),
(43C),(44C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(94H),
(95H),(96H),(98H)
DUMP CHASSIS(V4D)
(B) REAR
|
8-97139-802-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-613-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-613-0 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-613-0 |
01 |
1 |
9410-9703 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-950-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-615-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-615-0 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-615-0 |
01 |
1 |
9410-9703 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-952-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-614-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-614-0 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
ID=28.57(1 1/8")
|
8-97078-614-0 |
01 |
1 |
9410-9703 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) FRONT
|
8-97170-951-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-616-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-616-0 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
ID=28.57(1 1/8")
|
8-97078-616-0 |
01 |
1 |
9410-9703 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
● |
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(A) REAR
|
8-97170-953-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) REAR
ID=30.16(1 3/16")
|
8-94414-692-2 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
|
8-94414-692-2 |
01 |
1 |
9511-9703 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) REAR
ID=30.16(1 3/16")
|
8-94414-692-2 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR
|
8-97139-813-0 |
01 |
1 |
9704-9804 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) REAR
|
8-97139-813-0 |
01 |
1 |
9704-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR
|
8-97139-813-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
ID=30.16(1 3/16")
|
8-94450-775-2 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
|
8-94450-775-2 |
01 |
1 |
9511-9703 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
ID=30.16(1 3/16")
|
8-94450-775-2 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT
|
8-97139-811-0 |
01 |
1 |
9704-9804 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
|
8-97139-811-0 |
01 |
1 |
9704-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT
|
8-97139-811-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) REAR
ID=30.16(1 3/16")
|
8-94414-691-2 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
|
8-94414-691-2 |
01 |
1 |
9511-9703 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) REAR
ID=30.16(1 3/16")
|
8-94414-691-2 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT
|
8-97139-812-0 |
01 |
1 |
9704-9804 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
|
8-97139-812-0 |
01 |
1 |
9704-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT
|
8-97139-812-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
ID=30.16(1 3/16")
|
8-94450-774-2 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
|
8-94450-774-2 |
01 |
1 |
9511-9703 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
ID=30.16(1 3/16")
|
8-94450-774-2 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT
|
8-97139-810-0 |
01 |
1 |
9704-9804 |
|
|
|
|
● |
|
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(A) FRONT
|
8-97139-810-0 |
01 |
1 |
9704-9804 |
|
|
|
|
|
● |
|
| |
15 |
04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR
|
8-97139-810-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
16 |
04.666 SCREW; BLEEDER,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
9-47615-027-0 |
02 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
16 |
04.666 SCREW; BLEEDER,FRT BRK
EXC. DISC BRAKE FRT<J52>
|
9-47615-027-0 |
02 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
16 |
04.666 SCREW; BLEEDER,FRT BRK
EXC. DISC BRAKE FRT<J52>
|
9-47615-027-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
17 |
04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
1-47619-009-0 |
02 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
17 |
04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>
|
1-47619-009-0 |
02 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
17 |
04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>
|
1-47619-009-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
18 |
05.107 STOPPER; ADJ SCREW
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-486-0 |
04 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
18 |
05.107 STOPPER; ADJ SCREW
EXC. DISC BRAKE FRT<J52>
|
8-94128-486-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
18 |
05.107 STOPPER; ADJ SCREW
EXC. DISC BRAKE FRT<J52>
|
8-94128-486-0 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
19 |
05.107 SCREW; STOPPER SETTING
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-727-0 |
04 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
19 |
05.107 SCREW; STOPPER SETTING
EXC. DISC BRAKE FRT<J52>
|
8-94128-727-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
19 |
05.107 SCREW; STOPPER SETTING
EXC. DISC BRAKE FRT<J52>
|
8-94128-727-0 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97078-621-0 |
04 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
(B)
|
8-97078-621-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
(B)
|
8-97078-621-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>,FRT
INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97078-621-0 |
04 |
1 |
9712- |
● |
● |
● |
|
|
● |
● |
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
EXC. DUMP CHASSIS(V4D)
(B)
|
8-97078-621-0 |
04 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
DUMP CHASSIS(V4D)
EXC. DISC BRAKE FRT<J52>
(A)
|
8-97078-699-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
(A)
|
8-97078-699-0 |
04 |
1 |
9511-9809 |
|
|
|
● |
|
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
(BPK),(BPL),(BPM),(06H),(07H),(08V),
(43C),(44C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(94H),
(95H),(96H),(98H)
DUMP CHASSIS(V4D)
(A)
|
8-97078-699-0 |
04 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(B)
|
8-94414-700-1 |
04 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(B)
|
8-94414-700-1 |
04 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(B)
|
8-94414-700-1 |
04 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(B)
|
8-94414-700-1 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
(B)
|
8-94414-700-1 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
24 |
04.668 PISTON; FRT WHEEL CYL
(B)
|
8-94414-700-1 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-623-0 |
04 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97078-623-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-623-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>,FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97078-623-0 |
04 |
1 |
9712- |
● |
● |
● |
|
|
● |
● |
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
EXC. DUMP CHASSIS(V4D)
|
8-97078-623-0 |
04 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.666
|
8-94414-702-0 |
04 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
04.666
|
8-94414-702-0 |
04 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.666
|
8-94414-702-0 |
04 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
04.666
|
8-94414-702-0 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.666
|
8-94414-702-0 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
25 |
05.110 SCREW; ADJ,FRT WHEEL CYL
04.666
|
8-94414-702-0 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-87830-538-0 |
01 |
1 |
9312-9406 |
● |
● |
● |
|
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
5-87830-538-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
OD=28.57(1 1/8")
|
5-87830-538-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
EXC. DUMP CHASSIS(V4D),FRT
INDEPENDENT SUSPENSION(6PP)
|
5-87830-538-0 |
01 |
1 |
9407-9510 |
● |
● |
● |
● |
|
|
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
5-87830-538-0 |
01 |
1 |
9407-9510 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
OD=28.57(1 1/8")
|
5-87830-538-0 |
01 |
1 |
9407-9510 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
|
5-87830-538-0 |
01 |
1 |
9511-9703 |
● |
● |
● |
|
|
|
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-87830-538-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
5-87830-538-0 |
01 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
5-87830-538-0 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
OD=28.57(1 1/8")
|
5-87830-538-0 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
|
5-87831-602-0 |
01 |
1 |
9704-9711 |
● |
● |
● |
|
|
|
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-87831-602-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
5-87831-602-0 |
01 |
1 |
9704-9711 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
5-87831-602-0 |
01 |
1 |
9704-9711 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
5-87831-602-0 |
01 |
1 |
9704-9711 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>
|
5-87831-602-0 |
01 |
1 |
9712-9804 |
● |
● |
● |
|
|
|
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-87831-602-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
5-87831-602-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
5-87831-602-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
5-87831-602-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52>,FRT
INDEPENDENT SUSPENSION(6PP)
|
5-87831-602-0 |
01 |
1 |
9805- |
● |
● |
● |
|
|
● |
● |
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH),4HF1
ENG(RLS)
EXC. DUMP CHASSIS(V4D)
|
5-87831-602-0 |
01 |
1 |
9805- |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
DUMP CHASSIS(V4D)
OD=28.57(1 1/8")
|
5-87830-538-0 |
02 |
1 |
9407-9510 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
OD=28.57(1 1/8")
|
5-87830-538-0 |
02 |
1 |
9511-9703 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
|
5-87831-602-0 |
02 |
1 |
9704-9809 |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
(BPK),(BPL),(BPM),(06H),(07H),(08V),
(43C),(44C),(46H),(47H),(49H),(50C),
(50H),(57H),(58H),(59H),(64H),(94H),
(95H),(96H),(98H)
DUMP CHASSIS(V4D)
|
5-87831-602-0 |
02 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
|
5-87830-714-1 |
01 |
1 |
9511-9703 |
|
|
|
|
● |
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.665
OD=30.16(1 3/16")
|
5-87830-714-1 |
01 |
1 |
9511-9703 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
04.665
|
5-87831-598-0 |
01 |
1 |
9704-9804 |
|
|
|
|
● |
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.665
|
5-87831-598-0 |
01 |
1 |
9704-9804 |
|
|
|
|
|
● |
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
04.665
|
5-87831-598-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
26 |
04.667 CUP SET; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
04.665
OD=30.16(1 3/16")
|
5-87830-714-1 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-739-0 |
04 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97078-739-0 |
04 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97078-739-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97078-739-0 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4HF1 ENG(RLS)
|
5-09583-118-0 |
04 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4HF1 ENG(RLS)
|
5-09583-118-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
5-09583-118-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-09583-118-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
5-09583-118-0 |
04 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
|
5-09583-118-0 |
04 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
5-09583-118-0 |
04 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
5-09583-118-0 |
04 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
EXC. DISC BRAKE FRT<J52>
|
5-09583-118-0 |
04 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
29 |
05.026 SPRING; RETURN,FRT BRK SHOE
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
5-09583-118-0 |
04 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-09030-036-1 |
16 |
1 |
9312- |
● |
● |
● |
|
|
|
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9410-9711 |
|
|
|
● |
● |
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
5-09030-016-1 |
16 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
5-09030-016-1 |
16 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
5-09030-016-1 |
16 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97025-734-0 |
16 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97025-734-0 |
16 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97025-734-0 |
16 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97025-734-0 |
16 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-97025-734-0 |
16 |
1 |
9712- |
|
|
|
● |
|
● |
● |
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4JG2 ENG(RJC)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97025-734-0 |
16 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-643-0 |
16 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
|
8-97078-643-0 |
16 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-643-0 |
16 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
|
8-97078-643-0 |
16 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-643-0 |
16 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
35 |
04.665 BOLT; FRT WHEEL CYL
|
8-97078-643-0 |
16 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
65 |
05.815 COVER; OIL SHIELD,FRT
|
5-47154-003-1 |
02 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
65 |
05.815 COVER; OIL SHIELD,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-47154-003-1 |
02 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
66 |
05.815 BOLT; OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M12X33
|
9-09600-043-3 |
08 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
66 |
05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
M12X33
|
9-09600-043-3 |
08 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
66 |
05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
M12X33
|
9-09600-043-3 |
08 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
66 |
05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52>
M14X45
|
9-09801-107-0 |
08 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-690-1 |
01 |
1 |
9312- |
● |
● |
● |
|
|
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97093-689-1 |
01 |
1 |
9312- |
● |
● |
● |
|
|
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97078-600-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9410-9711 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-97078-600-1 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-97078-600-1 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-600-1 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97078-599-0 |
01 |
1 |
9312-9406 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9410-9711 |
|
|
|
● |
● |
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-97078-599-1 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-97078-599-1 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-97078-599-1 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-217-1 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97019-217-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-217-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-217-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-97019-217-1 |
01 |
1 |
9712- |
|
|
|
● |
|
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97019-217-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-216-1 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97019-216-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-216-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-216-1 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-97019-216-1 |
01 |
1 |
9712- |
|
|
|
● |
|
● |
● |
| |
67 |
05.001 PLATE; BACK,FRT BRK
4JG2 ENG(RJC)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97019-216-1 |
01 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-602-0 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-602-0 |
01 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-602-0 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-602-0 |
01 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-602-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-602-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-601-0 |
01 |
1 |
9312-9510 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-601-0 |
01 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-601-0 |
01 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-601-0 |
01 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97078-601-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
67 |
05.001 PLATE; BACK,FRT BRK
|
8-97078-601-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-306-0 |
04 |
1 |
9312-9508 |
● |
● |
● |
|
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9312-9508 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-306-0 |
04 |
1 |
9509-9510 |
● |
● |
● |
|
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9509-9510 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94128-306-0 |
04 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-94128-306-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-94128-306-0 |
04 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
04 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
|
8-94128-306-0 |
02 |
1 |
9509-9510 |
|
|
|
● |
● |
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
|
8-94128-306-0 |
02 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-94128-306-0 |
02 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-94128-306-0 |
02 |
1 |
9712-9712 |
|
|
|
● |
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
8-94128-306-0 |
02 |
1 |
9712-9712 |
|
|
|
● |
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
|
8-94128-306-0 |
02 |
1 |
9712-9712 |
|
|
|
|
● |
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
8-94128-306-0 |
02 |
1 |
9712-9712 |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94128-306-0 |
02 |
1 |
9801-9804 |
|
|
|
● |
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94128-306-0 |
02 |
1 |
9801-9804 |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94128-306-0 |
02 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-94128-306-0 |
02 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94128-306-0 |
02 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94128-306-0 |
02 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
|
8-94128-306-0 |
01 |
1 |
9801-9804 |
|
|
|
|
● |
|
|
| |
70 |
04.685 CLIP; PIPE HOLD
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-94128-306-0 |
01 |
1 |
9801-9804 |
|
|
|
|
|
● |
|
| |
70 |
04.685 CLIP; PIPE HOLD
|
8-94128-306-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-94171-287-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52>
(B)
|
8-94171-287-0 |
01 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52>
(B)
|
8-94171-287-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
9-09756-034-0 |
04 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52>
(A)
|
9-09756-034-0 |
04 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
71 |
05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52>
(A)
|
9-09756-034-0 |
04 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
72 |
05.815 NUT; OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.816
M12
|
9-99110-412-0 |
08 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
72 |
05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
05.816
M12
|
9-99110-412-0 |
08 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
72 |
05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
05.816
M12
|
9-99110-412-0 |
08 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
72 |
05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52>
07.529
M14
|
9-99110-514-0 |
08 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
73 |
05.815 WASHER; LK,OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
06.515
ID=12.2
|
9-09150-612-0 |
08 |
1 |
9312-9711 |
● |
● |
● |
|
|
|
|
| |
73 |
05.815 WASHER; LK,OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
06.515
ID=12.2
|
9-09150-612-0 |
08 |
1 |
9312-9711 |
|
|
|
● |
● |
● |
● |
| |
73 |
05.815 WASHER; LK,OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52>
06.515
ID=12.2
|
9-09150-612-0 |
08 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
73 |
05.815 WASHER; LK,OIL SHIELD COVER
DISC BRAKE FRT<J52>
05.422
ID=14.2
|
9-09150-814-0 |
08 |
1 |
9312- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97019-225-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97019-225-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97019-225-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97019-225-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-225-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97019-224-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
|
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97019-224-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
|
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
(06H),(07H),(08V),(43C),(44C),(46H),
(47H),(49H),(50H),(57H),(58H),(59H),
(64H)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97019-224-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
|
8-97019-224-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9712-9809 |
● |
● |
● |
|
|
|
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9712-9809 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(06H),(07H),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(08V),(43C),(44C),(46H),(47H),(49H),
(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9712-9809 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9810- |
● |
● |
● |
|
|
|
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JB1 ENG(RLF),4BE1 ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPL),(BPM),(06H),(07H),(50C),(94H),
(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(BPK),(08V),(43C),(44C),(46H),(47H),
(49H),(50H),(57H),(58H),(59H),(64H)
EXC. DISC BRAKE FRT<J52>
|
8-97019-224-0 |
01 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
|
8-94154-918-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
|
8-94154-918-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-94154-918-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-94154-918-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
8-94154-918-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
|
8-94154-918-0 |
01 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
8-94154-918-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
8-94154-918-0 |
01 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-94154-918-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94154-918-0 |
01 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
|
8-94154-917-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
● |
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
|
8-94154-917-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4BE1 ENG(RLH)
G.V.W. 6.0-6.5TON(RPV),G.V.W.
6.5-7.0TON(RPW)
|
8-94154-917-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
● |
● |
● |
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-94154-917-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU),G.V.W.
6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>
|
8-94154-917-0 |
01 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
|
8-94154-917-0 |
01 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC)
BRAZIL EQUIPMENT(RWF)
|
8-94154-917-0 |
01 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4HF1 ENG(RLS)
EXC. DISC BRAKE FRT<J52>
|
8-94154-917-0 |
01 |
1 |
9805- |
|
|
|
● |
|
● |
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52>
|
8-94154-917-0 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
84 |
04.685 PIPE; BRK,WHEEL CYL TO HOSE
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94154-917-0 |
01 |
1 |
9805- |
|
|
|
|
|
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9403-9406 |
|
|
|
● |
● |
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9407-9409 |
|
|
|
● |
● |
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9410-9711 |
|
|
|
● |
● |
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9712-9804 |
|
|
|
● |
|
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94154-916-0 |
02 |
1 |
9712-9804 |
|
|
|
|
|
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
(50C),(94H),(95H),(96H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9805-9809 |
|
|
|
● |
|
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(96H),
(98H)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9810- |
|
|
|
● |
|
|
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4JG2 ENG(RJC)
(AVT)
BRAZIL EQUIPMENT(RWF)
|
8-94154-916-0 |
02 |
1 |
9810- |
|
|
|
|
|
● |
|
| |
240 |
04.685 PIPE; OIL,FRT BRK
4HF1 ENG(RLS)
(BPL),(BPM),(50C),(94H),(95H),(98H)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V
.W. 5.5-6.0TON(RPU)
|
8-94154-916-0 |
02 |
1 |
9810- |
|
|
|
|
|
● |
|
