Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#45885) — 183 parça

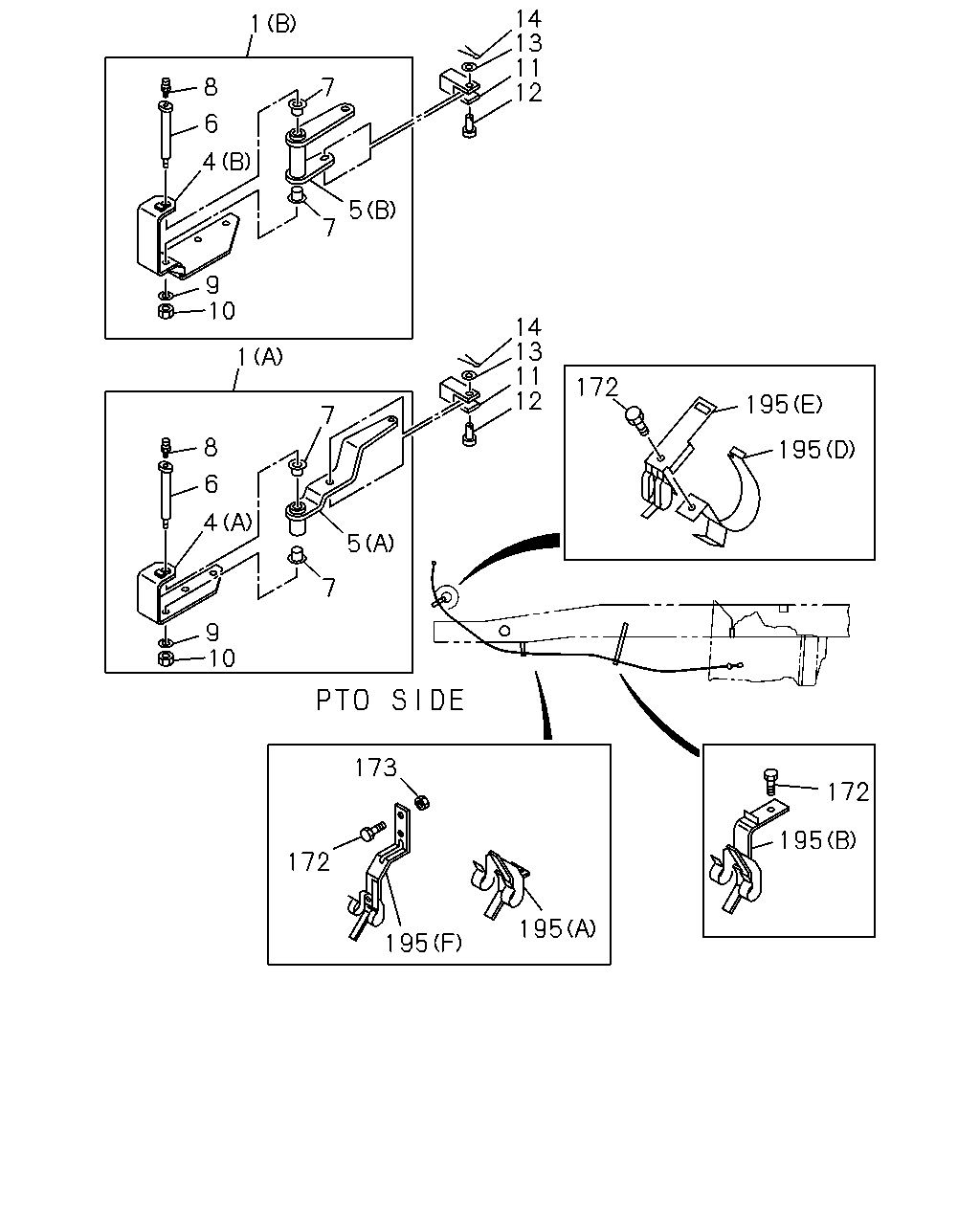

14 13 11 12 1 8 7 6 4 5 7 9 10 14 13 11 12 1 172 195 7 8 195 6 4 5 7 9 10 173 172 195 172 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9312-	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9312-		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-944-3	01	1	9312-				●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9312-	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9312-		●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-943-0	01	1	9312-				●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9312-	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9312-		●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-942-0	01	1	9312-				●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9312-	●			●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9312-		●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9312-	●	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9312-	●	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9312-	●	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9312-	●	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9312-	●	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9312-	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9312-	●	●	●	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 01.531 M8X25 FLANGE	0-28080-825-0	03	1	9410-9412	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9501-9504	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 00.002 M10X25	0-28091-025-0	01	1	9501-9705	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9706-	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9711	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9404-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9404-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-	●	●	●	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	03	1	9410-9412	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 08.917 M10 FLANGE	0-91150-210-0	01	1	9501-	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9412	●	●	●	●
173	04.439 NUT; BRKT REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9412	●		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	9501-9711	●	●	●	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO FRT RATIO 1.195(6ZH) (F)	8-97106-210-0	01	1	9501-	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9611-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9611-9711	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) (B)	8-97085-695-3	01	1	9712-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-2	01	1	9404-9405	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-2	01	1	9404-9405				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-2	01	1	9404-9405	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-2	01	1	9404-9405				●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-5	01	1	9312-9409	●	●	●	●
195	04.439 BRACKET; CONT CABLE REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-5	01	1	9312-9409	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) REAR WIDE TREAD(V4T) (A)	8-97076-429-6	01	1	9410-9711	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9712-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9712-	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	9712-	●		●	●

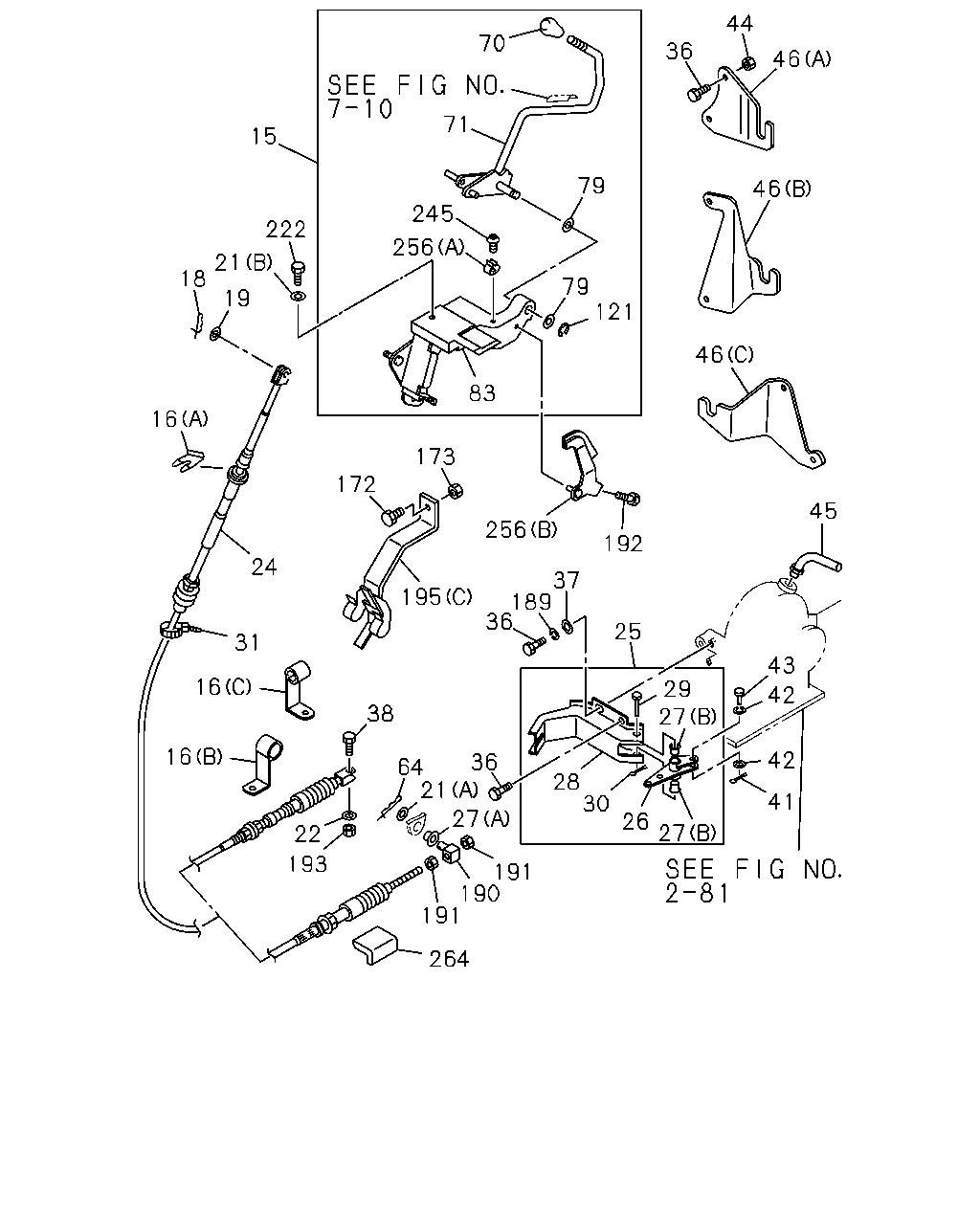

44 70 36 46 71 15 79 46 245 222 256 21 18 79 121 19 46 83 16 173 172 45 256 192 24 37 189 36 195 25 31 43 16 29 27 42 38 16 42 36 64 21 28 30 41 27 26 27 22 193 191 190 191 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97118-457-0	01	1	9408-9408	●	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97118-976-0	01	1	9409-9511	●	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97143-217-0	01	1	9512-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO FRT RATIO 1.195(6ZH) (B) ID=13 H=75 L=25	1-09700-601-0	01	1	9410-9412	●
16	04.439 CLIP; CABLE,PTO PTO FRT RATIO 1.195(6ZH) 02.559 (C)	8-94165-399-0	01	1	9410-	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027 (A)	8-94152-900-0	01	1	9408-9409	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.027 (A)	8-94152-900-0	01	1	9410-	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9408-9409	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.833 L=27.7	8-94111-137-0	01	1	9410-	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9408-9409	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 16.674 ID=8.4	9-09160-508-0	01	1	9410-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9408-	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9312-9407	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9408-9409	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9410-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9408-9409		●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9410-		●	●	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9408-	●
24	04.439 CABLE; PTO CONT PTO FRT RATIO 1.195(6ZH)	8-97119-140-0	01	1	9410-9412	●
24	04.439 CABLE; PTO CONT PTO FRT RATIO 1.195(6ZH)	8-97127-076-1	01	1	9501-9602	●
24	04.439 CABLE; PTO CONT PTO FRT RATIO 1.195(6ZH) L=2838	8-97142-494-0	01	1	9603-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97116-777-0	01	1	9408-9412	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2810	8-97105-130-1	01	1	9501-9602	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2810	8-97142-479-0	01	1	9603-9710	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-0	01	1	9711-	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97116-779-0	01	1	9408-9412		●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97105-137-2	01	1	9501-9602		●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9603-		●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97116-778-0	01	1	9408-9408				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2770	8-97105-131-1	01	1	9409-9602				●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97142-480-0	01	1	9603-				●
25	04.439 LEVER ASM; PTO CONT PTO FRT RATIO 1.195(6ZH)	8-97062-284-0	01	1	9410-	●
26	04.439 LEVER ASM; PTO PTO FRT RATIO 1.195(6ZH)	8-97062-285-0	01	1	9410-	●
27	04.439 BUSHING; LEVER,PTO PTO FRT RATIO 1.195(6ZH) 04.032 (B)	5-33659-011-0	02	1	9410-	●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042 (A)	8-94367-367-0	01	1	9312-	●
28	04.439 BRACKET; CONT LEVER PTO FRT RATIO 1.195(6ZH)	8-97062-286-0	01	1	9410-	●
29	04.439 PIN; PTO LEVER PTO FRT RATIO 1.195(6ZH)	9-08234-262-0	01	1	9410-	●
30	04.439 PIN; SPLIT,PTO LEVER PTO FRT RATIO 1.195(6ZH) 01.271 OD=3.7 L=20	9-08114-020-0	01	1	9410-	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 03.162 L=140	5-09707-031-0	01	1	9312-9610	●	●	●	●
31	04.439 CLIP; BAND,CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 03.162 L=140	5-09707-031-0	01	1	9312-9610				●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-0	01	1	9408-	●	●	●	●
36	04.439 BOLT; PTO BRKT PTO FRT RATIO 1.195(6ZH) 04.435 M10X16	0-23801-016-0	04	1	9410-	●
36	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 01.540 M8X35 W/LK WASHER	0-50040-835-0	01	1	9312-9704		●	●
37	04.439 WASHER; PL,PTO BRKT PTO FRT RATIO 1.195(6ZH) 07.874 ID=10.5 OD=18	9-09160-510-0	02	1	9410-	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO FRT RATIO 1.195(6ZH)	8-94453-350-0	01	1	9410-9502	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9312-9502		●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.047	8-94153-035-0	01	1	9503-9711	●	●	●	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.047	8-94153-035-0	01	1	9712-	●	●	●	●
41	04.439 PIN; SPLIT,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH) 00.793 OD=1.8 L=15	9-08112-015-0	01	1	9410-	●
42	04.439 WASHER; PL,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH) 00.206 ID=8.4	9-09164-508-0	02	1	9410-	●
43	04.439 PIN; JOINT,SHIFT ROD TO LEVER PTO FRT RATIO 1.195(6ZH)	9-08230-827-0	01	1	9410-	●
44	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9312-9704		●	●
45	04.439 PIPE ASM; WATER,PTO FIRE TRUCK CHASSIS(V4F)	5-09659-006-0	02	1	9410-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (C)	8-97022-848-1	01	1	9312-	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9312-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (B)	8-94404-754-1	01	1	9312-				●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9312-9409	●	●	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.833 L=27.7	8-94111-137-0	01	1	9410-	●	●	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	9408-9409	●	●	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-94147-332-1	01	1	9410-	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97116-560-0	01	1	9408-9408	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97118-978-0	01	1	9408-9511	●	●	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97143-218-0	01	1	9512-	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9408-9409	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9410-	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-458-0	01	1	9408-9408	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH)	8-97118-977-0	01	1	9408-	●	●	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	9408-9409	●	●	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 08.934 ID=10	9-09185-410-0	01	1	9410-	●	●	●	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 01.531 M8X25 FLANGE	0-28080-825-0	03	1	9410-9412	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9501-9504	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9505-	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 00.002 M10X25	0-28091-025-0	01	1	9501-9705	●
172	04.439 BOLT; BRKT PTO FRT RATIO 1.195(6ZH) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9706-	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9611-9711	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9403				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9404-9610	●	●	●	●
172	04.439 BOLT; BRKT DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9404-9610				●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9611-	●	●	●	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	03	1	9410-9412	●
173	04.439 NUT; BRKT PTO FRT RATIO 1.195(6ZH) 08.917 M10 FLANGE	0-91150-210-0	01	1	9501-	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9412	●	●	●	●
173	04.439 NUT; BRKT REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9412	●		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	01	1	9501-9711	●	●	●	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●		●	●
189	04.439 WASHER; LK,BREATHER PTO FRT RATIO 1.195(6ZH) 00.002 ID=10.2	9-09150-510-0	04	1	9410-	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9312-	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9312-	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) M6X16 FLANGE	0-28680-616-0	01	1	9408-	●	●	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9312-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO FRT RATIO 1.195(6ZH) (F)	8-97106-210-0	01	1	9501-	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-97076-428-5	01	1	9312-9610	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9611-	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9312-9610				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9611-9711	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. FIRE TRUCK CHASSIS(V4F) (B)	8-97085-695-3	01	1	9712-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-2	01	1	9404-9405	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (D)	8-97079-557-2	01	1	9404-9405				●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-2	01	1	9404-9405	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUMP BODY 2.8M SHINMEIWA(RS7) EXC. PTO TRANSMISSION SIDE(V66) (E)	8-97079-558-2	01	1	9404-9405				●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-5	01	1	9312-9409	●	●	●	●
195	04.439 BRACKET; CONT CABLE REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-5	01	1	9312-9409	●		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) REAR WIDE TREAD(V4T) (A)	8-97076-429-6	01	1	9410-9711	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9712-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9712-	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO FRT RATIO 1.195(6ZH) (A)	8-97076-429-6	01	1	9712-	●		●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9408-9409	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9410-9608	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9609-9609	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9610-	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9408-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97104-865-0	01	1	9408-9408	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (A)	8-97117-351-0	01	1	9409-9511	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (A)	8-97142-947-0	01	1	9512-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) (B)	8-97118-983-0	01	1	9408-	●	●	●	●
264	04.439 PROTECTOR; EDGE PTO FRT RATIO 1.195(6ZH) 03.485 W/SPRING CLIP	8-94400-156-0	01	1	9501-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
