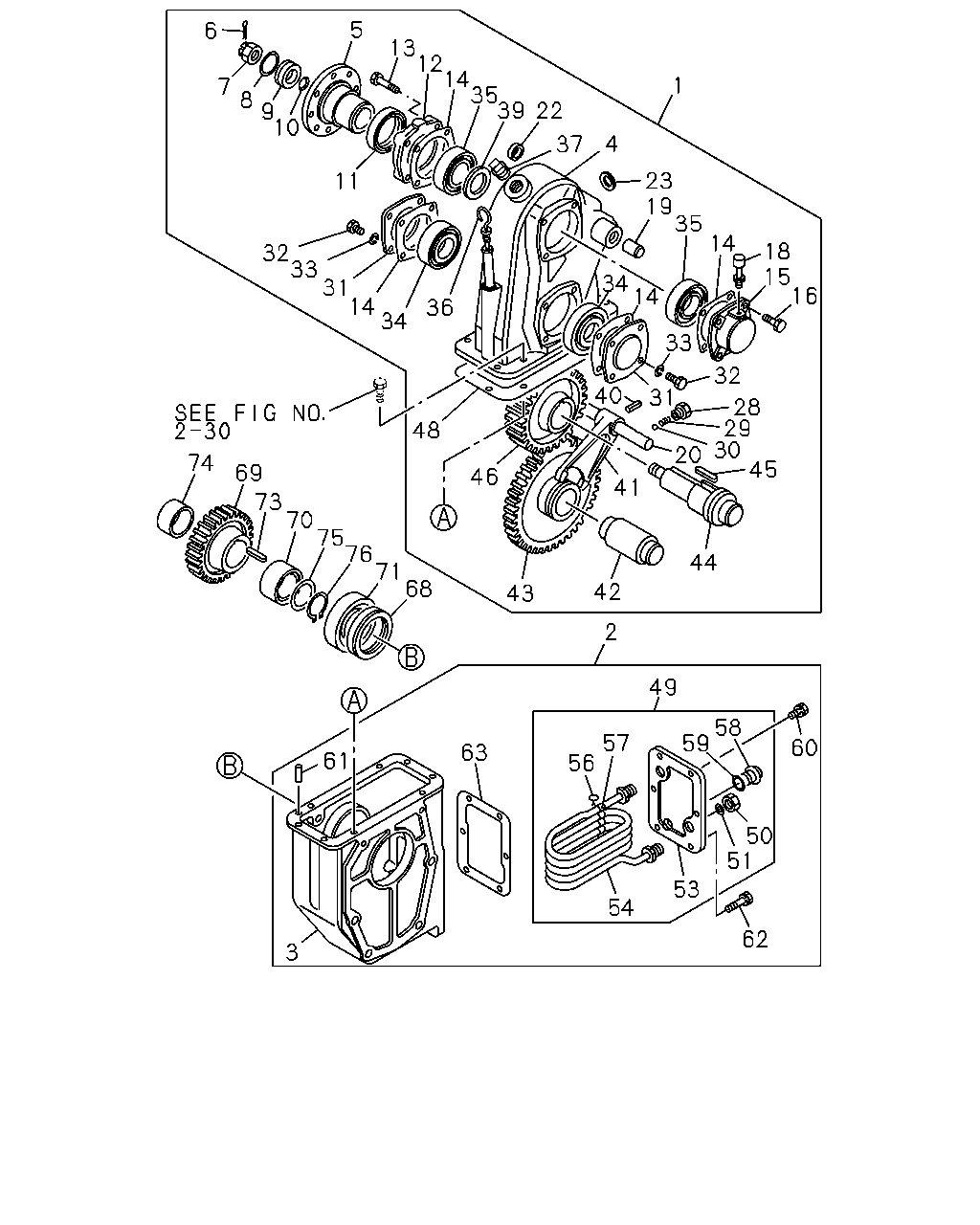

2-80 — POWER TAKE OFF; TRANSMISSION FRONT (#45883) — 66 parça

5 6 13 12 14 35 39 1 7 8 9 10 22 4 37 23 19 35 11 14 18 15 16 32 33 31 14 34 34 14 36 33 32 40 31 28 29 30 45 2 30 48 20 74 69 46 41 73 70 75 76 71 68 44 42 43 2 49 58 59 57 56 60 63 61 50 51 53 54 62 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 CASE ASM; GEAR FIRE TRUCK CHASSIS(V4F)	8-97042-457-0	01	1	9410-
2	04.439 CASE ASM; GEAR LWR FIRE TRUCK CHASSIS(V4F)	8-97075-980-1	01	1	9410-
3	04.439 CASE; GEAR FIRE TRUCK CHASSIS(V4F)	8-97075-981-1	01	1	9410-
4	04.439 CASE; GEAR,UPR,FRT PTO FIRE TRUCK CHASSIS(V4F)	8-97042-458-0	01	1	9410-
5	04.439 FLANGE; OUTPUT SHAFT,PTO FIRE TRUCK CHASSIS(V4F)	1-38512-014-0	01	1	9410-
6	04.439 PIN; SPLIT,OUTPUT SHAFT FIRE TRUCK CHASSIS(V4F) 09.023 OD=3.7 L=30	9-08114-030-0	01	1	9410-
7	04.439 NUT; FLANGE FIX FIRE TRUCK CHASSIS(V4F) 06.174 M18 SLOTTED	9-99116-418-0	01	1	9410-
8	04.439 GASKET; WASHER FIRE TRUCK CHASSIS(V4F) ID=39.7	9-09561-240-0	01	1	9410-
9	04.439 WASHER; OUTPUT,FLANGE FIRE TRUCK CHASSIS(V4F)	1-38229-004-0	01	1	9410-
10	04.439 GASKET; OUTPUT SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F) ID=17.8	9-09561-318-0	01	1	9410-
11	04.439 SEAL; OIL,OUTPUT SHAFT FIRE TRUCK CHASSIS(V4F)	1-09625-159-0	01	1	9410-
12	04.439 RETAINER; UPR CASE FIRE TRUCK CHASSIS(V4F)	1-38175-002-0	01	1	9410-
13	04.439 BOLT; RET FIX FIRE TRUCK CHASSIS(V4F) 04.525 M10X40 W/LK WASHER	0-50051-040-0	04	1	9410-
14	04.439 GASKET; BRG COVER FIRE TRUCK CHASSIS(V4F)	1-38176-001-0	04	1	9410-
15	04.439 COVER; BRG,UPR CASE FIRE TRUCK CHASSIS(V4F)	1-38151-013-0	01	1	9410-
16	04.439 BOLT; BRG COVER FIX FIRE TRUCK CHASSIS(V4F) 04.665 M10X22 W/LK WASHER	0-50051-022-0	04	1	9410-
18	04.439 BREATHER FIRE TRUCK CHASSIS(V4F) 04.510	8-94368-963-2	01	1	9410-9510
18	04.439 BREATHER FIRE TRUCK CHASSIS(V4F) 04.104	8-97010-244-1	01	1	9511-9608
18	04.439 BREATHER FIRE TRUCK CHASSIS(V4F) 04.104	8-97165-939-0	01	1	9609-
19	04.439 COVER; SHIFT ROD FIRE TRUCK CHASSIS(V4F)	9-33545-001-0	01	1	9410-
20	04.439 ROD; GEAR SHIFTER FIRE TRUCK CHASSIS(V4F)	5-38371-001-2	01	1	9410-
22	04.439 SEAL; OIL,SHIFT ROD FIRE TRUCK CHASSIS(V4F)	1-09625-158-0	01	1	9410-
23	04.439 PLUG; PLATE FIRE TRUCK CHASSIS(V4F)	9-09201-328-0	01	1	9410-
28	04.439 HOLDER; SPR,SHIFT ROD FIRE TRUCK CHASSIS(V4F)	1-38379-003-0	01	1	9410-
29	04.439 SPRING; SHIFTER ROD FIRE TRUCK CHASSIS(V4F)	9-09940-402-0	01	1	9410-
30	04.439 BALL; SHIFTER ROD FIRE TRUCK CHASSIS(V4F) 04.311	9-00097-009-0	01	1	9410-
31	04.439 COVER; IDLE SHAFT FIRE TRUCK CHASSIS(V4F)	1-38151-006-0	02	1	9410-
32	04.439 BOLT; COVER,IDLE FIRE TRUCK CHASSIS(V4F) M10X18	0-23801-018-0	08	1	9410-
33	04.439 WASHER; LK,COVER FIRE TRUCK CHASSIS(V4F) 00.002 ID=10.2	9-09150-510-0	08	1	9410-
34	04.439 BEARING; IDLE GEAR SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F) NSK	8-97043-415-0	02	1	9410-
34	04.439 BEARING; IDLE GEAR SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F) JTEKT	8-97043-416-0	02	1	9410-
35	04.439 BEARING; OUTPUT SHAFT FIRE TRUCK CHASSIS(V4F) JTEKT	5-09800-057-0	02	1	9410-
35	04.439 BEARING; OUTPUT SHAFT FIRE TRUCK CHASSIS(V4F) NSK	5-09800-058-0	02	1	9410-
36	04.439 GAUGE; OIL LEVEL FIRE TRUCK CHASSIS(V4F)	5-38129-004-0	01	1	9410-
37	04.439 PLUG; OIL FILLER FIRE TRUCK CHASSIS(V4F)	9-09204-326-0	01	1	9410-
39	04.439 WASHER; THRUST,OUTPUT GEAR FIRE TRUCK CHASSIS(V4F)	1-38226-038-0	01	1	9410-
40	04.439 PIN; SPR,SHIFTER ROD FIRE TRUCK CHASSIS(V4F)	9-09878-614-0	01	1	9410-
41	04.439 ARM; SHIFT,FRT PTO FIRE TRUCK CHASSIS(V4F)	5-38361-001-0	01	1	9410-
42	04.439 SPINDLE; IDLE GEAR FIRE TRUCK CHASSIS(V4F)	5-38211-001-1	01	1	9410-
43	04.439 GEAR; IDLE SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F)	5-38241-010-1	01	1	9410-
44	04.439 SHAFT; OUTPUT,FRT PTO FIRE TRUCK CHASSIS(V4F)	5-38221-001-0	01	1	9410-
45	04.439 KEY; FEATHER FIRE TRUCK CHASSIS(V4F)	9-08031-040-0	02	1	9410-
46	04.439 GEAR; OUTPUT,FRT PTO FIRE TRUCK CHASSIS(V4F)	8-97042-459-0	01	1	9410-
48	04.439 GASKET; GEAR CASE,UPR TO LWR FIRE TRUCK CHASSIS(V4F)	5-38113-003-0	01	1	9410-
49	04.439 PIPE ASM; WATER FIRE TRUCK CHASSIS(V4F)	8-94456-964-0	01	1	9410-
50	04.439 NUT; WATER PIPE CONN,FRT PTO FIRE TRUCK CHASSIS(V4F)	5-09409-017-0	02	1	9410-
51	04.439 GASKET; WATER PIPE FIRE TRUCK CHASSIS(V4F)	9-09561-117-0	02	1	9410-
53	04.439 COVER; SIDE,FRT PTO FIRE TRUCK CHASSIS(V4F)	5-38182-002-1	01	1	9410-
54	04.439 PIPE; WATER,OIL COOLING FIRE TRUCK CHASSIS(V4F)	8-94456-965-0	01	1	9410-
56	04.439 WIRE; PIPE HOLDER FIX FIRE TRUCK CHASSIS(V4F)	5-09780-010-0	01	1	9410-
57	04.439 CLIP FIRE TRUCK CHASSIS(V4F)	8-94456-967-0	02	1	9410-
58	04.439 PLUG; DRAIN,FRT PTO FIRE TRUCK CHASSIS(V4F) 05.400 M24X17 FLANGE	1-09604-022-0	01	1	9410-
59	04.439 GASKET; DRAIN PLUG FIRE TRUCK CHASSIS(V4F) 04.109 ID=26.8	9-09920-605-0	01	1	9410-
60	04.439 BOLT; SIDE COVER FIX FIRE TRUCK CHASSIS(V4F) 01.073 M8X25 W/LK WASHER	0-50040-825-0	04	1	9410-
61	04.439 PIN; KNOCK FIRE TRUCK CHASSIS(V4F) 08.939 OD=10 L=20	9-08161-020-0	02	1	9410-9507
61	04.439 PIN; KNOCK FIRE TRUCK CHASSIS(V4F) 04.510 OD=10 L=20	8-97135-423-0	02	1	9508-
62	04.439 BOLT; COOLER COVER FIRE TRUCK CHASSIS(V4F) 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9410-
63	04.439 GASKET; SIDE COVER FIRE TRUCK CHASSIS(V4F)	5-38183-002-0	01	1	9410-
68	04.439 SEAL; OIL FIRE TRUCK CHASSIS(V4F) NOK	8-97088-172-0	01	1	9410-
69	04.439 GEAR; DRIVE,TRANS SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F) Z=49	8-97042-463-0	01	1	9410-
70	04.439 COLLAR; TOP GEAR SHAFT,FRT PTO FIRE TRUCK CHASSIS(V4F)	8-97096-930-0	01	1	9410-
71	04.439 BEARING; PTO,GEAR CASE,FRT FIRE TRUCK CHASSIS(V4F)	8-94433-719-0	01	1	9410-
73	04.439 KEY; FEATHER FIRE TRUCK CHASSIS(V4F)	9-08031-040-0	01	1	9410-
74	04.439 COLLAR; FRT PTO FIRE TRUCK CHASSIS(V4F) 57X22.5	8-94404-492-0	01	1	9410-
75	04.439 GASKET; DIST COLLAR,RR FIRE TRUCK CHASSIS(V4F)	9-09561-339-0	01	1	9410-
76	04.439 RING; SNAP,FRT BRG,TOP SHAFT FIRE TRUCK CHASSIS(V4F) 04.353 ID=41.5	5-09589-009-0	02	1	9410-
