◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#45881) — 213 parça

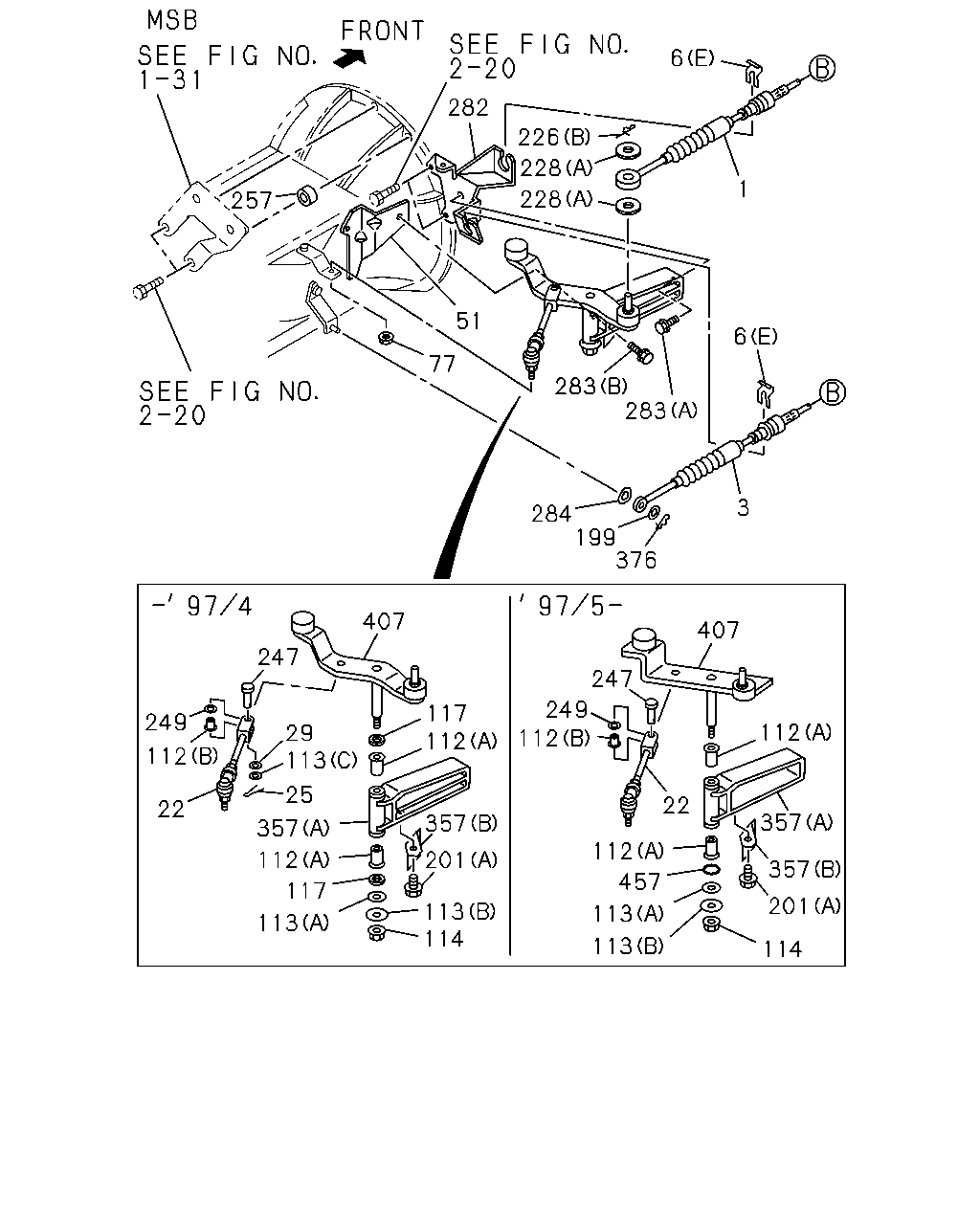

çizim 19160
6 282 226 228 1 228 257 51 6 77 283 283 3 284 199 376 407 407 247 247 249 112 117 112 249 112 29 113 112 25 22 22 357 357 357 112 112 201 357 457 117 201 113 114 113 113 113 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
FIRE TRUCK CHASSIS(V4F) 		8-97119-038-1 01 1 9410- ●
1 00.854 CABLE; SHIFT,TRANS CONT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) 		8-97082-943-1 01 1 9312-9409 ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97082-943-2 01 1 9410- ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-97089-986-3 01 1 9312- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97082-945-3 01 1 9312- ●
3 00.852 CABLE; SELECT,TRANS CONT
FIRE TRUCK CHASSIS(V4F) 		8-97119-040-1 01 1 9410- ●
3 00.852 CABLE; SELECT,TRANS CONT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) L=2714 		8-97082-947-1 01 1 9312-9409 ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FIRE TRUCK CHASSIS(V4F) L=2714 		8-97082-947-1 01 1 9410- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-2 01 1 9312- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2718 		8-97082-949-2 01 1 9312- ●
6 04.047 CLIP; CABLE
(H) 		8-97036-331-1 01 1 9312- ●
6 04.047 CLIP; CABLE
(I) 		8-97039-295-0 01 1 9312- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-0 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-1 01 1 9505- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9505-9808 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 01 1 9809- ●
6 04.047 CLIP; CABLE
(E) ID=19.2 		8-94365-914-2 02 1 9312-9409 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 02 1 9410-9808 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97011-448-0 02 1 9312- ● ● ● ●
6 04.047 CLIP; CABLE
(G) 		9-09916-402-0 01 1 9312-9509 ● ● ● ●
6 04.047 CLIP; CABLE
(K) 		8-97137-589-0 01 1 9510- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-332-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-330-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 9312- ● ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-333-1 01 1 9312-9504 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) (D) 		8-97036-333-1 01 1 9505-9711 ●
6 04.047 CLIP; CABLE 8-97036-333-1 01 1 9712- ●
22 04.035 ROD; CONT,SHIFT 8-97085-158-0 01 1 9312-9704 ● ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 9705- ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 9705- ● ●
25 04.032 PIN; SNAP,CONT ROD,RELAY LEVER
04.004 L=27.7 		8-94210-407-0 01 1 9312-9704 ● ●
29 04.032 WASHER; LK,RELAY LEVER
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9312-9704 ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9312- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9312-9801 ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9803- ● ●
112 04.046 BUSHING; RELAY LEVER
04.008 (A) ID=14 OD=16 		8-94252-671-0 02 1 9312-9704 ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9705- ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 9312-9704 ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9705- ● ●
113 04.046 WASHER; RELAY LEVER
(A) 		8-97061-437-0 02 1 9312-9704 ● ●
113 04.046 WASHER; RELAY LEVER
08.929 (A) ID=15 OD=36 		9-09164-714-0 01 1 9705- ● ●
113 04.046 WASHER; RELAY LEVER
(B) 		8-97089-693-0 01 1 9312-9704 ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 16.682 (B) ID=10.5 OD=22 		9-09160-610-0 01 1 9705- ●
113 04.046 WASHER; RELAY LEVER
06.760 (C) ID=8.4 OD=22 		9-09160-708-0 01 1 9312-9704 ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 (B) ID=10.5 OD=22 		9-09160-610-0 02 1 9705- ● ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312- ● ●
117 04.010 SEAL; DUST,RELAY LEVER 8-97061-438-0 02 1 9312-9704 ● ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9312- ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 00.002 (D) M10X28 		0-28481-028-0 02 1 9312-9711 ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 (D) M10X25 FLANGE 		0-28681-025-0 02 1 9712- ● ● ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 07.010 (C) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 (C) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 9412- ● ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 9412- ●
201 04.032 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9704 ● ●
201 04.032 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9705- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 01 1 9312- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9707 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312- ● ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9312- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9312- ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 9403- ● ●
282 04.010 BRACKET; TRANS SIDE 8-97035-760-0 01 1 9312-9409 ●
282 04.010 BRACKET; TRANS SIDE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97035-760-0 01 1 9410-9707 ●
282 04.010 BRACKET; TRANS SIDE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97182-260-0 01 1 9708- ●
282 04.010 BRACKET; TRANS SIDE
FIRE TRUCK CHASSIS(V4F) 		8-97043-131-1 01 1 9410- ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9312- ● ●
282 04.010 BRACKET; TRANS SIDE 8-97035-759-0 01 1 9312- ●
283 04.037 BOLT; RELAY LEVER
01.252 (A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9312-9703 ● ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9704- ● ●
283 04.037 BOLT; RELAY LEVER
01.840 (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9312-9703 ● ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9704- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9312- ● ● ● ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97089-691-0 01 1 9312-9704 ● ●
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97174-056-0 01 1 9705-9706 ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 9707- ●
357 04.010 BRACKET; RELAY LEVER
(B) 		8-97089-692-0 01 1 9312-9704 ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 9705- ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 9707- ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9312- ● ● ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97089-690-1 01 1 9312-9704 ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-1 01 1 9705- ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9705- ● ●
çizim 66635
490
BalonParca AdiParca NoAdetTipApplied Date A B C D
490 04.010 PROTECTOR; EDGE
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) 4BE1 ENG(RLH) 04.785 L=200 		8-97096-423-0 01 1 9312-9312 ●

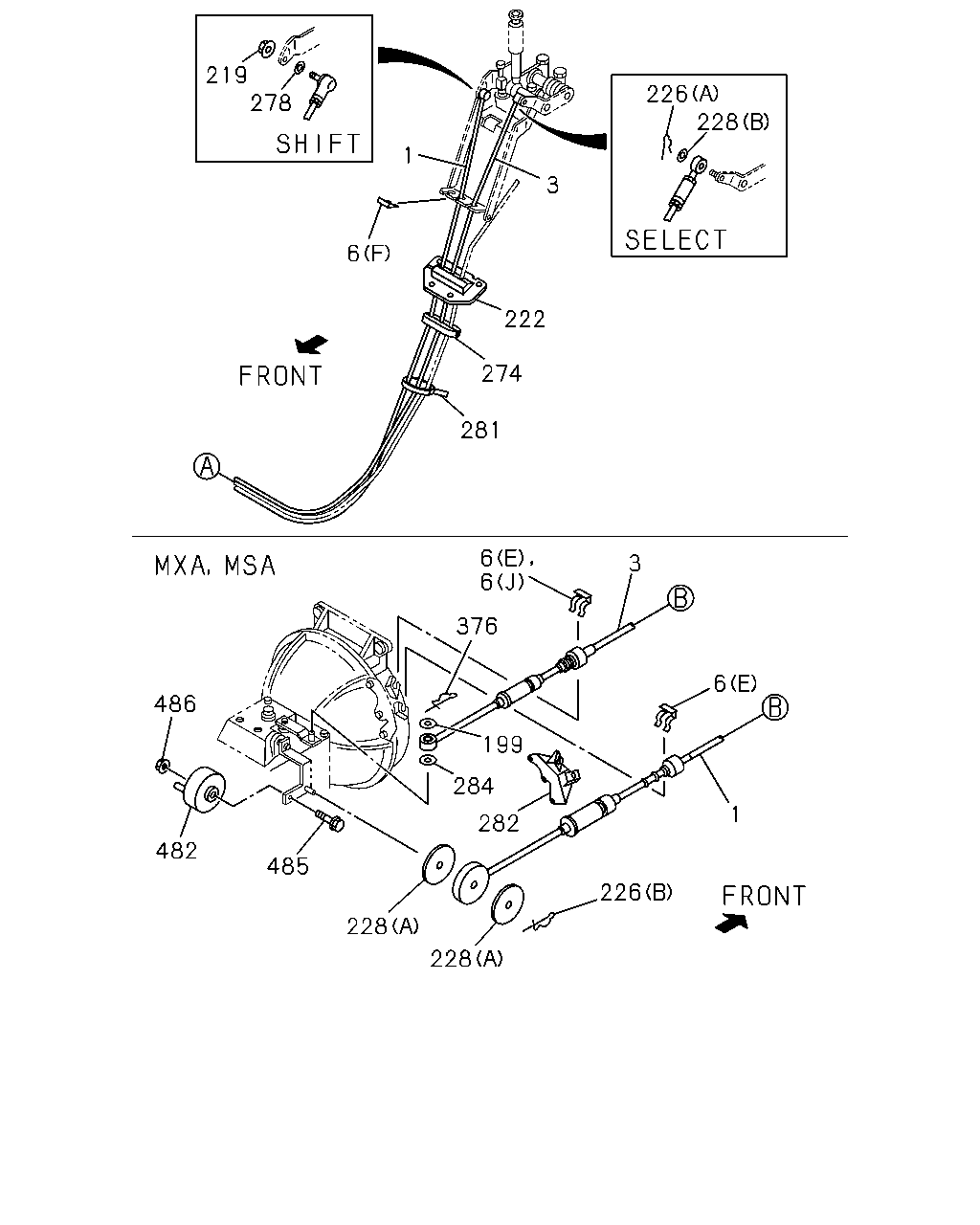

çizim 67850
219 278 226 228 1 3 6 222 274 281 6 6 3 376 6 486 199 284 1 282 482 485 226 228 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
FIRE TRUCK CHASSIS(V4F) 		8-97119-038-1 01 1 9410- ●
1 00.854 CABLE; SHIFT,TRANS CONT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) 		8-97082-943-1 01 1 9312-9409 ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97082-943-2 01 1 9410- ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2540 		8-97089-986-3 01 1 9312- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-97082-945-3 01 1 9312- ●
3 00.852 CABLE; SELECT,TRANS CONT
FIRE TRUCK CHASSIS(V4F) 		8-97119-040-1 01 1 9410- ●
3 00.852 CABLE; SELECT,TRANS CONT
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) L=2714 		8-97082-947-1 01 1 9312-9409 ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FIRE TRUCK CHASSIS(V4F) L=2714 		8-97082-947-1 01 1 9410- ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2684 		8-97089-987-2 01 1 9312- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2718 		8-97082-949-2 01 1 9312- ●
6 04.047 CLIP; CABLE
(H) 		8-97036-331-1 01 1 9312- ●
6 04.047 CLIP; CABLE
(I) 		8-97039-295-0 01 1 9312- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-0 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-1 01 1 9505- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9505-9808 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 01 1 9809- ●
6 04.047 CLIP; CABLE
(E) ID=19.2 		8-94365-914-2 02 1 9312-9409 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 02 1 9410-9808 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97011-448-0 02 1 9312- ● ● ● ●
6 04.047 CLIP; CABLE
(G) 		9-09916-402-0 01 1 9312-9509 ● ● ● ●
6 04.047 CLIP; CABLE
(K) 		8-97137-589-0 01 1 9510- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-332-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-330-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 9312- ● ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-333-1 01 1 9312-9504 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) (D) 		8-97036-333-1 01 1 9505-9711 ●
6 04.047 CLIP; CABLE 8-97036-333-1 01 1 9712- ●
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9312- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9312-9801 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802 ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9803- ● ● ● ●
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 9312- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9707 ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 9312- ● ● ● ●
274 04.008 CLIP; CONT CABLE 8-97093-491-1 01 1 9312-9801 ● ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> 		8-97093-491-1 01 1 9802- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9312- ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9312- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE 8-97035-760-0 01 1 9312-9409 ●
282 04.010 BRACKET; TRANS SIDE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97035-760-0 01 1 9410-9707 ●
282 04.010 BRACKET; TRANS SIDE
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97182-260-0 01 1 9708- ●
282 04.010 BRACKET; TRANS SIDE
FIRE TRUCK CHASSIS(V4F) 		8-97043-131-1 01 1 9410- ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9312- ● ●
282 04.010 BRACKET; TRANS SIDE 8-97035-759-0 01 1 9312- ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9312- ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9312- ● ● ● ●
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-1 01 1 9312-9511 ● ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9512-9711 ● ●
482 04.047 WEIGHT; SHIFT CABLE
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> 		8-97066-730-1 01 1 9712- ● ●
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 9312-9511 ● ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9512-9711 ● ●
485 04.047 BOLT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9712- ● ●
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 9312-9511 ● ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9512-9711 ● ●
486 04.047 NUT; WEIGHT
EUROPEAN BASIC EQUIPMENT(EK4) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9712- ● ●

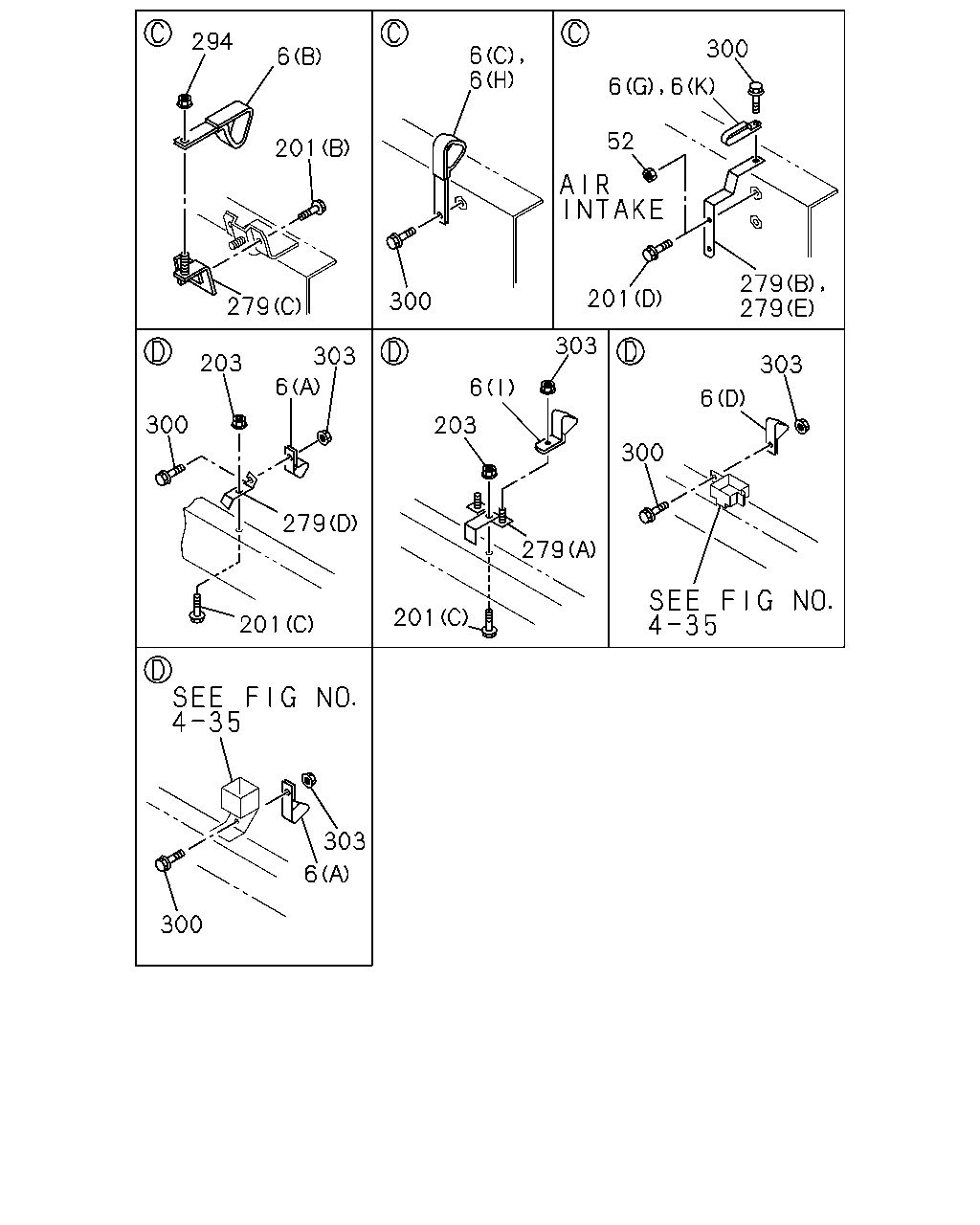

çizim 69354
294 300 6 6 6 6 6 52 201 279 279 201 300 279 303 303 203 303 6 6 6 300 203 300 279 279 201 201 303 6 300
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.047 CLIP; CABLE
(H) 		8-97036-331-1 01 1 9312- ●
6 04.047 CLIP; CABLE
(I) 		8-97039-295-0 01 1 9312- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-0 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) 00.854 (J) ID=22.2 		1-09701-209-1 01 1 9505- ●
6 04.047 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9410-9504 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 01 1 9505-9808 ●
6 04.047 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C) FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 01 1 9809- ●
6 04.047 CLIP; CABLE
(E) ID=19.2 		8-94365-914-2 02 1 9312-9409 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-94365-914-2 02 1 9410-9808 ● ● ● ●
6 04.047 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F) (E) ID=19.2 		8-97211-011-0 02 1 9809- ● ● ● ●
6 04.047 CLIP; CABLE
(F) 		8-97011-448-0 02 1 9312- ● ● ● ●
6 04.047 CLIP; CABLE
(G) 		9-09916-402-0 01 1 9312-9509 ● ● ● ●
6 04.047 CLIP; CABLE
(K) 		8-97137-589-0 01 1 9510- ● ● ● ●
6 04.047 CLIP; CABLE
(A) 		8-97036-332-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97036-330-1 01 1 9312- ● ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97036-329-2 01 1 9312- ● ● ●
6 04.047 CLIP; CABLE
(D) 		8-97036-333-1 01 1 9312-9504 ●
6 04.047 CLIP; CABLE
4BE1 ENG(RLH) (D) 		8-97036-333-1 01 1 9505-9711 ●
6 04.047 CLIP; CABLE 8-97036-333-1 01 1 9712- ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9312-9404 ● ● ● ●
52 04.047 NUT; BRKT
DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9312-9404 ● ● ●
52 04.047 NUT; BRKT
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9405-9510 ● ● ● ●
52 04.047 NUT; BRKT
REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9405-9510 ● ● ●
52 04.047 NUT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9511- ● ● ● ●
52 04.047 NUT; BRKT
REAR WIDE TREAD(V4T) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9511- ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 00.002 (D) M10X28 		0-28481-028-0 02 1 9312-9711 ● ● ● ●
201 04.032 BOLT; BRKT
AIR INTAKE REAR VERTICAL<KJ3> 03.405 (D) M10X25 FLANGE 		0-28681-025-0 02 1 9712- ● ● ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 07.010 (C) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ● ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 07.010 (C) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411 ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 9412- ● ● ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 9412- ●
201 04.032 BOLT; BRKT
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9312-9704 ● ●
201 04.032 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9705- ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 01 1 9312- ● ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
(A) 		8-97028-496-1 01 1 9312-9510 ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9312-9510 ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9511- ●
279 04.047 BRACKET; CABLE TO FRAME
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97028-496-1 01 1 9511- ●
279 04.047 BRACKET; CABLE TO FRAME
4BE1 ENG(RLH) EXC. POWER STEERING<N40> (A) 		8-97028-496-1 01 1 9511- ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) SMALL DUAL RR TIRE&SHORT(NKN6SC) (B) 		8-97101-709-1 01 1 9312-9510 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 9312-9510 ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SEMI MIDDLE(NKC6SD) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF) (B) 		8-97101-709-1 01 1 9511- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) (B) 		8-97101-709-1 01 1 9511- ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE&SHORT(NKC**C) EXC. REAR WIDE TREAD(V4T) (E) 		8-97106-662-0 01 1 9312- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (D) 		8-97103-234-0 01 1 9312-9801 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (D) 		8-97103-234-0 01 1 9802- ● ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97066-629-5 01 1 9312- ● ●
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312- ● ●
300 00.854 BOLT; CLIP
01.540 M6X20 		0-28280-620-0 01 1 9312-9711 ● ● ● ●
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9712- ● ● ● ●
300 00.854 BOLT; CLIP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMPCHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9407 ● ● ● ●
300 00.854 BOLT; CLIP
POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9407 ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. EUROPEAN BASIC EQUIPMENT(EK4),FRT INDEPENDENT SUSPENSION(6PP) 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9408-9411 ● ● ● ●
300 00.854 BOLT; CLIP
4BE1 ENG(RLH) POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9408-9411 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. EUROPEAN BASIC EQUIPMENT(EK4),FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ● ● ●
300 00.854 BOLT; CLIP
4BE1 ENG(RLH) POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-9506 ● ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. EUROPEAN BASIC EQUIPMENT(EK4),FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9711 ● ● ● ●
300 00.854 BOLT; CLIP
4BE1 ENG(RLH) POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9507-9711 ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. EUROPEAN BASIC EQUIPMENT(EK4),FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ●
300 00.854 BOLT; CLIP
4BE1 ENG(RLH) POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ●
303 00.855 NUT; CLIP
EXC. EUROPEAN BASIC EQUIPMENT(EK4),FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9412 ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9501- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
