4-31 — STEERING COLUMN AND SHAFT (#4588) — 60 parça

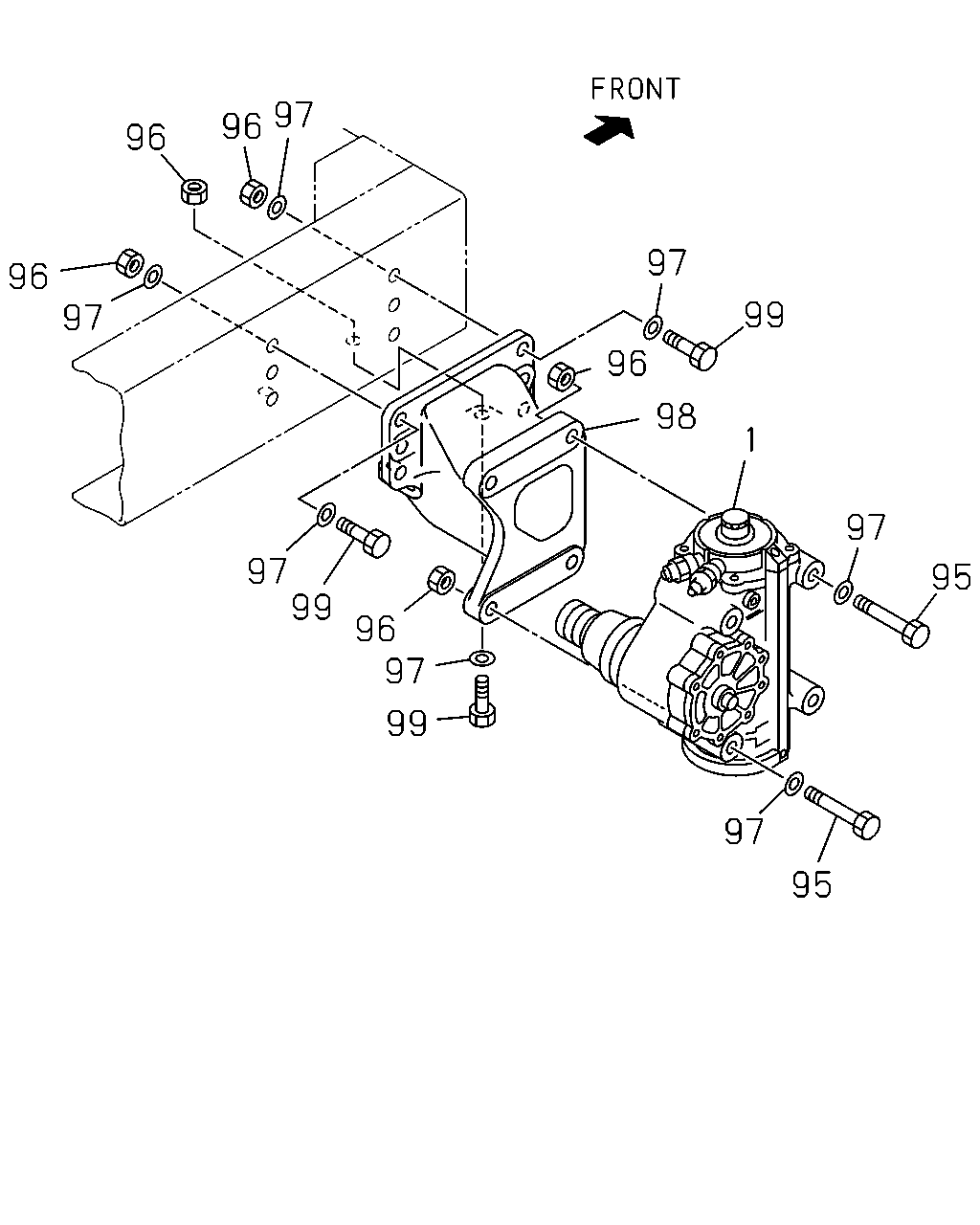

çizim 36505
97 96 96 97 96 97 99 96 98 1 97 97 99 95 96 97 99 97 95
BalonParca AdiParca NoAdetTipApplied Date
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-831-0 01 1 9712-
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9811-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9811-
95 BOLT; STRG UNIT
M16X177 		1-09000-426-0 03 1 9712-
95 BOLT; STRG UNIT
M16X163 		1-09040-078-0 01 1 9712-
96 NUT; STRG UNIT
M16 		9-99110-516-0 11 1 9712-
97 WASHER; PL,STRG UNIT
ID=16.2 		1-09503-223-0 23 1 9712-
98 BRACKET; STRG GEAR BOX 1-44226-122-1 01 1 9712-
99 BOLT; BRKT TO FRAME
M16X55 		1-09000-480-0 08 1 9712-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9811-
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9811-
315 JOINT; SPLINE 1-44135-349-0 01 1 9811-
316 RING 1-44227-152-0 01 1 9811-
317 NUT; PUSH 1-44227-148-0 01 1 9811-

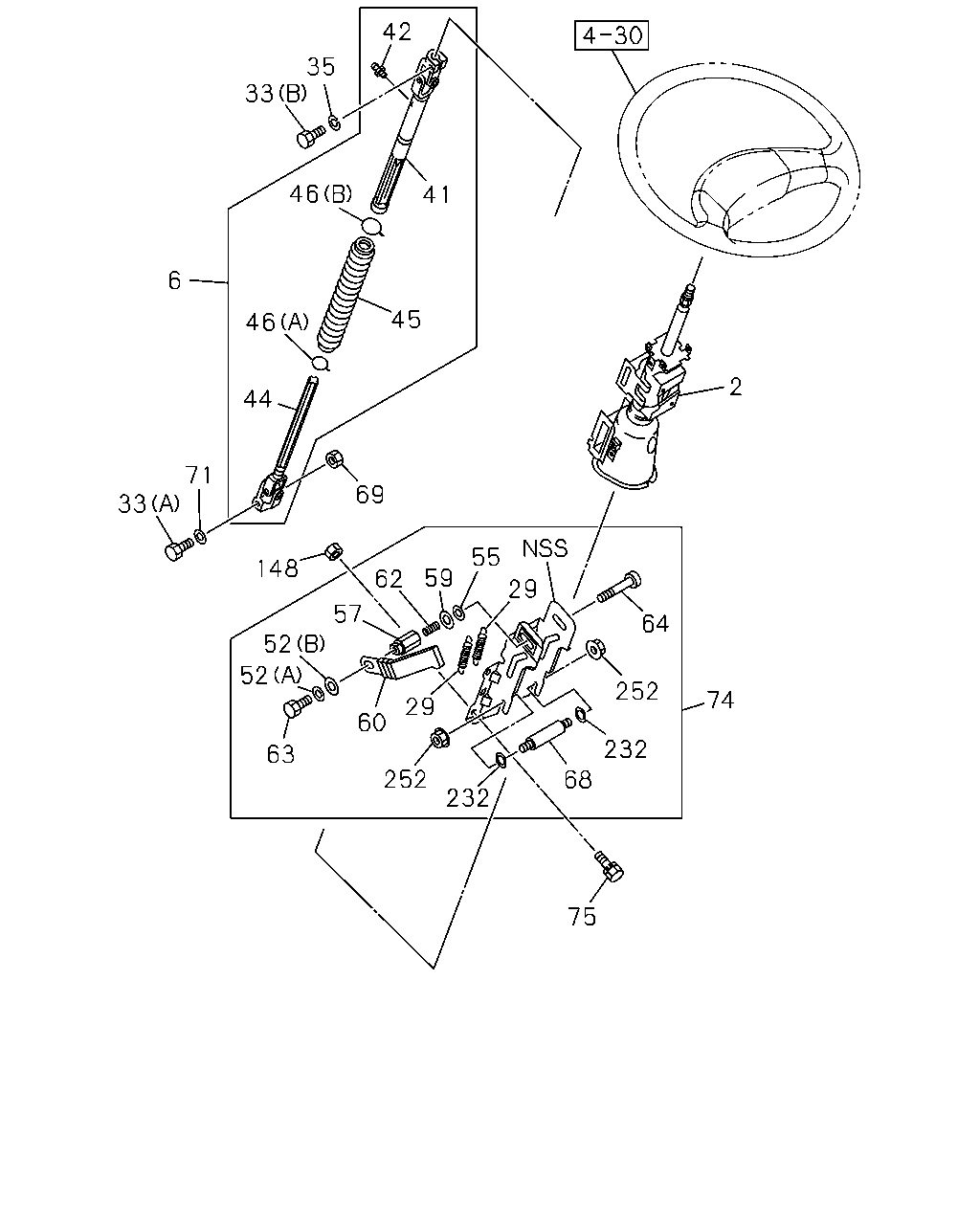

çizim 36584
42 35 33 46 46 44 6 41 45 2 29 55 59 62 57 148 52 52 63 60 252 232 68 232 252 64 74 75 69 71 33 29
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9712-9810
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9811-
6 SHAFT; STRG LWR 1-44135-307-0 01 1 9712-9810
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9811-
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9811-
29 SPRING; COLUMN 1-44227-136-0 02 1 9712-9810
33 BOLT; STRG SHAFT TO UNIT
(A) M10X45 		1-09029-084-0 01 1 9712-
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-141-0 01 1 9712-9810
33 BOLT; STRG SHAFT TO UNIT
(B) 		1-44139-153-0 01 1 9811-
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9712-9810
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9811-
41 YOKE; SLEEVE,STRG 1-44135-299-0 01 1 9712-9810
42 NIPPLE; GREASE,SLEEVE YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9712-9810
44 SHAFT; SPLINE,STRG 1-44135-309-0 01 1 9712-9810
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9712-9810
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9811-
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9712-9810
46 CLIP; BOOT 1-44139-156-0 02 1 9811-
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9712-9810
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9712-9810
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9712-9810
55 PLATE; GUIDE 1-44227-132-0 01 1 9712-9810
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9712-9810
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9811-
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9712-9810
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9712-9810
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9811-
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9712-9810
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9811-
63 BOLT; ADJ LEVER,TILT STRG 1-44227-126-0 01 1 9712-9810
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9811-
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9811-
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9712-9810
68 PIN; TILT CENTER 1-44227-133-1 01 1 9712-9810
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9712-
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9712-
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9712-9810
75 BOLT; STRG COLUMN
M8X25 FLANGE 		0-28080-825-0 04 1 9712-
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9811-
148 NUT; COLUMN TO BRKT
M8 		9-09110-408-0 04 1 9712-
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9712-9810
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9712-9810
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9811-
315 JOINT; SPLINE 1-44135-349-0 01 1 9811-
316 RING 1-44227-152-0 01 1 9811-
317 NUT; PUSH 1-44227-148-0 01 1 9811-
