Sayfa 2-30 - Isuzu EPC

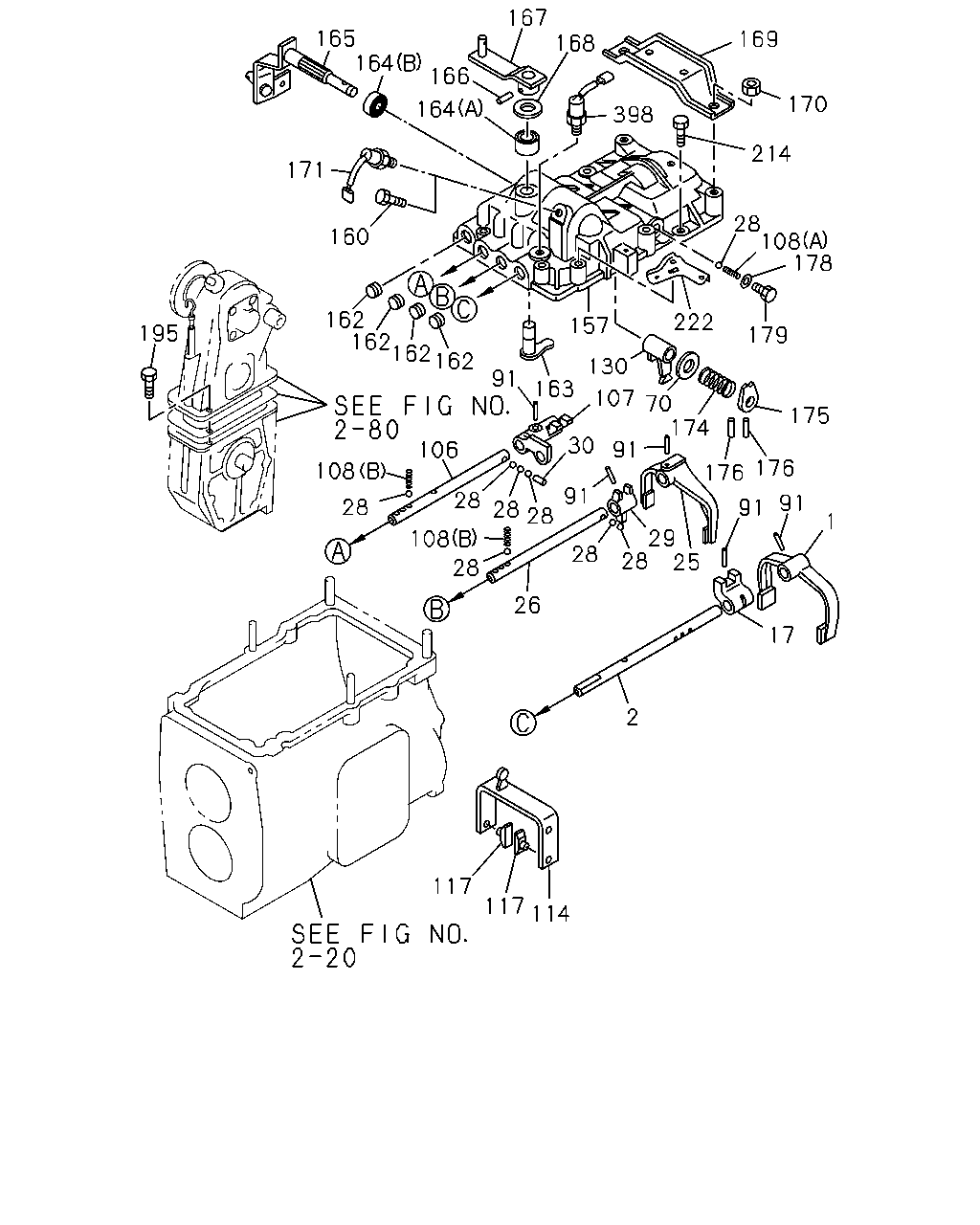

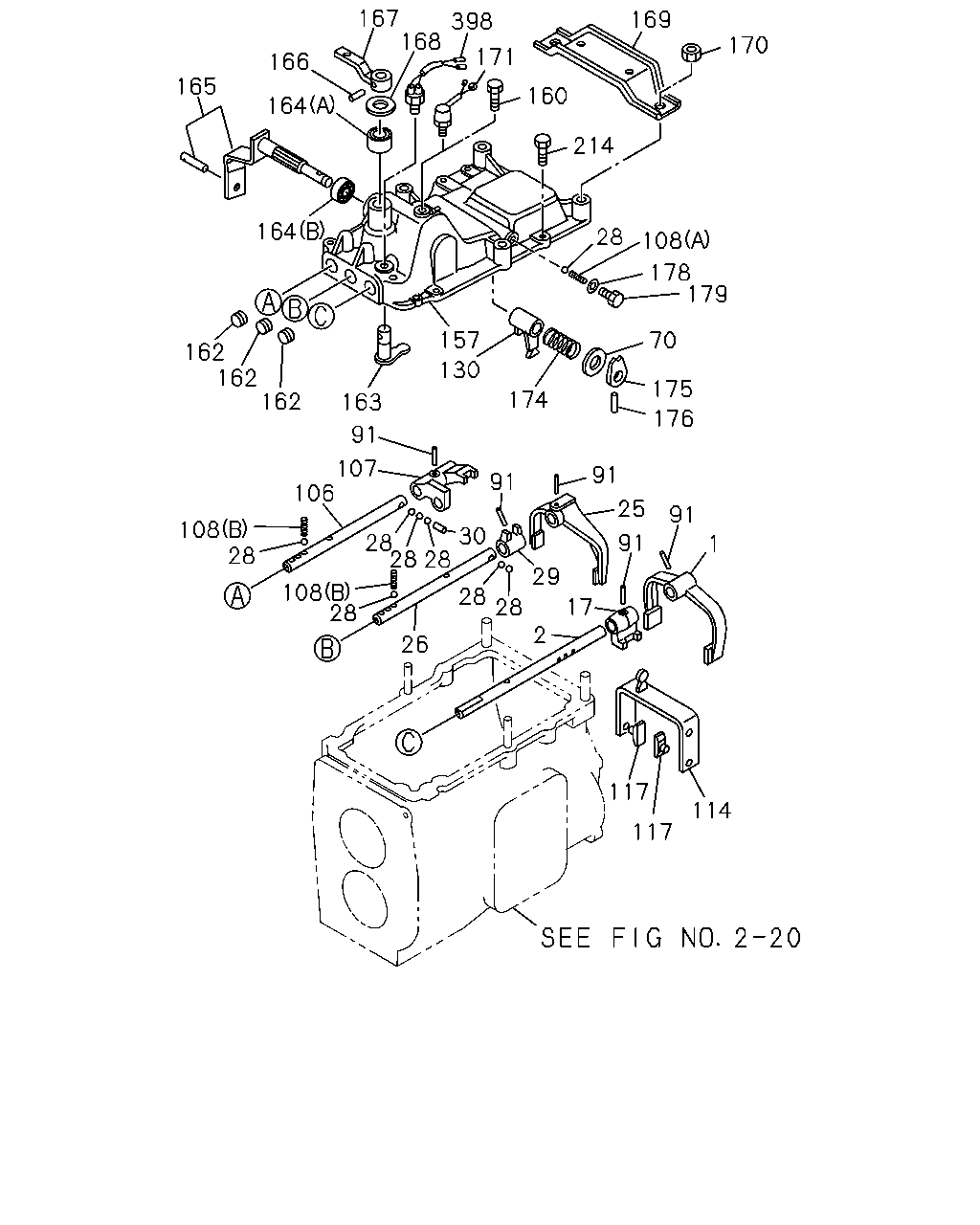

2-30 — GEAR SHIFTER AND QUADRANT BOX (#45879) — 335 parça

167 165 164 169 168 166 170 164 398 214 171 28 108 178 160 162 162 162 162 222 157 195 179 130 91 163 107 70 174 175 30 91 106 176 108 176 91 28 91 28 91 28 28 1 29 108 28 28 26 17 2 117 117 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9312-	●
1	04.302 ARM; SHIFT,1ST & REV	8-97011-363-1	01	1	9312-		●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9312-	●
2	04.309 ROD; SHIFT,1ST & REV	8-97078-204-0	01	1	9312-		●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9312-	●
17	04.303 BLOCK; SHIFT,1ST & REV	8-94135-719-4	01	1	9312-		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97034-821-0	01	1	9312-9507	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	9508-	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97078-205-0	01	1	9312-9507		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-494-0	01	1	9508-		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9312-	●		●	●
28	04.311 BALL; INTER LK	9-00097-010-0	08	1	9312-		●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9312-	●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97017-573-1	01	1	9312-		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9312-9409	●
30	04.307 PIN; INTER LK FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	02	1	9410-	●
30	04.307 PIN; INTER LK EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	01	1	9410-	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9312-		●	●	●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9312-	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94129-353-0	01	1	9312-9411			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9312-			●	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97034-822-0	01	1	9312-9609	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	9610-	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97078-206-0	01	1	9312-		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9312-	●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-94135-718-2	01	1	9312-		●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9312-	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9312-	●	●	●	●
108	04.311 SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9312-		●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9312-	●
114	04.302 ARM; SHIFT,OD TO TOP	8-94316-994-1	01	1	9312-		●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9312-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9312-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9312-			●	●
157	04.105 BOX; QUAD,TRANS	8-97034-814-1	01	1	9312-9610	●
157	04.105 BOX; QUAD,TRANS	8-97167-640-0	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94340-146-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS	8-97048-844-0	01	1	9312-		●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 08.971 M14X9	9-99202-314-0	01	1	9312-9402		●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 08.971 M14X9	9-99202-314-0	01	1	9403-9409	●	●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,FIRE TRUCK CHASSIS(V4F) 08.971 M14X9	9-99202-314-0	01	1	9410-	●	●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9312-	●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	03	1	9312-		●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9312-	●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9312-		●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27	8-94128-784-0	02	1	9312-			●	●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	9312-	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97035-557-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT	8-97035-556-0	01	1	9312-		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	9312-	●	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9312-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9312-			●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9312-		●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9312-	●	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-1	02	1	9312-	●	●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9312-	●	●
171	04.054 SWITCH; NEUTRAL	8-97065-416-0	01	1	9312-9402	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97137-656-0	01	1	9510-9608		●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97165-946-0	01	1	9609-		●	●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	9312-	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9312-			●	●
174	04.307 SPRING; REV	8-97076-907-0	01	1	9312-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9312-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	9510-			●	●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509	●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●	●	●	●
176	04.302 PIN; SPR,STOPPER 4HF1 ENG(RLS) PTO FRT RATIO 1.195(6ZH) 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	01	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9510-9606			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9607-9710			●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9711-			●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9312-	●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9312-	●	●
195	04.105 BOLT FIRE TRUCK CHASSIS(V4F) 04.525 M10X25 FLANGE	0-28181-025-0	08	1	9410-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	9312-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	9312-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	05	1	9312-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	02	1	9312-		●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	9312-	●
398	02.698 SWITCH; REV LAMP DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) 4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97113-435-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9508	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9608	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-0	01	1	9609-	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9312-9402	●	●	●	●
398	02.698 SWITCH; REV LAMP EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9403-9405		●	●	●

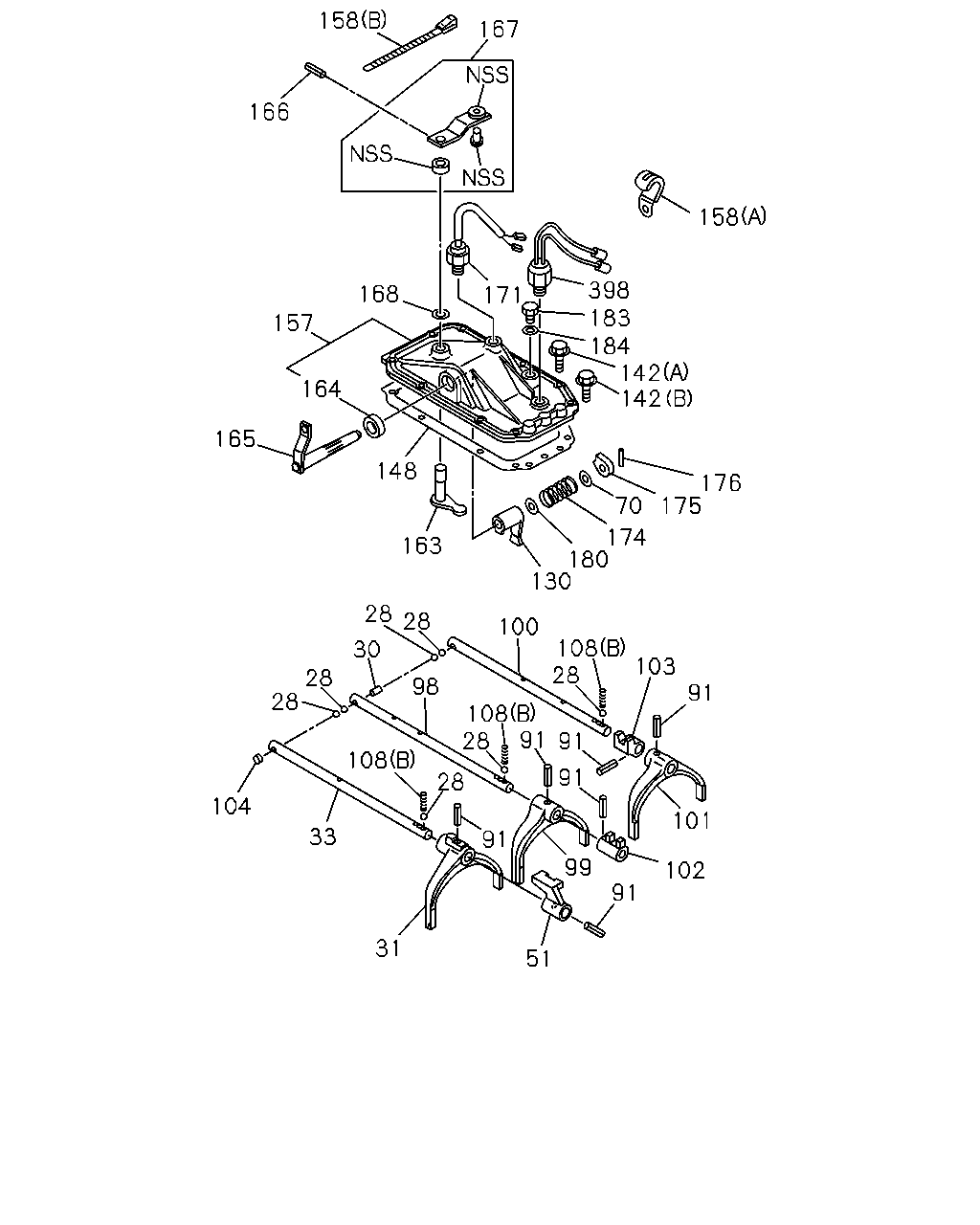

158 167 166 158 398 183 184 142 142 168 171 157 164 165 148 176 175 70 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 33 91 99 102 91 31 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9312-	●		●	●
28	04.311 BALL; INTER LK	9-00097-010-0	08	1	9312-		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9312-9409	●
30	04.307 PIN; INTER LK FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	02	1	9410-	●
30	04.307 PIN; INTER LK EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	01	1	9410-	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9312-		●	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	9312-			●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	9312-			●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	9312-			●	●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9312-	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94129-353-0	01	1	9312-9411			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9312-			●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	9312-			●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	9312-			●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	9312-			●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97077-342-0	01	1	9312-9401			●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	9402-			●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	9312-			●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	9312-			●	●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	9312-			●	●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9312-	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9312-	●	●	●	●
108	04.311 SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9312-		●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9312-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9312-			●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	9312-			●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	9312-			●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	9312-			●	●
157	04.105 BOX; QUAD,TRANS	8-97034-814-1	01	1	9312-9610	●
157	04.105 BOX; QUAD,TRANS	8-97167-640-0	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94340-146-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS	8-97048-844-0	01	1	9312-		●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9312-9509				●
158	04.105 CLIP; HARNESS 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 01.152 (A) ID=8.5	5-09700-275-0	01	1	9312-9509			●
158	04.105 CLIP; HARNESS MANUAL TILT CAB<RWZ> 01.152 (A) ID=8.5	5-09700-275-0	01	1	9312-9509			●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 01.152 (A) ID=8.5	5-09700-275-0	01	1	9510-9511			●	●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	9512-			●	●
158	04.105 CLIP; HARNESS EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 03.162 (B) L=140	5-09707-031-0	01	1	9312-9509			●	●
158	04.105 CLIP; HARNESS MANUAL TILT CAB<RWZ> 03.162 (B) L=140	5-09707-031-0	01	1	9312-9509			●	●
158	04.105 CLIP; HARNESS EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-1	01	1	9510-			●	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9312-	●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9312-		●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27	8-94128-784-0	02	1	9312-			●	●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	9312-	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97035-557-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT	8-97035-556-0	01	1	9312-		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	9312-	●	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9312-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9312-			●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9312-		●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9312-	●	●	●	●
171	04.054 SWITCH; NEUTRAL	8-97065-416-0	01	1	9312-9402	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97137-656-0	01	1	9510-9608		●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97165-946-0	01	1	9609-		●	●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	9312-	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9312-			●	●
174	04.307 SPRING; REV	8-97076-907-0	01	1	9312-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9312-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	9510-			●	●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509	●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●	●	●	●
176	04.302 PIN; SPR,STOPPER 4HF1 ENG(RLS) PTO FRT RATIO 1.195(6ZH) 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	01	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9510-9606			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9607-9710			●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9711-			●	●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	9312-			●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	9312-			●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	9312-			●	●
398	02.698 SWITCH; REV LAMP DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) 4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97113-435-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9508	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9608	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-0	01	1	9609-	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9312-9402	●	●	●	●
398	02.698 SWITCH; REV LAMP EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9403-9405		●	●	●

167 398 168 169 170 171 166 165 160 164 214 164 28 108 178 179 157 70 162 162 162 130 175 174 163 176 91 107 106 91 91 25 91 108 28 30 28 91 1 29 108 28 28 28 17 2 26 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	9312-	●
1	04.302 ARM; SHIFT,1ST & REV	8-97011-363-1	01	1	9312-		●
2	04.309 ROD; SHIFT,1ST & REV	8-97034-820-0	01	1	9312-	●
2	04.309 ROD; SHIFT,1ST & REV	8-97078-204-0	01	1	9312-		●
17	04.303 BLOCK; SHIFT,1ST & REV	8-97034-829-1	01	1	9312-	●
17	04.303 BLOCK; SHIFT,1ST & REV	8-94135-719-4	01	1	9312-		●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	9312-	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97011-364-1	01	1	9312-		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97034-821-0	01	1	9312-9507	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	9508-	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97078-205-0	01	1	9312-9507		●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-494-0	01	1	9508-		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	9312-	●		●	●
28	04.311 BALL; INTER LK	9-00097-010-0	08	1	9312-		●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	9312-	●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97017-573-1	01	1	9312-		●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	9312-9409	●
30	04.307 PIN; INTER LK FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	02	1	9410-	●
30	04.307 PIN; INTER LK EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-041-0	01	1	9410-	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	9312-		●	●	●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	9312-	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94129-353-0	01	1	9312-9411			●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	9312-	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	9312-			●	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97034-822-0	01	1	9312-9609	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	9610-	●
106	04.309 ROD; SHIFT,OD TO TOP	8-97078-206-0	01	1	9312-		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	9312-	●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-94135-718-2	01	1	9312-		●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	9312-	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9312-	●	●	●	●
108	04.311 SPRING; LOCK BALL (A) OD=21.9 L=35.5	8-97022-866-0	01	1	9312-		●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	9312-	●
114	04.302 ARM; SHIFT,OD TO TOP	8-94316-994-1	01	1	9312-		●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	9312-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	9312-	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	9312-			●	●
157	04.105 BOX; QUAD,TRANS	8-97034-814-1	01	1	9312-9610	●
157	04.105 BOX; QUAD,TRANS	8-97167-640-0	01	1	9611-	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS MANUAL TILT CAB<RWZ>	8-94340-145-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-94340-146-0	01	1	9312-9509			●	●
157	04.105 BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9510-			●	●
157	04.105 BOX; QUAD,TRANS	8-97048-844-0	01	1	9312-		●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 08.971 M14X9	9-99202-314-0	01	1	9312-9402		●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 08.971 M14X9	9-99202-314-0	01	1	9403-9409	●	●
160	04.105 PLUG; BLIND EXC. EXHAUST BRAKE<NF8>,FIRE TRUCK CHASSIS(V4F) 08.971 M14X9	9-99202-314-0	01	1	9410-	●	●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	9312-	●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	03	1	9312-		●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	9312-	●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	9312-		●	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 (A) OD=27	8-94128-784-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-94462-019-0	01	1	9312-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.309 OD=27	8-94128-784-0	02	1	9312-			●	●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	9312-	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT MANUAL TILT CAB<RWZ>	8-97036-221-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97035-557-0	01	1	9312-9509			●	●
165	04.302 LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9510-			●	●
165	04.302 LEVER; SHIFT	8-97035-556-0	01	1	9312-		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	9312-	●	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	9312-	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	9312-			●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-559-1	01	1	9312-		●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	9312-	●	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-1	02	1	9312-	●	●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	9312-	●	●
171	04.054 SWITCH; NEUTRAL	8-97065-416-0	01	1	9312-9402	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9312-9402		●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97065-416-0	01	1	9403-9405	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97113-440-1	01	1	9406-9508	●	●	●	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL MANUAL TILT CAB<RWZ>	8-97137-656-0	01	1	9509-9509	●	●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97137-656-0	01	1	9510-9608	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97137-656-0	01	1	9510-9608		●	●	●
171	04.054 SWITCH; NEUTRAL FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8> EXC. FIRE TRUCK CHASSIS(V4F)	8-97165-946-0	01	1	9609-	●
171	04.054 SWITCH; NEUTRAL EXHAUST BRAKE<NF8>	8-97165-946-0	01	1	9609-		●	●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	9312-	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	9312-			●	●
174	04.307 SPRING; REV	8-97076-907-0	01	1	9312-		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	9312-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER MANUAL TILT CAB<RWZ>	8-94249-048-2	01	1	9312-9509			●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	9510-			●	●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509	●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	02	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●	●	●	●
176	04.302 PIN; SPR,STOPPER 4HF1 ENG(RLS) PTO FRT RATIO 1.195(6ZH) 04.555 L=30 OD=4	9-09678-549-0	02	1	9510-	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ> 04.555 L=30 OD=4	9-09678-549-0	01	1	9312-9509			●	●
176	04.302 PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9510-9606			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9607-9710			●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9711-			●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	9312-	●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	9312-	●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	9312-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	9312-	●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	05	1	9312-		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	02	1	9312-		●
398	02.698 SWITCH; REV LAMP DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) 4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8>,MANUAL TILT CAB<RWZ>	8-97113-435-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97113-435-1	01	1	9406-9508	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97137-650-0	01	1	9509-9608	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-0	01	1	9609-	●	●	●	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9312-9402	●	●	●	●
398	02.698 SWITCH; REV LAMP EXHAUST BRAKE<NF8> EXC. MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP MANUAL TILT CAB<RWZ>	8-97071-665-0	01	1	9403-9405	●
398	02.698 SWITCH; REV LAMP	8-97071-665-0	01	1	9403-9405		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
