◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#45872) — 21 parça

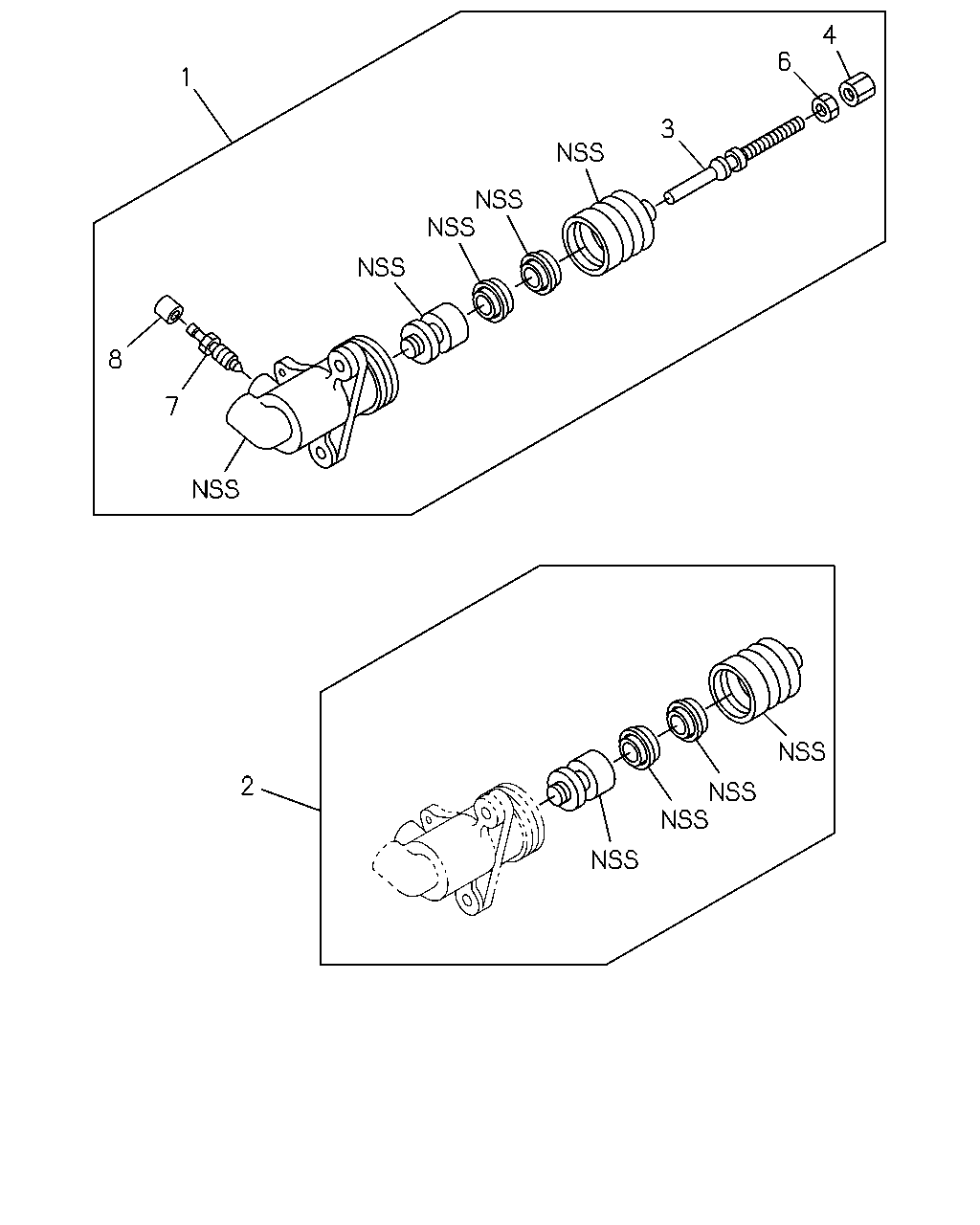

çizim 69167
4 6 1 3 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.780 CYLINDER; SLAVE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-881-0 01 1 9607- ●
1 00.780 CYLINDER; SLAVE,CLU
TURBOCHARGER<K51> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-881-0 01 1 9607- ●
1 00.780 CYLINDER; SLAVE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-972-0 01 1 9312- ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-971-0 01 1 9312-9510 ● ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-971-0 01 1 9511-9606 ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-971-0 01 1 9607- ●
1 00.780 CYLINDER; SLAVE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-848-1 01 1 9312- ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-851-1 01 1 9312- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97032-847-1 01 1 9312- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-402-0 01 1 9312- ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-302-0 01 1 9312-9406 ● ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-204-0 01 1 9407- ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94459-698-0 01 1 9312- ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94457-860-0 01 1 9312- ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
00.787 		9-09644-005-0 01 1 9312- ● ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD 8-97032-299-0 01 1 9312- ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9312- ● ● ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X16.5 		8-94115-113-0 01 1 9312- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 9312- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9312- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9312- ● ●
