2-03 — CLUTCH PEDAL AND CONTROL (#45870) — 92 parça

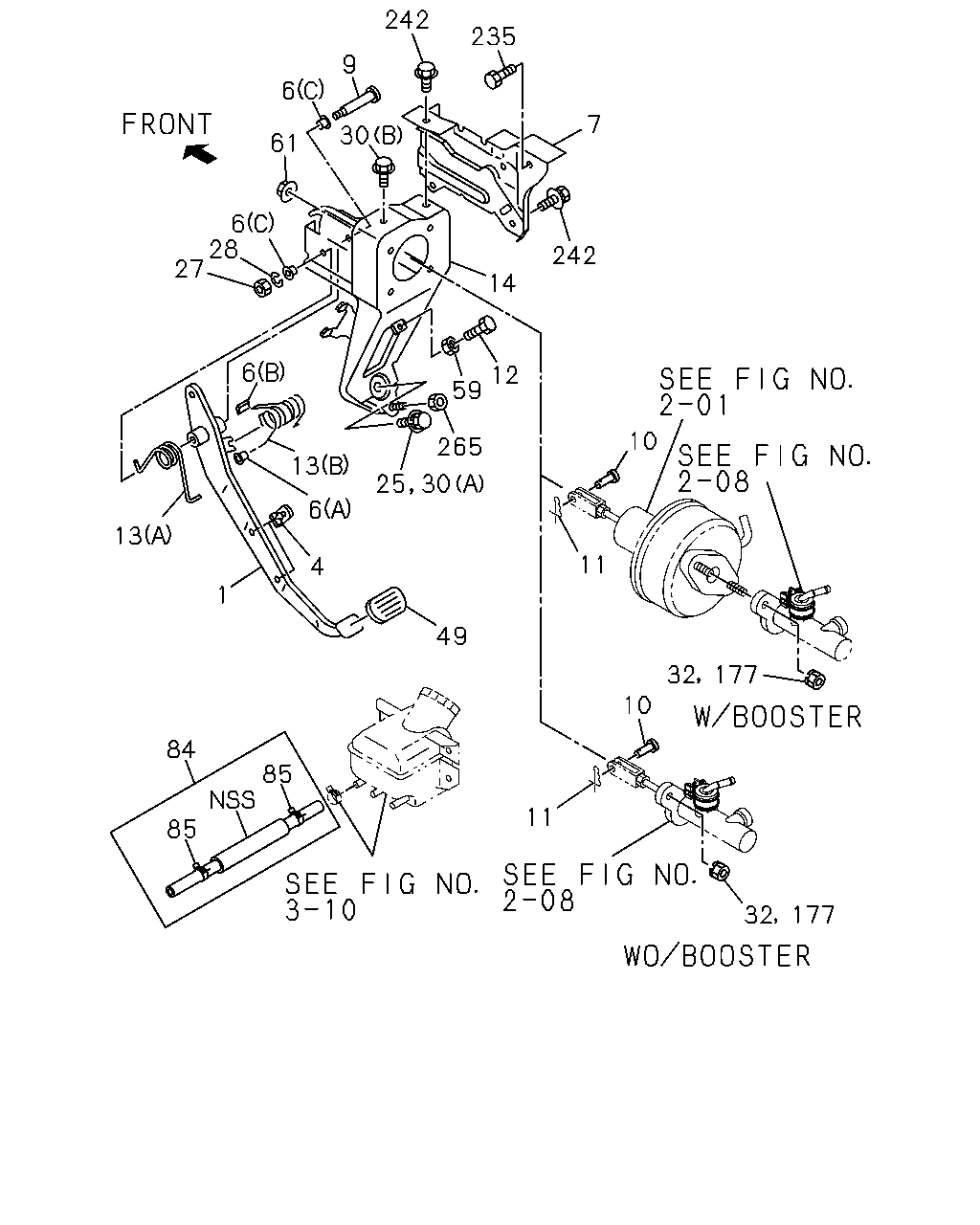

çizim 19289
242 235 9 6 7 30 61 6 28 27 242 14 6 12 59 10 265 13 25 30 6 13 11 4 1 49 32 177 10 84 85 11 85 32 177
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.830 PEDAL; CLU
EXC. VOLTAGE 24V<7AE> 		8-97853-219-0 01 1 9312-9404 ● ● ● ● ●
1 00.830 PEDAL; CLU
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-0 01 1 9312-9404 ● ● ● ● ●
1 00.830 PEDAL; CLU
EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-1 01 1 9405-9711 ● ● ● ● ● ● ●
1 00.830 PEDAL; CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-1 01 1 9712-9801 ● ● ● ● ●
1 00.830 PEDAL; CLU
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER ASSIST CLUTCH<S2T> 		8-97853-219-1 01 1 9802- ● ● ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> VOLTAGE 24V<7AE> 		8-97853-220-0 01 1 9312-9404 ● ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> 		8-97853-220-1 01 1 9405-9510 ● ● ● ●
1 00.830 PEDAL; CLU
POWER ASSIST CLUTCH<S2T> 		8-97853-220-1 01 1 9511- ● ● ● ● ●
1 00.830 PEDAL; CLU
4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-97857-984-1 01 1 9712- ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-0 02 1 9312-9510 ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-0 02 1 9511-9711 ● ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-0 02 1 9712- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9312-9510 ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9511-9711 ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9712- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. VOLTAGE 24V<7AE> (A) 		8-97853-619-0 02 1 9312-9404 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97853-619-0 02 1 9312-9404 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (A) 		8-97853-619-0 02 1 9405- ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. VOLTAGE 24V<7AE> (B) 		8-97853-620-0 01 1 9312-9404 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-620-0 01 1 9312-9404 ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-620-0 01 1 9405- ● ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-1 01 1 9312-9510 ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-2 01 1 9511- ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL 8-97853-213-0 01 1 9312-9510 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL 8-97853-213-0 01 1 9511-9511 ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 9512- ● ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9312-9510 ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9511- ● ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9312-9510 ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9511- ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 9312-9510 ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 00.805 M10X35 		0-20801-035-0 01 1 9511- ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. VOLTAGE 24V<7AE> (B) 		8-97853-221-0 01 1 9312-9404 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-0 01 1 9312-9404 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH<S2T> (B) 		8-97853-221-1 01 1 9405- ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> VOLTAGE 24V<7AE> (A) 		8-97853-535-0 01 1 9312-9404 ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 9405-9510 ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH<S2T> (A) 		8-97853-535-1 01 1 9511- ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. VOLTAGE 24V<7AE> 		8-97856-979-0 01 1 9312-9404 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
VOLTAGE 24V<7AE> EXC. POWER ASSIST CLUTCH<S2T> 		8-97856-979-0 01 1 9312-9404 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97856-979-2 01 1 9405-9609 ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH<S2T> 		8-97868-003-0 01 1 9610- ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> VOLTAGE 24V<7AE> 		8-97856-978-0 01 1 9312-9404 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97856-978-1 01 1 9405-9510 ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97856-978-2 01 1 9511-9609 ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH<S2T> 		8-97868-002-0 01 1 9610- ● ● ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9512- ● ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
09.011 M10 		9-09110-410-0 01 1 9312-9406 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9407-9510 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9511- ● ● ● ● ● ● ●
28 00.833 WASHER; LK,FULCRUM PIN
00.002 ID=10.2 		9-09150-610-0 01 1 9312-9406 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 (A) M10X25 		1-09980-494-0 01 1 9312-9510 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 (B) M10X25 		1-09980-494-0 01 1 9511-9511 ● ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
(B) M10X25 		8-94279-212-0 01 1 9312-9510 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
(B) M10X25 		8-94279-212-0 01 1 9511-9603 ● ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 (B) M10X25 FLANGE 		0-28691-025-0 01 1 9604- ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9312-9510 ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9511- ● ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-1 01 1 9312-9510 ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-1 01 1 9511- ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 9312-9510 ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> 09.011 M10 		9-09110-410-0 01 1 9511- ● ● ● ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER 		8-94279-050-0 04 1 9312-9510 ● ● ● ●
61 00.777 NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER 		8-94279-050-0 04 1 9511- ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T> 		8-97076-053-2 01 1 9312-9407 ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66) 		8-97076-053-2 01 1 9408-9410 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97076-053-2 01 1 9411-9507 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97135-021-0 01 1 9508-9510 ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97135-021-0 01 1 9511- ● ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
PTO TRANSMISSION SIDE(V66) EXC. POWER ASSIST CLUTCH<S2T> 		8-97115-952-0 01 1 9408-9410 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97115-952-0 01 1 9411-9507 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97135-026-0 01 1 9508-9510 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH<S2T>,PTO TRANSMISSION SIDE(V66),PTO FRT RATIO 1.195(6ZH) 		8-97135-026-1 01 1 9511- ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T> 		8-97076-052-1 01 1 9312-9507 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T> 		8-97135-020-0 01 1 9508-9510 ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH<S2T> 		8-97135-020-0 01 1 9511- ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97094-435-0 02 1 9312-9507 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9508-9510 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9511- ● ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9402-9510 ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9511- ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9510 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9511-9511 ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9512-9711 ● ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9712- ● ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9510 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9511-9609 ● ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610- ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9312-9510 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9511-9603 ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9604-9711 ● ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ● ● ● ●
