1 |

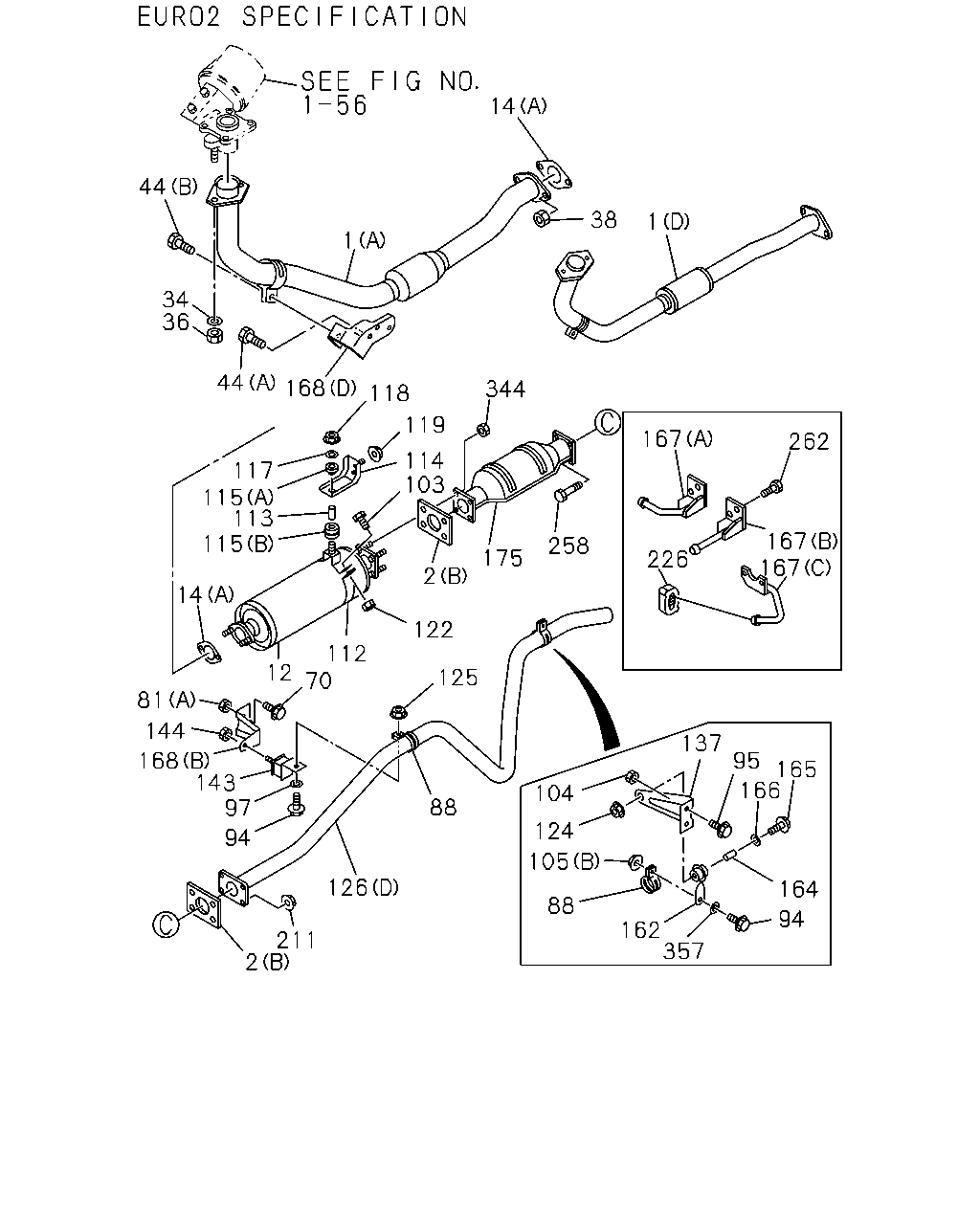

03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
FRT INDEPENDENT SUSPENSION(6PP)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-944-0 |
01 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97081-454-2 |
01 |
1 |
9312-9511 |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EURO2 SPECIFICATION<7AF>
(A)
|
8-97081-454-2 |
01 |
1 |
9512-9711 |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC),4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97034-085-2 |
01 |
1 |
9312-9711 |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97034-085-2 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97102-669-0 |
01 |
1 |
9312-9606 |
● |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>,FRT
INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97102-669-0 |
01 |
1 |
9607- |
● |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97102-668-0 |
01 |
1 |
9312-9606 |
● |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>,FRT INDEPENDENT
SUSPENSION(6PP)
(B)
|
8-97102-668-0 |
01 |
1 |
9607-9801 |
● |
● |
● |
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>,FRT INDEPENDENT
SUSPENSION(6PP)
(B)
|
8-97102-668-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
EXHAUST BRAKE<NF8>
(A)
|
8-97090-823-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
EXHAUST BRAKE<NF8>
(A)
|
8-97090-823-0 |
01 |
1 |
9511-9608 |
● |
|
● |
● |
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
EXHAUST BRAKE<NF8>
(A)
|
8-97162-643-0 |
01 |
1 |
9609- |
● |
|
● |
● |
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
EXC. EXHAUST BRAKE<NF8>,REAR WIDE
TREAD(V4T)
(B)
|
8-97090-820-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
EXC. EXHAUST BRAKE<NF8>,REAR WIDE
TREAD(V4T)
(B)
|
8-97090-820-0 |
01 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97034-086-1 |
01 |
1 |
9312-9511 |
● |
|
|
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
,EURO2 SPECIFICATION<7AF>
(C)
|
8-97034-086-1 |
01 |
1 |
9512- |
● |
|
|
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP)
(C)
|
8-97034-084-0 |
01 |
1 |
9312-9606 |
● |
|
|
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP),EURO2 SPECIFICAT
ION<7AF>
(C)
|
8-97034-084-0 |
01 |
1 |
9607- |
● |
|
|
● |
● |
|
|
| |
1 |
03.609 PIPE; EXH
4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97090-821-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
(A)
|
8-97105-597-0 |
01 |
1 |
9312-9407 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97105-597-0 |
01 |
1 |
9312-9407 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
(A)
|
8-97115-317-1 |
01 |
1 |
9408-9511 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97115-317-1 |
01 |
1 |
9408-9511 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
REAR WIDE TREAD(V4T)
(A)
|
8-97139-391-0 |
01 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXHAUST BRAKE<NF8>
(A)
|
8-97139-391-0 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97091-413-1 |
01 |
1 |
9312-9405 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
POWER STEERING<N40>
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97091-413-1 |
01 |
1 |
9406-9407 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
POWER STEERING<N40>
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-389-0 |
01 |
1 |
9408-9410 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>,POWER
STEERING<N40>
(B)
|
8-97112-604-0 |
01 |
1 |
9406-9407 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>,POWER
STEERING<N40>
(B)
|
8-97115-390-0 |
01 |
1 |
9408-9410 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-390-0 |
01 |
1 |
9411-9503 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-392-0 |
01 |
1 |
9504-9511 |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97139-398-0 |
01 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97090-876-1 |
01 |
1 |
9312-9405 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97090-876-1 |
01 |
1 |
9406-9407 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
POWER STEERING<N40>
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-388-0 |
01 |
1 |
9408-9410 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>,POWER
STEERING<N40>
(B)
|
8-97112-605-0 |
01 |
1 |
9406-9407 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>,POWER
STEERING<N40>
(B)
|
8-97115-392-0 |
01 |
1 |
9408-9410 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-392-0 |
01 |
1 |
9411-9503 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97115-390-0 |
01 |
1 |
9504-9511 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4HF1 ENG(RLS)
EXC. EXHAUST BRAKE<NF8>
(B)
|
8-97139-397-0 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
1 |

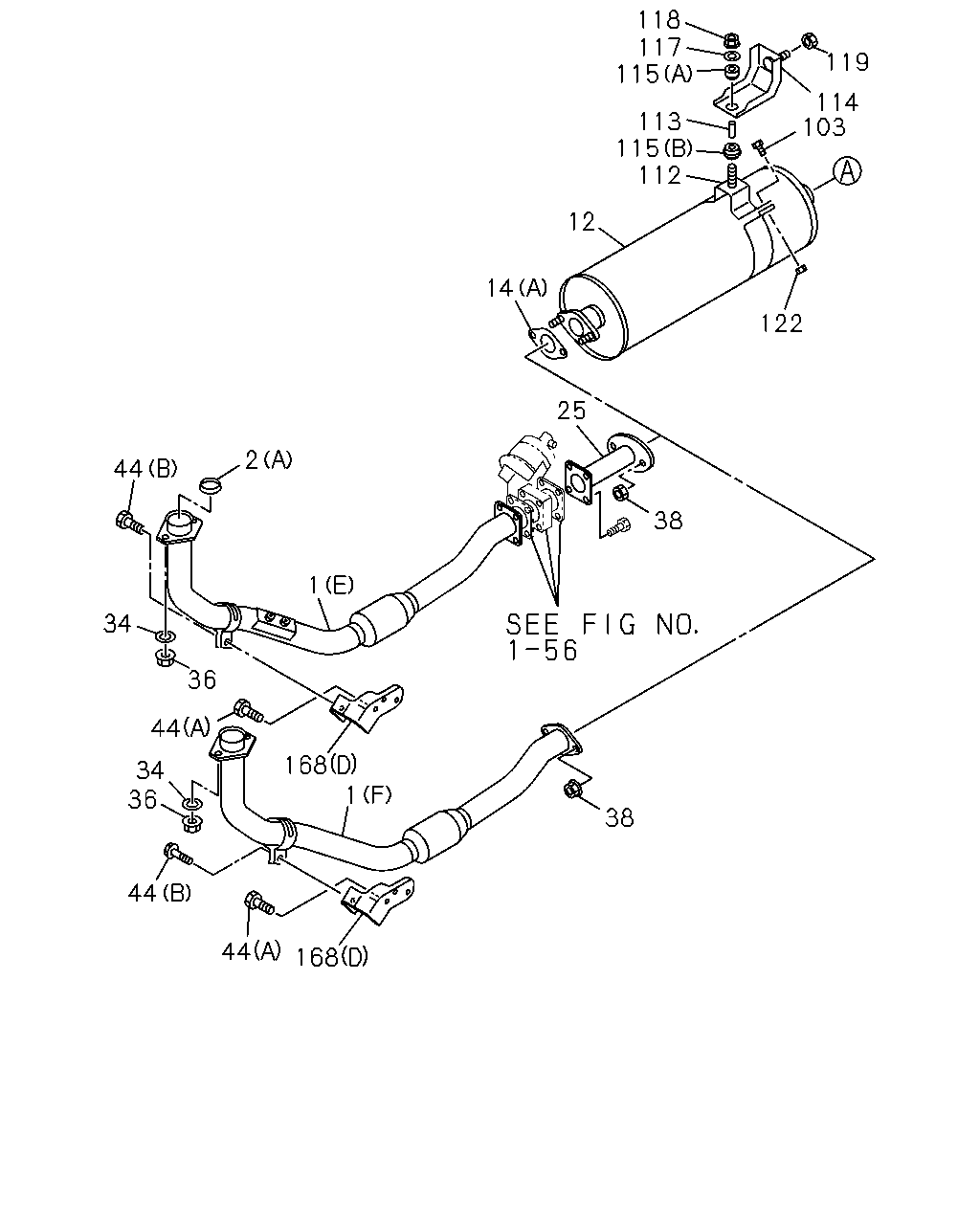

03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
(E)
|
8-97161-694-0 |
01 |
1 |
9607-9711 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXHAUST BRAKE<NF8>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(E)
|
8-97161-694-0 |
01 |
1 |
9712- |
● |
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EXHAUST BRAKE<NF8>
(F)
|
8-97161-782-0 |
01 |
1 |
9607-9711 |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. EXHAUST BRAKE<NF8>,FRT
INDEPENDENT SUSPENSION(6PP)
(F)
|
8-97161-782-0 |
01 |
1 |
9712- |
● |
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. EXHAUST BRAKE<NF8>
(D)
|
8-97161-736-0 |
01 |
1 |
9607- |
|
|
|
● |
|
|
|
| |
1 |
03.609 PIPE; EXH
4JG2 ENG(RJC)
EXHAUST BRAKE<NF8>
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-945-0 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-94329-529-0 |
01 |
1 |
9312-9402 |
● |
● |
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
(A)
|
8-97069-287-0 |
01 |
1 |
9403-9701 |
● |
● |
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97069-287-0 |
01 |
1 |
9702-9709 |
● |
● |
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97069-287-0 |
01 |
1 |
9702-9709 |
|
|
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
(A)
|
8-97180-750-2 |
01 |
1 |
9710- |
● |
● |
● |
● |
● |
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(A)
|
8-97180-750-2 |
01 |
1 |
9710- |
|
|
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
ID=71
|
8-94324-194-0 |
02 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4HF1 ENG(RLS)
|
8-97036-287-0 |
01 |
1 |
9312-9709 |
|
|
● |
● |
|
|
|
| |
2 |
03.611 GASKET; PIPE TO MANIF
4HF1 ENG(RLS)
|
8-97180-749-2 |
01 |
1 |
9710- |
|
|
● |
● |
|
|
|
| |
12 |

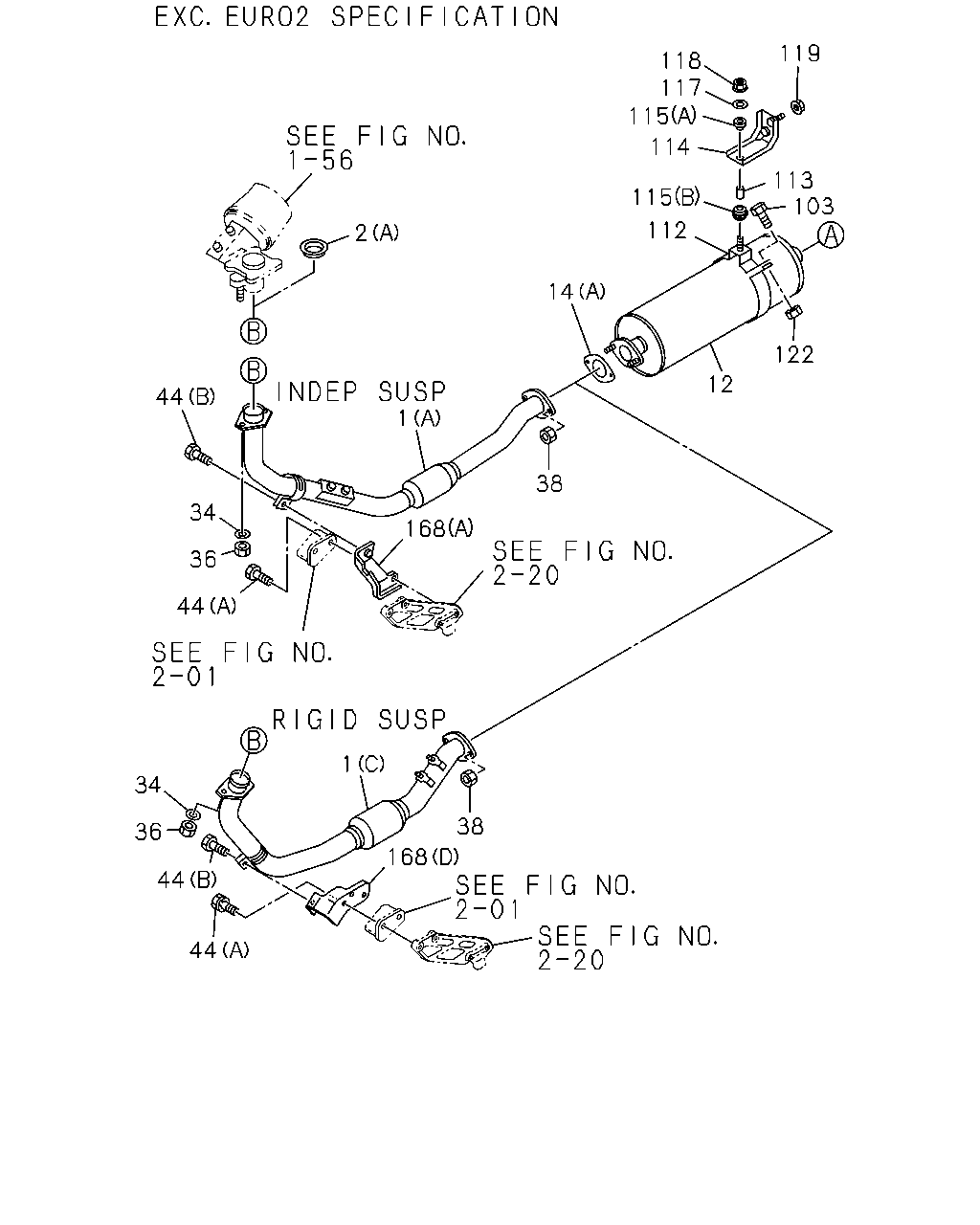

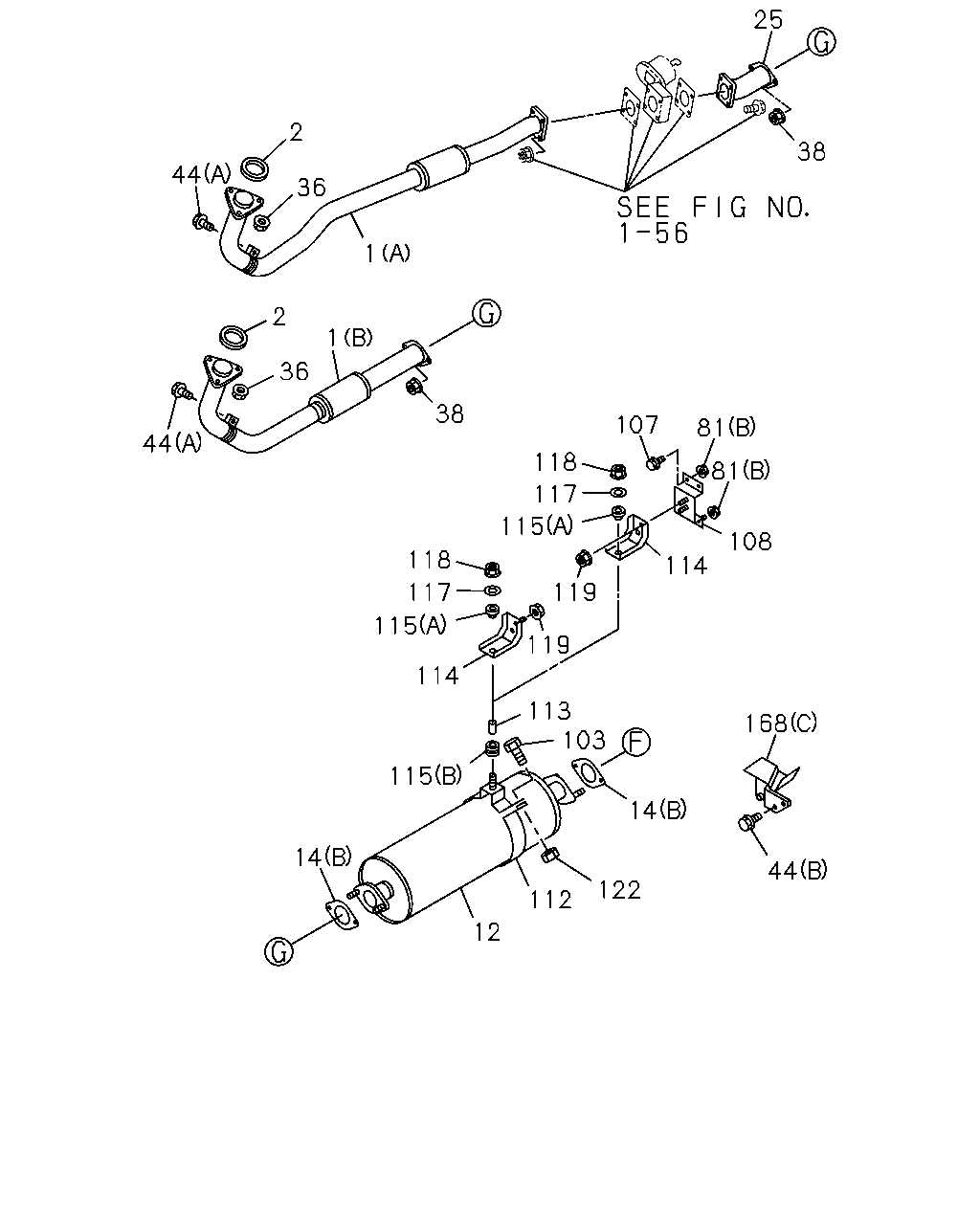

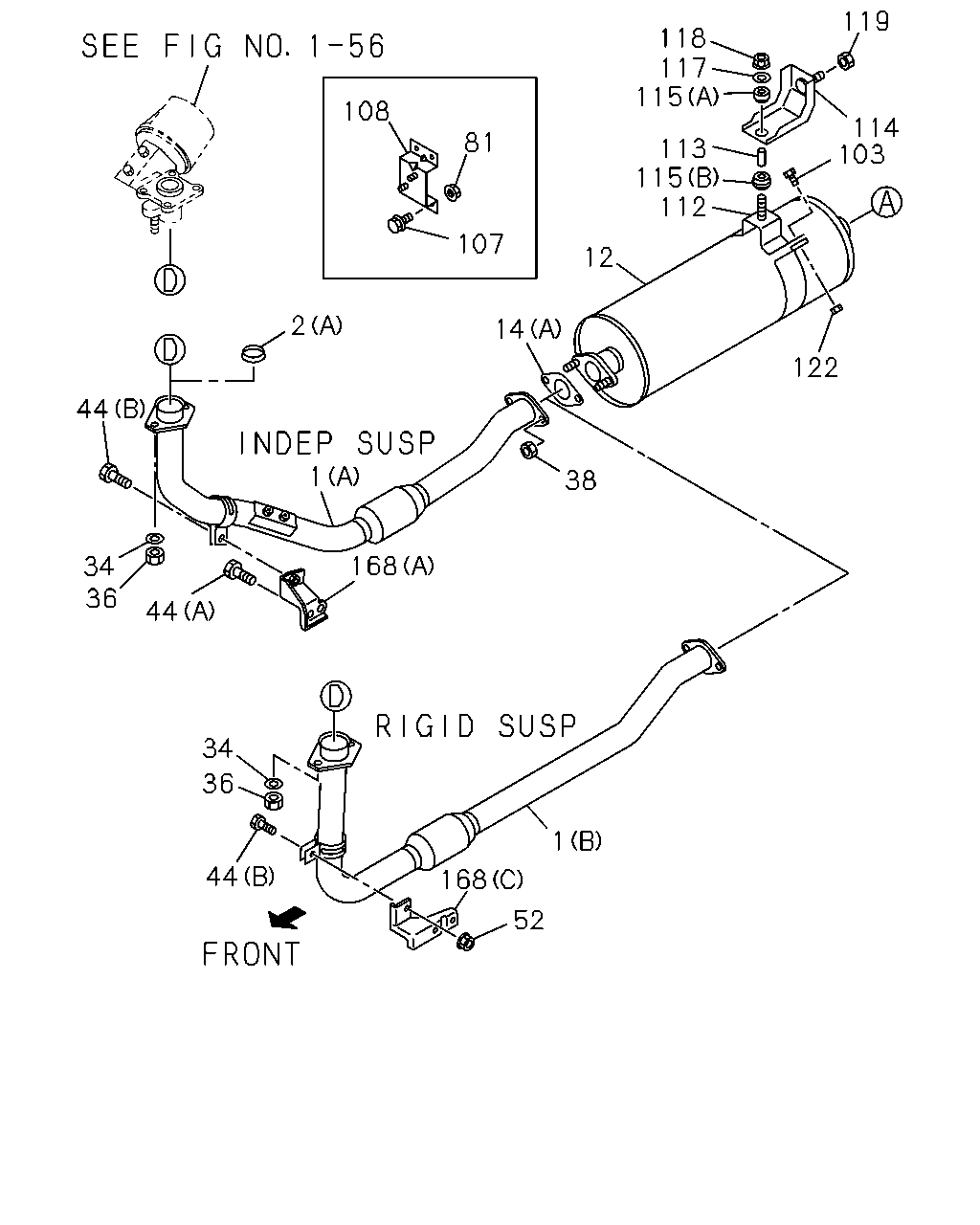

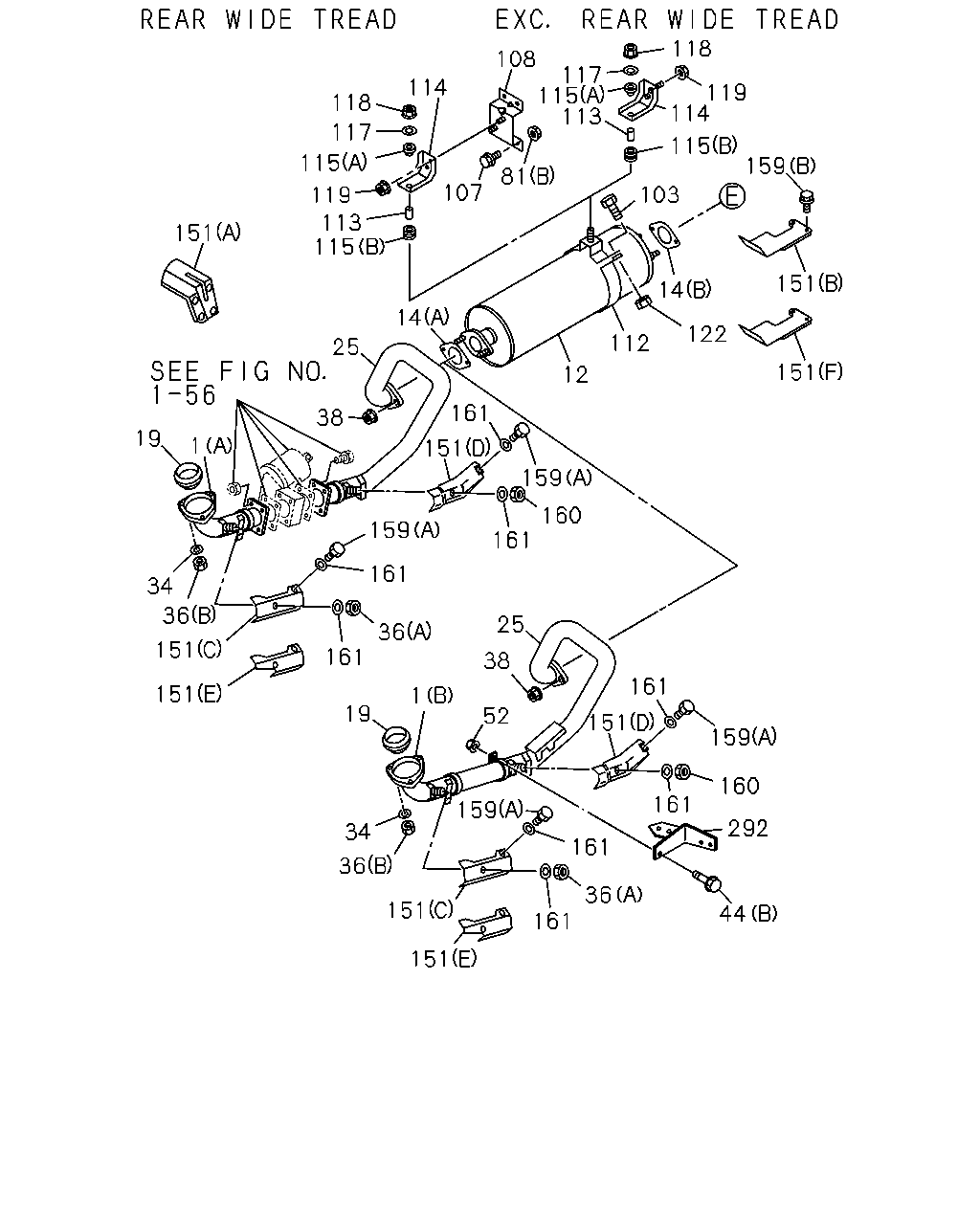

03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
NOISE PACK FOR CHINESE
REGULATION<6QX>
|
8-97089-857-0 |
01 |
1 |
9312-9606 |
● |
● |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
NOISE PACK FOR CHINESE
REGULATION<6QX>
EXC. TURBOCHARGER<K51>
|
8-97089-857-0 |
01 |
1 |
9607-9801 |
● |
● |
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
NOISE PACK FOR CHINESE
REGULATION<6QX>
EXC. TURBOCHARGER<K51>
|
8-97089-857-0 |
01 |
1 |
9802- |
● |
● |
|
● |
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. NOISE PACK FOR CHINESE REGULATI
ON<6QX>
|
8-97049-721-0 |
01 |
1 |
9312-9510 |
● |
● |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4BE1 ENG(RLH)
|
8-97049-721-0 |
01 |
1 |
9312-9510 |
● |
|
|
● |
|
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
|
8-97049-721-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. NOISE PACK FOR CHINESE REGULATI
ON<6QX>
|
8-97049-721-0 |
01 |
1 |
9511-9606 |
● |
● |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4BE1 ENG(RLH)
|
8-97049-721-0 |
01 |
1 |
9511-9606 |
● |
|
|
● |
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
|
8-97049-721-0 |
01 |
1 |
9511-9606 |
|
|
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,NOISE PACK
FOR CHINESE REGULATION<6QX>
|
8-97049-721-0 |
01 |
1 |
9607-9801 |
● |
● |
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4BE1 ENG(RLH)
|
8-97049-721-0 |
01 |
1 |
9607-9801 |
● |
|
|
● |
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
|
8-97049-721-0 |
01 |
1 |
9607-9801 |
|
|
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,NOISE PACK
FOR CHINESE REGULATION<6QX>
|
8-97049-721-0 |
01 |
1 |
9802- |
● |
● |
|
● |
● |
● |
|
| |
12 |
03.701 SILENCER ASM; EXH
4BE1 ENG(RLH)
|
8-97049-721-0 |
01 |
1 |
9802- |
● |
|
|
● |
|
● |
● |
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
|
8-97049-721-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97145-037-0 |
01 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
|
8-97103-505-0 |
01 |
1 |
9312-9511 |
● |
|
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JG2 ENG(RJC)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97103-505-1 |
01 |
1 |
9512- |
● |
|
|
● |
● |
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4BE1 ENG(RLH)
EXC. REAR WIDE TREAD(V4T)
|
8-94365-583-2 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HF1 ENG(RLS)
|
8-97033-893-1 |
01 |
1 |
9312-9409 |
|
|
● |
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HF1 ENG(RLS)
|
8-97120-517-0 |
01 |
1 |
9410-9806 |
|
|
● |
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4HF1 ENG(RLS)
|
8-97206-525-0 |
01 |
1 |
9807- |
|
|
● |
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
|
8-97065-551-0 |
01 |
1 |
9607-9711 |
|
|
|
● |
|
|
|
| |
12 |
03.701 SILENCER ASM; EXH
4JB1 ENG(RLF)
TURBOCHARGER<K51>
|
8-97065-551-0 |
01 |
1 |
9712- |
● |
|
|
● |
|
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4HF1 ENG(RLS)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9511-9604 |
● |
● |
● |
● |
● |
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4HF1 ENG(RLS)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9511-9604 |
|
|
● |
● |
|
|
|
| |
14 |

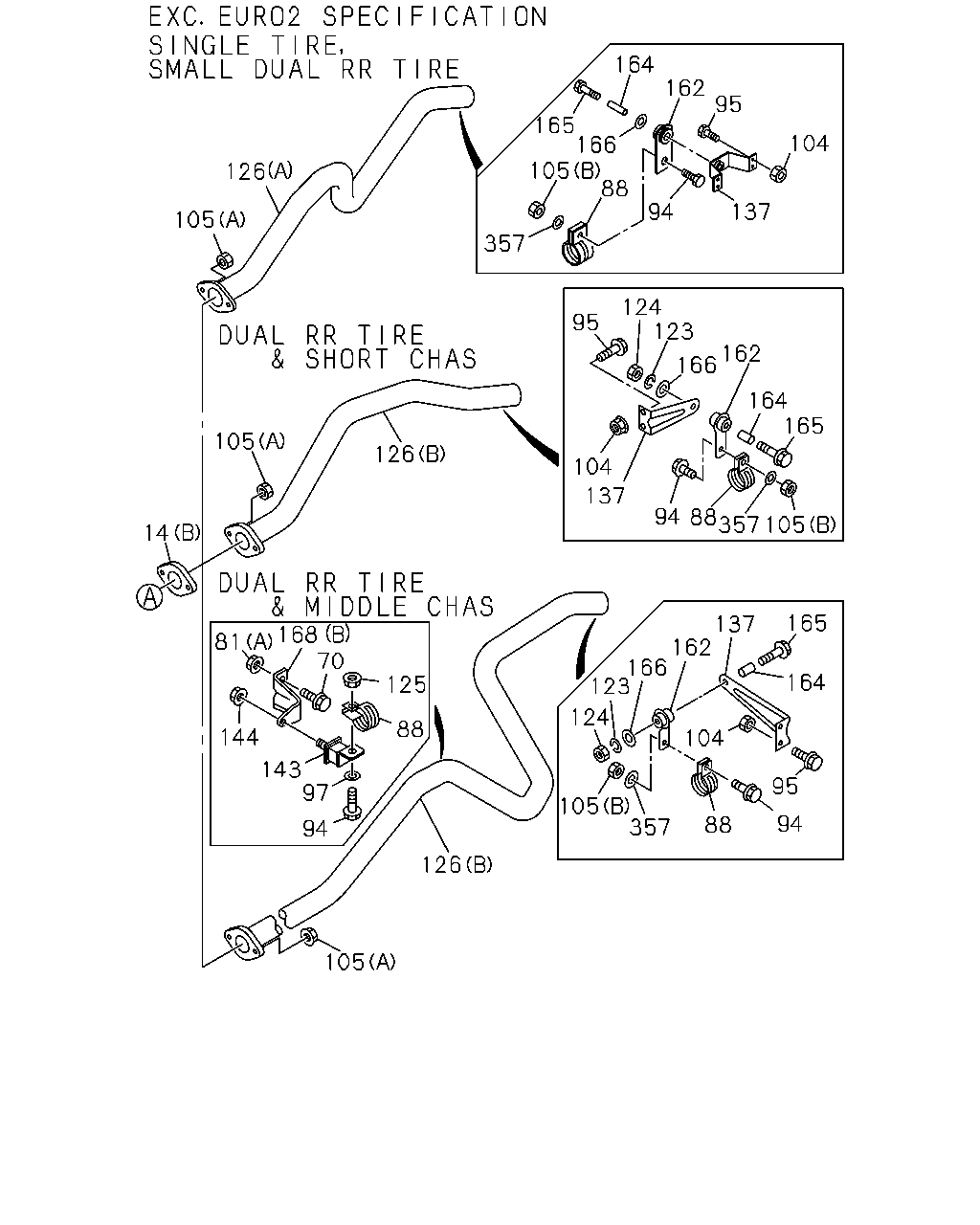

03.704 GASKET; SILENCER TO EXH PIPE
EXC. EURO2 SPECIFICATION<7AF>
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9605- |
● |
|
|
● |
|
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9605- |
|
● |
● |
|
● |
● |
● |
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4HF1 ENG(RLS)
(B)
ID=64.7
|
8-94328-352-0 |
01 |
1 |
9605- |
|
|
● |
● |
|
|
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
14 |
03.704 GASKET; SILENCER TO EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
(A)
ID=53.0 NON-ASBESTOS
|
8-94328-353-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
9312-9701 |
● |
● |
● |
● |
● |
|
|
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
9702-9801 |
● |
● |
● |
● |
● |
|
|
| |
34 |
03.613 WASHER; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
ID=10.5
|
5-09500-013-0 |
02 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
4BE1 ENG(RLH)
ID=10.5
|
5-09500-013-0 |
03 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
34 |
03.613 WASHER; EXH PIPE
4BE1 ENG(RLH)
ID=10.5
|
5-09500-013-0 |
03 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
9312-9701 |
● |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
9702-9801 |
● |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXHAUST BRAKE<NF8>
EXC. TURBOCHARGER<K51>
M10 H=18
|
9-09640-014-0 |
02 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
00.004
M10 LOCK NUT
|
8-94375-110-0 |
02 |
1 |
9312-9501 |
● |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EXHAUST BRAKE<NF8>
M10 FLANGE
|
8-97096-192-0 |
02 |
1 |
9502-9701 |
● |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EXHAUST
BRAKE<NF8>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
9702- |
● |
● |
● |
● |
● |
|
|
| |
36 |
03.613 NUT; EXH PIPE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
M10 FLANGE
|
8-97096-192-1 |
02 |
1 |
9702- |
|
|
|
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4BE1 ENG(RLH)
07.829
(A)
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4BE1 ENG(RLH)
07.829
(A)
M6 FLANGE
|
5-09440-004-0 |
01 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4BE1 ENG(RLH)
(B)
M10 H=18
|
9-09640-014-0 |
03 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
36 |
03.613 NUT; EXH PIPE
4BE1 ENG(RLH)
(B)
M10 H=18
|
9-09640-014-0 |
03 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
36 |
03.613 NUT; EXH PIPE
4HF1 ENG(RLS)
00.004
M10 LOCK NUT
|
8-94375-110-0 |
03 |
1 |
9312-9501 |
|
|
● |
● |
|
|
|
| |
36 |
03.613 NUT; EXH PIPE
4HF1 ENG(RLS)
M10 FLANGE
|
8-97096-192-1 |
03 |
1 |
9502- |
|
|
● |
● |
|
|
|
| |
38 |
00.002 NUT; SILENCER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
38 |
00.002 NUT; SILENCER
04.785
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4BE1 ENG(RLH)
EXC. EXHAUST BRAKE<NF8>
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF)
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4BE1 ENG(RLH)
EXC. EXHAUST BRAKE<NF8>
03.706
(B)
M8X40 W/LK WASHER
|
0-50040-840-0 |
01 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
08.900
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9312-9510 |
● |
|
|
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
08.900
(A)
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9312-9510 |
● |
|
|
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9704-9704 |
● |
|
|
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9704-9704 |
● |
|
|
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9704-9704 |
|
|
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9704-9706 |
● |
|
|
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9704-9706 |
● |
|
|
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
08.900
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
9707-9711 |
● |
|
|
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
08.900
M8X12 FLANGE
|
0-28080-812-0 |
02 |
1 |
9707-9711 |
● |
|
|
|
|
|
|
| |
44 |
03.613 BOLT; BRKT
4HF1 ENG(RLS)
01.252
(A)
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9312- |
|
|
● |
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4HF1 ENG(RLS)
(B)
M10X25 W/LK&PL WASHER
|
0-50151-025-0 |
02 |
1 |
9312- |
|
|
● |
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9704-9711 |
|
|
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JG2 ENG(RJC)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9712- |
● |
|
|
● |
● |
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9712- |
● |
|
|
● |
|
|
|
| |
44 |
03.613 BOLT; BRKT
4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
70 |
03.706 BOLT; BRKT
01.531
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9312-9411 |
|
|
|
● |
|
● |
|
| |
70 |
03.706 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9412-9510 |
|
|
|
● |
|
● |
|
| |
70 |
03.706 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
81 |
03.704 NUT; BRKT
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9401 |
|
|
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
03 |
1 |
9402- |
|
|
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9402-9510 |
|
|
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9511 |
|
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
81 |
03.704 NUT; BRKT
4JB1 ENG(RLF),4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
81 |
03.704 NUT; BRKT
04.785
(B)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9512- |
|
|
|
|
|
|
● |
| |
81 |
03.704 NUT; BRKT
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
81 |
03.704 NUT; BRKT
07.633
(A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9312-9801 |
● |
● |
● |
● |
● |
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9312-9801 |
|
|
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF)
ID=51.5
|
8-97016-034-0 |
01 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
88 |
03.708 CLAMP; EXH PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
88 |
03.708 CLAMP; EXH PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
88 |
03.708 CLAMP; EXH PIPE
4BE1 ENG(RLH),4HF1 ENG(RLS)
ID=61.6
|
8-97010-307-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
03.704 BOLT; CLAMP
03.708
M8X45
|
0-20800-845-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
95 |
03.708 BOLT; BRKT
01.073
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9312-9405 |
● |
● |
● |
● |
● |
● |
|
| |
95 |
03.708 BOLT; BRKT
01.531
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9406-9411 |
● |
● |
● |
● |
● |
● |
|
| |
95 |
03.708 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9412-9510 |
● |
● |
● |
● |
● |
● |
|
| |
95 |
03.708 BOLT; BRKT
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
97 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
97 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
103 |
03.704 BOLT; SILENCER BRKT FIX
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.613
M10X40 FLANGE
|
0-28681-040-0 |
04 |
1 |
9512-9702 |
● |
|
|
● |
|
|
|
| |
104 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
104 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
105 |
03.704 NUT; CLAMP
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
EXC. EURO2 SPECIFICATION<7AF>
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
105 |
03.704 NUT; CLAMP
04.785
(A)
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9512- |
|
● |
● |
|
● |
● |
● |
| |
105 |
03.704 NUT; CLAMP
02.559
(B)
M8
|
9-09110-408-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
105 |
03.704 NUT; CLAMP
02.559
(B)
M8
|
9-09110-408-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97081-457-0 |
01 |
1 |
9312-9511 |
● |
● |
● |
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
9512-9801 |
● |
● |
● |
● |
● |
|
|
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EURO2 SPECIFICATION<7AF>
|
8-97081-457-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
|
| |
112 |
03.706 BRACKET; HANGER
4BE1 ENG(RLH)
|
8-97076-019-0 |
01 |
1 |
9312-9510 |
● |
|
● |
● |
|
● |
|
| |
112 |
03.706 BRACKET; HANGER
4BE1 ENG(RLH)
|
8-97076-019-0 |
01 |
1 |
9511- |
● |
|
● |
● |
|
● |
● |
| |
112 |
03.706 BRACKET; HANGER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97076-018-0 |
01 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
112 |
03.706 BRACKET; HANGER
4HF1 ENG(RLS)
|
8-97076-020-0 |
01 |
1 |
9312- |
|
|
● |
● |
|
|
|
| |
113 |
03.704 COLLAR; DIST,MTG BRKT
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
113 |
03.704 COLLAR; DIST,MTG BRKT
03.706
L=37.5
|
9-22151-217-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
114 |
03.704 BRACKET; EXH SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97073-758-0 |
01 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
9312-9511 |
● |
● |
|
● |
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
9312-9511 |
|
|
● |
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. EURO2 SPECIFICATION<7AF>
|
8-94329-856-0 |
01 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-856-0 |
01 |
1 |
9512- |
|
● |
|
● |
● |
● |
|
| |
114 |
03.704 BRACKET; EXH SILENCER
EXC. REAR WIDE TREAD(V4T)
|
8-94329-856-0 |
01 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
|
8-94329-857-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
REAR WIDE TREAD(V4T)
|
8-94329-857-0 |
01 |
1 |
9511- |
|
|
● |
|
|
|
|
| |
114 |
03.704 BRACKET; EXH SILENCER
|
8-94329-857-0 |
01 |
1 |
9511- |
|
|
|
|
|
|
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(A)
|
8-94457-277-1 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
115 |
03.704 RUBBER; MTG,SILENCER
(A)
|
8-94457-277-1 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
115 |
03.704 RUBBER; MTG,SILENCER
(B)
|
8-94457-278-1 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
115 |
03.704 RUBBER; MTG,SILENCER
(B)
|
8-94457-278-1 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
117 |
03.704 WASHER; PL,SILENCER MTG BRKT
OD=55
|
9-09852-169-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
118 |
03.704 NUT; SILENCER MTG BRKT
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
118 |
03.704 NUT; SILENCER MTG BRKT
07.874
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
119 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
119 |
03.704 NUT; BRKT
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
122 |
03.275 NUT; HANGER BRKT
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
122 |
03.275 NUT; HANGER BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9511- |
|
|
● |
|
|
|
|
| |
124 |
03.704 NUT; SUPPORT RUBBER
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
124 |
03.704 NUT; SUPPORT RUBBER
EXC. REAR WIDE TREAD(V4T)
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
125 |
03.708 NUT; CLAMP
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
125 |
03.708 NUT; CLAMP
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |

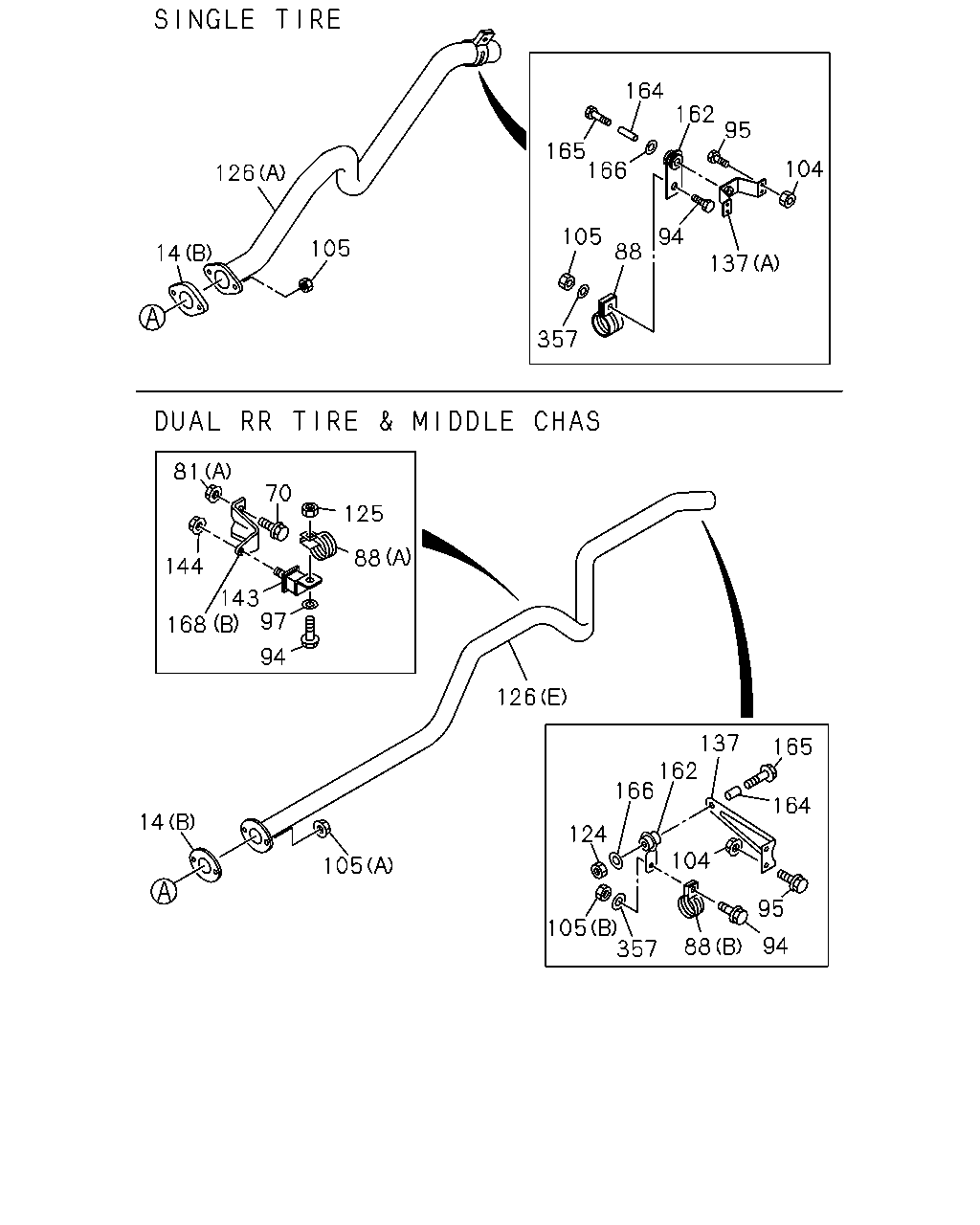

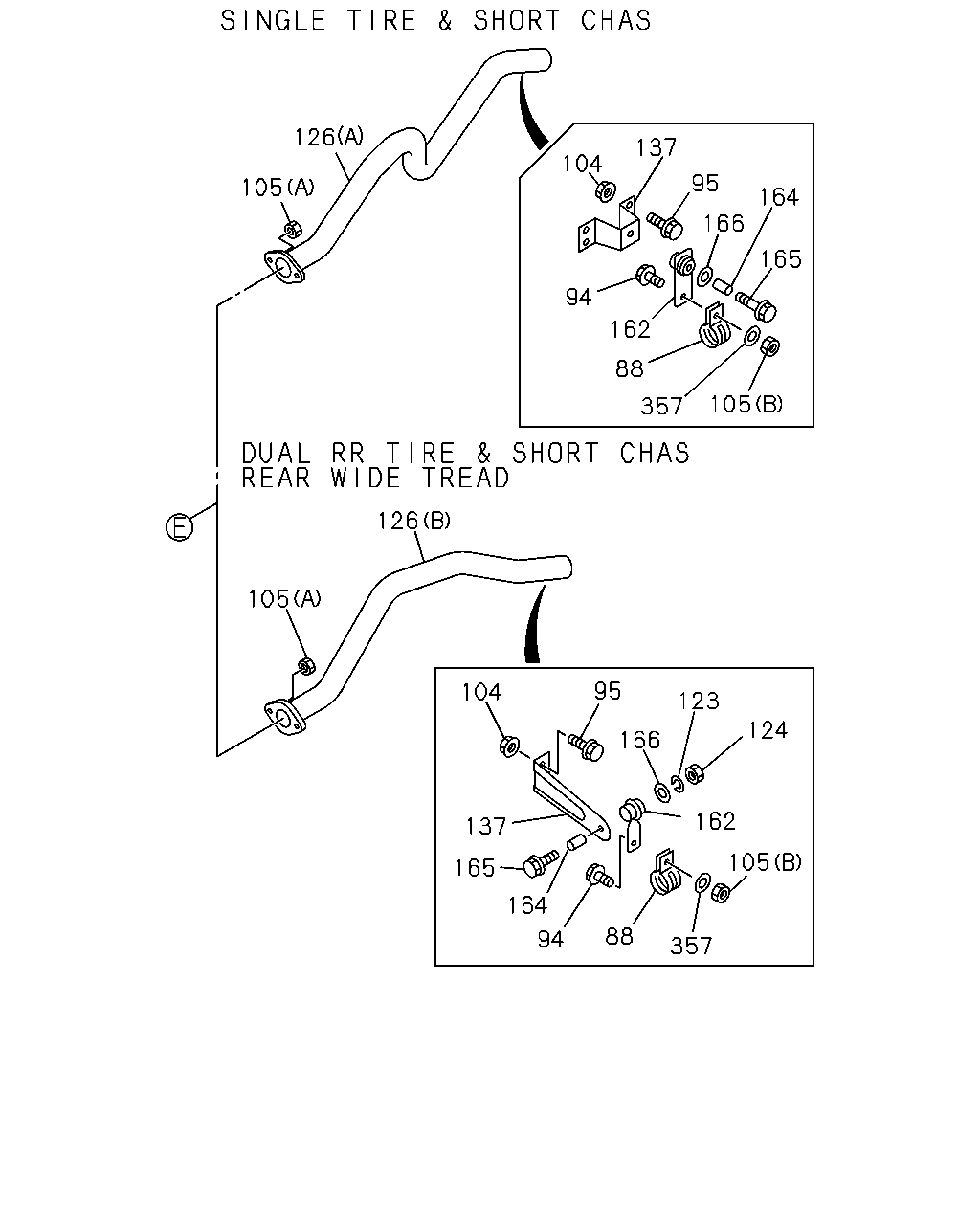

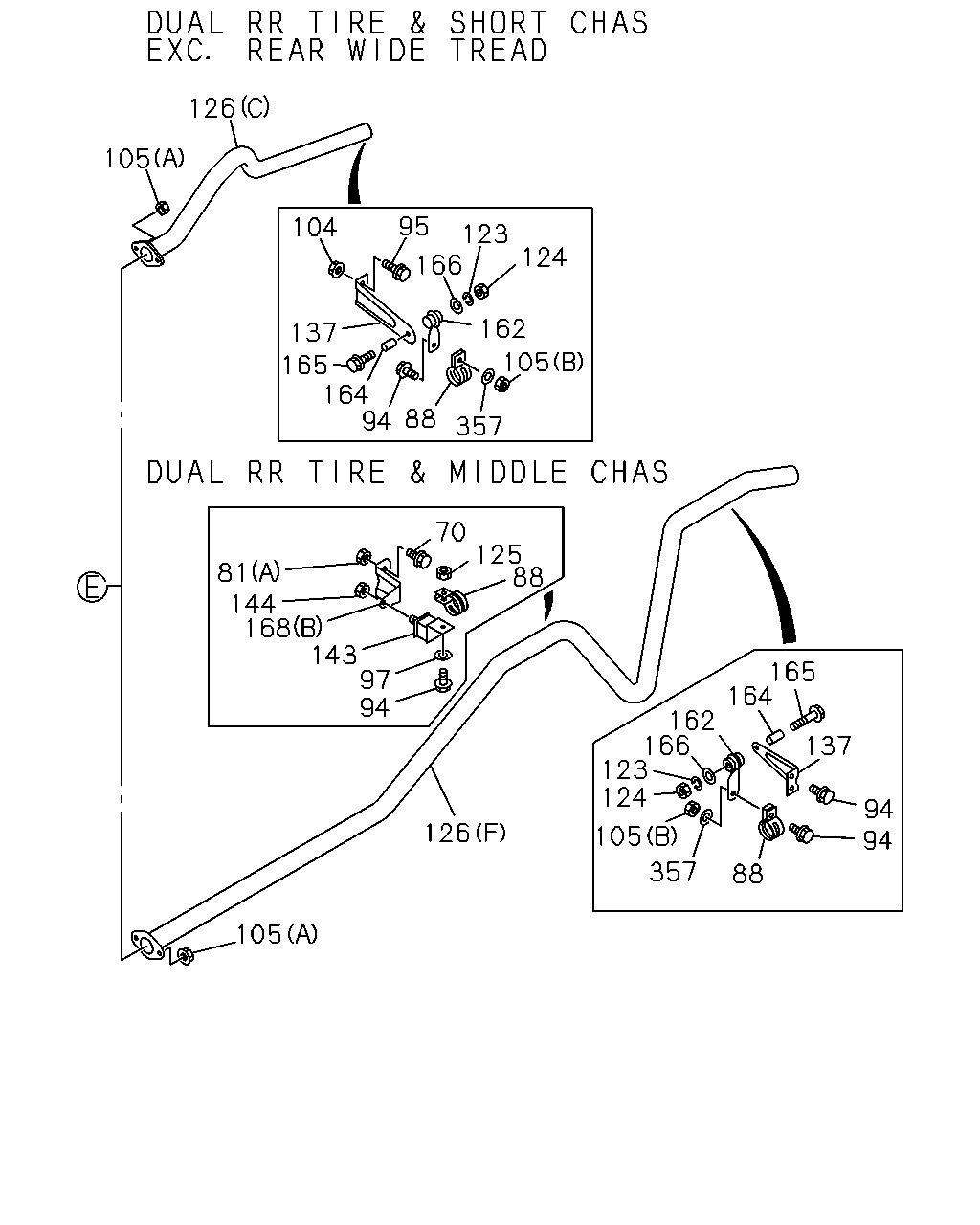

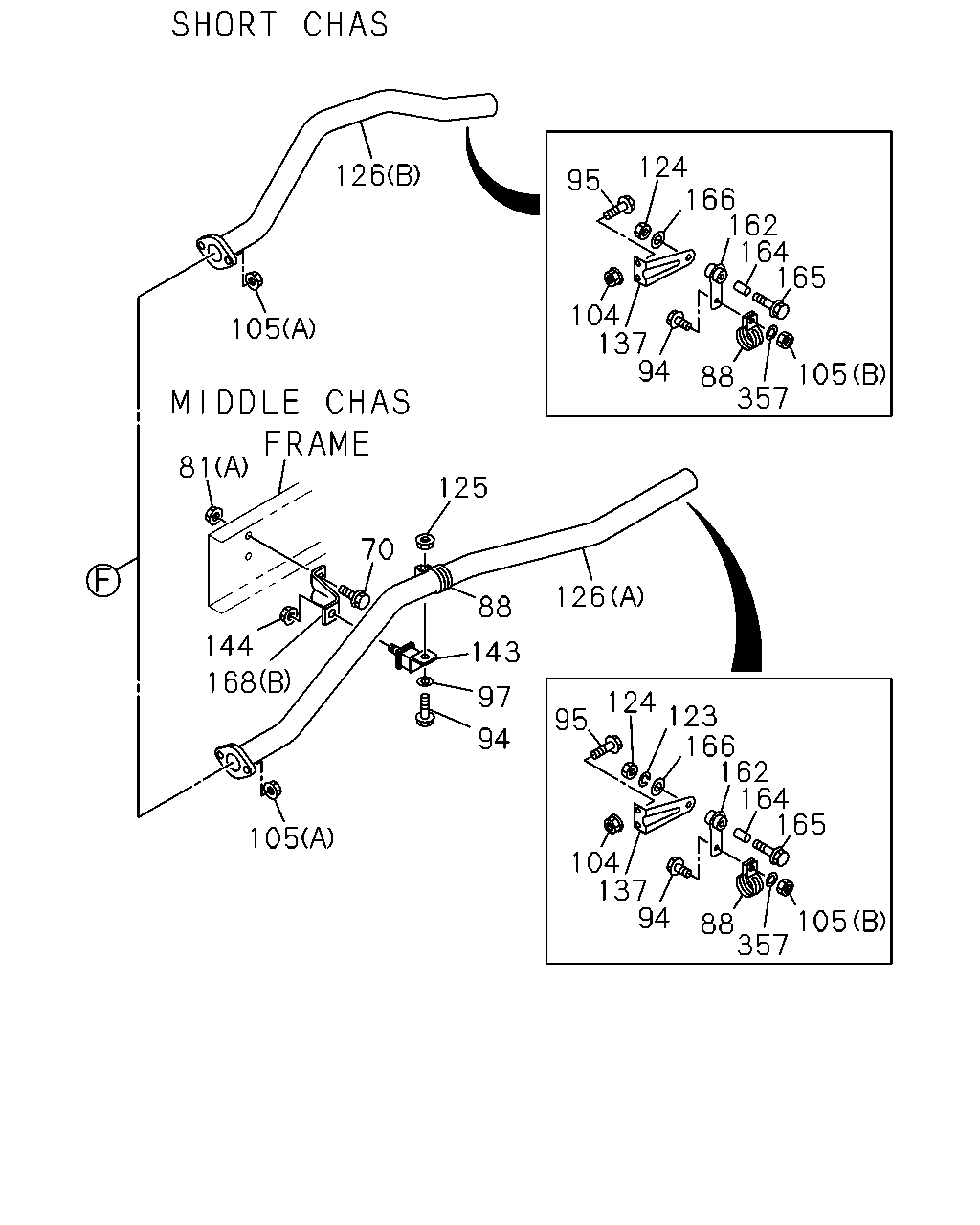

126 |
03.705 PIPE; EXH,RR
4BE1 ENG(RLH)
(A)
|
8-97083-740-1 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(D)
|
8-97144-948-0 |
01 |
1 |
9512-9612 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(D)
|
8-97174-126-0 |
01 |
1 |
9701- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
8-97081-460-0 |
01 |
1 |
9312-9511 |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-460-0 |
01 |
1 |
9312-9511 |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EURO2 SPECIFICATION<7AF>
(A)
|
8-97081-460-0 |
01 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97081-460-0 |
01 |
1 |
9512- |
|
● |
|
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4BE1 ENG(RLH)
REAR WIDE TREAD(V4T)
(B)
|
8-97089-858-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4BE1 ENG(RLH)
EXC. REAR WIDE TREAD(V4T)
(C)
|
8-97083-741-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
REAR WIDE TREAD(V4T)
(B)
|
8-97048-450-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
REAR WIDE TREAD(V4T)
(B)
|
8-97090-827-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(A)
|
8-97135-722-0 |
01 |
1 |
9511- |
|
|
|
|
|
|
● |
| |
126 |
03.705 PIPE; EXH,RR
4BE1 ENG(RLH)
(F)
|
8-97076-024-2 |
01 |
1 |
9312-9801 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
(F)
|
8-97076-024-2 |
01 |
1 |
9312-9801 |
|
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4BE1 ENG(RLH)
(F)
|
8-97076-024-2 |
01 |
1 |
9802- |
|
|
|
● |
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4HF1 ENG(RLS)
(A)
|
8-97034-100-1 |
01 |
1 |
9312- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
TURBOCHARGER<K51>
(E)
|
8-97161-696-0 |
01 |
1 |
9607- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
CHILE EQUIPMENT(6KB)
EURO2 SPECIFICATION<7AF>
(D)
|
8-97210-759-0 |
01 |
1 |
9805- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(D)
|
8-97144-949-0 |
01 |
1 |
9512-9804 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
EXC. CHILE EQUIPMENT(6KB)
(D)
|
8-97144-949-0 |
01 |
1 |
9805- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
(C)
|
8-97090-828-0 |
01 |
1 |
9312-9511 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. EURO2 SPECIFICATION<7AF>
(C)
|
8-97090-828-0 |
01 |
1 |
9512-9606 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EURO2
SPECIFICATION<7AF>
(C)
|
8-97090-828-0 |
01 |
1 |
9607-9801 |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,EURO2
SPECIFICATION<7AF>
(C)
|
8-97090-828-0 |
01 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
126 |
03.705 PIPE; EXH,RR
4JB1 ENG(RLF)
(C)
|
8-97090-828-0 |
01 |
1 |
9802- |
|
|
|
|
|
● |
|
| |
126 |
03.705 PIPE; EXH,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
(A)
|
8-97081-465-0 |
01 |
1 |
9312- |
|
|
|
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
9-22121-146-1 |
01 |
1 |
9312-9711 |
● |
● |
|
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
|
9-22121-146-1 |
01 |
1 |
9712- |
● |
● |
|
|
● |
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
REAR WIDE TREAD(V4T)
|
8-94114-022-1 |
01 |
1 |
9312-9610 |
|
|
● |
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
REAR WIDE TREAD(V4T)
|
8-97169-014-0 |
01 |
1 |
9611- |
|
|
● |
|
|
|
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
8-94468-175-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
137 |
03.706 BRACKET; TAIL PIPE
|
8-94468-175-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
143 |
03.704 RUBBER; SUPPORT
|
8-94100-156-1 |
01 |
1 |
9312-9404 |
|
|
|
● |
|
● |
|
| |
143 |
03.704 RUBBER; SUPPORT
|
8-97046-148-1 |
01 |
1 |
9405-9510 |
|
|
|
● |
|
● |
|
| |
143 |
03.704 RUBBER; SUPPORT
|
8-97046-148-1 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
144 |
03.613 NUT; MTG RUBBER
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
144 |
03.613 NUT; MTG RUBBER
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
|
8-94156-255-0 |
01 |
1 |
9312- |
● |
● |
|
|
● |
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
REAR WIDE TREAD(V4T)
|
8-94156-258-0 |
01 |
1 |
9312-9605 |
|
|
● |
|
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
REAR WIDE TREAD(V4T)
L=148
|
8-97145-971-0 |
01 |
1 |
9606- |
|
|
● |
|
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
EXC. REAR WIDE TREAD(V4T)
03.704
|
8-94156-257-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
L=115
|
8-94156-256-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
162 |
03.706 RUBBER; SUPPORT,TAIL PIPE
L=115
|
8-94156-256-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
03.616
L=23
|
9-22151-175-0 |
01 |
1 |
9312- |
● |
● |
|
|
● |
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
EXC. REAR WIDE TREAD(V4T)
03.616
L=23
|
9-22151-175-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
REAR WIDE TREAD(V4T)
L=37.5
|
9-22151-217-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
L=37.5
|
9-22151-217-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
REAR WIDE TREAD(V4T)
L=37.5
|
9-22151-217-0 |
01 |
1 |
9511- |
|
|
● |
|
|
|
|
| |
164 |
03.706 COLLAR; DIST,TAIL PIPE
L=37.5
|
9-22151-217-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
165 |
03.706 BOLT; SUPPORT RUBBER
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9312-9508 |
● |
● |
|
|
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
EXC. REAR WIDE TREAD(V4T)
01.252
M8X45 W/LK WASHER
|
0-50040-845-0 |
01 |
1 |
9312-9508 |
|
|
● |
|
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
01.540
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9509- |
● |
● |
|
|
● |
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
EXC. REAR WIDE TREAD(V4T)
01.540
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9509- |
|
|
● |
|
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
01.252
M10X70
|
0-10806-070-0 |
01 |
1 |
9312-9504 |
|
|
● |
|
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
01.252
M10X70
|
0-10806-070-0 |
01 |
1 |
9312-9504 |
|
|
|
● |
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9505-9510 |
|
|
● |
|
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9505-9510 |
|
|
|
● |
|
● |
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
REAR WIDE TREAD(V4T)
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9511- |
|
|
● |
|
|
|
|
| |
165 |
03.706 BOLT; SUPPORT RUBBER
M10X70 FLANGE
|
0-28081-070-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
01 |
1 |
9312- |
● |
● |
|
|
● |
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
REAR WIDE TREAD(V4T)
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
|
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
REAR WIDE TREAD(V4T)
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9511- |
|
|
● |
|
|
|
|
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
166 |
03.706 WASHER; PL,SUPPORT RUBBER,EXH PI
EXC. REAR WIDE TREAD(V4T)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
02 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(A)
|
8-97144-952-0 |
01 |
1 |
9512- |
● |
|
|
|
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(C)
|
8-97144-955-0 |
01 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
167 |
03.706 HANGER; EXH PIPE
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
(B)
|
8-97144-953-0 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF)
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97081-704-3 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
|
8-94445-704-0 |
01 |
1 |
9312-9703 |
● |
● |
● |
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
EXC. TURBOCHARGER<K51>,FRT
INDEPENDENT SUSPENSION(6PP)
(C)
|
8-94445-704-0 |
01 |
1 |
9704- |
● |
● |
● |
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
9312-9703 |
● |
|
|
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
9704-9711 |
● |
|
|
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
9704-9711 |
|
|
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JG2 ENG(RJC)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
9712- |
● |
|
|
● |
● |
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4JB1 ENG(RLF)
TURBOCHARGER<K51>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(D)
|
8-97084-346-2 |
01 |
1 |
9712- |
● |
|
|
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
4HF1 ENG(RLS)
(C)
|
8-97075-343-1 |
01 |
1 |
9312- |
|
|
● |
● |
|
|
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
03.704
(B)
|
8-94468-174-1 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
● |
|
| |
168 |
03.613 BRACKET; EXH PIPE,FRT
03.704
(B)
|
8-94468-174-1 |
01 |
1 |
9511- |
|
|
|
● |
|
● |
● |
| |
175 |
03.685 CONVERTER; CATALYST
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97140-417-1 |
01 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
211 |
03.685 NUT; CONV
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.706
T=28 55X44(OVAL)
|
8-94332-331-0 |
01 |
1 |
9512-9612 |
● |
|
|
● |
|
|
|
| |
226 |
03.613 RUBBER; CUSHION
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
|
8-97166-498-0 |
01 |
1 |
9701- |
● |
|
|
● |
|
|
|
| |
258 |
03.685 BOLT; CONV BRKT
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
03.613
M10X40 FLANGE
|
0-28681-040-0 |
04 |
1 |
9512-9702 |
● |
|
|
● |
|
|
|
| |
262 |
03.704 BOLT; HANGER TO BODY
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
344 |
03.602 NUT; SILENCER
4JG2 ENG(RJC)
EURO2 SPECIFICATION<7AF>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
9512- |
● |
|
|
● |
|
|
|
| |
357 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
357 |
03.708 WASHER; PL,CLAMP
01.276
ID=8.4 OD=18
|
9-09164-608-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
