Sayfa 1-41 - Isuzu EPC

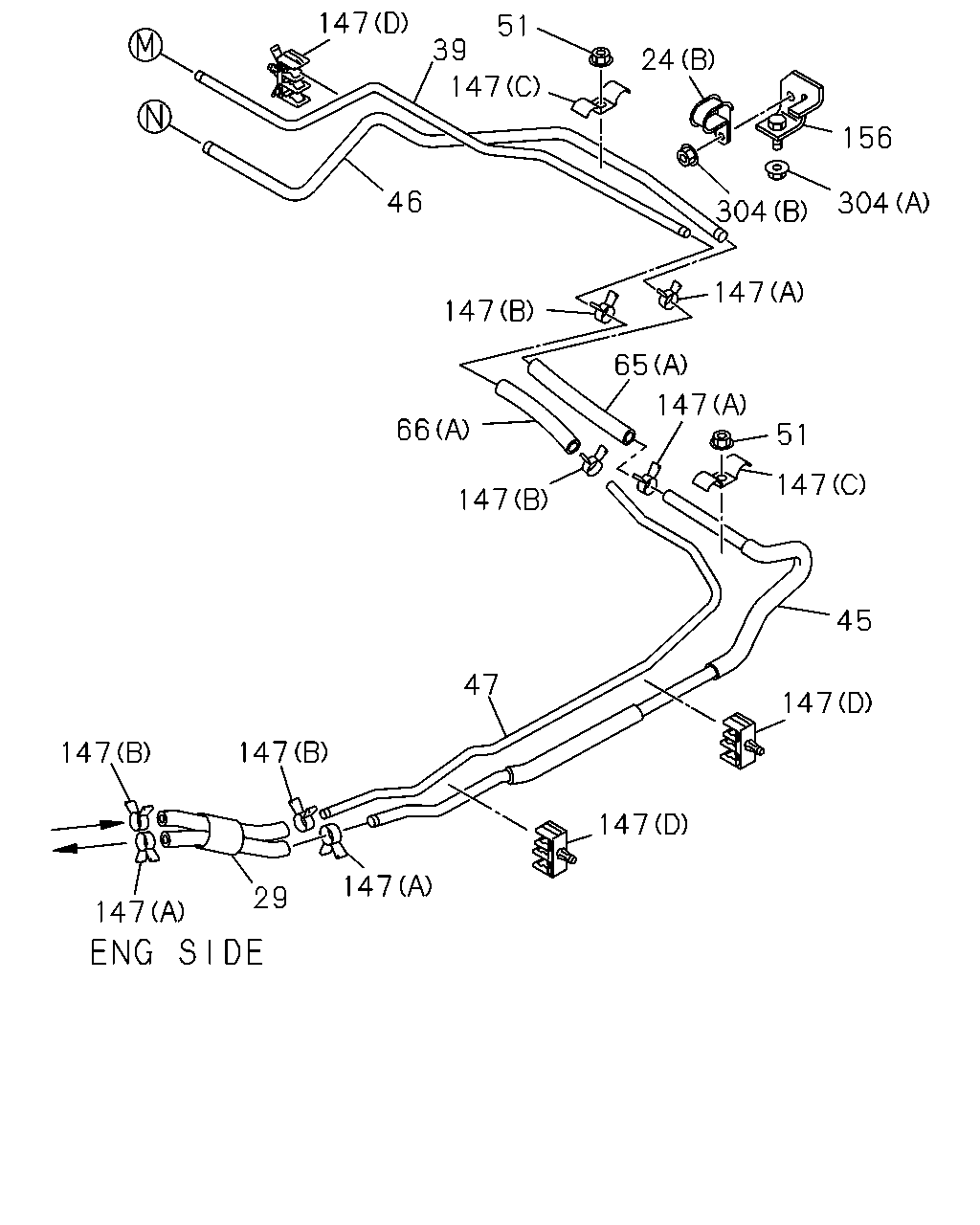

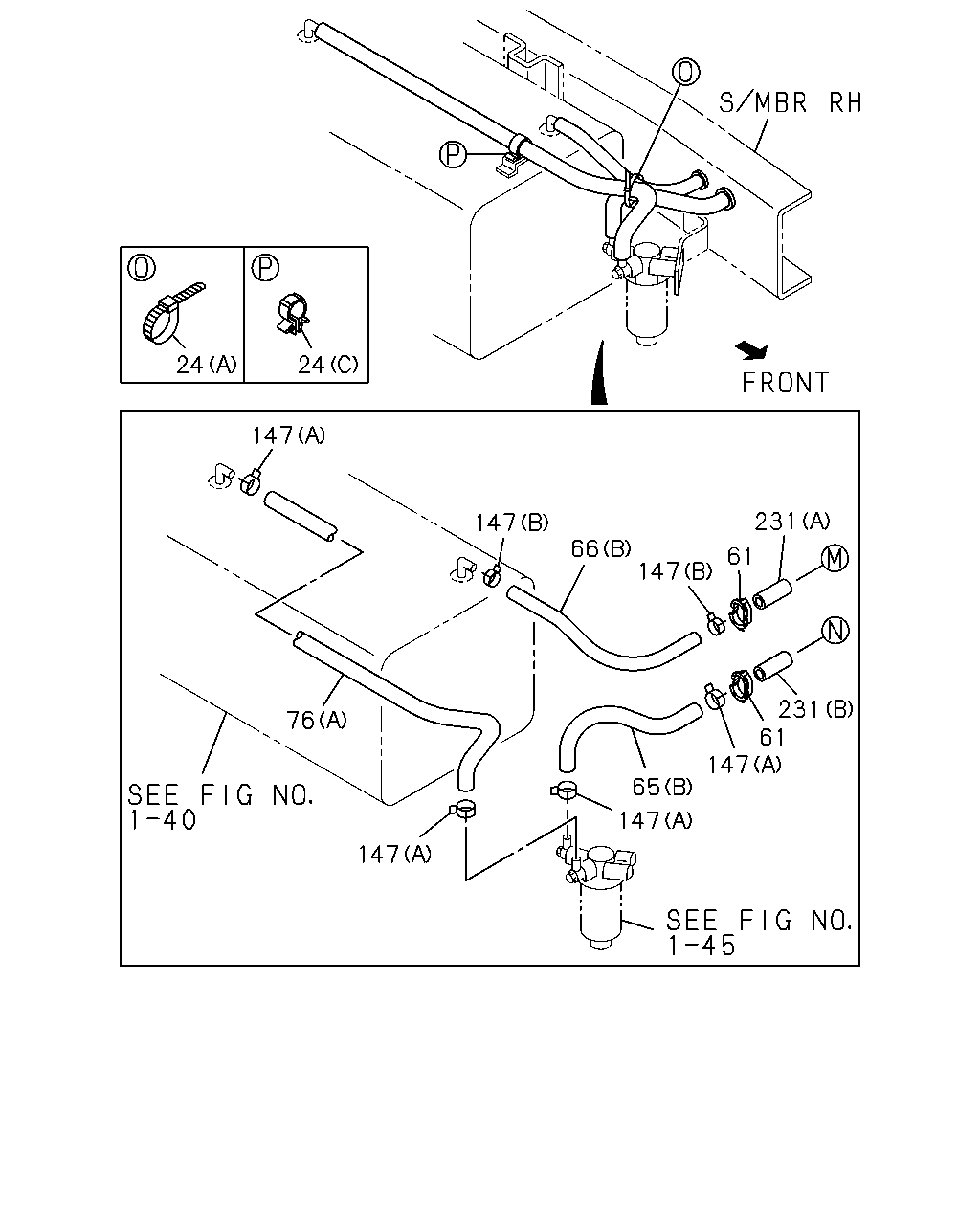

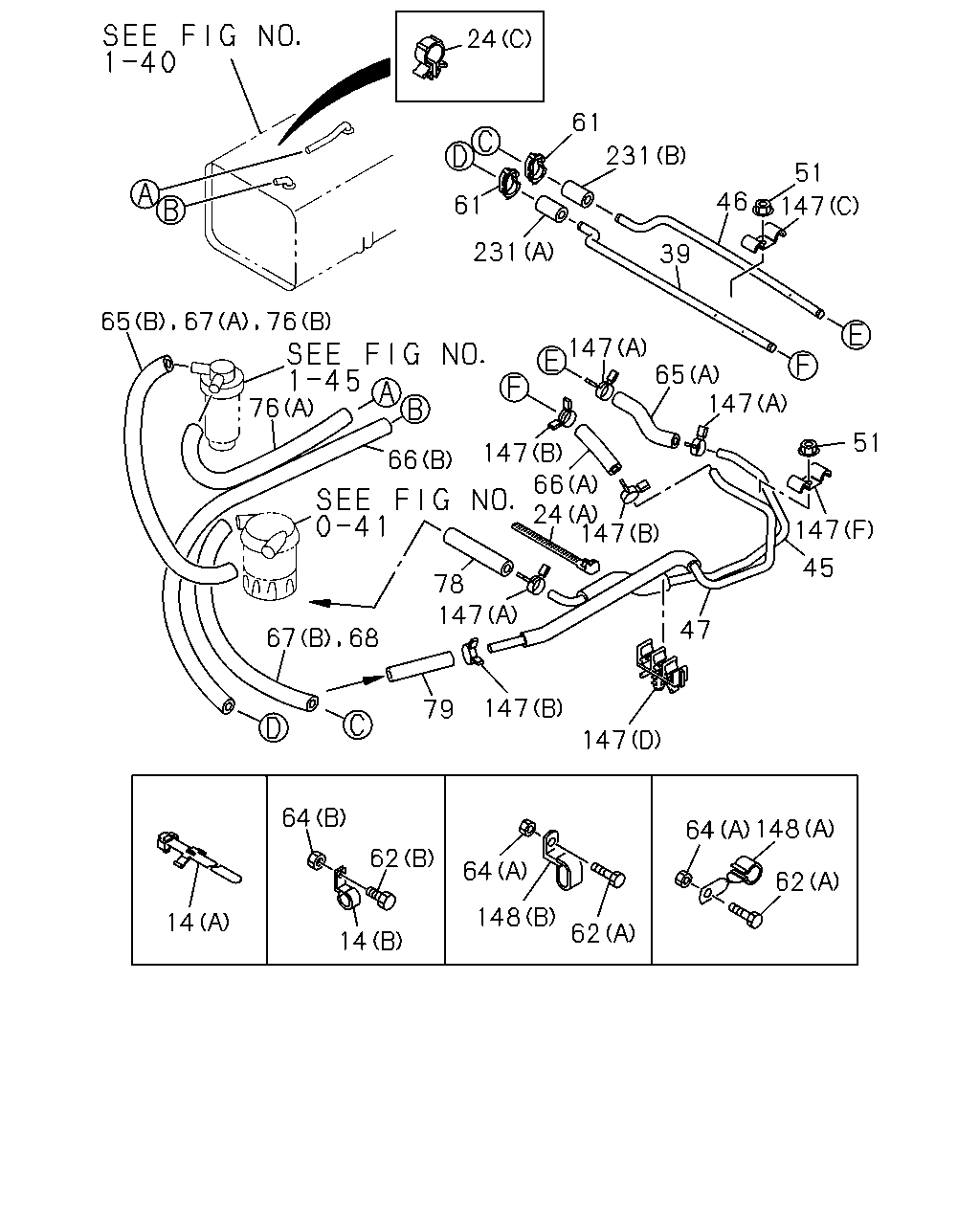

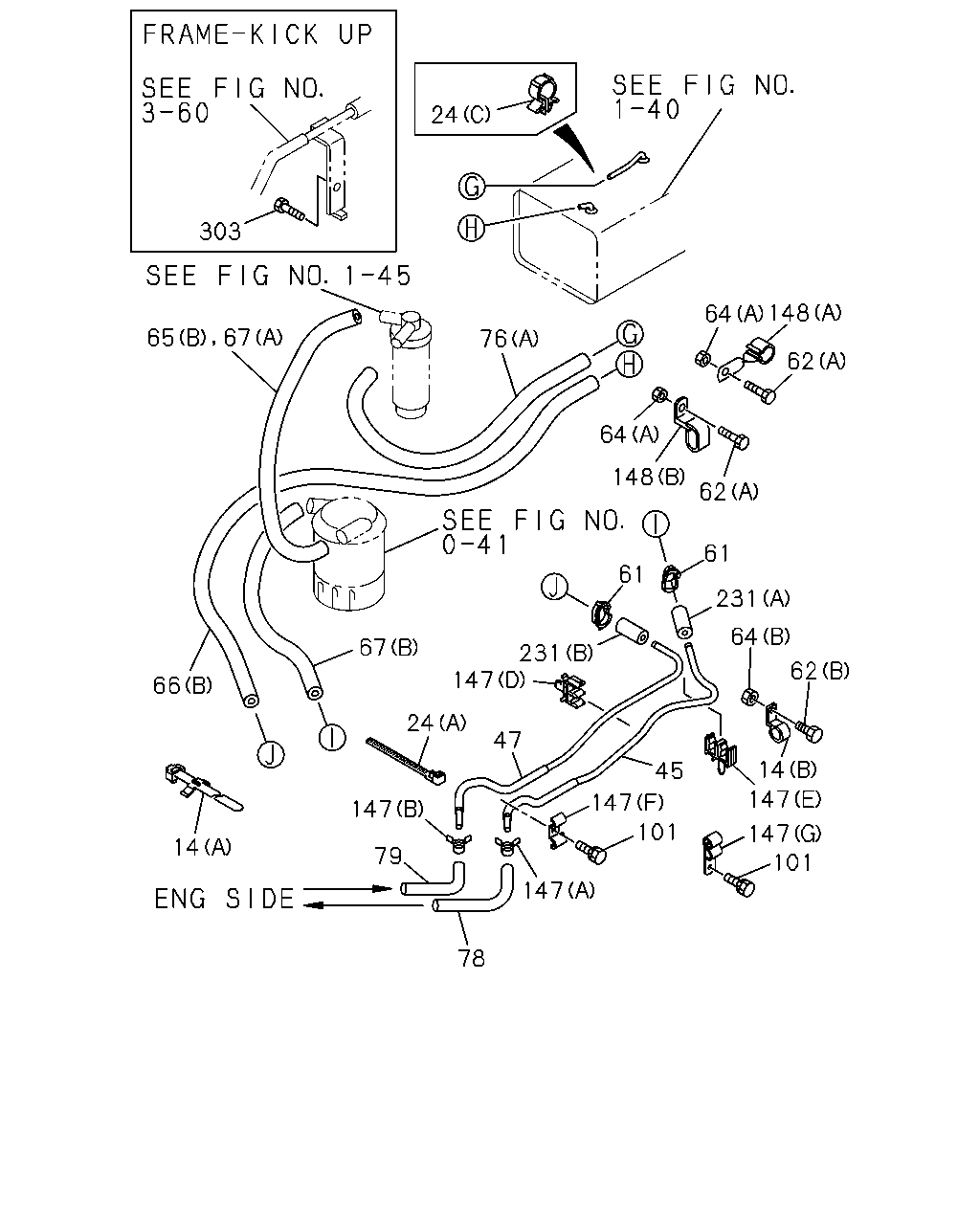

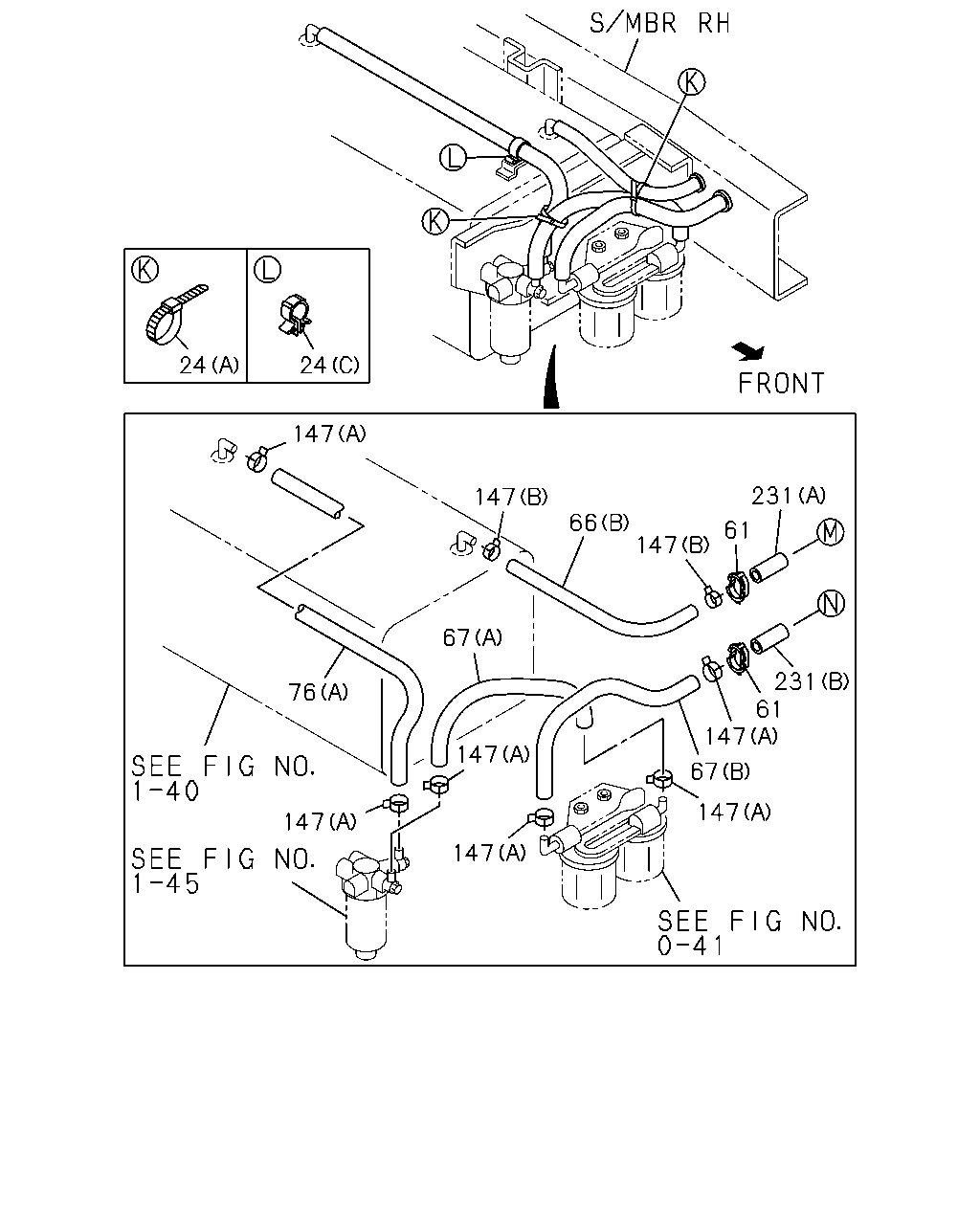

1-41 — FUEL PIPING; CHASSIS (#45864) — 841 parça

24 61 231 51 46 61 147 231 39 65 67 76 147 65 147 76 51 147 66 24 147 66 147 45 78 147 47 67 68 147 79 147 64 64 62 64 62 148 14 62 14 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 02.559 (A) L=168	8-97802-347-0	01	1	9312-9312	●
14	03.162 CLIP; HOSE 03.630 (B) ID=19 H=40 L=25	1-09700-909-0	01	1	9401-9407	●
14	03.162 CLIP; HOSE 03.630 (B) ID=19 H=25 L=25	1-09700-464-0	01	1	9408-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9312-9410	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	9312-9410				●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9411-9510	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9511-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9403-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	9312-				●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9401-	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MINI BUS CHASSIS<V4B>	8-97090-339-3	01	1	9312-		●				●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9312-			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-217-1	01	1	9410-				●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97073-597-3	01	1	9312-9409				●	●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9410-				●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9312-				●	●
39	03.163 PIPE; FUEL 4JB1 ENG(RLF)	8-97103-840-0	01	1	9802-	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-645-2	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-375-1	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-594-0	01	1	9312-9711		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9312-		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	9312-		●				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9312-9510				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9312-9510					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9511-				●
45	03.163 PIPE; FUEL,DELIVERY	8-97102-046-2	01	1	9511-							●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9511-					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-790-0	01	1	9312-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9410-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS)	8-97035-665-3	01	1	9312-9409				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-665-3	01	1	9410-				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9312-9801				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9802-	●			●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97070-372-4	01	1	9312-9703					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9704-					●
45	03.163 PIPE; FUEL,DELIVERY	8-97103-824-1	01	1	9312-9801	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97103-824-1	01	1	9802-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MINI BUS CHASSIS<V4B>	8-97075-972-3	01	1	9312-		●				●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9312-			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-213-2	01	1	9410-				●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97068-793-3	01	1	9312-9409				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9410-				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9312-				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF)	8-97103-823-0	01	1	9802-	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-646-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97102-051-0	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-595-0	01	1	9312-9711		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	9312-		●	●			●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9312-9510				●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9312-9510					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9511-				●
47	03.163 PIPE; FUEL,RETURN	8-97074-746-5	01	1	9511-							●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9511-					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-789-0	01	1	9312-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9410-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97035-667-2	01	1	9312-9409				●	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-667-2	01	1	9410-				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9312-9801				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9802-	●			●	●
47	03.163 PIPE; FUEL,RETURN	8-97103-825-1	01	1	9312-9801	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97103-825-1	01	1	9802-	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE	0-91150-106-0	03	1	9312-9801		●	●	●	●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-9510	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9511-	●	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX 07.010 (A) M8X20 FLANGE	0-28080-820-0	02	1	9312-9506	●
62	03.162 BOLT; CLIP FIX 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9507-	●
62	03.162 BOLT; CLIP FIX 03.670 (B) M6X20 FLANGE	0-28080-620-0	01	1	9401-9711	●
62	03.162 BOLT; CLIP FIX 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	9712-	●
64	03.162 NUT; CLIP 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-	●
64	03.162 NUT; CLIP 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9401-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801		●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9512				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
66	03.163 HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS<V4B> (B)	8-97065-653-1	01	1	9312-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510					●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711					●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-		●			●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. REAR WIDE TREAD(V4T) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> (B)	8-97091-765-0	01	1	9312-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510	●			●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711	●			●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9712-	●	●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
68	03.163 HOSE; FUEL,FILTER TO PIPE MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9505		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9505			●
68	03.163 HOSE; FUEL,FILTER TO PIPE MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-9711		●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B>	8-97091-765-0	01	1	9312-		●				●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505				●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-				●			●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401				●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9402-				●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 L=280 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711					●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9712-					●
76	03.163 HOSE; FUEL,TANK MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) 03.003 (A) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-		●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●			●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-				●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=720 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9511-					●		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9402-				●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9405		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9406-		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9511-	●	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9405		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9511-				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9511-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRAME-KICK UP<7EW> L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9511-	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●			●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9604-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9604-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9312-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (G)	1-09700-431-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9312-				●	●
148	03.162 CLIP; HOSE,FUEL 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	9401-	●
148	03.162 CLIP; HOSE,FUEL (B) ID=13 & 15	8-94428-546-0	01	1	9401-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9511-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9511-	●	●	●	●	●	●	●

24 24 147 231 147 66 147 61 67 231 61 147 76 147 67 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9312-9410	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	9312-9410				●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9411-9510	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9511-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9403-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	9312-				●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9401-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-9510	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9511-	●	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS<V4B> (B)	8-97065-653-1	01	1	9312-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510					●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711					●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-		●			●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. REAR WIDE TREAD(V4T) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> (B)	8-97091-765-0	01	1	9312-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510	●			●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711	●			●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9712-	●	●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711					●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9712-					●
76	03.163 HOSE; FUEL,TANK MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) 03.003 (A) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-		●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●			●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-				●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=720 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9511-					●		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9402-				●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9604-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9604-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9312-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (G)	1-09700-431-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9312-				●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9511-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9511-	●	●	●	●	●	●	●

24 303 64 65 67 76 62 64 148 62 61 61 231 64 67 231 147 62 66 24 47 14 45 147 147 147 101 147 101 14 79 147 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.162 CLIP; HOSE 02.559 (A) L=168	8-97802-347-0	01	1	9312-9312	●
14	03.162 CLIP; HOSE 03.630 (B) ID=19 H=40 L=25	1-09700-909-0	01	1	9401-9407	●
14	03.162 CLIP; HOSE 03.630 (B) ID=19 H=25 L=25	1-09700-464-0	01	1	9408-	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9312-9410	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	9312-9410				●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9411-9510	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9511-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9403-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	9312-				●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9401-	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-645-2	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-375-1	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-594-0	01	1	9312-9711		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9312-		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	9312-		●				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9312-9510				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9312-9510					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9511-				●
45	03.163 PIPE; FUEL,DELIVERY	8-97102-046-2	01	1	9511-							●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9511-					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-790-0	01	1	9312-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9410-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS)	8-97035-665-3	01	1	9312-9409				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-665-3	01	1	9410-				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9312-9801				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9802-	●			●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97070-372-4	01	1	9312-9703					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9704-					●
45	03.163 PIPE; FUEL,DELIVERY	8-97103-824-1	01	1	9312-9801	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97103-824-1	01	1	9802-	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-646-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97102-051-0	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-595-0	01	1	9312-9711		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	9312-		●	●			●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9312-9510				●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9312-9510					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9511-				●
47	03.163 PIPE; FUEL,RETURN	8-97074-746-5	01	1	9511-							●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9511-					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-789-0	01	1	9312-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9410-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97035-667-2	01	1	9312-9409				●	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-667-2	01	1	9410-				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9312-9801				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9802-	●			●	●
47	03.163 PIPE; FUEL,RETURN	8-97103-825-1	01	1	9312-9801	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97103-825-1	01	1	9802-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-9510	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9511-	●	●	●	●	●	●	●
62	03.162 BOLT; CLIP FIX 07.010 (A) M8X20 FLANGE	0-28080-820-0	02	1	9312-9506	●
62	03.162 BOLT; CLIP FIX 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9507-	●
62	03.162 BOLT; CLIP FIX 03.670 (B) M6X20 FLANGE	0-28080-620-0	01	1	9401-9711	●
62	03.162 BOLT; CLIP FIX 04.930 (B) M6X20 FLANGE	0-28680-620-0	01	1	9712-	●
64	03.162 NUT; CLIP 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9312-	●
64	03.162 NUT; CLIP 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9401-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801		●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9512				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
66	03.163 HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS<V4B> (B)	8-97065-653-1	01	1	9312-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510					●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711					●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-		●			●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. REAR WIDE TREAD(V4T) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> (B)	8-97091-765-0	01	1	9312-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510	●			●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) EXC. MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9511-9711	●			●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9712-	●	●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●			●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER DUAL(S6B) 03.003 (A) L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
67	03.163 HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) 03.003 (A) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711					●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9712-					●
76	03.163 HOSE; FUEL,TANK MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) 03.003 (A) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-		●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●			●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-				●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=720 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9511-					●		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9402-				●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9405		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9406-		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9511-	●	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9405		●			●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510				●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> 03.003 L=180 SERVICED BY L=3000	0-01259-300-0	01	1	9511-				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9511-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) FRAME-KICK UP<7EW> L=170 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9511-	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> L=200 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●			●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9510		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9510		●
101	03.162 BOLT; CLIP,FUEL PIPE EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9510				●
101	03.162 BOLT; CLIP,FUEL PIPE EXC. REAR WIDE TREAD(V4T) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9312-9510				●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9603		●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9603		●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9603				●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9603				●
101	03.162 BOLT; CLIP,FUEL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9604-		●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9604-				●
101	03.162 BOLT; CLIP,FUEL PIPE FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9604-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9604-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9312-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (G)	1-09700-431-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9312-				●	●
148	03.162 CLIP; HOSE,FUEL 02.559 (A) ID=28 L=60	1-09700-585-1	01	1	9401-	●
148	03.162 CLIP; HOSE,FUEL (B) ID=13 & 15	8-94428-546-0	01	1	9401-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9511-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9511-	●	●	●	●	●	●	●
303	03.130 BOLT; BRKT EXC. REAR WIDE TREAD(V4T) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9312-9510				●
303	03.130 BOLT; BRKT FRAME-KICK UP<7EW> 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9511-				●

24 24 147 231 147 66 147 61 231 61 147 76 65 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9312-9410	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	9312-9410				●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9411-9510	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9511-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9403-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	9312-				●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9401-	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-9510	●	●	●	●	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9511-	●	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801		●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9512				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
66	03.163 HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS<V4B> (B)	8-97065-653-1	01	1	9312-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510					●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711					●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-		●			●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. REAR WIDE TREAD(V4T) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) MINI BUS CHASSIS<V4B> 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711					●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=700 SERVICED BY L=3000	0-01259-300-0	01	1	9712-					●
76	03.163 HOSE; FUEL,TANK MINI BUS CHASSIS<V4B> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) 03.003 (A) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9401				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505		●	●			●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9402-9505				●	●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B),MINI BUS CHASSIS<V4B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-		●				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FUEL FILTER DUAL(S6B) 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9506-				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312		●			●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9711				●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-		●				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9712-				●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9506-			●
76	03.163 HOSE; FUEL,TANK FUEL FILTER DUAL(S6B) REAR WIDE TREAD(V4T) 03.003 (A) L=720 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=560 SERVICED BY L=3000	0-01259-300-0	01	1	9511-					●		●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312					●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9610				●
76	03.163 HOSE; FUEL,TANK 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●		●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●	●
76	03.163 HOSE; FUEL,TANK 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=640 SERVICED BY L=3000	0-01259-300-0	01	1	9611-				●
76	03.163 HOSE; FUEL,TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9402-				●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF),4BE1 ENG(RLH) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
76	03.163 HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=550 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9604-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9604-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9312-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (G)	1-09700-431-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9312-				●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9511-	●	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-9510	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9511-	●	●	●	●	●	●	●

147 51 39 24 147 156 46 304 304 147 147 65 147 66 51 147 147 45 47 147 147 147 147 147 29 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	02	1	9401-9402	●
24	03.162 CLIP; FUEL HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-		●		●	●	●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9312-9410	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (C)	8-97089-536-0	01	1	9312-9410				●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9411-9510	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE (C)	8-97089-536-0	01	1	9511-	●	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402			●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-0	01	1	9403-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-0	01	1	9401-9510		●		●	●
24	03.162 CLIP; FUEL HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) 02.559 (A) L=250	5-09707-030-1	01	1	9511-		●		●	●		●
24	03.162 CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	9312-				●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140	5-09707-031-1	03	1	9401-	●
29	03.163 HOSE; FUEL 4HF1 ENG(RLS)	8-97087-833-2	01	1	9312-				●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MINI BUS CHASSIS<V4B>	8-97090-339-3	01	1	9312-		●				●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9312-			●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-217-1	01	1	9410-				●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS)	8-97073-597-3	01	1	9312-9409				●	●
39	03.163 PIPE; FUEL 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97073-597-3	01	1	9410-				●	●
39	03.163 PIPE; FUEL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-710-2	01	1	9312-				●	●
39	03.163 PIPE; FUEL 4JB1 ENG(RLF)	8-97103-840-0	01	1	9802-	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-645-2	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-375-1	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-594-0	01	1	9312-9711		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-640-3	01	1	9312-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9312-		●	●			●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97035-639-3	01	1	9312-		●				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9312-9510				●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9312-9510					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97102-046-2	01	1	9511-				●
45	03.163 PIPE; FUEL,DELIVERY	8-97102-046-2	01	1	9511-							●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97102-046-2	01	1	9511-					●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-790-0	01	1	9312-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-221-4	01	1	9410-				●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS)	8-97035-665-3	01	1	9312-9409				●	●
45	03.163 PIPE; FUEL,DELIVERY 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-665-3	01	1	9410-				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9312-9801				●	●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97091-493-1	01	1	9802-	●			●	●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97070-372-4	01	1	9312-9703					●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97178-125-0	01	1	9704-					●
45	03.163 PIPE; FUEL,DELIVERY	8-97103-824-1	01	1	9312-9801	●
45	03.163 PIPE; FUEL,DELIVERY 4BE1 ENG(RLH)	8-97103-824-1	01	1	9802-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. MINI BUS CHASSIS<V4B>	8-97075-972-3	01	1	9312-		●				●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9312-			●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-213-2	01	1	9410-				●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97068-793-3	01	1	9312-9409				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97068-793-3	01	1	9410-				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-373-2	01	1	9312-				●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF)	8-97103-823-0	01	1	9802-	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97035-646-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97102-051-0	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JB1 ENG(RLF) MINI BUS CHASSIS<V4B> FRT INDEPENDENT SUSPENSION(6PP)	8-97091-595-0	01	1	9312-9711		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9312-		●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	9312-		●	●			●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9312-9510				●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9312-9510					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T)	8-97074-746-5	01	1	9511-				●
47	03.163 PIPE; FUEL,RETURN	8-97074-746-5	01	1	9511-							●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97074-746-5	01	1	9511-					●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T)	8-97100-789-0	01	1	9312-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F)	8-97042-225-3	01	1	9410-				●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97035-667-2	01	1	9312-9409				●	●
47	03.163 PIPE; FUEL,RETURN 4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F)	8-97035-667-2	01	1	9410-				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9312-9801				●	●
47	03.163 PIPE; FUEL,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97088-709-6	01	1	9802-	●			●	●
47	03.163 PIPE; FUEL,RETURN	8-97103-825-1	01	1	9312-9801	●
47	03.163 PIPE; FUEL,RETURN 4BE1 ENG(RLH)	8-97103-825-1	01	1	9802-	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE	0-91150-106-0	03	1	9312-9801		●	●	●	●	●
51	03.162 NUT; CLIP,PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. MINI BUS CHASSIS<V4B> 04.594 M6 FLANGE	0-91150-106-0	03	1	9802-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801		●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9510		●		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=300 SERVICED BY L=3000	0-01259-300-0	01	1	9511-		●		●	●		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) FRAME-KICK UP<7EW> EXC. FUEL FILTER DUAL(S6B) 03.003 (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9512				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9801	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4BE1 ENG(RLH) 03.003 (B) L=530 SERVICED BY L=3000	0-01259-300-0	01	1	9802-	●
66	03.163 HOSE; FUEL,RETURN PIPE MINI BUS CHASSIS<V4B> (B)	8-97065-653-1	01	1	9312-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510					●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. MINI BUS CHASSIS<V4B> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711		●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9511-9711					●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-		●			●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9712-				●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9801		●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9802-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-			●
66	03.163 HOSE; FUEL,RETURN PIPE EXC. REAR WIDE TREAD(V4T) (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9510				●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9511-				●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9312-9312				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510		●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9603				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (F) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9604-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-9408			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9409-9603			●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9604-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.930 (A) ID=16	8-94238-568-0	10	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 00.785 (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9312-9801		●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 01.219 (B) ID=13	8-94238-571-0	06	1	9802-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 04.930 (A) ID=16	8-94238-568-0	06	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH) 01.219 (B) ID=13	8-94238-571-0	04	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9312-9510	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4BE1 ENG(RLH),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 04.930 (A) ID=16	8-94238-568-0	02	1	9511-	●	●		●	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (F) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9604-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9312-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.686 (E) ID=10 & 6.4	8-97074-832-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. REAR WIDE TREAD(V4T) (G)	1-09700-431-0	01	1	9401-9510				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (G)	1-09700-431-0	01	1	9511-				●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) 04.930 (A) ID=16	8-94238-568-0	08	1	9312-				●	●
156	03.162 BRACKET; FUEL HOSE 4HF1 ENG(RLS)	8-97087-834-3	01	1	9312-				●	●
304	03.130 NUT; BRKT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9312-				●	●
304	03.130 NUT; BRKT 4HF1 ENG(RLS) 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9312-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
