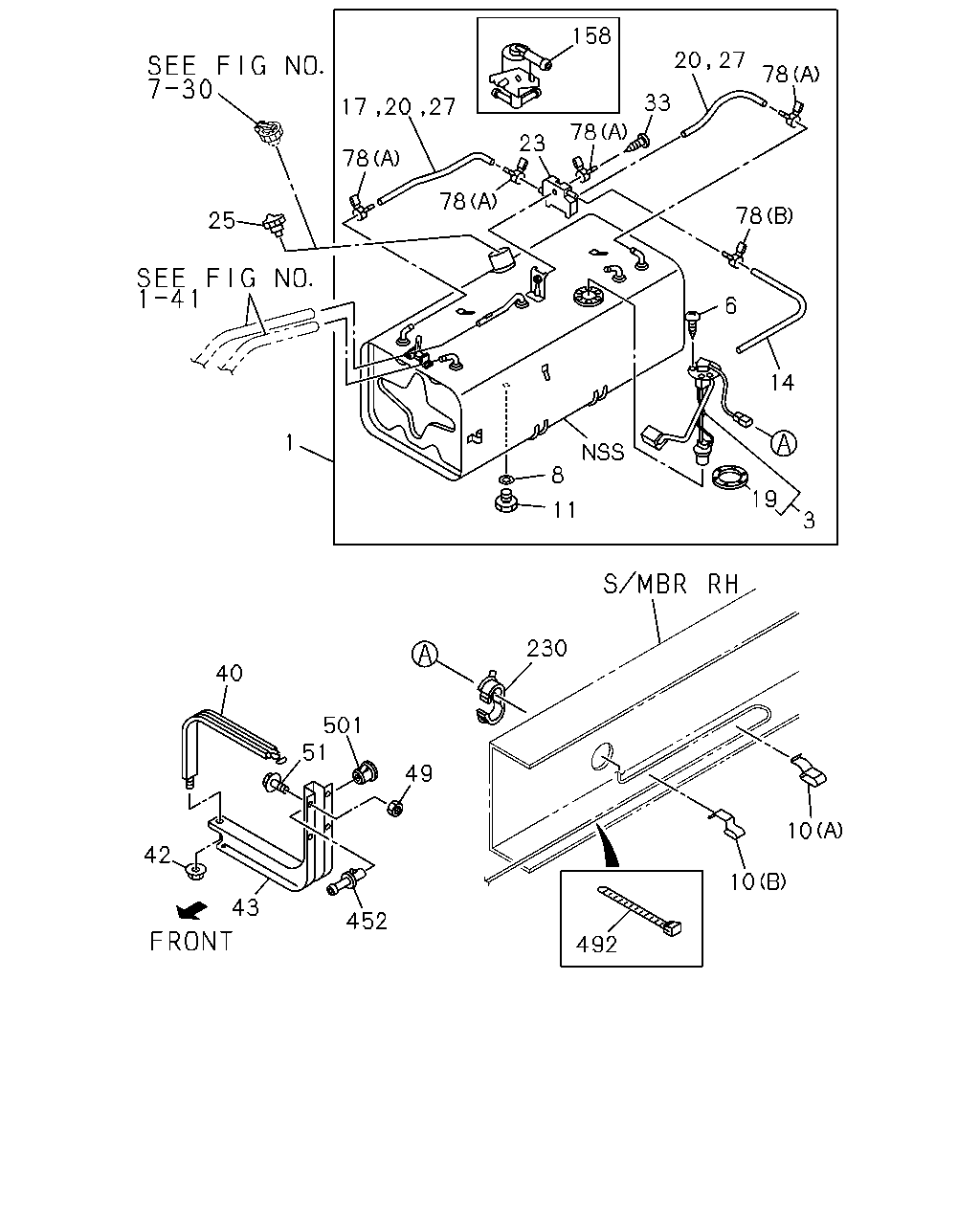

1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4)
753X340X327 75L
|
8-97033-951-2 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
753X340X327 75L
|
8-97033-951-2 |
01 |
1 |
9507-9711 |
● |
|
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4)
753X340X327 75L
|
8-97033-951-2 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>
753X340X327 75L
|
8-97033-948-3 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
753X340X327 75L
|
8-97033-948-3 |
01 |
1 |
9507-9510 |
● |
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
753X340X327 75L
|
8-97131-121-0 |
01 |
1 |
9511-9801 |
● |
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
753X340X327 75L
|
8-97188-863-0 |
01 |
1 |
9802- |
● |
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X275 63L
|
8-97033-942-3 |
01 |
1 |
9312-9506 |
|
|
● |
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X275 63L
|
8-97131-119-0 |
01 |
1 |
9507-9801 |
|
|
● |
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X275 63L
|
8-97188-861-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
|
| |
1 |
03.001 TANK; FUEL
FRAME-KICK UP<7EW>
753X340X327 75L
|
8-97033-949-3 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X327 75L
|
8-97033-949-3 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
1 |
03.001 TANK; FUEL
FRAME-KICK UP<7EW>
753X340X327 75L
|
8-97131-122-0 |
01 |
1 |
9511-9801 |
|
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X327 75L
|
8-97131-122-0 |
01 |
1 |
9511-9801 |
|
|
|
● |
|
|
|
| |
1 |
03.001 TANK; FUEL
FRAME-KICK UP<7EW>
753X340X327 75L
|
8-97188-864-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
1 |
03.001 TANK; FUEL
753X340X327 75L
|
8-97188-864-0 |
01 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4)
1000X340X327 100L
|
8-97033-955-2 |
01 |
1 |
9312-9506 |
|
|
|
|
● |
|
|
| |
1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
1000X340X327 100L
|
8-97033-955-2 |
01 |
1 |
9507-9711 |
|
|
|
|
● |
|
|
| |
1 |
03.001 TANK; FUEL
EUROPEAN BASIC EQUIPMENT(EK4)
1000X340X327 100L
|
8-97033-955-2 |
01 |
1 |
9712- |
|
|
|
|
● |
|
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
1000X340X327 100L
|
8-97033-954-3 |
01 |
1 |
9312-9506 |
|
|
|
|
● |
● |
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
1000X340X327 100L
|
8-97033-954-3 |
01 |
1 |
9507-9510 |
|
|
|
|
● |
● |
|
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
1000X340X327 100L
|
8-97131-123-0 |
01 |
1 |
9511-9801 |
|
|
|
|
● |
● |
● |
| |
1 |
03.001 TANK; FUEL
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
1000X340X327 100L
|
8-97188-865-0 |
01 |
1 |
9802- |
|
|
|
|
● |
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
03.001
75L&100L
|
8-94316-190-0 |
01 |
1 |
9312-9510 |
● |
● |
|
● |
● |
● |
|
| |
3 |
03.107 UNIT; FUEL TANK,SUB
03.001
|
8-94316-190-0 |
01 |
1 |
9511- |
● |
● |
|
● |
● |
● |
● |
| |
3 |
03.107 UNIT; FUEL TANK,SUB
03.001
63L
|
8-94316-188-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
6 |
03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9312-9502 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550
|
1-21729-043-0 |
01 |
1 |
9503-9506 |
● |
● |
● |
● |
● |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550
|
1-21729-043-0 |
01 |
1 |
9507-9510 |
● |
● |
|
● |
● |
● |
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550
|
1-21729-043-0 |
01 |
1 |
9511-9601 |
● |
● |
|
● |
|
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
01.550
|
1-21729-043-0 |
01 |
1 |
9511-9601 |
|
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
01.550
|
1-21729-043-0 |
01 |
1 |
9602-9711 |
● |
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4)
01.550
|
1-21729-043-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550
|
1-21729-043-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
|
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
|
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9511-9601 |
|
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9602-9711 |
● |
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9602-9711 |
|
● |
● |
● |
|
● |
● |
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
8 |
03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
9511- |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.559
(A)
T=9.2
|
5-09709-013-0 |
AR |
1 |
9511- |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
9511- |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(B)
T=4.5 & 9
|
5-09709-023-0 |
AR |
1 |
9511- |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.559
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
9511-9610 |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.559
(B)
T=6.0
|
5-09709-024-0 |
AR |
1 |
9511-9610 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
9511- |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(B)
T=9.2 & 9
|
5-09709-025-0 |
AR |
1 |
9511- |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
9511- |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
01.240
(A)
T=5.5
|
5-09709-047-0 |
AR |
1 |
9511- |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(A)
T=8.7
|
5-09709-048-0 |
AR |
1 |
9312-9510 |
● |
|
● |
● |
● |
● |
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(A)
T=8.7
|
5-09709-048-0 |
AR |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525
(A)
T=8.7
|
5-09709-048-0 |
AR |
1 |
9511-9610 |
● |
|
● |
● |
● |
● |
● |
| |
10 |
03.115 CLIP; SPRING,FUEL TANK UNIT CABL
REAR WIDE TREAD(V4T)
02.525
(A)
T=8.7
|
5-09709-048-0 |
AR |
1 |
9511-9610 |
|
● |
|
|
|
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9312-9502 |
● |
● |
● |
● |
● |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9503-9506 |
● |
● |
● |
● |
● |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9507-9510 |
● |
● |
|
● |
● |
● |
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9511-9601 |
● |
● |
|
● |
|
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9511-9601 |
|
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9602-9711 |
● |
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4)
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.062
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
● |
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
|
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9511-9601 |
|
|
● |
|
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9511-9601 |
|
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9602-9711 |
● |
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9602-9711 |
|
● |
● |
● |
|
● |
● |
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
11 |
03.890 PLUG; DRAIN,FUEL TANK
01.453
M14X14
|
9-09862-156-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4)
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FRAME-KICK UP<7EW>
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
|
|
|
● |
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9507-9510 |
● |
|
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FRAME-KICK UP<7EW>
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9507-9510 |
|
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9507-9510 |
|
|
|
● |
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
● |
|
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4)
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4)
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
● |
|
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FRAME-KICK UP<7EW>
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>
00.034
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
00.034
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9507-9510 |
● |
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
L=480
|
8-97135-581-0 |
01 |
1 |
9511-9801 |
● |
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
00.034
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
● |
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=400
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
|
|
● |
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FRAME-KICK UP<7EW>
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
|
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
FRAME-KICK UP<7EW>
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
|
● |
|
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
|
|
|
● |
|
● |
● |
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
00.034
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=400
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
|
|
● |
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9312-9506 |
|
|
|
|
● |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
● |
● |
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9511-9711 |
|
|
|
|
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
|
|
● |
|
|
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
EUROPEAN BASIC EQUIPMENT(EK4)
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9712-9801 |
|
|
|
|
● |
|
|
| |
14 |
03.163 HOSE; BREATHER,OUTLET
00.034
L=430
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802- |
|
|
|
|
● |
● |
● |
| |
17 |
03.163 HOSE; BREATHER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>
L=430
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9506 |
● |
● |
|
|
|
|
|
| |
17 |
03.163 HOSE; BREATHER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FRAME-KICK UP<7EW>,ISRAEL
EQUIPMENT(7LX)
L=430
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9507- |
● |
● |
|
|
|
|
|
| |
17 |
03.163 HOSE; BREATHER
L=440
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
19 |
03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
20 |
03.163 HOSE; BREATHER
EUROPEAN BASIC EQUIPMENT(EK4)
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
FRAME-KICK UP<7EW>
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9312-9506 |
|
|
|
● |
|
|
|
| |
20 |
03.163 HOSE; BREATHER
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9507-9711 |
● |
|
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
FRAME-KICK UP<7EW>
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9507-9711 |
|
● |
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9507-9711 |
|
|
|
● |
|
|
|
| |
20 |
03.163 HOSE; BREATHER
EUROPEAN BASIC EQUIPMENT(EK4)
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
FRAME-KICK UP<7EW>
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
20 |
03.163 HOSE; BREATHER
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97077-713-1 |
01 |
1 |
9312-9506 |
● |
|
|
|
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
9312-9506 |
|
● |
● |
● |
|
● |
|
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
|
8-97077-713-1 |
01 |
1 |
9507-9510 |
● |
|
|
|
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
9507-9510 |
|
● |
|
● |
|
● |
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-94418-058-0 |
01 |
1 |
9507-9510 |
|
|
● |
|
|
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
|
8-94418-058-0 |
01 |
1 |
9511-9711 |
● |
|
|
|
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-94418-058-0 |
01 |
1 |
9511-9711 |
|
● |
● |
● |
|
● |
● |
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-94418-058-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-94418-058-0 |
01 |
1 |
9712-9801 |
|
● |
● |
● |
|
● |
● |
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97077-713-1 |
01 |
1 |
9802-9803 |
● |
|
|
|
|
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
9802-9803 |
|
● |
● |
● |
|
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97077-713-1 |
01 |
1 |
9804- |
● |
|
|
|
● |
|
|
| |
23 |
03.162 JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
9804- |
|
● |
● |
● |
|
● |
● |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-94258-609-1 |
01 |
1 |
9312-9510 |
● |
● |
|
● |
● |
● |
|
| |
25 |
03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-94258-609-1 |
01 |
1 |
9511- |
● |
● |
|
● |
● |
● |
● |
| |
25 |
03.028 CAP; FILLER,FUEL TANK
|
8-94165-450-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9506 |
|
|
● |
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. FRAME-KICK UP<7EW>
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
ISRAEL EQUIPMENT(7LX)
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9507-9711 |
● |
|
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9507-9711 |
|
|
● |
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. FRAME-KICK UP<7EW>
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9507-9711 |
|
● |
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
EXC. FRAME-KICK UP<7EW>
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
27 |
03.163 HOSE; BREATHER
L=470
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9502 |
|
|
|
|
● |
● |
|
| |
27 |
03.163 HOSE; BREATHER
L=470
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9503-9510 |
|
|
|
|
● |
● |
|
| |
27 |
03.163 HOSE; BREATHER
L=470
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9511- |
|
|
|
|
● |
● |
● |
| |
27 |
03.163 HOSE; BREATHER
L=540
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
9312-9502 |
|
|
|
|
● |
● |
|
| |
33 |
03.162 SCREW; JOINT TO FUEL TANK
02.334
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
33 |
03.162 SCREW; JOINT TO FUEL TANK
02.334
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
|
8-94438-385-3 |
02 |
1 |
9312-9510 |
● |
● |
|
● |
● |
● |
|
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
|
8-94438-385-4 |
02 |
1 |
9511- |
● |
● |
|
● |
● |
● |
● |
| |
40 |
03.022 BELT; SUPPORT,FUEL TANK
|
8-94438-384-3 |
02 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
42 |
03.023 NUT; SUPPORT BELT
M8 FLANGE
|
9-09130-408-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
42 |
03.023 NUT; SUPPORT BELT
M8 FLANGE
|
9-09130-408-0 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97035-517-0 |
02 |
1 |
9312-9510 |
● |
|
|
● |
● |
● |
|
| |
43 |
03.015 BRACKET; FUEL TANK
REAR WIDE TREAD(V4T)
|
8-97035-517-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97035-517-0 |
02 |
1 |
9511- |
● |
|
|
● |
● |
● |
● |
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. FRAME-KICK UP<7EW>
|
8-97035-517-0 |
02 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97035-515-0 |
02 |
1 |
9312-9801 |
|
|
● |
|
|
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
|
8-97183-878-0 |
02 |
1 |
9802- |
|
|
● |
|
|
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
EXC. REAR WIDE TREAD(V4T)
|
8-97035-518-0 |
02 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
43 |
03.015 BRACKET; FUEL TANK
FRAME-KICK UP<7EW>
|
8-97035-518-0 |
02 |
1 |
9511- |
|
● |
|
|
|
|
|
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
9312-9409 |
● |
● |
● |
● |
|
● |
|
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
|
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
03.023 NUT; BRKT
08.917
M10 FLANGE
|
0-91150-210-0 |
06 |
1 |
9312-9409 |
|
|
|
|
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
00.002
M10X25
|
0-28091-025-0 |
08 |
1 |
9312-9510 |
● |
● |
● |
● |
|
● |
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
00.002
M10X25
|
0-28091-025-0 |
08 |
1 |
9511-9609 |
● |
● |
● |
● |
|
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
9610-9708 |
● |
● |
● |
● |
|
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
9709- |
● |
● |
● |
● |
● |
● |
● |
| |
51 |
03.023 BOLT; BRKT TO FRAME
00.002
M10X25
|
0-28091-025-0 |
06 |
1 |
9312-9609 |
|
|
|
|
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
06 |
1 |
9610-9708 |
|
|
|
|
● |
|
|
| |
51 |
03.023 BOLT; BRKT TO FRAME
00.002
M10X28
|
0-28481-028-0 |
02 |
1 |
9312-9708 |
|
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9312-9506 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9507-9711 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9802-9803 |
● |
|
|
|
|
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9802-9803 |
|
|
|
|
● |
● |
● |
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
03.162
(A)
ID=8.5
|
8-94166-071-0 |
04 |
1 |
9804- |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9507-9711 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9802-9803 |
● |
|
|
|
|
|
|
| |
78 |
03.003 CLIP; BREATHER HOSE
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9802-9803 |
|
|
|
|
● |
● |
● |
| |
78 |
03.003 CLIP; BREATHER HOSE
EUROPEAN BASIC EQUIPMENT(EK4)
01.166
(B)
ID=14
|
8-94238-572-0 |
01 |
1 |
9804- |
● |
|
|
|
● |
|
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-94437-368-0 |
01 |
1 |
9312-9506 |
● |
|
|
|
● |
|
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-94437-368-0 |
01 |
1 |
9507-9711 |
● |
|
|
|
● |
|
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-94437-368-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-94437-368-0 |
01 |
1 |
9802-9803 |
● |
|
|
|
|
|
|
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
|
8-94437-368-0 |
01 |
1 |
9802-9803 |
|
|
|
|
● |
● |
● |
| |
158 |
03.164 VALVE; ROLL OVER & FLOAT
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-94437-368-0 |
01 |
1 |
9804- |
● |
|
|
|
● |
|
|
| |
230 |
03.115 GROMMET; HARNESS,FUEL TANK UNIT
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
9312-9506 |
● |
|
● |
● |
● |
● |
|
| |
230 |
03.115 GROMMET; HARNESS,FUEL TANK UNIT
REAR WIDE TREAD(V4T)
02.343
ID=17
|
8-94128-319-2 |
01 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
230 |
03.115 GROMMET; HARNESS,FUEL TANK UNIT
EXC. REAR WIDE TREAD(V4T)
02.343
ID=17
|
8-94128-319-2 |
02 |
1 |
9312-9506 |
|
● |
|
|
|
|
|
| |
452 |
03.028 BREATHER; FUEL TANK
|
8-97062-954-1 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
|
| |
452 |
03.028 BREATHER; FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-97062-954-1 |
01 |
1 |
9511-9711 |
● |
|
|
|
● |
|
|
| |
452 |
03.028 BREATHER; FUEL TANK
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97062-954-1 |
01 |
1 |
9712-9802 |
● |
|
|
|
● |
|
|
| |
452 |
03.028 BREATHER; FUEL TANK
|
8-97062-954-1 |
01 |
1 |
9803- |
● |
● |
● |
● |
● |
● |
● |
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1 ENG(RLS)
02.559
L=250
|
5-09707-030-0 |
01 |
1 |
9312-9312 |
|
● |
|
|
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1 ENG(RLS)
02.559
L=250
|
5-09707-030-0 |
02 |
1 |
9401-9703 |
|
● |
|
|
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1 ENG(RLS)
02.559
L=250
|
5-09707-030-0 |
02 |
1 |
9704-9711 |
|
● |
|
|
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
02.559
L=250
|
5-09707-030-0 |
02 |
1 |
9704-9711 |
|
|
|
|
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4JB1 ENG(RLF)
TURBOCHARGER<K51>
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
9712- |
● |
|
|
|
● |
|
|
| |
492 |
03.028 CLIP; HARNESS TO VAC HOSE
4HF1 ENG(RLS)
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
9712- |
|
● |
|
|
● |
|
|
| |
501 |
03.028 GROMMET; BRKT
|
8-97096-990-0 |
01 |
1 |
9312-9510 |
● |
|
|
● |
● |
● |
|
| |
501 |
03.028 GROMMET; BRKT
REAR WIDE TREAD(V4T)
|
8-97096-990-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
|
|
|
| |
501 |
03.028 GROMMET; BRKT
EUROPEAN BASIC EQUIPMENT(EK4),
ISRAELEQUIPMENT(7LX)
|
8-97096-990-0 |
01 |
1 |
9511-9711 |
● |
|
|
|
● |
|
|
| |
501 |
03.028 GROMMET; BRKT
EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97096-990-0 |
01 |
1 |
9712-9801 |
● |
|
|
|
● |
|
|
| |
501 |
03.028 GROMMET; BRKT
|
8-97096-990-0 |
01 |
1 |
9802- |
● |
|
|
● |
● |
● |
● |
| |
501 |
03.028 GROMMET; BRKT
EXC. FRAME-KICK UP<7EW>
|
8-97096-990-0 |
01 |
1 |
9802- |
|
● |
|
|
|
|
|
