Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#45861) — 381 parça

164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
164	03.402 CLEANER ASM; AIR,SUB 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9312-9502	●	●	●
164	03.402 CLEANER ASM; AIR,SUB 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9503-9711	●	●	●	●
164	03.402 CLEANER ASM; AIR,SUB 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9712-	●	●	●	●	●

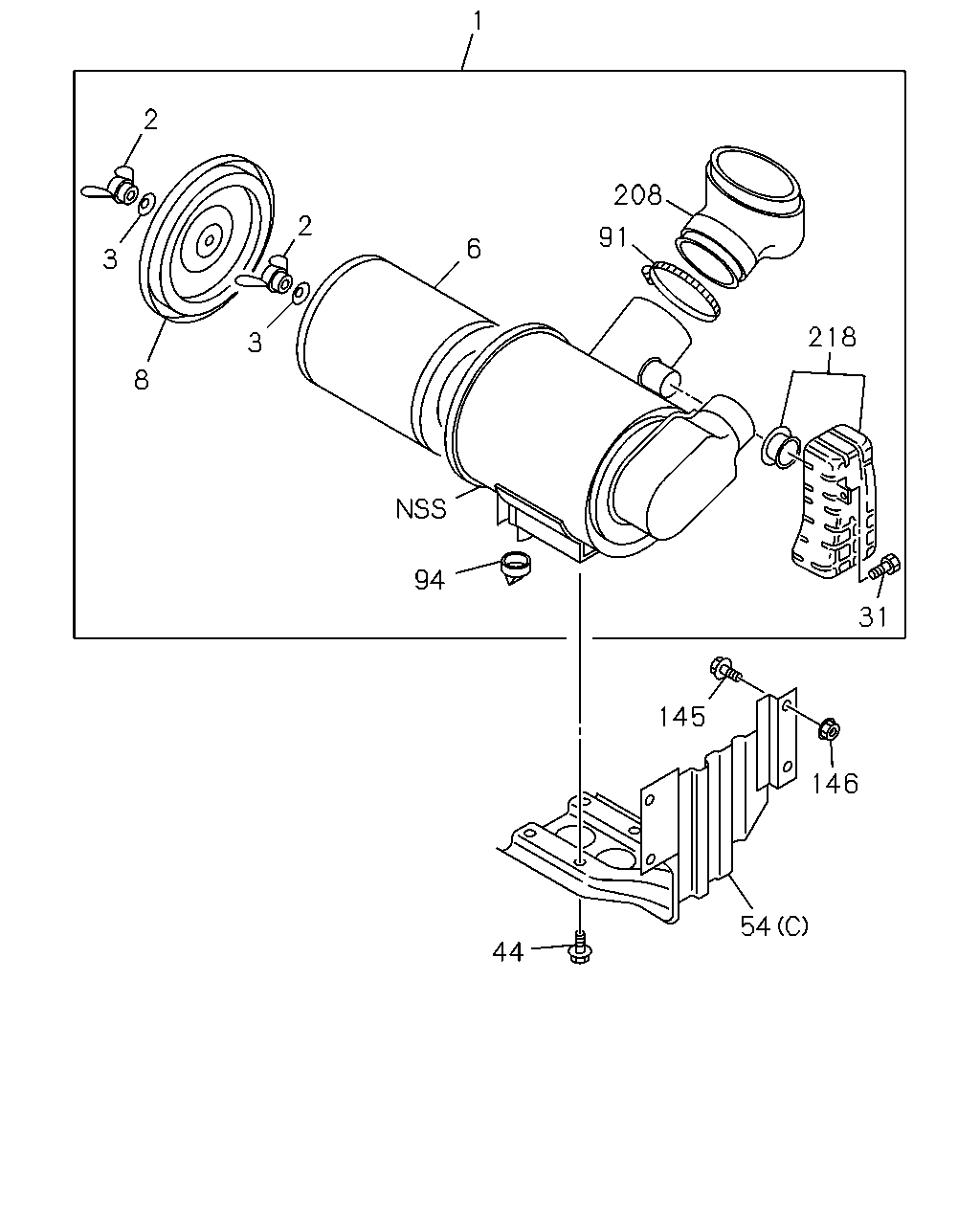

1 2 208 2 91 6 3 218 3 8 94 31 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-9801	●		●	●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9802-	●		●	●		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-9510	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9511-	●	●	●		●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9312-9404	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9405-9510	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9511-	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-676-1	01	1	9312-	●		●				●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97089-591-1	01	1	9312-9608		●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97162-699-2	01	1	9609-		●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9312-9510	●	●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9511-	●	●	●		●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9312-9404	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9405-9510	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9511-	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9511-		●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	01	1	9312-9510		●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●		●	●		●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-9510	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9511-	●	●	●		●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9312-9404	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9405-9510	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9511-	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9511-		●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	01	1	9312-9510		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9312-9603	●		●	●		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9604-9801	●		●	●		●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9802-	●		●	●		●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9312-9404	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9312-9404		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9405-9510	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9405-9510		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9511-	●	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9511-		●	●
6	03.410 FILTER; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9604-	●		●				●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9312-9404	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9405-9510	●	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9511-	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-072-0	01	1	9312-9510		●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	9511-		●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97097-000-0	02	1	9312-9603	●		●	●		●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9604-	●		●	●		●	●
31	03.406 SCREW; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97096-999-0	02	1	9312-9608		●	●
44	03.403 BOLT; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9312-	●	●	●		●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9711	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-9404	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9405-	●	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9410		●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9312-		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404	●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404		●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-	●			●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-		●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97091-040-1	01	1	9405-		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9312-9510		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9511-		●	●		●
91	03.403 CLAMP 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-696-2	01	1	9312-		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9312-9404	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9405-9510	●	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9511-	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94447-157-0	01	1	9312-		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-		●	●		●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) FRAME-KICK UP<7EW> M10X30 FLANGE	0-28681-030-0	02	1	9511-		●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-				●			●
146	03.405 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●		●				●
208	03.407 DUCT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97074-904-1	01	1	9312-		●	●
218	03.417 RESONATOR; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9312-	●		●	●		●	●
218	03.417 RESONATOR; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-073-0	01	1	9312-9608		●	●

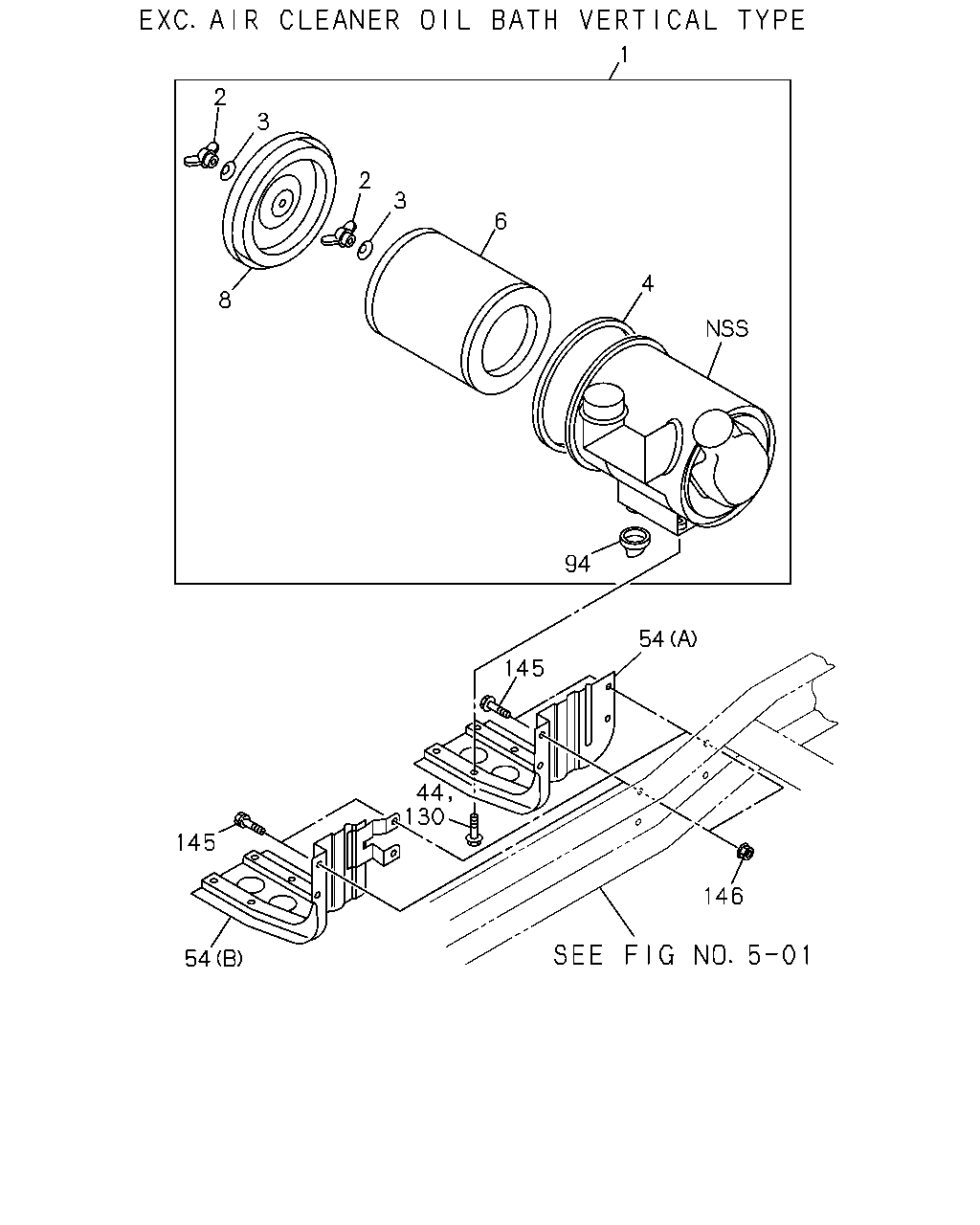

1 2 3 2 3 6 4 8 94 54 145 44 130 145 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-9801	●		●	●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9802-	●		●	●		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-9510	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9511-	●	●	●		●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9312-9404	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9405-9510	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9511-	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-676-1	01	1	9312-	●		●				●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97089-591-1	01	1	9312-9608		●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97162-699-2	01	1	9609-		●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9312-9510	●	●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9511-	●	●	●		●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9312-9404	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9405-9510	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9511-	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9511-		●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	01	1	9312-9510		●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●		●	●		●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-9510	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9511-	●	●	●		●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9312-9404	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9405-9510	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9511-	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9511-		●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	01	1	9312-9510		●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9312-9603	●		●	●		●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●		●	●		●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-9510	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9511-	●	●	●		●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9312-9404	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9405-9510	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9511-	●	●	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9312-9603	●		●	●		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9604-9801	●		●	●		●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9802-	●		●	●		●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9312-9404	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9312-9404		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9405-9510	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9405-9510		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9511-	●	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9511-		●	●
6	03.410 FILTER; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9604-	●		●				●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9312-9404	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9405-9510	●	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-050-0	01	1	9511-	●	●	●	●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-072-0	01	1	9312-9510		●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	9511-		●	●
44	03.403 BOLT; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9312-	●	●	●		●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9711	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-9404	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9405-	●	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9410		●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9312-		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404	●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404		●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-	●			●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-		●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97091-040-1	01	1	9405-		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9312-9510		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9511-		●	●		●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9312-9404	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9405-9510	●	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9511-	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94447-157-0	01	1	9312-		●	●
130	03.405 BOLT; BRKT TO ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-9510	●	●	●
130	03.405 BOLT; BRKT TO ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9511-	●	●	●		●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-		●	●		●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) FRAME-KICK UP<7EW> M10X30 FLANGE	0-28681-030-0	02	1	9511-		●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-				●			●
146	03.405 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●		●				●

49 44 101 26 1 38 5 5 5 27 4 3 2 90 113 102 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-9801	●		●	●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9802-	●		●	●		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-9510	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9511-	●	●	●		●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9312-9404	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9405-9510	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9511-	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-676-1	01	1	9312-	●		●				●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97089-591-1	01	1	9312-9608		●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97162-699-2	01	1	9609-		●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9312-9510	●	●	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9511-	●	●	●		●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9312-9404	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9405-9510	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14217-068-0	02	1	9511-	●	●	●	●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9511-		●	●
2	03.403 NUT; WING,ELEMENT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	01	1	9312-9510		●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●		●	●		●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-9510	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9511-	●	●	●		●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9312-9404	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9405-9510	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9511-	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9511-		●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	01	1	9312-9510		●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9312-9603	●		●	●		●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●		●	●		●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-9510	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9511-	●	●	●		●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9312-9404	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9405-9510	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9511-	●	●	●	●	●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A)	9-14213-013-0	01	1	9312-9510	●	●	●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A)	9-14213-013-0	01	1	9511-	●	●	●		●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B)	9-14213-014-0	01	1	9312-9510	●	●	●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B)	9-14213-014-0	01	1	9511-	●	●	●		●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	9-14213-015-0	01	1	9312-9510	●	●	●
5	03.403 GASKET; ELEMENT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	9-14213-015-0	01	1	9511-	●	●	●		●
26	03.410 FILTER; ACL,INNER 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-042-0	01	1	9312-9510	●	●	●
26	03.410 FILTER; ACL,INNER 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-042-0	01	1	9511-	●	●	●		●
27	03.410 FILTER; ACL,OUTER 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-044-0	01	1	9312-9510	●	●	●
27	03.410 FILTER; ACL,OUTER 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-044-0	01	1	9511-	●	●	●		●
38	03.403 SPACER; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-048-0	01	1	9312-9510	●	●	●
38	03.403 SPACER; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-048-0	01	1	9511-	●	●	●		●
44	03.403 BOLT; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9312-	●	●	●		●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9711	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-	●	●	●
44	03.403 BOLT; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-9404	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9405-	●	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9312-9410		●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9312-		●	●
49	03.403 NUT; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●	●	●
49	03.403 NUT; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●		●				●
49	03.403 NUT; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●	●	●		●
49	03.403 NUT; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●		●				●
90	03.406 CUP; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9712-	●		●	●		●	●
90	03.406 CUP; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9312-9510	●	●	●
90	03.406 CUP; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9511-	●	●	●		●
101	03.403 BOLT; HANGER,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-049-0	03	1	9312-9510	●	●	●
101	03.403 BOLT; HANGER,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-049-0	03	1	9511-	●	●	●		●
102	03.403 GAUGE; OIL,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-074-0	01	1	9312-9510	●	●	●
102	03.403 GAUGE; OIL,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-074-0	01	1	9511-	●	●	●		●
113	03.407 WASHER; HANGER BOLT,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.403	9-14219-005-0	03	1	9312-9510	●	●	●
113	03.407 WASHER; HANGER BOLT,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.403	9-14219-005-0	03	1	9511-	●	●	●		●
114	03.407 NUT; HANGER BOLT,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417	9-14217-079-0	03	1	9312-9510	●	●	●
114	03.407 NUT; HANGER BOLT,ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417	9-14217-079-0	03	1	9511-	●	●	●		●

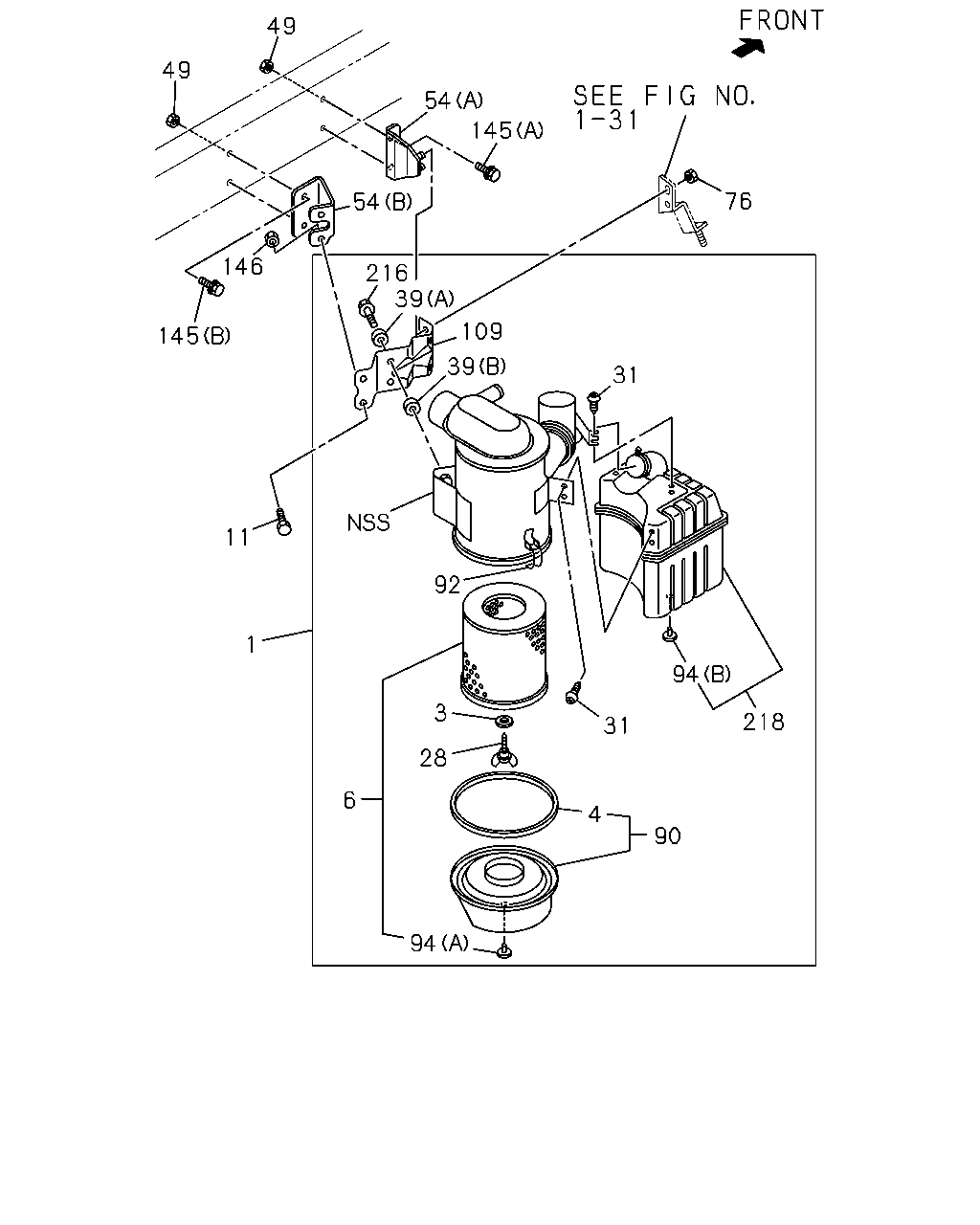

49 49 54 145 76 54 146 216 39 109 145 39 31 11 92 1 94 3 218 31 28 6 4 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-9801	●		●	●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9802-	●		●	●		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-9510	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9511-	●	●	●		●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9312-9404	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9405-9510	●	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94140-289-3	01	1	9511-	●	●	●	●	●
1	03.402 CLEANER ASM; AIR 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97102-676-1	01	1	9312-	●		●				●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97089-591-1	01	1	9312-9608		●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97162-699-2	01	1	9609-		●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●		●	●		●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-9510	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9511-	●	●	●		●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9312-9404	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9405-9510	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	1-14219-225-0	02	1	9511-	●	●	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9511-		●	●
3	03.403 WASHER; SEAL,WING NUT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	01	1	9312-9510		●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9312-9603	●		●	●		●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●		●	●		●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-9510	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9511-	●	●	●		●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9312-9404	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9405-9510	●	●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.410	8-94156-051-0	01	1	9511-	●	●	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9312-9603	●		●	●		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9604-9801	●		●	●		●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9802-	●		●	●		●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9312-9404	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9312-9404		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9405-9510	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9405-9510		●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94156-052-0	01	1	9511-	●	●	●	●	●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9511-		●	●
6	03.410 FILTER; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9604-	●		●				●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9312-9704	●		●	●		●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9705-	●		●	●		●	●
28	03.403 BOLT; WING,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9312-	●		●	●		●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97097-000-0	02	1	9312-9603	●		●	●		●	●
31	03.406 SCREW; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9604-	●		●	●		●	●
31	03.406 SCREW; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97096-999-0	02	1	9312-9608		●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9312-	●		●	●		●	●
39	03.403 RUBBER; MTG,BOLT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9312-	●		●	●		●	●
49	03.403 NUT; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●	●	●
49	03.403 NUT; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●		●				●
49	03.403 NUT; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●	●	●		●
49	03.403 NUT; ACL 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-	●		●				●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404	●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9312-9404		●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-	●			●
54	03.405 BRACKET; ACL 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> FRAME-KICK UP<7EW> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> (A)	8-94140-144-3	01	1	9405-		●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-	●		●	●		●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97091-040-1	01	1	9405-		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9312-9510		●	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>,FRAME-KICK UP<7EW> (B)	8-97107-139-0	01	1	9511-		●	●		●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-9801	●		●	●		●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9802-	●		●	●		●	●
90	03.406 CUP; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9712-	●		●	●		●	●
90	03.406 CUP; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9312-9510	●	●	●
90	03.406 CUP; ACL 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9511-	●	●	●		●
92	03.405 CLIP; WIRE,ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9312-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●		●	●		●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9312-9404	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9405-9510	●	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z>	8-94160-187-0	01	1	9511-	●	●	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94447-157-0	01	1	9312-		●	●
109	03.405 STAY; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9712-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-9701		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> EXC. FRAME-KICK UP<7EW> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9702-		●	●		●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9312-9404		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 09.171 M10X30 W/LK WASHER	0-50041-030-0	04	1	9405-9408		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9409-9510		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> M10X30 FLANGE	0-28681-030-0	04	1	9511-9512		●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-	●	●	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9601-		●	●
145	03.405 BOLT; BRKT TO FRAME 4BE1 ENG(RLH) FRAME-KICK UP<7EW> M10X30 FLANGE	0-28681-030-0	02	1	9511-		●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9711				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9801				●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL T YPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●	●	●		●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-	●		●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-						●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	04	1	9802-				●			●
146	03.405 NUT; BRKT TO FRAME 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●		●				●
216	03.402 BOLT; ACL TO SILENCER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97030-333-0	04	1	9312-9603	●		●	●		●	●
216	03.402 BOLT; ACL TO SILENCER 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9604-	●		●	●		●	●
218	03.417 RESONATOR; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9312-	●		●	●		●	●
218	03.417 RESONATOR; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-073-0	01	1	9312-9608		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
