1-11 — RADIATOR HOSE AND SUB TANK (#45860) — 1046 parça

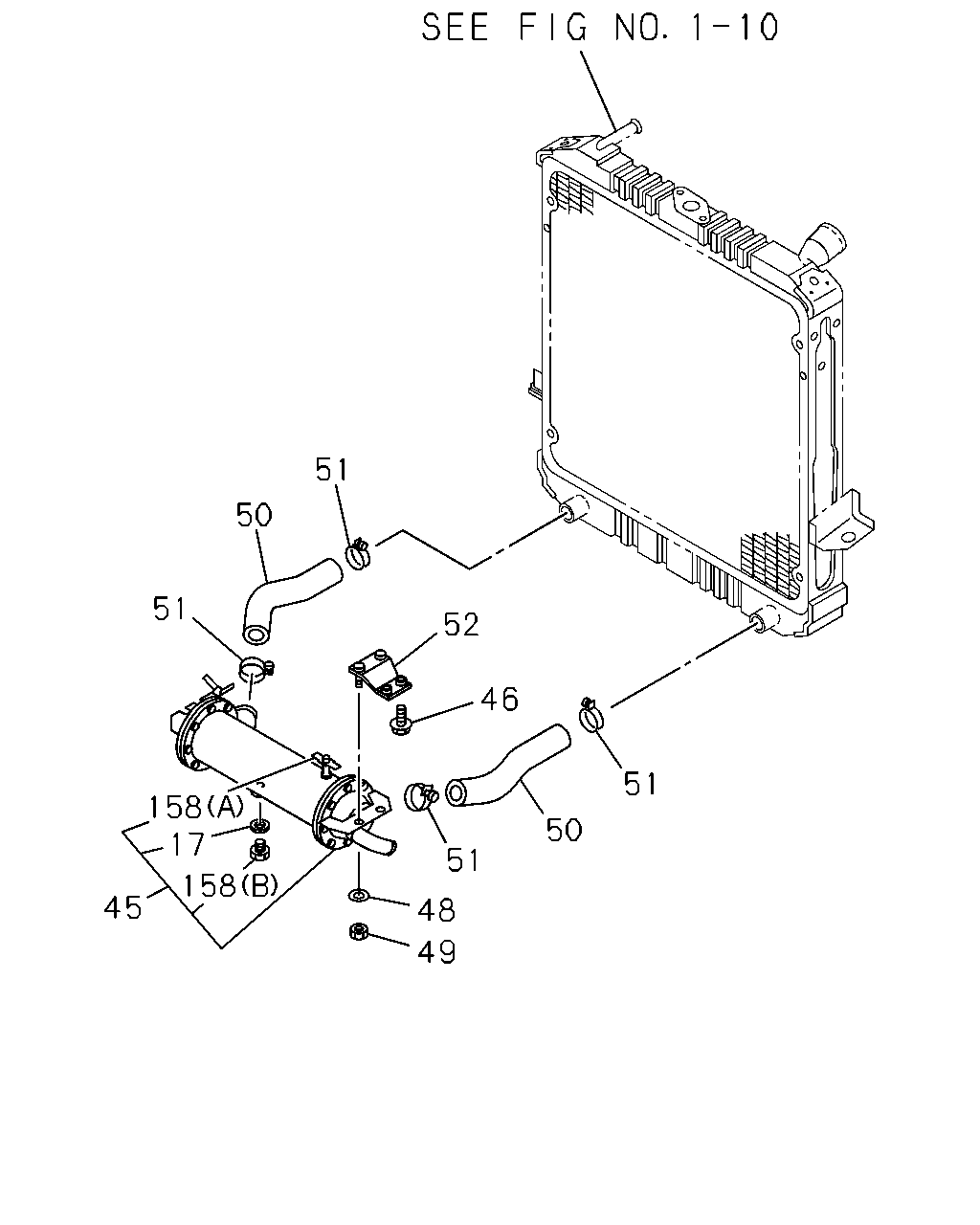

çizim 66246
51 50 51 52 46 51 158 17 50 51 158 45 48 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
17 01.219 GASKET; PLUG
FIRE TRUCK CHASSIS(V4F) 		9-09571-114-0 01 1 9712- ●
45 01.219 RADIATOR; SUB
FIRE TRUCK CHASSIS(V4F) 		8-94153-769-4 01 1 9410- ●
46 01.240 BOLT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 08.900 M8X22 FLANGE 		0-28080-822-0 04 1 9410-9412 ●
46 01.240 BOLT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9501- ●
48 01.240 WASHER; PL,BRKT FIX
FIRE TRUCK CHASSIS(V4F) 07.633 ID=8.4 OD=22 		9-09164-708-0 04 1 9410- ●
49 01.240 NUT; BRKT TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 01.540 M8 FLANGE 		0-91150-208-0 04 1 9410- ●
50 01.173 HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-97040-772-1 02 1 9410-9501 ●
50 01.173 HOSE; WATER,RAD TO SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-97124-747-0 02 1 9502- ●
51 01.166 CLIP; WATER HOSE,RAD
FIRE TRUCK CHASSIS(V4F) ID=48 		5-09704-049-0 04 1 9410- ●
52 01.219 BRACKET; SUB RAD
FIRE TRUCK CHASSIS(V4F) 		8-94170-331-0 02 1 9410- ●
158 01.219 PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F) (A) 		9-21439-036-0 01 1 9712- ●
158 01.219 PLUG; DRAIN
FIRE TRUCK CHASSIS(V4F) (B) 		9-99202-214-0 01 1 9712- ●
çizim 69140
19 18 19 19 19 1 2 34 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9312-9510 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9511-9801 ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ●
30 01.203 NUT
00.413 M6 		9-09110-506-0 03 1 9312-9403 ● ● ● ● ●
30 01.203 NUT
16.176 M6 		9-09110-406-0 03 1 9404-9407 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9408-9510 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ● ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ● ● ●
30 01.203 NUT
4BE1 ENG(RLH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ●

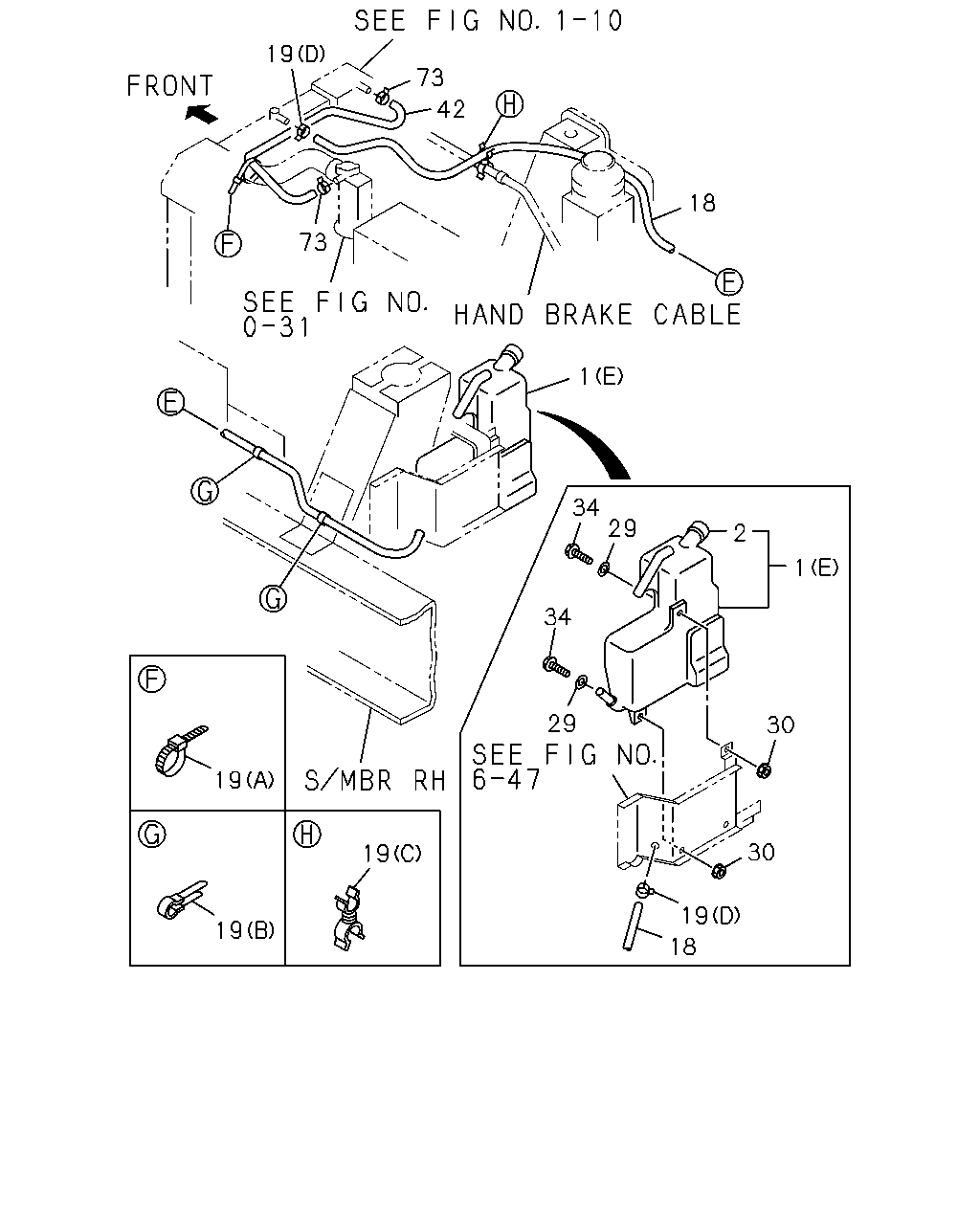

çizim 70392
19 73 42 18 73 1 34 29 2 1 34 29 30 19 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9312-9510 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9511-9801 ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ●
30 01.203 NUT
00.413 M6 		9-09110-506-0 03 1 9312-9403 ● ● ● ● ●
30 01.203 NUT
16.176 M6 		9-09110-406-0 03 1 9404-9407 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9408-9510 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ● ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ● ● ●
30 01.203 NUT
4BE1 ENG(RLH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97130-855-1 01 1 9505-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 		8-97130-855-1 01 1 9609-9612 ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9505-9510 ● ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9511-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4HF1 ENG(RLS) 		8-97130-856-1 01 1 9505-9603 ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9505-9510 ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9511-9603 ● ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9605-9607 ● ● ●
73 01.173 CLIP; RUBBER HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9609-9612 ● ● ●

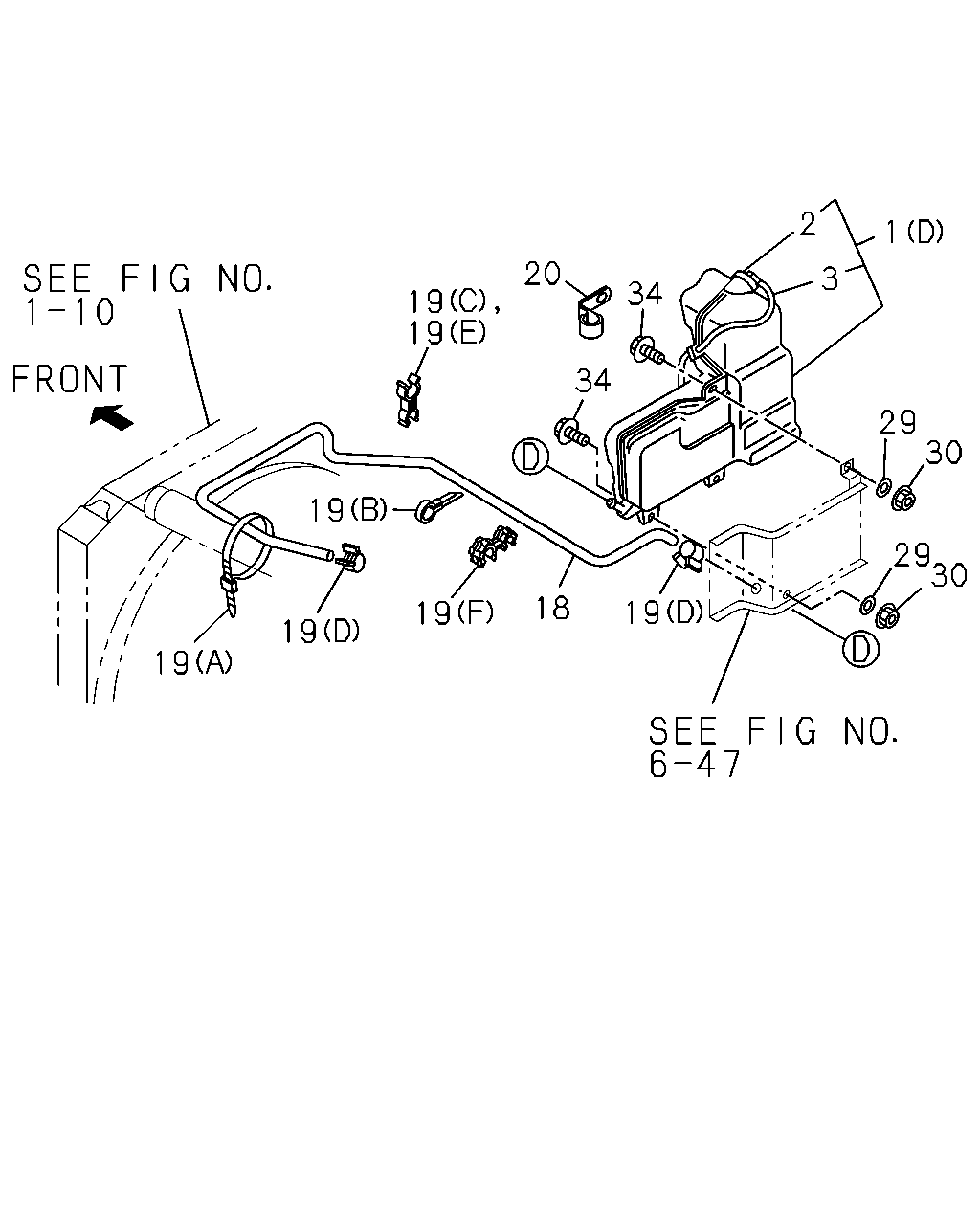

çizim 70403
2 1 20 3 34 34 29 30 29 30 18 19 19 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●

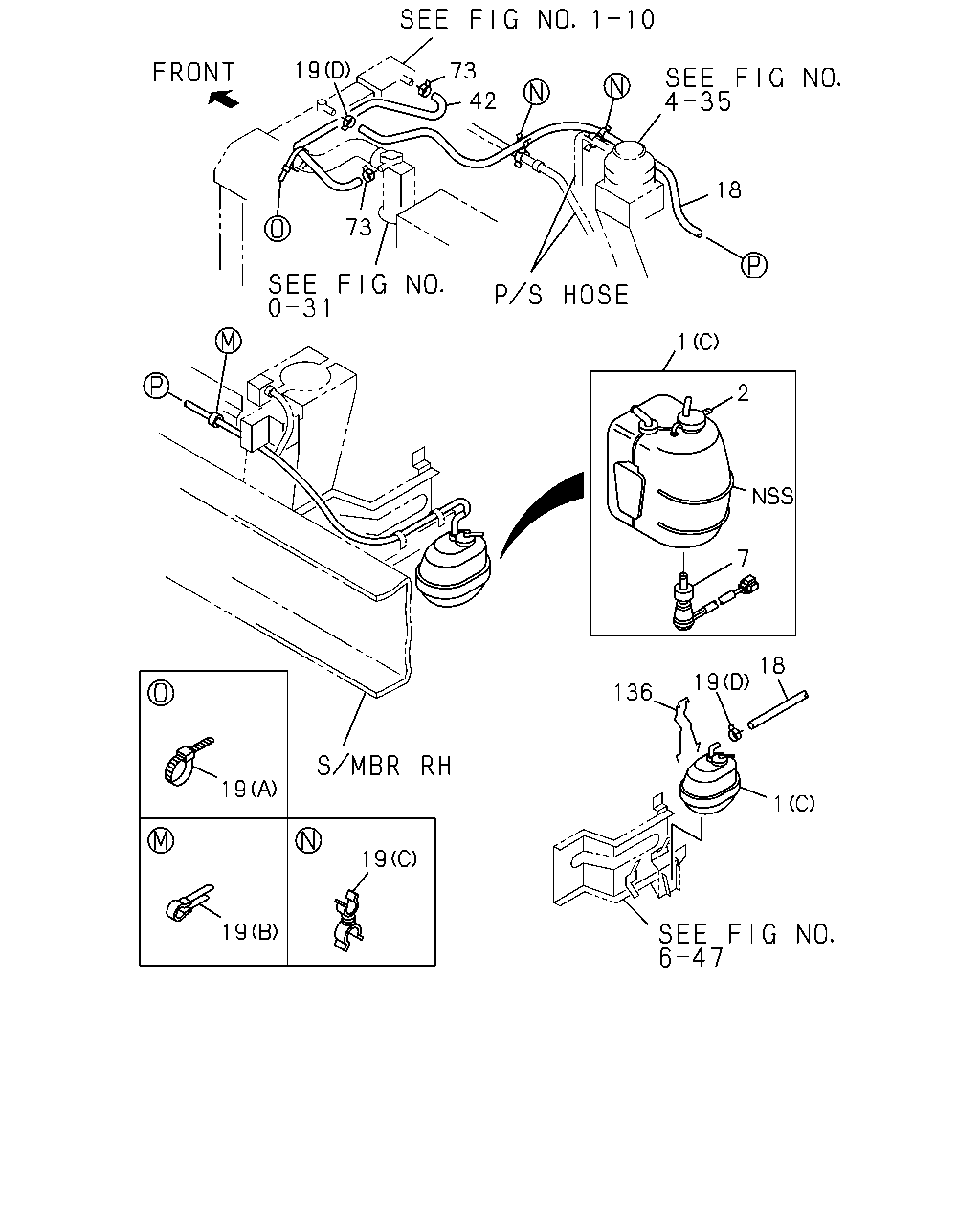

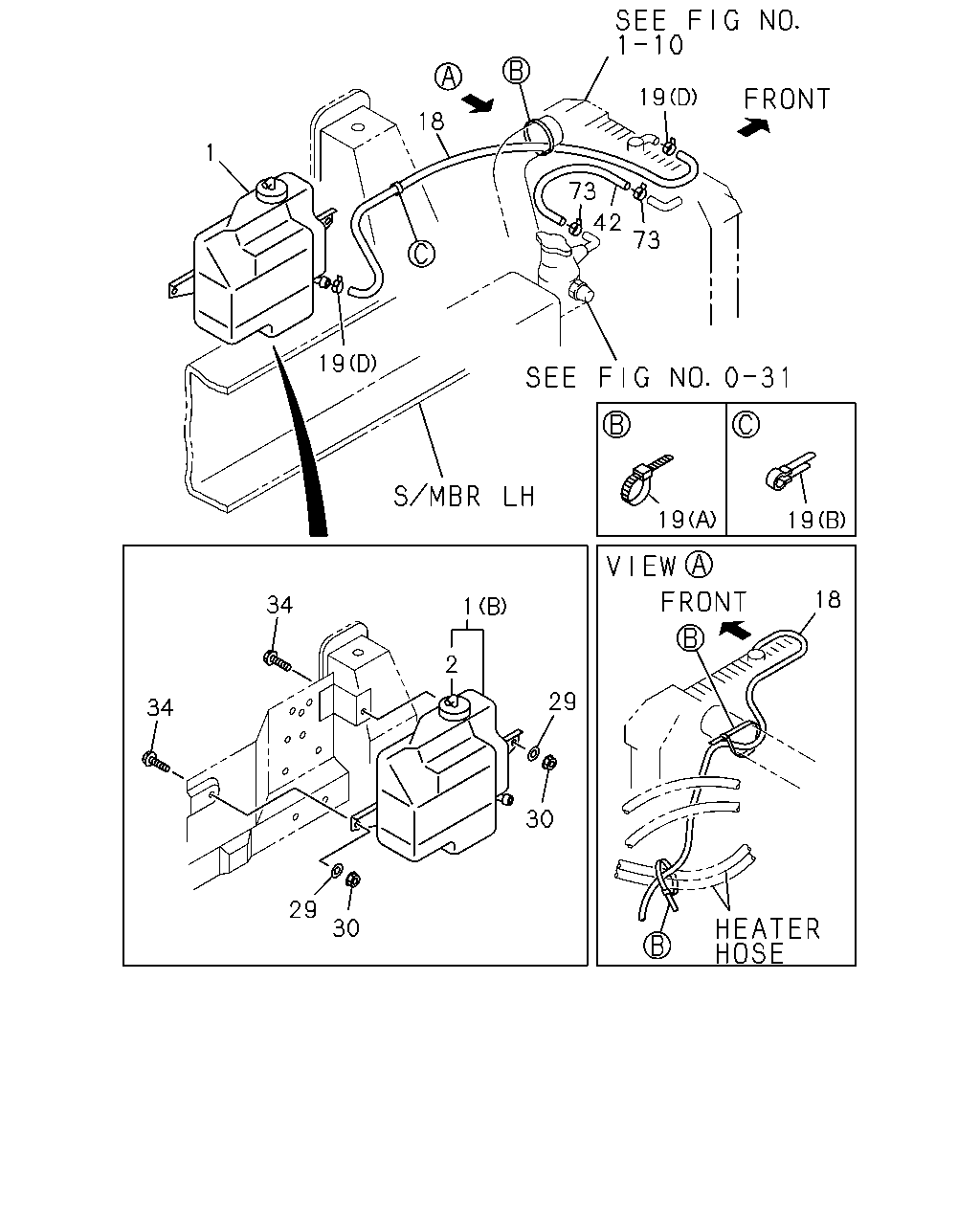

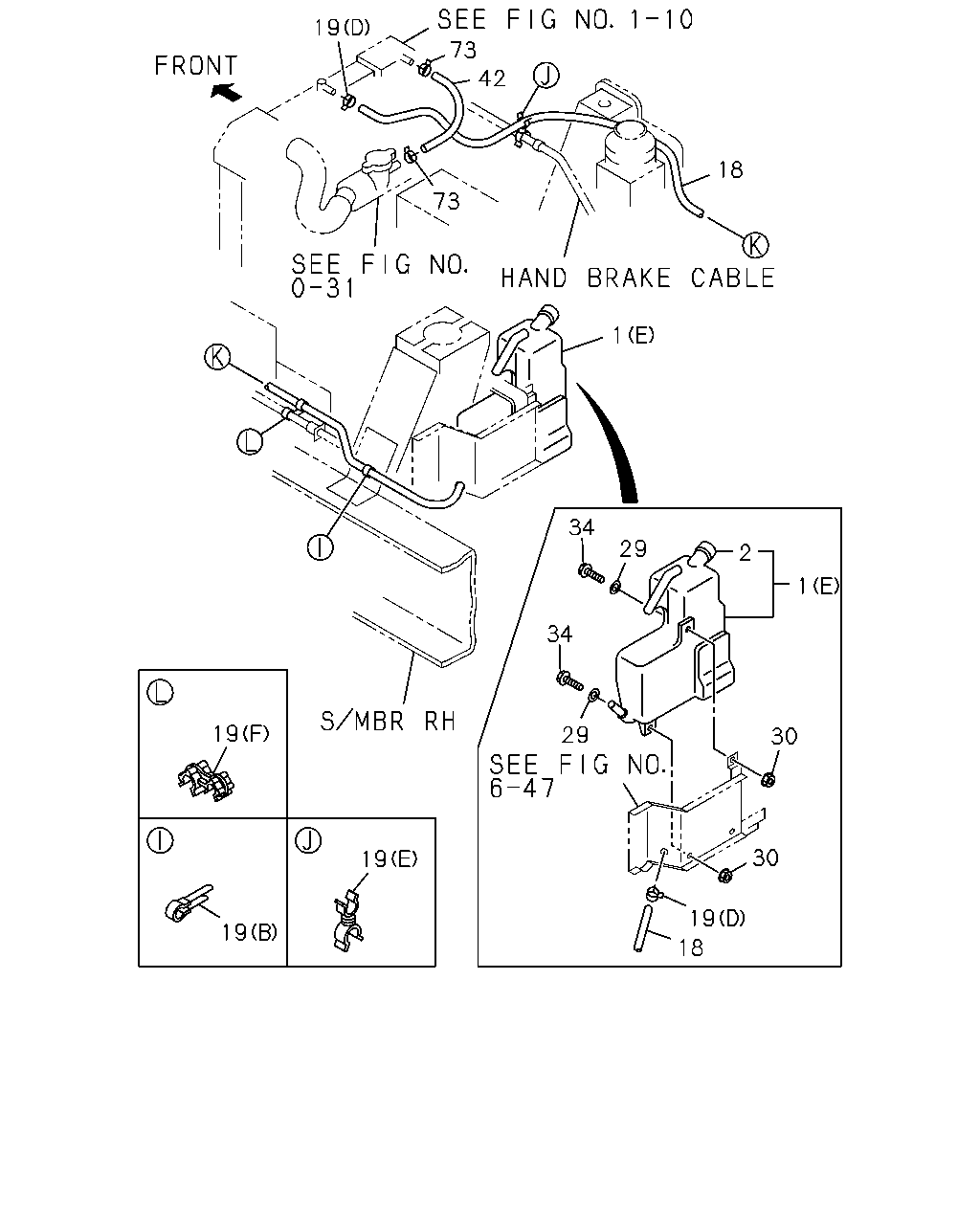

1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
3 01.159 HOSE; SURGE TANK
4HF1 ENG(RLS) 01.166 L=550 		8-97096-394-0 01 1 9312-9404 ● ● ● ● ● ● ●
3 01.159 HOSE; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.166 L=550 		8-97096-394-0 01 1 9312-9404 ● ● ●
3 01.159 HOSE; SURGE TANK
4JG2 ENG(RJC) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.166 L=550 		8-97096-394-0 01 1 9312-9404 ● ● ● ●
3 01.159 HOSE; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.166 L=550 		8-97096-394-0 01 1 9405-9407 ● ● ● ● ● ● ●
3 01.159 HOSE; SURGE TANK
4HF1 ENG(RLS) 01.166 L=550 		8-97096-394-0 01 1 9405-9407 ● ● ● ● ● ● ●
3 01.159 HOSE; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=430 SERVICED BY L=3000 		0-03157-300-0 01 1 9408-9410 ● ● ●
3 01.159 HOSE; SURGE TANK
4HF1 ENG(RLS) 01.240 L=430 SERVICED BY L=3000 		0-03157-300-0 01 1 9408-9410 ● ●
3 01.159 HOSE; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=370 SERVICED BY L=3000 		0-03157-300-0 01 1 9411-9505 ● ● ●
3 01.159 HOSE; SURGE TANK
4HF1 ENG(RLS) 01.240 L=370 SERVICED BY L=3000 		0-03157-300-0 01 1 9411-9505 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
20 01.166 CLIP; HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.483 ID=13 H=18 L=20 		1-09700-813-0 01 1 9408-9505 ● ● ●
20 01.166 CLIP; HOSE,RAD
4HF1 ENG(RLS) 03.483 ID=13 H=18 L=20 		1-09700-813-0 01 1 9408-9505 ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9312-9510 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9511-9801 ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ●
30 01.203 NUT
00.413 M6 		9-09110-506-0 03 1 9312-9403 ● ● ● ● ●
30 01.203 NUT
16.176 M6 		9-09110-406-0 03 1 9404-9407 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9408-9510 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ● ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ● ● ●
30 01.203 NUT
4BE1 ENG(RLH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ●
çizim 70434
19 73 42 18 73 1 34 29 2 1 34 19 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9312-9510 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9511-9801 ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ●
30 01.203 NUT
00.413 M6 		9-09110-506-0 03 1 9312-9403 ● ● ● ● ●
30 01.203 NUT
16.176 M6 		9-09110-406-0 03 1 9404-9407 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9408-9510 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ● ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ● ● ●
30 01.203 NUT
4BE1 ENG(RLH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97130-855-1 01 1 9505-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 		8-97130-855-1 01 1 9609-9612 ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9505-9510 ● ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9511-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4HF1 ENG(RLS) 		8-97130-856-1 01 1 9505-9603 ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9505-9510 ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9511-9603 ● ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9605-9607 ● ● ●
73 01.173 CLIP; RUBBER HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9609-9612 ● ● ●
çizim 70435
19 73 42 18 73 1 2 7 18 19 136 19 1 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97130-855-1 01 1 9505-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 		8-97130-855-1 01 1 9609-9612 ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9505-9510 ● ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9511-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4HF1 ENG(RLS) 		8-97130-856-1 01 1 9505-9603 ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9505-9510 ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9511-9603 ● ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9605-9607 ● ● ●
73 01.173 CLIP; RUBBER HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9609-9612 ● ● ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9312-9801 ●
136 01.219 STOPPER; SURGE TANK 8-97087-220-0 01 1 9802- ●
136 01.219 STOPPER; SURGE TANK
4JB1 ENG(RLF) 		8-97087-220-0 01 1 9802- ●
çizim 70436
19 18 1 73 42 73 19 19 19 18 34 1 2 29 34 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9312-9404 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-94451-186-1 01 1 9405-9510 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (A) 		8-94451-186-1 01 1 9405-9510 ● ● ●
1 01.219 TANK; SURGE,RAD
(A) 		8-94451-186-1 01 1 9405-9510 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9511 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9511 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9511 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9511-9801 ● ● ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9511-9801 ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9511-9801 ● ●
1 01.219 TANK; SURGE,RAD
4BE1 ENG(RLH) (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97138-509-0 01 1 9802- ● ● ● ●
1 01.219 TANK; SURGE,RAD
(B) 		8-97138-509-0 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9312-9404 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97035-511-1 01 1 9312-9404 ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (D) 		8-97035-511-1 01 1 9405-9407 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (D) 		8-97035-511-1 01 1 9405-9407 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97120-913-1 01 1 9408-9505 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97120-913-1 01 1 9408-9505 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> (E) 		8-97131-202-0 01 1 9506-9711 ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9506-9711 ● ●
1 01.219 TANK; SURGE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (E) 		8-97131-202-0 01 1 9712- ● ● ●
1 01.219 TANK; SURGE,RAD
4HF1 ENG(RLS) (E) 		8-97131-202-0 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9312-9801 ●
1 01.219 TANK; SURGE,RAD
(C) 		8-94378-388-1 01 1 9802- ●
1 01.219 TANK; SURGE,RAD
4JB1 ENG(RLF) (C) 		8-94378-388-1 01 1 9802- ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9312-9406 ● ● ● ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9407-9407 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9407-9407 ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-94449-363-0 01 1 9407-9407 ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9408-9409 ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9410-9510 ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9410-9510 ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9410-9510 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94449-363-0 01 1 9511- ● ● ● ●
2 01.203 CAP; SURGE TANK
4BE1 ENG(RLH) 		8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK 8-94449-363-0 01 1 9511- ● ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97126-876-0 01 1 9408-9711 ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9408-9711 ● ●
2 01.203 CAP; SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 		8-97126-876-0 01 1 9712- ● ● ●
2 01.203 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97126-876-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9312-9404 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97100-929-0 01 1 9405-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-552-0 01 1 9505-9506 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-97134-944-0 01 1 9507-9607 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97106-370-0 01 1 9312-9504 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9505-9510 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97129-556-0 01 1 9511-9603 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97160-892-1 01 1 9604-9607 ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4BE1 ENG(RLH) 		8-97162-987-1 01 1 9608- ● ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHINA CHONGQING EQUIPMENT<R5B> L=860 		8-97163-002-1 01 1 9609-9612 ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860 		8-97163-002-1 01 1 9701- ● ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHINA CHONGQING EQUIPMENT<R5B> 		8-97134-944-0 01 1 9609-9612 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97102-906-0 01 1 9312-9504 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 		8-97129-549-0 01 1 9505-9607 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450 		8-97162-122-1 01 1 9608-9711 ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450 		8-97162-122-1 01 1 9712- ● ● ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97093-834-3 01 1 9312-9504 ●
18 01.240 HOSE; RAD TO SURGE TANK 8-97129-548-0 01 1 9505-9607 ●
18 01.240 HOSE; RAD TO SURGE TANK
CHINA CHONGQING EQUIPMENT<R5B> 		8-97129-548-0 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
EXC. CHINA CHONGQING EQUIPMENT<R5B> L=1720 		8-97162-124-1 01 1 9609-9612 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9701-9801 ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4JB1 ENG(RLF) L=1720 		8-97162-124-1 01 1 9802- ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97095-064-4 01 1 9312-9504 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97129-554-1 01 1 9505-9604 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9605-9711 ● ●
18 01.240 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) 		8-97160-993-2 01 1 9712- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9312-9411 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 03 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) DUMP CHASSIS(V4D) 03.164 (A) L=217 		8-94235-793-0 02 1 9505- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9312-9510 ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 (D) ID=12 		8-94238-610-0 02 1 9511- ● ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9312-9411 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. HEATER & DEFROSTER(C41),DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSIO N(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9505-9510 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9511-9603 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9604-9608 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9609-9612 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 01 1 9701- ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9312-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9511-9801 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B) ID=14 L=47 		5-09700-319-0 01 1 9802- ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9312-9411 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) HEATER & DEFROSTER(C41) EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) DUMP CHASSIS(V4D) EXC. HEATER & DEFROSTER(C41) 03.164 (A) L=217 		8-94235-793-0 02 1 9412-9504 ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9505-9510 ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4BE1 ENG(RLH) 03.162 (A) L=140 		5-09707-031-0 02 1 9511-9603 ● ● ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9312-9509 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5 		8-94400-865-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9510-9711 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9712-9801 ●
19 01.240 CLIP; HOSE,SURGE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (F) ID=10 & 11 		8-94438-996-0 02 1 9802- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 03.162 (E) ID=11.5 & 14.5 		8-94314-293-0 01 1 9312-9509 ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) 02.559 (E) ID=10 & 11 		8-94438-996-0 01 1 9510- ● ●
19 01.240 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (F) ID=10 & 12 		8-94416-613-0 01 1 9312- ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9312-9510 ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9511-9801 ● ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ● ● ● ● ●
29 01.203 WASHER; PL,RESERVE TANK
4BE1 ENG(RLH) 02.587 ID=6.4 OD=18 		9-09160-706-0 03 1 9802- ●
30 01.203 NUT
00.413 M6 		9-09110-506-0 03 1 9312-9403 ● ● ● ● ●
30 01.203 NUT
16.176 M6 		9-09110-406-0 03 1 9404-9407 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9408-9510 ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9511-9801 ● ● ● ● ● ●
30 01.203 NUT
04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ● ● ● ● ●
30 01.203 NUT
4BE1 ENG(RLH) 04.594 M6 FLANGE 		0-91150-106-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9405-9510 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9511-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9703-9801 ● ●
34 01.203 BOLT; RESERVE TANK
4BE1 ENG(RLH) 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ● ● ● ●
34 01.203 BOLT; RESERVE TANK
00.738 M6X16 FLANGE 		0-28080-616-0 03 1 9802- ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9312-9404 ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.704 M6X20 W/LK WASHER 		0-50040-620-0 03 1 9405-9702 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9703-9711 ● ●
34 01.203 BOLT; RESERVE TANK
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ● ●
34 01.203 BOLT; RESERVE TANK
4HF1 ENG(RLS) 03.670 M6X20 FLANGE 		0-28080-620-0 03 1 9712- ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97130-855-1 01 1 9505-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 		8-97130-855-1 01 1 9609-9612 ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9505-9510 ● ● ● ●
42 01.159 HOSE; RUBBER
4BE1 ENG(RLH) 		8-97130-854-2 01 1 9511-9603 ● ● ● ● ●
42 01.159 HOSE; RUBBER
4HF1 ENG(RLS) 		8-97130-856-1 01 1 9505-9603 ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9505-9510 ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
01.219 ID=13 		8-94238-571-0 02 1 9511-9603 ● ● ● ● ● ● ●
73 01.173 CLIP; RUBBER HOSE
CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9605-9607 ● ● ●
73 01.173 CLIP; RUBBER HOSE
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 01.219 ID=13 		8-94238-571-0 02 1 9609-9612 ● ● ●
çizim 70953
56 56 128 55 56 56 128 56 56 55 56 131 56 56 128 56 55 56
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
55 01.173 HOSE; WATER,RAD OUTLET
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97089-916-1 01 1 9312-9801 ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97089-916-1 01 1 9802- ● ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R) 		8-97090-581-0 01 1 9312-9510 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97090-581-0 01 1 9312-9510 ●
55 01.173 HOSE; WATER,RAD OUTLET
4BE1 ENG(RLH) EXC. REFRIGERATOR CHASSIS(V4R) 		8-97090-581-0 01 1 9511-9711 ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97090-581-0 01 1 9511-9711 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4BE1 ENG(RLH) 		8-97090-581-0 01 1 9712- ● ● ● ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4BE1 ENG(RLH) REFRIGERATOR CHASSIS(V4R) 		8-97090-582-0 01 1 9312-9711 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97034-019-0 01 1 9410-9501 ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97124-742-0 01 1 9502- ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97034-014-1 01 1 9312-9409 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97034-014-1 01 1 9410-9412 ● ●
55 01.173 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-740-0 01 1 9501- ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A) ID=48 		5-09704-049-0 01 1 9312-9510 ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (A) ID=48 		5-09704-049-0 01 1 9511- ● ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=48 		5-09704-049-0 02 1 9312-9801 ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=48 		5-09704-049-0 02 1 9802- ● ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (C) ID=57 		5-09704-051-0 01 1 9312-9510 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (C) ID=57 		5-09704-051-0 01 1 9511- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (D) ID=46.5 		8-94156-158-0 01 1 9312-9510 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (D) ID=46.5 		8-94156-158-0 01 1 9511- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (E) ID=46 		8-94362-266-0 01 1 9312-9510 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (E) ID=46 		8-94362-266-0 01 1 9511- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (B) ID=45 		8-97031-339-0 01 1 9312-9510 ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4BE1 ENG(RLH) (B) ID=45 		8-97031-339-0 01 1 9511- ● ● ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) (E) ID=62 		9-09915-068-1 01 1 9312- ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97034-003-0 01 1 9312-9607 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97147-473-0 01 1 9609-9612 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97147-473-0 01 1 9701-9801 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97147-473-0 01 1 9802- ● ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4JG2 ENG(RJC),4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> 		8-97034-003-0 01 1 9609-9612 ● ● ●
128 01.159 HOSE; WATER,RAD INL
4BE1 ENG(RLH) 		8-97034-004-0 01 1 9312-9510 ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4BE1 ENG(RLH) 		8-97034-004-0 01 1 9511-9607 ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4BE1 ENG(RLH) 		8-97147-471-0 01 1 9608- ● ● ● ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97034-005-0 01 1 9312-9502 ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97128-673-0 01 1 9503-9607 ● ●
128 01.159 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97162-163-0 01 1 9608- ● ●
131 01.166 BOLT; WATER HOSE
4BE1 ENG(RLH) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9510 ● ● ● ●
131 01.166 BOLT; WATER HOSE
4BE1 ENG(RLH) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9511-9801 ● ● ● ● ●
131 01.166 BOLT; WATER HOSE
4BE1 ENG(RLH) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9802- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
