◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10695 - LV233(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#4586) — 69 parça

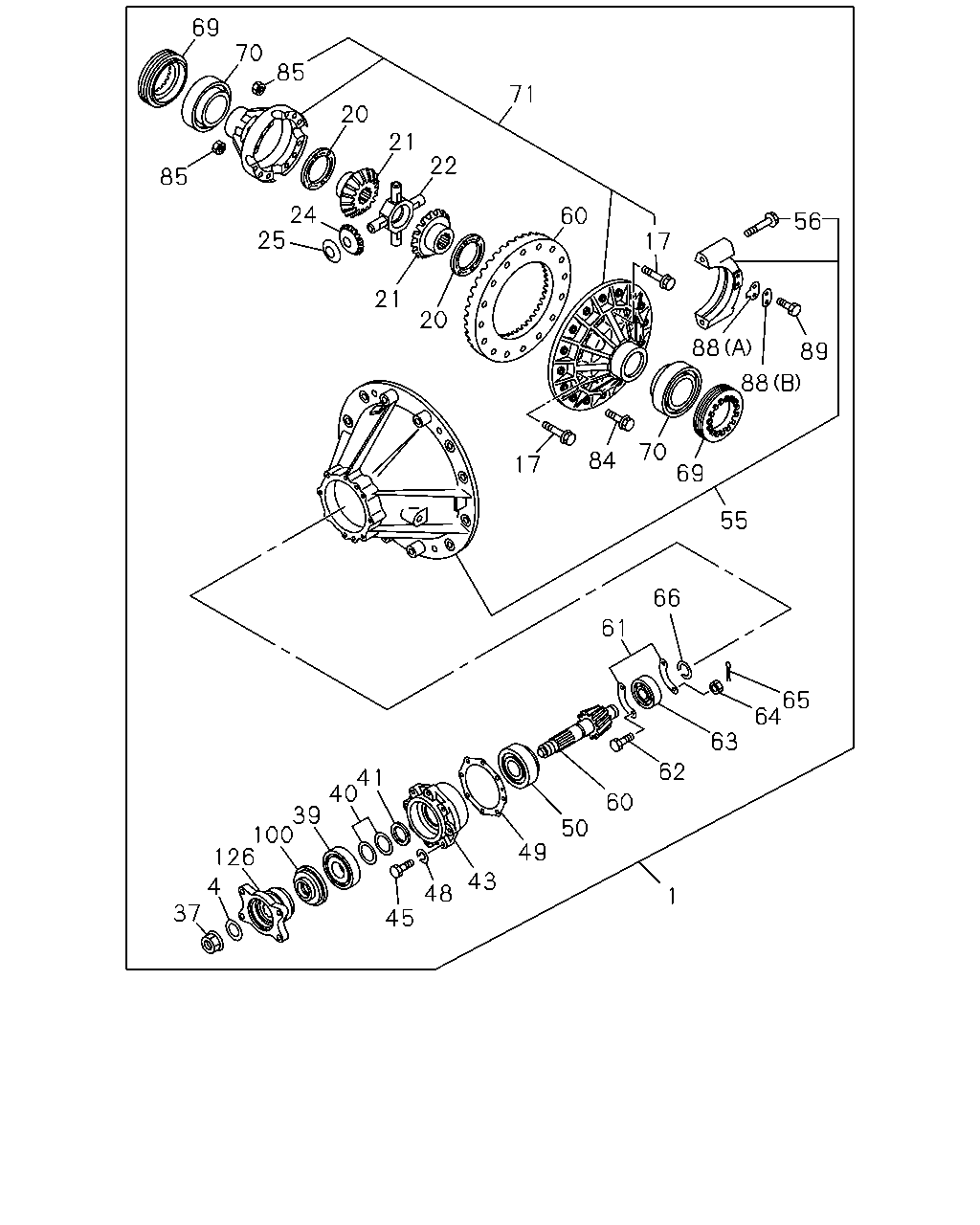

çizim 3330
69 70 85 71 20 21 22 85 24 25 60 56 17 21 20 88 89 88 70 84 17 69 55 66 61 65 64 63 62 41 40 39 100 126 60 50 49 43 4 37 48 45 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
41/8 		1-41001-384-0 01 1 9712- ● ●
4 GASKET; FLANGE,FINAL PINION
ID=57 		1-09623-386-0 01 1 9712- ● ●
17 BOLT; DIFF CAGE SETTING
M16X125 		1-09070-007-0 04 1 9712- ● ●
17 BOLT; DIFF CAGE SETTING
M16X113 		1-09070-018-0 08 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 		1-41562-112-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 		1-41562-113-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 		1-41562-114-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 		1-41562-115-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 		1-41562-116-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 		1-41562-117-0 AR 1 9712- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 		1-41562-118-0 AR 1 9712- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-086-0 02 1 9712- ● ●
22 SPIDER; DIFF PINION
OD=35 		1-41521-037-0 01 1 9712- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-025-0 04 1 9712- ● ●
25 WASHER; THRUST,PINION
T=1.6 		1-41552-017-0 04 1 9712- ● ●
37 NUT; DRIVING PINION
M46 FLANGE 		1-09449-071-0 01 1 9712- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-075-0 01 1 9712- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-076-1 01 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.25 		1-41229-245-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.26 		1-41229-246-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.27 		1-41229-247-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.28 		1-41229-248-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.29 		1-41229-249-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.30 		1-41229-250-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.31 		1-41229-251-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.32 		1-41229-252-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.33 		1-41229-253-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.34 		1-41229-254-0 AR 1 9712- ● ●
40 SHIM; FINAL PINION
T=3.35 		1-41229-255-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 		1-41229-237-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 		1-41229-238-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 		1-41229-239-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 		1-41229-240-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 		1-41229-241-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 		1-41229-242-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 		1-41229-243-0 AR 1 9712- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 		1-41229-244-0 AR 1 9712- ● ●
43 CAGE; FINAL PINION
T=81 		1-41151-030-0 01 1 9712- ● ●
45 BOLT; FINAL PINION CAGE
M16X55 		0-16806-655-0 08 1 9712- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 		9-09150-516-0 08 1 9712- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-024-0 AR 1 9712- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-025-0 AR 1 9712- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-057-0 AR 1 9712- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-058-0 AR 1 9712- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-073-1 01 1 9712- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-074-1 01 1 9712- ● ●
55 CARRIER; DIFF 1-41110-109-0 01 1 9712- ● ●
56 BOLT; BRG CAP
M20X112 		1-09070-042-0 04 1 9712- ● ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-466-0 01 1 9712-9901 ● ●
60 GEAR SET; FINAL DRIVE,RR
41/8 		1-41210-605-0 01 1 9902- ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 		1-41227-012-0 02 1 9712- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE 		1-09042-038-1 02 1 9712- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-182-0 01 1 9712- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-183-0 01 1 9712- ● ●
64 NUT; RET
M8 SLOTTED 		9-09117-508-0 02 1 9712- ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 9712- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 		1-09588-086-1 01 1 9712- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 		1-41121-002-0 01 1 9712- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 		1-41121-001-0 01 1 9712- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 		1-09812-225-0 02 1 9712- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-141-0 01 1 9712- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE 		1-09009-049-1 16 1 9712- ● ●
85 NUT; DIFF CAGE SETTING
M16 		9-99110-516-0 12 1 9712- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 		1-41124-006-0 02 1 9712- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 		9-41124-005-0 02 1 9712- ● ●
89 BOLT; LK PLATE
M8X16 		0-20800-816-0 04 1 9712- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-322-0 01 1 9712- ● ●
126 COUPLING; DRIVING PINION 1-37245-143-2 01 1 9712-9901 ● ●
126 COUPLING; DRIVING PINION 1-37245-265-2 01 1 9902- ● ●
