◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#45859) — 1218 parça

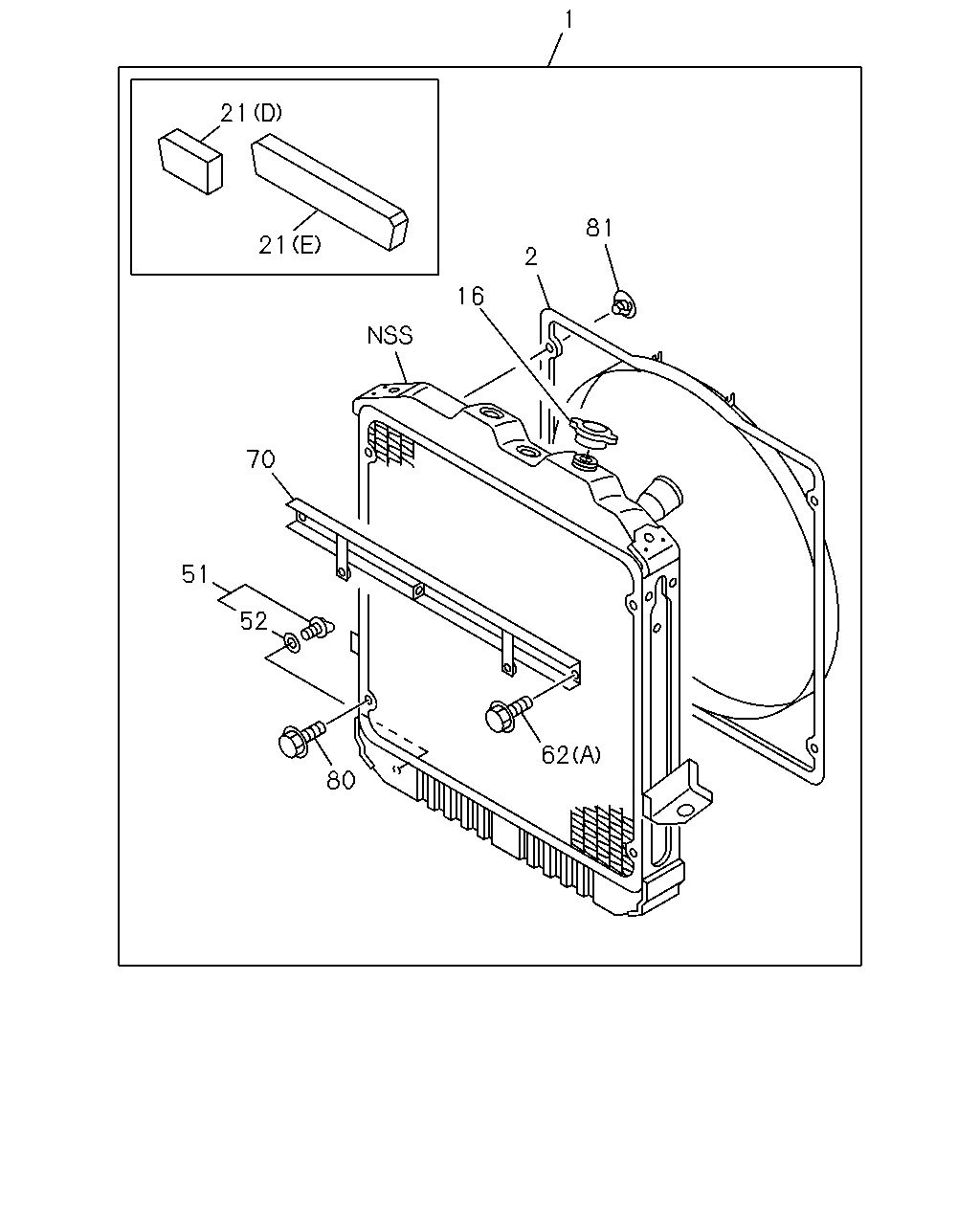

çizim 16145
1 21 81 21 2 16 70 51 52 80 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
16 01.203 CAP; RAD 8-97148-007-0 01 1 9608-9609 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9610-9711 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9712-9802 ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97167-854-0 01 1 9712-9802 ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9712-9802 ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9712-9802 ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9803- ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH) 		8-97167-854-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9803- ● ●
16 01.203 CAP; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-94116-916-1 01 1 9312-9410 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97120-073-0 01 1 9411-9502 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9503-9510 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9511-9512 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97146-516-0 01 1 9601-9603 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9712-9801 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9712-9801 ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9803- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9504 ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●

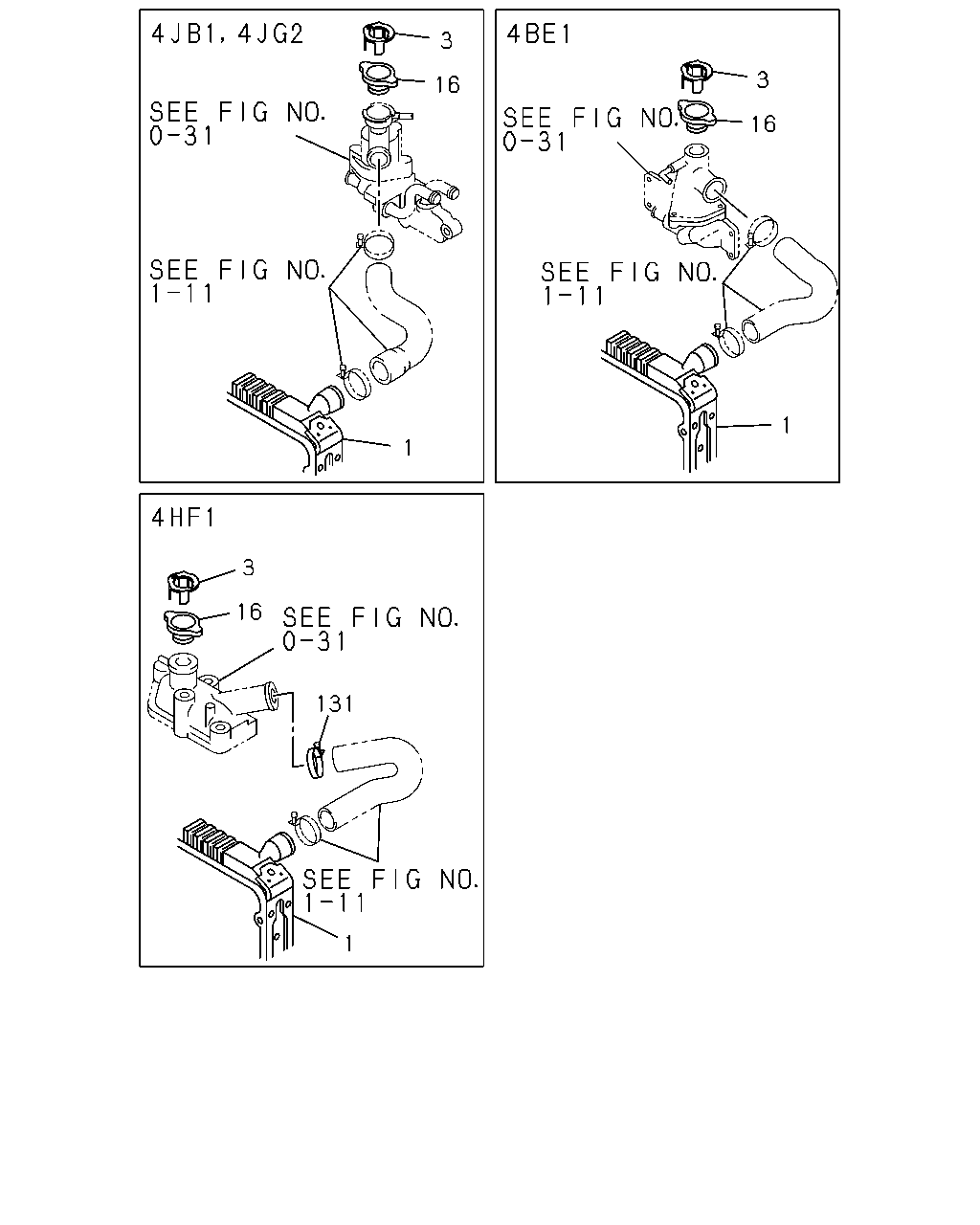

çizim 67921
3 3 16 16 1 1 3 16 131 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
3 01.203 COVER; RAD
4JB1 ENG(RLF) NOISE PACK FOR CHINESE REGULATION<6QX> KD ENGINE<7MB> 01.251 		8-97131-155-1 01 1 9609-9612 ● ● ●
3 01.203 COVER; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> 01.251 		8-97131-155-1 01 1 9505-9506 ● ● ● ●
3 01.203 COVER; RAD
MANUAL TILT CAB<RWZ> 01.251 		8-97131-155-1 01 1 9507-9509 ● ● ● ●
3 01.203 COVER; RAD
01.251 		8-97131-155-1 01 1 9510-9602 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97148-007-0 01 1 9608-9609 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9610-9711 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9712-9802 ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97167-854-0 01 1 9712-9802 ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9712-9802 ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9712-9802 ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9803- ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH) 		8-97167-854-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9803- ● ●
16 01.203 CAP; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-94116-916-1 01 1 9312-9410 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97120-073-0 01 1 9411-9502 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9503-9510 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9511-9512 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97146-516-0 01 1 9601-9603 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9712-9801 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9712-9801 ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9803- ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9312-9801 ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9802- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4BE1 ENG(RLH),4HF1 ENG(RLS) ID=52 		9-09916-031-1 01 1 9312-9510 ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4BE1 ENG(RLH),4HF1 ENG(RLS) ID=52 		9-09916-031-1 01 1 9511- ● ● ● ● ●

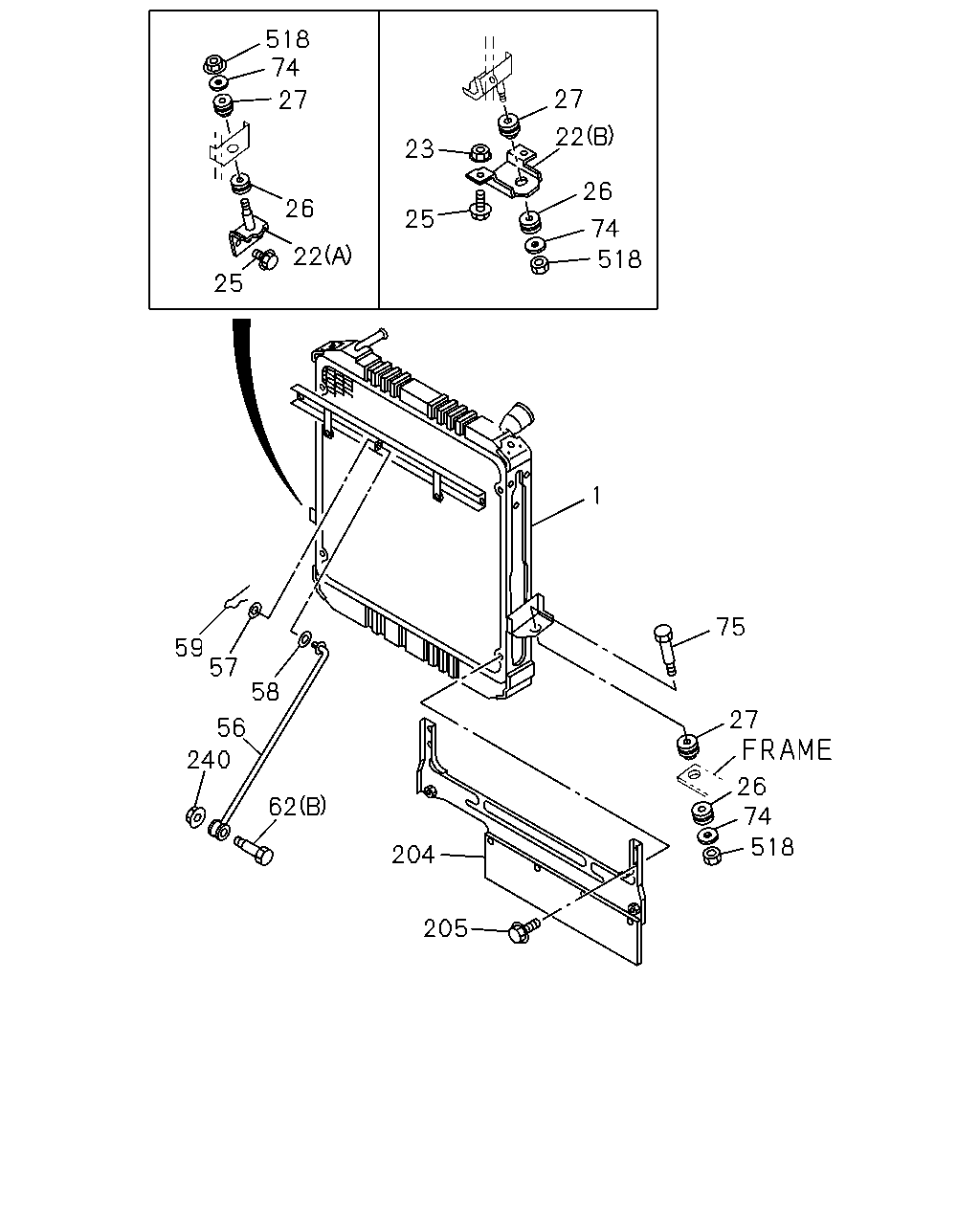

çizim 67961
518 74 27 27 22 23 26 26 25 74 22 518 25 1 75 59 57 58 27 56 240 26 74 62 518 204 205
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●

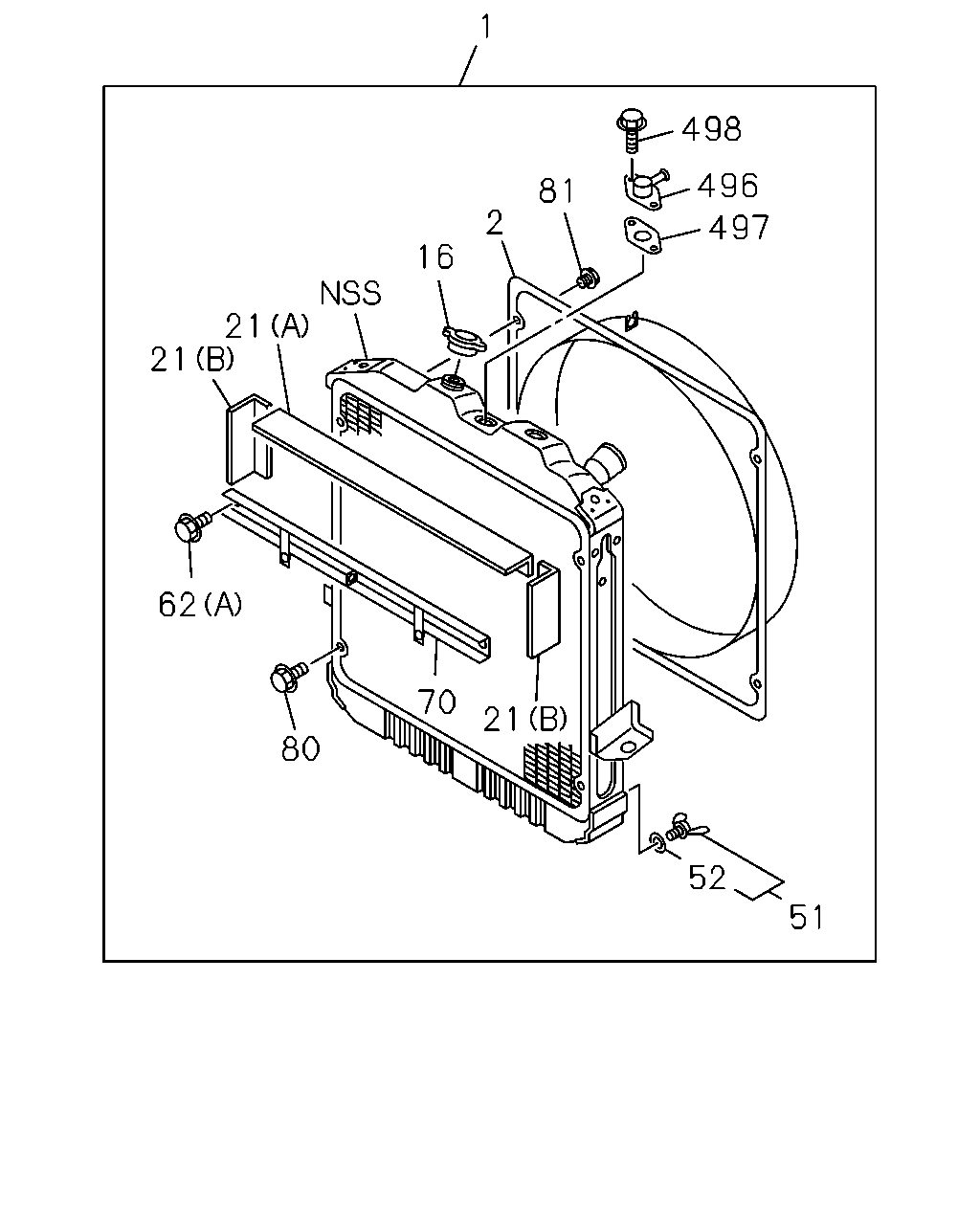

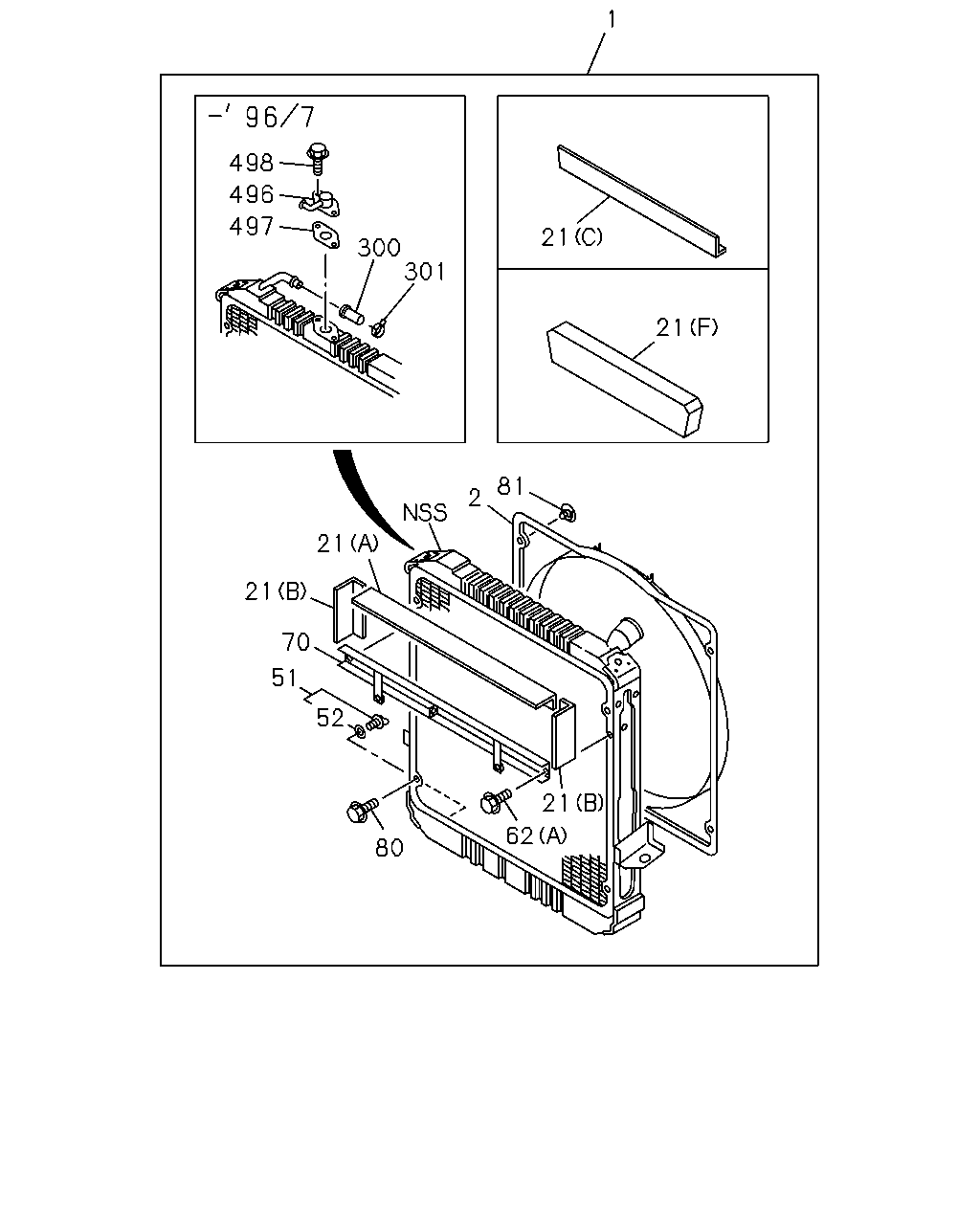

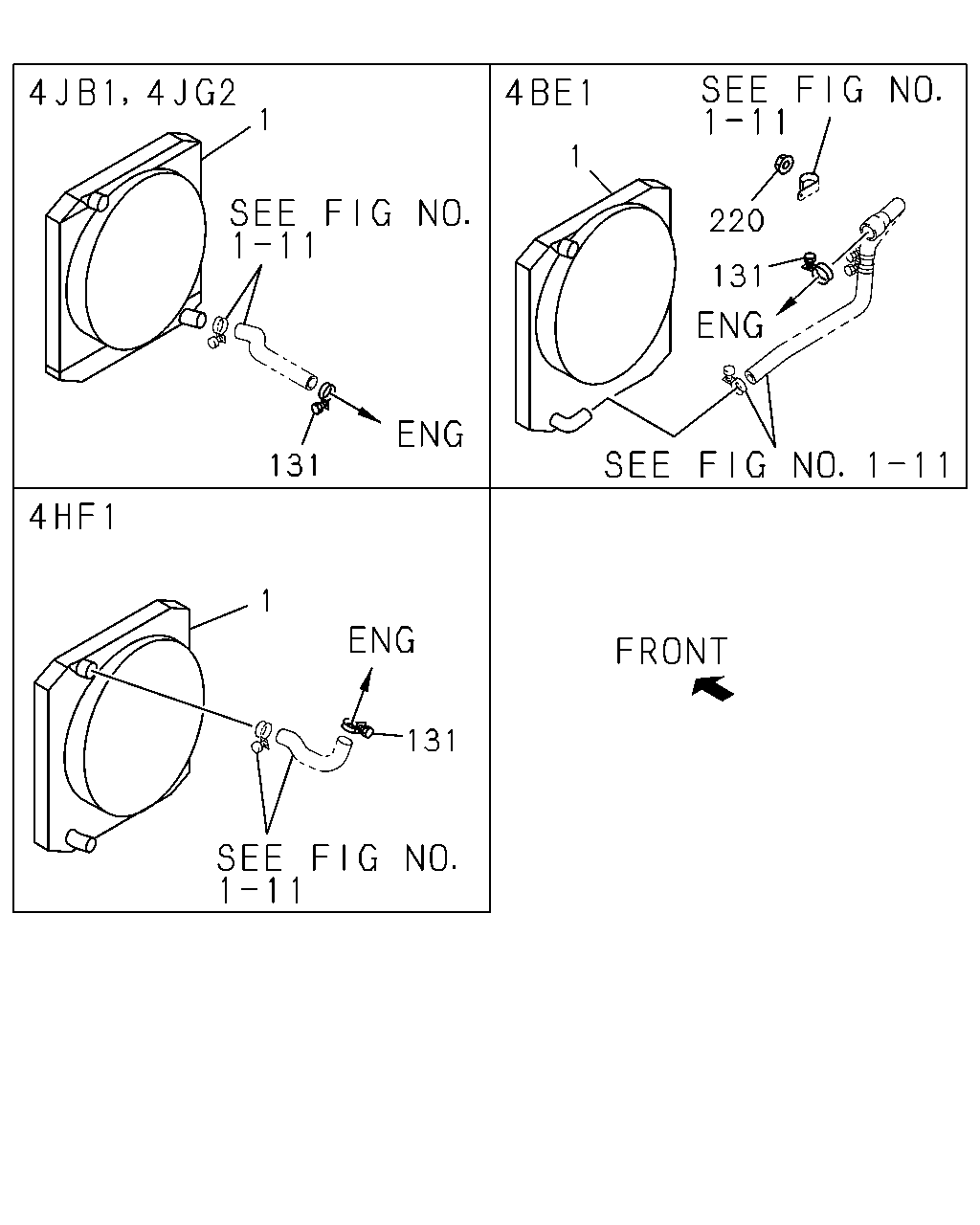

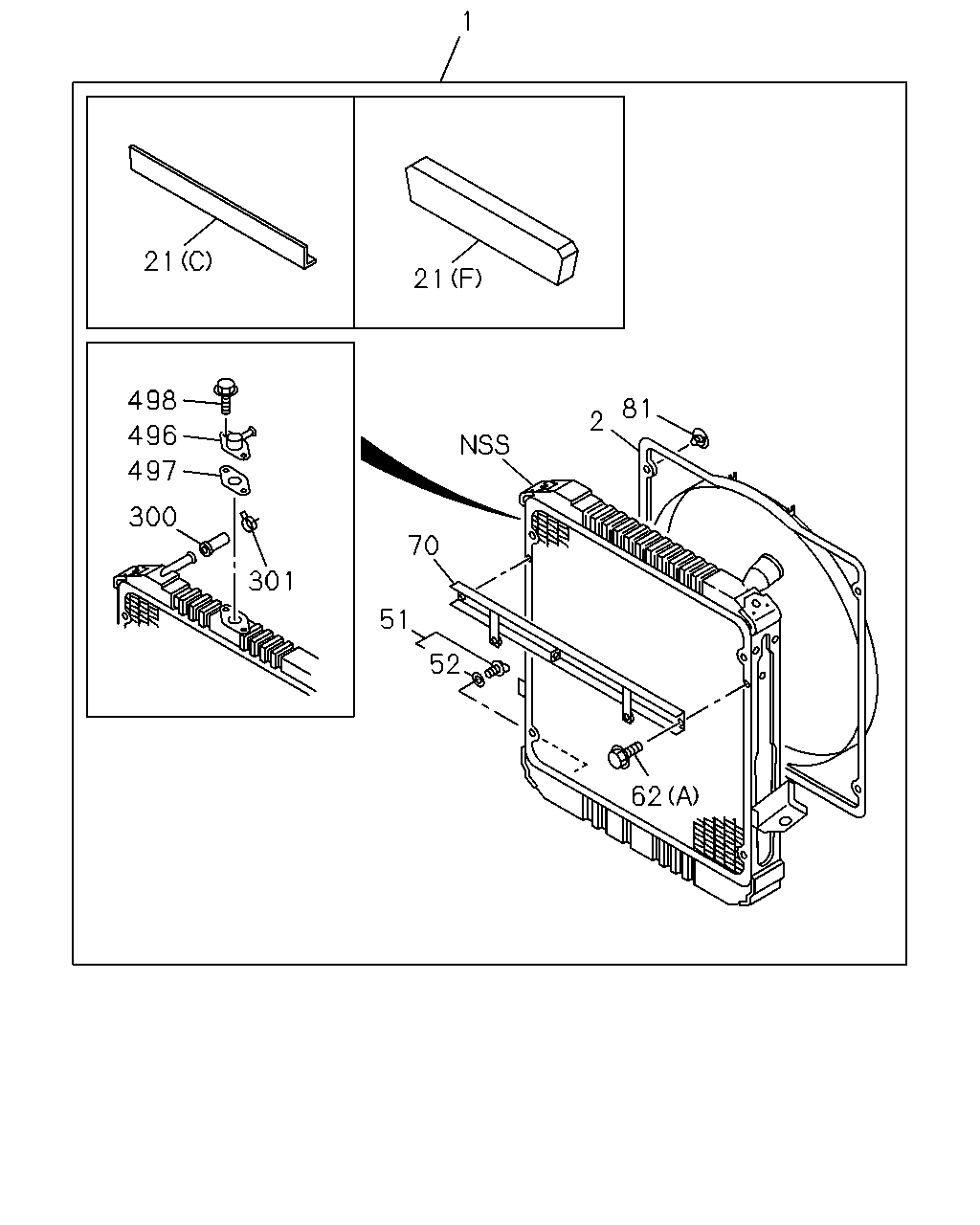

1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
22 01.270 BRACKET; RAD MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-647-1 01 1 9312-9510 ●
22 01.270 BRACKET; RAD MTG
EXC. REAR WIDE TREAD(V4T) (A) 		8-97072-647-1 01 1 9312-9510 ●
22 01.270 BRACKET; RAD MTG
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97072-647-1 01 1 9511- ●
22 01.270 BRACKET; RAD MTG
FRAME-KICK UP<7EW> (A) 		8-97072-647-1 01 1 9511- ●
22 01.270 BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94257-949-1 01 1 9312-9510 ● ● ● ● ●
22 01.270 BRACKET; RAD MTG
REAR WIDE TREAD(V4T) (B) 		8-94257-949-1 01 1 9312-9510 ●
22 01.270 BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (B) 		8-94257-949-1 01 1 9511- ● ● ● ● ● ● ●
23 01.271 NUT; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.874 M10 FLANGE 		5-09440-006-0 02 1 9312-9510 ● ● ● ● ●
23 01.271 NUT; RAD MTG
REAR WIDE TREAD(V4T) 07.874 M10 FLANGE 		5-09440-006-0 02 1 9312-9510 ●
23 01.271 NUT; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 07.874 M10 FLANGE 		5-09440-006-0 02 1 9511- ● ● ● ● ● ● ●
25 01.271 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 00.002 M10X28 		0-28481-028-0 02 1 9312-9510 ●
25 01.271 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 00.002 M10X28 		0-28481-028-0 02 1 9312-9510 ●
25 01.271 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 00.002 M10X28 		0-28481-028-0 02 1 9511-9702 ●
25 01.271 BOLT; BRKT
FRAME-KICK UP<7EW> 00.002 M10X28 		0-28481-028-0 02 1 9511-9702 ●
25 01.271 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 9703- ● ● ● ● ● ● ●
25 01.271 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9312-9510 ● ● ● ● ●
25 01.271 BOLT; BRKT
REAR WIDE TREAD(V4T) 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9312-9510 ●
25 01.271 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.417 M10X25 FLANGE 		0-28081-025-0 02 1 9511-9702 ● ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9312-9510 ● ● ● ● ● ●
26 01.270 BUFFER; RAD,LWR 8-94249-347-0 02 1 9511- ● ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9312-9510 ● ● ● ● ● ●
27 01.270 BUFFER; RAD,UPR 8-94249-346-0 02 1 9511- ● ● ● ● ● ● ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-799-0 01 1 9312-9510 ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-799-0 01 1 9312-9510 ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-799-2 01 1 9511- ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-799-2 01 1 9511- ●
56 01.270 STAY; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-797-2 01 1 9312- ●
56 01.270 STAY; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-798-2 01 1 9312-9801 ● ● ● ● ●
56 01.270 STAY; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-798-2 01 1 9802- ● ● ● ● ● ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97094-807-0 01 1 9312-9510 ● ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97094-807-0 01 1 9312-9510 ●
56 01.270 STAY; RAD 8-97094-807-0 01 1 9312-9510 ●
56 01.270 STAY; RAD
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97094-807-2 01 1 9511- ● ● ● ● ●
56 01.270 STAY; RAD
4HF1 ENG(RLS) 		8-97032-801-2 01 1 9312- ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9312-9507 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9508-9510 ● ● ● ● ● ●
57 01.271 WASHER; PL,STAY
07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9511- ● ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9312-9507 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9508-9510 ● ● ● ● ● ●
58 01.271 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9511- ● ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9312-9507 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9508-9510 ● ● ● ● ● ●
59 01.271 PIN; SNAP,STAY
03.452 L=32.6 		8-94202-777-0 01 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. REAR WIDE TREAD(V4T) ID=10.5 OD=36 		8-97031-437-0 01 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=36 		8-97031-437-0 01 1 9511- ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRAME-KICK UP<7EW> ID=10.5 OD=36 		8-97031-437-0 01 1 9511- ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36 		8-94221-082-0 01 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. REAR WIDE TREAD(V4T) 03.405 ID=8.5 OD=36 		8-94221-082-0 01 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36 		8-94221-082-0 01 1 9511- ●
74 01.270 WASHER; PL,CUSHION RUBBER
FRAME-KICK UP<7EW> 03.405 ID=8.5 OD=36 		8-94221-082-0 01 1 9511- ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36 		8-94221-082-0 02 1 9312-9510 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
REAR WIDE TREAD(V4T) 03.405 ID=8.5 OD=36 		8-94221-082-0 02 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 03.405 ID=8.5 OD=36 		8-94221-082-0 02 1 9511- ● ● ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26 		9-09160-710-0 01 1 9312-9510 ● ● ● ● ●
74 01.270 WASHER; PL,CUSHION RUBBER
REAR WIDE TREAD(V4T) 04.792 ID=10.5 OD=26 		9-09160-710-0 01 1 9312-9510 ●
74 01.270 WASHER; PL,CUSHION RUBBER
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 04.792 ID=10.5 OD=26 		9-09160-710-0 01 1 9511- ● ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9312-9510 ● ● ● ● ● ●
75 01.271 BOLT; CUSHION RUBBER,RAD MTG
01.274 M8X63 		8-94249-446-0 01 1 9511- ● ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) 		8-97089-919-1 01 1 9312-9407 ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 		8-97089-919-1 01 1 9408-9409 ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CON PREPARATORY PACK<S6D> 		8-97089-919-1 01 1 9408-9409 ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, FIRE TRUCK CHASSIS(V4F) 		8-97089-919-1 01 1 9410-9510 ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CON PREPARATORY PACK<S6D> 		8-97089-919-1 01 1 9410-9510 ●
204 01.267 GUIDE ASM; AIR
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, FIRE TRUCK CHASSIS(V4F) 		8-97089-919-3 01 1 9511- ● ● ● ● ● ● ●
204 01.267 GUIDE ASM; AIR
AIR CON PREPARATORY PACK<S6D> 		8-97089-919-3 01 1 9511- ●
204 01.267 GUIDE ASM; AIR
FIRE TRUCK CHASSIS(V4F) 		8-97038-894-1 01 1 9410- ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9312-9407 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9408-9409 ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9408-9409 ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9510 ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9510 ●
205 01.267 BOLT; AIR GUIDE
FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9510 ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9511-9709 ● ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9511-9709 ●
205 01.267 BOLT; AIR GUIDE
FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9511-9709 ●
205 01.267 BOLT; AIR GUIDE
AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>, FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9710- ● ● ● ● ● ● ●
205 01.267 BOLT; AIR GUIDE
AIR CON PREPARATORY PACK<S6D> 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9710- ●
205 01.267 BOLT; AIR GUIDE
FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9710- ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9312-9510 ● ● ● ● ● ●
240 01.271 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9511- ● ● ● ● ● ● ●
518 01.270 NUT
FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE 		5-09440-005-0 01 1 9312-9510 ●
518 01.270 NUT
EXC. REAR WIDE TREAD(V4T) 00.854 M8 FLANGE 		5-09440-005-0 01 1 9312-9510 ●
518 01.270 NUT
FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE 		5-09440-005-0 01 1 9511- ●
518 01.270 NUT
FRAME-KICK UP<7EW> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9511- ●
518 01.270 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 00.854 M8 FLANGE 		5-09440-005-0 02 1 9511- ● ● ● ● ● ● ●
518 01.270 NUT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9510 ● ● ● ● ●
518 01.270 NUT
REAR WIDE TREAD(V4T) 00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9510 ●
çizim 69141
1 498 496 81 2 497 16 21 21 62 70 21 80 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
16 01.203 CAP; RAD 8-97148-007-0 01 1 9608-9609 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9610-9711 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9712-9802 ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97167-854-0 01 1 9712-9802 ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9712-9802 ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9712-9802 ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9803- ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH) 		8-97167-854-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9803- ● ●
16 01.203 CAP; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-94116-916-1 01 1 9312-9410 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97120-073-0 01 1 9411-9502 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9503-9510 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9511-9512 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97146-516-0 01 1 9601-9603 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9712-9801 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9712-9801 ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9803- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9504 ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●
496 01.271 VALVE; PRESSURE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97129-063-0 01 1 9505-9607 ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-063-0 01 1 9609-9612 ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9505-9510 ● ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9511-9607 ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE 8-97129-600-0 01 1 9505-9607 ● ● ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-600-0 01 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ● ● ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9511-9607 ● ● ● ● ● ● ●
çizim 70404
1 81 2 16 70 51 52 62 80 21 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
16 01.203 CAP; RAD 8-97148-007-0 01 1 9608-9609 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9610-9711 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9712-9802 ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) 		8-97167-854-0 01 1 9712-9802 ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9712-9802 ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9712-9802 ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97167-854-0 01 1 9803- ● ● ● ● ●
16 01.203 CAP; RAD
4BE1 ENG(RLH) 		8-97167-854-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-97167-854-0 01 1 9803- ● ●
16 01.203 CAP; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97167-854-0 01 1 9803- ●
16 01.203 CAP; RAD 8-94116-916-1 01 1 9312-9410 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97120-073-0 01 1 9411-9502 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9503-9510 ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97129-572-0 01 1 9511-9512 ● ● ● ● ● ● ●
16 01.203 CAP; RAD 8-97146-516-0 01 1 9601-9603 ● ● ● ● ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9712-9801 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9712-9801 ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9802-9802 ● ● ●
16 01.203 CAP; RAD
4JG2 ENG(RJC),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F),FRT INDEPENDENT SUSPENSION(6PP) 		8-97177-872-0 01 1 9803- ● ● ● ●
16 01.203 CAP; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97177-872-0 01 1 9803- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9504 ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●
çizim 70437
1 21 21 498 81 2 496 497 300 70 301 51 52 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●
300 01.240 HOSE; WATER,OVERFLOW,RAD 8-97147-997-0 01 1 9604-9604 ● ● ● ● ● ● ●
300 01.240 HOSE; WATER,OVERFLOW,RAD
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97147-997-0 01 1 9605-9607 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
04.128 ID=15 		8-94140-431-0 01 1 9604-9604 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
EXC. CHINA CHONGQING EQUIPMENT<R5B> 04.128 ID=15 		8-94140-431-0 01 1 9605-9607 ● ● ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97129-063-0 01 1 9505-9607 ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-063-0 01 1 9609-9612 ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9505-9510 ● ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9511-9607 ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE 8-97129-600-0 01 1 9505-9607 ● ● ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-600-0 01 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ● ● ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9511-9607 ● ● ● ● ● ● ●
çizim 70448
1 498 496 497 301 300 81 2 21 21 62 70 21 80 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9504 ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●
300 01.240 HOSE; WATER,OVERFLOW,RAD 8-97147-997-0 01 1 9604-9604 ● ● ● ● ● ● ●
300 01.240 HOSE; WATER,OVERFLOW,RAD
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97147-997-0 01 1 9605-9607 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
04.128 ID=15 		8-94140-431-0 01 1 9604-9604 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
EXC. CHINA CHONGQING EQUIPMENT<R5B> 04.128 ID=15 		8-94140-431-0 01 1 9605-9607 ● ● ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97129-063-0 01 1 9505-9607 ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-063-0 01 1 9609-9612 ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9505-9510 ● ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9511-9607 ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE 8-97129-600-0 01 1 9505-9607 ● ● ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-600-0 01 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ● ● ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9511-9607 ● ● ● ● ● ● ●
çizim 70450
1 498 496 497 21 300 301 21 81 2 21 21 70 51 52 21 62 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9312-9504 ● ● ● ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97066-011-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9312-9510 ● ● ● ●
2 01.277 GUIDE; FAN
4BE1 ENG(RLH) 		8-97066-013-0 01 1 9511- ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97066-019-0 01 1 9410-9501 ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-979-0 01 1 9502- ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) 		8-97066-015-0 01 1 9312-9409 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97066-015-0 01 1 9410-9501 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9502-9504 ● ●
2 01.277 GUIDE; FAN
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9505-9510 ● ● ● ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-916-0 01 1 9511-9802 ● ●
2 01.277 GUIDE; FAN
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97203-091-0 01 1 9803- ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (A) 		8-97085-689-0 01 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (A) 		8-97085-689-0 01 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (A) 		8-97085-689-0 01 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-689-0 01 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (A) 		8-97085-689-0 01 1 9712- ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4JB1 ENG(RLF) (B) 		8-97085-690-0 02 1 9312-9501 ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC) (B) 		8-97085-690-0 02 1 9502-9504 ● ● ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9505-9711 ●
21 01.276 SEAL; RAD
4JG2 ENG(RJC),4BE1 ENG(RLH) (B) 		8-97085-690-0 02 1 9712- ● ● ● ● ● ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97085-690-0 02 1 9712- ●
21 01.276 SEAL; RAD
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97085-690-0 02 1 9712- ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (C) 		8-97062-615-0 01 1 9312-9501 ● ● ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) (C) 		8-97062-615-0 01 1 9502-9502 ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH) (C) 		8-97062-615-0 01 1 9502-9502 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (E) 		8-97164-333-0 01 1 9608- ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) (F) 		8-97122-753-0 01 1 9502-9502 ● ●
21 01.276 SEAL; RAD
4BE1 ENG(RLH),4HF1 ENG(RLS) (F) 		8-97122-753-0 01 1 9503-9504 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (F) 		8-97129-611-0 02 1 9505-9607 ● ● ● ●
21 01.276 SEAL; RAD
4HF1 ENG(RLS) (D) 		8-97164-332-0 01 1 9608- ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9312-9502 ● ● ● ● ● ●
51 08.951 PLUG; DRAIN
08.915 W/GASKET 		8-94321-236-0 01 1 9503- ● ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9312-9502 ● ● ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
01.203 ID=10 		9-09720-557-0 01 1 9503- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 9511- ● ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9312-9510 ● ● ● ● ● ●
62 01.271 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9511- ● ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9312-9510 ● ● ● ● ● ●
70 01.271 STAY; RAD 8-97047-899-0 01 1 9511- ● ● ● ● ● ● ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 9410-9504 ●
80 01.277 BOLT; FAN GUIDE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9505- ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9312-9409 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9410-9510 ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9410-9510 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9511-9604 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9511-9604 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9605-9607 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9605-9607 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9608-9608 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9608-9608 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9609-9612 ● ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9609-9612 ● ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9701-9801 ● ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9701-9801 ●
81 01.277 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9802- ● ● ● ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4JB1 ENG(RLF),4BE1 ENG(RLH) 		8-97088-810-0 04 1 9802- ● ●
81 01.277 SCREW; FAN GUIDE,RAD
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97088-810-0 04 1 9802- ●
300 01.240 HOSE; WATER,OVERFLOW,RAD 8-97147-997-0 01 1 9604-9604 ● ● ● ● ● ● ●
300 01.240 HOSE; WATER,OVERFLOW,RAD
EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97147-997-0 01 1 9605-9607 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
04.128 ID=15 		8-94140-431-0 01 1 9604-9604 ● ● ● ● ● ● ●
301 01.240 CLIP; HOSE,RAD,OVERFLOW
EXC. CHINA CHONGQING EQUIPMENT<R5B> 04.128 ID=15 		8-94140-431-0 01 1 9605-9607 ● ● ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97129-063-0 01 1 9505-9607 ● ● ● ● ●
496 01.271 VALVE; PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-063-0 01 1 9609-9612 ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9505-9510 ● ● ● ●
496 01.271 VALVE; PRESSURE
4BE1 ENG(RLH) 		8-97129-064-0 01 1 9511-9607 ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE 8-97129-600-0 01 1 9505-9607 ● ● ● ● ● ● ●
497 01.271 GASKET; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-600-0 01 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9609-9612 ● ● ●
498 01.271 BOLT; VLV,PRESSURE
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ● ● ● ● ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4JB1 ENG(RLF),4BE1 ENG(RLH) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9505-9510 ●
498 01.271 BOLT; VLV,PRESSURE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9511-9607 ● ● ● ● ● ● ●
çizim 70929
1 1 220 131 131 1 131
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. REAR WIDE TREAD(V4T) 		8-97032-731-2 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97032-731-2 01 1 9405-9502 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97128-838-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97129-015-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97160-546-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) FRAME-KICK UP<7EW> 		8-97162-139-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-725-1 01 1 9312-9502 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-832-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-009-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-544-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-129-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97117-688-0 01 1 9502-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97128-870-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97129-032-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97160-557-0 01 1 9604-9604 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-557-0 01 1 9605-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9312-9501 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-727-1 01 1 9502-9502 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97128-834-0 01 1 9503-9504 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-011-0 01 1 9505-9603 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2),EGYPT EQUIPMENT(YJ4) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97160-545-0 01 1 9604-9607 ● ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9608-9801 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9608-9801 ● ●
1 01.219 RADIATOR ASM
4JG2 ENG(RJC) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) SAUDI ARABIA EQUIPMENT(EU2) 		8-97162-135-1 01 1 9802- ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9605-9607 ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-0 01 1 9608-9608 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), CHINA CHONGQING EQUIPMENT<R5B>,EGYPT EQ UIPMENT(YJ4),FRT INDEPENDENT SUSPENSION(6PP) 		8-97162-145-1 01 1 9609-9612 ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) EXC. SAUDI ARABIA EQUIPMENT(EU2), EGYPT EQUIPMENT(YJ4),FRT INDEPENDENT SU SPENSION(6PP) 		8-97162-145-1 01 1 9701- ● ● ● ● ●
1 01.219 RADIATOR ASM
4JB1 ENG(RLF) CHINA CHONGQING EQUIPMENT<R5B> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97129-032-0 01 1 9609-9612 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-733-0 01 1 9312-9404 ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) REAR WIDE TREAD(V4T) 		8-97032-733-0 01 1 9312-9404 ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97032-733-0 01 1 9405-9502 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97128-839-0 01 1 9503-9504 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97129-017-0 01 1 9505-9603 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97160-547-0 01 1 9604-9607 ● ● ● ● ●
1 01.219 RADIATOR ASM
4BE1 ENG(RLH) EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> 		8-97162-141-1 01 1 9608- ● ● ● ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97032-743-2 01 1 9410-9501 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97125-980-0 01 1 9502-9502 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97128-869-0 01 1 9503-9504 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97129-028-0 01 1 9505-9603 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-553-0 01 1 9604-9607 ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) FIRE TRUCK CHASSIS(V4F) 		8-97160-548-1 01 1 9608- ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) 		8-97032-737-2 01 1 9312-9409 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97032-737-2 01 1 9410-9501 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97124-912-0 01 1 9502-9502 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97128-842-0 01 1 9503-9504 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97129-018-0 01 1 9505-9603 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97160-552-0 01 1 9604-9607 ● ●
1 01.219 RADIATOR ASM
4HF1 ENG(RLS) EXC. FIRE TRUCK CHASSIS(V4F) 		8-97162-143-2 01 1 9608- ● ●
131 01.166 CLIP; ENG SIDE TOP
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9312-9801 ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4JG2 ENG(RJC),4JB1 ENG(RLF) ID=42 		5-09704-047-1 01 1 9802- ● ● ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4BE1 ENG(RLH),4HF1 ENG(RLS) ID=52 		9-09916-031-1 01 1 9312-9510 ● ● ● ●
131 01.166 CLIP; ENG SIDE TOP
4BE1 ENG(RLH),4HF1 ENG(RLS) ID=52 		9-09916-031-1 01 1 9511- ● ● ● ● ●
220 01.166 NUT; CLIP
4BE1 ENG(RLH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ● ● ●
220 01.166 NUT; CLIP
4BE1 ENG(RLH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
