Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#45858) — 293 parça

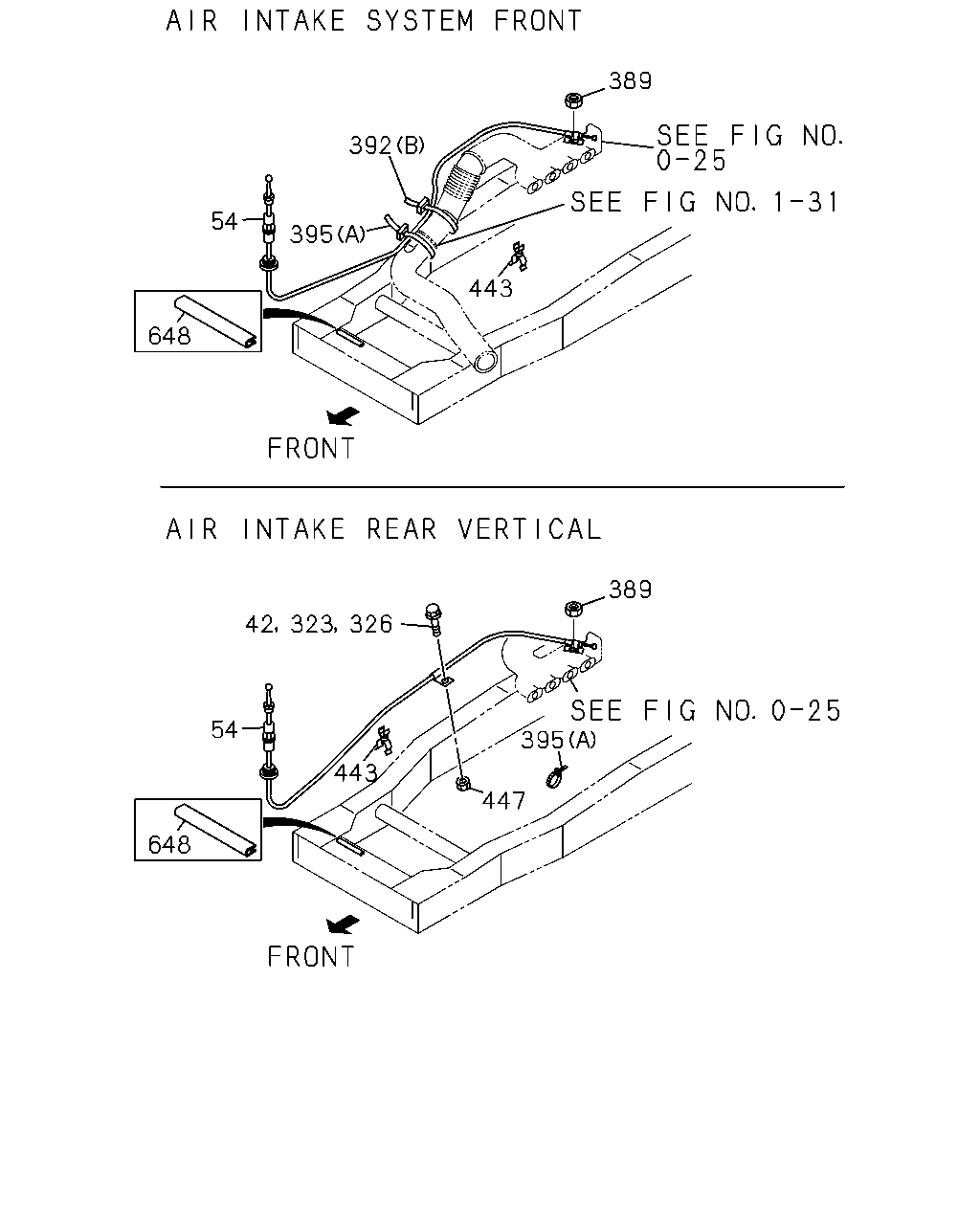

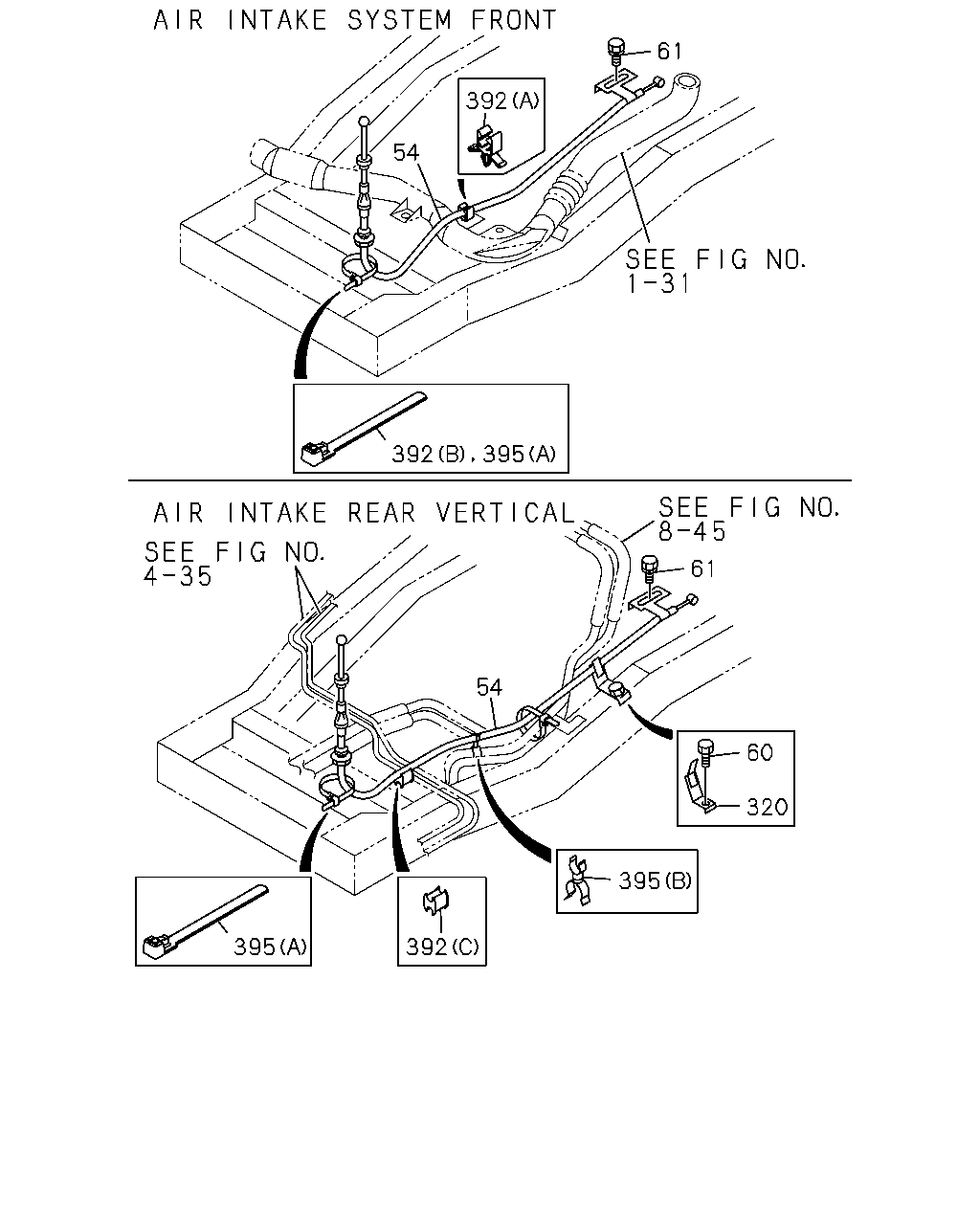

61 392 54 395 392 61 54 60 320 395 395 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97089-885-2	01	1	9312-9408	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9409-9609	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> L=1701	8-97118-537-1	01	1	9610-9708	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9709-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-657-2	01	1	9312-9408	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9409-9510	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9511-	●		●	●		●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97090-656-3	01	1	9312-9408	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97118-530-1	01	1	9409-9711	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97118-530-1	01	1	9712-	●			●			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9410			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9410-			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97069-956-4	01	1	9312-9408			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97118-535-1	01	1	9409-			●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97163-852-0	01	1	9610-9708				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9406	●		●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9406			●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9407-9507	●		●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9407-9507			●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-	●		●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-			●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-9801	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●	●	●		●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9312-9404	●		●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9405-	●		●	●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	9312-			●	●
392	03.483 CLIP; ACCEL CONT CABLE FUEL SEDIMENTER WITH HEATER<6HU> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9404	●	●	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9405-9711	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-9801	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9802-	●	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9312-9404	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9405-9507	●		●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312	●			●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312		●					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312					●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9401-9711	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.008 (B) L=330	5-09709-118-0	01	1	9712-	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402	●	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9403-9711	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9401-9404	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9405-	●		●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	9401-			●	●

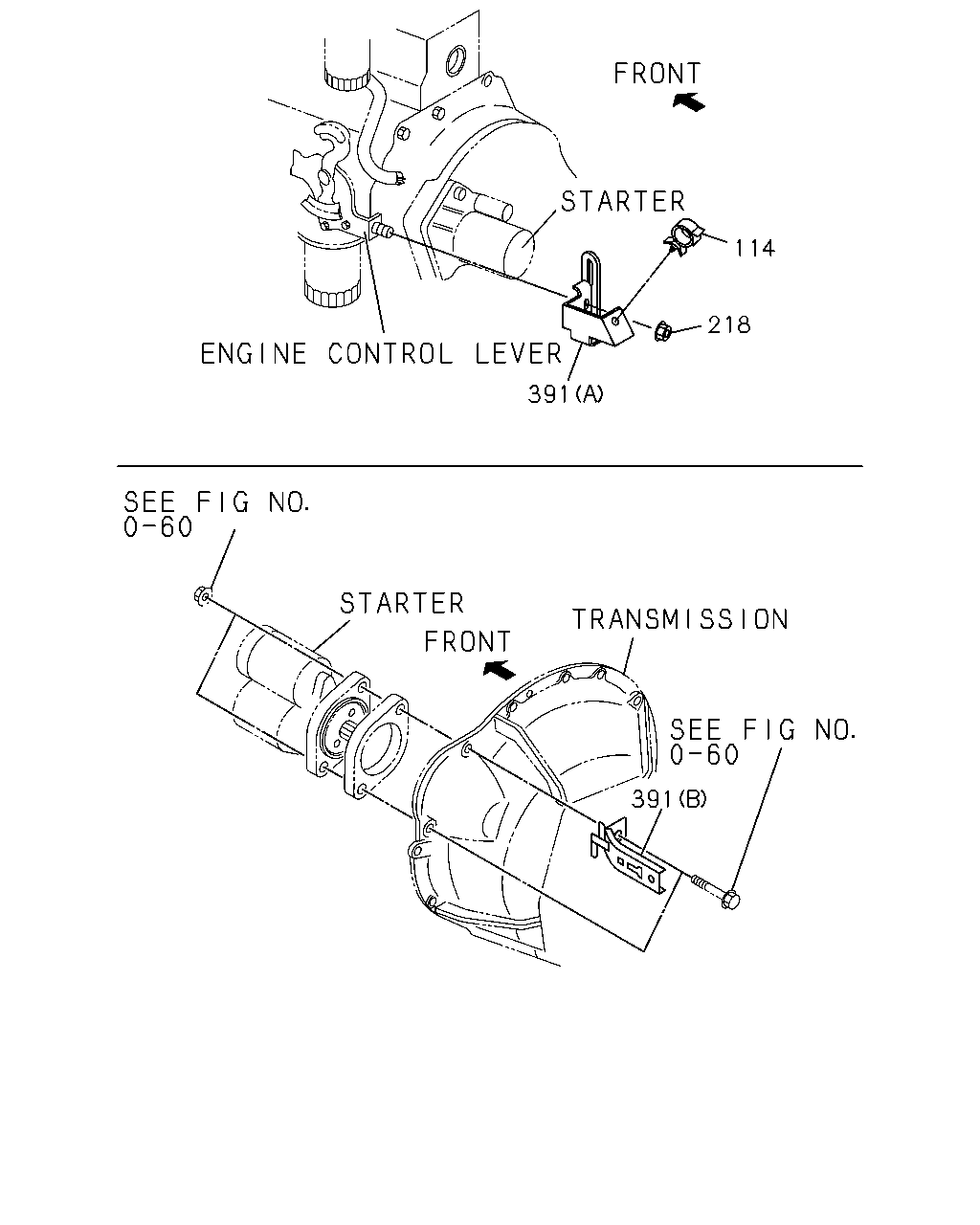

114 218 391 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
114	03.483 CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) 02.559 ID=7-10	8-94472-578-0	01	1	9312-			●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 01.540 M8 FLANGE	0-91150-208-0	01	1	9503-9606			●	●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9607-			●	●
391	03.452 BRACKET; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9312-9510	●	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483 (B)	8-97068-801-1	01	1	9511-9702	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9703-9703	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9703-9711	●	●	●		●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	9703-9711				●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	9712-	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) 02.483 (A)	8-97088-278-0	01	1	9503-9711			●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	9712-			●	●

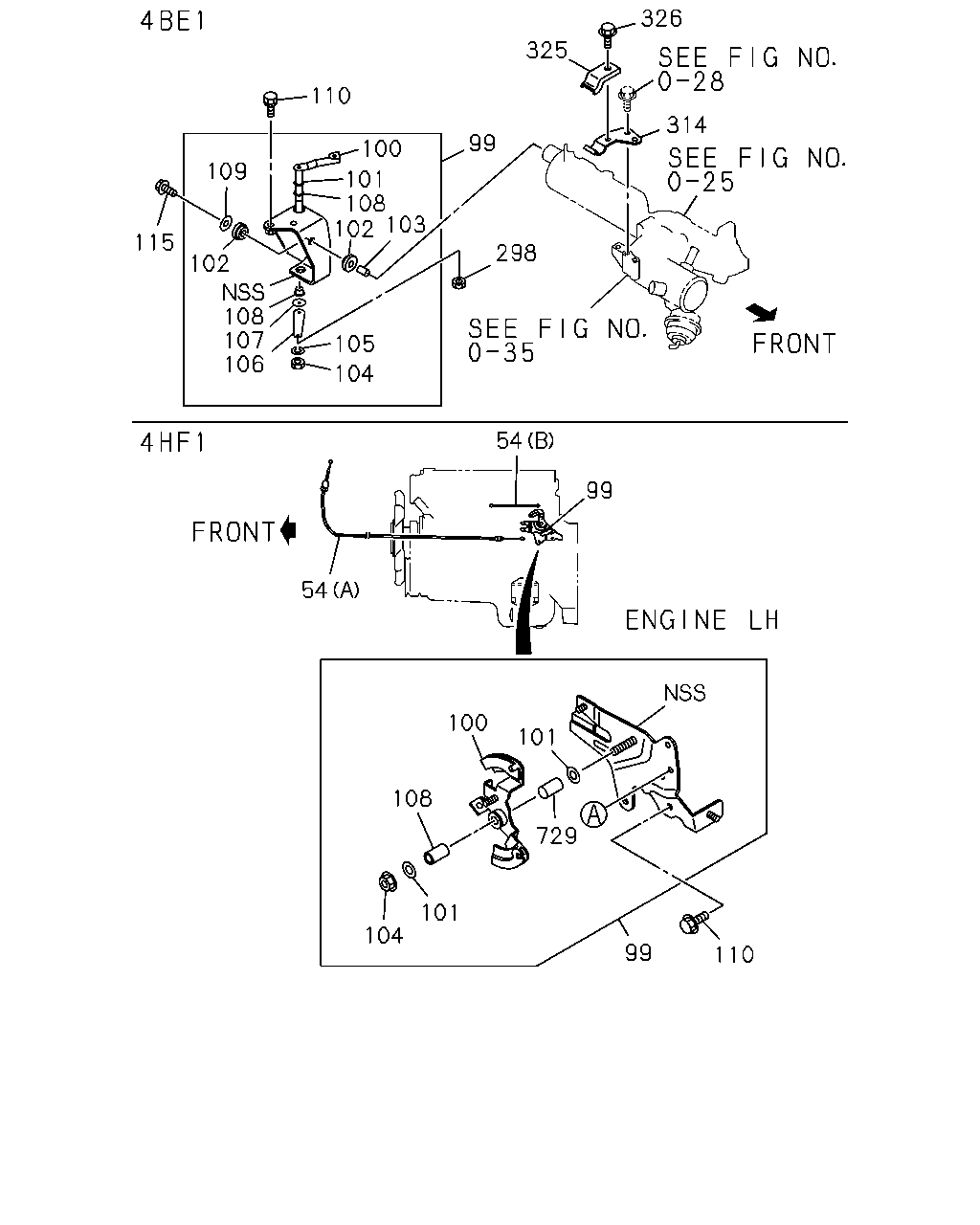

326 325 110 314 99 100 109 101 108 102 103 115 298 102 108 107 106 105 104 54 99 54 100 101 108 729 101 104 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97089-885-2	01	1	9312-9408	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9409-9609	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> L=1701	8-97118-537-1	01	1	9610-9708	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9709-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-657-2	01	1	9312-9408	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9409-9510	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9511-	●		●	●		●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97090-656-3	01	1	9312-9408	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97118-530-1	01	1	9409-9711	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97118-530-1	01	1	9712-	●			●			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9410			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9410-			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97069-956-4	01	1	9312-9408			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97118-535-1	01	1	9409-			●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97163-852-0	01	1	9610-9708				●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97066-831-1	01	1	9312-9510	●		●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97066-831-1	01	1	9511-	●		●	●		●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97066-832-1	01	1	9312-	●			●			●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97106-404-0	01	1	9312-9410			●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	9411-9504			●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	9505-			●	●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-94416-112-1	01	1	9312-9510	●		●	●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-94416-112-1	01	1	9511-	●		●	●		●
100	03.463 SHAFT ASM; ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97038-676-0	01	1	9312-	●			●			●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97106-410-0	01	1	9312-9410			●	●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	9411-9504			●	●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	9505-			●	●
101	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=0.4	9-09851-411-0	03	1	9312-9510	●		●	●			●
101	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=0.4	9-09851-411-0	03	1	9511-	●		●	●		●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) 01.276	8-94142-117-0	02	1	9312-9502			●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) 01.276	8-94142-117-0	02	1	9503-9504			●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	9505-			●	●
102	03.463 RUBBER; MTG 4BE1 ENG(RLH)	8-94255-643-1	02	1	9312-9510	●		●	●			●
102	03.463 RUBBER; MTG 4BE1 ENG(RLH)	8-94255-643-1	02	1	9511-	●		●	●		●	●
103	03.463 BUSHING; SPACER,INL MANIF TO BRK 4BE1 ENG(RLH) 03.275 OD=12 L=20.5	8-94255-642-1	01	1	9312-9510	●		●	●			●
103	03.463 BUSHING; SPACER,INL MANIF TO BRK 4BE1 ENG(RLH) 03.275 OD=12 L=20.5	8-94255-642-1	01	1	9511-	●		●	●		●	●
104	03.463 NUT; ENG CONT 4BE1 ENG(RLH) 00.787 M8	9-09111-408-0	01	1	9312-9510	●		●	●			●
104	03.463 NUT; ENG CONT 4BE1 ENG(RLH) 00.787 M8	9-09111-408-0	01	1	9511-	●		●	●		●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9502			●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-9504			●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	9505-			●	●
105	03.463 WASHER; ENG CONT LEVER 4BE1 ENG(RLH) 00.002 ID=8.2	9-09150-508-0	01	1	9312-9510	●		●	●			●
105	03.463 WASHER; ENG CONT LEVER 4BE1 ENG(RLH) 00.002 ID=8.2	9-09150-508-0	01	1	9511-	●		●	●		●	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	5-15541-007-1	01	1	9312-9510	●		●	●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	5-15541-007-1	01	1	9511-	●		●	●		●
106	03.463 LEVER; "B",ENG CONT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97094-292-0	01	1	9312-	●			●			●
107	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=1	8-94148-078-0	01	1	9312-9510	●		●	●			●
107	03.463 WASHER; ENG CONT 4BE1 ENG(RLH) OD=18 T=1	8-94148-078-0	01	1	9511-	●		●	●		●	●
108	03.463 BUSHING; ENG CONT 4BE1 ENG(RLH)	5-15549-001-1	02	1	9312-9510	●		●	●			●
108	03.463 BUSHING; ENG CONT 4BE1 ENG(RLH)	5-15549-001-1	02	1	9511-	●		●	●		●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS)	8-94372-362-1	01	1	9312-9410			●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	9411-9504			●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	9505-			●	●
109	03.275 WASHER; ENG CONT 4BE1 ENG(RLH) OD=28.6	8-94155-884-1	01	1	9312-9510	●		●	●			●
109	03.275 WASHER; ENG CONT 4BE1 ENG(RLH) OD=28.6	8-94155-884-1	01	1	9511-	●		●	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9312-9510	●		●	●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9511-	●		●	●		●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 09.171 M10X35 W/LK WASHER	0-50041-035-0	01	1	9312-	●			●			●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 02.277 M10X70 W/LK WASHER	0-50041-070-0	01	1	9312-9611	●			●			●
110	03.463 BOLT; BRKT TO HANGER 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC> 03.706 M10X70 FLANGE	0-28081-070-0	01	1	9612-	●			●			●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9312-9502			●	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9503-9607			●	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9608-			●	●
115	03.275 BOLT; INL MANIF TO BRKT 4BE1 ENG(RLH) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9510	●		●	●			●
115	03.275 BOLT; INL MANIF TO BRKT 4BE1 ENG(RLH) 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9511-	●		●	●		●	●
298	03.425 NUT; BALL JOINT,LINK ROD 4BE1 ENG(RLH) 02.559 M5 W/LK WASHER	8-94424-178-0	02	1	9312-9510	●		●	●			●
298	03.425 NUT; BALL JOINT,LINK ROD 4BE1 ENG(RLH) 02.559 M5 W/LK WASHER	8-94424-178-0	02	1	9511-	●		●	●		●	●
314	03.481 BRACKET; ACCEL CABLE 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-97031-742-0	01	1	9312-	●			●			●
325	03.483 CLIP; PCV BRKT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-94144-775-0	01	1	9312-9711	●			●			●
325	03.483 CLIP; PCV BRKT 4BE1 ENG(RLH) AIR INTAKE SYSTEM FRONT<6PC>	8-94144-775-0	01	1	9712-	●			●			●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9510	●		●	●			●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9511-9606	●		●	●		●	●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9607-	●		●	●		●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	9411-9504			●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	9505-			●	●

537 537 70 68 67 80 80 65 80 14 230 24 242 46 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-9409	●	●	●	●	●		●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9410-9510	●	●	●	●	●		●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9511-	●	●	●	●	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9312-9510	●	●	●	●	●		●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9511-	●	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-9510	●	●	●	●	●		●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9511-	●	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9406	●	●	●	●	●		●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9407-9510	●	●	●	●	●		●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9511-9603	●	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-	●	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-3	01	1	9312-9510	●	●	●	●	●		●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9511-	●	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-9510	●	●	●	●	●		●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9511-	●	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-9510	●	●	●	●	●		●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9511-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-9510	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9511-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-1	01	1	9409-9510	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9511-	●	●	●	●	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9312-9510	●	●	●	●	●		●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9511-	●	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-9510	●	●	●	●	●		●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9511-	●	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9312-9510	●	●	●	●	●		●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9511-	●	●	●	●	●	●	●
537	03.483 CLIP; IDLING CONT CABLE 09.649 ID=7	8-97085-207-0	02	1	9312-9412	●	●	●	●	●		●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9501-9510	●	●	●	●	●		●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9511-	●	●	●	●	●	●	●

158 83 80 158 403 545 35 89 35 90 81 82 82 82 82 124 158 83 80 35 35 545 81 89 90 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9510	●	●	●	●	●		●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9511-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-9510	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9511-	●	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-1	01	1	9409-9510	●	●	●	●	●		●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9511-	●	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-9510	●	●	●	●	●		●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9511-	●	●	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR ID=10 OD=17.5	5-23319-012-0	04	1	9312-9408	●	●	●	●	●		●
83	03.452 BRACKET; CONT LINK	8-97857-609-2	01	1	9312-9408	●	●	●	●	●		●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9409-9510	●	●	●	●	●		●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9511-	●	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-3	01	1	9312-9510	●	●	●	●	●		●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9511-	●	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-5	01	1	9312-9510	●	●	●	●	●		●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9511-	●	●	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9312-9510	●	●	●	●	●		●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9511-	●	●	●	●	●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-9510	●	●	●	●	●		●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9511-	●	●	●	●	●	●	●
403	03.431 BOLT; BRKT,ACCEL PEDAL	8-94279-976-0	02	1	9312-9408	●	●	●	●	●		●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9409-9510	●	●	●	●	●		●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9511-	●	●	●	●	●	●	●

389 392 54 395 443 648 389 42 323 326 54 395 443 447 648

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
42	03.452 BOLT; BRKT,ENG CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9312-9401	●		●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97089-885-2	01	1	9312-9408	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9409-9609	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> L=1701	8-97118-537-1	01	1	9610-9708	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9709-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-657-2	01	1	9312-9408	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9409-9510	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9511-	●		●	●		●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97090-656-3	01	1	9312-9408	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97118-530-1	01	1	9409-9711	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97118-530-1	01	1	9712-	●			●			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9410			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9410-			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97069-956-4	01	1	9312-9408			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97118-535-1	01	1	9409-			●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97163-852-0	01	1	9610-9708				●
323	03.483 BOLT; CLIP 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9401	●		●	●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9312-9510	●		●	●			●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9511-9606	●		●	●		●	●
326	03.483 BOLT; PCV BRKT 4BE1 ENG(RLH) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9607-	●		●	●		●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-9510	●		●	●			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9511-	●		●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE FUEL SEDIMENTER WITH HEATER<6HU> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9404	●	●	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9405-9711	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-9801	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9802-	●	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9312-9404	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9405-9507	●		●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312	●			●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312		●					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312					●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9401-9711	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.008 (B) L=330	5-09709-118-0	01	1	9712-	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402	●	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9403-9711	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9401-9404	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9405-	●		●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	9401-			●	●
443	03.483 CLIP; CABLE 4BE1 ENG(RLH) POWER STEERING<N40> 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9312-9507	●		●	●			●
443	03.483 CLIP; CABLE 4BE1 ENG(RLH) POWER STEERING<N40> AIR INTAKE REAR VERTICAL<KJ3> 04.930 ID=10 & 16.5	8-94360-745-0	01	1	9508-	●		●	●
447	03.452 NUT; BRKT,CONT WIRE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9401	●		●	●
648	03.483 PROTECTOR 4BE1 ENG(RLH) 03.008 L=80	5-22439-006-0	01	1	9511-	●			●			●

389 392 54 60 404 320 658 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97089-885-2	01	1	9312-9408	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9409-9609	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> L=1701	8-97118-537-1	01	1	9610-9708	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) L=1701	8-97118-537-1	01	1	9709-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97090-657-2	01	1	9312-9408	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9409-9510	●		●	●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3>	8-97118-531-1	01	1	9511-	●		●	●		●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97090-656-3	01	1	9312-9408	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97118-530-1	01	1	9409-9711	●			●			●
54	03.430 CABLE; ENG CONT 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97118-530-1	01	1	9712-	●			●			●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B)	8-94370-638-0	01	1	9312-9410			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	9410-			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97069-956-4	01	1	9312-9408			●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2114	8-97118-535-1	01	1	9409-			●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97163-852-0	01	1	9610-9708				●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9406	●		●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9312-9406			●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9407-9507	●		●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 M8X25 W/LK WASHER	0-51040-825-0	01	1	9407-9507			●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-	●		●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9508-			●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9312-9404	●		●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9405-	●		●	●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672	8-94178-110-0	01	1	9312-			●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-9510	●		●	●			●
389	03.483 NUT; ACCEL CONT CABLE FIX 4BE1 ENG(RLH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9511-	●		●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE FUEL SEDIMENTER WITH HEATER<6HU> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9404	●	●	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9405-9711	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-9801	●	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9802-	●	●		●	●		●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9312-9404	●		●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9405-9507	●		●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312	●			●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312		●					●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312					●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9401-9711	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 03.008 (B) L=330	5-09709-118-0	01	1	9712-	●			●			●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402	●	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) 02.559 (A) L=250	5-09707-030-0	01	1	9312-9402			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) EXC. AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9403-9711	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) L=250	5-09707-030-1	01	1	9712-	●			●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	02	1	9312-9510	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4BE1 ENG(RLH) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-1	02	1	9511-	●		●	●		●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9401-9404	●		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9405-	●		●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 (A) L=140	5-09707-031-1	01	1	9401-			●	●
404	03.483 CLIP; CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	9312-			●	●
658	03.430 CLIP; ENG CONT CABLE 4HF1 ENG(RLS) 04.930 ID=10 H=40	8-94462-219-0	01	1	9403-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
