1 |

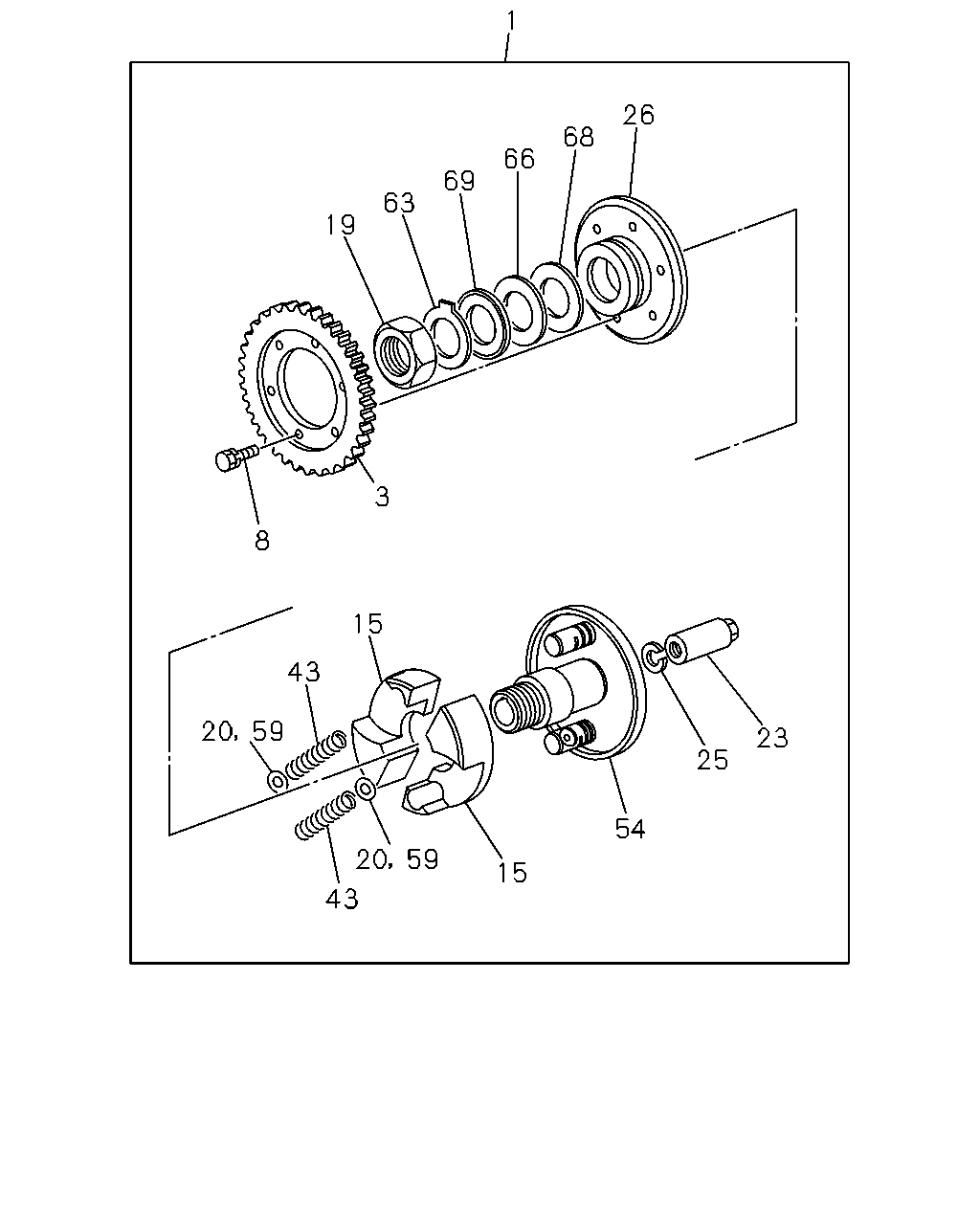

03.340 TIMER ASM; INJ PUMP
ASM PART: B = 8-97093-064-1, 97093064
|
8-94340-002-0 |
01 |
1 |
-9312 |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: B = 8-97093-064-1, 97093064
|
8-94340-002-0 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: D = 8-97117-561-1, 97117561
|
8-94340-002-0 |
01 |
1 |
-9510 |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067
|
8-94362-026-1 |
01 |
1 |
- |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560
|
8-94362-026-1 |
01 |
1 |
-9510 |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067
|
8-94362-026-1 |
01 |
1 |
-9312 |
| |
1 |
03.340 TIMER ASM; INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94362-026-1 |
01 |
1 |
9510- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
1-12524-070-0 |
01 |
1 |
9510- |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-12524-065-0 |
01 |
1 |
-9510 |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-12524-065-0 |
01 |
1 |
-9312 |
| |
3 |
03.340 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-12524-065-0 |
01 |
1 |
- |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94457-517-0 |
06 |
1 |
-9510 |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94457-517-0 |
06 |
1 |
- |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94457-517-0 |
06 |
1 |
-9312 |
| |
8 |
03.340 BOLT; DRIVE GEAR FIX,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94457-517-0 |
06 |
1 |
9510- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15743-012-0 |
02 |
1 |
-9312 |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15743-012-0 |
02 |
1 |
- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15743-012-0 |
02 |
1 |
9510- |
| |
15 |
03.340 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15743-012-0 |
02 |
1 |
-9510 |
| |
19 |
03.340 NUT
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-192-0 |
01 |
1 |
-9312 |
| |
19 |
03.340 NUT
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-192-0 |
01 |
1 |
9510- |
| |
19 |
03.340 NUT
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-192-0 |
01 |
1 |
- |
| |
19 |
03.340 NUT
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-192-0 |
01 |
1 |
-9510 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.30
ASM PART: B = 8-97093-064-1, 97093064
|
5-15749-021-0 |
AR |
1 |
-9312 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.60
ASM PART: B = 8-97093-064-1, 97093064
|
5-15749-022-0 |
AR |
1 |
-9312 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=1.00
ASM PART: B = 8-97093-064-1, 97093064
|
5-15749-023-0 |
AR |
1 |
-9312 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.10
ASM PART: B = 8-97093-064-1, 97093064
|
9-81325-418-0 |
AR |
1 |
-9312 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.20
ASM PART: B = 8-97093-064-1, 97093064
|
9-81325-419-0 |
AR |
1 |
-9312 |
| |
20 |
03.330 SHIM; INNER SPRING,TIMER,INJ PUM
T=0.50
ASM PART: B = 8-97093-064-1, 97093064
|
9-81325-420-0 |
AR |
1 |
-9312 |
| |
23 |
03.340 NUT; TIMER FLANGE,INJ PUMP
03.330
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-193-0 |
01 |
1 |
9510- |
| |
23 |
03.340 NUT; TIMER FLANGE,INJ PUMP
03.330
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-193-0 |
01 |
1 |
-9510 |
| |
23 |
03.340 NUT; TIMER FLANGE,INJ PUMP
03.330
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-193-0 |
01 |
1 |
-9312 |
| |
23 |
03.340 NUT; TIMER FLANGE,INJ PUMP
03.330
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-193-0 |
01 |
1 |
- |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: B = 8-97093-064-1, 97093064
|
5-15749-032-0 |
01 |
1 |
- |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: B = 8-97093-064-1, 97093064
|
5-15749-032-0 |
01 |
1 |
-9312 |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-032-0 |
01 |
1 |
9510- |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067
|
5-15749-032-0 |
AR |
1 |
-9312 |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560
|
5-15749-032-0 |
AR |
1 |
-9510 |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067
|
5-15749-032-0 |
AR |
1 |
- |
| |
25 |
03.340 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: D = 8-97117-561-1, 97117561
|
5-15749-032-0 |
01 |
1 |
-9510 |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15742-016-0 |
01 |
1 |
-9312 |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15742-016-0 |
01 |
1 |
9510- |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15742-016-0 |
01 |
1 |
-9510 |
| |
26 |
03.330 FLANGE; TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15742-016-0 |
01 |
1 |
- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.2
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94344-429-0 |
01 |
1 |
-9510 |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.2
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94344-429-0 |
01 |
1 |
- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.2
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94344-429-0 |
01 |
1 |
9510- |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.2
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94344-429-0 |
01 |
1 |
-9312 |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.3
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-97037-277-0 |
01 |
1 |
-9312 |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.3
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-97037-277-0 |
01 |
1 |
-9510 |
| |
43 |
03.340 SPRING; PISTON,TIMER,INJ PUMP
L=45.5 D=3.3
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-97037-277-0 |
01 |
1 |
- |
| |
54 |
03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15741-004-0 |
01 |
1 |
-9510 |
| |
54 |
03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15741-004-0 |
01 |
1 |
-9312 |
| |
54 |
03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15741-004-0 |
01 |
1 |
9510- |
| |
54 |
03.340 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15741-004-0 |
01 |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.30
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15749-021-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.30
ASM PART: A = 8-97085-067-2, 97085067
|
5-15749-021-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.30
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-021-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.30
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-021-0 |
AR |
1 |
-9510 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.60
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-022-0 |
AR |
1 |
-9510 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.60
ASM PART: A = 8-97085-067-2, 97085067
|
5-15749-022-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.60
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-022-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.60
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15749-022-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=1.00
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-023-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=1.00
ASM PART: A = 8-97085-067-2, 97085067
|
5-15749-023-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=1.00
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
5-15749-023-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=1.00
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
5-15749-023-0 |
AR |
1 |
-9510 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.10
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-418-0 |
AR |
1 |
-9510 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.10
ASM PART: A = 8-97085-067-2, 97085067
|
9-81325-418-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.10
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81325-418-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.10
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-418-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.20
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81325-419-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.20
ASM PART: A = 8-97085-067-2, 97085067
|
9-81325-419-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.20
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-419-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.20
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-419-0 |
AR |
1 |
-9510 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.50
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81325-420-0 |
AR |
1 |
- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.50
ASM PART: A = 8-97085-067-2, 97085067
|
9-81325-420-0 |
AR |
1 |
-9312 |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.50
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-420-0 |
AR |
1 |
9510- |
| |
59 |
03.330 SHIM; SPR,TIMER
T=0.50
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81325-420-0 |
AR |
1 |
-9510 |
| |
63 |
03.340 PLATE; NUT LOCK,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-191-0 |
01 |
1 |
- |
| |
63 |
03.340 PLATE; NUT LOCK,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-191-0 |
01 |
1 |
-9510 |
| |
63 |
03.340 PLATE; NUT LOCK,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-191-0 |
01 |
1 |
9510- |
| |
63 |
03.340 PLATE; NUT LOCK,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-191-0 |
01 |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.25
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94372-518-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.25
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94372-518-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.25
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94372-518-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.25
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94372-518-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.40
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-97102-868-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.12
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-325-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.12
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-325-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.12
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-325-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.12
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-325-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.16
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-327-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.16
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-327-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.16
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-327-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.16
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-327-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.18
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-328-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.18
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-328-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.18
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-328-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.18
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-328-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.50
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-329-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.50
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-329-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.50
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-329-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.50
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-329-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.20
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-330-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.20
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-330-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.20
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-330-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.20
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-330-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.30
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-331-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.30
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-331-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.30
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-331-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.30
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-331-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.10
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-332-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.10
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-332-0 |
AR |
1 |
9510- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.10
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-332-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.10
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-332-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.14
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-340-0 |
AR |
1 |
-9312 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.14
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
9-81345-340-0 |
AR |
1 |
- |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.14
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-340-0 |
AR |
1 |
-9510 |
| |
66 |
03.340 SHIM; TIMER FLANGE,INJ PUMP
T=0.14
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
9-81345-340-0 |
AR |
1 |
9510- |
| |
68 |
03.340 WASHER; FLANGE,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-189-0 |
01 |
1 |
-9510 |
| |
68 |
03.340 WASHER; FLANGE,TIMER,INJ PUMP
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-189-0 |
01 |
1 |
9510- |
| |
68 |
03.340 WASHER; FLANGE,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-189-0 |
01 |
1 |
- |
| |
68 |
03.340 WASHER; FLANGE,TIMER,INJ PUMP
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-189-0 |
01 |
1 |
-9312 |
| |
69 |
03.340 WASHER; FLANGE FIX,TIMER,INJ PUM
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-190-0 |
01 |
1 |
9510- |
| |
69 |
03.340 WASHER; FLANGE FIX,TIMER,INJ PUM
ASM PART: C = 8-97117-560-1, 97117560, D = 8-97117-561-1, 97117561
|
8-94171-190-0 |
01 |
1 |
-9510 |
| |
69 |
03.340 WASHER; FLANGE FIX,TIMER,INJ PUM
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-190-0 |
01 |
1 |
- |
| |
69 |
03.340 WASHER; FLANGE FIX,TIMER,INJ PUM
ASM PART: A = 8-97085-067-2, 97085067, B = 8-97093-064-1, 97093064
|
8-94171-190-0 |
01 |
1 |
-9312 |
