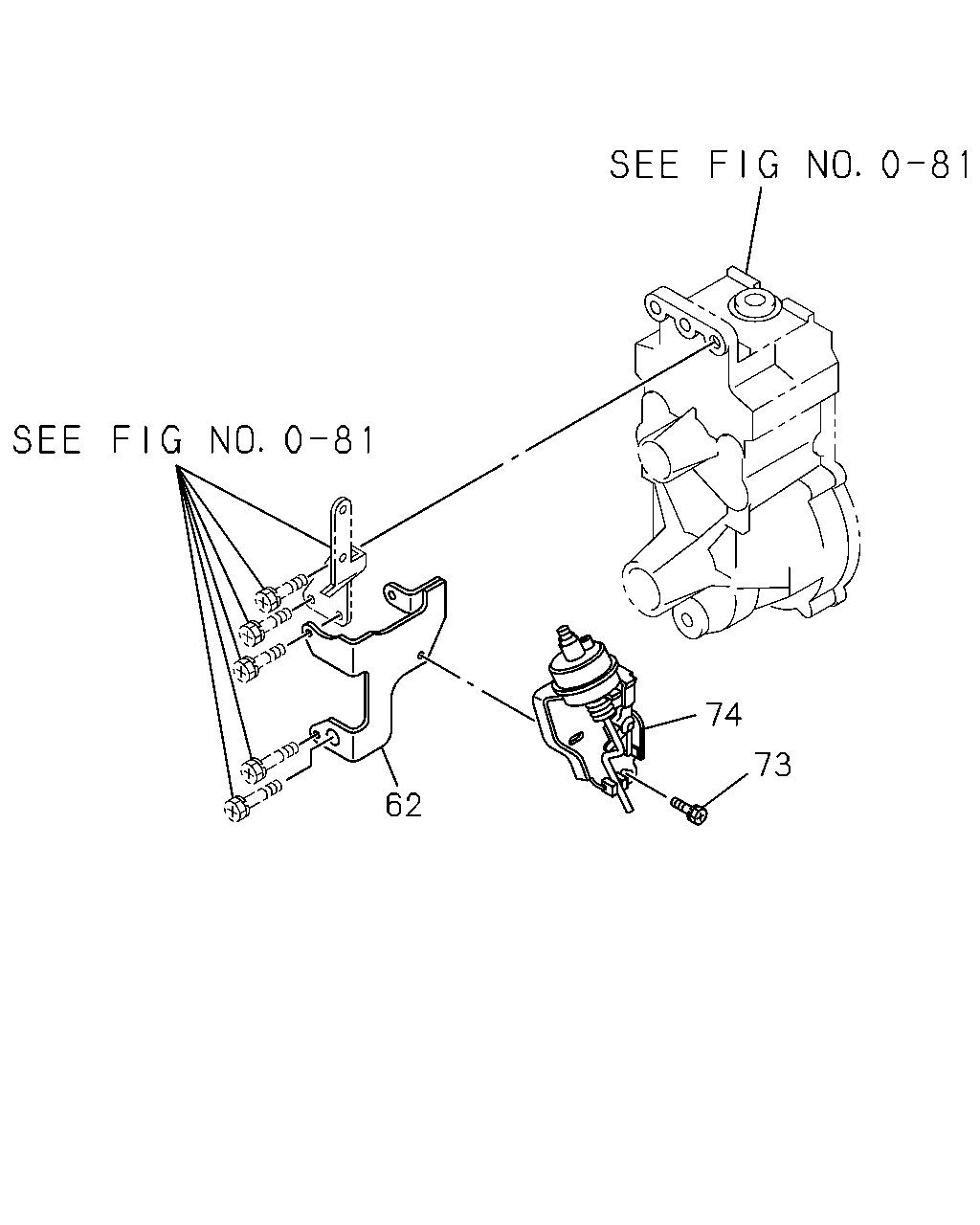

0-82D — BOOST COMPENSATOR; INJECTION GOVERNOR (#45841) — 4 parça

74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR ASM PART: A = 8-97107-650-0, 97107650, B = 8-97114-052-0, 97114052	8-97026-931-1	01	1	-
62	03.314 BRACKET; ACTUATOR ASM PART: C = 8-97136-659-0, 97136659, D = 8-97146-781-0, 97146781, E = 8-97146-786-0, 97146786	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97107-650-0, 97107650, B = 8-97114-052-0, 97114052, C = 8-97136-659-0, 97136659, D = 8-97146-781-0, 97146781, E = 8-97146-786-0, 97146786	8-94121-627-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97107-650-0, 97107650, B = 8-97114-052-0, 97114052, C = 8-97136-659-0, 97136659, D = 8-97146-781-0, 97146781, E = 8-97146-786-0, 97146786	8-97037-274-4	01	1	-
