0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#45840) — 88 parça

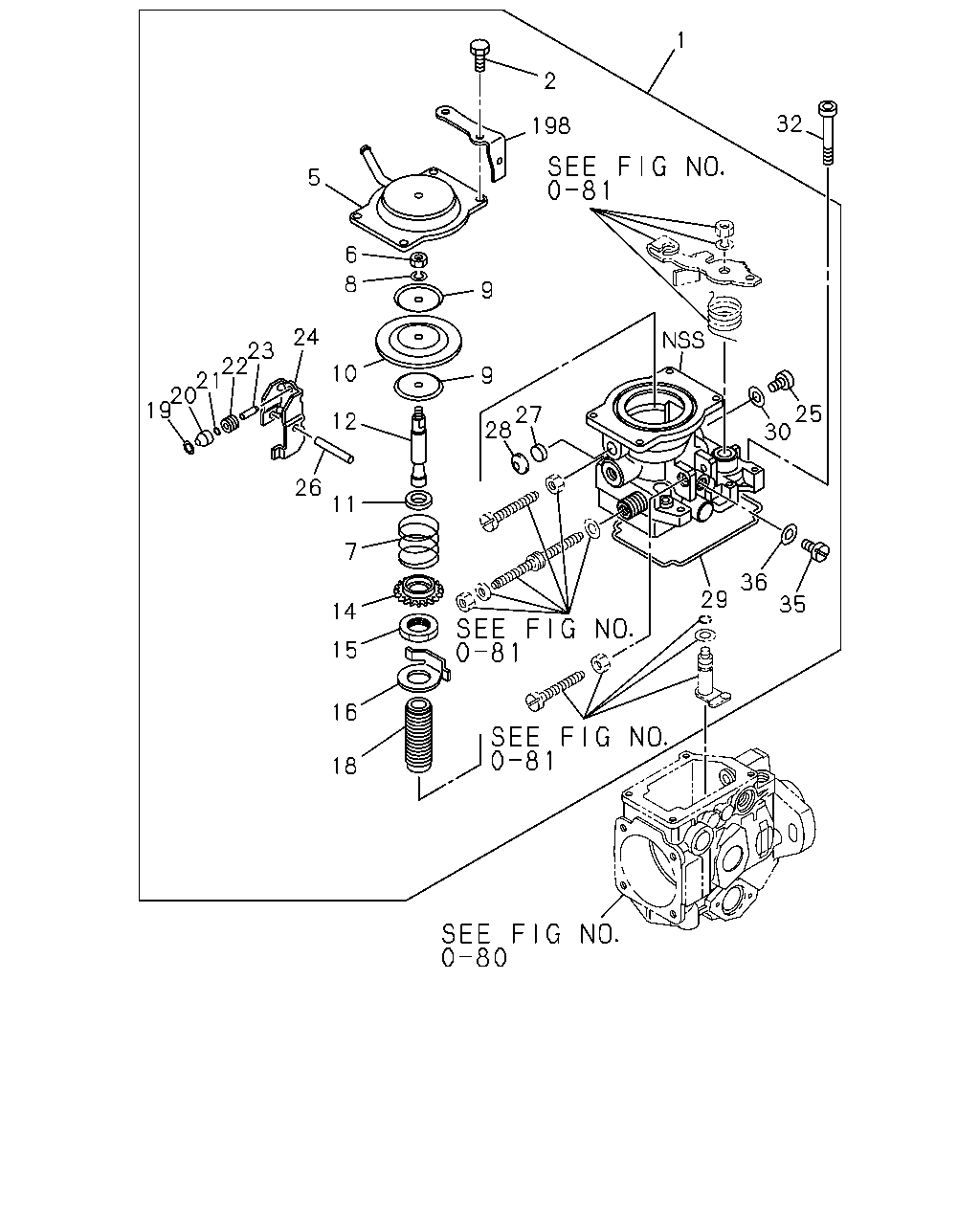

çizim 70398
1 2 32 198 5 6 8 9 24 23 22 21 20 19 10 9 25 30 27 28 12 26 11 7 36 29 35 14 15 16 18
BalonParca AdiParca NoAdetTipApplied Date
1 03.485 COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97165-704-0 01 1 -
2 03.306 BOLT; COVER FIX,BOOST COMPENSATO
03.308, M6X12 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94313-267-0 04 1 -
5 03.306 COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97165-706-0 01 1 -
6 03.320 NUT; DIAPH,BOOST COMPENSATOR
08.845 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		9-88410-525-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97160-462-1, 97160462 		8-97100-554-0 01 1 -
7 03.320 SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: B = 8-97173-074-0, 97173074 		8-97185-286-0 01 1 -
8 03.318 WASHER; LK,DIAPH,BOOST COMPENSAT
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-725-0 01 1 -
9 03.318 PLATE; DIAPH,BOOST COMPENSATOR
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-723-0 02 1 -
10 03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-724-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.70 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-729-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-730-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.10 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-731-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.30 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-732-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.50 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-733-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.70 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-734-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-735-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.10 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-736-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.30 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-737-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.70 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-738-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-739-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.10 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-740-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.30 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-741-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.50 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-742-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-743-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-744-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.20 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-745-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.40 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-746-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.60 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-747-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=3.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-748-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-749-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.20 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-750-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.40 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-751-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.60 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-752-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=4.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-753-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-754-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.20 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-755-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.40 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-756-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.50 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-757-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.60 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-758-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-510-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=1.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-511-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-512-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.10 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-513-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.20 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-514-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.30 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-515-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.40 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-516-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.50 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-517-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=2.60 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94169-518-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.70 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-102-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-103-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=5.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-104-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-105-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.10 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-106-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.20 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-107-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.30 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-108-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.40 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-109-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.50 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-110-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.60 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-111-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.70 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-112-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.80 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-113-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=6.90 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-114-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.00 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97046-115-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.10 ASM PART: B = 8-97173-074-0, 97173074 		8-97169-970-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.20 ASM PART: B = 8-97173-074-0, 97173074 		8-97169-971-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.30 ASM PART: B = 8-97173-074-0, 97173074 		8-97169-972-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.40 ASM PART: B = 8-97173-074-0, 97173074 		8-97169-973-0 01 1 -
11 03.318 SPACER; DIAPH,BOOST COMPENSATOR
L=7.50 ASM PART: B = 8-97173-074-0, 97173074 		8-97169-974-0 01 1 -
12 03.318 PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97120-314-0 01 1 -
14 03.318 NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-726-0 01 1 -
15 03.320 NUT; BUSHING LK,BOOST COMPENSATO
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-720-0 01 1 -
16 03.330 PLATE; BUSHING,ADJ
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94122-719-0 01 1 -
18 03.320 BUSHING; ADJ PIN,BOOST COMPENSAT
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94151-391-0 01 1 -
19 03.320 GASKET; BUSHING,BOOST COMPENSATO
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-686-0 01 1 -
20 03.320 BUSHING; CONT PIN,BOOST COMPENSA
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-685-0 01 1 -
21 03.320 GASKET; CONT PIN,BOOST COMPENSAT
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-684-0 01 1 -
22 03.320 NUT; BUSHING,CONT PIN,BOOST COMP
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-683-0 01 1 -
23 03.320 PIN; CONT,BOOST COMPENSATOR
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94151-392-0 01 1 -
24 03.320 LEVER; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94177-918-0 01 1 -
25 03.306 PLUG; HSG,BOOST COMPENSATOR
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-687-0 01 1 -
26 03.320 PIN; CONT LEVER,BOOST COMPENSATO
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-693-0 01 1 -
27 03.320 PLUG; ELEMENT
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94151-395-0 01 1 -
28 03.320 ELEMENT; BOOST COMPENSATOR
03.314 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94159-096-0 01 1 -
29 03.306 GASKET; HSG,BOOST COMPENSATOR
03.308 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97136-413-0 01 1 -
30 03.306 GASKET; HSG PLUG,BOOST COMPENSAT
ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94144-588-0 01 1 -
32 03.485 BOLT; BOOST COMPENSATOR FIX,INJ
03.330 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94242-298-0 04 1 -
35 03.320 PLUG; CONT LEVER PIN,BOOST COMPE
03.318 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-94257-694-0 02 1 -
36 03.320 GASKET; LEVER PIN,BOOST COMPENSA
09.170 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		5-15729-099-0 02 1 -
198 03.340 BRACKET; DIAPH
03.485 ASM PART: A = 8-97160-462-1, 97160462, B = 8-97173-074-0, 97173074 		8-97165-707-0 01 1 -
