Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

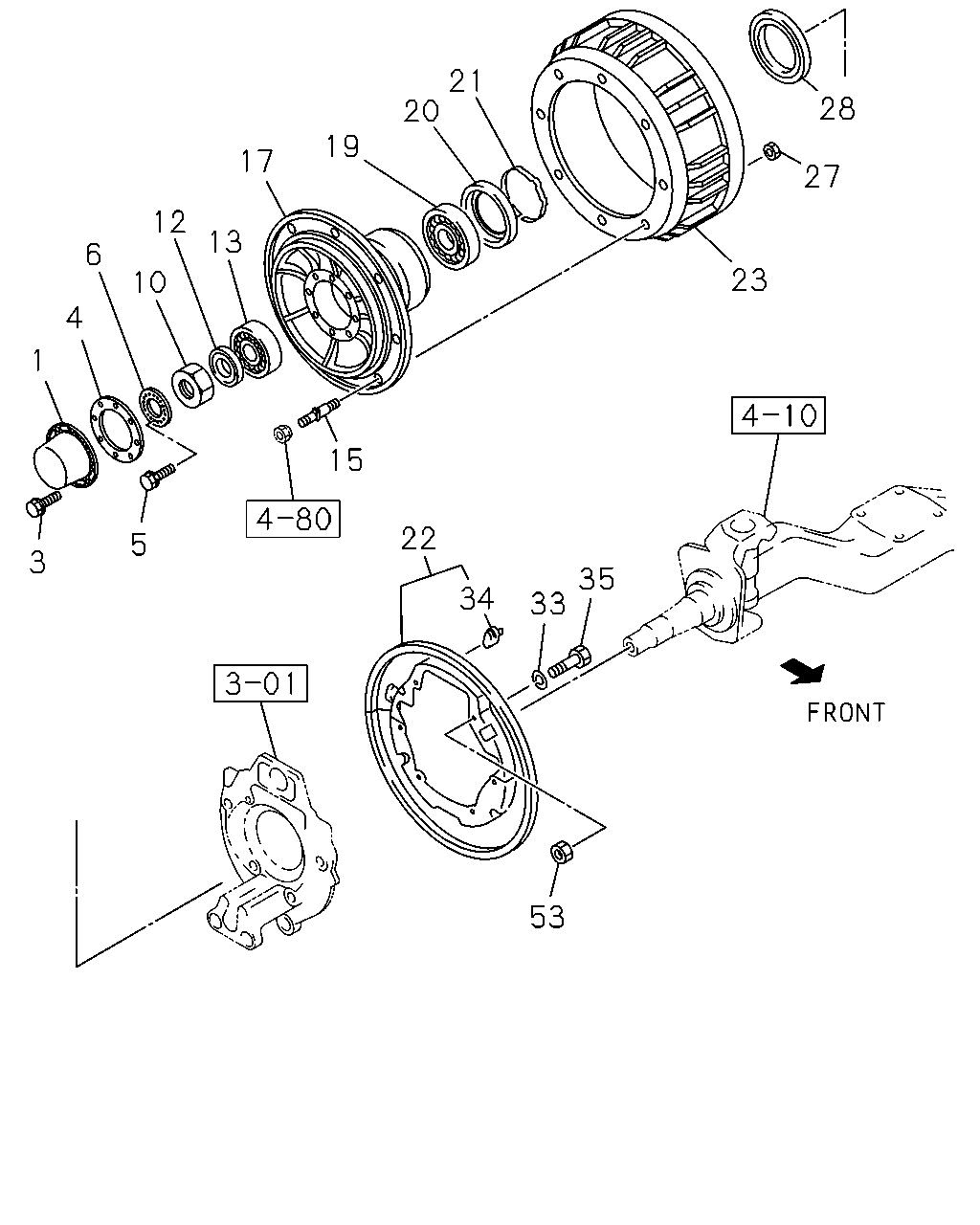

4-11 — FRONT HUB AND DRUM OR ROTOR
(#4584) — 30 parça
21
20
28
19
17
27
12
13
6
23
10
4
1
15
22
5
3
35
33
34
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
9712-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
9712-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-029-0
02
1
9712-9906
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-0
02
1
9907-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
9712-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
9712-
10
NUT; FRT HUB BRG
M48
1-09840-012-3
02
1
9712-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
9712-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-084-0
02
1
9712-9809
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
9810-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-085-0
02
1
9712-9809
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
1-42332-109-0
08
1
9712-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
1-42331-109-0
08
1
9712-
17
HUB; FRT AXLE
1-42312-128-2
02
1
9712-
19
BEARING; HUB INNER,FRT AXLE
NSK
1-09812-142-0
02
1
9712-9809
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
9810-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-143-0
02
1
9712-9809
20
COVER; HUB BRG INNER
1-42319-039-0
02
1
9712-
21
RING; SNAP,HUB
1-09587-017-0
02
1
9712-
22
COVER SET; FRT BRK DRUM
1-87830-623-1
02
1
9712-
23
DRUM; BRK,FRT
W/FIN
1-42315-307-0
02
1
9712-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-055-0
16
1
9712-9904
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
9905-
28
SEAL; OIL,FRT HUB
OD=140
1-09625-041-0
02
1
9712-
33
WASHER; LK,DRUM COVER
ID=16.2
9-09150-816-0
04
1
9712-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
9712-
35
BOLT; DRUM COVER
M10X16 W/LK WASHER
0-50041-016-0
12
1
9712-
35
BOLT; DRUM COVER
M16X52
1-09044-001-2
04
1
9712-
53
NUT; DRUM COVER
M16
9-99110-416-0
04
1
9712-9902
53
NUT; DRUM COVER
M16
9-99110-516-0
04
1
9903-
