Sayfa 0-80A - Isuzu EPC

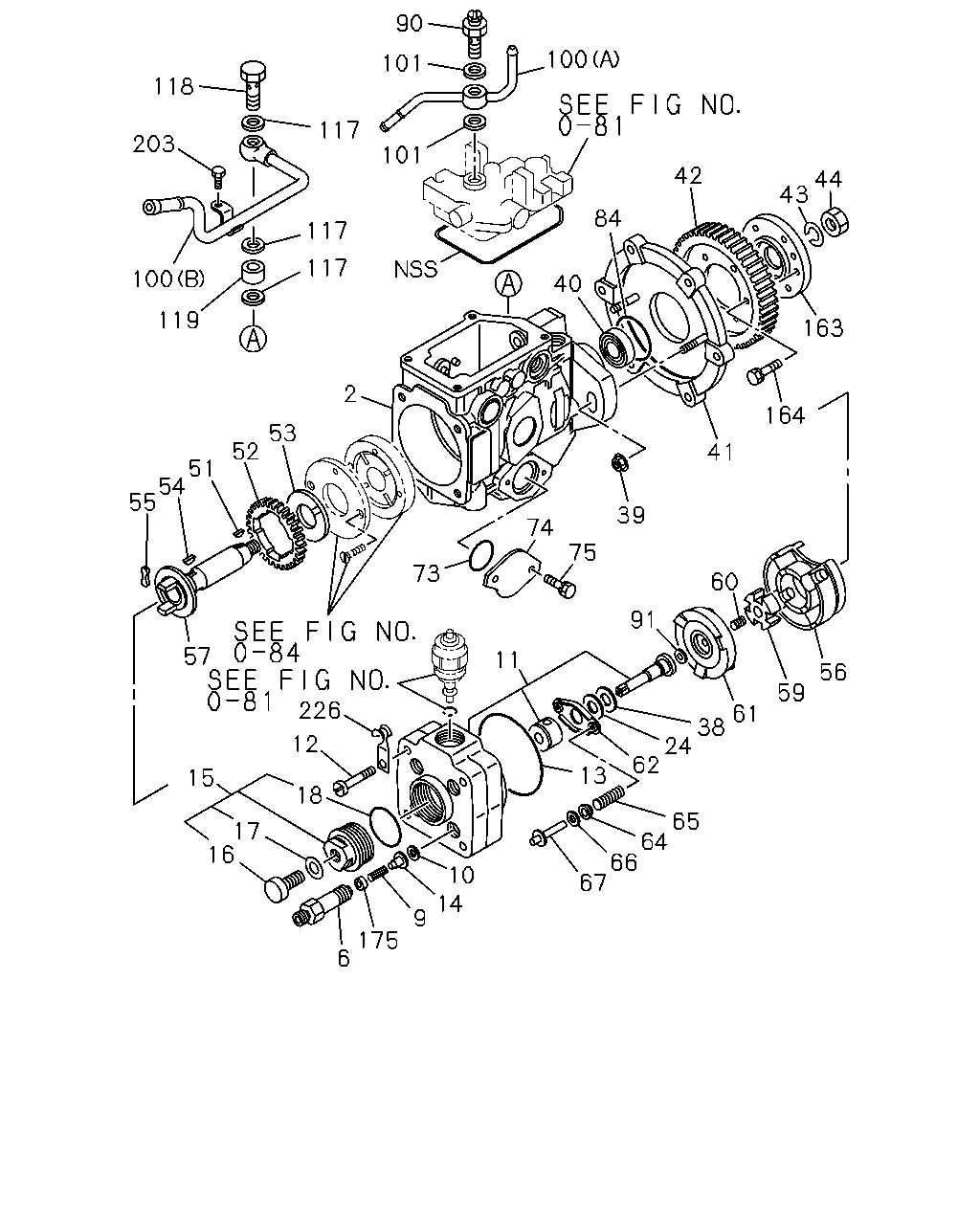

0-80A — INJECTION PUMP (#45829) — 290 parça

90 100 101 118 117 203 101 42 44 43 84 117 117 100 40 119 163 2 164 53 52 41 51 54 55 39 74 75 73 60 91 57 11 56 59 226 61 38 24 62 12 13 15 18 65 64 66 67 17 16 10 14 9 175 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97091-744-0, 97091744	8-97094-110-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97091-746-1, 97091746	8-97102-537-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97138-842-2, 97138842	8-97161-855-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: D = 8-97172-393-0, 97172393	8-97234-560-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP 03.335 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-582-0	04	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-581-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-868-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-880-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-97095-331-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	8-97102-536-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-856-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-94257-670-0	02	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP M6X45 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-258-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-158-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94460-298-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-867-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP 03.306 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-638-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-639-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-902-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: D = 8-97172-393-0, 97172393	8-97141-149-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: C = 8-97138-842-2, 97138842	8-97141-149-0	01	1	-9603
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: C = 8-97138-842-2, 97138842	8-97141-149-0	01	1	9703-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842	8-97141-150-0	01	1	-9607
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842	8-97209-532-0	01	1	9608-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: D = 8-97172-393-0, 97172393	8-97209-532-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-515-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-905-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-514-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-903-0	01	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: B = 8-97091-746-1, 97091746	8-94244-829-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-940-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: B = 8-97091-746-1, 97091746	8-94174-843-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	8-94458-257-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP 03.330 ASM PART: B = 8-97091-746-1, 97091746	8-94227-648-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	1-15629-006-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94239-370-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-939-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-483-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-927-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-484-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-930-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-481-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-936-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-482-1	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-928-0	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744	8-97094-102-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	8-97105-391-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-858-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-480-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-857-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-489-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-877-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-647-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-876-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-97094-103-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-869-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-516-1	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-151-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-155-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-517-0	02	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-156-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94228-404-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: B = 8-97091-746-1, 97091746	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: B = 8-97091-746-1, 97091746	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: B = 8-97091-746-1, 97091746	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: B = 8-97091-746-1, 97091746	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: C = 8-97138-842-2, 97138842	8-97141-265-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: C = 8-97138-842-2, 97138842	8-97141-265-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-265-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-266-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: D = 8-97172-393-0, 97172393	8-97141-266-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-266-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-266-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-267-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-267-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-267-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: D = 8-97172-393-0, 97172393	8-97141-267-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: C = 8-97138-842-2, 97138842	8-97141-268-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: D = 8-97172-393-0, 97172393	8-97141-268-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: C = 8-97138-842-2, 97138842	8-97141-268-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: C = 8-97138-842-2, 97138842	8-97141-268-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: D = 8-97172-393-0, 97172393	8-97141-269-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: C = 8-97138-842-2, 97138842	8-97141-269-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: C = 8-97138-842-2, 97138842	8-97141-269-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: C = 8-97138-842-2, 97138842	8-97141-269-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-270-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: D = 8-97172-393-0, 97172393	8-97141-270-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-270-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: C = 8-97138-842-2, 97138842	8-97141-270-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-271-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: D = 8-97172-393-0, 97172393	8-97141-271-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-271-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: C = 8-97138-842-2, 97138842	8-97141-271-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: D = 8-97172-393-0, 97172393	8-97141-272-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-272-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-272-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-272-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-273-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: C = 8-97138-842-2, 97138842	8-97141-273-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: C = 8-97138-842-2, 97138842	8-97141-273-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: D = 8-97172-393-0, 97172393	8-97141-274-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: C = 8-97138-842-2, 97138842	8-97141-274-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: C = 8-97138-842-2, 97138842	8-97141-274-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: C = 8-97138-842-2, 97138842	8-97141-274-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: D = 8-97172-393-0, 97172393	8-97141-275-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: C = 8-97138-842-2, 97138842	8-97141-275-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: C = 8-97138-842-2, 97138842	8-97141-275-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: C = 8-97138-842-2, 97138842	8-97141-275-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-918-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-918-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-918-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: D = 8-97172-393-0, 97172393	8-97161-918-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: D = 8-97172-393-0, 97172393	8-97161-919-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: C = 8-97138-842-2, 97138842	8-97161-919-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: C = 8-97138-842-2, 97138842	8-97161-919-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.30 ASM PART: C = 8-97138-842-2, 97138842	8-97161-919-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: D = 8-97172-393-0, 97172393	8-97161-920-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-920-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-920-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-920-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97138-842-2, 97138842	8-97161-921-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97138-842-2, 97138842	8-97161-921-0	02	1	-9601
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97138-842-2, 97138842	8-97161-921-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: D = 8-97172-393-0, 97172393	8-97161-921-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: D = 8-97172-393-0, 97172393	8-97161-922-0	02	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-922-0	02	1	9604-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-922-0	AR	1	9602-9603
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-922-0	02	1	-9601
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-152-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-980-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94242-967-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-967-0	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94313-276-0	02	1	-
75	03.330 SCREW; COVER TO HSG M6X16 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-853-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: B = 8-97091-746-1, 97091746	8-94247-722-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94389-430-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-906-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: B = 8-97091-746-1, 97091746	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: B = 8-97091-746-1, 97091746	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: B = 8-97091-746-1, 97091746	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: B = 8-97091-746-1, 97091746	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: B = 8-97091-746-1, 97091746	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: B = 8-97091-746-1, 97091746	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: B = 8-97091-746-1, 97091746	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: B = 8-97091-746-1, 97091746	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: B = 8-97091-746-1, 97091746	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: B = 8-97091-746-1, 97091746	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: B = 8-97091-746-1, 97091746	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: B = 8-97091-746-1, 97091746	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: B = 8-97091-746-1, 97091746	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: B = 8-97091-746-1, 97091746	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: B = 8-97091-746-1, 97091746	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: B = 8-97091-746-1, 97091746	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: B = 8-97091-746-1, 97091746	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: B = 8-97091-746-1, 97091746	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: B = 8-97091-746-1, 97091746	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: B = 8-97091-746-1, 97091746	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: B = 8-97091-746-1, 97091746	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: B = 8-97091-746-1, 97091746	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: B = 8-97091-746-1, 97091746	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: B = 8-97091-746-1, 97091746	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: B = 8-97091-746-1, 97091746	8-94227-578-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: D = 8-97172-393-0, 97172393	8-97141-431-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-431-0	AR	1	9602-9603
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-431-0	01	1	-9601
91	03.306 SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: C = 8-97138-842-2, 97138842	8-97141-431-0	01	1	9604-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: D = 8-97172-393-0, 97172393	8-97161-955-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-955-0	01	1	9604-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-955-0	01	1	-9601
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: C = 8-97138-842-2, 97138842	8-97161-955-0	AR	1	9602-9603
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-956-0	AR	1	9602-9603
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-956-0	01	1	-9601
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: D = 8-97172-393-0, 97172393	8-97161-956-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: C = 8-97138-842-2, 97138842	8-97161-956-0	01	1	9604-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-957-0	01	1	9604-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-957-0	AR	1	9602-9603
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: D = 8-97172-393-0, 97172393	8-97161-957-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: C = 8-97138-842-2, 97138842	8-97161-957-0	01	1	-9601
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: C = 8-97138-842-2, 97138842	8-97161-958-0	01	1	9604-
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: C = 8-97138-842-2, 97138842	8-97161-958-0	AR	1	9602-9603
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: C = 8-97138-842-2, 97138842	8-97161-958-0	01	1	-9601
91	03.306 SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: D = 8-97172-393-0, 97172393	8-97161-958-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-97086-127-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-97094-109-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97138-842-2, 97138842	8-97161-964-1	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97138-842-2, 97138842	8-97161-965-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (C) ASM PART: D = 8-97172-393-0, 97172393	8-97234-582-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: D = 8-97172-393-0, 97172393	8-97234-583-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-182-0	03	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94174-824-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-240-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-662-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: C = 8-97138-842-2, 97138842	8-97141-573-0	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: B = 8-97091-746-1, 97091746	8-97102-606-0	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: B = 8-97091-746-1, 97091746	5-15619-112-0	06	1	-
175	03.302 STOPPER; SPR ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94317-496-0	04	1	-
203	03.330 BOLT; FUEL INL 03.306 ASM PART: B = 8-97091-746-1, 97091746	8-94313-203-0	01	1	-
203	03.330 BOLT; FUEL INL 03.306, M6X14 ASM PART: A = 8-97091-744-0, 97091744	8-94331-551-0	01	1	-
203	03.330 BOLT; FUEL INL ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-960-0	01	1	-
226	03.330 BRACKET; DISTR HEAD ASM PART: B = 8-97091-746-1, 97091746	8-97105-395-0	01	1	-
242	03.308 NUT; CAP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-143-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94228-545-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-155-0	02	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: C = 8-97138-842-2, 97138842	8-97141-573-0	01	1	-
242	03.308 NUT; CAP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-143-0	01	1	-

3 101 103 117 117 101 103 117 101 101 18 73 17 13 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94228-545-0	01	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94247-716-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-880-0	04	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-527-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-158-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-602-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: D = 8-97172-393-0, 97172393	8-97141-149-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: C = 8-97138-842-2, 97138842	8-97141-149-0	01	1	-9603
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP 03.308 ASM PART: C = 8-97138-842-2, 97138842	8-97141-149-0	01	1	9703-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-637-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842	8-97141-150-0	01	1	-9607
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842	8-97209-532-0	01	1	9608-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: D = 8-97172-393-0, 97172393	8-97209-532-0	01	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-155-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-491-0	01	1	-
73	03.306 GASKET; COVER TO HSG 03.330, ID=27.5 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97140-980-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-645-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-182-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97091-744-0, 97091744, B = 8-97091-746-1, 97091746	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ID=12.2 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-182-0	03	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: C = 8-97138-842-2, 97138842	8-97141-573-0	01	1	-
242	03.308 NUT; CAP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-252-0	01	1	-
243	03.308 CLIP; DISTR HD,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-968-0	01	1	-
244	03.302 VALVE; SNUBBER,INJ PUMP ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97161-866-0	04	1	-
294	03.305 PLUG; DISTR,INJ PUMP 03.330 ASM PART: C = 8-97138-842-2, 97138842, D = 8-97172-393-0, 97172393	8-97141-143-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
