0-66 — GENERATOR (#45828) — 161 parça

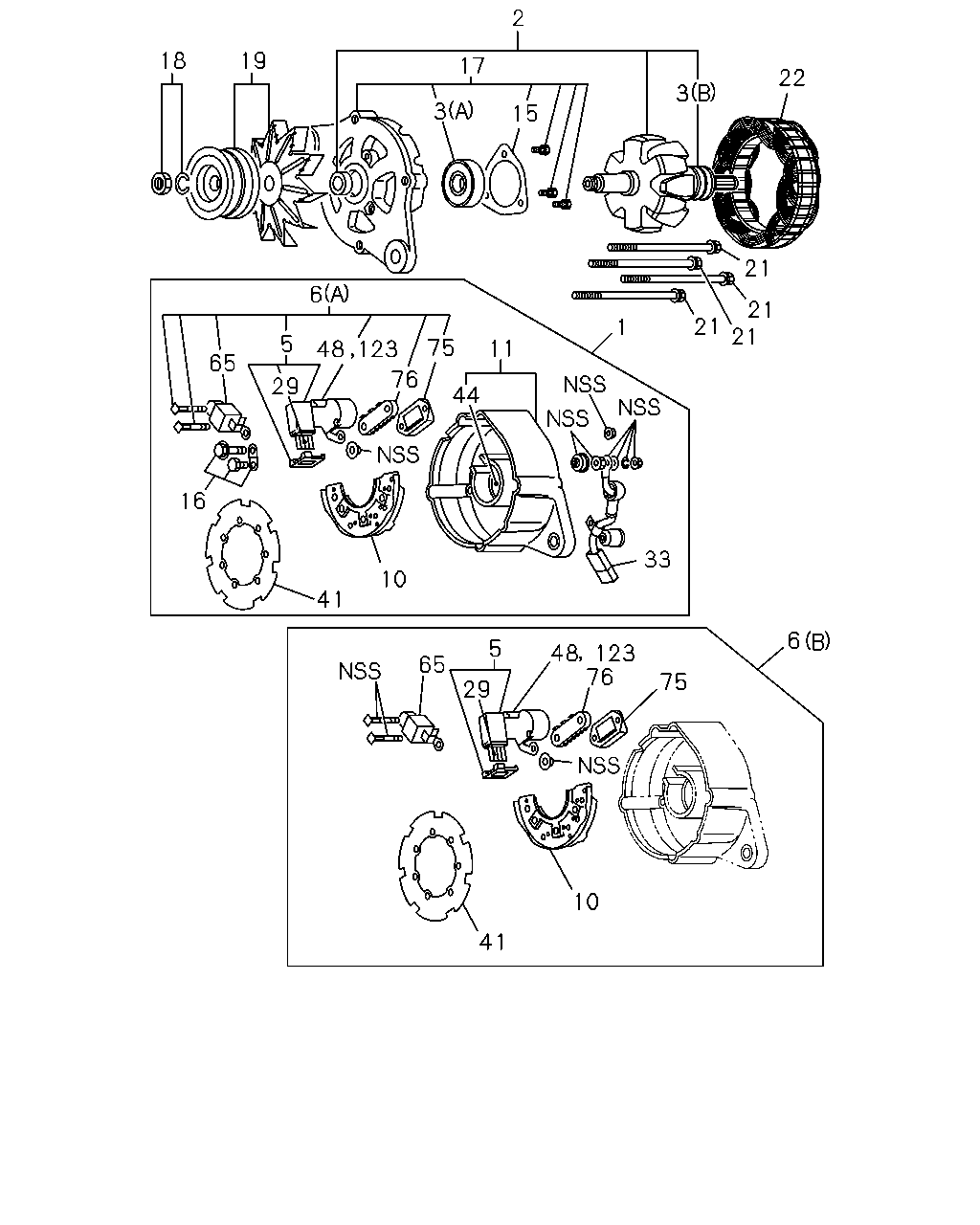

2 18 19 17 22 3 3 15 21 6 21 21 21 1 5 75 11 48 123 65 76 29 44 16 33 10 41 6 5 48 76 65 75 29 10 41 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97018-869-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97077-524-0, 97077524	8-97027-777-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94389-772-1, 94389772	8-97080-470-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97073-924-1, 97073924	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97075-882-2, 97075882	8-97083-277-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97075-883-2, 97075883	8-97083-278-0	01	1	-9402
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97075-882-2, 97075882	8-97111-260-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97075-883-2, 97075883	8-97111-261-0	01	1	9403-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97148-496-1, 97148496	8-97183-177-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97187-657-0, 97187657	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94389-772-1, 94389772, F = 8-97077-524-0, 97077524	8-97016-299-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97013-171-2, 97013171	8-97018-876-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97075-882-2, 97075882	8-97083-271-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: E = 8-97075-883-2, 97075883	8-97083-272-0	01	1	-9511
2	02.279 ROTOR; GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97075-883-2, 97075883	8-97161-468-0	01	1	9512-
2	02.279 ROTOR; GEN ASM PART: H = 8-97148-496-1, 97148496	8-97161-468-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524, G = 8-97144-392-1, 97144392, I = 8-97187-657-0, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94223-979-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97073-924-1, 97073924	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-290-0	01	1	-9511
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97161-473-0	01	1	9512-
3	02.306 BEARING; ROTOR,GEN ASM PART: H = 8-97148-496-1, 97148496	8-97161-473-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: I = 8-97187-657-0, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94156-590-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291, (A) ASM PART: C = 8-97073-924-1, 97073924	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: I = 8-97187-657-0, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-282-0	01	1	-9402
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: D = 8-97075-882-2, 97075882	8-97111-262-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: H = 8-97148-496-1, 97148496	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: E = 8-97075-883-2, 97075883	8-97111-263-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97111-264-0	01	1	9403-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: H = 8-97148-496-1, 97148496	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94156-596-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97073-924-1, 97073924	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-94389-772-1, 94389772	8-94475-472-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97075-882-2, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-97187-657-0, 97187657	8-97188-870-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97018-870-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: A = 8-94389-772-1, 94389772, F = 8-97077-524-0, 97077524	8-97027-778-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: I = 8-97187-657-0, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97013-171-2, 97013171	8-94116-433-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94389-772-1, 94389772	8-94156-599-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97077-524-0, 97077524	8-94156-637-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-289-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97148-496-1, 97148496	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-111-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: I = 8-97187-657-0, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94389-772-1, 94389772	8-97016-300-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97013-171-2, 97013171	8-97018-879-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97077-524-0, 97077524	8-97027-779-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-113-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97013-171-2, 97013171, D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94389-772-1, 94389772, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94389-772-1, 94389772, F = 8-97077-524-0, 97077524	8-94156-586-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97073-924-1, 97073924	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97013-171-2, 97013171	8-94336-729-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97075-882-2, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97075-883-2, 97075883	8-97083-276-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97148-496-1, 97148496	8-97183-176-0	01	1	-
22	02.310 STATOR; GEN ASM PART: I = 8-97187-657-0, 97187657	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97084-356-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: F = 8-97077-524-0, 97077524	8-97018-871-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-97071-213-0	01	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, F = 8-97077-524-0, 97077524, G = 8-97144-392-1, 97144392, H = 8-97148-496-1, 97148496, I = 8-97187-657-0, 97187657	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94237-727-0	01	1	-
48	02.319 DIODE; GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-110-1	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94156-595-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-284-0	01	1	-9402
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97111-267-0	01	1	9403-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: H = 8-97148-496-1, 97148496	8-97111-267-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94156-591-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: G = 8-97144-392-1, 97144392	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-274-0	01	1	-

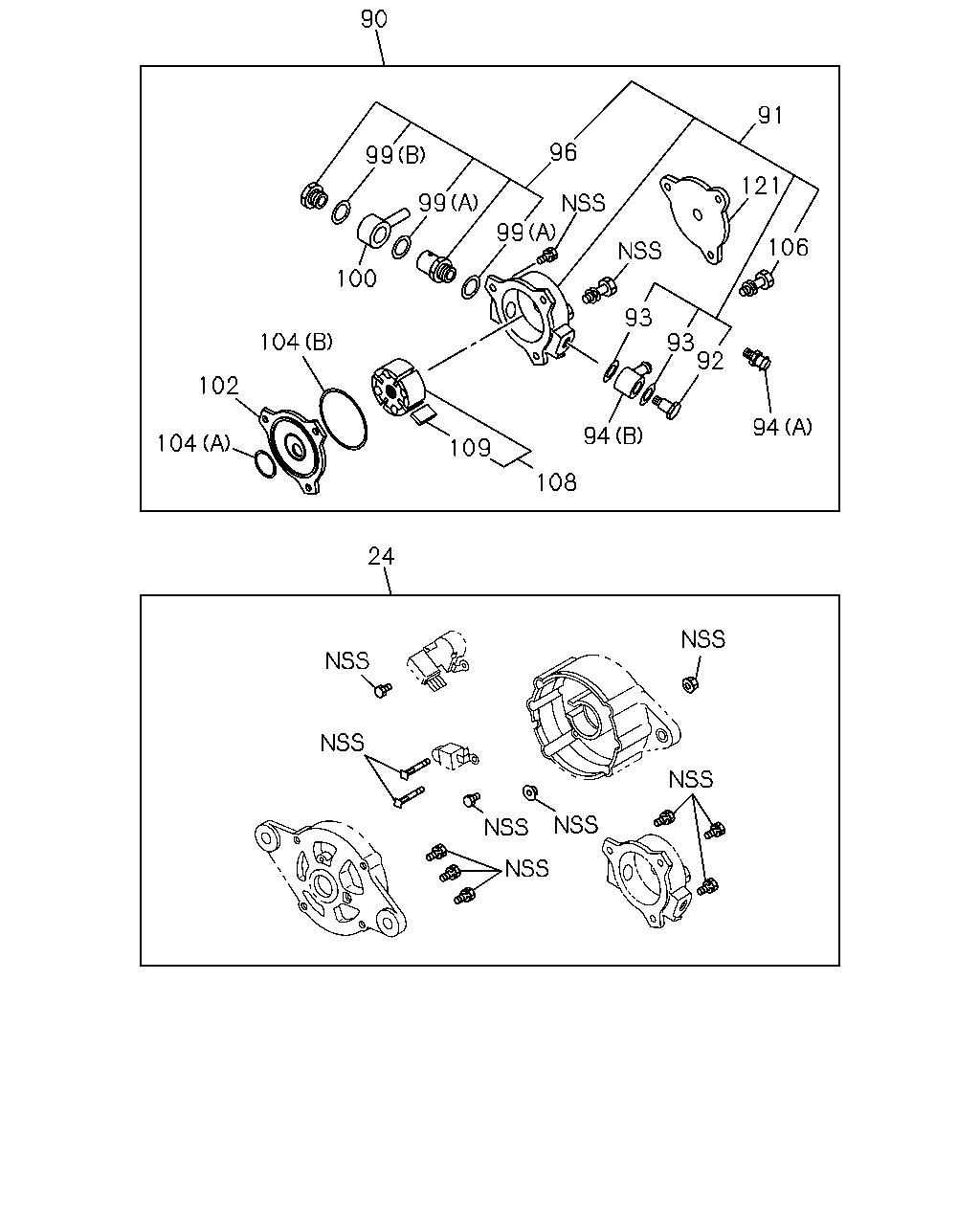

90 91 96 99 121 99 99 106 100 93 104 93 92 102 94 94 104 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-97016-302-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97075-882-2, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-295-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97131-532-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94389-772-1, 94389772	8-97018-881-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97013-171-2, 97013171	8-97038-505-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97077-524-0, 97077524	8-97080-473-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-296-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97144-392-1, 97144392	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: I = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: H = 8-97148-496-1, 97148496	8-97183-173-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94424-381-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-97018-874-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-97080-472-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97144-392-1, 97144392	8-97148-117-0	01	1	-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	5-19619-031-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	5-19679-004-2	01	1	-9402
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	5-19679-004-2	02	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-94389-772-1, 94389772, C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	5-19619-034-0	01	1	-9402
94	03.280 CONNECTOR; VAC PUMP (A) ASM PART: A = 8-94389-772-1, 94389772, C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP 04.830, (B) ASM PART: B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94156-640-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-97018-875-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: G = 8-97144-392-1, 97144392	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524, G = 8-97144-392-1, 97144392	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, F = 8-97077-524-0, 97077524, G = 8-97144-392-1, 97144392, H = 8-97148-496-1, 97148496	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=22 OD=27 ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-302-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97013-171-2, 97013171	5-19619-033-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97073-924-1, 97073924	5-19619-040-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: H = 8-97148-496-1, 97148496	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP 03.675 ASM PART: F = 8-97077-524-0, 97077524	8-94428-791-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772	8-94455-974-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, G = 8-97144-392-1, 97144392	8-97083-303-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97073-924-1, 97073924	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-97016-305-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883	8-97083-299-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: I = 8-97187-657-0, 97187657	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: H = 8-97148-496-1, 97148496	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, F = 8-97077-524-0, 97077524, G = 8-97144-392-1, 97144392, H = 8-97148-496-1, 97148496, I = 8-97187-657-0, 97187657	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94462-877-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, G = 8-97144-392-1, 97144392, H = 8-97148-496-1, 97148496	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, C = 8-97073-924-1, 97073924, F = 8-97077-524-0, 97077524, I = 8-97187-657-0, 97187657	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97073-924-1, 97073924	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-97016-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: I = 8-97187-657-0, 97187657	8-97137-333-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97144-392-1, 97144392	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97073-924-1, 97073924, I = 8-97187-657-0, 97187657	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94389-772-1, 94389772, B = 8-97013-171-2, 97013171, F = 8-97077-524-0, 97077524	8-94462-883-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97144-392-1, 97144392	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97075-882-2, 97075882, E = 8-97075-883-2, 97075883, H = 8-97148-496-1, 97148496	8-97083-298-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: G = 8-97144-392-1, 97144392	8-97148-116-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
