1 |

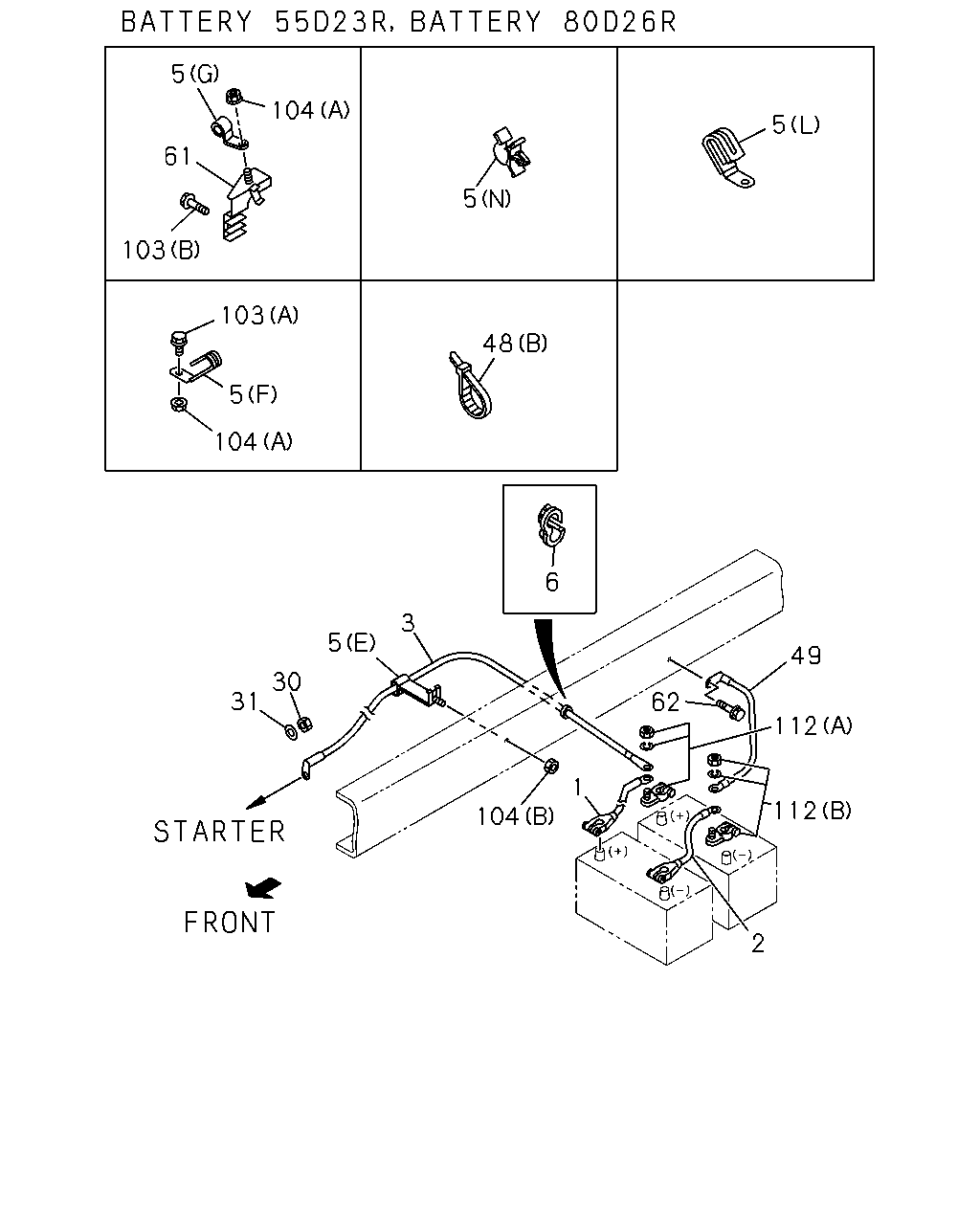

02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9511-9608 |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
1 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97033-975-1 |
01 |
1 |
9609-9801 |
● |
● |
|
|
| |
1 |
02.341 CABLE; BATTERY
LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97033-975-1 |
01 |
1 |
9609-9801 |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97033-975-1 |
01 |
1 |
9802- |
● |
● |
|
|
| |
1 |
02.341 CABLE; BATTERY
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9802- |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97033-975-1 |
01 |
1 |
9802- |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9802- |
|
● |
|
|
| |
1 |
02.341 CABLE; BATTERY
L=180
|
9-82932-233-1 |
01 |
1 |
9312-9407 |
|
|
● |
● |
| |
1 |
02.341 CABLE; BATTERY
L=180
|
1-82650-265-0 |
01 |
1 |
9408- |
|
|
● |
● |
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9511-9608 |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97034-115-1 |
01 |
1 |
9609-9801 |
● |
● |
|
|
| |
2 |
02.341 CABLE; BATTERY
LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97034-115-1 |
01 |
1 |
9609-9801 |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97034-115-1 |
01 |
1 |
9802- |
● |
● |
|
|
| |
2 |
02.341 CABLE; BATTERY
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9802- |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
LEYLAND EQUIPMENT<S9Z>
L=180
|
8-97034-115-1 |
01 |
1 |
9802- |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9802- |
|
● |
|
|
| |
3 |

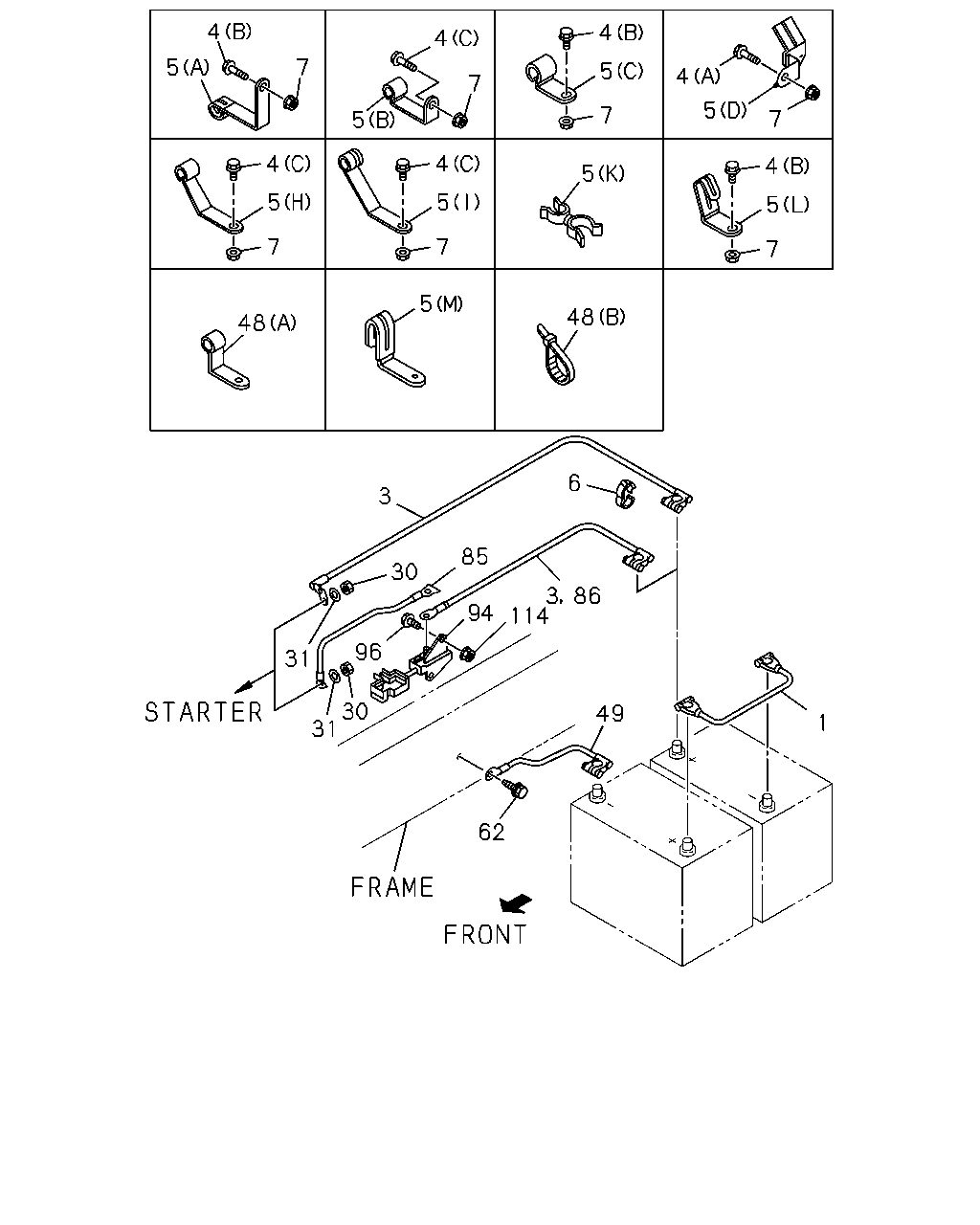

02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
|
8-97102-979-0 |
01 |
1 |
9312- |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
|
8-97068-729-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
|
8-97068-729-1 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
|
8-97068-729-1 |
01 |
1 |
9609- |
● |
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
|
8-97068-729-1 |
01 |
1 |
9609- |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 115E41R<6XD>
L=900
|
8-97015-533-2 |
01 |
1 |
9312-9402 |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
L=900
|
8-97015-533-2 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB&SHORT(NKB6WC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
L=900
|
8-97015-533-2 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
BATTERY 115E41R<6XD>
L=900
|
8-97015-533-2 |
01 |
1 |
9403-9510 |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
L=900
|
8-97015-533-2 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB&SHORT(NKB6WC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
L=900
|
8-97015-533-2 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
L=900
|
8-97015-533-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NK**W*)
L=900
|
8-97015-533-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
EXC. BATTERY 55D23R<6EU>
L=900
|
8-97015-533-2 |
01 |
1 |
9511-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=900
|
8-97015-533-2 |
01 |
1 |
9712-9801 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&SHORT(NK**WC)
L=900
|
8-97015-533-2 |
01 |
1 |
9712-9801 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
EXC. BATTERY 55D23R<6EU>
L=900
|
8-97015-533-2 |
01 |
1 |
9712-9801 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=900
|
8-97015-533-2 |
01 |
1 |
9802- |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NK**W*)
L=900
|
8-97015-533-2 |
01 |
1 |
9802- |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 55D23R<6EU>
L=900
|
8-97015-533-2 |
01 |
1 |
9802- |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
|
8-97090-341-1 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
|
8-97090-341-1 |
01 |
1 |
9511- |
● |
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF)
|
8-97094-478-3 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
|
8-97094-478-3 |
01 |
1 |
9511-9711 |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. VOLTAGE 24V<7AE>
|
8-97094-478-3 |
01 |
1 |
9712- |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF)
|
8-97094-478-3 |
01 |
1 |
9712- |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY NX200-10<S9C>
MINI BUS CHASSIS<V4B>
|
8-97102-978-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B>
BATTERY 95D31R<6DN>
|
8-97102-977-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>
L=1100
|
8-97102-975-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=1100
|
8-97102-975-0 |
01 |
1 |
9712- |
● |
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=800
|
8-97110-151-0 |
01 |
1 |
9403-9606 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=800
|
8-97110-151-0 |
01 |
1 |
9607- |
● |
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
|
8-97090-342-1 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 115E41R<6XD>
|
8-97110-140-0 |
01 |
1 |
9403-9510 |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
|
8-97110-140-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
|
8-97110-140-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
|
8-97110-140-0 |
01 |
1 |
9712- |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
|
8-97102-994-1 |
01 |
1 |
9312- |
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
|
8-97094-479-3 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SEMI MIDDLE(NK***D)
|
8-97094-479-3 |
01 |
1 |
9511- |
● |
● |
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
|
8-97094-479-3 |
01 |
1 |
9511- |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97102-971-1 |
01 |
1 |
9312- |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
REAR WIDE TREAD(V4T)
|
8-97094-478-3 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF)
|
8-97094-478-3 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. REAR WIDE TREAD(V4T)
|
8-97080-140-2 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW>
|
8-97080-140-2 |
01 |
1 |
9511- |
|
|
● |
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
|
8-97066-648-4 |
01 |
1 |
9312- |
|
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
FRT INDEPENDENT SUSPENSION(6PP)
03.430
(G)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
9312- |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(E)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
9312- |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9312-9402 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9403-9410 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9403-9410 |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9403-9410 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
(F)
ID=12 B=13 ID=6.5
|
5-09700-348-0 |
01 |
1 |
9403-9410 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>,MINI BUS
CHASSIS<V4B>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9711-9711 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9711-9711 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9711-9711 |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9711-9711 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9711-9711 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9712- |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9712- |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9712- |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
04.342
(N)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9712- |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B>
(J)
|
8-94165-399-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
02.589
(K)
ID=13 & 16.5
|
8-94169-028-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME-KICK UP<7EW>
02.589
(K)
ID=13 & 16.5
|
8-94169-028-0 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-94167-740-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME-KICK UP<7EW>
(A)
|
8-94167-740-0 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
ID=17.5
|
8-94318-404-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRAME-KICK UP<7EW>
(B)
ID=17.5
|
8-94318-404-0 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
(I)
|
8-94161-321-1 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
(I)
|
8-94161-321-1 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
01.166
(H)
|
8-94170-200-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
01.166
(H)
|
8-94170-200-0 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
03.162
(M)
|
5-09709-095-0 |
01 |
1 |
9312- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
04.342
(D)
|
8-94313-517-0 |
01 |
1 |
9312- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
01.516
(C)
ID=13 L=20
|
9-09525-235-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
01.516
(C)
ID=13 L=20
|
9-09525-235-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
01.516
(C)
ID=13 L=20
|
9-09525-235-0 |
01 |
1 |
9511- |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C)
EXC. REAR WIDE TREAD(V4T)
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9312-9410 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9411-9510 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9411-9510 |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9411-9510 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9411-9510 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C)
EXC. REAR WIDE TREAD(V4T)
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9411-9510 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9511-9608 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>,MINI BUS
CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
|
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
00.446
(L)
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9609-9710 |
|
|
● |
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
FRAME-KICK UP<7EW>
00.446
ID=12 B=14 ID=8.5
|
5-09700-350-0 |
01 |
1 |
9711- |
|
|
● |
|
| |
6 |
02.343 GROMMET; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SGL TIRE&DBL CAB&SHORT(NKB6WC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
ID=17
|
8-94128-319-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C)
REAR WIDE TREAD(V4T)
ID=17
|
8-94128-319-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
ID=17
|
8-94128-319-2 |
01 |
1 |
9511- |
● |
● |
|
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
EXC. FRAME-KICK UP<7EW>
ID=17
|
8-94128-319-2 |
01 |
1 |
9511- |
|
|
● |
|
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9312-9405 |
● |
● |
● |
|
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9312-9405 |
● |
● |
● |
|
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9406- |
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9312- |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9312- |
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>
03.162
(B)
L=140
|
5-09707-031-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>
03.162
(B)
L=140
|
5-09707-031-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9609- |
● |
● |
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9609- |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9609- |
|
● |
|
|
| |
48 |
02.343 CLIP; CABLE
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
9312-9409 |
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
EXC. FIRE TRUCK CHASSIS(V4F)
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
9410- |
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F)
(A)
ID=19 L=20
|
9-09525-832-0 |
01 |
1 |
9410-9410 |
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
FIRE TRUCK CHASSIS(V4F)
02.559
(A)
ID=20
|
8-94169-650-0 |
01 |
1 |
9411- |
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
EXC. BATTERY 80D26R<6KC>
L=250
|
8-94175-388-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
L=250
|
8-94175-388-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
EXC. BATTERY 80D26R<6KC>
L=250
|
8-94175-388-0 |
01 |
1 |
9403-9510 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9511-9711 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=250
|
8-94175-388-0 |
01 |
1 |
9712- |
● |
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9712- |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9712- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9511-9608 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=500
|
8-97035-845-3 |
01 |
1 |
9609-9801 |
● |
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
LEYLAND EQUIPMENT<S9Z>
L=500
|
8-97035-845-3 |
01 |
1 |
9609-9801 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
L=500
|
8-97035-845-3 |
01 |
1 |
9802- |
● |
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9802- |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
LEYLAND EQUIPMENT<S9Z>
L=500
|
8-97035-845-3 |
01 |
1 |
9802- |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***)
EXC. BATTERY 80D26R<6KC>
L=300
|
8-94166-037-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
EXC. BATTERY NX200-10<S9C>
L=300
|
8-94166-037-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB&SHORT(NKB6WC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
L=300
|
8-94166-037-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC)
L=300
|
8-94166-037-0 |
01 |
1 |
9511-9801 |
● |
● |
● |
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9511-9801 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9511-9801 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC)
L=300
|
8-94166-037-0 |
01 |
1 |
9802- |
● |
● |
● |
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF)
BATTERY NX200-10<S9C>
L=300
|
8-94166-037-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SMALL DUAL RR TIRE(NKN***)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF)
L=250
|
8-94311-957-0 |
01 |
1 |
9312-9510 |
● |
● |
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
L=250
|
8-94311-957-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF)
L=250
|
8-94311-957-0 |
01 |
1 |
9511-9801 |
● |
● |
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
L=250
|
8-94311-957-0 |
01 |
1 |
9511-9801 |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
L=250
|
8-94311-957-0 |
01 |
1 |
9802- |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
EXC. BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9511-9606 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9511-9606 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9607-9801 |
● |
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9607-9801 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9802- |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
MIDDLE(NK***F)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
EXC. BATTERY NX200-10<S9C>
L=400
|
8-94166-038-0 |
01 |
1 |
9312-9510 |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY 95D31R<6DN>
L=400
|
8-94166-038-0 |
01 |
1 |
9511- |
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9312-9510 |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9312-9510 |
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SEMI MIDDLE(NK***D)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9511-9711 |
● |
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9511-9711 |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB(NKC*S*)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9511-9711 |
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SEMI MIDDLE(NKC6SD)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9712- |
|
|
● |
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SGL CAB(NKC*S*)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9712- |
|
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97062-179-3 |
01 |
1 |
9312- |
● |
● |
|
|
| |
62 |
02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
| |
103 |
02.343 BOLT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9312-9406 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9407-9510 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9407-9510 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9407-9510 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9407-9510 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9407-9510 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>
04.686
(B)
M6X25 FLANGE
|
0-28080-625-0 |
01 |
1 |
9609-9702 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9703-9710 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
02.334
(B)
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9711- |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9312-9402 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9403-9406 |
● |
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9403-9406 |
● |
|
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9403-9406 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
03.670
(A)
M6X20 FLANGE
|
0-28080-620-0 |
01 |
1 |
9403-9406 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B>
07.010
(C)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9312-9503 |
|
● |
|
|
| |
103 |
02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B>
02.664
(C)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
9504-9711 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9312-9711 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9312-9711 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B>
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9312-9711 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
07.633
(B)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9712- |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9402 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9402 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9402 |
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
EXC. MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9312-9402 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9403-9510 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9403-9510 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB&SHORT(NKB6SC)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9403-9510 |
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9403-9510 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9608 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL CAB&MIDDLE(NK**SF)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
● |
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
LEYLAND EQUIPMENT<S9Z>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
EXC. MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
MINI BUS CHASSIS<V4B>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9609-9710 |
|
● |
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9711- |
● |
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9511-9608 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9609-9801 |
● |
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
LEYLAND EQUIPMENT<S9Z>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9609-9801 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9802- |
● |
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9802- |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
LEYLAND EQUIPMENT<S9Z>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9802- |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9802- |
|
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9312-9510 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9511-9608 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9511-9608 |
|
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9609-9801 |
● |
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
LEYLAND EQUIPMENT<S9Z>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9609-9801 |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
EXC. LEYLAND EQUIPMENT<S9Z>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9802- |
● |
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SMALL DUAL RR TIRE(NKN***)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9802- |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
SGL TIRE&SGL CAB&SHORT(NKB6SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF)
LEYLAND EQUIPMENT<S9Z>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9802- |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC)
DUAL RR TIRE&DBL CAB&MIDDLE(NKC6WF)
SMALL DUAL RR TIRE&SHORT(NKN6SC)
BATTERY 55D23R<6EU>,BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9802- |
|
● |
|
|
