◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#45825) — 555 parça

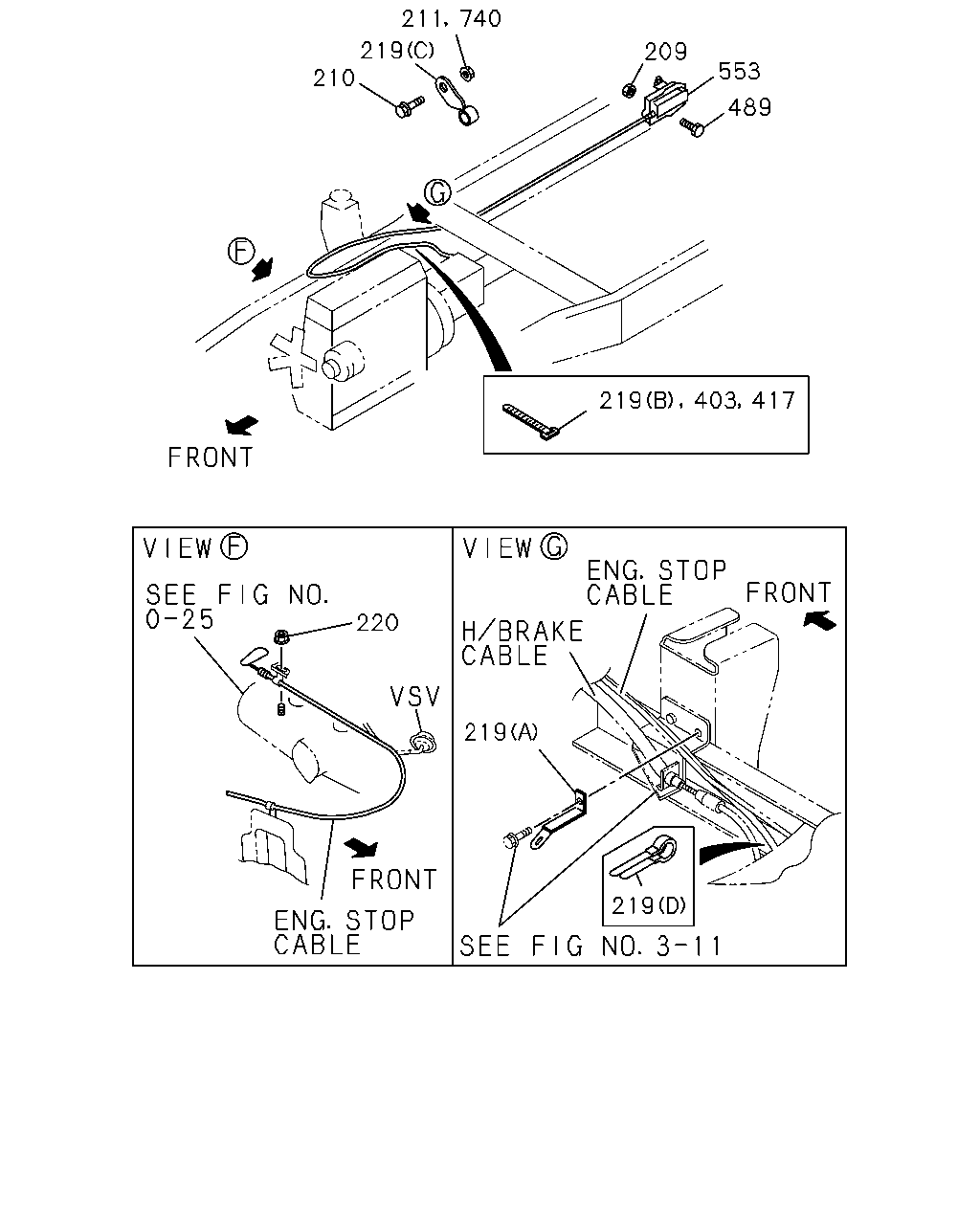

çizim 67439
211 553 489 209 442 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9312-9410 ●
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9411- ● ●
211 02.343 NUT; CABLE FIX
DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312- ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 02 1 9401-9406 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9407- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312- ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 02 1 9312- ●
403 02.343 CLIP; CABLE 8-97093-555-2 01 1 9312-9502 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 9503- ●
442 02.559 CLIP; GRAND
04.342 ID=8.3 & 10 		8-94176-792-0 01 1 9701-9711 ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 00.002 M10X25 FLANGE 		0-28481-025-0 02 1 9312-9702 ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9703-9711 ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 00.002 M10X25 FLANGE 		0-28481-025-0 02 1 9712- ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9410 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9411-9501 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9502-9510 ● ●
489 03.483 BOLT; ENG STOPPER
SGL CAB&MIDDLE(NK**SF) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9502-9510 ●
489 03.483 BOLT; ENG STOPPER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9511-9702 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9511-9702 ● ●
489 03.483 BOLT; ENG STOPPER
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9703- ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9703- ● ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97077-438-0 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. DUMP CHASSIS(V4D) 		8-97071-356-0 01 1 9312-9401 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. DUMP CHASSIS(V4D) 		8-97109-789-0 01 1 9402- ●
553 03.485 MOTOR ASM; ENG STOP
MIDDLE(NK***F) 		8-97065-454-3 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) 		8-97065-456-0 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) 		8-97093-544-1 01 1 9312-9711 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) 		8-97105-993-2 01 1 9712- ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) 		8-97093-543-1 01 1 9312-9711 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) 		8-97105-992-2 01 1 9712- ●

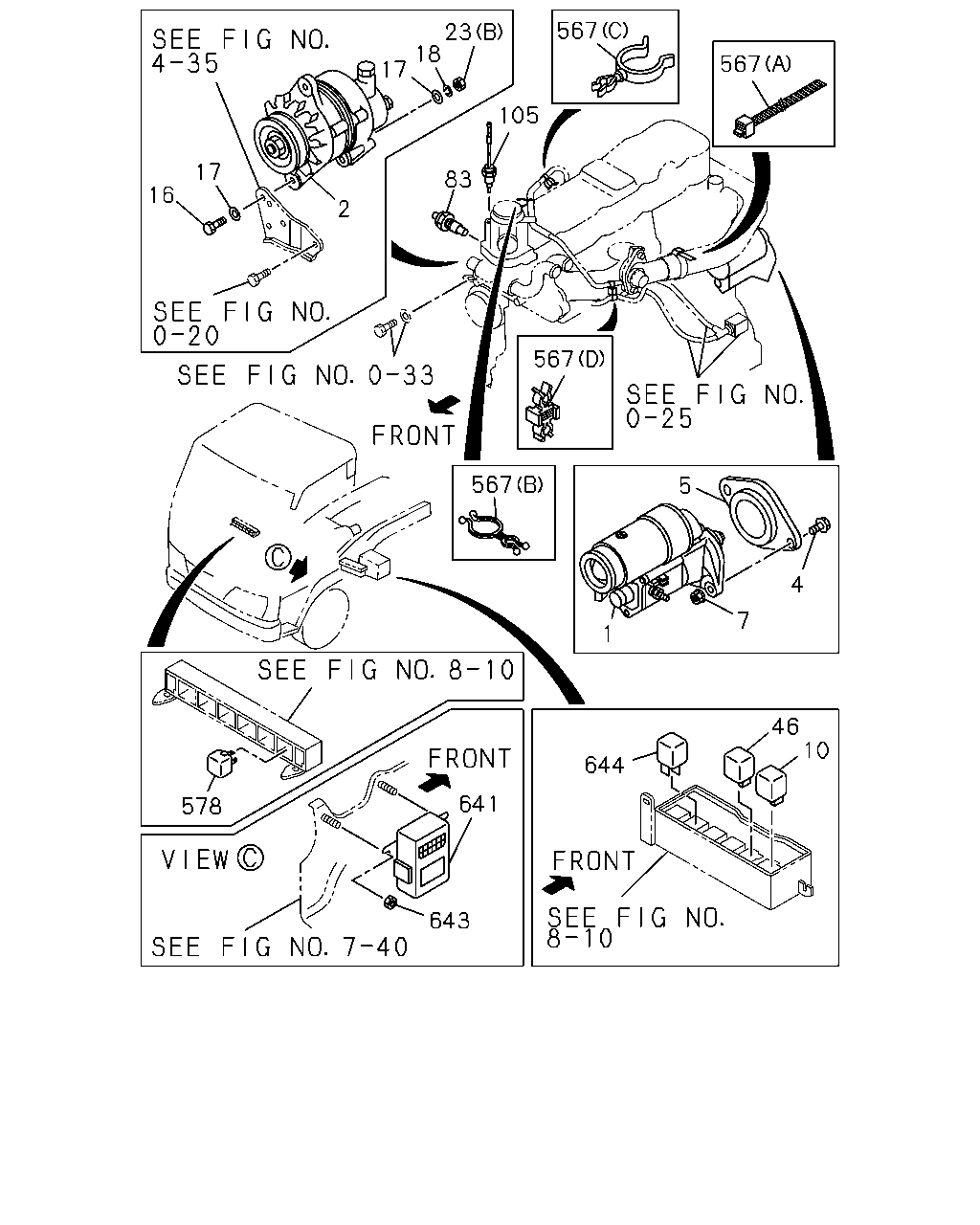

çizim 67770
567 23 18 567 17 105 17 83 16 2 567 567 5 4 7 1 46 10 644 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 24V 40A HITACHI 		8-97013-171-2 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R) 24V 25A 		8-97077-524-0 01 1 9401-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9312- ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9709- ● ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 04.898 M12X50 		0-10806-250-0 02 1 9512-9711 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9712-9805 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9806- ●
4 02.042 BOLT; STARTER
DBL CAB&SHORT(NK**WC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ● ● ●
4 02.042 BOLT; STARTER
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9312-9808 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ●
5 02.042 DISTANCE; STARTER
EXC. FRIGID ZONE(YL3) 		8-97045-783-0 01 1 9312-9708 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9705- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
REFRIGERATOR CHASSIS(V4R) M10X125 		9-09801-325-0 01 1 9401-9711 ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9711 ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9712- ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606- ●
16 02.277 BOLT; GEN
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ● ●
17 02.277 WASHER; PL,GEN
REFRIGERATOR CHASSIS(V4R) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9401-9711 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9312 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ● ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9312 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9712- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312- ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9612 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9704 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9312-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9606 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 9705-9801 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9802- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
105 01.150 SWITCH; THERMO,QOS
EXC. COLOMBIA EQUIPMENT(X74) 		8-94457-511-0 01 1 9711- ●
105 01.150 SWITCH; THERMO,QOS
DUAL RR TIRE&SHORT(NKC**C) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) EURO1 SPECIFICATION<6YW> 		8-97068-804-0 01 1 9709-9711 ●
105 01.150 SWITCH; THERMO,QOS
HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97068-804-0 01 1 9712- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9312-9406 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9407-9502 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9503-9709 ● ●
105 01.150 SWITCH; THERMO,QOS
EXC. COLOMBIA EQUIPMENT(X74) 		8-94121-152-1 01 1 9709-9710 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9709-9710 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9711-9711 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9711- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9407-9502 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 (A) L=300 		1-09707-001-0 01 1 9704- ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 9704- ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9704- ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9704- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9312- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9312- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-027-0 01 1 9312-9809 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9810- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9809 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9810- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9801 ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ● ● ●
644 02.510 RELAY; COLD START DEVICE
24V 12.5A MITUBA 		8-97062-815-0 01 1 9312-9402 ●
644 02.510 RELAY; COLD START DEVICE
DBL CAB&SHORT(NK**WC) 08.852 12V 20A 		8-97060-926-0 01 1 9403-9503 ● ● ●
644 02.510 RELAY; COLD START DEVICE
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) 08.852 12V 20A 		8-97060-926-0 01 1 9403-9503 ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> 08.852 12V 20A 		8-97060-926-1 01 1 9504- ●

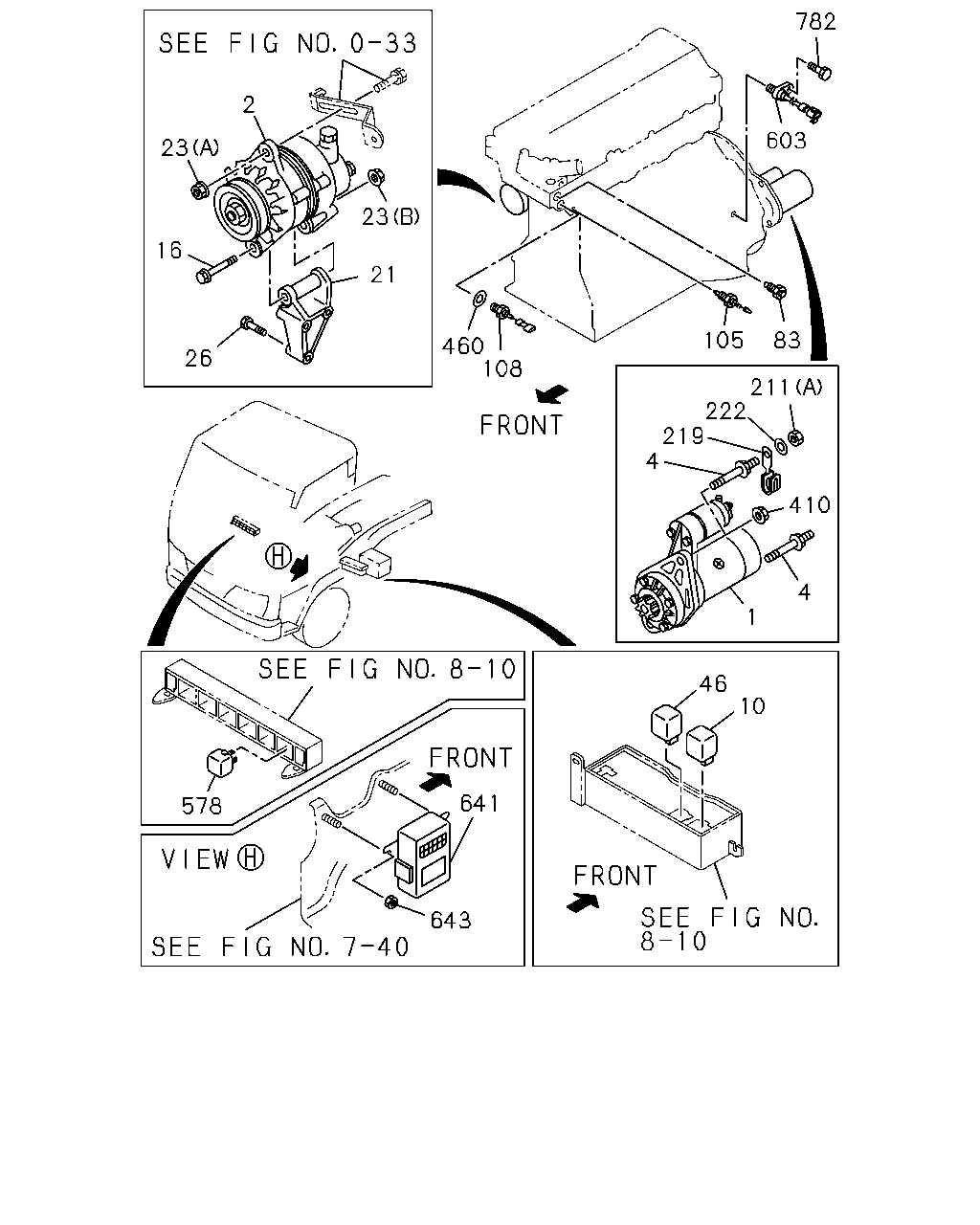

çizim 67997
782 2 603 23 23 16 21 105 83 460 108 26 211 222 219 4 410 4 1 46 10 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 24V 40A HITACHI 		8-97013-171-2 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R) 24V 25A 		8-97077-524-0 01 1 9401-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9312- ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9709- ● ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 04.898 M12X50 		0-10806-250-0 02 1 9512-9711 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9712-9805 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9806- ●
4 02.042 BOLT; STARTER
DBL CAB&SHORT(NK**WC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ● ● ●
4 02.042 BOLT; STARTER
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9312-9808 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9705- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
REFRIGERATOR CHASSIS(V4R) M10X125 		9-09801-325-0 01 1 9401-9711 ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9711 ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9712- ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606- ●
16 02.277 BOLT; GEN
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
21 02.277 BRACKET; GEN
REFRIGERATOR CHASSIS(V4R) 		8-94122-268-0 01 1 9401-9711 ●
21 02.277 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-94334-346-0 01 1 9312-9610 ●
21 02.277 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97162-519-0 01 1 9611-9711 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9712- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312- ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9312 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9712- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312- ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9612 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
26 02.277 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 01 1 9401-9711 ●
26 02.277 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) 06.606 M10X95 		8-94165-519-1 01 1 9401-9711 ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 00.724 M10X55 		5-09030-038-1 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9704 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9312-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9606 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 9705-9801 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9802- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
105 01.150 SWITCH; THERMO,QOS
EXC. COLOMBIA EQUIPMENT(X74) 		8-94457-511-0 01 1 9711- ●
105 01.150 SWITCH; THERMO,QOS
DUAL RR TIRE&SHORT(NKC**C) HIGH ALTITUDE COMPENSATOR(EE2) FAN FLUID DRIVE<KA3> COLOMBIA EQUIPMENT(X74) EURO1 SPECIFICATION<6YW> 		8-97068-804-0 01 1 9709-9711 ●
105 01.150 SWITCH; THERMO,QOS
HIGH ALTITUDE COMPENSATOR(EE2) COLOMBIA EQUIPMENT(X74) 		8-97068-804-0 01 1 9712- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9312-9406 ● ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9407-9502 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9503-9709 ● ●
105 01.150 SWITCH; THERMO,QOS
EXC. COLOMBIA EQUIPMENT(X74) 		8-94121-152-1 01 1 9709-9710 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9709-9710 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9711-9711 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9711- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9407-9502 ●
108 01.150 SWITCH; THERMO 8-97021-507-1 01 1 9312-9412 ●
108 01.150 SWITCH; THERMO
EXC. FIRE TRUCK CHASSIS(V4F) 		8-97021-507-1 01 1 9501-9511 ●
211 02.343 NUT; CABLE FIX
DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312- ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 02 1 9401-9406 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9407- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) 02.559 (C) ID=15 L=42 		1-09700-203-1 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) 03.162 (B) L=140 		5-09707-031-1 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D) (A) 		8-97033-011-0 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 03.630 (D) ID=18 L=51 		5-09700-320-0 01 1 9404-9705 ●
219 03.483 CLIP; ENG STOP CABLE
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 02.559 (D) ID=20 		5-09700-321-0 01 1 9706- ●
219 03.483 CLIP; ENG STOP CABLE 8-97101-436-0 01 1 9312- ●
222 03.485 WASHER; PL,CONT CABLE
04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 9312- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9312- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK CHASSIS(V4F) 01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9501-9511 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 9512-9604 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9312- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9312- ● ● ● ●
603 02.510 SENSOR; TACHO
TACHOMETER<U16> 09.750 		8-94370-581-0 01 1 9312-9406 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-027-0 01 1 9312-9809 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9810- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9809 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9810- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9801 ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ● ● ●
782 02.510 BOLT; SENSOR
00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9312-9510 ●
çizim 69056
211 740 219 210 209 553 489 219 403 417 220 219 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9312-9410 ●
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9411- ● ●
210 02.510 BOLT; CABLE FIX
DUMP CHASSIS(V4D) 06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9312-9711 ●
210 02.510 BOLT; CABLE FIX
DUMP CHASSIS(V4D) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
211 02.343 NUT; CABLE FIX
DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312- ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 02 1 9401-9406 ●
211 02.343 NUT; CABLE FIX
04.594 (C) M6 FLANGE 		0-91150-106-0 01 1 9407- ●
211 02.343 NUT; CABLE FIX
01.062 (A) M6 FLANGE 		0-91150-206-0 01 1 9312-9312 ●
211 02.343 NUT; CABLE FIX
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) 02.559 (C) ID=15 L=42 		1-09700-203-1 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUMP CHASSIS(V4D) 03.162 (B) L=140 		5-09707-031-1 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. DUMP CHASSIS(V4D) (A) 		8-97033-011-0 01 1 9312- ●
219 03.483 CLIP; ENG STOP CABLE
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 03.630 (D) ID=18 L=51 		5-09700-320-0 01 1 9404-9705 ●
219 03.483 CLIP; ENG STOP CABLE
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 02.559 (D) ID=20 		5-09700-321-0 01 1 9706- ●
219 03.483 CLIP; ENG STOP CABLE 8-97101-436-0 01 1 9312- ●
220 03.485 NUT; FUEL CUT CABLE
07.829 M6 FLANGE 		5-09440-004-0 01 1 9312- ●
403 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 02 1 9312- ●
403 02.343 CLIP; CABLE 8-97093-555-2 01 1 9312-9502 ●
403 02.343 CLIP; CABLE 8-97125-981-0 01 1 9503- ●
417 02.420 CLIP
DUMP CHASSIS(V4D) 02.559 L=250 		5-09707-030-1 01 1 9312- ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 00.002 M10X25 FLANGE 		0-28481-025-0 02 1 9312-9702 ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9703-9711 ●
489 03.483 BOLT; ENG STOPPER
DUMP CHASSIS(V4D) 00.002 M10X25 FLANGE 		0-28481-025-0 02 1 9712- ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9312-9410 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE(NKC***) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9411-9501 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9502-9510 ● ●
489 03.483 BOLT; ENG STOPPER
SGL CAB&MIDDLE(NK**SF) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9502-9510 ●
489 03.483 BOLT; ENG STOPPER
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9511-9702 ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9511-9702 ● ●
489 03.483 BOLT; ENG STOPPER
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9703- ● ●
489 03.483 BOLT; ENG STOPPER
DUAL RR TIRE&SHORT(NKC**C) EXC. DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9703- ● ●
553 03.485 MOTOR ASM; ENG STOP
DUMP CHASSIS(V4D) 		8-97077-438-0 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. DUMP CHASSIS(V4D) 		8-97071-356-0 01 1 9312-9401 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. DUMP CHASSIS(V4D) 		8-97109-789-0 01 1 9402- ●
553 03.485 MOTOR ASM; ENG STOP
MIDDLE(NK***F) 		8-97065-454-3 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) 		8-97065-456-0 01 1 9312- ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) 		8-97093-544-1 01 1 9312-9711 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) 		8-97105-993-2 01 1 9712- ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) 		8-97093-543-1 01 1 9312-9711 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) 		8-97105-992-2 01 1 9712- ●
740 02.100 NUT
FRT INDEPENDENT SUSPENSION(6PP) 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9402- ●

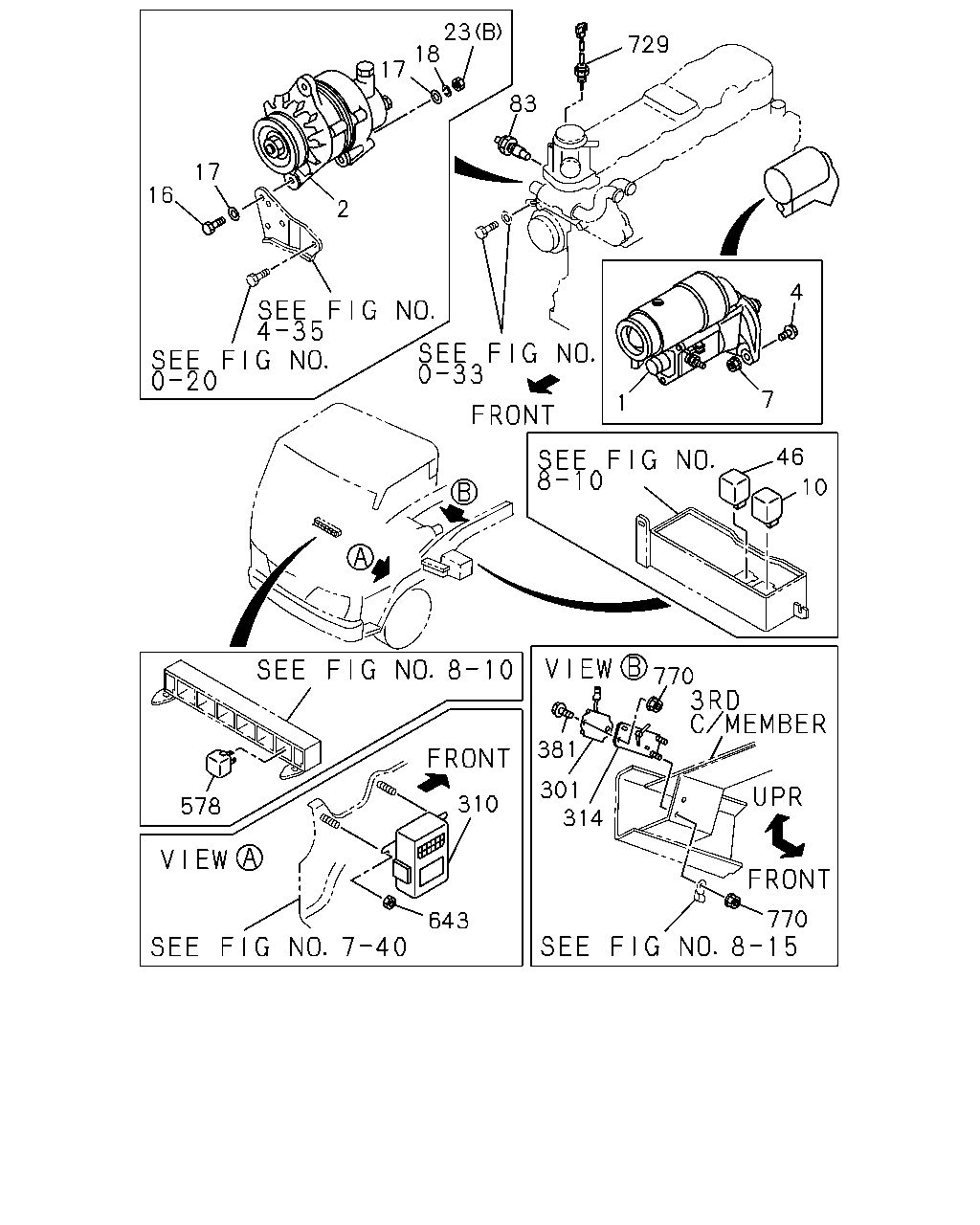

çizim 70580
23 18 729 17 83 17 16 2 4 7 1 46 10 770 381 301 314 310 578 770 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 24V 40A HITACHI 		8-97013-171-2 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R) 24V 25A 		8-97077-524-0 01 1 9401-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9312- ●
4 02.042 BOLT; STARTER
00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) 00.002 M12X84 		8-94107-769-2 02 1 9312-9703 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
FRIGID ZONE(YL3) M12X80 		0-28081-280-0 02 1 9704-9708 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9709- ● ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 04.898 M12X50 		0-10806-250-0 02 1 9512-9711 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9712-9805 ●
4 02.042 BOLT; STARTER
EUROPEAN BASIC EQUIPMENT(EK4),BRAZIL EQUIPMENT(RWF) 04.898 M12X50 		0-10806-250-0 02 1 9806- ●
4 02.042 BOLT; STARTER
DBL CAB&SHORT(NK**WC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ● ● ●
4 02.042 BOLT; STARTER
SGL TIRE&SGL CAB&SHORT(NKB6SC) SGL TIRE&DBL CAB&SHORT(NKB6WC) DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) SMALL DUAL RR TIRE&SHORT(NKN6SC) EXC. FRIGID ZONE(YL3) 05.383 		8-94478-186-1 02 1 9312-9708 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97072-825-1 02 1 9312-9808 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9809- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9705- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
REFRIGERATOR CHASSIS(V4R) M10X125 		9-09801-325-0 01 1 9401-9711 ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9711 ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9712- ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606- ●
16 02.277 BOLT; GEN
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ● ●
17 02.277 WASHER; PL,GEN
REFRIGERATOR CHASSIS(V4R) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9401-9711 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9312 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ● ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9312 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9712- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312- ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9612 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9704 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9312-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9606 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 9705-9801 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9802- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9312- ●
310 02.510 CONTROLLER; QOS 8-97047-029-0 01 1 9312- ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9312- ●
381 02.183 BOLT; DROPPING RESISTOR
04.686 M6X25 FLANGE 		0-28080-625-0 02 1 9312-9702 ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9703- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9312- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9312- ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9801 ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ● ● ●
729 01.150 SENSOR; QOS THERMO 8-97018-064-0 01 1 9312- ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9312- ●

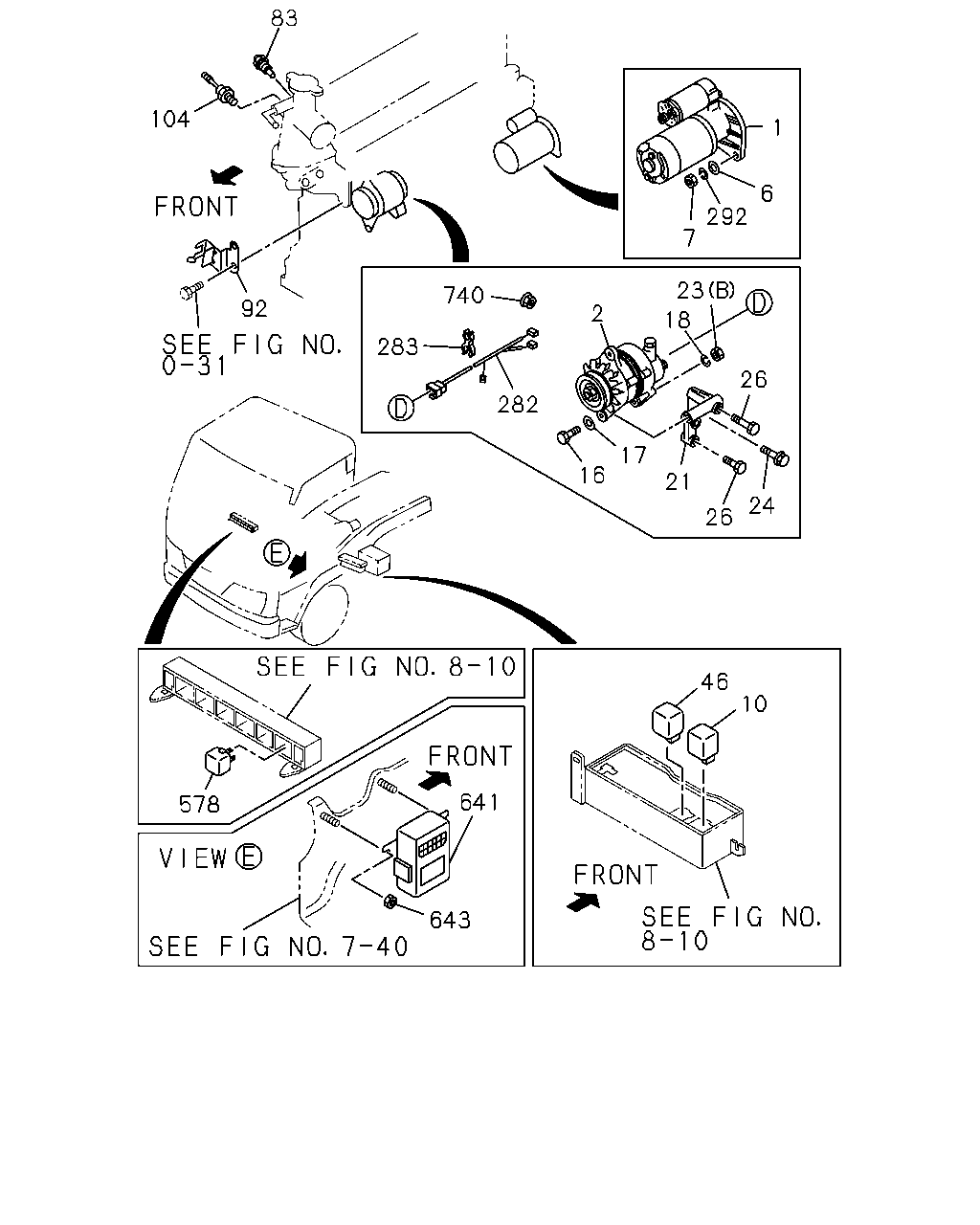

çizim 71132
83 104 1 6 292 7 23 740 92 2 18 283 26 282 17 16 21 24 26 46 10 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9312-9511 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<7AF> 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.2KW DENSO 		8-97042-997-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EURO2 SPECIFICATION<7AF> 12V 2.0KW 		8-97120-356-0 01 1 9512-9603 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. FRIGID ZONE(YL3) 12V 2.0KW 		8-97120-356-1 01 1 9604-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9709- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. FRIGID ZONE(YL3) 12V 2.0KW 		8-94448-959-2 01 1 9312-9708 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 3.5KW 		8-94333-438-0 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97100-926-2 01 1 9312- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97065-526-0 01 1 9312-9404 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9405- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97073-924-1 01 1 9312-9802 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9803- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) EXC. REFRIGERATOR CHASSIS(V4R) 24V 40A HITACHI 		8-97013-171-2 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(6MN) 24V 40A HITACHI 		8-97013-171-2 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. REFRIGERATOR CHASSIS(V4R) 24V 25A 		8-97077-524-0 01 1 9401-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. REFRIGERATOR CHASSIS(V4R), GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9312-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V40A(6MN) 24V 25A HITACHI 		8-94389-772-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97075-883-2 01 1 9312-9603 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97148-496-1 01 1 9604-9711 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9712- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9312- ●
6 02.042 WASHER; PL,STARTER
03.430 ID=12.5 		9-09160-512-0 02 1 9312- ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9312- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9312-9511 ●
7 02.042 NUT; STARTER
EURO2 SPECIFICATION<7AF> 05.816 M12 		9-99110-412-0 02 1 9512- ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9512- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 		8-97036-359-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9705- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97036-358-1 01 1 9312-9704 ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9705- ● ● ● ●
16 02.277 BOLT; GEN
M10X133 		5-09000-169-1 01 1 9312-9612 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9701-9711 ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
REFRIGERATOR CHASSIS(V4R) M10X125 		9-09801-325-0 01 1 9401-9711 ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9712- ●
16 02.277 BOLT; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9312-9711 ●
16 02.277 BOLT; GEN
01.840 M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 9712- ●
16 02.277 BOLT; GEN
M10X127 		8-97065-159-1 01 1 9312-9605 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 9606- ●
16 02.277 BOLT; GEN
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9503- ●
17 02.277 WASHER; PL,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 02 1 9312-9612 ● ●
17 02.277 WASHER; PL,GEN
REFRIGERATOR CHASSIS(V4R) 07.874 ID=10.5 OD=18 		9-09160-510-0 01 1 9401-9711 ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9312-9312 ● ●
18 02.317 WASHER; LK,GEN
00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ● ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9401-9612 ●
18 02.317 WASHER; LK,GEN
REFRIGERATOR CHASSIS(V4R) 00.002 ID=10.2 		9-09150-510-0 01 1 9701-9711 ●
21 02.277 BRACKET; GEN
REFRIGERATOR CHASSIS(V4R) 		8-94122-268-0 01 1 9401-9711 ●
21 02.277 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-94334-346-0 01 1 9312-9610 ●
21 02.277 BRACKET; GEN
EXC. REFRIGERATOR CHASSIS(V4R) 		8-97162-519-0 01 1 9611-9711 ●
21 02.277 BRACKET; GEN 8-97162-519-0 01 1 9712- ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9312- ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9312-9312 ● ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9401-9607 ●
23 02.277 NUT; GEN
00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ● ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9607-9612 ●
23 02.277 NUT; GEN
REFRIGERATOR CHASSIS(V4R) 00.002 (B) M10 		9-09110-510-0 01 1 9701-9711 ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9712- ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9312- ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9312-9612 ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9701-9711 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
24 02.277 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) 09.171 M10X30 W/LK WASHER 		0-50041-030-0 01 1 9401-9711 ●
26 02.277 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 01 1 9401-9711 ●
26 02.277 BOLT; GEN BRKT
REFRIGERATOR CHASSIS(V4R) 06.606 M10X95 		8-94165-519-1 01 1 9401-9711 ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
01.652 M10X25 W/LK WASHER 		0-50041-025-0 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
09.008 M10X90 W/LK WASHER 		0-50041-090-0 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
EXC. REFRIGERATOR CHASSIS(V4R) 00.724 M10X55 		5-09030-038-1 01 1 9312-9711 ●
26 02.277 BOLT; GEN BRKT
00.724 M10X55 		5-09030-038-1 01 1 9712- ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9312- ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9312- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 02 1 9312-9704 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 02 1 9705- ●
46 02.510 RELAY; GLOW PLUG
02.100 12V 80A 		8-97036-358-1 01 1 9312-9606 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 02.100 12V 80A 		8-97036-358-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9802- ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9312-9606 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 02.100 		8-97036-359-1 01 1 9607-9704 ●
46 02.510 RELAY; GLOW PLUG
02.100 		8-97036-359-1 01 1 9607-9704 ● ●
46 02.510 RELAY; GLOW PLUG
VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9705-9801 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 9705-9801 ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9802- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9312-9406 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9503-9801 ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9802- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9407-9502 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9407-9502 ●
92 01.251 CLIP; SENSOR CONNECTOR
TACHOMETER<U16> 		8-97021-314-0 01 1 9312-9801 ●
92 01.251 CLIP; SENSOR CONNECTOR
TACHOMETER<U16> 		8-97021-314-0 01 1 9802- ●
92 01.251 CLIP; SENSOR CONNECTOR
HIGH ALTITUDE COMPENSATOR(EE2) 		8-97021-314-0 01 1 9802- ●
92 01.251 CLIP; SENSOR CONNECTOR
POWER STEERING<N40> 		8-97021-314-0 01 1 9802- ●
104 01.150 SWITCH; THERMO,GLOW PLUG 8-94121-152-1 01 1 9312- ●
282 02.480 HARNESS; EXT,GEN
REFRIGERATOR CHASSIS(V4R) 		8-97032-095-2 01 1 9403-9711 ●
283 01.097 CLIP; BAND,HARNESS,AC GEN
REFRIGERATOR CHASSIS(V4R) 02.589 ID=13 & 16.5 		8-94169-028-0 01 1 9403-9711 ●
292 02.042 WASHER; LK,STARTER
04.634 ID=12.2 		9-09150-512-0 02 1 9312- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-1 01 1 9312- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9312- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-027-0 01 1 9312-9809 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9810- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97047-028-0 01 1 9312-9809 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9810- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9312-9801 ● ● ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9802- ● ● ●
740 02.100 NUT
FRT INDEPENDENT SUSPENSION(6PP) 04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9402- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
