◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#45824) — 24 parça
çizim 16993
93
BalonParca AdiParca NoAdetTipApplied Date A B
93 03.675 HOSE ASM
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 08.962 L=130 SERVICED BY L=3000 		0-04730-300-0 01 1 9607-9706 ●
93 03.675 HOSE ASM
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97183-373-0 01 1 9707-9710 ●
93 03.675 HOSE ASM
EURO1 SPECIFICATION<6YW> TURBOCHARGER<K51> 		8-97189-246-0 01 1 9711-9711 ●
93 03.675 HOSE ASM
TURBOCHARGER<K51> 		8-97189-246-0 01 1 9712- ●

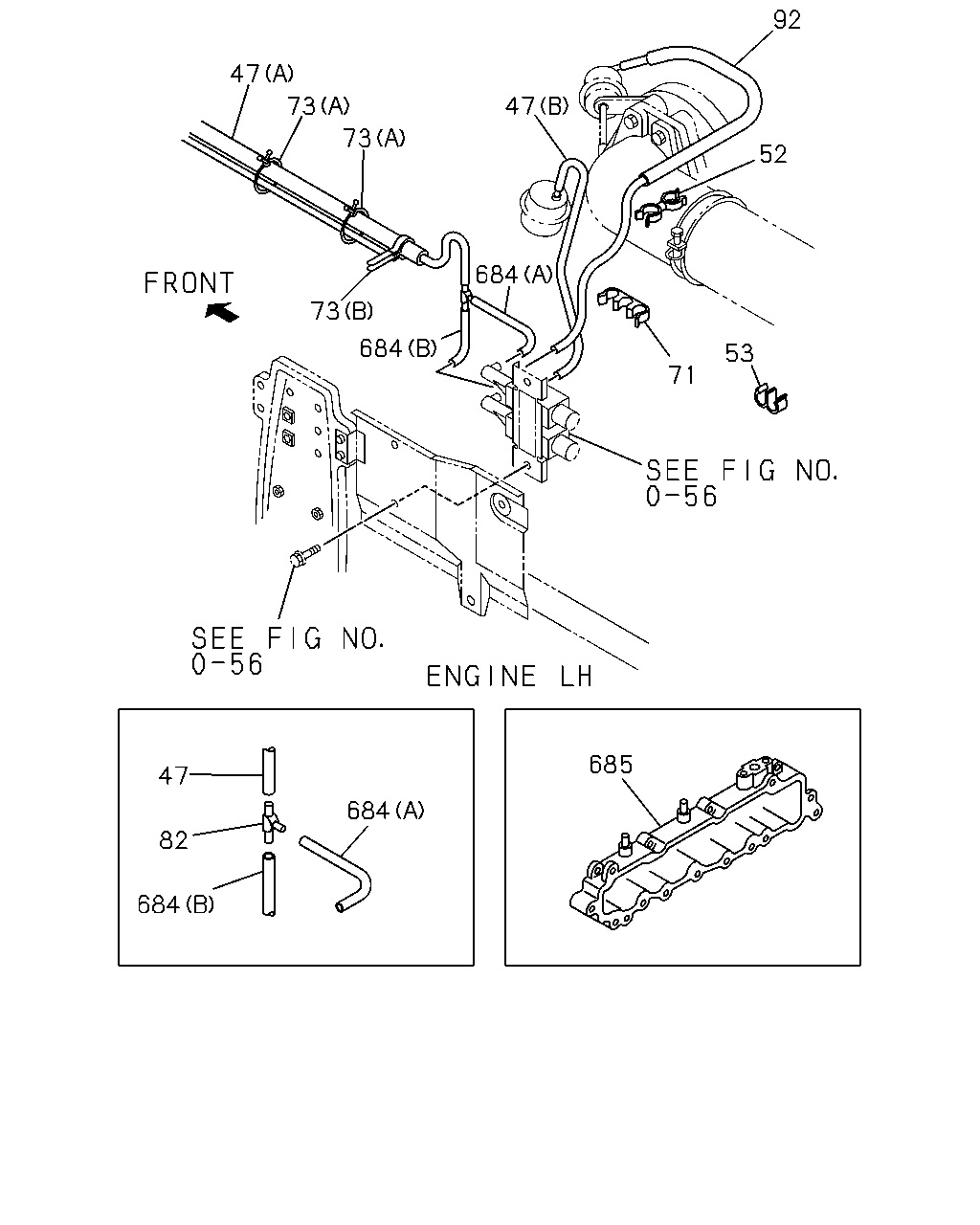

çizim 67438
92 47 47 73 73 52 684 73 684 53 71 685 47 684 82 684
BalonParca AdiParca NoAdetTipApplied Date A B
47 03.675 HOSE; VAC,VSV
EXHAUST BRAKE<NF8> (A) L=930 		8-97089-489-1 01 1 9312- ●
47 03.675 HOSE; VAC,VSV
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=200 SERVICED BY L=3000 		0-04730-300-0 01 1 9401-9510 ●
47 03.675 HOSE; VAC,VSV
EXHAUST BRAKE<NF8> AIR CONDITIONER MANUAL CONT(C60) 08.962 (B) L=200 SERVICED BY L=3000 		0-04730-300-0 01 1 9511- ●
52 03.680 CLIP; VSV HOSE
EXHAUST BRAKE<NF8> 		8-97022-016-0 01 1 9312-9504 ●
52 03.680 CLIP; VSV HOSE
EXHAUST BRAKE<NF8> ID=7.5 & 7.5 		8-97019-084-0 01 1 9505- ●
53 03.675 CLIP; 2 HOSE
EXHAUST BRAKE<NF8> 03.162 ID=6.8X2 		8-94126-636-0 01 1 9312-9312 ●
53 03.675 CLIP; 2 HOSE
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 ID=6.8X2 		8-94126-636-0 01 1 9401- ●
71 03.680 CLIP; RUBBER HOSE
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9401-9510 ●
71 03.680 CLIP; RUBBER HOSE
EXHAUST BRAKE<NF8> AIR CONDITIONER MANUAL CONT(C60) ID=6.8 & 6.8 & 6.8 		8-94208-734-0 01 1 9511- ●
73 03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 16.065 (A) ID=20 		1-09709-068-0 02 1 9312- ●
73 03.680 CLIP; VAC HOSE
EXHAUST BRAKE<NF8> 01.240 (B) ID=14 L=47 		5-09700-319-0 01 1 9312- ●
82 03.680 JOINT; 3 WAY
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY 		8-94208-695-0 01 1 9401-9510 ●
82 03.680 JOINT; 3 WAY
EXHAUST BRAKE<NF8> AIR CONDITIONER MANUAL CONT(C60) 3WAY 		8-94208-695-0 01 1 9511- ●
92 03.675 HOSE; VAC,THROTTLE BODY
EXHAUST BRAKE<NF8> L=520 		8-97089-490-2 01 1 9312- ●
684 03.675 HOSE; VAC,JOINT TO VSV
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (A) L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9401-9510 ●
684 03.675 HOSE; VAC,JOINT TO VSV
EXHAUST BRAKE<NF8> AIR CONDITIONER MANUAL CONT(C60) 08.962 L=30 SERVICED BY L=3000 		0-04730-300-0 01 1 9511- ●
684 03.675 HOSE; VAC,JOINT TO VSV
DUAL RR TIRE&SGL CAB&SHORT(NKC6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (B) L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 9401-9510 ●
684 03.675 HOSE; VAC,JOINT TO VSV
EXHAUST BRAKE<NF8> AIR CONDITIONER MANUAL CONT(C60) 08.962 L=50 SERVICED BY L=3000 		0-04730-300-0 01 1 9511- ●
685 03.680 CASE; INLET,EGR 8-97136-372-0 01 1 9511-9606 ●
685 03.680 CASE; INLET,EGR 8-97146-873-0 01 1 9607- ●
